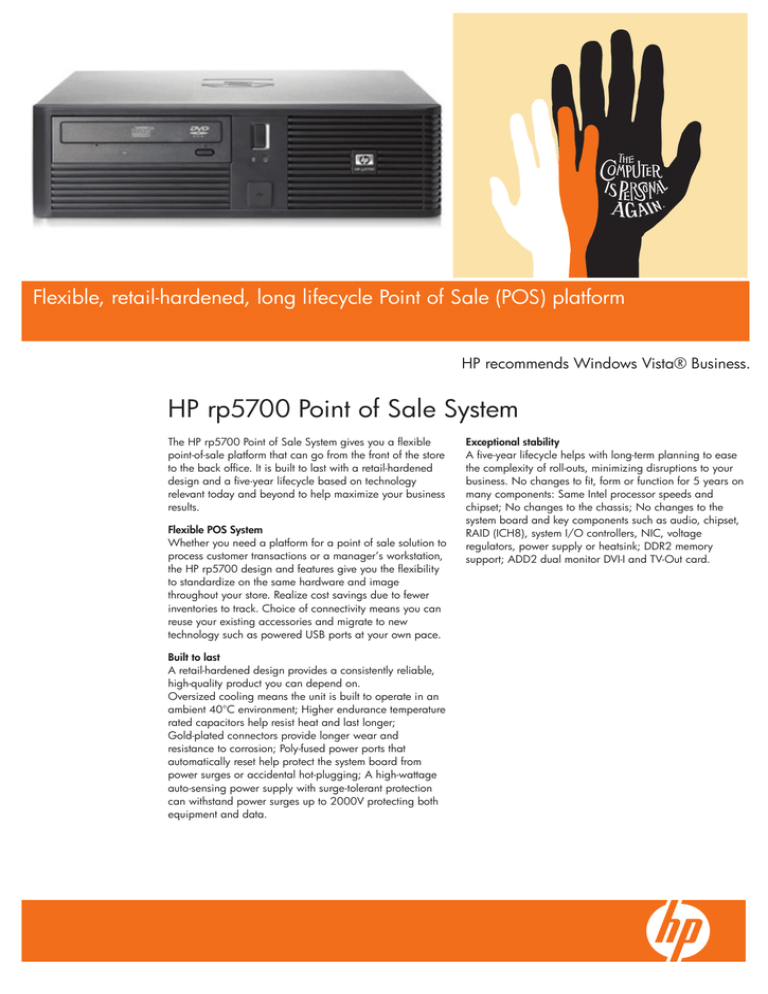

Flexible, retail-hardened, long lifecycle Point of Sale (POS) platform
HP recommends Windows Vista® Business.
HP rp5700 Point of Sale System
The HP rp5700 Point of Sale System gives you a flexible
point-of-sale platform that can go from the front of the store
to the back office. It is built to last with a retail-hardened
design and a five-year lifecycle based on technology
relevant today and beyond to help maximize your business
results.
Flexible POS System
Whether you need a platform for a point of sale solution to
process customer transactions or a manager’s workstation,
the HP rp5700 design and features give you the flexibility
to standardize on the same hardware and image
throughout your store. Realize cost savings due to fewer
inventories to track. Choice of connectivity means you can
reuse your existing accessories and migrate to new
technology such as powered USB ports at your own pace.
Built to last
A retail-hardened design provides a consistently reliable,
high-quality product you can depend on.
Oversized cooling means the unit is built to operate in an
ambient 40°C environment; Higher endurance temperature
rated capacitors help resist heat and last longer;
Gold-plated connectors provide longer wear and
resistance to corrosion; Poly-fused power ports that
automatically reset help protect the system board from
power surges or accidental hot-plugging; A high-wattage
auto-sensing power supply with surge-tolerant protection
can withstand power surges up to 2000V protecting both
equipment and data.
Exceptional stability
A five-year lifecycle helps with long-term planning to ease
the complexity of roll-outs, minimizing disruptions to your
business. No changes to fit, form or function for 5 years on
many components: Same Intel processor speeds and
chipset; No changes to the chassis; No changes to the
system board and key components such as audio, chipset,
RAID (ICH8), system I/O controllers, NIC, voltage
regulators, power supply or heatsink; DDR2 memory
support; ADD2 dual monitor DVI-I and TV-Out card.
HP rp5700 Point of Sale System
HP recommends Windows Vista® Business.
Operating system
Genuine Windows XP Professional
Genuine Windows Vista® Business
Genuine Windows Embedded for Point of Service (WEPOS)
FreeDOS
Processor
Intel® Core™2 Duo Processors E6400 ( 2.13 GHz, 2 MB L2 cache, 1066 MHz FSB) or Intel® Pentium™ Dual Core Processors E2160 ( 1.8 GHz, 1 MB L2
cache, 800 MHz FSB)
Chipset
Intel® Q963 Express Chipset
Memory
From 512 MB to 4 GB DDR2 Synch DRAM PC2-5300 non-ECC (667 MHz); 4 DIMM; Expandable to 4 GB through four industry-standard DIMM slots
Maximum Memory
Expandable to 4 GB through four industry-standard DIMM slots
Hard drive
80, 160 or 250 GB SATA 3.0 GB/s
CD-ROM/DVD
16x/48x DVD-ROM or SATA SuperMulti DVD+/-RW (DL/DF) LightScribe
Flexible Disk Drive
No Floppy Disk Drive
Drive Bays
1 external 5.25 inch optical drive bay; 2 internal 3.5 inch ATA Hard Drive
Expansion slots
2 full-height PCI, 1 low-profile PCI Express x1 and 1 SDVO/ADD2 connector
Memory slots
4 DIMM
Graphics
Integrated® Intel Graphics Media Accelerator 3000; Graphics memory is shared with system memory. Graphics memory usage can vary from 8 to 256 MB
depending on the amount of system memory installed and system load
Audio
Integrated High Definition audio with Realtek 2 channel ALC262 codec with internal speaker
Communications
Integrated Broadcom NetXtreme Gigabit Ethernet NIC
I/O ports
Rear: 4 USB 2.0, 2 standard serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1VGA, audio in/out, on some models: 4 powered USB optional ports, 2 optional
powered serial port, Front: 2 USB 2.0
Keyboard description
(Optional) HP Standard Keyboard (PS/2 or USB) or HP USB BG1650 Keyboard or HP USB Smartcard Keyboard
Mouse/pointing device description
(Optional) HP PS/2 2-Button Optical Scroll Mouse or HP USB 2-Button Optical Scroll Mouse
Software
HP Client Management Solutions, HP Backup and Recovery Manager, Symantec AntiVirus with 60 day Live Update, PDF complete, Microsoft® Internet
Explorer, Altiris Deployment Solution Agent (Preloaded), HP Open View Radia Management Agent, Intel(R) Matrix Storage Manager(with RAID)
Optional preloaded software, only for certain configurations: Microsoft® Office 2007 Basic, Microsoft® Office 2007 Professional, Microsoft® Office 2007
Small Business
Security
Kensington Cable Lock, Smart Card Manager (sold separately), HP Desktop Security Lock Kit (lock and cable) (sold separately), Wall Mount/Security Sleeve
(sold separately)
Dimensions (W x D x H)
34.0 x 38.0 x 10.0 cm
Power
240 watts maximum
Warranty
Protected by HP Services, including a 3-3-3 standard warranty delivering 3 years of on-site and 3 years of next business-day service for parts and labour.
Terms and conditions vary by country
© 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Certain Windows Vista® product features require advanced or additional hardware. See http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista® Upgrade Advisor can help you determine which features of Windows Vista® will run on your computer. To download the
tool, visit www.windowsvista.com/upgradeadvisor.
Intel, Core, and Pentium are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation in the
United States and/or other countries. Linux is a U.S. registered trademark of Linus Torvalds.
For more information, please visit www.hp.com/eur/pos
4AA1-1225EEE. November 2007
HP rp5700 Point of Sale System
HP recommends Windows Vista® Business.
Recommended accessories
512 MB PC5300 DDR2
Need more memory? This industry-standard DDR-2 DIMM provides your desktop PC
with faster speeds, higher data bandwidths and reduced power consumption.
Product number: PX975AA
HP 80 GB SATA 3.0Gb/s Hard
Drive RoHS
Serial ATA Hard Drives maximise the performance of HP Business PCs by providing
the technologies to meet your increasing storage demands.
Product number: PY276AA
ADD2 SDVO DVI-/TV-Out
Adapter
When you need a high-quality visual experience with a reliable, crystal-clear display,
the HP ADD2 SDVO DVI-I/TV Adapter card provides a convenient, low-cost method
of connecting a digital display to your mainstream or high-end desktop PC.
Product number: RZ585AA
HP Dual Band Wireless PCI
Adapter A+G
Allows network users to wirelessly share resources and an Internet connection, giving
them continuous access to corporate resources, e-mail, and the Internet.
Product number: PZ928AA
For more information, please visit www.hp.com/eur/pos
