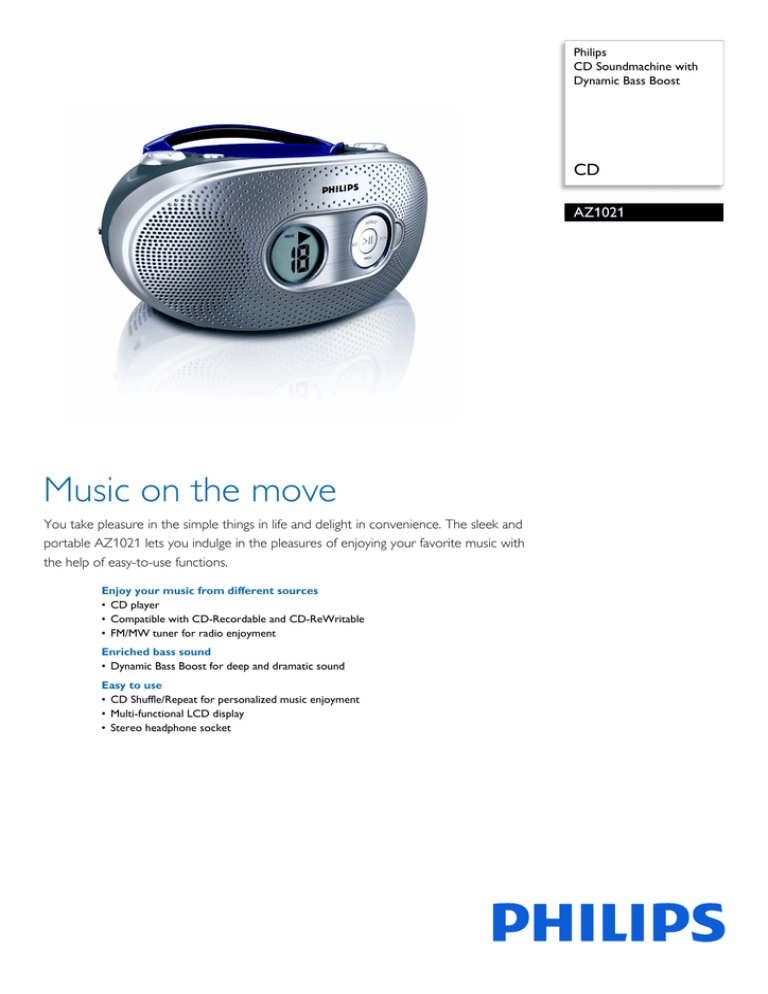

Philips AZ1021/12 Datasheet

Philips AZ1021/12 Datasheet
Philips
CD Soundmachine with
Dynamic Bass Boost
CD
AZ1021
Music on the move
You take pleasure in the simple things in life and delight in convenience. The sleek and
portable AZ1021 lets you indulge in the pleasures of enjoying your favorite music with
the help of easy-to-use functions.
Enjoy your music from different sources
• CD player
• Compatible with CD-Recordable and CD-ReWritable
• FM/MW tuner for radio enjoyment
Enriched bass sound
• Dynamic Bass Boost for deep and dramatic sound
Easy to use
• CD Shuffle/Repeat for personalized music enjoyment
• Multi-functional LCD display
• Stereo headphone socket
AZ1021/12
CD Soundmachine with Dynamic Bass Boost
CD
Specifications
Audio Playback
•
•
•
•
Loader Type: Top
Playback Media: CD, CD-R, CD-RW
Programmable Tracks: 20
Disc Playback Modes: Fast Forward/Backward,
Next/Previous Track Search, Repeat Play, Shuffle
Play
Tuner/Reception/Transmission
• Tuner Bands: FM, MW
• Antenna: FM Antenna
Connectivity
CD player
Power
CD-R/RW Compatible
• Headphone: 3.5 mm
•
•
•
•
Battery type: LR14
Battery voltage: 1.5 V
Mains power
Number of batteries: 6
Accessories
• Included accessories: AC Power Cord, User
Manual, Warranty certificate
Sound
•
•
•
•
•
Highlights
Output power (RMS): 2x1W
Sound Enhancement: Dynamic Bass Boost
Sound System: Stereo
Speaker diameter: 3.5"
Volume Control: rotary
Convenience
• Display Type: LCD
• Display Digits: 2
Dimensions
• Packaging dimensions (W x H x D):
325 x 180 x 280 mm
• Product dimensions (W x H x D):
290 x 143 x 240 mm
• Weight: 1.76 kg
• Weight incl. Packaging: 2.32 kg
•
CD player
CD-Rewritable Compatible means that your audio
set can play both CD-Recordable (CD-R) and CDRewritable (CD-RW) discs. CD-R discs are
recordable once and can be played on any audio CD
player while CD-RW discs can be recorded and
rewritten multiple times and can only be played back
on compatible audio CD players. The laser pick-up
and CD decoder circuitry of CD-RW compatible
players are specially designed to read the special
audio CD-RW phase-change recording layer,
ensuring you can always play your home-recorded
discs on your audio CD system.
FM/MW tuner
FM/MW (AM) stereo tuner
Dynamic Bass Boost
Dynamic Bass Boost maximizes your music
enjoyment by emphasizing the bass content of the
music throughout the range of volume settings from low to high – at the touch of a button! Bottomend bass frequencies usually get lost when the
volume is set at a low level. To counteract this,
Dynamic Bass Boost can be switched on to boost
bass levels, so you can enjoy consistent sound even
when you turn down the volume.
CD Shuffle/Repeat
The "Shuffle/Repeat" function helps you to get rid of
the boredom of hearing your music played in the
same order all the time. After loading your favorite
songs to the player, all you have to do is to select one
of the modes - "Shuffle" or "Repeat" for your tunes
to be played in different modes order. Enjoy the
different and unique music experience every time
you hook up to your player.
Multi-functional LCD display
Multi-functional LCD display
Stereo headphone socket
Connect your own headphone for a more personal
listening experience whenever you want it. You can
enjoy your favorite music in great sound without
disturbing others by connecting your headphones to
the player.
Issue date 2014-02-11
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 2.0.10
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 9073 101 02821
EAN: 87 10895 98463 8
www.philips.com
