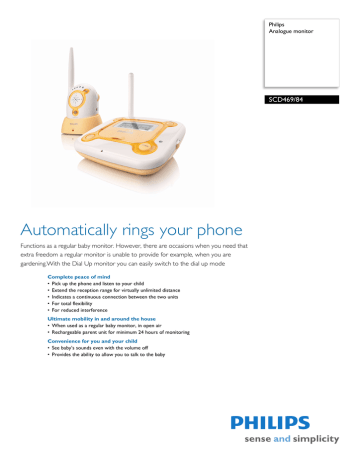

Philips SCD469/84 Datasheet

Philips SCD469/84 Datasheet
Analogue monitor
Automatically rings your phone
Functions as a regular baby monitor. However, there are occasions when you need that
extra freedom a regular monitor is unable to provide for example, when you are
gardening.With the Dial Up monitor you can easily switch to the dial up mode
Complete peace of mind
• Pick up the phone and listen to your child
• Extend the reception range for virtually unlimited distance
• Indicates a continuous connection between the two units
• For total flexibility
• For reduced interference
Ultimate mobility in and around the house
• When used as a regular baby monitor, in open air
• Rechargeable parent unit for minimum 24 hours of monitoring
Convenience for you and your child
• See baby’s sounds even with the volume off
• Provides the ability to allow you to talk to the baby
Analogue monitor
Frequency band: 40.675 - 40.690 MHz
Number of pilot tones: 4
Pilot tone: Digital
Maximum range: 200 m
Number of channels: 4
Auto out of range warning
Battery low indication
Power on indication
Volume control
AC/DC adaptor: 9V DC 200mA
Batteries: 4 x AA baby unit not incl.
Belt clip: Belt clip on parent unit
User manual
Quick start guide
Digital signal confirmation
• Battery voltage: 4.8 V
• Power supply: 230 V
• Operating time on battery: 12 hour(s)
Indicates a continuous connection between the baby
and the parent unit with visible and audible link
Works with land lines and mobile
For total flexibility.
4 channels
For reduced interference.
Sound-level lights on parent unit
Sometimes its a great help to 'see' when your baby
makes a sound. This row of lights provide you with a
clear visual indication.
Issue date 2010-11-22
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 3.2.1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 0000 000 00000
