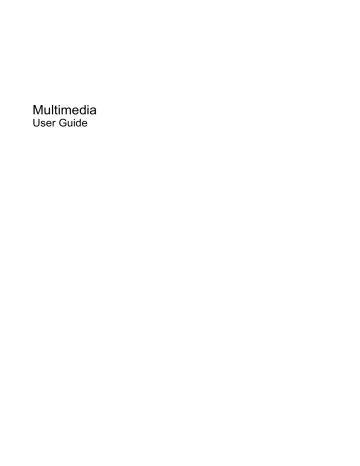

Multimedia

Multimedia

User Guide

© Copyright 2007 Hewlett-Packard

Development Company, L.P.

Windows is a U.S. registered trademark of

Microsoft Corporation.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.

Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: July 2007

Document Part Number: 446625-001

Product notice

This user guide describes features that are common to most models. Some features may not be available on your computer.

iii

iv Product notice

Table of contents

1 Using multimedia hardware

Using the audio features ...................................................................................................................... 1

Using the audio-in (microphone) jack .................................................................................. 2

Using the audio-out (headphone) jack ................................................................................. 2

Adjusting the volume ........................................................................................................... 3

Using the video features ....................................................................................................................... 4

Using the external monitor port ............................................................................................ 4

Using the S-Video-out jack ................................................................................................. 5

Using an optical drive .......................................................................................................................... 6

Identifying the installed optical drive .................................................................................... 6

Inserting an optical disc (CD or DVD) .................................................................................. 6

Removing an optical disc (CD or DVD) ............................................................................... 7

When the disc tray opens .................................................................................... 7

When the disc tray does not open ....................................................................... 7

Using the media activity hotkeys .......................................................................................................... 9

2 Working with multimedia software

Opening preinstalled multimedia software ......................................................................................... 11

Installing multimedia software from a disc .......................................................................................... 11

Using multimedia software ................................................................................................................. 11

Preventing playback disruptions ......................................................................................................... 12

Changing DVD region settings ........................................................................................................... 13

Observing the copyright warning ........................................................................................................ 13

Index ................................................................................................................................................................... 14

v

vi

1 Using multimedia hardware

Using the audio features

The following illustration and table describe the audio features of the computer.

(3)

(4)

(5)

(6)

(7)

Component

(1)

(2)

Speakers (2)

Audio-out (headphone) jack

Audio-in (microphone) jack

Volume down hotkey

Volume up hotkey

Volume mute hotkey

Internal microphone

Description

Produce computer sound.

Connects optional powered stereo speakers, headphones, ear buds, headset, or television audio.

Connects an optional computer headset or microphone.

Press fn+pg dn to decrease speaker volume.

Press fn+pg up to increase speaker volume.

Press fn+home to mute and restore speaker sound.

Records sound.

Using the audio features 1

Using the audio-in (microphone) jack

The computer is equipped with a stereo (dual-channel) microphone jack that supports an optional stereo array or monaural microphone. Using sound recording software with external microphones allows for stereo recordings.

When connecting a microphone to the microphone jack, use a microphone with a 3.5-mm plug.

Using the audio-out (headphone) jack

WARNING!

To reduce the risk of personal injury, adjust the volume before putting on headphones, earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety and

Environmental Notices.

CAUTION:

To prevent possible damage to an external device, do not plug a single sound channel

(monaural) connector into the headphone jack.

In addition to connecting headphones, the headphone jack is used to connect the audio-out function of an audio device such as external powered speakers or a stereo system.

When connecting a device to the headphone jack, use only a 3.5-mm stereo plug.

When a device is connected to the headphone jack, the speakers are disabled.

2 Chapter 1 Using multimedia hardware

Adjusting the volume

You can adjust the volume using the following controls:

Computer volume buttons:

To mute or restore volume, press fn+home (1).

To increase volume, press fn+pg up (2).

To decrease volume, press fn+pg dn (3).

NOTE:

The tapping sound made by the volume button is enabled at the factory. You can disable the sound in the Setup Utility (f10).

Windows® volume control:

a.

Click the Volume icon in the notification area, at the far right of the taskbar.

b.

Increase or decrease the volume by moving the slider up or down. Click the Mute icon to mute the volume.

– or –

a.

Right-click the Volume icon in the notification area, and then click Open Volume Mixer.

b.

In the Speakers column, increase or decrease the volume by moving the slider up or down.

You can also mute the volume by clicking the Mute icon.

If the Volume icon is not displayed in the notification area, follow these steps to add it:

a.

Right-click in the notification area, and then click Properties.

b.

Click the Notification Area tab.

c.

Under System icons, select the Volume check box.

d.

Click OK.

Program volume control:

Volume can also be adjusted within some programs.

Using the audio features 3

Using the video features

Using the external monitor port

The external monitor port connects an external display device, such as an external monitor or a projector, to the computer.

To connect a display device, connect the device cable to the external monitor port.

NOTE:

If a properly connected external display device does not display an image, press fn+f4 to transfer the image to the device. Repeatedly pressing fn+f4 alternates the screen image between the computer display and the device.

4 Chapter 1 Using multimedia hardware

Using the S-Video-out jack

The 7-pin S-Video-out jack connects the computer to an optional S-Video device such as a television,

VCR, camcorder, overhead projector, or video capture card.

To transmit video signals through the S-Video-out jack, you need an S-Video cable, available from most electronics retailers. If you are combining audio and video functions, such as playing a DVD movie on your computer and displaying it on your television, you also need a standard audio cable, available from most electronics retailers, to connect to the headphone jack.

The computer can support one S-Video device connected to the S-Video-out jack, while simultaneously supporting an image on the computer display or on any other supported external display.

NOTE:

The S-Video connection provides a higher quality image than a composite-video connection.

To connect a video device to the S-Video-out jack:

1.

Plug one end of the S-Video cable into the S-Video-out jack on the computer.

2.

Plug the other end of the cable into the video device, as instructed in the user guide included with the device.

3.

Press the fn+f4 keys to switch the image between display devices connected to the computer.

Using the video features 5

Using an optical drive

Depending on the type of optical drive and software installed in your computer, the optical drive plays, copies, and creates CDs or DVDs.

Identifying the installed optical drive

Select Start > Computer.

Inserting an optical disc (CD or DVD)

1.

Turn on the computer.

2.

Press the release button (1) on the drive bezel to release the disc tray.

3.

Pull out the tray (2).

4.

Hold the disc by the edges to avoid touching the flat surfaces and position the disc label-side up over the tray spindle.

NOTE:

If the tray is not fully accessible, tilt the disc carefully to position it over the spindle.

5.

Gently press the disc (3) down onto the tray spindle until the disc snaps into place.

6.

Close the disc tray.

NOTE:

After you insert a disc, a short pause is normal. If you have not selected a media player, an

AutoPlay dialog box opens. It prompts you to select how you want to use the media content.

6 Chapter 1 Using multimedia hardware

Removing an optical disc (CD or DVD)

There are 2 ways to remove a disc, depending on whether the disc tray opens normally or not.

When the disc tray opens

1.

Press the release button (1) on the drive bezel to release the disc tray, and then gently pull out the tray (2) until it stops.

2.

Remove the disc (3) from the tray by gently pressing down on the spindle while lifting the outer edges of the disc. Hold the disc by the edges and avoid touching the flat surfaces.

NOTE:

If the tray is not fully accessible, tilt the disc carefully as you remove it.

3.

Close the disc tray and place the disc in a protective case.

When the disc tray does not open

1.

Insert the end of a paper clip (1) into the release access in the front bezel of the drive.

2.

Press in gently on the paper clip until the tray is released, and then pull out the tray (2) until it stops.

Using an optical drive 7

3.

Remove the disc (3) from the tray by gently pressing down on the spindle while lifting the outer edges of the disc. Hold the disc by the edges and avoid touching the flat surfaces.

NOTE:

If the tray is not fully accessible, tilt the disc carefully as you remove it.

4.

Close the disc tray and place the disc in a protective case.

8 Chapter 1 Using multimedia hardware

Using the media activity hotkeys

A media activity hotkey is a combination of the fn key (1) and a function key.

When an audio CD or a DVD is not playing, press fn+f9 (2) to play the disc.

When an audio CD or a DVD is playing, use the following hotkeys:

To pause or resume playing the disc, press fn+f9 (2).

◦ To stop the disc, press fn+f10 (3).

To play the previous track of an audio CD or the previous chapter of a DVD, press fn+f11

(4).

◦ To play the next track of an audio CD or the next chapter of a DVD, press fn+f12 (5).

Using the media activity hotkeys 9

2 Working with multimedia software

The computer includes preinstalled multimedia software. Some computer models also include additional multimedia software on an optical disc.

Depending on the hardware and software included with the computer, the following multimedia tasks may be supported:

Playing digital media, including audio and video CDs, audio and video DVDs, and Internet radio

Creating or copying data CDs

Creating, editing, and burning audio CDs

Creating, editing, and burning a video or movie to a DVD or video CD

CAUTION:

To prevent loss of information or damage to a disc, observe the following guidelines:

Before writing to a disc, connect the computer to a reliable external power source. Do not write to a disc while the computer is running on battery power.

Before writing to a disc, close all open programs except the disc software you are using.

Do not copy directly from a source disc to a destination disc or from a network drive to a destination disc. Instead, copy from a source disc or network drive to your hard drive, and then copy from your hard drive to the destination disc.

Do not use the computer keyboard or move the computer while the computer is writing to a disc. The write process is sensitive to vibration.

NOTE:

For information about using software included with the computer, refer to the software manufacturer's instructions that may be provided on disc, as online Help files, or on the software manufacturer's Web site.

10 Chapter 2 Working with multimedia software

Opening preinstalled multimedia software

1.

Select Start > All Programs.

2.

Click the program that you want to open.

Installing multimedia software from a disc

1.

Insert the disc into the optical drive.

2.

When the installation wizard opens, follow the on-screen instructions.

3.

Restart the computer if prompted to do so.

Using multimedia software

1.

Select Start > All Programs, and then open the multimedia program you want to use. For example, if you want to use Windows Media Player to play an audio CD, click Windows Media Player.

NOTE:

Some programs may be located in subfolders.

2.

Insert the media disc, such as an audio CD, into the optical drive.

3.

Follow the instructions on the screen.

– or –

1.

Insert the media disc, such as an audio CD, into the optical drive.

An AutoPlay dialog box opens.

2.

Click a multimedia task from the list of tasks.

Opening preinstalled multimedia software 11

Preventing playback disruptions

To reduce the possibility of playback disruption:

Save your work and close all open programs before playing a CD or a DVD.

Do not connect or disconnect hardware while playing a disc.

Do not initiate Hibernation or Sleep while playing a disc. Otherwise, you may see a warning message asking if you want to continue. If this message is displayed, click No. After you click No, the computer may behave in either of the following ways:

Playback may resume.

– or –

The playback window in the multimedia program may close. To return to playing the CD or DVD, click the Play button in your multimedia program to restart the disc. In rare cases, you may need to exit the program and then restart it.

12 Chapter 2 Working with multimedia software

Changing DVD region settings

Most DVDs that contain copyrighted files also contain region codes. The region codes help protect copyrights internationally.

You can play a DVD containing a region code only if the region code on the DVD matches the region setting on your DVD drive.

CAUTION:

The region settings on your DVD drive can be changed only 5 times.

The region setting you select the fifth time becomes the permanent region setting on the DVD drive.

The number of region changes remaining is displayed on the DVD Region tab.

To change settings through the operating system:

1.

Select Start > Computer > System properties.

2.

In the left pane, click Device Manager.

NOTE:

Windows includes the User Account Control feature to improve the security of your computer. You may be prompted for your permission or password for tasks such as installing applications, running utilities, or changing Windows settings. Refer to Windows online Help for more information.

3.

Click the "+" sign next to DVD/CD-ROM drives.

4.

Right-click the DVD drive for which you want to change region settings, and then click

Properties.

5.

Make the desired changes on the DVD Region tab.

6.

Click OK.

Observing the copyright warning

It is a criminal offense, under applicable copyright laws, to make unauthorized copies of copyrightprotected material, including computer programs, films, broadcasts, and sound recordings. Do not use this computer for such purposes.

Changing DVD region settings 13

Index

A

audio features 1

audio-in (microphone) jack 1, 2 audio-out (headphone) jack 1, 2

B

buttons

volume down 1 volume mute 1, 3 volume up 1

C

CD

inserting 6

playing 12

protecting 10

removing 7

writing to 10

copyright warning 13

D

DVD

changing region setting 13

inserting 6

playing 12

protecting 10

removing 7

writing to 10

DVD region settings 13

E

external monitor port 4

I

internal microphone, identifying 1

J

jacks

audio-in (microphone) 1, 2 audio-out (headphone) 1, 2

S-Video-out 5

M

media activity hotkeys 9

microphone, internal 1

microphones, supported 2

monitor, connecting 4

multimedia software

described 10

using 11

mute button 1, 3

O

optical disc

inserting 6

removing 7

writing to 10

optical drive

playing 12

protecting 10

P

ports

external monitor 4

programs

multimedia 10

using 11

projector, connecting 4

protecting playback 12

R

region codes, DVD 13

S

S-Video-out jack 5

software

multimedia 10

using 11

speakers 1

T

TV 2

V

VCR 2

volume down button 1

volume mute button 1, 3

volume up button 1

volume, adjusting 3

14 Index

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
