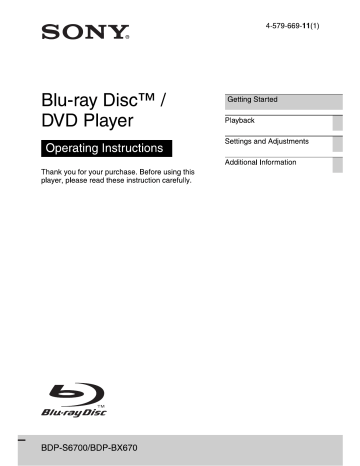

SONY.
Blu-ray Disc™ /
DVD Player
Operating Instructions
Thank you for your purchase. Before using this
player, please read these instruction carefully.
=)
Blu-ray Disc
BDP-S6700/BDP-BX670
4-579-669-11(1)
Getting Started
Playback
Settings and Adjustments
Additional Information
WARNING
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
Do not expose batteries or appliances with
battery-installed to excessive heat, such as
sunshine and fire.
CAUTION
The use of optical instruments with this product
will increase eye hazard. As the laser beam used
in this Blu-ray Disc/DVD player is harmful to
eyes, do not attempt to disassemble the cabinet.
Refer servicing to qualified personnel only.
CAUTION CLASS 3R VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID DIRECT EYE EXPOSURE.
VORSICHT KLASSE 3R SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN
GEÖFFNET. UNMITTELBAREN AUGENKONTAKT VERMEIDEN.
ADVARSEL SYNLIG 0G USYNLIG LASERSTRALING AF KLASSE 3R VED ÁBNING.
UNDGA AT SE DIREKTE PA STRALEN,
ADVARSEL SYNLIG 0G USYNLIG LASERSTRÁLING | KLASSE 38 NAR DEKSEL APNES.
UNNGA DIREKTE EXSPONERING AV OYNENE.
VARNING - KLASS 3R SYNLIG OCH OSYNLIG LASERSTRALNING NAR DENNA DEL AR
OPPNAD. UNDVIK ATT DIREKT EXPONERA OGONEN FOR STRALNINGEN.
VARO! AVATTUNA LUOKAN 3R NAKYVAA JA NAKYMATONTA LASERSATEILYA.
VALTA KATSEEN SUORAA ALTISTAMISTA.
Ban HAIR AA BERET H E HRA
AE HERREN RE.
This label is located on the laser protective
housing inside the enclosure.
а @
I RISK OF ELECTRIC SHOCK |
DO NOT OPEN e
ATTENTIÓN
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
Precautions
* The nameplate is located on the bottom of the
unit.
* To prevent fire or shock hazard, do not place
objects filled with liquids, such as vases, on the
apparatus.
Install this unit so that the AC adaptor can be
unplugged from the wall socket immediately in
the event of trouble.
IC Radiation Exposure Statement:
This equipment complies with IC radiation
exposure limits set forth for an uncontrolled
environment and meets RSS-102 of the IC
radio frequency (RF) Exposure rules. This
equipment should be installed and operated
keeping the radiator at least 20cm or more
away from person’s body (excluding
extremities: hands, wrists, feet and ankles).
Contains IC : 2878D-J20H086
For Customers in Canada
This device complies with Industry Canada’s
licence-exempt RSSs. Operation 1s subject to
the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
e 5150-5 250 MHz band is restricted to indoor
operations only.
* High-power radars are allocated as primary
users (i.e. priority users) of the bands 5 250 -
5 350 MHz and 5 650 - 5 850 MHz and that
these radars could cause interference and/or
damage to LE-LAN devices.
For United States customers. Not
applicable in Canada, including in the
province Of Quebec.
Pour les consommateurs Aux Etats-
Unis. Non applicable au Canada, y
compris la province de Québec.
FCC WARNING
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
This transmitter must not be co-located or
operated in conjunction with any other
antenna or transmitter.
The shielded Interface cable (LAN cable)
must be used with the equipment in order to
comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC
Rules.
©
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, 1f not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there 1s no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
1s encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the
receiver 1s connected.
— Consult the dealer or an experienced radio/
TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio
frequency (RF) Exposure Guidelines. This
equipment should be installed and operated
keeping the radiator at least 20cm or more
away from person’s body (excluding
extremities: hands, wrists, feet and ankles).
Contains FCC ID : MCLJ20HO086
Compliance with FCC requirement
15.407©
Data transmision 1s always initiated Бу
software, which 1s the passed down through
the MAC, through the digital and analog
baseband, and finally to the RF chip. Several
speacial packets are initiated by MAC. These
are the only ways the digital baseband portion
will turn on the RF transmitter, which it then
turns off at the end of the packet. Therefore,
the transmitter will be on only while one of the
aforementioned packets 1s being transmitted.
In other words, this device automatically
discontinue transmission in case of either
absence of information to transmit or
operational failure.
Frequency Tolerance : + 20 ppm
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet.
10) Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
11) Only use attachments/accessories specified by
the manufacturer.
12) Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart 1s used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
VAT
A:
13) Unplug this apparatus during lightning storms
or when unused for long periods of time.
14) Refer all servicing to qualified service
personnel. Servicing 1s required when the
apparatus has been damaged in any way, such
as power-supply cord or plug 1s damaged,
liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
Owner’s Record
The model and serial numbers are located at the
bottom of the unit. Record the serial number in
the space provided below. Refer to them
whenever you call upon your Sony dealer
regarding this product.
Model No.
Serial No.
For customers in the USA
If this product is not working properly, please call
1-800-222-SONY (7669).
For Customers in Canada
If this product is not working properly, please
contact our Customer Information Service
Center at 1-877-899-7669 or write to us at:
Customer Information Service 115 Gordon Baker
Road, Toronto, Ontario, M2H 3R6
Precautions
This equipment has been tested and found to
comply with the limits set out in the EMC
Directive using a connection cable shorter
than 3 metres.
On placement
Place the player in a location with adequate
ventilation to prevent heat build-up in the
player.
e To reduce the risk of fire, do not cover the
ventilation opening of the appliance with
newspapers, tablecloths, curtains, etc.
* Do not expose the appliance to naked flame
sources (for example, lighted candles).
* Do notinstall this player in a confined space,
such as a bookshelf or similar unit.
* Do not place the player outdoors, in
vehicles, on ships, or on other vessels.
* Tf the player 1s brought directly from a cold
to a warm location, or 1s placed in a very
damp room, moisture may condense on the
lenses inside the player. Should this occur,
the player may not operate properly. In this
case, remove the disc and leave the player
turned on for about half an hour until the
moisture evaporates.
* Do not install the player in an inclined
position. It 1s designed to be operated 1п a
horizontal position only.
* Do not place metal objects in front of the
front panel. It may limit reception of radio
waves.
* Do not place the player in a place where
medical equipment is in use. It may cause a
malfunction of medical instruments.
If you use a pacemaker or other medical
device, consult your physician or the
manufacturer of your medical device before
using the wireless LAN function.
* Do not place heavy or unstable objects on
the player.
* Do not place any objects other than discs on
the disc tray. Doing so may cause damage to
the player or the object.
* Take out any discs from the tray when you
move the player. If you don't, the disc may
be damaged.
e Disconnect the AC adaptor and all other
cables from the player when you move the
player.
On power sources
* The player 1s not disconnected from the AC
power source as long as itis connected to the
wall outlet, even if the player itself has been
turned off.
* Disconnect the player from the wall outlet if
you are not going to use the player for along
time. To disconnect the AC adaptor, grasp
the plug itself; never pull the cord.
* Observe following points to prevent the AC
adaptor being damaged. Do not use the AC
adaptor if 1t 1s damaged, as doing so may
result in an electric shock or fire.
— Do not pinch the AC adaptor between the
player and wall, shelf, etc.
— Do not put anything heavy on the AC
adaptor or pull on the AC adaptor itself.
On AC adaptor
* Use the supplied AC adaptor for this player,
as other adaptors may cause a malfunction.
* Do not disassemble or reverse-engineer.
* Do not confine the AC adaptor in a closed
place such as a bookshelf or an AV cabinet.
* Do not connect the AC adaptor to a
traveler’s electric transformer, which may
generate heat and cause a malfunction.
* Do not drop or apply shock.
On adjusting volume
Do not turn up the volume while listening to a
section With very low level inputs or no audio
signals. Your ears and the speakers may be
damaged when the sound level reaches the
peak.
On cleaning
Clean the cabinet, panel, and controls with a
soft cloth. Do not use any type of abrasive pad,
scouring powder or solvent such as alcohol or
benzine.
On cleaning discs, disc/lens cleaners
Do not use cleaning discs or disc/lens cleaners
(including wet or spray types). These may
cause the apparatus to malfunction.
On replacement of parts
In the events that this player is repaired,
repaired parts may be collected for reuse or
recycling purposes.
On connecting to the HDMI OUT jack
Observe the following as improper handling
may damage the HDMI OUT jack and the
connector.
e Carefully align the HDMI OUT jack on the
rear of the player and the HDMI connector
by checking their shapes. Make sure the
connector 1s not upside down or tilted.
HDMI OUT
HDMI OUT
* Be sure to disconnect the HDMI cable when
moving the player.
* Hold the HDMI connector straight when
connecting or disconnecting the HDMI
cable. Do not twist or force the HDMI
connector into the HDMI OUT jack.
On watching 3D video images
Some people may experience discomfort
(such as eye strain, fatigue, or nausea) while
watching 3D video images. Sony recommends
that all viewers take regular breaks while
watching 3D video images. The length and
frequency of necessary breaks will vary from
person to person. You must decide what works
best. If you experience any discomfort, you
should stop watching the 3D video images
until the discomfort ends; consult a doctor if
you believe necessary. You should also
review (1) the instruction manual and/or the
caution message of any other device used
with, or Blu-ray Disc contents played with this
product and (11) our website
(http://esupport.sony.com/) for the latest
information. The vision of young children
(especially those under six years old) 1s still
under development. Consult your doctor (such
as a pediatrician or eye doctor) before
allowing young children to watch 3D video
images. Adults should supervise young
children to ensure they follow the
recommendations listed above.
IMPORTANT NOTICE
Caution: This player 1s capable of holding
a still video image or on-screen display
image on your television screen
indefinitely. If you leave the still video
image or on-screen display image
displayed on your TV for an extended
period of time you risk permanent damage
to your television screen. Plasma display
panel televisions and projection
televisions are susceptible to this.
If you have any questions or problems
concerning your player, please consult your
nearest Sony dealer.
Copy Protection
Please be advised of the advanced content
protection systems used in both Blu-ray
Disc™ and DVD media. These systems,
called AACS (Advanced Access Content
System) and CSS (Content Scramble System),
may contain some restrictions on playback,
analog output, and other similar features. The
operation of this product and the restrictions
placed may vary depending on the date of
purchase, as the governing board of the AACS
may adopt or change its restriction rules after
the time of purchase.
Cinavia Notice
This product uses Cinavia technology to limit
the use of unauthorized copies of some
commercially-produced film and videos and
their soundtracks. When a prohibited use of an
unauthorized copy is detected, a message will
be displayed and playback or copying will be
interrupted.
More information about Cinavia technology is
provided at the Cinavia Online Consumer
Information Center at http://www.cinavia.com.
To request additional information about
Cinavia by mail, send a postcard with your
mailing address to: Cinavia Consumer
Information Center, P.O. Box 86851, San
Diego, CA, 92138, USA.
Copyrights and Trademarks
e Java is a trademark of Oracle and/or its
affiliates.
* Manufactured under license from Dolby
Laboratories. Dolby and the double-D
symbol are trademarks of Dolby
Laboratories.
* For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS
Licensing Limited. DTS, the Symbol,
DTS and the Symbol together are registered
trademarks, and DTS 2.0+Digital Out 1s a
trademark of DTS, Inc. O DTS, Inc. All
Rights Reserved.
= dts
2.0 Digital Out
* The terms HDMI? and HDMI High-
Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the
United States and other countries.
Blu-ray Disc™, Blu-ray™, BD-LIVETM,
BONUSVIEW™_ and the logos are
trademarks of the Blu-ray Disc Association.
Blu-ray 3D™ and Blu-ray 3D™ logo are
trademarks of the Blu-ray Disc Association.
Blu-ray
SLD.
“DVD Logo” 1s a trademark of
DVD Format/Logo Licensing Corporation.
“DVD+RW,” “DVD-RW,” “DVD+R,”
“DVD-R,” “DVD VIDEO,” “Super Audio
CD,” and “CD” logos are trademarks.
“BRAVIA” is a trademark of Sony
Corporation.
MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer IIS
and Thomson.
This product incorporates proprietary
technology under license from Verance
Corporation and 1s protected by U.S. Patent
7,369,677 and other U.S. and worldwide
patents issued and pending as well as
copyright and trade secret protection for
certain aspects of such technology. Cinavia
is a trademark of Verance Corporation.
Copyright 2004-2010 Verance Corporation.
All rights reserved by Verance. Reverse
engineering or disassembly 1s prohibited.
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or
other countries.
This product 1s protected by certain
intellectual property rights of Microsoft
Corporation. Use or distribution of such
technology outside of this product 1s
prohibited without a license from Microsoft
or an authorized Microsoft subsidiary.
Content owners use Microsoft PlayReady™
content access technology to protect their
intellectual property, including copyrighted
content. This device uses PlayReady
technology to access PlayReady-protected
content and/or WMDRM-protected content.
If the device fails to properly enforce
restrictions on content usage, content
owners may require Microsoft to revoke the
device’s ability to consume PlayReady-
protected content. Revocation should not
affect unprotected content or content
protected by other content access
technologies. Content owners may require
you to upgrade PlayReady to access their
content. If you decline an upgrade, you will
not be able to access content that requires
the upgrade.
This product meets ENERGY STAR®
guidelines for energy efficiency.
ENERGY STAR and the ENERGY STAR
mark are registered U.S. marks. ENERGY
STAR is a registered mark owned by the
U.S. government.
Gracenote, the Gracenote logo and
logotype, “Powered by Gracenote”,
Gracenote MusicID, Gracenote VideolD,
and Gracenote Video Explore are either
registered trademarks or trademarks of
Gracenote, Inc. in the United States and/or
other countries.
gracenote.
Wi-Fi®, Wi-Fi Protected Access® and
Wi-Fi Alliance® are registered trademarks
of Wi-Fi Alliance.
Wi-Fi CERTIFIEDTM, WPATM, WPA21M,
W1-F1 Protected Setup?M, Miracast1M and
W1-F1 CERTIFIED Miracast1M are
trademarks of Wi-Fi Alliance.
The Wi-Fi CERTIFIED Гого 15 а
certification mark of Wi-Fi Alliance.
The Wi-Fi Protected Setup Identifier Mark
1s a certification mark of Wi-Fi Alliance.
* DLNATM, the DLNA Logo and DLNA
CERTIFIEDIM are trademarks, service
marks, or certification marks of the Digital
Living Network Alliance.
E ana.
* The Bluetooth” word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Sony
Corporation 1s under license. Other
trademarks and trade names are those of
their respective owners.
* LDACIM and LDAC logo are trademarks of
Sony Corporation.
« “2”, “PlayStation” and “DUALSHOCK”
are trademarks of Sony Computer
Entertainment Inc.
° Орега® Devices SDK from Opera Software
ASA. Copyright 1995-2015 Opera Software
ASA. All rights reserved.
POWERED
BY OPERA
* All other trademarks are trademarks of their
respective owners.
* Other system and product names are
generally trademarks or registered
trademarks of the manufacturers. ™ and ®
marks are not indicated in this document.
Gracenote® End User License
Agreement
This application or device contains software
from Gracenote, Inc. of Emeryville, California
(“Gracenote”). The software from Gracenote
(the “Gracenote Software’) enables this
application or device to perform disc and/or
file identification and obtain music- and/or
video-related information, including name,
artist, track, and title information (“Gracenote
Data”) from online servers or embedded
databases (collectively, “Gracenote Servers”),
and to perform other functions. You may use
Gracenote Data only by means of the intended
End-User functions of this application or
device; the reception and display of the
Gracenote Data on this application or device
are not provided by Gracenote and falls solely
within the responsibility and liability of the
manufacturer hereof.
This application or device may contain
content belonging to Gracenote’s providers.
If so, all of the restrictions set forth herein with
respect to Gracenote Data shall also apply to
such content, and said content providers shall
be entitled to all of the benefits and protections
that are available to Gracenote hereunder. You
agree that you will use Gracenote Data, the
Gracenote Software, and Gracenote Servers
for your own personal, non-commercial use
only. You agree not to assign, copy, transfer
or transmit the Gracenote Software or any
Gracenote Data to any third party. YOU
AGREE NOT TO USE OR EXPLOIT
GRACENOTE DATA, THE GRACENOTE
SOFTWARE, OR GRACENOTE SERVERS
EXCEPT AS EXPRESSLY PERMITTED
HEREIN.
You agree that your non-exclusive license to
use the Gracenote Data, the Gracenote
Software, and Gracenote Servers will
terminate if you violate these restrictions. If
your license terminates, you agree to cease
any and all use of the Gracenote Data, the
Gracenote Software, and Gracenote Servers.
Gracenote reserves all rights in Gracenote
Data, the Gracenote Software, and the
Gracenote Servers, including all ownership
rights. Under no circumstances will
Gracenote become liable for any payment to
you for any information that you provide.
You agree that Gracenote may enforce its
rights under this Agreement against you
directly in its own name. Gracenote may
amend or remove Gracenote Data with or
without advance notice and may block or
modify access to Gracenote Data; you do not
have any claim against Gracenote arising out
of such change, removal, blocking or
modification.
PLEASE NOTE that in order to use the
Gracenote Data, specific technical pre-
requisites, such as this application or device,
software programs, methods of transfer,
telecommunication services and other third
party services, usually need to be used, for
Which additional cost, in particular connection
charges, can be incurred, which you will have
to pay for separately. Gracenote does not
provide such applications or devices, software
programs, methods of transfer,
telecommunication services or other services,
and does not accept any liability for services
of third parties. Gracenote 1s not responsible
for the proper setup, connection or (if
applicable) equipment of this application or
device so that Gracenote Data may be
received; this lies within your sole
responsibility.
The Gracenote service uses a unique identifier
to track queries for statistical purposes. The
purpose of a randomly assigned numeric
identifier 1s to allow the Gracenote service to
count queries without knowing anything about
who you are. For more information, see the
web page for the Gracenote Privacy Policy for
the Gracenote service.
The Gracenote Software and each item of
Gracenote Data are licensed to you “AS IS.”
Gracenote makes no representations or
warranties, express or implied, regarding the
accuracy of any Gracenote Data from the
Gracenote Servers; the download or any other
receipt of content, in particular the download
of Gracenote Data, 1s also at your own risk and
you are solely responsible for any damage to
this application or device or for any other
damages, including loss of data, arising out of
such actions. Gracenote reserves the right to
delete data from the Gracenote Servers or to
change data categories for any cause that
Gracenote deems sufficient. No warranty 1$
made that the Gracenote Software or
Gracenote Servers are error-free or that
functioning of Gracenote Software or
Gracenote Servers will be uninterrupted.
Gracenote 1s not obligated to provide you with
new, enhanced or additional data types or
categories that Gracenote may provide in the
future, and 1s free to discontinue its services at
any time.
GRACENOTE DISCLAIMS ALL
WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. GRACENOTE
DOES NOT WARRANT THE RESULTS
THAT WILL BE OBTAINED BY YOUR
USE OF THE GRACENOTE SOFTWARE,
GRACENOTE DATA OR ANY
GRACENOTE SERVER. IN NO CASE
WILL GRACENOTE BE LIABLE FOR
ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES OR FOR ANY
LOST PROFITS OR LOST REVENUES.
© 2000 — present. Gracenote, Inc. All Rights
Reserved.
Software License Information
For EULA (End User License Agreement),
please refer to [License agreement] in the
option menu on each network service icon.
For details of the other software licenses,
please select [Setup] and refer to [Software
License Information] in [System Settings].
This product contains software that 1s subject
to the GNU General Public License (“GPL”)
or GNU Lesser General Public License
(“LGPL”). These licenses establish that
customers have the right to acquire, modify,
and redistribute the source code of said
software in accordance with the terms of the
GPL or the LGPL.
The source code for the software used in this
product is subject to the GPL and LGPL, and
is available on the Web. To download, please
visit the following website:
http://oss.sony.net/Products/Linux
Please note that Sony cannot respond to any
inquiries regarding the content of this source
code.
10
Disclaimer regarding services offered
by third parties
Services offered by third parties may be
changed, suspended, or terminated without
prior notice. Sony does not bear any
responsibility in these sorts of situations.
Contents
2
4
WARNING
Precautions
Getting Started
12
17
18
18
Guide to Parts and Controls
Step 1: Connecting the Player
Step 2: Preparing for Network Connection
Step 3: Easy Setup
lt
>
22
23
24
Playing a Disc
Playing from a USB Device
Playing via a Network
Listening to Audio from a Bluetooth Device
Available Options
SE and Adjustments
>
27
29
30
31
32
32
32
33
34
34
Using the Settings Displays
[Software Update]
[Screen Settings]
[Audio Settings]
[Bluetooth Settings]
[BD/DVD Viewing Settings]
[Parental Control Settings]
[Music Settings]
[System Settings]
[Network Settings]
[Easy Network Settings]
[Resetting]
Additional Information
35
40
Troubleshooting
Specifications
11
12
Getting Started
Guide to Parts and Gontrols
Front panel
[1] 2] (3/4!
— “=
00 SN
Zz \
=
[1] Door tray To lock the disc tray (Child Lock)
[2] A (open/close)
[3] O (on/standby)
Turns on the player, or sets to
standby mode.
[4] Power indicator
Lights up when the player 1s turned
on
[5] Y (USB) jack
Connect a USB device to this jack.
[6] Remote sensor
You can lock the disc tray to avoid
accidental opening of the tray.
While the player is turned on, press
Ш STOP, HOME, and then TOP MENU
button on the remote to lock or unlock
the tray.
Rear panel
1
N 1
| На ава ев ааа ВВВеЕ!| N /
IAE Y
PCNEDTS/
12 \ === | LAN}:100) НОМ = DOLBYRIIGITAL
dl
[1] Ventilation holes
[2] DIGITAL OUT (COAXIAL) jack
[3] HDMI OUT jack
[4] LAN (100) terminal
[5] DC IN 12 V (AC adaptor input) jack
pauels Buiay
13
Remote
The available functions of the remote are
different depending on the disc or the
situation.
—
OPEN/CLOSE ——TV — — |
[=] = [oJ |
YELLOW BLUE RED GREEN
CI]
e]
|
—П
—2
A
7
N
s
HOME
| BLUETOOTH | | NETFLIX |
| PLAY |
PREV PAUSE STOP NEXT
<<] T 0 [>>
SUBTITLE +o
TV VOL
>
<
>
o
o
MUTING DISPLAY
e
> PLAY, TV VOL +, and AUDIO buttons
have a tactile dot. Use the tactile dot as a
reference when operating the player.
14
The player automatically returns to
standby mode
If any button on the player or remote is
not pressed for more than 20 minutes,
the player automatically returns to
standby mode.
11] 4 OPEN/CLOSE
Opens or closes the disc tray.
-TV- INPUT
Switches between TV and other
input sources.
-TV- () (on/standby)
Turns on the TV, or sets to standby
mode.
() (on/standby)
Turns on the player, or sets to
standby mode.
[2] Color buttons (YELLOW/
BLUE/RED/GREEN)
Shorteut keys for interactive
functions.
[3] TOP MENU
Opens or closes the BD’s or DVD’s
Top Menu.
POP UP/MENU
Opens or closes the BD-ROM’s
Pop-up Menu, or the DVD’s menu.
OPTIONS (page 24)
Displays the available options on the
screen.
RETURN
Returns to the previous display.
«=!»
Moves the highlight to select a
displayed item.
©
* 48 as a shortcut key to launch track
search window and input track number
during music CD playback.
* NY as a shortcut key to rotate photo
clockwise/counterclockwise by 90
degrees.
o €=/= 35 a shortcut key to perform
search functions during DLNA video
playback.
Center button (ENTER)
Enters the selected item.
HOME
Enters the player's home screen.
BLUETOOTH (page 30)
* Scan device list will appear if this
player has no paired Bluetooth
device.
* Connect to the last connected
device 1f this player has a paired
Bluetooth device. If the connection
fails, scan device list will appear.
e Disconnect the connected
Bluetooth device.
NETFLIX
Accesses the “NETFLIX” online
service. For further NETFLIX
online service details, visit the
following website and check the
FAQ:
http://www.sony.com/
bluraysupport/
[4] <UD>> (fast reverse/fast
forward)
* Fast reverse/fast forward the disc
when you press the button during
playback. The search speed
changes each time you press the
button during video playback.
* Plays in slow motion, when
pressed for more than one second
1n pause mode.
* Plays one frame at a time, when
you press for a short time in pause
mode.
> PLAY
Starts or re-starts playback.
HE PREV/NEXT >>!
Skıps to the previous/next chapter,
track, or file.
Il PAUSE
Pauses or re-starts playback.
E STOP
Stops playback and remembers the
stop point (resume point).
The resume point for a title/track 1s
the last point you played or the last
photo for a photo folder.
SUBTITLE (page 31)
Selects the subtitle language when
multi-lingual subtitles are recorded
on BD-ROMs/DVD VIDEOs.
TV VOL +/-
Adjusts the TV volume.
AUDIO (page 31)
Selects the language track when
multi-lingual tracks are recorded on
BD-ROMs/DVD VIDEOs.
Selects the sound track on CDs.
MUTING
Turns off the sound temporarily.
DISPLAY (page 21)
Displays the playback information
on the screen.
pauels Buiay
15
16
Code numbers of controllable
TVs
Hold down -TV- © and the TV
manufacturer’s code using the remote
buttons for 2 seconds.
Manufacturer Remote Button
Sony (Default) Color button
(YELLOW)
Hitachi Color button
(BLUE)
L G/Goldstar/ NEC Color button
(RED)
Toshiba Color button
(GREEN)
RCA TOP MENU
Mitsubishi/MGA 4
Pioneer POP UP/ MENU
Sharp <=
Panasonic ENTER
Samsung =
Philips RETURN
Home screen display
The home screen appears when you
press HOME. Select an application
using €=/f/4$/w, and press ENTER.
Tools
Application
Blu-ray Disc Player
Featured Apps My Apps
[My Apps]: Manages favorite
application. You may add shortcuts for
application from [All Apps].
[Featured Apps]: Displays
recommended application.
[All Apps]: Shows all available
applications. You can add applications
to [My Apps] by pressing OPTIONS,
and select [Add to My Apps].
[Setup]: Adjusts the player’s settings.
Available options
Various settings and playback
operations are available by pressing
OPTIONS. The available items differ
depending on the situation.
[Move Application]: Arranges
applications in [My Apps].
[Remove Application]: Deletes
applications in [My Apps].
[Data Contents]: Displays the
contents of the mixed disc.
Step 1: Connecting the Player
Do not connect the AC adaptor until you have made all the connections.
Connecting to your TV
Connect the player to your TV with a High Speed HDMI Cable.
High Speed HDMI Cable*
(KD en |?
HDMI OUT
HD
—_
* See “Supplied accessories” (page 40).
Connecting to your AV amplifier (receiver)
Select one of the following connection methods according to the input jacks on your
AV amplifier (receiver). When you select @ or @, make the appropriate settings in
[Audio Settings].
o High Speed HDMI Cable
=» Speed HDMI ÉS (not supplied)
=
HD
oo)
— Set [BD Audio MIX Setting] (page 30).
O Coaxial digital cable
(not supplied) I
| т
COAXIAL
DIGITAL OUT
COAXIAL
* See “Supplied accessories” (page 40).
pauels Buiay
17
Step 2: Preparing for
Network Connection
If you are not going to connect the player
to a network, proceed to “Step 3: Easy
Setup” (page 18).
Wired Setup
Use a LAN cable to connect to the LAN
(100) terminal on the player.
DIGITAL OUT
PCH/DT!
LAN cable
(not supplied)
Broadband ADSL modem/ Internet
router Cable modem
E
e
The use of a shielded and straight interface
cable (LAN cable) 1s recommended.
Wireless Setup
Use the wireless LAN that 1s built into
the player.
рой >
=:
` LAN cable (not Gr
Wireless LAN ADSL modem/ ©
router Cable modem
Step 3: Easy Setup
When turned on for the first time
Wait for a short while before the
player turns on and starts [Easy
Initial Settings].
1 Insert two Size AAA (R03)
batteries by matching the © and
O ends on the batteries to the
markings inside the battery
compartment of the remote.
2 Connect the supplied AC adaptor
in the numeric order shown
below. When removing them, do
so in reverse order.
gl e "0 ||
PCM/DTS/
Donc
to AC outlet
12 \/ "Ue C outle
AC adaptor (supplied)
3 Press (to turn on the player.
A0
4 Turn on the TV and set the input
selector on your TV by pressing
INPUT button on the remote. This
will show the signal from the
player on your TV screen.
9 Perform [Easy Initial Settings].
Follow the on-screen instructions to
make the basic settings using
<=/4//=> and ENTER on the
remote.
>
¢) =>
o ENTER
©
When [Easy Initial Settings] is complete, the
player will automatically find the available
network.
pauels Buiay
19
20
Playback
Playing a Disc
For “Playable discs”, see page 41.
1 Switch the input selector on your
TV so that the signal from the
player appears on your TV screen.
2 Press 4 OPEN/CLOSE, and place
a disc on the disc tray.
Playing side facing down
3 Pressa OPEN/CLOSE to close the
disc tray.
Playback starts.
If playback does not start
automatically, select [Video],
[Music], or [Photo] category in
@ (Disc), and press ENTER.
q
a (Mixed disc) contains data contents. Press
OPTIONS on the remote and select [Data
Contents] to display any available contents.
Enjoying BONUSVIEW/
BD-LIVE
Some BD-ROMS with the “BD-LIVE”
logo have bonus contents and other data
that can be downloaded for your
enjoyment.
BOTVE..
1 Connect a USB memory to the
USB jack on the player (page 12).
Use a 1 GB or larger USB memory
as your local storage.
2 Prepare for BD-LIVE (BD-LIVE
only).
* Connect the player to a network
(page 18).
* Set [BD Internet Connection] in
[BD/DVD Viewing Settings] to
[Allow] (page 31).
3 Inserta BD-ROM with
BONUSVIEW/BD-LIVE.
The operation method differs
depending on the disc. Refer to the
instruction manual supplied with the
disc.
To delete data in the USB memory, select
[Delete BD Data] in [BD/DVD Viewing
Settings], and press ENTER. All data stored in
the buda folder will be erased.
Enjoying Blu-ray 3D
You can enjoy a Blu-ray 3D Disc with
the “Blu-ray 3D” logo.
Blu-ray
2,
1 Prepare for Blu-ray 3D Disc
playback.
* Connect the player to your 3D-
compatible devices using a High
Speed HDMI Cable.
* Set [3D Output Setting] and [TV
Screen Size Setting for 3D] in
[Screen Settings] (page 27).
2 Insert a Blu-ray 3D Disc.
The operation method differs
depending on the disc. Refer to the
instruction manual supplied with the
disc.
I
q
Refer also to the instruction manuals supplied
with your TV and the connected device.
Displaying the play
information
You can view the playback information,
etc., by pressing DISPLAY.
The displayed information differs
depending on the disc type and player
status.
Example: when playing a BD-ROM
| EH 3 J SS EJES
1080/24p
(O Angle 2(3)
(> 2:English Dolby Digital 5.1ch 48kHz 192Kbps
Chapter 4(9)
o —[]
>
BD-ROM 16.29Mbps Cy T
6
[1] Output resolution/Video frequency
MILQÄLId
m)
[2] Title number or name
[3] The currently selected angle
[4] The currently selected audio and
closed caption settings
[5] Available functions (Y angle,
O) audio, [....] subtitle,
closed caption)
[6] Playback information
Displays the Play mode, Playing
status bar, Disc type, Video codec,
Bitrate, Repeat type, Elapsed time,
and Total playing time.
Chapter number
21
22
Playing from a USB
Device
For “Playable types of files”, see
page 42.
1 Connect the USB device to the
USB jack on the player (page 12).
Refer to the instruction manual
supplied with the USB device before
connecting.
2 Select ==. [USB device] using
<=/4/4/>>, and press ENTER.
J select [Video], [Music], or
[Photo] category using
4/4, and press ENTER.
Playing via a Network
Playing files on a Home
Network (DLNA)
A DLNA-compatible product can play
video/music/photo files stored on
another DLNA-compatible product via a
network.
1 Prepare to use DLNA.
* Connect the player to a network
(page 18).
* Prepare the other necessary
DLNA-compatible products.
Refer to the instruction manual
supplied with the product.
To play a file from a DLNA server via
this unit (DLNA player)
7
FF x
— —> a N HH
Server
Player
< —>
|
Select [Video], [Music], or [Photo]
category from E? [Media Server] in [All
Apps], then choose the file you want to
play.
To play a file from a DLNA server via
another product (Renderer)
When you play files from a DLNA
Server on this unit, you can use a DLNA
Controller-compatible product (a phone,
etc.), to control playback.
7
— a N HH
Server
(6 Renderer
> >) = —
7 Tel
SS
Controller
Control this unit using a DLNA
controller. Refer to the instruction
manual supplied with the DLNA
controller.
Using “TV SideView”
“TV SideView” 1s a free mobile
application for remote devices (such as
smartphone, etc.). By using “TV
SideView” with this player, you can
easily enjoy the player by using the
operation on your remote device. You
can launch a service or application
directly from the remote device and view
the disc information during disc
playback. “TV SideView” also can be
used as a remote control and software
keyboard.
Before you use the “TV SideView”
device with this player for the first time,
be sure to register the “TV SideView”
device. Follow the on-screen
instructions on the “TV SideView”
device for registration.
©
The registration can only be performed on the
home screen.
Using Screen mirroring
“Screen mirroring” 1s a function to
display the screen of a mobile device on
the TV by Miracast technology.
The player can be connected directly
with a Screen mirroring compatible
device (e.g. smartphone, tablet). You can
enjoy the display screen of the device on
your large TV screen. No wireless router
(or access point) 1s required to use this
feature.
©
* When using Screen mirroring, the quality of
picture and sound may sometimes be
deteriorated due to interference from other
network. You may improve by adjusting
[Screen mirroring RF Setting] (page 34).
* Some network functions may not be
available during Screen mirroring.
* Make sure that the device 1s compatible with
Miracast. Connectivity with all Miracast
compatible devices 1s not guaranteed.
1 Select mL [Screen mirroring]
from home screen using
<=/4/¥/=>, and press ENTER.
2 Follow the on-screen
instructions.
Listening to Audio from
a Bluetooth Device
To listen to an audio source from a
Bluetooth device (e.g. headphone) via
this player, you need to pair the
Bluetooth device with this player.
Pairing with a Bluetooth
device
Pairing is an operation where the
Bluetooth devices are registered to each
other before connection. Set [Bluetooth
Mode] in [Bluetooth Settings] to [On]
(page 30) before pairing a Bluetooth
device with this player.
1 Place the Bluetooth device within
1 meter from the player.
2 Perform any of the following
steps:
— When connecting to a device for
the first time, press BLUETOOTH
button on the remote.
— Select [Bluetooth Device] option
on the playback screen.
YIEGAE|d
23
24
— Select [Device List] in [Bluetooth
Settings].
3 Set the Bluetooth device in
pairing mode.
For details on setting the Bluetooth
device in pairing mode, refer to the
instruction manual supplied with the
device.
4 Press 4/4 repeatedly to select
the device you want, and press
ENTER.
When the Bluetooth connection 1s
established, the device name will
appear on the TV screen.
0 Start playback content.
b Adjust the volume.
Adjust the volume of the Bluetooth
device first. If the volume level 1s
still low, adjust the volume level by
selecting [Bluetooth Volume] option
on the playback screen. Press 4/4
to adjust the volume.
©
Some Bluetooth device does not support
volume control.
To disconnect the Bluetooth device
Perform any of the following steps:
— Press BLUETOOTH button on the
remote (page 15).
— Disable the Bluetooth function on the
Bluetooth device.
— Turn off the player or the Bluetooth
device.
©
Before you turn off your Bluetooth device,
turn down the volume level of your TV to
avoid sudden high volume outbursts.
Available Options
Various settings and playback
operations are available by pressing
OPTIONS. The available items differ
depending on the situation.
Common options
m [Repeat Setting]: Sets the repeat
mode.
m [3D Menu]:
— [Simulated 3D]: Adjusts the
simulated 3D effect.
— [3D Depth Adjustment]: Adjusts the
depth of 3D image.
— [2D Playback]: Sets playback to 2D
image.
Em [Play]/[Stop]: Starts or stops the
playback.
u [Play from beginning]: Plays the
item from the beginning.
m [Bluetooth Device]: Displays
Bluetooth device list.
m [Bluetooth Volume]: Displays the
Bluetooth volume control view. This
option item is only available when the
Bluetooth device is connected.
Video only
m [3D Output Setting]: Sets whether or
not to output 3D video automatically.
Em [A/V SYNC]: Adjusts the gap between
picture and sound, by delaying the
sound output in relation to the picture
output (0 to 120 milliseconds).
Em [Video Settings]:
— [Picture Quality Mode]: Selects the
picture settings for different lighting
environments.
e [Direct] “1, [Standard] "2
e [Brighter Room] 1”
e | Theater Room] 1
e [Auto] *
e [Custom1]"!/ [Custom2] 1
ns [Texture Remaster]: Adjusts the
sharpness and detail of the
edges.
= [Super Resolution]: Improves
the resolution.
m [Smoothing]: Reduces on-screen
banding by smoothing
gradations on flat areas.
m [Contrast Remaster]:
Automatically arranges the
black and white levels so that the
screen 1s not too dark and the
image 1s modulated.
m [Clear Black]: Adjusts the
display of the dark elements of
the image. All shading 1s not
suppressed; 1t allows beautifully
reproduced black tones.
m [FNR]: Reduces the random
noise appearing in the picture.
a [BNR]: Reduces the mosaic-like
block noise 1n the picture.
m [MNR]: Reduces minor noise
around the picture outlines
(mosquito noise).
m [Contrast]
= [Brightness]
m [Color]
= [Hue]
m [Title Search]: Searches for a title on
BD-ROMs/DVD VIDEOs and starts
playback from the beginning.
u [Chapter Search]: Searches for a
chapter and starts playback from the
beginning.
[Audio]: Switches the language track
when multilingual tracks are recorded
on BD-ROMs/DVD VIDEOs. Selects
the sound track on CDs.
[Subtitle]: Switches the subtitle
language when multilingual subtitles
are recorded on BD-ROMs/DVD
VIDEOs.
[Closed Captions]: Selects closed
caption format when available.
[Angle]: Switches to other viewing
angles when multi-angles are
recorded on BD-ROMs/DVD
VIDEO:s.
[Number Entry]: Selects the number
by using <=/4/4/=> key on the
remote.
[Video Search]: Displays
information on the
BD-ROM/DVD-ROM based on
Gracenote technology.
Searches for related information using
keywords from Gracenote when
selecting [Cast] or [Related].
Displays a list of titles when selecting
[Playback History] or [Search
History].
MILQÄLId
Music only
m [Track Search]: Searches the track
number during music CD playback.
m [Add Slideshow BGM]: Registers
music files in the USB memory as
slideshow background music (BGM).
“1 Available when output 2K video signal. To
display these options when the player 1s
connected to 4K-compatible equipment, set
[4K Output] in [Screen Settings] to [Off].
“2 Available when output 4K video signal.
m [Pause]: Pauses the playback.
m [Top Menu]: Displays the BD’s or
DVD's Top Menu.
E [Menu]/[Popup Menu): Displays the
BD-ROM’s Pop-up Menu or DVD’s
menu.
26
[Music Search]: Displays
information on the audio CD
(CD-DA) based on Gracenote
technology.
Searches for related information using
keywords from Gracenote when
selecting [Track], [Artist] or
[Related].
Displays a list of titles when selecting
[Playback History] or [Search
History].
[Shuffle Setting]: Set to [On] to
playback music files in randomized
order.
Photo only
[Slideshow Speed]: Changes the
slideshow speed.
[Slideshow Effect]: Sets the effect
for slideshows.
[Slideshow BGM]:
— [Off]: Turns off the function.
— [My Music from USB]: Sets the
music files registered in [Add
Slideshow BGM].
— [Play from Music CD]: Sets the
tracks in CD-DAs.
[Change Display]: Switches
between [Grid View] and [List View].
[View Image]: Displays the selected
photo.
[Slideshow]: Plays a slideshow.
[Rotate Left]: Rotates the photo
counterclockwise by 90 degrees.
[Rotate Right]: Rotates the photo
clockwise by 90 degrees.
Settings and Adjustments
Using the Settings
Displays
Select ams [Setup] on the home screen
when you need to change the settings of
the player.
The default settings are underlined.
1 select = [Setup] on the home
screen using =/4/J/>>.
2 Select the setup category icon
using 4/¥, and press ENTER.
©) [Software Update]
H [Update via Internet]
Updates the player’s software using
available network. Make sure that the
network 1s connected to the Internet. For
details, see “Step 2: Preparing for
Network Connection” (page 18).
E [Update via USB Memory]
Updates the player’s software using
USB memory. Make sure that the
Software Update Folder 1s correctly
named as “UPDATE” and all the update
files must be stored in this folder. The
player can recognize up to 500 files/
folders in a single layer including the
update files/folders.
©
* We recommend performing the software
update every 2 months or so.
* If your network condition 1s poor, visit
http://www.sony.com/bluray support/ to
download the latest software version and
update via USB memory.
You can also get information about update
functions from the website.
La] [Screen Settings]
[3D Output Setting]
[Auto]: Normally select this.
[Off]: Select this to display all content in
2D.
H [TV Screen Size Setting for 3D]
Sets the screen size of your 3D-
compatible TV.
Ш [ТУ Туре]
[16:9]: Select this when connecting to a
wide-screen TV or a TV with a wide
mode function.
[4:3]: Select this when connecting to a
4:3 screen TV without a wide mode
function.
E [Screen Format]
[Full]: Select this when connecting to a
TV with a wide mode function. Displays
a 4:3 screen picture ın 16:9 aspect ratio
even on a wide-screen TV.
[Normal]: Changes the picture size to fit
the screen size with the original picture
aspect ratio.
sjuawjsnipy pue sbuijjag
27
28
E [DVD Aspect Ratio]
[Letter Box]: Displays a wide picture
with black bands on the top and bottom.
[Pan & Scan]: Displays a full-he1ght
picture on the entire screen, with
trimmed sides.
A A
rn
TEL
18 2d
a
I ", TT»
1 — —
H [Cinema Conversion Mode]
[Auto]: Normally select this. The player
automatically detects whether the
material 1s video-based or film-based,
and switches to the appropriate
conversion method.
[Video]: The conversion method suited
for video-based material will always be
selected regardless of the material.
H [Output Video Resolution]
Normally select [Auto]. Select [Original
Resolution] to output the resolution
recorded on the disc. When the
resolution 1s lower than the SD
resolution, it 1s scaled up to the SD
resolution.
EH [24p Output]
Outputs 24p video signals only when
you connect a 1080/24p-compatible TV
via an HDMI connection and the [Output
Video Resolution] is set to [Auto] or
[1080p].
[BD-ROM 24p Output]
[Auto]: Outputs 1920 x 1080p/24 Hz
video signals only when connecting a
1080/24p-compatible TV using the
HDMI OUT jack.
[On]: Turns on the function.
[Off]: Select this when your TV 1s not
compatible with 1080/24p video signals.
[DVD-ROM 24p Output]
[Auto]: Outputs 1920 x 1080p/24 Hz
video signals only when connecting a
1080/24p-compatible TV using the
HDMI OUT jack.
[Off]: Select this when your TV 1s not
compatible with 1080/24p video signals.
[Data content 24p Output]
This function 1s available for playback
contents stored in USB memory or data
disc.
[Auto]: Outputs 1920 x 1080p/24 Hz
video signals only when connecting a
1080/24p-compatible TV using the
HDMI OUT jack.
[Off]: Select this when your TV 1s not
compatible with 1080/24p video signals.
[Network content 24p Output]
This function 1s available for playback
contents from other network, such as
Home Network, Screen mirroring, etc.
[Auto]: Outputs 1920 x 1080p/24 Hz
video signals only when connecting a
1080/24p-compatible TV using the
HDMI OUT jack.
[Off]: Select this when your TV 1s not
compatible with 1080/24p video signals.
HE [4K Output]
[Autol]: Outputs 2K (1920 x 1080)
video signals during video playback and
4K video signals during photo play when
connecting to a Sony 4K-compatible
equipment.
Outputs 4K video signals during
playback of 24p video contents in
BD-ROMs/DVD-ROMs/Data content/
Network content or photo play when
connecting to a non-Sony
4K-compatible equipment.
This setting does not work for 3D video
image playback.
[Auto2]: Automatically outputs 4K/24p
video signals when you connect a
4K/24p -compatible equipment and
make the appropriate settings in [BD-
ROM 24p Output], [DVD-ROM 24p
Output], [Data content 24p Output] or
[Network content 24p Output] and also
outputs 4K/24p photo images when you
play 2D photo files.
[Off]: Turns off the function.
©
If your Sony equipment is not detected when
[Auto!] 1s selected, the setting will have the
same effect as [Auto2] setting.
[Y CbCr/RGB (HDMI)]
[Auto]: Automatically detects the
connected TV type, and switches to the
matching color setting.
[Y CbCr (4:2:2)]: Outputs YCbCr 4:2:2
video signals.
[YCbCr (4:4:4)]: Outputs YCbCr 4:4:4
video signals.
[RGB]: Outputs RGB video signals.
Hl [HDMI Deep Color Output]
[Auto]: Normally select this.
[16bit]/[12bit]/[10bit]: Outputs 16bit/
12b1t/10bit video signals when the
connected TV is compatible with Deep
Color.
[Off]: Select this when the picture 1s
unstable or colors appear unnatural.
Hl [SBM] (Super Bit Mapping)
[On]: Smooths the gradation of video
signals output from the HDMI OUT
jack.
[Off]: Select this when outputting
distorted video signals or unnatural
color.
E [IP Content NR Pro]
[Video - Strong]/[Video - Medium]/
[Video - Mild]/[Film - Mild]/
[Film - Medium ]/[Film - Strong]: Adjust
the picture quality for Internet content.
[Off]: Turns off the function.
sjuawjsnipy pue sbuijjag
Ш [Раисе Моде]
[Auto]: Normally select this. Dynamic
moving pictures appear without blurring.
[Frame]: Displays static pictures at high
resolution.
>) [Audio Settings]
E [Digital Audio Output]
[Auto]: Normally select this. Outputs
audio signals according to the status of
the connected devices.
[PCM]: Outputs PCM signals from the
DIGITAL OUT (COAXIAL)/HDMI
OUT jack.
29
30
E [DSD Output Mode]
[Auto]: Outputs DSD signals from the
HDMI OUT jack when playing a Super
Audio CD and DSD format file. Outputs
LPCM signals instead 1f the HDMI
connected device not support DSD.
[Off]: Outputs PCM signals from the
HDMI OUT jack when playing a Super
Audio CD and DSD format file.
E [BD Audio MIX Setting]
[On]: Outputs the audio obtained by
mixing the interactive and secondary
audio to the primary audio.
[Off]: Outputs the primary audio only.
Select this to output HD audio signals to
an AV amplifier (receiver).
E [Digital Music Enhancer]
[On]: Set the sound effect when playing
Internet content or USB content.
[Off]/[Sound Bar Mode]: Turns off the
function.
E [Dolby D Compatible Output]
[On]: Converts DTS audio source to
Dolby Digital audio by using EDID
(Extended Display Identification Data).
[Off]: Turns off the function.
H [Audio DRC]
[Auto]: Performs playback at the
dynamic range specified by the disc
(BD-ROM only). Other discs are played
back at the [On] level.
[On]: Performs playback at a standard
compression level.
[Off]: No compression works. A more
dynamic sound is produced.
E [Downmix]
[Surround]: Outputs audio signals with
surround effects. Select this when
connecting an audio device that supports
Dolby Surround (Pro Logic) or DTS
Neo:6.
[Stereo]: Outputs audio signals without
surround effects. Select this when
connecting an audio device that does not
support Dolby Surround (Pro Logic) or
DTS Neo:6.
63 [Bluetooth Settings]
H [Bluetooth Mode]
[On]: Enables Bluetooth settings and
functions.
[Off]: Disables Bluetooth settings and
functions.
Hl [Device List]
Displays a list of paired and detected
Bluetooth receivers when [Bluetooth
Mode] 1s set to [On].
Hl [Bluetooth Codec - AAC] /
[Bluetooth Codec - LDAC]
This function 1s enabled when
[Bluetooth Mode] 1s set to [On].
[On]: Enables AAC/LDAC codec.
[Off]: Disables AAC/LDAC codec.
©
This function is disabled during connection
with a Bluetooth device.
©
LDAC 1s an audio coding technology
developed by Sony that enables the
transmission of High-Resolution (Hi-Res)
Audio content, even over a Bluetooth
connection. Unlike other Bluetooth
compatible coding technologies such as SBC,
it operates without any down conversion of
the Hi-Res Audio content*, and allows
approximately three times more data** than
those other technologies to be transmitted over
a Bluetooth wireless network with
unprecedented sound quality, by means of
efficient coding and optimized packetization.
* Excluding DSD format contents.
** In comparison with SBC (Subband
Coding) when the bitrate of 990 kbps
(96/48 kHz) or 909 kbps (88.2/44.1 kHz)
is selected.
E [Wireless Playback Quality]
This function 1s enabled when
[Bluetooth Mode] and [Bluetooth Codec
- LDAC] 1s set to [On]. If sound output
or network streaming is unstable, please
select [Connection].
[Auto]: Sets the transmission data rate
for LDAC automatically.
[Sound Quality]: The highest data rate 1s
used. Sound 1s sent at a higher quality,
but audio playback may become
unstable if the link quality 1s not
sufficient.
[Standard]: A medium data rate 1s used.
This provides a balance between sound
quality and playback stability.
[Connection]: Stability 1s prioritized.
The sound quality may be reasonable
and the connection status will most
likely be stable.
© [BD/DVD Viewing
Settings]
E [BD/DVD Menu Language]
Selects the default menu language for
BD-ROMSs or DVD VIDEOs.
Select [Select Language Code], and
enter the code for your language,
referring to “Language code list”
(page 45).
E [Audio Language]
Selects the default audio language for
BD-ROMs or DVD VIDEOS.
When you select [Original], the
language given priority in the disc 1s
selected.
Select [Select Language Code], and
enter the code for your language,
referring to “Language code list”
(page 45).
H [Subtitle Language]
Selects the default subtitle language for
BD-ROMs or DVD VIDEO:s.
Select [Select Language Code], and
enter the code for your language,
referring to “Language code list”
(page 45).
E [BD Hybrid Disc Playback Layer]
[BD]: Plays BD layer.
[DVD/CD]: Plays DVD or CD layer.
H [BD Internet Connection]
[Allow]: Normally select this.
[Do not allow]: Prohibits Internet
connection.
sjuawjsnipy pue sbuijjag
31
32
E [Delete BD Data]
Deletes data in the USB memory.
All data stored in the buda folder will be
erased.
CA [Parental Control
Settings]
E [Password]
Sets or changes the password for the
Parental Control function. A password
allows you to set a restriction on
BD-ROM or DVD VIDEO, and Internet
video playback. If necessary, you can
differentiate the restriction levels for
BD-ROMs, DVD VIDEOs, and Internet
videos.
H [Parental Control Area Code]
Playback of some BD-ROMs, DVD
VIDEOS, or Internet videos can be
limited according to the geographic area.
Scenes may be blocked or replaced with
different scenes. Follow the on-screen
instructions and enter your four-digit
password.
H [BD Parental Control] /
[DVD Parental Control] /
[Internet Video Parental Control]
By setting Parental Control, scenes can
be blocked or replaced with different
scenes. Follow the on-screen
instructions and enter your four-digit
password.
E [Internet Video Unrated]
[Allow]: Allows the playback of unrated
Internet videos.
[Block]: Blocks the playback of unrated
Internet videos.
JJ [Music Settings]
H [Super Audio CD Playback Layer]
[Super Audio CD]: Plays the Super
Audio CD layer.
[CD]: Plays the CD layer.
E [Super Audio CD Playback
Channel]
[DSD 2ch]: Plays the 2ch area.
[DSD Multi]: Plays the multi-channel
area.
== [System Settings]
EH [OSD Language]
Selects on-screen display language for
your player.
E [Closed Caption Settings]
Customizes the format of Closed
Caption displayed.
Select [Original] in [Text Settings]
setting to disable.
EH [HDMI Settings]
By connecting Sony components that are
compatible with HDMI functions with a
High Speed HDMI Cable, operation is
simplified.
[Control for HDMI]
[On]: The following BRAVIA Sync
features are available:
— One-Touch Play
— System Power-Off
— Language Follow
[Off]: Turns off the function.
q
For details, refer to the instruction manual
supplied with the TV or components.
[Linked to TV-off]
[Valid]: Automatically turns off the
player when the connected TV enters
standby mode (BRAVIA Sync).
[Invalid]: Turns off the function.
E [DUALSHOCK(TM) wireless
controller]
You can register and manage your
wireless controller here. Follow the on-
screen instructions.
©
DUALSHOCKTM4 wireless controller uses
Bluetooth technology. Check that [Bluetooth
Mode] in [Bluetooth Settings] is set to [On]
(page 30).
E [Quick Start Mode]
[On]: Shortens the startup time when
turning on the player.
[Off]: Reduces standby power
consumption.
E [Auto Display]
[On]: Automatically displays
information on the screen when
changing the viewing titles, picture
modes, audio signals, etc.
[Off]: Displays information only when
you press DISPLAY.
E [Software Update Notification]
[On]: Sets the player to inform you of
newer software version information
(page 27).
[Off]: Turns off the function.
H [Gracenote Settings]
[Auto]: Automatically downloads disc
information when disc playback stops.
Connect to the network for
downloading.
[Manual]: Downloads the disc
information when [Video Search] or
[Music Search] 1s selected.
H [Device Name]
Displays the player’s name. The player’s
name can be changed.
E [System Information]
Displays the player’s software version
information and the MAC address.
sjuawjsnipy pue sbuijjag
H [Software License Information]
Displays information about the Software
License.
@ [Network Settings]
E [Internet Settings]
Connect the player to the network
beforehand. For details, see “Step 2:
Preparing for Network Connection”
(page 18).
[Wired Setup]: Select this when you
connect to a broadband router using a
LAN cable.
[Wireless Setup]: Select this when you
use the wireless LAN that is built into the
player for wireless network connection.
33
34
e
For further details, visit the following website
and check the FAQ contents:
http://www.sony.com/bluraysupport/
E [Network Connection Status]
Displays the current network status.
E [Network Connection
Diagnostics]
Checks for the proper network
connection by running the network
diagnostics.
H [Screen mirroring RF Setting]
[Auto]: Sets the RF (Radio Frequency)
channel band automatically for Screen
mirroring connection.
[CH 11/[CH 6]/[CH 11]: Sets CH 1/
CH 6/CH 11 as priority.
E [Connection Server Settings]
Sets whether or not to display the
connected server.
E [Auto Home Network Access
Permission]
[On]: Allows automatic access from
newly detected DLNA controller-
compatible product.
[Off]: Turns off the function.
H [Home Network Access Control]
Displays a list of DLNA controller-
compatible products and sets whether or
not to accept commands from the
controllers in the list.
Hl [Registered Remote Devices]
Displays a list of your registered remote
devices.
H [Remote Start]
[On]: Allows you to turn on the player by
a device linked via a network.
[Off]: Turns off the function.
= [Easy Network
Settings]
Select [Easy Network Settings] to
specify the network settings. Follow the
on-screen instructions.
* 9 [Resetting]
H [Reset to Factory Default Settings]
Resets the player settings to the factory
default by selecting the group of settings.
All the settings within the group will be
reset.
H [Initialize Personal Information]
Erases your personal information stored
in the player.
©
If you dispose, transfer or resell this unit,
please delete all Personal Information for
security purposes. Please take the appropriate
measures such as logging out after using a
network service.
Additional Information
Troubleshooting
If you experience any of the following
difficulties while using the player, use
this troubleshooting guide to help
remedy the problem before requesting
repairs. Should any problem persist,
consult your nearest Sony dealer.
There is no picture or the picture is
not output correctly.
=p Check that all the connecting cables
are securely connected (page 17).
=p Switch the input selector on your TV
to display the signal from the player.
=p Resetthe [Output Video Resolution] to
the lowest resolution by pressing
E STOP, HOME, and then POP UP/
MENU button on the remote.
=p Try the following: MD Turn the player
off and on again. @Turn the connected
equipment off and on again.
(® Disconnect and then reconnect the
HDMI cable.
=p» The HDMI OUT jack is connected to a
DVI device that does not support
copyright protection technology.
=} Check the [Output Video Resolution]
settings in [Screen Settings] (page 28).
=} For BD-ROMs/DVD-ROMs/Data
content/Network content, check the
[24p Output] settings in [Screen
Settings] (page 28).
The display language on the screen
switches automatically when
connected to the HDMI OUT jack.
=} When [Control for HDMI] in [HDMI
Settings] is set to [On] (page 33), the
display language on the screen
automatically switches according to
the language setting of the connected
TV (if you change the setting on your
TV, etc.).
Sound
There is no sound or the sound is not
output correctly.
=} Check that all the connecting cables
are securely connected (page 17).
=} Switch the input selector on your AV
amplifier (receiver) so that the audio
signals of the player are output from
your AV amplifier (receiver).
=p If the audio signal does not come
through the DIGITAL OUT
(COAXIAL)YHDMI OUT jack, check
the audio settings (page 29).
=p For HDMI connections, try the
following: (Turn the player off and
on again. (Turn the connected
equipment off and on again.
(® Disconnect and then reconnect the
HDMI cable.
=p For HDMI connections, if the player is
connected to a TV through an AV
amplifier (receiver), try connecting the
HDMI cable directly to the TV. Refer
also to the instruction manual supplied
with the AV amplifier (receiver).
=p The HDMI OUT jack is connected to a
DVI device (DVI jacks do not accept
audio signals).
UOIJEUNOJU] [EUOIHPPY
39
36
=} The device connected to the HDMI
OUT jack does not support the audio
format of the player. Check the audio
settings (page 29).
The HD Audio (Dolby Digital Plus,
Dolby TrueHD, DTS-HD High
Resolution Audio, and DTS-HD
Master Audio) is not output by
bitstream.
=p Set [BD Audio MIX Setting] in [Audio
Settings] to [Off] (page 30).
=} Check that the connected AV amplifier
(receiver) is compatible with each HD
Audio format.
The interactive audio is not output.
=p Set [BD Audio MIX Setting] in [Audio
Settings] to [On] (page 30).
Message Code 3 [Audio outputs
temporarily muted. Do not adjust the
playback volume. The content being
played is protected by Cinavia and is
not authorized for playback on this
device. For more information, see
http://www.cinavia.com. Message
Code 3] appears on the screen when
playing a disc.
=} The audio track of the video that you
are playing contains a Cinavia code
indicating that it 1s an unauthorized
copy of professionally-produced
content (page 6).
The disc does not play.
=} The disc is dirty or skewed.
=} The disc is upside down. Insert the disc
with the playback side facing down.
=» The disc has a format that cannot be
played back by this player (page 41).
=} The player cannot play a recorded disc
that 1s not correctly finalized.
=} The region code on the BD or DVD
does not match the player.
USB device
The player does not detect a USB
device connected to the player.
==» Make sure that the USB device is
securely connected to the USB jack.
=} Check if the USB device or a cable is
damaged.
=} Check if the USB device is on.
=} If the USB device is connected via a
USB hub, connect the USB device
directly to the player.
Internet streaming
The picture/sound is poor/certain
programmes display a loss of detail,
especially during fast-motion or dark
scenes.
=p Picture/sound quality may be
improved by changing the connection
speed. Recommended connection
speed is of at least 2.5 Mbps for
standard definition video (10 Mbps for
high definition video).
There is no options menu during
Internet streaming.
=} Options menu is not available during
Internet streaming.
Network connection
The player cannot connect to the
network.
=} Check the network connection
(page 18) and the network settings
(page 33).
The PC cannot connect to the Internet
after [Wi-Fi Protected Setup™ (WPS)]
is performed.
=} The wireless settings of the router may
change automatically 1f you use the
Wi-Fi Protected Setup function before
adjusting the settings of the router. In
this case, change the wireless settings
of your PC accordingly.
You cannot connect the player to the
wireless LAN router.
=} Check if the wireless LAN router is on.
=p Depending on the surrounding
environment, such as the wall material,
radio wave receiving condition, or
obstacles between the player and the
wireless LAN router, the
communication distance may be
shortened. Move the player and the
wireless LAN router closer to each
other.
=p Devices that use a 2.4 GHz frequency
band, such as a microwave, Bluetooth,
or digital cordless device, may
interrupt the communication. Move
the player away from such devices, or
turn off such devices.
The desired wireless router do not
appear in the wireless network list.
=} Press RETURN to return to the
previous screen, and try wireless setup
again. If the desired wireless router is
still not detected, select [New
connection registration] to perform
[Manual registration].
The message [A new software version
is available. Please go to the “Setup”
section of the menu and select
“Software Update” to perform the
update.] appears on the screen when
turning the player on.
=} See [Software Update] (page 27) to
update the player to a newer software
VETSION.
Bluetooth connection
UOIJEUNOJU] [EUOIHPPY
Bluetooth connection cannot be done/
completed.
=} Set [Bluetooth Mode] to [On]
(page 30).
==» Make sure the Bluetooth device to be
connected 1s turned on and the
Bluetooth function is enabled.
=p Move the Bluetooth device closer to
the player.
=p Connect this player and the Bluetooth
device again. You may need to cancel
the connection with this player using
your Bluetooth device first.
=} Delete pairing information once from
the device list and connected device,
before retrying connection.
=p Connection may not be possible if
other Bluetooth devices are present
around the player. In this case, turn off
the other Bluetooth devices.
37
38
=} The connection registration
information has been erased. Perform
the connection operation again.
There is no sound, the sound skips or
fluctuates, or the connection is lost.
=p» Move the Bluetooth device closer to
the player.
=p Make sure the player is not receiving
any interference from a Wi-Fi
network, other Bluetooth device, other
2.4 GHz wireless device, or
microwave oven.
=p Check that the Bluetooth connection is
properly made between this player and
the Bluetooth device.
=p Connect this player and the Bluetooth
device again.
=p Keep the player away from metal
objects or surfaces.
Control for HDMI (BRAVIA
Sync)
The [Control for HDMI] function does
not work (BRAVIA Sync).
=} Check that [Control for HDMI] in
[HDMI Settings] 1s set to [On]
(page 33).
=} If you change the HDMI connection,
turn the player off and on again.
=} If power failure occurs, set [Control
for HDMI] in [HDMI Settings] to
[Off], then set [Control for HDMI] in
[HDMI Settings] to [On] (page 33).
=p Check the following and refer to the
instruction manual supplied with the
component.
— the connected component is
compatible with the [Control for
HDMI] function.
— the connected component’s setting
for the [Control for HDMI] function
is correct.
=} When you connect the player to a TV
through an AV amplifier (receiver),
— 1f the AV amplifier (receiver) is not
compatible with the [Control for
HDMI] function, you may be unable
to control the TV from the player.
— 1f you change the HDMI
connection, disconnect and
reconnect the AC adaptor, or a
power failure occurs, try the
following: @Switch the input
selector of the AV amplifier
(receiver) so that the picture from
the player appears on the TV screen.
(@Set [Control for HDMI] in
[HDMI Settings] to [Off], then set
[Control for HDMI] in [HDMI
Settings] to [On] (page 33). Refer to
the instruction manual supplied
with the AV amplifier (receiver).
The System Power-Off function does
not work (BRAVIA Sync).
=} Check that [Control for HDMI] and
[Linked to TV-off] in [HDMI Settings]
are set to [On] and [Valid] (page 33).
Others
Playback does not start from the
beginning of content.
=p Press OPTIONS, and select [Play from
beginning].
Playback does not start from the
resume point where you last stopped
playing.
=} The resume point may be cleared from
memory depending on the disc when
— you open the disc tray.
— you disconnect the USB device.
— you play other content.
— you turn off the player.
Message Code 1 [Playback stopped.
The content being played is protected
by Cinavia and is not authorized for
playback on this device. For more
information, see http://
www.cinavia.com. Message Code 1]
appears on the screen when playing a
disc.
=} The audio track of the video that you
are playing contains a Cinavia code
indicating it was intended for
presentation using professional
equipment only and is not authorized
for playback by consumers (page 6).
The disc tray does not open and you
cannot remove the disc even after you
press 4.
=> While the player is turned on, press ll
STOP, HOME, and then TOP MENU
button on the remote to unlock the tray
and disable the Child Lock (page 12).
=p Try the following: (Turn the player
off, and disconnect the AC adaptor.
@Reconnect the AC adaptor while
pressing down 4 on the player.
® Keep pressing down 4 on the player
until the tray opens. @Remove the
disc. ®Disconnect and reconnect the
AC adaptor again to recover the
player.
The message [[EJECT] Key is
currently unavailable.] appears on
the screen after € is pressed.
=p Contact your nearest Sony dealer or
local authorized Sony service facility.
The player does not respond to any
button.
=» Moisture has condensed inside the
player (page 4).
UOIJEUNOJU] [EUOIHPPY
39
40
Specifications
System
Laser: Semiconductor laser
Inputs and outputs
(Jack name:
Jack type/Output level/Load
impedance)
DIGITAL OUT (COAXIAL):
Phono jack/0.5 Vp-p/75 ohms
HDMI OUT: HDMI 19-pin standard
connector
LAN (100): 100BASE-TX Terminal
USB:
USB jack Type À (For connecting a
USB memory, memory card reader,
digital still camera, and digital video
camera)*
* Do not use for power charging
purposes.
DC IN:12 V DC, 850 mA
Wireless
Wireless LAN standard:
Protocol IEEE802.11 a/b/g/n
Frequency range:
2.4 GHz, 5 GHz band
Modulation: DSSS and OFDM
Bluetooth Version: Bluetooth Version 4.1
Bluetooth
Communication system:
Bluetooth Specification v4.1
Output:
Bluetooth Specification Power Class 1
Maximum communication range:
Line of sight approx. 30 m
Frequency band: 2.4 GHz
Modulation method: FHSS
Compatible Bluetooth Profiles:
A2DP v1.2
AVRCP v1.3
Supported Codecs: SBC, AAC, LDAC
Transmission range (A2DP):
* 20 Hz - 40,000 Hz (LDAC in
sampling 96 kHz and transmit by
990 kbps)
* 20 HZ - 20,000 Hz (in sampling
44.1 kHz)
General
Power requirements:
12 V DC with AC adaptor
Rating: Input 120 V AC, 60 Hz
Power consumption (when using AC
adaptor): 12 W
Dimensions (approx.):
255 mm x 192 mm x 39 mm
(10 1/8 in. x 7 5/3 in. x 1 °/16 in.)
(width/depth/height)
incl. projecting parts
Mass (approx.): 0.9 kg (2 Ib)
Operating temperature:
5 °C to 35 °C (41 °F to 95 °F)
Operating humidity: 25 % to 80 %
Supplied accessories
* High Speed HDMI Cable (1)*
AC adaptor (AC-M1210UC) (1)
Remote commander (remote) (1)
e Size AAA (R03) batteries (2)
* Supplied for BDP-BX670
Specifications and design are subject to
change without notice.
Playable discs
BD-ROM
Blu-ray ( ,
BD-R 2/BD-RE'*
Disc*!
DVD” DVD-ROM
DVD-R/DVD-RW
DVD+R/DVD+RW
CD” CD-DA (Music CD)
CD-ROM
CD-R/CD-RW
Super Audio CD
“1 Since the Blu-ray Disc specifications are
new and evolving, some discs may not be
playable depending on the disc type and the
version.
The audio output differs depending on the
source, connected output jack, and selected
audio settings.
“2 BD-RE: Ver.2.1
BD-R: Ver.1.1, 1.2, 1.3 including organic
pigment type BD-R (LTH type)
The BD-Rs recorded on a PC cannot be
played if postscripts are recordable.
"3 A CDor DVD disc will not play 1f it has not
been correctly finalized. For more
information, refer to the instruction manual
supplied with the recording device.
Discs that cannot be played
e BDs with cartridge
* BDXLs
* DVD-RAMs
* HD DVDs
* DVD Audio discs
* PHOTO CDs
* Data part of CD-Extras
* Super VCDs
* Audio material side on DualDiscs
* A disc recorded in a color system other
than NTSC, such as PAL (this player
conforms to the NTSC color system).
Note on Discs
This product 1s designed to playback
discs that conform to the Compact Disc
(CD) standard. DualDiscs and some of
the music discs encoded with copyright
protection technologies do not conform
to the Compact Disc (CD) standard,
therefore, these discs may not be
playable by this product.
Note on playback operations of BDs/
DVDs
Some playback operations of BDs/
DVDs may be intentionally set by
software producers. Since this player
plays BDs/DVDs according to the disc
contents the software producers
designed, some playback features may
not be available.
Note about double-layer BDs/DVDs
The playback pictures and sound may be
momentarily interrupted when the layers
switch.
Region code (BD-ROM/DVD VIDEO
only)
Your player has a region code printed on
the bottom of the unit and will only play
BD-ROMs/DVD VIDEOs labeled with
identical region codes or ©):
BDP-XXXXX
SONY®
DVD | BD
x | x — Region code
41
UOIJEUNOJU] [EUOIHPPY
42
Playable types of files
Video
Codec Container | Extension With Audio
MPEG-1 PS .mpg, .mpeg | Dolby Digital, DTS, LPCM, MPEG
Video"! MKV mkv Dolby Digital, LPCM, AAC, MP3, Vorbis
ps” .mpg, .mpeg | Dolby Digital, DTS, LPCM, MPEG
de TS™ .m2ts, .mts | Dolby Digital, DTS, LPCM, MPEG, AAC
MKV'! mkv Dolby Digital, LPCM, AAC, MP3, Vorbis
| AVI ‚ау1 Dolby Digital, LPCM, WMA9, MP3
Xvid MKV mkv Dolby Digital, LPCM, AAC, MP3, Vorbis
MKV'! mkv Dolby Digital, LPCM, AAC, MP3, Vorbis
MP4"! .mp4, .m4v | AAC
Ts”! .m2ts, .mts | Dolby Digital, DTS, LPCM, MPEG, AAC
MPEG4/AVC” uel mov Dolby Digital, LPCM, AAC, MP3
FLV flv, fav LPCM, AAC, MP3
Seopa | Зарр Зеро | AAC
Ve1*! TS .m2ts, .mts Dolby Digital, DTS, LPCM, MPEG, AAC
MKV .mkv Dolby Digital, LPCM, AAC, MP3, Vorbis
WMV9*1*7 ASF ‚.WMmV, .asf WMA9, WMA 10 Pro
MKV .mkv Dolby Digital, LPCM, AAC, MP3, Vorbis
Motion JPEG* Quick Time | .mov Dolby Digital, LPCM, AAC, MP3
AVI .avl Dolby Digital, LPCM, AAC, MP3
Format
AVCHD (Ver.2.0)"!"8"7"10
Music
Codec Extension
MP3 (MPEG-1 Audio
Г ауег Ш)*!! mp3
ААС/НЕ-ААС"!*!! .máa, .aac $
WMAS9 Standard”! | .wma
WMA 10 Pro”!? ‚wma
LPCM!! wav
FLAC”! flac, .fla
Dolby Digital ©"! | .ac3
DSF” dsf
DSDIFF"!*15 dff
AIFF! aiff, .aif
ALAC™! .máa
Vorbis .0gg
Monkey's Audio .ape
Format Extension
JPEG jpeg, Jpg, .jpe
PNG png 14
GIF gif 14
MPO .mpo 0 13
BMP bmp 9716
“1 The player may not play this file format on
a DLNA server.
The player can only play standard
definition video on a DLNA server.
The player does not play DTS format files
on a DLNA server.
The player can only play Dolby Digital
format files on a DLNA server.
The player can support AVC up to Level
4.1.
The player does not play this file format on
a DLNA server.
The player can support WMV up to
Advance Profile.
*2
*3
*4
*5
*6
*7
"8 The player can support frame rate up to
60 fps.
? The player plays AVCHD format files that
are recorded on a digital video camera, etc.
The AVCHD format disc will not play if it
has not been correctly finalized.
"19 The player can play AVCHD 3D format.
“11 The player can play “.mka” files.
This file cannot be played on a DLNA
server.
“12 The player does not play coded file such as
Lossless.
"13 The player does not play DST encoded
files.
"14 The player does not play animated PNG or
animated GIF files.
"15 For MPO files other than 3D, the key
image or the first image 1s displayed.
"16 The player does not support 16bit BMP
files.
©
* Some files may not play depending on the
file format, file encoding, recording
condition, or DLNA server condition.
* Some files edited on a PC may not play.
* Some files may not be able to perform fast
forward or fast reverse function.
* The player does not play coded files such as
DRM.
* The player can recognize the following files
or folders in BDs, DVDs, CDs and USB
devices:
— up to folders in the 9th layer, including the
root folder.
— up to 500 files/folders in a single layer.
* The player can recognize the following files
or folders stored in the DLNA server:
— up to folders in the 19th layer.
— up to 999 files/folders in a single layer.
e The player can support frame rate:
— up to 60 fps for AVCHD (MPEG4/AVC)
only.
— up to 30 fps for other video codecs.
* The player can support video bit rate up to
40 Mbps.
Some USB devices may not work with this
player.
UOIJEUNOJU] [EUOIHPPY
43
44
* The player can recognize Mass Storage
Class (MSC) devices (such as flash memory
or an HDD), Still Image Capture Device
(SICD) class devices and 101 keyboard.
e To avoid data corruption or damage to the
USB memory or devices, turn off the player
when connecting or removing the USB
memory or devices.
* The player may not play high bit rate video
files on DATA CDs smoothly. It 1s
recommended to play such files using
DATA DVDs or DATA BDs.
About wireless LAN security
Since communication via the wireless
LAN function 1s established by radio
waves, the wireless signal may be
susceptible to interception. To protect
wireless communication, this player
supports various security functions. Be
sure to correctly configure the security
settings in accordance with your network
environment.
+ No Security
Although you can easıly make settings,
anyone can intercept wireless
communication or intrude into your
wireless network, even without any
sophisticated tools. Keep in mind that
there 1s a risk of unauthorized access or
interception of data.
+ WEP
WEP applies security to
communications to prevent outsiders
from intercepting communications or
intruding into your wireless network.
WEP is a legacy security technology that
enables older devices, which do not
support TKIP/AES, to be connected.
4 WPA-PSK (TKIP), WPA2-PSK (TKIP)
TKIP is a security technology developed
to correct the deficiencies of WEP. TKIP
assures a higher security level than
WEP.
¢ WPA-PSK (AES), WPA2-PSK (AES)
AES 1s a security technology that uses an
advanced security method that is distinct
from WEP and TKIP.
AES assures a higher security level than
WEP or TKIP.
Notes About the Discs
* To keep the disc
clean, handle the
disc by its edge. Do ~
not touch the ( ©
surface.
Dust, fingerprints, or scratches on the
disc may cause it to malfunction.
e Do not expose the disc to direct
sunlight or heat sources such as hot air
ducts, or leave it in a car parked in
direct sunlight as the temperature may
rise considerably inside the car.
* After playing, store the disc in its case.
* Clean the disc with a
cleaning cloth. Wipe
the disc from the d=)
center out. <
* Do not use solvents
such as benzine,
thinner, commercially available disc/
lens cleaners, or anti-static spray
intended for vinyl LPs.
* Tf you have printed the disc’s label, dry
the label before playing.
* Do not use the following discs.
— A lens cleaning disc.
— A disc that has a non-standard shape
(e.g., card, heart).
— À disc with a label or sticker on it.
— A disc that has cellophane tape or
sticker adhesive on it.
* Do not resurface the playing side of a
disc to remove surface scratches.
Language code list
For details, see [BD/DVD Viewing
Settings] (page 31).
The language spellings conform to the
ISO 639: 1988 (E/F) standard.
Code Language
Code Language
1027
1032
1044
1051
1053
1059
1061
1067
1079
1097
1105
1130
1144
1149
1151
1165
1171
1181
1186
1196
1209
1226
1233
1239
1248
1254
1261
1283
1297
1299
1301
Afar
Afrikaans
Arabic
Aymara
Bashkir
Bulgarian
Bislama
Tibetan
Catalan
Czech
Danish
Bhutani;
Dzongkha
English
Spanish
Basque
Finnish
Faroese
Frisian
Scots Gaelic
Guarani
Hausa
Croatian
Armenian
Interlingue
Indonesian
Italian
Japanese
Javanese
Kazakh
Cambodian;
Khmer
Korean
1028
1039
1045
1052
1057
1060
1066
1070
1093
1103
1109
1142
1145
1150
1157
1166
1174
1183
1194
1203
1217
1229
1235
1245
1253
1257
1269
1287
1298
1300
1305
Abkhazian
Amharic
Assamese
Azerbaijani
Byelorussian
Bihari
Bengali
Breton
Corsican
Welsh
German
Greek
Esperanto
Estonian
Persian
Fiji
French
Irish
Galician
Gujarati
Hindi
Hungarian
Interlingua
Inupiak
Icelandic
Hebrew
Yiddish
Georgian
Greenlandic;
Kalaallisut
Kannada
Kashmiri
1307
1313
1327
1334
1347
1350
1353
1357
1363
1369
1379
1403
1417
1435
1463
1482
1489
1495
1501
1503
1506
1508
1511
1513
1515
1517
1525
1528
1531
1534
1538
1540
1557
1572
1587
1632
1684
1703
Kurdish
Latin
Laothian; Lao
Latvian
Maori
Malayalam
Moldavian
Malay
Burmese
Nepali
Norwegian
Oromo
Punjabi;
Panjabi
Pashto;
Pushto
Quechua
Kirundi; Rundi
Russian
Sanskrit
Sangho;
Sango
Singhalese;
Sinhalese
Slovenian
Shona
Albanian
Siswati; Swati
Sundanese
Swahili
Telugu
Thai
Turkmen
Setswana;
Tswana
Turkish
Tatar
Ukrainian
Uzbek
Volapúk
Xhosa
Chinese
Not specified
1311
1326
1332
1345
1349
1352
1356
1358
1365
1376
1393
1408
1428
1436
1481
1483
1491
1498
1502
1505
1507
1509
1512
1514
1516
1521
1527
1529
1532
1535
1539
1543
1564
1581
1613
1665
1697
Kirghiz
Lingala
Lithuanian
Malagasy
Macedonian
Mongolian
Marathi
Malese:
Maltese
Nauru
Dutch
Occitan
Oriya
Polish
Portuguese
Rhaeto-
Romance
Romanian
Kinyarwanda
Sindhi
Serbo-
Croatian
Slovak
UOIJEUNOJU] [EUOIHPPY
Samoan
Somali
Serbian
Sesotho;
Sotho
southern
Swedish
Tamil
Tajik
Tigrinya
Tagalog
Tonga; Tonga
Islands
Tsonga
Twi
Urdu
Viethamese
Wolof
Yoruba
Zulu
45
46
Parental control/area code
For details, see [Parental Control Area
Code] (page 32).
Code Area
2044 Argentina 2047 Australia
2046 Austria 2057 Belgium
2070 Brazil 2090 Chile
2092 China 2093 Colombia
2115 Denmark 2165 Finland
2174 France 2109 Germany
2200 Greece 2219 Hong Kong
2248 India 2238 Indonesia
2239 Ireland 2254 Italy
2276 Japan 2304 Korea
2333 Luxembourg 2363 Malaysia
2362 Mexico 2376 Netherlands
2390 New Zealand 2379 Norway
2427 Pakistan 2424 Philippines
2428 Poland 2436 Portugal
2489 Russia 2501 Singapore
2149 Spain 2499 Sweden
2086 Switzerland 2543 Taiwan
2528 Thailand 2184 United
Kingdom
2586 Vietnam
The software of this player may be updated in the future. To download any available
updates and the Operating Instructions with advanced features, please visit the
following website:
http://www.sony.com/bluraysupport/
=
¢
a
OLIVE. Hom 2. =
<<.
COMPACT BRAVIA = Va
http://www.sony.net/
4-579-669-11(1
© 2016 Sony Corporation WERE _
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
