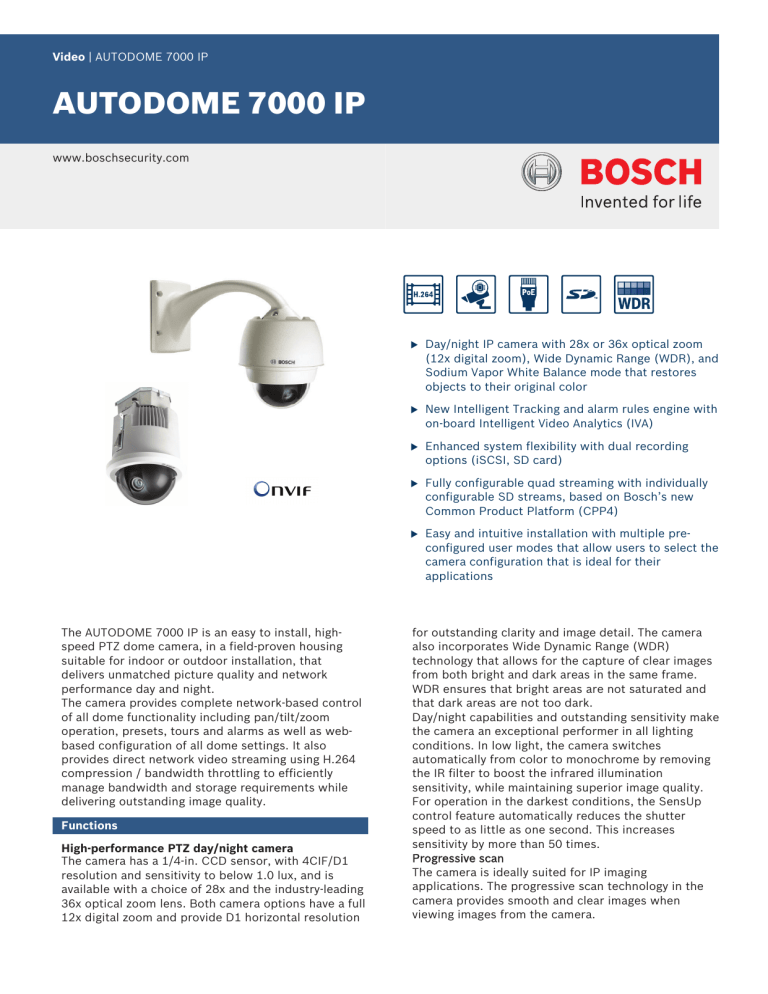

Video | AUTODOME 7000 IP

AUTODOME 7000 IP

www.boschsecurity.com

The AUTODOME 7000 IP is an easy to install, highspeed PTZ dome camera, in a field-proven housing suitable for indoor or outdoor installation, that delivers unmatched picture quality and network performance day and night.

The camera provides complete network-based control of all dome functionality including pan/tilt/zoom operation, presets, tours and alarms as well as webbased configuration of all dome settings. It also provides direct network video streaming using H.264

compression / bandwidth throttling to efficiently manage bandwidth and storage requirements while delivering outstanding image quality.

Functions

High-performance PTZ day/night camera

The camera has a 1/4-in. CCD sensor, with 4CIF/D1 resolution and sensitivity to below 1.0 lux, and is available with a choice of 28x and the industry-leading

36x optical zoom lens. Both camera options have a full

12x digital zoom and provide D1 horizontal resolution u

Day/night IP camera with 28x or 36x optical zoom

(12x digital zoom), Wide Dynamic Range (WDR), and

Sodium Vapor White Balance mode that restores objects to their original color u

New Intelligent Tracking and alarm rules engine with on-board Intelligent Video Analytics (IVA) u

Enhanced system flexibility with dual recording options (iSCSI, SD card) u

Fully configurable quad streaming with individually configurable SD streams, based on Bosch’s new

Common Product Platform (CPP4) u

Easy and intuitive installation with multiple preconfigured user modes that allow users to select the camera configuration that is ideal for their applications for outstanding clarity and image detail. The camera also incorporates Wide Dynamic Range (WDR) technology that allows for the capture of clear images from both bright and dark areas in the same frame.

WDR ensures that bright areas are not saturated and that dark areas are not too dark.

Day/night capabilities and outstanding sensitivity make the camera an exceptional performer in all lighting conditions. In low light, the camera switches automatically from color to monochrome by removing the IR filter to boost the infrared illumination sensitivity, while maintaining superior image quality.

For operation in the darkest conditions, the SensUp control feature automatically reduces the shutter speed to as little as one second. This increases sensitivity by more than 50 times.

Progressive scan

The camera is ideally suited for IP imaging applications. The progressive scan technology in the camera provides smooth and clear images when viewing images from the camera.

2 | AUTODOME 7000 IP

Sodium vapor lamp white balance

The camera is an exceptional performer when capturing video under a sodium vapor lamp (a street lamp or tunnel lamp, for example). Images under these conditions may have a yellowish tint, which may make identification difficult. In the Sodium Vapor White

Balance mode, the camera automatically compensates for the light from a sodium vapor lamp to restore objects to their original color.

Virtual masking

The camera offers Virtual Masking, which gives users flexibility to mask parts of the scene which should not be considered for flow analysis to trigger Intelligent

Tracking. This allows users to mask background motion in the scene such as moving trees, pulsating lights, busy roads, etc.

Intelligent Tracking

The camera utilizes the built-in Intelligent Video

Analytics (IVA) to follow an individual or an object continuously. Objects detected by IVA when the camera is in a stationary position activate the

Intelligent Tracking feature, which controls the pan/ tilt/zoom actions of the camera to keep the tracked object in the scene.

The new Intelligent Tracking is based on robust flow detection algorithms which can reliably track moving objects even under challenging scenes.

The tracking and detection reliability can be enhanced further with virtual masking for scenes with a lot of background motion such as trees or other objects creating constant motion in the scene.

The camera supports three modes for Intelligent

Tracking:

Auto mode: When configured in this mode, the camera actively analyzes the video to detect any moving object. If it detects movement, it begins to track the object. This mode is most useful for scenarios where normally no motion is expected.

One Click mode: In this mode, users can click an object moving in the live video image to enable the camera to track the movement of the selected object.

This mode is most useful for scenarios where normal scene activity is expected.

IVA-triggered mode: In this mode, the camera continuously analyzes the scene for IVA alarms or IVA rule violations. If an IVA rule is violated, it triggers the advanced tracking feature of the camera to start following the object / person that triggered the alarm.

This unique combination of robust IVA and Intelligent

Tracking allows the camera to track moving objects of interest without getting distracted by other moving objects in the scene.

Intelligence

With built-in video content analysis, the AUTODOME reinforces the Intelligence-at-the-Edge concept where edge devices become increasingly intelligent.

The AUTODOME comes with Bosch’s Intelligent Video

Analysis (IVA) built-in. IVA is state-of-the-art intelligent video analysis that reliably detects, and analyzes moving objects while suppressing unwanted alarms from spurious sources in the image.

The IVA functionality built into the AUTODOME is able to detect idle and removed objects as well as loitering, multiple line crossing, and trajectories. IVA also supports BEV (Bird’s Eye View) People counting.

Assisted Self Calibration and configurable detection filters improve reliability and reduce operator work load.

AUTODOME 7000 PTZ drive and mechanism

The AUTODOME 7000 supports 256 pre-positions and two styles of Guard Tours: Preset and Record/

Playback. Users can configure the preset standard tour with as many as 256 sequential pre-positions, with a configurable dwell time between pre-positions. The

AUTODOME Series also provides support for two recorded tours, which are recorded macros of an operator’s movements, including pan, tilt, and zoom activities, and can be played back with the click of a button.

Pan and tilt preset repeatability are accurate to within

±0.1 degrees to ensure that the correct scene is captured every time. The camera delivers variable pan/ tilt speeds from a crawl speed of only 0.1 degrees per second to a full 400 degrees per second. The camera is capable of pan speeds of 400 degrees per second and tilt speeds of 300 degrees per second between prepositions. The camera provides a tilt angle 18 degrees above the horizon, and a pan range of up to

360 degrees continuous rotation.

The AutoScaling (proportional zoom) and AutoPivot

(automatically rotates and flips the camera) features ensure optimal control.

Five (5) pre-programmed user modes

Five pre-programmed but configurable user modes, optimized with the best settings for a variety of typical applications, make camera programming on-site easy and user-friendly. Users select from the menu the mode that best defines the environment in which the camera is installed:

• Outdoor – general day-to-night changes with sun highlights and street lighting

• Indoor – general day-to-night changes without sun highlights and street lighting

• Low light –optimized for sufficient details at low light

• Motion – monitoring traffic or fast moving objects; motion artifacts are minimized

• Vibrant – enhanced contrast color reproduction and sharpness

Users have the ability to customize these modes, if necessary, for the specific requirements of the site.

3 | AUTODOME 7000 IP

Superior privacy masking

The camera provides 24 individual, easy to configure privacy masks, with up to 8 displayed in the same scene. As the camera is zoomed, each mask changes size smoothly and quickly, ensuring that the covered object cannot be seen in most cases.

Comprehensive streaming capabilities on Bosch’s

Common Product Platform (CPP4)

The camera has an advanced, efficient H.264 encoder

(CPP4) embedded for DVD-quality streaming video and very efficient streaming and network capabilities.

The new platform supports simultaneous streaming of individually configurable SD streams (H.264 and M-

JPEG), and allows a choice of SD resolution.

Recording and storage management

A memory card (SD (Secure Digital), SDHC (Secure

Digital High Capacity), or SDXC (Secure Digital eXtended Capacity)) can be used for local alarm recording or for scheduled local recording to improve the overall recording reliability. Recording management can be controlled by the Bosch Video

Recording Manager (VRM), or the camera can use iSCSI targets directly without any recording software.

Advanced networking capabilities

The AUTODOME offers advanced capabilities so you can configure the camera to take advantage of the latest networking technology.

The AUTODOME offers Quality of Service (QoS) configuration options to ensure fast network response to PTZ data and images. Quality of Service (QoS) is the set of techniques to manage network resources.

QoS manages the delay, delay variation (jitter), bandwidth, and packet loss parameters to guarantee the ability of a network to deliver predictable results.

QoS identifies the type of data in a data packet and divides the packets into traffic classes that can be prioritized for forwarding.

The AUTODOME also supports the IPv6 internet-layer protocol for packet-switched internetworking across multiple IP networks. IPv6 uses 128-bit addresses

(IPv4 uses 32-bit addressing), which allows for many more devices and users on the internet as well as extra flexibility in allocating addresses and efficiency for routing traffic.

Ease of installation and servicing

The camera has been designed for quick and easy installation; a key feature from Bosch CCTV products.

All housings feature recessed screws and latches for increased tamper resistance.

AUTODOME in-ceiling housings provide IP54 protection. With an optional, impact-resistant, rugged polycarbonate bubble (sold separately), they are rated

IK 8 (IEC 62262) to protect the camera from vandalism. The rugged bubble can withstand impacts equivalent to a 4.5 kg (10 lb) weight dropped from a height of 3 m (10 ft).

Indoor/outdoor pendant housings are rated to provide

IP66 protection and offer an operating temperature range down to -40 °C (-40 °F). The indoor/outdoor pendant comes fully assembled with a sunshield and ready for wall or pipe applications with the proper mounting hardware (sold separately). In addition, the camera models with pendant housing come equipped with a low-impact, high-resolution acrylic bubble for enhanced image clarity. You can easily convert the outdoor pendant for indoor applications by removing the sunshield.

Bosch offers a full complement of hardware and accessories (sold separately) for wall, corner, mast, roof, pipe mount, and in-ceiling applications, which allow the camera to be adapted easily to individual site requirements.

Video management system support

The camera ships with Bosch Video Client (BVC), an easy-to-use software from Bosch that is suitable for midsize installations. For large enterprise systems,

AUTODOME cameras can be used with Bosch Video

Management System (BVMS), which allows enhanced video management and viewing capabilities.

In addition, the camera is supported/integrated into all of the leading third party video management systems.

ONVIF conformant

The AUTODOME Series conforms to the ONVIF Profile

S specification allowing easy integration with the conformant devices and VMS.

For more information about ONVIF, visit www.onvif.org.

The camera conforms to the ONVIF (Open Network

Video Interface Forum) specification which guarantees interoperability between network video products regardless of manufacturer. ONVIF conformant devices are able to exchange live video, audio, metadata and control information. They are automatically discovered and connected to network applications such as video management systems.

Fiber Optic Kit

Bosch offers the optional VG4-SFPSCKT, a unique media converter module for use with AUTODOME cameras. This media converter module is designed to accept a wide-range of 10/100 Mbps SFP modules for use with Multimode or Singlemode optical fiber with

LC or SC connectors.

The media converter module along with the SFP module is user-installed directly into the camera‘s power supply box to provide an integrated fiber optic solution.

Unsurpassed reliability

As with all Bosch products, the AUTODOME Series has been subjected to the industry’s most comprehensive and demanding battery of endurance tests such as

HALT (highly accelerated life testing) to make sure it will hold up through years of use. And of course, it comes with Bosch’s industry-leading 3-year warranty.

4 | AUTODOME 7000 IP

Access security

Access security

Various security levels are available for accessing the network, the camera, and the data channels. As well as password protection with three levels, 802.1x

authentication using a RADIUS (Remote Authentication

Dial In User Service) server is supported. To secure

Web browser access, use HTTPS with a SSL certificate stored in the camera. For total data protection, the video and audio communication channels can be independently AES encrypted with 128-bit keys by installing the optional encryption site license.

Easy upgrade

Remotely upgrade the camera whenever new firmware becomes available. This ensures up-to-date products, thus protecting investment with little effort.

Certifications and approvals

Electromagnetic

Compatibility (EMC)

Product Safety

Environmental

ONVIF conformance

Complies with FCC Part 15, ICES-003, and CE regulations, including EN50130-4, EN55022

Class A, EN61000-3-3,

EN61000-6-1, and EN61000-6-2

Complies with CE regulations, UL, CSA, EN, and IEC Standards

EN60950-1

In-ceiling: IP54, Plenum rated (with acrylic bubble)

Also: IK8 rating when using optional

Polycarbonate bubble, sold separately

Indoor/Outdoor Pendant: IP66, NEMA 4X

EN 50132-5-2

Notice

Conformity to EN 50130-4

One of the following power supply units is required to conform to the EN 50130-4 standard:

VG4-A-PSU0, VG4-A-PSU1, VG4-A-PSU2, VG4-A-

PA0, VG4-A-PA1, or VG4-A-PA2.

1

1

1

Parts included

In-ceiling

Quantity

1

Item

AUTODOME 7000 In-Ceiling camera with acrylic bubble and white trim ring

Interface box

Optional black trim ring

Ceiling gasket (for IP54 conformance)

Product DVD (which includes complete Operation Manual)

Packet of printed Safety literature

Outdoor Pendant

Quantity Item

1 AUTODOME 7000 Pendant camera with clear acrylic bubble and sunshield

1 Product DVD (which includes complete Operation Manual)

1 Packet of printed Safety literature

Notes:

• The pendant can be converted to an indoor pendant by removing the sunshield.

• Mounting hardware and accessories are available separately.

Technical specifications

Camera 36x Day/Night

Imager

Effective Picture

Elements

Lens

Focus

1/4 in.-type Exview HAD CCD (progressive scan)

PAL: Approx. 440,000; 752(H) x 582(V)

NTSC: Approx. 380,000; 768 (H) x 494 (V)

36x Zoom (3.4–122.4 mm) F1.6 to F4.5

Automatic with manual override

Iris

Zoom Movement Speed

Automatic with manual override

NTSC

• Optical WIDE / Optical TELE –

Focus Tracking ON

• Optical WIDE / Optical TELE –

Focus Tracking OFF

4.0 sec.

2.7 sec.

PAL

4.0 sec.

2.7 sec.

• Optical WIDE / Digital TELE

• Digital WIDE / Digital TELE

Optical Zoom Field of View

(FOV)

1.7° to 57.8°

6.0 sec.

2.1 sec.

6.2 sec.

2.3 sec.

Minimum Working Distance

Gain Control

Synchronization

Aperture Correction

Digital Zoom

Sensitivity (typical)

Day Mode

1

SensUp Off

(NTSC: 1/60s

PAL: 1/50s)

SensUp On

(NTSC: 1/4s, 15X;

PAL 1/3s, 16.7X)

Night Mode

320 mm (wide) to 1500 mm (tele)

Auto/Manual/Max.

(–3 dB to 28 dB, 2 dB steps)

Line-Lock (–120° to 120° vertical phase adjust) or internal crystal

Horizontal and vertical

12x

30 IRE 50 IRE

0.66 lux

(0.061 fc)

1.4 lux

(0.13 fc)

0.04 lux

(0.0037 fc)

0.1 lux

(0.0092 fc)

5 | AUTODOME 7000 IP

SensUp Off

SensUp On

(NTSC: 1/4s, 15X;

PAL 1/3s, 16.7X)

Electronic Shutter Speed

0.104 lux

(0.0097 fc)

0.0052 lux

(0.0005 fc)

0.209 lux

(0.0194 fc)

0.0103 lux

(0.001 fc)

Wide Dynamic Range (WDR)

Signal-to-Noise Ratio (SNR)

White Balance

NTSC: 1/4 to 1/10,000 sec., 20 steps

PAL: 1/3 to 1/10,000 sec., 20 steps

92 dB (50 dB with WDR Off)

>50 dB (Weighting ON)

2000 K to 10,000 K

1. Unless otherwise stated, test conditions are: F1.6; shutter = NTSC 1/60s, PAL 1/50s; max AGC; no bubble. Clear bubble adds 0.09 f-stop loss (90% light transmission). Tinted bubble adds 0.47 f-stop loss (60% light transmission).

Camera 28x Day/Night

Imager

Effective Picture

Elements

Lens

Focus

1/4 in.-type Exview HAD CCD (progressive scan)

PAL: Approx. 440,000; 752(H) x 582(V)

NTSC: Approx. 380,000; 768 (H) x 494 (V)

28x Zoom (3.5–98.0 mm) F1.35 to F3.7

Automatic with manual override

Iris

Zoom Movement Speed

Automatic with manual override

NTSC

• Optical WIDE / Optical TELE –

Focus Tracking ON

• Optical WIDE / Optical TELE –

Focus Tracking OFF

2.5 sec.

1.7 sec.

PAL

2.5 sec

1.7 sec.

• Optical WIDE / Digital TELE –

Focus Tracking ON

• Optical WIDE / Digital TELE –

Focus Tracking OFF

4.5 sec.

1.7 sec.

4.9 sec.

1.7 sec.

• Digital WIDE / Digital TELE

Optical Zoom Field of View

(FOV)

2.0 sec.

2.1° to 55.8°

Minimum Working Distance

Gain Control

2.5 sec.

300 mm (wide) to 1500 mm (tele)

Auto/Manual/Max.

(–3 dB to 28 dB, 2 dB steps)

Synchronization

Aperture Correction

Digital Zoom

Sensitivity (typical) 2

Line-Lock (-120° to +120° vertical phase adjust) or internal crystal

Horizontal and vertical

12x

50 IRE

Day Mode

SensUp Off

30 IRE

0.33 lux

(0.031 fc)

0.66 lux

(0.061 fc)

SensUp On

(NTSC: 1/4s, 15X;

PAL 1/3s, 16.7X)

Night Mode

SensUp Off

SensUp On

(NTSC: 1/4s, 15X;

PAL 1/3s, 16.7X)

Electronic Shutter Speed

0.02 lux

(0.002 fc)

0.066 lux

(0.006 fc)

0.0026 lux

(0.0002 fc)

0.04 lux

(0.004 fc)

0.166 lux

(0.015 fc)

0.0082 lux

(0.0008 fc)

Wide Dynamic Range (WDR)

Signal-to-Noise Ratio (SNR)

White Balance

NTSC: 1/4 to 1/10,000 sec., 20 steps

PAL: 1/3 to 1/10,000 sec., 20 steps

92 dB (50 dB with WDR Off)

>50 dB (Weighting ON)

2000 K to 10,000 K

2. Unless otherwise stated, test conditions are: F1.6; shutter = NTSC 1/60s, PAL 1/50s; max AGC; no bubble. Clear bubble adds 0.09 f-stop loss (90% light transmission). Tinted bubble adds 0.47 f-stop loss (60% light transmission).

Mechanical

Pan Range

Tilt Angle

Pre-position Speed

Pan/Tilt Modes

• Turbo Mode

(Manual Control)

• Normal Mode

Preset

Accuracy

In-Ceiling

360° cont.

1° above horizon

Pan: 400°/s

Tilt: 300°/s

Pendant

360° cont.

18° above horizon

Pan: 400°/s

Tilt: 300°/s

Pan: 0.1°/s – 400°/s

Tilt: 0.1°/s – 300°/s

0.1°/s-120°/s

± 0.1° typ.

0.1°/s-120°/s

± 0.1° typ.

Electrical

Input Voltage

Power Consumption, typical

In-Ceiling

21-30 VAC ,

50/60 Hz

High PoE or PoE+ (IEEE

802.3at, class 4 standard)

24 W / 44 VA

Pendant

21-30 VAC, 50/60 Hz or High PoE

60 W / 69 VA (heaters on) or

24 W / 44 VA

(heaters off)

3

3. Without heater connected in power supply box for indoor applications.

6 | AUTODOME 7000 IP

Surge Suppression

Protection on

Alarm Inputs

Protection on

Alarm Outputs

Protection on

Relay Output

Protection on Power

Input (Dome)

Protection on Power

Output (Arm Power

Supply)

10/100 Ethernet

Data Lines

Peak current 17 A, peak power 300 W

(8/20 μs)

Peak current 2 A, peak power 300 W

(8/20 μs)

Peak current 7.3 A, peak power 600 W

(10/1000 μs)

Peak current 7.3 A, peak power 600 W

(10/1000 μs)

Peak current 21.4 A, peak power 1500 W

(10/1000 μs)

Peak current 14 A, peak power 200 W

(8/20 μs)

Software Control

Camera Setup/

Control

Software Update

Via web browser (such as Internet Explorer version 7.0 or later), Bosch Configuration

Manager, Bosch Video Management System

(BVMS), or Bosch Video Client (BVC)

Network firmware upload

Network

Video compression

H.264 (ISO/IEC 14496‑10), M‑JPEG

Encoding / Streaming

1

2

Stream 1

[email protected]

[email protected]

H.264

Scenario

Stream 2

[email protected]

Copy of

Stream 1

Stream 3

I-frame only from

Stream 1

I-frame only from

Stream 1

I-frame only from

Stream 1

MJPEG

Stream 4

[email protected]

[email protected]

3 Downscaled stream

Downscaled stream

Downscaled stream from

Stream 1

GOP Structure

Data Rate

Overall IP Delay 240 ms

Resolution (Horizontal x Vertical, PAL/NTSC)

• 4CIF/D1

IP, IBP, IBBP

9.6 kbps to10 Mbps (per stream)

• CIF

704 x 576/480 (25/30 ips, or 50/60 fields/s for interlaced fields)

352 x 288/240 (25/30 ips, or 50/60 fields/s for interlaced fields)

Ethernet 10-Base T/100 Base-TX, auto-sensing, half/full duplex, RJ45

Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP,

IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet,

ARP, DHCP, SNTP, SNMP (V1, MIB II), 802.1x,

DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP),

DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication

IPv6, QoS Advanced

Networking

Audio

• Standard G.711, 8 kHz sampling rate

L16, 16 kHz sampling rate

AAC, 16 kHz sampling rate

>50 dB • Signal-to-

Noise Ratio

• Audio

Streaming

Bidirectional (full duplex)

Local Storage

Memory Card Slot

Recording

User-supplied SD/SDHC/SDXC memory card

(maximum 2TB – SDXC)

Continuous recording of video and audio

Fiber Optic Kit

VG4-SFPSCKT

Description Fiber Optic Ethernet Media Converter kit

5

.

Requires a small form-factor pluggable (SFP) module (sold separately).

Ethernet Data Interface

Data Rate 10/100 Mbps

IEEE 802.3 Compliant

Full Duplex or Half Duplex Electrical Port

Full Duplex Optical Port

Compatible Receiver CNFE2MC

Installation Installed inside a VG4-A-PA0, VG4-A-PA1,

VG4-A-PA2, VG4‑A‑PSU1, or a VG4‑A‑PSU2 power supply box with supplied mounting hardware

5. Kit available separately and must be installed inside the AUTODOME power supply box.

SFP Modules

Description Interchangeable modules available for use with

MMF or SMF optical fiber.

Ethernet Data Interface

Data Rate

Mechanical

Dimensions (LxWxH)

• SFP-2 and SFP-3

• SFP-25, SFP-26

10/100 Mbps

IEEE 802.3 Compliant

55.5 x 13.5 x 8.5 mm (2.2 x 0.5 x 0.3 in.)

63.8 x 13.5 x 8.5 mm (2.5 x 0.5 x 0.3 in.)

7 | AUTODOME 7000 IP

Weight (all SFP modules)

Type

0.23 kg (.05 lb)

SFP-2

SFP-3

SFP-25

SFP-26

MMF

SMF

MMF

MMF

Connector

Duplex LC

Duplex LC

Single SC

Single SC

Wavelength

(transmit / receive)

1310 nm /

1310 nm

1310 nm /

1310 nm

1310 nm /

1550 nm

1550 nm /

1310 nm

Max. Distance

2 km

(1.2 miles)

20 km

(12.4 miles)

2 km

(1.2 miles)

2 km

(1.2 miles)

Fiber Compatibility

Optical Fiber

Compatibility, MMF

Optical Fiber

Compatibility, SMF

Optical Distance

Specifications

50/125 µm MMF. For 50/125 µm fiber, subtract 4 dB from the specified optical budget value. Must meet or exceed fiber standard ITU-T G.651.

8–10/125 µm SMF. Must meet or exceed fiber standard ITU-T G.652.

Specified transmission distances are limited to the optical loss of the fiber and any additional loss introduced by connectors, splices, and patch panels. The modules are designed to operate over the entire optical loss budget range, so they do not require a minimum loss in order to operate.

Miscellaneous

Sectors/Titling

Masking

Pre-positions

Guard Tours

Supported

Languages

User Connections

Power, Camera

Power, Heater

Video and Control

Alarm Inputs (7)

16 independent sectors with a 20-character title/sector

24 individually configurable privacy masks

256, each with a 20-character title

Two (2) types of tours:

• Recorded tours – two (2)

• Preset tour – one (1), consisting of up to

256 scenes, consecutively

English, Chinese, Dutch, French, German,

Italian, Japanese, Polish, Portuguese, and

Spanish

RJ-45 10/100 Base-TX Ethernet (High

Power-over-Ethernet (High PoE)) or PoE+

(IEEE 802.3at, class 4 standard)

21-30 VAC, 50/60 Hz

RJ-45 10/100 Base-TX Ethernet (High

Power-over-Ethernet (High PoE))

21-30 VAC, 50/60 Hz

RJ-45 10/100 Base-TX Ethernet

2 supervised; 5 non-supervised

Programmable for “normally open” or

"normally closed"

Alarm Outputs (4)

Audio

• Signal line in

• Signal line out

1 dry contact relay; 3 open collector/ transistor outputs

32 VDC @ 150 ma max.

1 x mono line in, 1 x mono line out

12 kOhm typical, 1 Vrms max

1 Vrms at 1.5 kOhm, typical

Environmental

Ingress

Protection

Rating/

Standard

Operating

Temp.

Storage

Temp.

Humidity

In-Ceiling

IP54, Plenum rated

Pendant

IP66 7

NEMA 4X for:

• Access to Hazardous parts

• Ingress of solid foreign objects (falling dirt, circulating dust, settling dust)

• Ingress of water (dripping and light splashing, hosedown and splashing)

• Corrosive agents

-10°C to 40°C

(14°F to 104°F)

-40°C to 55°C

(-40°F to 131°F) or

-10°C to 55°C

(14°F to 131°F)

6

-40°C to 60°C

(-40°F to 140°F)

0% to 90% relative, noncondensing

-40°C to 60°C

(-40°F to 140°F)

0% to 100% relative, condensing

6. Without heater connected in power supply box for indoor applications.

7. Meets requirements for NEMA 4X certification with use of a polycarbonate bubble.

Meets requirements for NEMA 4X, except impact test, with use of an acrylic bubble.

Construction

Dimensions

Weight

• In-ceiling

• Indoor/Outdoor

Pendant

Bubble Size

Construction Material

• Housing

• Bubble

Standard Color

Standard Finish

See dimensional drawings

2.58 kg (5.69 lb)

3.06 kg (6.75 lb)

153.1 mm diameter (6.03 in.)

In-ceiling: Magnesium

Pendant: Cast aluminum

In-ceiling: High-resolution acrylic, rugged polycarbonate, or HD high-resolution acrylic

Pendant: High-resolution acrylic or rugged polycarbonate

White (RAL 9003)

Powder coated, sand finish

8 | AUTODOME 7000 IP

Mounts/Accessories

Bubbles

In-ceiling

Clear high-resolution acrylic

(Included with in-ceiling PAL camera models.)

Tinted high-resolution acrylic

(Included with in-ceiling NTSC camera models.)

Clear rugged polycarbonate

Tinted rugged polycarbonate

Clear HD high-resolution acrylic

Tinted HD high-resolution acrylic

Pendant

Clear high-resolution acrylic

(Included with pendant camera models.)

Tinted high-resolution acrylic

Clear rugged polycarbonate

Tinted rugged polycarbonate

Pendant Arm Mounts

Wall Arm (No Transformer)

Wall Arm (120/230 VAC Transformer)

VGA-BUBBLE-CCLA

VGA-BUBBLE-CTIA

VGA-BUBBLE-CCLR

VGA-BUBBLE-CTIR

VGA-BUBHD-CCLA

VGA-BUBHD-CTIA

VGA-BUBBLE-PCLA

VGA-BUBBLE-PTIA

VGA-BUBBLE-PCLR

VGA-BUBBLE-PTIR

VG4-A-PA0

VG4-A-PA1 /

VG4-A-PA2

VGA-PEND-ARM

VGA-PEND-WPLATE

VG4-A-TSKIRT

Pendant Arm with Wiring

Mounting plate for VGA-PEND-ARM

Trim skirt for VG4 Series Power Supplies

Optional Mounting Plates for Arm Mounts

Corner Mounting Plate

Mast (Pole) Mounting Plate

Pendant Pipe Mounts

Pipe Mount Cap

Pendant Roof Mounts

Roof (Parapet) Mount

(VG4-A-9543 Pipe Mount Cap required. Available separately.)

Optional Mounting Plates for Roof Mounts

Flat Roof Adapter for Parapet Mount

In-ceiling Support Kits

Bracket for suspended or drop ceilings

Power Supplies

High PoE Midspan 60W, single port, AC in

Outdoor Power Supply Box, no transformer

VG4-A-9542

VG4-A-9541

VG4-A-9543

VGA-ROOF-MOUNT

LTC 9230/01

VGA-IC-SP

NPD-6001A

VG4-A-PSU0

Outdoor Power Supply Box (120/230 VAC

Transformer)

Fiber Optic Kit

Dimensional Drawings

VG4-A-PSU1 /

VG4-A-PSU2

VG4-SFPSCKT

AUTODOME 7000 – Slot for SD card

1 Slot for SD card

532.1

[20.95]

549.6

[21.64]

469.1

[18.47]

86.7

[3.42]

189.0

[7.44]

224.0

[8.82]

22.86

[0.90]

299.4

[11.79]

R 76.6

[3.01]

188.0

[7.40]

158.0

[6.22]

169.9

[6.69]

11.0

[0.43]

60.0

[6.30]

366.9

[14.44]

201.2

[7.92]

216.4

[8.52]

233.0

[9.17]

189.0

[7.44]

224.0

[8.82]

R 76.6

[3.01] mm

[in.]

AUTODOME 7000 Dimensions – Pendant, Pipe

134.6

[5.30]

1 Power supply box and sunshield

2 Sunshield removed

3 Mounting plate

4 Power supply box

5 Trim skirt

86.1

[7.33]

9 | AUTODOME 7000 IP

ø

175.99

[6.929]

21.29

[0.838]

206.89

[8.145]

95.88

[3.775]

HD

ø

204.49

[8.051]

99.76

[3.928]

IP

74.65

[2.939]

HD

78.04

[3.072]

IP mm

[in.]

AUTODOME 7000 Dimensions – In-ceiling

88.9

3.50

58

2.3

175

6.9

193

7.6

152.4

6.0

10.2

0.40

88.9

3.50

5

Ø 10.4

0.41

279.4

11.00

6.35 Typ.

0.25

111 Typ.

4.37

16.0 Typ.

0.63

254

10.00

1-1/2 NPT

69.9

2.75

133.4

5.25

38

1.5

133.4

5.25

616

24.25

178

7.0

219.1

8.63

203

8.0

236

9.3

mm in.

346.2

13.63

101.6 Typ.

4.0

10.4

8 x 0.41

228.6

9.0

279.4

11.0

114.3

4.50 Typ.

976.1

38.43

1022.4

40.25

AUTODOME Dimensions - Mounts

88.1

3.47

1 Mast Mount

2 Corner Mount

3 Pipe Mount

1190.8

46.88

378

14.88

6

11.0

04.3

216.4

8.52

6.35

0.25

170.0

6.69

134.6

5.30

50.8

2.00

4 Roof Mount

5 Roof Mount Adapter

6 Power Supply for Pipe and

Roof Mounts

160.0

6.30

105.0

4.13

Ordering information

AUTODOME 7000 IP 28x In-ceiling PAL with Clear Bubble

Order number

VG5-7028-C1PC4

AUTODOME 7000 IP 28x In-ceiling NTSC with Tinted

Bubble

Order number

VG5-7028-C2PT4

AUTODOME 7000 IP 28x Indoor/Outdoor Pendant PAL with Clear Bubble

Order number

VG5-7028-E1PC4

AUTODOME 7000 IP 28x Indoor/Outdoor Pendant NTSC with Clear Bubble

Order number

VG5-7028-E2PC4

AUTODOME 7000 IP 36x Indoor/Outdoor Pendant PAL with Clear Bubble

Order number

VG5-7036-E1PC4

AUTODOME 7000 IP 36x Indoor/Outdoor Pendant NTSC with Clear Bubble

Order number

VG5-7036-E2PC4

Accessories

VG4-A-PSU0 24 VAC Power Supply Unit

24 VAC, 100 W, white, for an AutoDome Series camera

Order number

VG4-A-PSU0

VG4-A-PSU1 120 VAC Power Supply Unit

120 VAC, 100 W, white, for an AutoDome Series camera

Order number

VG4-A-PSU1

VG4-A-PSU2 230 VAC Power Supply Unit

230 VAC, 100 W, white, for an AutoDome Series camera

Order number

VG4-A-PSU2

VG4-A-PA0 Pendant Arm Mount

Pendant arm mount with power supply box for a

AutoDome Series cameras, no transformer, white

Order number

VG4-A-PA0

VG4-A-PA1 Pendant Arm Mount with 120 VAC Transformer

Pendant arm mount with power supply box for

AutoDome Series cameras with a 120 VAC transformer, white

Order number

VG4-A-PA1

VG4-A-PA2 Pendant Arm Mount with 230 VAC Transformer

Pendant arm mount with power supply box for

AutoDome Series cameras with a 230 VAC transformer, white

Order number

VG4-A-PA2

VGA-PEND-ARM Pendant Arm with Wiring

Compatible with an AutoDome Series pendant housing

Order number

VGA-PEND-ARM

VGA-PEND-WPLATE Mounting Plate

Mounting plate for VGA-PEND-ARM, compatible with an AutoDome Series camera

Order number

VGA-PEND-WPLATE

VGA-ROOF-MOUNT Roof Mount

Roof parapet mount, white

(VG4-A-9543 Pipe Mount Cap required. Available separately.)

Order number

VGA-ROOF-MOUNT

LTC 9230/01 Flat Roof Mount Adapter

For mounting a unit in an upright position on a flat surface for roof parapet mount VGA-ROOF-MOUNT

Order number

LTC 9230/01

10 | AUTODOME 7000 IP

VG4-A-9541 Pole Mount Adapter

Pole mount adapter for a for an AutoDome Series pendant arm or a VEI-30 or NEI-30 Dinion Infrared

Imager, designed for poles with a diameter of

100‑380 mm (4‑15 in.), white

Order number

VG4-A-9541

VG4-A-9542 Corner Mount Adapter

Corner mount adapter for an AutoDome Series pendant arm or a VEI-30 or NEI-30 Dinion Infrared

Imager

Order number

VG4-A-9542

VG4-A-9543 Pipe Mount

Pipe mount, white, for an AutoDome Series pendant housing

Order number

VG4-A-9543

VGA-IC-SP In-ceiling Support Kit for Various Bosch

Dome Cameras

Suspended ceiling support kit for various families of

Bosch dome cameras

Order number

VGA-IC-SP

VGA-SBOX-COVER Cover for AutoDome Power Supply

Boxes

Order number

VGA-SBOX-COVER

VG4-A-TSKIRT Trim Skirt for AutoDome Power Supply

Boxes

Trim skirt for the following AutoDome Series power supply boxes:

VG4-A-PSU0, VG4-A-PSU1, and VG4-A-PSU2

Order number

VG4-A-TSKIRT

VGA-BUBBLE-CCLR Clear Rugged Bubble for an In-ceiling Housing

Impact resistant polycarbonate bubble

Order number

VGA-BUBBLE-CCLR

VGA-BUBBLE-CTIR Tinted Rugged Bubble for an In-ceiling Housing

Impact resistant polycarbonate bubble

Order number

VGA-BUBBLE-CTIR

VGA-BUBBLE-CCLA Clear High-resolution Bubble for an

In-ceiling Housing

Low-impact acrylic bubble

Order number

VGA-BUBBLE-CCLA

VGA-BUBBLE-CTIA Tinted High-resolution Bubble for an

In-ceiling Housing

Low-impact acrylic bubble

Order number

VGA-BUBBLE-CTIA

VGA-BUBBLE-PCLR Clear Rugged Bubble for a Pendant

Housing

Impact resistant polycarbonate bubble

Order number

VGA-BUBBLE-PCLR

VGA-BUBBLE-PTIR Tinted Rugged Bubble for a Pendant

Housing

Impact resistant polycarbonate bubble

Order number

VGA-BUBBLE-PTIR

VGA-BUBBLE-PCLA Clear High-resolution Bubble for a

Pendant Housing

Low-impact acrylic bubble

Order number

VGA-BUBBLE-PCLA

VGA-BUBBLE-PTIA Tinted High-resolution Bubble for a

Pendant Housing

Low-impact acrylic bubble

Order number

VGA-BUBBLE-PTIA

VGA-BUBHD-CCLA Clear HD High-Resolution Acrylic

Bubble for In-Ceiling AUTODOME cameras

Order number

VGA-BUBHD-CCLA

VGA-BUBHD-CTIA Tinted HD High-Resolution Acrylic

Bubble for In-Ceiling AUTODOME cameras

Order number

VGA-BUBHD-CTIA

NPD-6001A High PoE Midspan 60W, single port, AC in

High Power, 60 W Single Port PoE Midspan with AC in

Order number

NPD-6001A

VG4‑SFPSCKT Fiber Optic Ethernet Media Converter Kit

Ethernet media converter video transmitter/data receiver fiber optic kit

Order number

VG4-SFPSCKT

11 | AUTODOME 7000 IP

Represented by:

Americas:

Bosch Security Systems, Inc.

130 Perinton Parkway

Fairport, New York, 14450, USA

Phone: +1 800 289 0096

Fax: +1 585 223 9180 [email protected]

www.boschsecurity.us

Europe, Middle East, Africa:

Bosch Security Systems B.V.

P.O. Box 80002

5617 BA Eindhoven, The Netherlands

Phone: + 31 40 2577 284

Fax: +31 40 2577 330 [email protected]

www.boschsecurity.com

Asia-Pacific:

Robert Bosch (SEA) Pte Ltd, Security

Systems

11 Bishan Street 21

Singapore 573943

Phone: +65 6571 2808

Fax: +65 6571 2699 [email protected]

www.boschsecurity.asia

© Bosch Security Systems 2013 | Data subject to change without notice

8369443723 | en, V8, 05. Jun 2013

China:

Bosch (Shanghai) Security Systems Ltd.

201 Building, No. 333 Fuquan Road

North IBP

Changning District, Shanghai

200335 China

Phone +86 21 22181111

Fax: +86 21 22182398 www.boschsecurity.com.cn

America Latina:

Robert Bosch Ltda Security Systems Division

Via Anhanguera, Km 98

CEP 13065-900

Campinas, Sao Paulo, Brazil

Phone: +55 19 2103 2860

Fax: +55 19 2103 2862 [email protected]

www.boschsecurity.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
