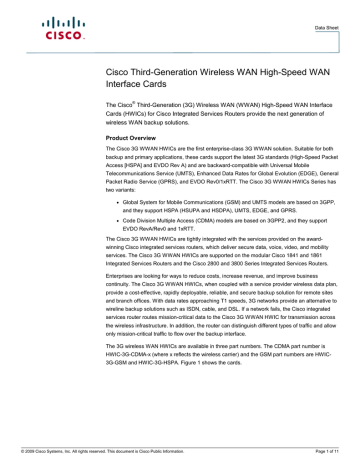

Data Sheet
Cisco Third-Generation Wireless WAN High-Speed WAN
Interface Cards
®
The Cisco Third-Generation (3G) Wireless WAN (WWAN) High-Speed WAN Interface
Cards (HWICs) for Cisco Integrated Services Routers provide the next generation of
wireless WAN backup solutions.
Product Overview
The Cisco 3G WWAN HWICs are the first enterprise-class 3G WWAN solution. Suitable for both
backup and primary applications, these cards support the latest 3G standards (High-Speed Packet
Access [HSPA] and EVDO Rev A) and are backward-compatible with Universal Mobile
Telecommunications Service (UMTS), Enhanced Data Rates for Global Evolution (EDGE), General
Packet Radio Service (GPRS), and EVDO Rev0/1xRTT. The Cisco 3G WWAN HWICs Series has
two variants:
●
Global System for Mobile Communications (GSM) and UMTS models are based on 3GPP,
and they support HSPA (HSUPA and HSDPA), UMTS, EDGE, and GPRS.
●
Code Division Multiple Access (CDMA) models are based on 3GPP2, and they support
EVDO RevA/Rev0 and 1xRTT.
The Cisco 3G WWAN HWICs are tightly integrated with the services provided on the awardwinning Cisco integrated services routers, which deliver secure data, voice, video, and mobility
services. The Cisco 3G WWAN HWICs are supported on the modular Cisco 1841 and 1861
Integrated Services Routers and the Cisco 2800 and 3800 Series Integrated Services Routers.
Enterprises are looking for ways to reduce costs, increase revenue, and improve business
continuity. The Cisco 3G WWAN HWICs, when coupled with a service provider wireless data plan,
provide a cost-effective, rapidly deployable, reliable, and secure backup solution for remote sites
and branch offices. With data rates approaching T1 speeds, 3G networks provide an alternative to
wireline backup solutions such as ISDN, cable, and DSL. If a network fails, the Cisco integrated
services router routes mission-critical data to the Cisco 3G WWAN HWIC for transmission across
the wireless infrastructure. In addition, the router can distinguish different types of traffic and allow
only mission-critical traffic to flow over the backup interface.
The 3G wireless WAN HWICs are available in three part numbers. The CDMA part number is
HWIC-3G-CDMA-x (where x reflects the wireless carrier) and the GSM part numbers are HWIC3G-GSM and HWIC-3G-HSPA. Figure 1 shows the cards.
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 1 of 11
Data Sheet
Figure 1.
3G Wireless WAN HWICs for Cisco Integrated Services Routers
With enhanced data rates and improved latency (below 100 milliseconds), WWAN services are an
ideal way to supplement traditional wireline services. 3G WWAN data services offered today have
average data rates well in excess of ISDN speeds, with theoretical limits in excess of 7 Mbps on
the downlink. You can use the 3G WWAN as a primary link for sites with lower bandwidth
requirements and for mobile applications. You can also use the 3G WWAN data services as a
cost-effective alternative in areas where broadband services are either not available or very
expensive. Cisco is building on these performance milestones and adding support for wireless to
our wide variety of WAN interface alternatives.
Applications
WAN Backup
Resilient WAN access is a crucial requirement for branch offices connecting to a corporate site or
the Internet. Although DSL, Frame Relay, ISDN, and dialup are common choices for backup if a
primary WAN link fails, a nonterrestrial data path such as a 3G WWAN provides enhanced WAN
diversity (Figure 2). Cisco 3G WWAN HWICs combined with the Cisco integrated services routers
offer the capability to automatically initiate connection over the 3G WWAN when the primary WAN
link is unavailable. In addition, you can use Cisco 3G WWAN HWICs to provide supplemental
andwidth when the primary WAN link is overloaded.
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 2 of 11
Data Sheet
Figure 2.
Cisco 3G WWAN HWIC for WAN Backup
Primary Connectivity
For applications that have low data usage but high security requirements such as bank ATMs, gas
station kiosks, and telemetry sites, the Cisco 3G WWAN HWIC offers a secure, simplified, and
cost-effective WAN alternative to DSL or Frame Relay. In areas where terrestrial broadband
services (cable, DSL, or T1) are not available or are expensive, 3G WWAN connectivity can be a
viable alternative.
For businesses requiring rapid setup or temporary connectivity, 3G WWAN offers the capability to
bring up a new site quickly and cost-effectively. Using the integrated services available on the
Cisco integrated services routers, Cisco 3G WWAN HWICs can provide instant and mobile
communications during disasters and service outages.
Key Features and Benefits
●
Integrated 3G WWAN broadband: With the 3G WWAN modem integrated into the router,
you gain the benefit of simplified installation and management. In addition, the Cisco 3G
WWAN HWICs are tightly integrated with Cisco integrated services routers, which run the
®
industry-leading Cisco IOS Software, giving you access to all the advanced features of
Cisco IOS Software such as quality of service (QoS), intelligent network queuing, and
robust security.
●
Short installation time: Businesses sometimes wait for weeks or months to get data
circuits installed at new locations. For temporary or seasonal sites, wireless data services
allow instant connectivity anywhere there is cellular coverage, and rapid deployment allows
you to quickly set up networks with WAN connectivity.
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 3 of 11
Data Sheet
●
Network resiliency through WAN diversity: WAN connectivity is crucial to the functioning
of your business, and any downtime means a loss of productivity and lost opportunity.
Staying connected and operational during a network outage can be vital. A wireless
connection for backup to a remote site provides protection against line outages and an
additional level of redundancy because the 3G WWAN infrastructure is often served by
separate facilities, providing redundancy for the entire local loop.
●
Reduced cost: The emerging 3G WWAN cellular data service plans are competitively
priced with existing wireline services (ISDN, DSL, and cable). 3G WWAN solutions also
allow you to consolidate your service providers across large geographical areas instead of
having service contracts with multiple service providers.
●
Portability: You can easily relocate wireless routers and Cisco 3G WWAN HWICs
wherever coverage is available.
●
Performance: With increasing data usage and the proliferation of web-based applications
at remote sites, there is an increasing need for high-speed (broadband) data connections to
run mission-critical applications at these sites. 3G WWAN services promise low-latency
links at speeds approaching T1 connections, allowing you to send and receive more
mission-critical data across the WAN in backup scenarios.
Product Specifications
Table 1 provides specifications for the Cisco 3G WWAN HWICs, and Table 2 provides antenna
specifications.
Table 1.
Product Specifications
Item
External interfaces
Specification
● RJ-45 interface for use with third-party diagnostics and monitoring tools
● TNC RF port for antenna connection
◦
HWIC-3G-CDMA-x main and diversity antenna connector
◦
HWIC-3G-GSM single antenna connector
◦
HWIC-3G-HSPA main and diversity antenna connector
Form factor
Single wide Cisco 3G WWAN HWIC form factor
Physical dimensions (H x W x D)
0.75 x 3.08 x 4.9 in. (1.9 x 7.8 x 12.4 cm)
Weight
0.24 lb (3.84 oz)
Subscriber Identity Module (SIM) card
SIM card socket; compliant with ISO-7816-2 (SIM mechanical) and GSM 11.11
Power
4.5W maximum
Supported platforms
Modular Cisco 1841, 1861, 2801, 2811, 2821, 2851, 3825, and 3845 Integrated
Services Routers
Software compatibility
● Supported Cisco IOS Release 12.4(15)T or later (Note: HWIC-3G-CDMA=
requires Cisco IOS Software Release12.4(11)XW or later.)
● Cisco IOS Software feature set: IP Base and later
● Supported Cisco IOS Software release for the following features: Cisco IOS
Release 12.4(22)YB1
MIBs
◦
HWIC-3G-HSPA
◦
3G MIB
◦
Multichannel-interface-processor (MIP) profile configuration
● 3G MIB
● ENTITY MIB
● IF MIB
Network management and diagnostics
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
● In-band and out-of-band management using Telnet (Cisco IOS Software
command-line interface [CLI]) and Simple Network Management Protocol
(SNMP), including MIB II and other extensions
● Industry-standard 3G diagnostics and monitoring tools (QUALCOMM CDMA
Air Interface Tester [CAIT] and Spirent Universal Diagnostic Monitor [UDM])
Page 4 of 11
Data Sheet
Modem information
● Modem form factor: Embedded Peripheral Component Interconnect (PCI)
Express minicard
● HWIC-3G-CDMA-x: Sierra Wireless MC5725
● HWIC-3G-GSM: Sierra Wireless MC8775
● HWIC-3G-HSPA: Sierra Wireless MC8790
Carrier support
For an updated list of carriers that offer services with Cisco 3G WWAN HWIC,
please visit: http://www.cisco.com/go/3g.
Programming interfaces
Cisco IOS Software CLI
Wireless technologies supported
(performance and throughput)
HWIC-3G-CDMA-x
● CDMA 1xEV-DO Rev A (forward link up to 3.1 Mbps; reverse link up to 1.8
Mbps)
● CDMA 1xEV-DO Rel 0 (forward link up to 2.4 Mbps; reverse link up to 153.6
kbps)
● CDMA 1xRTT (forward link up to 153.6 kbps; reverse link up to 153.6 kbps)
HWIC-3G-GSM
● HSDPA: 850, 1900, and 2100 MHz (forward link up to 7.2 Mbps; reverse link
up to 384 kbps)
● Universal Mobile Telecommunication System (UMTS): 850, 1900, and 2100
MHz (forward link up to 2.0 Mbps; reverse link up to 384 kbps)
● EDGE: 850, 900, 1800, and 1900 MHz (forward link up to 236 kbps; reverse
link up to 124 kbps)
● GPRS: 850, 900, 1800, and 1900 MHz (forward link up to 80 kbps; reverse link
up to 42 kbps)
HWIC-3G-HSPA*
● HSPA: 850, 1900, and 2100 MHz (forward link up to 7.2 Mbps; reverse link up
to 2.0 Mbps)
● Universal Mobile Telecommunication System (UMTS): 850, 1900, and 2100
MHz (forward link up to 2.0 Mbps; reverse link up to 384 kbps)
● EDGE: 850, 900, 1800, and 1900 MHz (forward link up to 236 kbps; reverse
link up to 124 kbps)
● GPRS: 850, 900, 1800, and 1900 MHz (forward link up to 80 kbps; reverse link
up to 42 kbps)
Note: HWIC-3G-HSPA is not supported on the AT&T network but a separate
product “HWIC-3G-HSPA-A” will be available at a later date for the AT&T network
Frequency bands supported
HWIC-3G-CDMA-x
● 800 MHz: North American cellular band
● 1900 MHz: North American PCS band
HWIC-3G-GSM
● 850, 1900, and 2100 MHz UMTS bands
● 850-MHz GSM, GPRS, and EDGE band
● 900-MHz GSM, GPRS, and EDGE band
● 1800-MHz GSM, GPRS, and EDGE band
● 1900-MHz GSM, GPRS, and EDGE band
HWIC-3G-HSPA*
● 850-, 1900-, and 2100-MHz UMTS bands
● 850-MHz GSM, GPRS, and EDGE band
● 900-MHz GSM, GPRS, and EDGE band
● 1800-MHz GSM, GPRS, and EDGE band
● 1900-MHz GSM, GPRS, and EDGE band
Note: HWIC-3G-HSPA is not supported on the AT&T network but a separate
product “HWIC-3G-HSPA-A” will be available at a later date for the AT&T network
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 5 of 11
Data Sheet
LED indicators
HWIC-3G-CDMA-x
● WWAN LED (connection status indication)
● Receive Signal Strength Indication (RSSI)
● EVDO and 1xRTT service indication
HWIC-3G-GSM
● WWAN LED (connection status indication)
● Receive Signal Strength Indication (RSSI)
● HSDPA and UMTS service indication
HWIC-3G-HSPA*
● WWAN LED (connection status indication)
● RSSI
● HSPA and UMTS service indication
Note: HWIC-3G-HSPA is not supported on the AT&T network but a separate
product “HWIC-3G-HSPA-A” will be available at a later date for the AT&T network
Approvals and compliance
Safety
● UL 60950-1,CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS
60950.1, FCC Part 2.1093, RSS-102, and EN 50385
EMC
● FCC Part 15, Industry Canada ICES-003, EN 301 489-01, EN 301 489-07, EN
301 489-24, EN55022 (CISPR22), EN55024 (CISPR24), EN300-386, EN
61000-3-2, EN 61000-3-3, AS/NZS CISPR 22, CNS13438, and VCCI V-3
Radio
● FCC Part 2, FCC Part 22, FCC Part 24, RSS 129 and RSS 133, RSS 132 and
RSS 133, EN 301 511 GSM, EN 301 908-1, and EN 301 908-2
● PTCRB-approved. device ID Cisco HWIC-3G-GSM
Table 2.
Antenna Specifications
Item
Diversity (dual antenna)
Antenna 3G-ANTM1919D
Specification
● HWIC-3G-CDMA-x: Diversity supported
● HWIC-3G-GSM: No diversity
Description
● Multiband swivel mount dipole antenna
● Faceplate mount (single unit included with all Cisco 3G WWAN HWICs)
Electrical specifications
● Frequency range: 806 to 960 MHz and 1710 to 2170 MHz
● Gain: 0 dBi (806 to 960 MHz) and 0dBi (1710 to 2170 MHz)
● Maximum power: 25W
● Connector: TNC male
● Voltage standing wave ratio (VSWR): < 2.5:1
● Nominal impedance: 50 ohms
Mechanical specifications
● Antenna dimensions: 7.63 x 0.94 x 0.63 in. ( 19.37 x 2.34 x 1.59 cm)
● Temperature rating: –22 to 158°F (–30 to 70°C)
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 6 of 11
Data Sheet
Antenna 3G-ANTM1916-CM
Description
● Multiband omnidirectional antenna
● Ceiling mount
● Electrical specifications
● Frequency range: 806 to 960 MHz and 1710 to 2170 MHz
● Gain : 1.5 decibels relative to isotropic (dBi) (806 to 960 MHz) and 2.5 dBi
(1710 to 2170 MHz)
● Maximum power: 50W
● Connector: TNC male
● VSWR: < 1.8:1 (806 to 960 MHz) and < 1.6:1 (1710 to 2170 MHz)
● Nominal impedance: 50 ohms
● Polarization: Vertical
● Intermodulation
◦
<–140 decibels relative to carrier (dBc) typical (800 to 960 MHz IM3 at
2x20W)
◦
<–140 dBc (1710 to 1880 MHz IM3 at 2 x 20W)
◦
<–150 dBc (1920 to 2170 MHz IM7 at 2 x 20W)
Mechanical specifications
● Radome material: White ABS
● Base material: Aluminum
● Cable: 086FEP conformable
● Dimensions: 7.09 OD x 2.44 H in. (18.00 OD x 6.20 H cm)
● Weight: 0.62 lb (0.28 kg)
● Can be used with the following cable extensions: 3G-CAB-ULL-20 and 3GCAB-ULL-50
Antenna Extension 3G-AE015-R
Description
◦
Single unit antenna extension base (15-ft (457.2-cm) cable included)
Electrical specifications
◦
Frequency range : 0.8 to 5.85 GHz
◦
Attenuation: < 3 decibels (dB) at or below 2.5 GHz
◦
Base connector: TNC female
◦
Pigtail connector: TNC male
Mechanical specifications
● Base material: UL 94 V0PC and ABS plastic
● Dimensions: 2.8 x 2.4 x 1.8 in. (7.1 x 6.1 x 4.6 cm)
● Weight: 6 oz (0.17 kg)
● Cable: 15 ft (457.2 cm) non-plenum rated Pro-Flex Plus 195
Antenna Extension 3G-AE010-R
Description
◦
Single unit antenna extension base (10-ft (304.8-cm) cable included)
Electrical specifications
◦
Frequency range : 0.8 to 5.85 GHz
◦
Attenuation: < 3 decibels (dB) at or below 2.5 GHz
◦
Base connector: TNC female
◦
Pigtail connector: TNC male
Mechanical specifications
● Base material: UL 94 V0PC and ABS plastic
● Dimensions: 2.8 x 2.4 x 1.8 in. (7.1 x 6.1 x 4.6 cm)
● Weight: 6 oz (0.17 kg)
● Cable: 10 ft (304.8 cm) non-plenum rated Pro-Flex Plus 195
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 7 of 11
Data Sheet
Outdoor Antenna 3G-ANTM-OUT-LP
Description
● Multiband Outdoor Low-Profile antenna with 15 ft cable
● Panel mount (horizontal surface)
Electrical specifications
● Frequency range: 806 to 960 MHz and 1710 to 2170 MHz
● Gain : -1.5 dBi (806 to 960 MHz) and -1.5 dBi (1710 to 2170 MHz), which
includes antenna gain and cable loss
● Maximum RF power tolerated: 20W
● Connector: TNC male, right angle
● Cable: LMR-195, 15 ft.
● VSWR: < 2.5:1 (806 to 960 MHz) and < 2.5:1 (1710 to 2170 MHz)
● Nominal impedance: 50 ohms
● Polarization: Vertical
● Radiation Pattern (-3dB beamwidth)
◦
Horizontal: Omni-directional
◦
Vertical: 64 deg (806 to 960 MHz) and 90 deg (1710 to 2170 MHz)
Mechanical specifications
● Radome material: black MakroBlend plastic
● Base material: Aluminum
● Radome dimensions: 5.65 in. OD x 2.06 in. H (14.35 cm OD x 5.23 cm H )
● Radome weight: 0.375 lb (0.17 kg)
● Cable dimensions: 15 ft. L x 0.195 in. Dia.
● Mounting panel thickness: 0.1 to 0.5 in. (2.54mm to 12.7mm)
● All mounting hardware is included
Environmental specifications
● Mechanical Impact Rating: [IK08] 5 joules per IEC-62262
● Operating and storage temperature: -40 to +85 deg C
● Wind rating: 150 MPH installed
● Water rating: IP65 installed
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 8 of 11
Data Sheet
Outdoor Antenna 3G-ANTM-OUTCOMBO
Includes
● 3G-ANTM-OUT-OM (Mast/Wall mount antenna)
● 3G-ACC-OUT-LA (lightning arrestor)
Description
● 3G-ANTM-OUT-OM
● Multiband Outdoor Omni-directional antenna
● Mast/Wall mount
● 3G-ACC-OUT-LA lightning arrestor (see below)
● Can be used with the following cable extensions: 3G-CAB-ULL-20, 3G-CABULL-50, 3G-CAB-LMR240-25, 3G-CAB-LMR240-50, 3G-CAB-LMR240-75
Electrical specifications
● Frequency range: 806 to 960 MHz and 1710 to 2170 MHz
● Gain : +2 dBi (806 to 960 MHz) and +4 dBi (1710 to 2170 MHz)
● Maximum RF power tolerated: 20W
● Connector: TNC male
● VSWR: < 2.5:1 (806 to 960 MHz) and < 2.5:1 (1710 to 2170 MHz)
● Nominal impedance: 50 ohms
● Polarization: Vertical
● Radiation Pattern (-3dB beamwidth)
◦
Horizontal: Omni-directional
◦
Vertical: 40 deg (806 to 960 MHz) and 40 deg (1710 to 2170 MHz)
Mechanical specifications
● Radome material: Off-white pultruded fiberglass, UV-protected
● Cap material: Off-white MakroBlend plastic
● Radome dimensions: 1.25 in. OD x 16 in H (3.175 cm OD x 40.64 cm H )
● Radome weight: 0.375 lb (0.17 kg)
● Mounting hardware
◦
Bracket and clamps (for mast mounting)
◦
Bracket (for wall mounting)
◦
Screws not included (for wall mounting)
Environmental specifications
● Operating and storage temperature: -40 to +85 deg C
● Wind Rating: 100 MPH (operational) and 125 MPH (survival)
● Water rating: IP65 installed
Outdoor Antenna Lightning Arrestor
3G-ACC-OUT-LA
Description
● 3G Lightning arrestor for outdoor antennas
● Type: Inline quarter-wave arrestor with integrated high pass filter
● Bulkhead mounted and grounded with optional ground lug
● Can be used with 3G-ANTM-OUT-OM outdoor omni antenna
● Can be used with the following cable extensions: 3G-CAB-ULL-20, 3G-CABULL-50, 3G-CAB-LMR240-25, 3G-CAB-LMR240-50, 3G-CAB-LMR240-75
● Indoor (preferred) or outdoor (optional) installation
● No maintenance required
Electrical specifications
● Frequency Range: 800 MHz to 2200 MHz
● Maximum insertion Loss : 0.2dB
● Maximum RF power tolerated: 20W
● Connector: TNC male (protected side) and TNC female (antenna-facing)
● VSWR: < 1.22:1 (806 to 2200 MHz)
● Return Loss: > 26 dB
● Nominal impedance: 50 Ohms
● Surge Protection: 10 KA single and 5 KA multiple strikes (8/20us test pulse)
Mechanical specifications
● Material: Corrosion-resistant brass
● Dimensions: 1.25 in. OD x 2.5 in L approx (3.175 cm OD x 6.35 cm L )
● Mounting hardware
◦
Ground Lug (optional grounding method)
◦
Nut for bulkhead mounting and grounding (preferred grounding method)
Environmental specifications
● Operating and storage temperature: -40 to +85 deg C
● Water rating: IP67 installed
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 9 of 11
Data Sheet
Ordering Information
To place an order, refer to Tables 3 through 5 and visit the Cisco Ordering Home Page.
Table 3.
Table 3 Cisco 3G WWAN HWIC Ordering Information
Description
Part Number
3G WirelessWAN HWIC supporting GPRS/EDGE/UMTS/HSDPA (Global SKU)
HWIC-3G-GSM
HWIC-3G-GSM= (Spare)
3G WirelessWAN HWIC supporting GPRS/EDGE/UMTS/HSPA (Global SKU)
HWIC-3G-HSPA
HWIC-3G-HSPA= (Spare)
3G WirelessWAN HWIC supporting 1xRTT, EVDO Rev A/Rel 0 (Verizon SKU)
HWIC-3G-CDMA-V
HWIC-3G-CDMA-V= (Spare)
3G WirelessWAN HWIC supporting 1xRTT, EVDO Rev A/Rel 0 (Sprint SKU)
HWIC-3G-CDMA-S
HWIC-3G-CDMA-S= (Spare)
3G WirelessWAN HWIC supporting 1xRTT, EVDO Rev A/Rel 0 (Generic SKU)*
HWIC-3G-CDMA=
* The generic CDMA HWIC requires carrier provisioning to be performed by an approved Cisco partner before
it can be used on the network. Please contact the CDMA carrier for more information.
Table 4.
Antenna Ordering Information
Description
Part Number
Multi-Band Swivel Mount Dipole Antenna—Faceplate Mount
3G-ANTM1919D
Multi-Band Omnidirectional Antenna—Ceiling Mount
3G-ANTM1916-CM
3G-ANTM1919D= (Spare)
3G-ANTM1916-CM= (Spare)
Single Unit Antenna Extension Base (10-ft cable included(
3G-AE010-R
3G-AE010-R= (Spare)
Single Unit Antenna Extension Base (15-ft cable included)
3G-AE015-R
3G-AE015-R= (Spare)
50-ft (15m) Ultra Low Loss LMR 400 Cable with TNC Connector
3G-CAB-ULL-50
3G-CAB-ULL-50= (Spare)
20-ft (6m) Ultra Low Loss LMR 400 Cable with TNC Connector
3G-CAB-ULL-20
3G Outdoor Antenna Lightning Arrestor
3G-ACC-OUT-LA
3G-CAB-ULL-20= (Spare)
3G-ACC-OUT-LA= (Spare)
Multi-Band Outdoor Low Profile Antenna with 15ft cable
3G-ANT-OUT-LP
3G-ANT-OUT-LP= (Spare)
Multi-Band Outdoor Omnidirectional Antenna Mast/Wall Mount & 3G Outdoor
Antenna Lightning Arrestor (3G-ACC-OUT-LA)
3G-ANT-OUT-COMBO
25-ft(7.5 m) Low Loss LMR 240 Cable with TNC Connector
3G-CAB-LMR240-25
3G-ANT-OUT-COMBO= (Spare)
3G-CAB-LMR240-25= (Spare)
50-ft(15 m) Low Loss LMR 240 Cable with TNC Connector
3G-CAB-LMR240-50
3G-CAB-LMR240-50= (Spare)
75-ft(23 m) Low Loss LMR 240 Cable with TNC Connector
3G-CAB-LMR240-75
3G-CAB-LMR240-75= (Spare)
Note:
All 3G HWICs (including spares) ship with one default dipole antenna (3G-ANTM1919D).
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 10 of 11
Data Sheet
Table 5.
3G Integrated Services Router Bundles Ordering Information
Description
Part Number
1841 bundle w/HWIC-3G-GSM, IP Base, 64FL/128DR
C1841-3G-G
1841 bundle w/HWIC-3G-CDMA-S, IP Base, 64FL/128DR
C1841-3G-S
1841 bundle w/HWIC-3G-CDMA-V, IP Base, 64FL/128DR
C1841-3G-V
Cisco1841, HWIC-3G-GSM, 64MB FL/256MB DRAM, Adv Security
C1841-3G-G-SEC/K9
Cisco1841, HWIC-3G-CDMA-S, 64MB FL/256MB DRAM, Adv Security
C1841-3G-S-SEC/K9
Cisco1841, HWIC-3G-CDMA-V 64MB FL/256MB DRAM, Adv Security
C1841-3G-V-SEC/K9
Cisco 2811, HWIC-3G-GSM, 64MB FL/256MB DRAM, Adv Security
C2811-3G-G-SEC/K9
Cisco 2811, HWIC-3G-CDMA-S, 64MB FL/256MB DRAM, Adv Security
C2811-3G-S-SEC/K9
Cisco 2811, HWIC-3G-CDMA-V, 64MB FL/256MB DRAM, Adv Security
C2811-3G-V-SEC/K9
Service and Support
Cisco offers a wide range of services programs to accelerate customer success. These innovative
services programs are delivered through a unique combination of people, processes, tools, and
partners, resulting in high levels of customer satisfaction. Cisco services help you protect your
network investment, optimize network operations, and prepare your network for new applications
to extend network intelligence and the power of your business. For more information about Cisco
services, refer to Cisco Technical Support Services and Cisco Advanced Services.
For More Information
For more information about the Cisco 3G WWAN HWICs, visit http://www.cisco.com/go/3g or
contact your local Cisco account representative.
Printed in USA
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
C78-530163-01
05/09
Page 11 of 11

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
