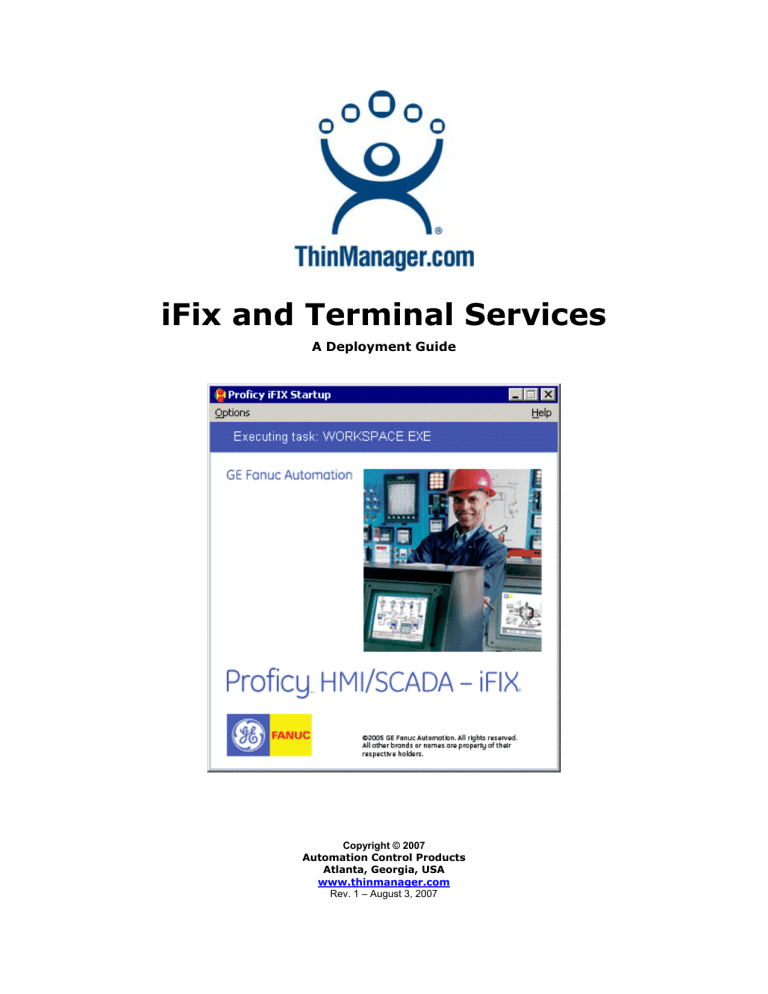

iFix and Terminal Services
A Deployment Guide
Copyright © 2007
Automation Control Products
Atlanta, Georgia, USA
www.thinmanager.com
Rev. 1 – August 3, 2007
Table of Contents
1.
Introduction .......................................................................................... 3
1.1.
Topics............................................................................................. 3
2.
Network Configuration ............................................................................ 3
3.
Deployment Choices............................................................................... 5
4.
Microsoft Pre-planning ............................................................................ 6
4.1.
Relaxed Security .............................................................................. 6
4.2.
Disable DEP ( Data Execution and Prevention ....................................... 7
4.3.
Application Compatibility Script .......................................................... 7
5.
IFix Installation ..................................................................................... 8
5.1.
6.
Restart after Installation.................................................................... 9
iFix Licensing .......................................................................................10
6.1.
7.
Virtual Keyboard .............................................................................11
iFix System Configuration for Terminal Services ........................................12
7.1.
Launch iFix .....................................................................................13
7.2.
SCADA Configuration .......................................................................17
7.3.
Path Configuration...........................................................................18
7.4.
Network Configuration .....................................................................19
8.
Profile Manager ....................................................................................23
9.
Launching from within ThinManager ........................................................28
9.1.
10.
Hide the Startup Screen ...................................................................29
Additional Microsoft Configurations ..........................................................30
10.1.
Add Users to Remote Desktop Group..................................................30
10.2.
End Disconnected Sessions ...............................................................32
User Account ..........................................................................................32
Terminal Server Settings ..........................................................................34
10.3.
Set Relaxed Security........................................................................36
10.4.
Apply Group Permissions ..................................................................37
iFix and Terminal Services Deployment
Page 2
iFix and Terminal Services
1. Introduction
iFix is a SCADA (System Control and Data Acquisition) software. It was developed by
Intellution and is now part of the GE Fanuc Proficy series of industrial software.
This tech note is a simplified deployment guide for ThinManager users. Although it
was prepared with the help of iFix users and specialists, it is a mere aid and not the
definitive source for information. Please refer to official iFix documentation for
questions and details.
A special thanks goes to Scott Crider of Advantage Industrial Automation.
1.1.
Topics

Network Configuration

Deployment Choices

Microsoft Pre-planning

iFix Installation

iFix Licensing

iFix System Configuration

Profile Manager

Launching from within ThinManager

Additional Microsoft Configurations
2. Network Configuration
IFix is designed to pull data out of PLCs and factory-level sensors, present the data
in a form usable by humans, and save the data for further usage. iFix is designed to
function with a “two-box” system.


The first box is a SCADA (Systems Control And Data Acquisition) computer.
This is a PC that gathers the I/O and data from the PLCs and machinery and
runs the iFix database. This computer provides the data and values to the
system.
The second box is a View Node. This is a computer that pulls the data from
the SCADA node and displays it on screens for the operator.
In a terminal services environment the terminal server acts as the View node. Each
client that connects to a terminal server will start a session and launch a view node
iFix and Terminal Services Deployment
Page 3
within the session. The sessions on the terminal server run the operator screens
populated with data from the SCADA node.
Sample iFix Network with Thin Clients
In a ThinManager system dual terminal servers can be setup to provide redundancy
and failover. This allows the operator screens to keep running with current data if a
terminal server fails.
Details about failover can be found on our Failover Tech Note at
http://www.thinmanager.com/TechNotes/Failover/Failover_main.shtml .
iFix and Terminal Services Deployment
Page 4
3. Deployment Choices
How iFix will be deployed and used influences how iFix is configured.

Generic Deployment Model– All users use a common SCU file to launch a
commonly configured application.

Specialized Deployment Model – Each user runs a unique environment and
each user requires a specially configured SCU file.
This article will assume a generic deployment but will point out where changes need
to be made to deploy a specialized configuration.
The generic deployment can be designed to launch a Main Menu with navigational
buttons to allow the user to select the needed screens or the welcome screen can
have scripts added that launch the desired screens based on the node name of the
client.
Consult your iFix documentation for details.
iFix and Terminal Services Deployment
Page 5
4. Microsoft Pre-planning
There are a few configuration changes that iFix may require on the Microsoft
operating system, especially if legacy applications are needed to be upgraded to run
on the new system. Consult your iFix documentation for details.
4.1.
Relaxed Security
IFix requires the Relaxed Security setting. This can be applied by opening the
Terminal Services Configuration console by selecting Start> Programs>
Administrative Tools> Terminal Services Configuration. Select the Server
Setting folder and change the Permission Compatibility setting to Relaxed
Security.
Terminal Services Configuration – Server Settings
See
http://www.thinmanager.com/TechNotes/Microsoft/WindowsTips_main.shtml#open
for details.
iFix and Terminal Services Deployment
Page 6
4.2.
Disable DEP ( Data Execution and Prevention
The DEP may need to be disabled for the terminal server to recognize USB license
keys. The iFix documentation says:
“iFIX Does Not Start After Install Due to DEP Access Restriction
(Proficy HMI/SCADA – iFIX Release Notes VERSION 4.0)
“When you start iKeyDiag or iFIX 4.0 for the the first time, an access violation
may occur. You will not be able to start iFIX. This can occur due to hardware
enforced DEP (Data Execution Protection) settings within Windows Server 2003
SP1 or Window XP SP2. To remedy this issue, you can selectively add the iFIX
program to the DEP exception list or shut down the feature. iFIX will then run
normally. For more information, refer to "DEP Support Statement For GE
Fanuc Products Using Proficy Common Licensing" article on the GlobalCare site
for more information:
http://globalcare.gefanuc.com/kc/kb/glbCarekbinfo.asp?objid=1553203&id=2
68450132 ”
- iFix Documentation
Right Click on the My Computer Icon and choose Properties. Select the Advanced
tab, then the Settings button in the Startup and Recovery section. Select the
(manual) Edit button on the Startup and Recovery Properties Window.
Set the bootloader information to:
[boot loader]
timeout=30
default=multi(0)disk(0)rdisk(0)partition(1)\WINNT
[operating systems]
multi(0)disk(0)rdisk(0)partition(1)\WINNT="Windows Server 2003, Standard"
/fastdetect /NoExecute=alwaysoff
4.3.
Application Compatibility Script
The following information is from the iFix e-books under Installing and Configuring
iFIX with Windows Terminal Server. Also as a separate Document, it can be found at
C:\Program Files\GE Fanuc\ProficyDoc\1033\iFIX\TM.CHM
Before you begin installing and configuring iFIX on a Terminal Server, it is
recommended that you complete the following Windows administrative tasks:

Run chkroot.cmd from the C:\Windows\Application Compatibility Script folder.
This creates the RootDrv2.cmd file.

In Notepad or another text editor, open the RootDrv2.cmd file from the
C:\Windows\Application Compatibility Script folder. At the end of the file, on
the Set RootDrive= line, add a driver letter. For example: Set RootDrive=W:

Save the RootDrv2.cmd file.
 Run the RootDrv2.cmd file.
Verify that your Terminal Server is set up and functioning.
iFix and Terminal Services Deployment
Page 7
5. IFix Installation
The iFix software, like all software, should be installed on a terminal server in the
Install Mode. Do this by selecting Start > Settings > Control Panel >
Add/Remove Programs > Add New Programs and follow the installation wizard.
Terminal Services Installation Warning
A warning will be displayed if you try to install on a terminal server without using the
Add/Remove Programs function.
Setup Type Window
During the install a Setup Type window will be displayed.
The Complete selection is the normal choice unless the install is going to run Fix32
graphics using the Fix Desktop.
iFix and Terminal Services Deployment
Page 8
Proficy iFix Configure Wizard
Proficy iFix Configure Wizard allows the terminal to be configured as a View Node.
It also will be Networked, as shown in the picture.
The SCADA radio button will be selected when installing the SCADA node of the
system.
The NodeName can be left as the default.
Remote SCADA Node List
The Remote SCADA Node List allows the SCADA nodes to be identified. This can
be done now or later in the SCADA section of the Systems Configuration Utility.
5.1.
Restart after Installation
Do not do an automatic restart at the end of the installation on a Windows 2003.
Instead let the installation finish and then restart the computer manually. This allows
the completion of the full install.
iFix and Terminal Services Deployment
Page 9
6. iFix Licensing
The iFix installation on the terminal server should be licensed before configuration
begins. Consult your iFix documentation for details.
The License Viewer can be launched by selecting Start>Programs > Proficy
Common > License Viewer.
License Viewer
The Proficy License Viewer will display the number of terminal connections that
the license allows along with other details.
iFix and Terminal Services Deployment
Page 10
6.1.
Virtual Keyboard
iFIX provides a virtual keyboard that allows you to work in touch-screen
environments or to use a mouse to enter passwords and other data. Install the
virtual keyboard on the terminal server to make it available to each client licensed
for iFIX.
To install the virtual keyboard:

Double-click the LICENSE.EXE file in the Proficy iFIX directory on your terminal
server. The IMG License Manager dialog box appears.

Click Install Service to install the virtual keyboard licenses.

Click Administration Options & Help. The Terminal Server Administration Option
dialog box opens.

Click Copy Global Settings to All User Folders, then click Yes to confirm.

Click OK to return to the IMG License Manager dialog box.

Click Start Service to activate the virtual keyboard for all licensed clients.
iFix and Terminal Services Deployment
Page 11
7. iFix System Configuration for
Terminal Services
iFix is configured with the System Configuration Utility (SCU). The SCU tool allows
the selection of startup options and file directories.
In iFix 3.0 and earlier, each terminal server user had to have a separate SCU
(System Configuration Utility) file to allow each user to launch a unique instance of
the program. The System Configuration Utility could be run once, then copied into a
folder for each user. An additional IP address was need per session.
In iFix 4.0, a Profile Manager speeds the configuration process by allowing user
settings to be based on the original configuration.

If deploying using the Generic Deployment model create one SCU file in the
SCU program and then use the Profile Manager to define the additional nodes.

If deploying using the Specialized Deployment model create a SCU file for
each node to define to program.
iFix and Terminal Services Deployment
Page 12
7.1.
Launch iFix
The first step to configuration is verifying that iFix was installed properly and will run.
Launch the iFix workspace by selecting Start>Programs > Proficy HMI SCADA –
iFix 4.0 > iFix 4.0. It will launch the Proficy iFix Startup program.
Proficy iFix Startup Window
Select the icon in the Proficy iFix section to launch the workspace to make sure that
iFix will run.
iFix and Terminal Services Deployment
Page 13
iFix Workspace
Once you have verified that the iFix workspace will run it can be closed.
Launch the SCU tool by selecting Start>Programs > Proficy HMI SCADA – iFix
4.0 > System Configuration. It will launch the Proficy iFix Startup program.
iFix and Terminal Services Deployment
Page 14
Proficy iFix Startup Window
Select the icon in the SCU section to launch the SCU tool.
An iFix System Information window will be launched to allow the path to the SCU
files to be chosen.
iFix System Information
The default path is normally fine. Select the OK button to proceed.
iFix and Terminal Services Deployment
Page 15
System Configuration Utility
The System Configuration Utility (SCU) allows the components of the project to be
defined.
iFix and Terminal Services Deployment
Page 16
7.2.
SCADA Configuration
SCADA node configuration is managed by selecting Configure > SCADA… in the
System Configuration Utility (SCU) to launch the SCADA Configuration.
SCADA Configuration
The terminal server is not a SCADA node so the SCADA Support should be disabled
on the terminal server. The other features will be grayed out.
When configuring the SCADA node the SCADA Support is enabled and the database
and I/O drivers can be defined.
Select OK to accept the configuration.
iFix and Terminal Services Deployment
Page 17
7.3.
Path Configuration
Select Configure > Paths in the System Configuration Utility (SCU) to configure the
file locations.
Path Configuration
The defaults are usually fine for the Generic Deployment Model.
If this system will use the Specialized Deployment Model then the Local path will
need to point to where the SCU file will be stored.
iFix and Terminal Services Deployment
Page 18
7.4.
Network Configuration
Select Configure > Network in the System Configuration Utility (SCU) to configure
the network.
Network Configuration
The Network configuration window allows the network and SCADA nodes to be
defined.
Select the TCP/IP radio button for the Network.
The SCADA servers are defined by entering their name in the Remote Node Name
filed and selecting the Add button.
iFix and Terminal Services Deployment
Page 19
Defined SCADA Nodes
If a SCADA node has a backup SCADA server it can be defined by highlighting the
SCADA node and selecting the Configure button.
iFix and Terminal Services Deployment
Page 20
Remote Node Configuration
The Primary and Backup SCADA servers that make up the node can be entered to
form a logical node. Select OK to accept changes.
iFix and Terminal Services Deployment
Page 21
Configured Remote Nodes
When all the SCADA nodes used by the View nodes are defined select OK to accept
the changes.
Save the SCU file by selecting File > Save or using CTL+S.
Note: Saving the SCU file is important.
iFix and Terminal Services Deployment
Page 22
8. Profile Manager
Once a SCU file is created and saved it can be applied to many nodes with the Profile
Manager.
Note: The Windows user accounts must be created before configuring users in the Profile
Manager.
iFix must be running to launch Profile Mananger. Select Start>Programs > Proficy
HMI SCADA – iFix 4.0 > iFix 4.0 to launch the Proficy iFix workspace.
iFix Workspace
Launch Profile Manager by selecting the Profile Manager icon on the menu or by
selecting Start>Programs > Proficy HMI SCADA – iFix 4.0 > Startup Profile
Manager.
Profile Manager Button
The Profile Manager button shows two heads in profile against a monitor.
iFix and Terminal Services Deployment
Page 23
Startup Profile Manager
The Startup Profile Manager lists the defined profiles. Select the Add button to
configure a profile.
iFix and Terminal Services Deployment
Page 24
Add Startup Profile
Enter the user information in the Add Startup Profile window.
iFix and Terminal Services Deployment
Page 25
Configured User
Enter the Windows user account that the node will use in the Window User field.
Enter the iFix node name in the iFix Nodename field. This can be the ACP
ThinManager thin client’s name.
Select the SCU file that the user will use by selecting the button with three periods.
The same SCU file will be used if using the Generic Deployment Model while a
different SCU file will be used for each user when using the Specialized Deployment
Model.
Unselect the Allow user to run Sample System and the Allow User to Modify
Nodename and SCU checkboxes.
Select Add Profile to accept the changes.
Create a profile for each terminal.
iFix and Terminal Services Deployment
Page 26
Profile Manager
The Profile Manager will list the configured nodes with their Windows user name
when finished.
iFix and Terminal Services Deployment
Page 27
9. Launching from within ThinManager
ThinManager can be configured to launch the iFix program automatically.
Open the Terminal Configuration Wizard for the desired terminal by double-clicking
on it in the ThinManager tree.
Navigate to the Log in Information page of the wizard.
Terminal Configuration Wizard – Log In Page
Enter a valid Windows user name and password in the Username and Password
field to allow auto-login.
Enter the path to the iFix launch program into the Initial Program field. The default
path is C:\Program File\GEFanuc\Proficy iFix\launch.exe.
When the thin client boots it will automatically login to the terminal server and
launch iFix with the configuration that was defined by the SCU specified in the Profile
Manager for that user.
iFix and Terminal Services Deployment
Page 28
9.1.
Hide the Startup Screen
Once the system is setup and the users and node are configured the Proficy Startup
screen can be turned off so that iFix launches without displaying this window and
making the user select iFix from the Startup window.
Open the Startup windows by selecting Start>Programs > Proficy HMI SCADA –
iFix 4.0 > iFix 4.0. It will launch the Proficy iFix Startup program.
Proficy iFix Startup
Check the Don’t show this dialog box again; always start Proficy iFix
checkbox. This will launch iFix without requiring the user select iFix from the Startup
window.
iFix and Terminal Services Deployment
Page 29
10. Additional Microsoft Configurations
There are a few Microsoft tweaks that will make the system more efficient. This is a
guide. Please refer to iFix and Microsoft documentation for details.
10.1.
Add Users to Remote Desktop Group
User accounts for terminal servers need to be added to the Remote Desktop Users
group in Windows. Open the Computer Management console by selecting Start >
Programs > Administrative Tools > Computer Management.
Computer Management Console
Highlight System Tools > Groups and double-click on the Remote Desktop Users
group to launch the properties window.
iFix and Terminal Services Deployment
Page 30
Remote Desktop Users Properties Window
Add all the users who will be logging onto the terminal server and select OK.
iFix and Terminal Services Deployment
Page 31
10.2.
End Disconnected Sessions
Sessions that are disconnected and left on the terminal server should be configured
to be logged off when they are disconnected. This can be done by user account or by
terminal server.
User Account
Configure the desired user accounts by opening the Computer Management console
by selecting Start > Programs > Administrative Tools > Computer
Management.
Computer Management
Highlight System Tools > Users and double-click on the desired user to launch the
user properties.
iFix and Terminal Services Deployment
Page 32
User Properties – Sessions Tab
Select the Sessions tab. Set the End a disconnected session to 1 minute.
Set the When a sessions limit is reached or connection is broken setting to
End Session.
Select OK to save the changes.
iFix and Terminal Services Deployment
Page 33
Terminal Server Settings
The terminal server can be configured to have all the sessions logged off after a
disconnect in the RDP-tcp properties. Open the Terminal Services Configuration
console by selecting Start > Programs > Administrative Tools > Terminal
Services Configuration.
Terminal Services Configuration Console
Highlight Connections and double-click on RDP-tcp to launch the RDP-tcp
Properties window.
iFix and Terminal Services Deployment
Page 34
RDP-tcp Properties
Select the Sessions tab. Check the Override user settings checkbox and set the
End a disconnected session to 1 minute.
Check the Override user settings checkbox and set the When a sessions limit is
reached or connection is broken setting to End Session.
Select OK to save the changes.
This will make every remote RDP user logoff when they disconnect.
iFix and Terminal Services Deployment
Page 35
10.3.
Set Relaxed Security
Windows 2000 and Windows 2003 have a Full Security option that can interfere with
HMI/SCADA operation. When the 200/2003 Full Security model is used all HMI users
will need to be administrators. To allow users to run without being an administrator,
set the terminal server to the Relaxed Security based on the NT 4.0 security model.
Open the Terminal Services Configuration console by selecting Start > Programs >
Administrative Tools > Terminal Services Configuration.
Terminal Services Configuration Console
Highlight the Server Settings on the left and double-click the Permission
Compatibility on the right.
Select the Relaxed Security radio button and select OK.
iFix and Terminal Services Deployment
Page 36
10.4.
Apply Group Permissions
An iFix Users group must be created and the iFix users must be added and be
granted access permission. It is recommended that iFix users be members of the
Power User group.
Open the Computer Management console by selecting Start > Programs >
Administrative Tools > Computer Management.
Computer Management
Right-click on Groups and select New Group.
iFix and Terminal Services Deployment
Page 37
Add New Group
Name the group and add members.
iFix and Terminal Services Deployment
Page 38
Group Membership
Use the Add button to add users.
Add the group to the RDP settings in the Terminal Services Configuration
console.
Open the Terminal Services Configuration console by selecting Start > Programs >
Administrative Tools > Terminal Services Configuration.
iFix and Terminal Services Deployment
Page 39
Terminal Services Configuration
Double-click on RDP-tcp to open the RDP-tcp Properties.
iFix and Terminal Services Deployment
Page 40
TCP-rdp Properties
Select the Permissions tab. Add the new group by selecting the Add button.
Highlight the new group and set the Full Control, User Access, and Guest Access
to Allow.
Select OK to accept changes.
iFix and Terminal Services Deployment
Page 41
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
