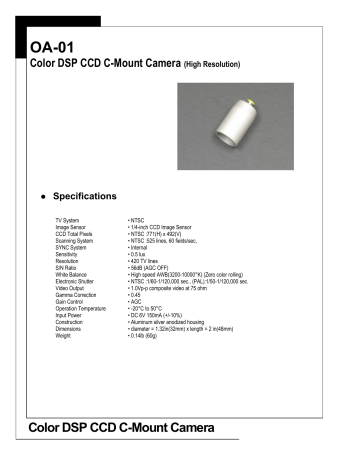

Color DSP CCD Camera
OA-01
Color DSP CCD C-Mount Camera (High Resolution)
z
Specifications
TV System
Image Sensor
CCD Total Pixels
Scanning System
SYNC System
Sensitivity
Resolution
S/N Ratio
White Balance
Electronic Shutter
Video Output
Gamma Correction
Gain Control
Operation Temperature
Input Power
Construction
Dimensions
Weight
• NTSC
• 1/4-inch CCD Image Sensor
• NTSC :771(H) x 492(V)
• NTSC :525 lines, 60 fields/sec,
• Internal
• 0.5 lux
• 420 TV lines
• 56dB (AGC OFF)
• High speed AWB(3200-10000°K) (Zero color rolling)
• NTSC :1/60-1/120,000 sec., (PAL):1/50-1/120,000 sec.
• 1.0Vp-p composite video at 75 ohm
• 0.45
• AGC
• -20°C to 50°C
• DC 6V 150mA (+/-10%)
• Aluminum silver anodized housing
• diameter = 1.32in(32mm) x length = 2 in(48mm)
• 0.14lb (60g)
Color DSP CCD C-Mount Camera
