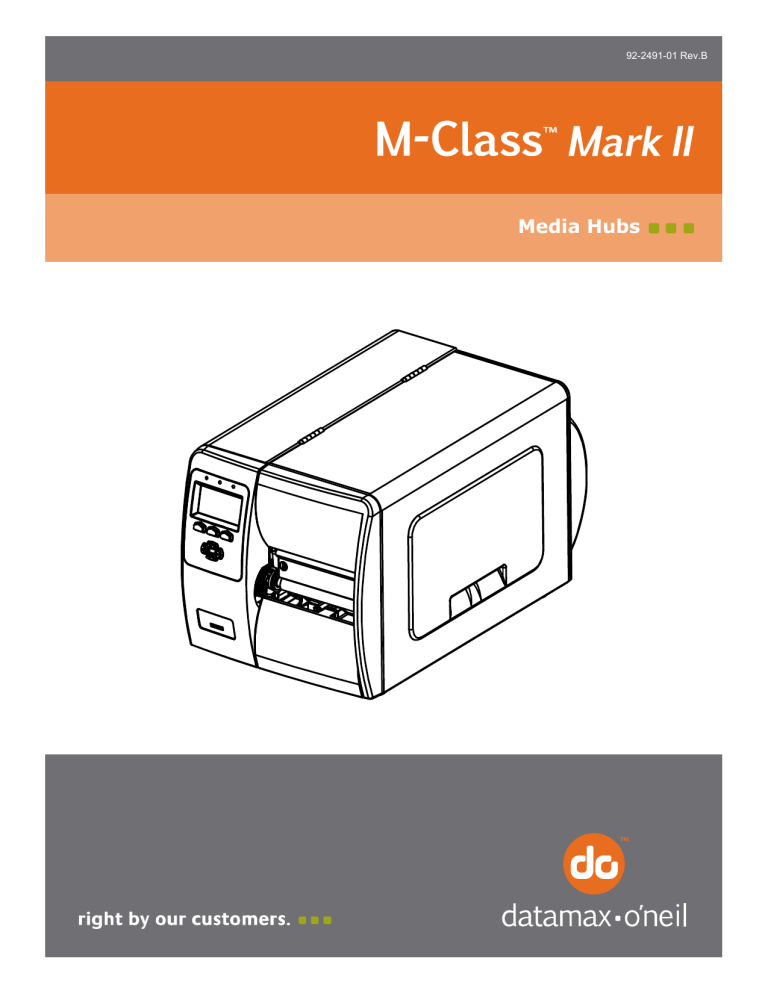

92-2491-01 Rev.B
Media Hubs
Overview
This document describes the contents and installation of the Media Hub options for the M-Class MII
printer. Only qualified service personnel should perform this installation. After verifying the kit contents
and the tools needed, follow the steps below to install the option.
Contents
The contents of the Media Hub Kit differ according to kit number:

(3-Inch Media Hub Kit) contains the following items:
1
1.5-Inch Media Hub Assembly
2
Philips Screw
3
Hub Adapter
1
2
3

(40-mm Media Hub Kit) contains the following items:
1
40-mm Media Hub Assembly (P/N 15-3199-01)
2
Philips Screw (P/N 10-2903-04)
1
2
Tools Required
A Phillips screwdriver is needed for installation.
2
Installation
Only qualified service personnel should perform this installation. Always wear a wrist
strap and follow standard ESD prevention measures when handling any printer
CAUTION
circuit card assembly.
A) Turn OFF the Power Switch
and unplug the power cord
from the AC Receptacle.
Power Switch
Disconnect the interface
AC Receptacle
cable(s).
Cover Screws
B) Remove the Cover Screws
on the outside of the printer.
Cover
Cover Screws
C) Raise the Cover. Loosen the
Cover Screws on the
Centerplate then remove the
Centerplate
Cover.
3
Main Logic
Card
D) Disconnect the cables from
the Main Logic Card.
Card Cage
Screws
E) Remove the Screws that
secure the Main Logic Card
and the Fill Plate to the Card
Cage. Remove the Fill Plate
then slide the Main Logic
Card out of the printer.
Main Logic
Card
Fill
Plate
Centerplate
F) Remove the Hanger Screws
Media
Hanger
that secure the Media
Hanger to the Centerplate
and then remove the Media
Hanger.
Hanger
Screws
4
Main Logic Card
J9
J11
G) Slide the Main Logic Card
J14
into the Card Cage and
J10
replace the Fill Plate. Secure
the Main Logic Card and the
J8
Fill Plate using the previously
J12
removed Screws. Reconnect
all the cables to the Main
J7
Logic Card.
J16
J4
J6
J5
Power Supply
Screws
H) Remove the Ground Strap
Screw and Lock Washer,
four Power Supply Screws,
and two Line Filter Screws.
Remove the Line Filter
Line Filter
Screws
Bracket and then remove the
Power Supply.
Line Filter
Bracket
Power Supply
Ground Strap
Screw and Lock Washer
Media Hub Assembly
I) Place the Media Hub
Assembly*(Item 1) into the
Hub Mount. Secure the
Shaft to Hub Mount using
the Screw (Item 2), ensuring
that both are completely
Shaft
tightened before proceeding.
Hub Mount
* 3-Inch Media Hub Kit installers – see the note at the end of this document.
5
Screw
Power Supply
Screws
J) Install the Power Supply
then place the Line Filter
Bracket onto the Line Filter.
Secure the Power Supply
Line Filter
Bracket Screws
using the Power Supply
Screws and the Line Filter
Screws.
Line Filter
Power Supply
Line Filter
Bracket
K) Insert the Ground Strap
Screw into the Lock Washer
and the Ground Strap Lug.
Then secure the Ground
Strap Lug to the chassis
using the Ground Strap
Ground Strap Screw
and Lock Washer
Screw and Lock Washer.
Ground Strap Lug
L) Check all Power Supply cable
Cover Screws
connections then place the
Cover onto the printer. Install
and tighten the Cover
Screws on the outside of the
printer.
6
Cover Screws
M) Tighten the Cover Screws on
the Centerplate.
Centerplate
N) Connect the interface
cable(s). Plug the power cord
into the AC Receptacle and
turn ON the Power Switch.
Power Switch
This completes the
installation process; refer to
AC Receptacle
the Operator’s Manual for
media loading instructions.
 Note: The 3-Inch Media Hub
Hub Adapter
Kit is configurable:
To install the Hub
Tabs
Adapter (Item 3),
Tabs
align the Tabs then
slide the Hub
Adapter over the
1.5-Inch Hub
Assembly until it
Tabs
seats in place; or,
To remove the Hub
Adapter, grasp and
Tabs
1.5-Inch Hub
Assembly
pull.
7
