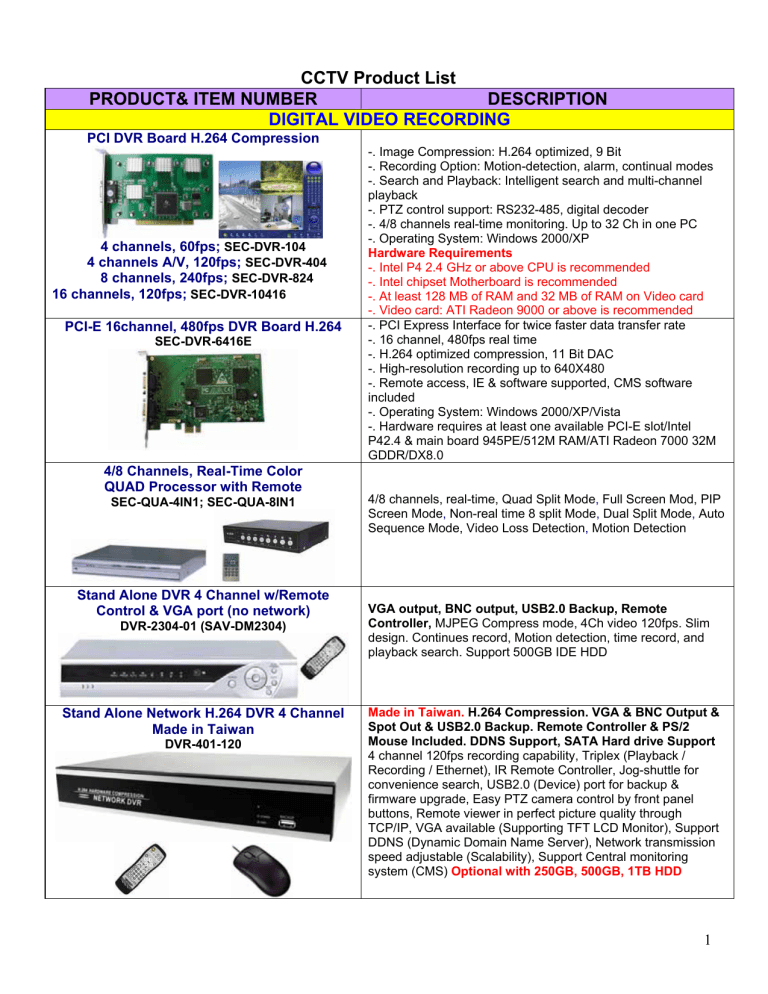

CCTV Product List

PRODUCT& ITEM NUMBER DESCRIPTION

DIGITAL VIDEO RECORDING

PCI DVR Board H.264 Compression

4 channels, 60fps;

SEC-DVR-104

-. Image Compression: H.264 optimized, 9 Bit

-. Recording Option: Motion-detection, alarm, continual modes

-. Search and Playback: Intelligent search and multi-channel playback

-. PTZ control support: RS232-485, digital decoder

-. 4/8 channels real-time monitoring. Up to 32 Ch in one PC

-. Operating System: Windows 2000/XP

4 channels A/V, 120fps;

SEC-DVR-404

8 channels, 240fps;

SEC-DVR-824

16 channels, 120fps;

SEC-DVR-10416

PCI-E 16channel, 480fps DVR Board H.264

SEC-DVR-6416E

4/8 Channels, Real-Time Color

QUAD Processor with Remote

SEC-QUA-4IN1; SEC-QUA-8IN1

Hardware Requirements

-. Intel P4 2.4 GHz or above CPU is recommended

-. Intel chipset Motherboard is recommended

-. At least 128 MB of RAM and 32 MB of RAM on Video card

-. Video card: ATI Radeon 9000 or above is recommended

-. PCI Express Interface for twice faster data transfer rate

-. 16 channel, 480fps real time

-. H.264 optimized compression, 11 Bit DAC

-. High-resolution recording up to 640X480

-. Remote access, IE & software supported, CMS software included

-. Operating System: Windows 2000/XP/Vista

-. Hardware requires at least one available PCI-E slot/Intel

P42.4 & main board 945PE/512M RAM/ATI Radeon 7000 32M

GDDR/DX8.0

4/8 channels, real-time, Quad Split Mode , Full Screen Mod, PIP

Screen Mode , Non-real time 8 split Mode , Dual Split Mode , Auto

Sequence Mode, Video Loss Detection , Motion Detection

Stand Alone DVR 4 Channel w/Remote

Control & VGA port (no network)

DVR-2304-01 (SAV-DM2304)

VGA output, BNC output, USB2.0 Backup, Remote

Controller,

MJPEG Compress mode, 4Ch video 120fps. Slim design. Continues record, Motion detection, time record, and playback search. Support 500GB IDE HDD

Stand Alone Network H.264 DVR 4 Channel

Made in Taiwan

DVR-401-120

Made in Taiwan.

H.264 Compression. VGA & BNC Output &

Spot Out & USB2.0 Backup. Remote Controller & PS/2

Mouse Included. DDNS Support, SATA Hard drive Support

4 channel 120fps recording capability, Triplex (Playback /

Recording / Ethernet), IR Remote Controller, Jog-shuttle for convenience search, USB2.0 (Device) port for backup & firmware upgrade, Easy PTZ camera control by front panel buttons, Remote viewer in perfect picture quality through

TCP/IP, VGA available (Supporting TFT LCD Monitor), Support

DDNS (Dynamic Domain Name Server), Network transmission speed adjustable (Scalability), Support Central monitoring system (CMS)

Optional with 250GB, 500GB, 1TB HDD

1

Stand Alone Network Digital Video Recorder 4

Channel w/Remote Control & VGA

DVR-6004-NET (SAV-DG4104)

VGA output, BNC output

, USB2.0 Backup Remote

controller,

Network. MPEG4 Compress mode, NTSC/PAL, 4Ch

120fps. Motion detection, External alarm recording, record time search, record list search, event list search, network backup and playback at same time, remote monitoring, remote playback and remote record, RS-485 controller, Support 1TB SATA HDD

Stand Alone Network Digital Video

Recorder 8/16 Channels w/Remote

DVR-S08T2-CAU; DVR-S16T2-CAU

Stand Alone Network Digital Video

Recorder 8/16 Channels Real Time

DVR-1648-SATA; DVR-0824-SATA

17" LCD all-in-one Stand Alone DVR recorder

4 Port w/Remote Control

Door Camcorder DVR with Color Monitor and

Motion Sensor VDP-MINI-180

VGA & BNC Output, & CD-Burner & USB2.0 Backup.

Remote Controller, Made in Taiwan

JPEG2000 Algorithm compression, 8/16 channel 240/480 fps recording capability, Triplex (Playback / Recording / Ethernet),

IR Remote Controller, Jog-shuttle for convenience search, USB

(Device) port for firmware upgrade, Easy PTZ camera control by front panel buttons, Remote viewer in perfect picture quality through TCP/IP, VGA option available (Supporting TFT LCD

Monitor), Support DDNS (Dynamic Domain Name Server),

Network transmission speed adjustable (Scalability), Support

Central monitoring system (CMS), Support Dual SATA Hard drives.

Pentaplex Feature Allows for Simultaneous Live Monitoring,

Recording, Playback, Networking and Archiving

Built-in Web Server MPEG4 ASP Provides Unbeatable

Recording Picture Quality and Compression Ratio; Network --

Static IP, DHCP, DDNS Support / Multi User Support; VGA

Support; Records and Plays in High-definition Video (704x480

NTSC / 704x576 PAL); USB 2.0 port Support (Front X 2, Rear X

2) USB Mouse Support; Audio Recording and Playback (2-Way

Audio Conference); Software Upgrade Can Be Loaded/Saved via USB Port, CD/DVD-RW; Archiving (EXE Format) to USB

Hard Disk Drive, Internal CD/DVD-RW Drive or USB2.0 Stick

Memory; NTP (Network Time Protocol)

17" A grade AUO LCD panel & USB2.0 Backup, Full Ch

Audio

JPEG2000 Algorithm compression, 4 channel DVR 240 fps recording capability, 4 channel audio recording, Triplex

(Playback / Recording / Ethernet), Multi Language OSD, IR

Remote Controller, Jog-shuttle for convenience search, USB

(Device) port for firmware upgrade, Easy PTZ camera control by front panel buttons, Remote viewer in good picture quality through TCP/IP, Support DDNS (Dynamic Domain Name

Server), Network transmission speed adjustable (Scalability),

Support Central monitoring system (CMS), Made in Taiwan

Special Order Only

The Door Camcorder Intelligent DVR is a low cost door security camera that records video & audio (AVI format) and stores to a removable SD card (up to 4GB) for playback and also can be transferred to a computer hard drive or recorded to CDs &

DVDs. It utilizes a 1.5" LTPS color TFT (480 x 240 pixels) video screen for viewing and recording from inside that replaces the standard peephole. On the outside are a Wide-angle 86 degrees lens and a motion sensor that mounts to a door. Users can view video & audio that was recorded and can manage the information stored on the SD card. Perfect for home, apartment, office, school, industrial or military security.

Other features:

-. Multi Languages support: English, French, Spanish, Italian,

German, Portuguese, Japanese, Traditional Chinese, Simplified

2

4 Channel USB2.0 DVR with 1 Channel

Audio

SEC-DVR-USB

Chinese,

-. Power: AAAx3pcs/DC5V

-. Protection Standard: IP44

-. 4 channels video input, 1 channel audio input, max 30 fps

-. Multi alarm triggering method: sensor, motion, video loss, and

HDD space shortage

-. Schedule recording mode, recycling recording method available.

-. MPEG4 video compression format. 5 level recording quality options available and the recording frame rate range from 1 to

30 fps adjustable for each channel.

-. Support multi-channel playback, searching by time/date and recording events, images can be

Zoom/capture/save/print/backup

-. Support remote surveillance and PTZ control through web browser, support dynamic domain name

Configurable auto reboot function for preventing PC deadlock

USB2.0 Mini Pen DVR w/A

SEC-DVR-PEN

-. Pen Style Digital Pocket Video Recorder

-. 4 GB high capacity with USB2.0 interface

-. Fully Functioned Black Ink Ball Point pen

-. Build-in Spy Pin-hole Camera 2.6mm Super Wide Angle Lens

-. Build-in Microphone

-. AVI video format 640 x 480 CFI resolution

-. Easy to use one touch record button

-. Operates up to 3 hours with Li-Ion battery

-. Approximately 6.25-inch length

SEC-DVR-HD01

Power Supply:

Build in Lion battery 1200mAh/3.7V, and also can be work with

USB charger for long time use.

Or it can work with external battery or power charger for long time use. And start recording as soon as the car powered.

Specifications:

-.

Millions pixels Canon high quality camera lens

-. Build in Microphone

-. 2.0 mm Wide vision lens

-. Level Vision angle: 105°

-. Video Resolution: 1280 X 1024 or 640 X 480

-. 1GB Micro SD Card Included(support up to 32GB or bigger)

-. Video File Format: AVI

-. MPEG4 Compression

-. Circulation recording

-. Time and Date format: Year-Month-Date Time

-. Working Temperature: -25°C to 70°C

-. Power Supply: Build in 1200mAh(Continuous recording up to

3.5hour)/ 3.7V, Long time external battery or charger

-. Dimensions: L *W *H 69x49x20(mm)

3

SEC-DVR-HD200

SEC-DVR-P800

SEC-DVR-P300

Features:

-. 1920x1080P Mega Pixels H.264 recording

-. 2.0" TFT LCD

-. 8.0MP Digital Camera

-. HDMI Support

-. 4X digital Zoom

-. Audio Support

-. 32GB SDHC Support

-. up to 60 FPS

-. AV out to TV

Specs:

-. Sensor: 5 Mega pixel

-. Lens: 4 Elements fix focus lens, 7.45mm

-. Focusing Range: 12cm-infinity

-. Video Output: 1080/720 output

-. Still Image: 2592x1944, 3200x2400

-. Recording Format: MOV

-. Recording Resolution:1920x1080 (30fps), 1440x1080 (30fps),

1280x720 (30fps), 848x480 (60fps)

-. Video Codec: H.264/MPEG.4 AVC

-. Recording Media: Internal 32M, External: SDHC SD

-. Audio: Mic and speaker

-. Battery: 3.7V 900mAh Rechargeable Lithium-ion Battery

-. USB: USB2.0 High Speed

-. Size: 98.7x53.3x23mm Weight: 88.4g

-. Thumb size alloy housing

-. Manually and sound activated recording

-. Web camera function for online video chat

-. Support AVI video format

-. Low illumination, high resolution image with 2MP

-. High speed recording and quick light response

-. 25 fps for 640x480 video output

-. Built-in Li rechargeable battery lasting for 2 hours

-. Support 8G memory

-. Easy operation with LED indicator

-. Support USB 2.0

-. Flexible installation with clip and bracket

-. Support JPEG picture format

-. Imaging sensor type: 1280X1024 CMOS

-. Video Format: AVI

-. Video Resolution: 640x480 /30FPS

-. View Angle: 60 degree

-. Audio Recording: Yes

-. SD Card Support: up to 8GB

-. Video Recording Mode: Continuous recording until memory is full or manually off

-. Video File Size: >40M per minute

-. Operating Temperature: 0~65C

-. Adapter Type: USB power supply

-. Battery Type: Built-in Li-battery

-. Power consumption: 400mA

-. Battery Life: about 1Hr

-. Size 64x150x6.5mm weight 40g only

4

CCTV SURVEILLANCE CAMERA

CCD DOME Colour Camera

SEC-CAM-C1201 (SAV-CD103)

-. Image Device: 1/4'' Sharp CCD

-. Lens: 3.6mm Wide Angle Lens

-. Horizontal Resolution: 420 TVL

-. Number of Pixels: NTSC 768X49

-. Power supply: DC12V/500mA

-. Indoor Use Only

SEC-CAM-CD143

-. 1/3” Sharp Color Supper HAD CCD

-. Horizontal Resolution: 420 TV Line

-. Lens: 3.6mm wide angle lens

-. Min Illumination: 0.1Lux/F1.2; 0Lux(IR ON)

-. Shell: Plastic Housing

SEC-CAM-1531 (SAV-CD115)

SEC-CAM-1316 (SAV-CD-107)

SEC-CAM-CD137

SEC-CAM-8010P (SAV-CD131)

-. Image Device: 1/4'' Sharp CCD

-. Lens: 6mm CCTV Lens

-. Horizontal Resolution: 420 TVL

-. Number of Paxels: NTSC 768X49

-. Scanning System: NTSC525line

-. Power supply: DC12V

-. Indoor Use Only

-. Image Device: 1/4'' Sharp CCD

-. Lens: 3.6mm Lens

-. Horizontal Resolution: 420 TVL

-.

12 IR LEDs up to 30 feet in darkness

-. Min Illumination: 0Lux/F1.2 (IR ON)

-. Shell 2.5" Plastic Dome

-. Power supply: DC12V/500mA

-. Indoor Use Only

-. 1/4" Sharp CCD

-. Lens: 3.6mm Wide Angle Lens or 6mm Standard Lens

-. Horizontal Resolution: 420 TVL

-. 10 High Power IR LED Units up to 50 feet IR Distance

-. Min Illumination: 0Lux/F1.2 (IR ON)

-. Plastic casing, black color

-. Easy Installation

-. Power supply: DC12V/250mA

-. Indoor Use Only

-. 1/3" SONY Super HAD CCD

-. Lens: 3.6mm Wide Angle Lens

-. Horizontal Resolution: 420 TVL

-. 10 High Power IR LED Units up to 50 feet IR Distance

-. Min Illumination: 0Lux/F1.2 (IR ON)

-. Plastic casing, Beige Color

-. Easy Installation

-. Power supply: DC12V/250mA

-. Indoor Use Only

5

SEC-CAM-8010B

SEC-CAM-1303 (SAV-CD106)

SEC-CAM-CD122

SEC-CAM-1321 (SAV-CD102)

SEC-CAM-8010 (SAV-CD120)

-. Image Device: 1/4'' Sharp CCD

-. Lens: 3.6mm Wide Angle Lens

-. Horizontal Resolution: 420 TVL

-. 24 IR LED Units up to 50 feet IR Distance

-. Min Illumination: 0Lux/F1.2 (IR ON)

-. Plastic casing

-. Easy Installation

-. Power supply: DC12V/250mA

-. Indoor Use Only

-. 1/3" SONY Super HAD CCD

-. Lens: 3.6mm Wide Angle Lens

-. Horizontal Resolution: 420 TVL

-. 18 IR LED Units up to 45 feet IR Distance

-. Min Illumination: 0Lux/F1.2 (IR ON)

-. Plastic casing, black color

-. Easy Installation

-. Power supply: DC12V/250mA

-. Indoor Use Only

-. Image Device: 1/4 “ Sharp Supper HAD CCD

-. Horizontal Resolution: 420 TV Line

-. Min Illumination: 0.1Lux/F1.2; 0Lux(IR ON)

-. Lens: 3.6mm lens

-. Video S/N Ratio: More than 48db(AGC Closed)

-. Electronic Shutter Control:1/50(1/60)-1/100000 Sec

-. Video Output Level: 1.0Vp-p75Ohms,composite

-. Power Supply: DC12V/80mA

-. Shell: Plastic Mirror Housing

-. Indoor Use Only

-. Image Device: 1/3” SONY Super HAD CCD

-. Lens: 4.0mm CS Mount Wide Angle Lens

-. Horizontal Resolution: 420 TV Lines

-. Min Illumination: 0.1Lux/F1.2

-. High Quality Back light compensation

-. Waterproof and Vandal proof Metal Dome

-. Power Supply: DC12V/120mA

-. Indoor/Outdoor Use

-. 1/3" SONY Super HAD CCD

-. Lens: 3.6mm Wide Angle Lens

-. Horizontal Resolution: 420/480 TVL

-. 24 IR LED Units up to 50 feet IR Distance

-. Vandal Proof/Weather Proof Metal Casing

-. Easy Installation

-. Power supply: DC12V/800mA

-. Indoor/Outdoor

6

SEC-CAM-1203 (SAV-CD105)

SEC-CAM-1322L (SAV-CD111)

420/520TVL Vandal Proof IR Dome Camera

3.5~9mm Vari-Focul Lens

SEC-CAM-8011 (SAV-CD116)

-. Image Device: 1/3 Sharp Color Super HAD CCD

-. Lens: 3.6mm Wide Angle Lens

-. Horizontal Resolution: 420 TVL

-. Shell: Waterproof and Vandal proof Metal Housing

-. 12IR LEDs Units up to 30 feet IR Distance

-. Back light compensation

-. High Sensitivity, Low Smear, high Anti-Blooming

-. Video S/N Ratio: More than 48db(AGC Closed)

-. Power Supply: DC12V/250mA

-. Dimension: 185(Length) x140 (Width) x131 (Height) mm

-. Indoor/Outdoor

-. Image Device: 1/3” SONY Super HAD CCD

-. Lens: 3.6mm Wide Angle Lens

-. Horizontal Resolution: 420 TV Lines

-. 23 IR LED unit for up to 50 feet IR Distance

-. Min Illumination: 0Lux/F1.2 (IR ON)

-. High Quality Back light compensation

-. Waterproof and Vandal proof Metal Dome

-. Power supply: DC12V/300mA

-. Indoor/Outdoor Use

-. Image Device: 1/3” SONY Super HAD CCD

-. Lens: 3.5mm~9mm Vari-focul, Auto Iris Lens

-. Horizontal Resolution: 420/520 TV Lines

-. 36 IR LED unit for up to 90 feet IR Distance

-. Min Illumination: 0Lux/F1.2 (IR ON)

-. High Quality Back light compensation

-. Waterproof and Vandal proof Metal Casing

-. Power supply: DC12V/400mA

-. Indoor/Outdoor Use

480TVL High Resolution Vandal Proof IR

SEC-CAM-1322M (SAV-CD111)

480TVL High Resolution Vandal Proof IR

SEC-CAM-306CD

-. Image Device: 1/3” SONY Super HAD CCD

-. Lens: 3.6mm Wide Angle Lens

-. High Resolution 480 TV Lines

-. 23 IR LED unit for up to 50 feet IR Distance

-. Min Illumination: 0Lux/F1.2 (IR ON)

-. High Quality Back light compensation

-. Waterproof and Vandal proof Metal Dome

-. Power supply: DC12V/300mA

-. Indoor/Outdoor Use

-. 1/3” SONY Super HAD CCD

-. 3.6mm Wide Angle Lens

-. High Resolution 480TVL

-. 24 IR LEDs up to 50 feet in darkness

-. Vandal Proof & Weather Proof Case

-. Gain: 36dB

-. Auto AGC

-. S/N ratio > 52dB

-. Power supply: DC12V/400mA

-. Indoor/Outdoor

7

CCD BULLET Colour Camera

SEC-CAM-C1208 (SAV-CW201)

-. Image Device: 1/4'' Sharp CCD

-. Lens: 3.6mm Wide Angle Lens

-. Horizontal Resolution: 420TVL

-.

12 IR LEDs up to 30feet in darkness

-. Number of Pixels: NTSC 768X49

-. Metal Casing

-. Power supply: DC12V/260mA

-. Indoor Use Only

SEC-CAM-C1308 (SAV-CW202)

-. Image Device: 1/4'' Sharp CCD

-. Lens: 3.6mm/6mm Lens

-. Horizontal Resolution: 420TVL

-. 24 IR LEDs up to 50feet in darkness

-. Number of Pixels: NTSC 768X49

-. Weatherproof Metal Casing with Sun or Rain shield

-. Power supply: DC12V/360mA

-. Indoor/Outdoor

Mini Bullet Camera

SEC-CAM-CT402

SEC-CAM-1408 (SAV-CW203)

-. Pickup Device: 1/4 “ Sharp Supper Had CCD

-. Lens: 3.6mm Pinhole

-. Horizontal Resolution: 420 TV Line

-. Video S/N Ratio: More than 48db(AGC On)

-. Sync system: Internal

-. Min Illumination: 0.8Lux/F1.2

-. Power Supply: DC12V 250mA

-. Shell: Metal Casing Hard and beautiful

-. Indoor Use Only

-. Bracket included

-. 1/4" SONY Super HAD CCD

-. Lens: 3.6mm/6mm Lens

-. Horizontal Resolution: 420TVL

-. 24 IR LEDs up to 50feet in darkness

-. Weatherproof Metal Casing with Sun or Rain shield

-. Power supply: DC12V/360mA

-. Indoor/Outdoor

SEC-CAM-1508 (SAV-CW204)

-. 1/3" SONY Super HAD CCD

-. Lens: 3.6mm/6mm Lens

-. Horizontal Resolution: 420TVL

-. 24 IR LED Units up to 50 feet IR Distance

-. Weatherproof Metal Casing with Sun or Rain shield

-. Power supply: DC12V/360mA

-. Indoor/Outdoor

8

SEC-CAM-1608 (SAV-CW205)

480TVL High Resolution Bullet IR Camera

SEC-CAM-1800 (SAV-CW207)

SEC-CAM-1708 (SAV-CW206)

-. 1/3" SONY Super HAD CCD

-. Lens: 6mm Standard Lens

-. Horizontal Resolution: 420TVL

-. 47 IR LED Units up to 100 feet IR Distance

-. Weatherproof Metal Casing with Sun or Rain shield

-. Power supply: DC12V/800mA

-. Indoor/Outdoor

-. Image Device: 1/3” SONY Super HAD CCD

-. Lens: 3.6mm Wide Angle Lens

-. Horizontal Resolution: 480 TV Lines

-. 36 IR LED unit for up to 90 feet IR Distance

-. Min Illumination: 0Lux/F1.2 (IR ON)

-. High Quality Back light Compensation

-. IP66 Weatherproof Rated Metal Housing with Sun or Rain

Shield

-. Power Supply: 12V/400mA

-. Indoor/Outdoor Use

-. Bracket Included with Wire Management

-. 1/3" SONY Super HAD CCD

-. Lens: 8mm Lens or 16mm Lens

-. Horizontal Resolution: 420TVL

-. 36 High-Power IR LED Units up to 150 feet IR Distance

-. Weather Proof Metal Casing

-. Power supply: DC12V/600mA

-. Indoor/Outdoor

480TVL High Resolution Bullet IR Camera

4~9mm Vari-Focal Lens

SEC-CAM-1802 (SAV-CW209)

520TVL Higher Resolution Bullet IR Camera

OSD Menu, 4~9mm Vari-Focal Lens

SEC-CAM-1803 (SAV-CW210)

-. Image Sensor: 1/3" SONY Super HAD CCD

-. Lens: 4mm~9mm Vari-focal, Auto Iris lens

-. Horizontal Resolution: 480TV Lines

-. 36 Infrared LED unit for 90 feet IR distance

-. Min Illumination: 0Lux/F1.2 (IR ON)

-. High Quality Back light Compensation

-. IP66 Weatherproof Rated Metal Housing with Sun or Rain

Shield

-. Power supply: DC12V/400mA

-. Indoor/Outdoor Use

-. Bracket Included with Wire Management

-. Image Device: 1/3” SONY Super HAD CCD

-. Lens: 4mm~9mm Vari-focul, Auto Iris Lens

-. Horizontal Resolution: 520 TV Lines

-. On Screen Display Menu for Advanced Manual/Auto Camera

Adjustment

-. 36pcs High-Power IR LED unit for up to 150 feet IR Distance

-. Min Illumination: 0Lux/F1.2 (IR ON)

-. High Quality Back light compensation

-. IP66 Weatherproof Rated Metal Housing with Sun or Rain

Shield

-. Power Supply: 12V/700mA

-. Indoor/Outdoor Use

-. Bracket Included with Wire Management

9

Smoke Detector Type

CCD Colour Hidden Camera

SEC-CAM-C1100 (SAV-CH301)

-. Image Device: 1/4'' Sharp CCD

-. Lens: 3.6mm Pinhole Lens

-. Horizontal Resolution: 420TVL

-. Number of Pixels: NTSC 768X49

-. Power supply: DC12V/120mA

-. Indoor Use Only

Mini Camera with Audio

SEC-CAM-805

Motion Sensor Type

SEC-CAM-C1102 (SAV-CH302)

Fire Sprinkler Hidden Camera

SEC-CAM-C1103

-. Image Device: 1/4'' Sharp Color CCD

-. Lens: 3.7mm Pinhole Lens

-. Horizontal resolution: 420TVL

-. RCA Video/Audio output; Build-in Mic

-. Metal Casing, black color

-. Power supply: DC12V 200mA

-. Indoor Use Only

-.

1/3” SONY Color Supper HAD CCD

-. Lens: 3.7mm Pinhole Lens

-. Horizontal Resolution: 420 TV Line

-. Min Illumination: 0.1Lux/F1.2

-. Excellent picture quality in Low Light Condition

-. Power Supply: DC12V 250mA

-. Indoor Use Only

-. Bracket Included

-. ¼” Sony Color Supper HAD CCD

-. Horizontal Resolution 420 TV Lines

-. 4.3mm Pinhole Lens

-. Min Illumination: 0.5Lux/F1.2

-. Shell: Aluminum Casing Hard and beautiful

-. Operation Temperature: -20

0

C

-. Power Supply: DC12V 250mA

~ +50

0

C

Professional CCD Housing Camera with Heater and Blower

SEC-CAM-103

SEC-CAM-104

-. Image Device: 1/3'' Sharp Super HAD CCD

-. Lens: 4mm or 6mm Lens

-. Horizontal Resolution: 420TVL

-. 42 Infrared LED unit up to 70 feet IR Distance

-. IP66 Waterproof Protection Classification

-. Excellent Metal casing & exterior finish

-. Power Supply: 24V AC /450mA

With Heater & Blower

-. Made in Taiwan

-. Outdoor Use

-. Image Device: 1/3'' Sharp Super HAD CCD

-. Lens: 6mm, 8mm or 12mm Lens

-. Horizontal Resolution: 420TVL

-. 28 High-Power Infrared LED unit up to 100 feet IR

Distance

-. IP66 Waterproof Protection Classification

-. Excellent Metal casing & exterior finish

-. Power Supply: 24V AC /450mA

With Heater & Blower

-. Made in Taiwan

-. Outdoor Use

10

SEC-CAM-118

-. Image Device: 1/3'' Sharp Super HAD CCD

-. Lens: 16mm Lens

-. Horizontal Resolution: 420TVL

-. 18 Super-Power IR LED unit up to 150 feet IR Distance

-. IP66 Waterproof Protection Classification

-. Excellent Metal casing & exterior finish

-. 24VAC /450mA

With Heater & Blower

-. Made in Taiwan

-. Outdoor Use

Professional CCD Colour Box Camera

SEC-CAM-C1926 (SAV-CB004)

-. Image Device: 1/4” Sharp CCD

-.

Lens: not included

-. Horizontal Resolution: 420TVL

-. Number of Pixels: NTSC 768X494

-. Power supply: DC12V/500mA

-. Indoor Use or Outdoor with Housing

SEC-CAM-C1928 (SAV-CB003)

-. 1/3 Sony Color CCD

-. Horizontal Resolution: 480 TV Line

-. Lens Mount: C/CS Mount is optional

-. Lens: not included

-. Min Illumination: 0.1Lux/F1.2

-. Power Supply: DC12V

-. Indoor Use or Outdoor Use with Housing

1/3” CCTV Lens C/CS Mount

2.8mm, F1.4 CS Manual Iris

2.8mm, F1.4 CS Auto Iris (DC Drive)

2.8mm, F2.0 CS Fixed Iris

2.8mm, F1.4 CS Auto Iris (Video Drive)

4.0mm, F2.0 CS Fixed Iris

12mm, F1.2 CS Fixed Iris

16mm, F2.0 CS Fixed Iris

16mm, F1.6 CS Auto Iris (DC Drive)

16mm, F1.6 CS Auto Iris (Video Drive)

25mm, F1.4 C 1/2” Manual Iris

Wide Dynamic Box Camera

1/3" High Resolution DSP 540TVL

SEC-CAM-W63

-.1/3" Double Speed Color CCD With 410K Pixels

-.Enhanced WDR (Wide Dynamic Range) Function Max

56 dB

-.SDNR (Super Dynamic Noise Reduction)

-.High Res 540 TV Lines

-.0.05 Lux at F1.2 (AGC ON)

-.0.001 Lux at F1.2 (Sens-up Mode)

-.S/N Ratio 50dB (Mini)

-.Privacy Image Masking With Free Position

-.Motion Detection

-.RS 485 Remote Control

-.Multi Language (ENG / JAN / CN)

-.OSD (On Screen Display)

-.Power Supply DC 12V

-.Lens Not Included

11

Professional Zoom/PTZ Camera

1/4” SONY CCD 480TVL High Resolution

-. Image Device: 1/4'' SONY Super HAD CCD

X22 Optical Zoom Camera

SEC-CAM-822CO

-. High Resolution 480 TVL

-. Built-in X22 optical zoom lens, F1.6 f=4~88mm , X12 digital zoom

-. Auto Iris, Auto Focus lens

1/4" SONY EXVIEW CCD, 480TVL

Intelligent Professional Dome Camera

SEC-CAM-2300

-. Built-in RS485 Interface to control over Internet (Remote

Focus/Iris/Zoom)-RS485

-. Built-in Pelco-D/Pelco-P protocol, baud rate 4800/9600 optional

-. Advanced Menu display

-. Excellent Metal casing

-. Power supply: DC 12V/350mA

-. Indoor Use or Outdoor with Housing

-. 1/4” SONY EXVIEW 1:1 progressive scanning CCD

-. Color: 480TVL, Monochrome: 600TVL

-. Built-in X23 optical zoom lens, F1.6 f=3.6~82.8mm

, X12 digital zoom

-. Minimum illumination: Color 0.1Lux,Mono 0.01Lux,IR

0Lux

-. IR-filter cutter

-. Built-in Heater and Blower

-. Water-proof 6” V-P housing

-. IP66 Waterproof Protection Classification

-. P/T/Z (Up/Down/Left/Right) 360°continuously turn, max.300°/s

-. Tilt 90°auto reversal

-. Super wide dynamic range, day/night auto switch, auto reposition function

-. 128 preset point, 5 scanning track

-. RS485 control, multi communication protocol, IP66

-. 4 channel alarm input, 1 channel alarm output

-. Video Output 1.0Vp-p Composite output, 75Ω, BNC

-. Power supply: AC24V 20W (45W for Heater)

WIRELESS CAMERA PRODUCTS

Pinhole Wireless Spy Camera Kit w/Audio

CAM-WL-801 (SAV-CC601)

CAM-WL-803 (SAV-CC602)

Ultra Mini Pinhole color camera size less than an inch square

-. 1/3" Color CMOS camera with built-in board lens 6mm

-. Scan Frequency: NTSC 60Hz or PAL 50Hz

-. Min. Illumination: 3 LUX

-. Output Frequency: 900 MHz - 1200 MHz

-. Includes Cable and power supply /w battery clip

-. Output power 200mW (Camera power DC+8V 200mA,

Receiver power DC+9V 500mA

-. Transmission: 150-300 feet line of sight

-. Camera runs on 9-volt battery or AC adapter

2.4G Wireless Pinhole Camera Kit w/Audio

CAM-WL-823

With wireless transmitting this device is small in size lightweight and has low power consumption. Highly sensitive, easy installation and operation.

-. 2.4 GHz 4 Channel Selectable on Camera and Receiver

-. 1/3” Color CMOS with 510 x 492 pixels

-. Min. Illumination: 3 LUX

-. Includes Cable and power supply (12 V and 8 V) /w battery clip

-. Transmission: 150-300 feet line of sight

12

2.4G Wireless IR Color Camera Kit w/Audio

CAM-WL-824

-.1/3" CMOS Color IR Camera

-. Support PAL/NTSC TV System, 380 TV lines

-. Output frequency: 2.4G

-. Distance without blocking: 50m-100m

-. Output power 10mW (Camera power DC+12V 200mA,

Receiver power DC+9V 350mA) Transmission

-. Cameras available from ch1 ~ ch4

-. Includes Cable and power supply /w battery clip

2.4G 4 Channel Wireless LCD Receiver

SEC-RV-RC810

2.4G 4 Channel Wireless IR Camera System Kit with Remote Control

CAM-420-802

Dome Type

-. 4 Channels 2.4G Wireless Receiver

-. Open transmission Distance 100M

-. Receiving Frequency:

Ch1: 2.414Ghz Ch2: 2.432Ghz Ch3: 2.450Ghz Ch4:

2.468Ghz

-. Receiving Wired Audio & Video Signal

-. Audio & Video Input & Output

-. 3.5" TFT LCD 480 X 234 pixel

-. TV System: NTSC/PAL Automatically

-. Battery: Build-in7.4V 1100mAh Lithium Battery

-. Image Type: 1/3" Omni Vision Color CMOS

-. Picture Elements: 500 (H) X 492(V)

-. Horizontal Resolution: 350 TV Lines/F1.2

-. Power Input: DC 12V, 8V

-. Power Consumption: 500mA 2.7W; 200mA 1.8W

-. Min. Illumination: 0 Lux

-. Operating Temp: -10 C ~ 50 C (14F - 122F)

-. Camera: 85 mm x 62mm, 225g

-. Receiver: 120mm x 105mm x 30mm, 150g

Dummy Camera

SEC-DUM-DOME

99% looks & feels like real one

Black Dome type dummy camera, easy to hook up

Box Type

SEC-DUM-BL1

Dummy bullet camera

SEC-HLD-4 (B)

CCTV CAMERA ACCESSORIES

Metal Camera Bracket Pack

Camera Bracket & Housing

Material/Color: Aluminum/ Silver/Black

Appropriate for small size cameras, such as 1208,1308,1408,1508.

13

Metal Camera Bracket

SEC-HLD-3

Material/Color: Aluminum/ Silver

360 degree angle easy adjustment

Appropriate for big size bullet/box camera, 1308, 1608, 1708, 1926, etc

Heavy Duty Camera Bracket 10cm

SEC-HLD-204Si

Heavy Duty Camera Bracket L-Type

SEC-HLD-204L

SEC-HLD-227

-. Heavy Duty Camera Bracket

-. Max. Load: 2kg

-. Material, Color: Metal With Silver Enamel

-. DIMENSION: 145mm(H) x108mm (D) mm

-. SWIVEL ANGLE: 360°

-. TILT ANGLE: 120°

-. Weight: 450g

-. Heavy Duty Camera L-Type Bracket

-. Max. Load: 2kg

-. Material, Color: Metal With Silver Enamel

-. DIMENSION: 225mm(H) x108mm (D) mm

-. SWIVEL ANGLE: 360°

-. TILT ANGLE: 120°

-. Weight: 600g

-. Metal Dome Camera Wall Mount Bracket

-. Aluminium Color

-. Weight: 687.5g

SEC-HLD-215

-. L-Type Heavy Duty Housing Bracket

-. Max. Load: 10kg

-. Material/Color: Metal / BEIGE

-. DIMENSION: 350(H) X180 (W) mm

-. SWIVEL ANGLE: 360°

-. TILT ANGLE: 90°

-. Weight: 1.2kg

Heavy Duty Camera Bracket

SEC-HLD-26H

Max Load: 10kg

Material/Color: Aluminum/ Beige

Dimension: 208mm (L) x 75mm (W) x 115mm (H)

Swivel Angle: 360 degree

Tilt Angle: 90 degree

14

Aluminium Box Camera Housing

Model

SEC-HOU-605

SEC-HOU-605HB

Dimension

373(L) X140 (W) X115 (H) mm

24 VAC Heater & Blower

CCTV Camera Power Adapter & Cable

CCTV Power Adapter

Regulated CCTV Switch Power Adapter (CUL approved)

12V 1000mA SEC-PWR-1A

______________________________________________________________________

Regulated CCTV Switch Power Adapter (CUL approved)

12V 5A SEC-PWR-5A

Power Adapter 120VAC to 24VAC

24VAC, 40VA CCTV Camera Power Adapter Transformer

(CUL approved)

SEC-PWR-2440

Power Distribution Box

CCTV Distributed Power Supply

-. For 12V DC

-. Up to 14 Cameras

-. Comes with 12V 5A Power Adapter

DC Power Splitter Cable 1 to 4

Pigtail CCTV DC Power Cord 70mm

SEC-PD-09B/ SEC-PD-09M/ SEC-PD-2409

SEC-PD18B/ SEC-PD-2418

-. Provides

12VDC

or

24VAC

fused outputs for 9 to 18 cameras

-. Individually Fused protection

-. Individual PTC auto reset fuse and LED statue indicator

-. Main power switch with surge protection

-. Output short circuit protection

-. Output over current protection

-. Output over voltage protection

-. All DC models are regulated and filtered, and use switch power technology

-. 12VDC or 24VAC available

DC Power Splitter Cable 1 to 4 SEC-ADP-1TO4

Utilized for 1 power with more than one camera (up to 4), easy wire management. Use with our 12V 5A power

Pigtail DC Power Cord (70mm) SEC-PC-70

15

12V DC Power Extension Cable

CCTV BNC M Short Connection Cable

For CCTV Camera (male-female) & (male-male)

6Ft, 12Ft, 25Ft available

-. CCTV BNC Male to BNC Male

-. Easy and convenient connection for short distance between CCTV equipments

CCTV Camera Video (BNC) & Power

All-In-One Cable 24AWG

-. Camera Video (BNC) & Power All-In-One Cable

-.24AWG

-. Video Signal Shield

-. Pre-made for Plug and Play use

-. Black/White Available

-. Available for 25Ft, 50Ft, 75Ft, 100Ft, 150Ft, 200Ft

CAT5E RJ45 Network Cable 1000Ft Pure Copper

Blue Color

SecurLink 2 Wires Power Cable: 18AWG X 2

Cables, 1000ft/box

(Pure Copper)

-. Meets or exceeds TIA/EIA-568-B Enhanced Category 5

ISO 11801:2002 Class D specifications

-. Independently verified by Intertek ETL SEMKO testing services

-. Performance characterized to 350 MHz

-. 5dB NEXT performance above Category 5e

-. UL & cUL Listed (CMR/CMP)

-. Gigabit Ethernet zero bit error rate independently verified by Intertek ETL SEMKO

-. Lead-free jacketing

-. 24 AWG, solid bare copper

500ft/box

SecurLink RG59/U Siamese Coaxial Cable:

20AWG + 18AWG X 2

(Pure Copper)

SecurLink RG59/U Coaxial Cable: 20AWG

Conductor 1000ft/box

(Pure Copper)

SecurLink Telephone/Alarm Quad Cable:

24AWG X 4 Cables 1000ft/box

(Pure Copper)

SEC-RG59-500

-. RG59/U 20AWG Pure Copper

-. 128 Copper Braids (95%)

-. 18 AWG X2 Pure Copper Power Cable

-. 500ft Marked in Every 2 feet

-. Black or White Color Available

-. CUL listed

SEC-RG59-1000

-. RG59/U 20AWG Pure Copper

-. 128 Copper Braids (95%)

-. 1000ft Marked in every 2 feet

-. Black or White Color Available

-. CUL listed

SEC-CBL-182

-. 18 AWG X 2 Pure Copper

-. PVC Insulation: 300V MAX

-. Red and Black Color Coded

-. 1000ft Marked in every 2 feet

-. Black Color

-. CUL listed

SEC-CBL-Q1000

-. 24 AWG X4 Solid Pure Copper

-. PVC Insulation: 300V MAX

-. Red, Yellow, Green, Black Color Coded

-. 1000ft Marked in every 2 feet

-. Beige Color

-. CUL listed

16

SecurLink SVGA Video Cable M-M

-.

High-Quality SVGA Cable M-M

-. Golden Plated

-. Double Shielded

-. Pure Copper conductors

-. Ferrite Filters

1000FT RG6 UL Dual Shielded Coaxial Cable 70%

Aluminium Braided

-. 18 AWG, 75Ohm Copper clad steel conductor surrounded by a foam polyethylene dielectric.

-. Double Shielded by bonded aluminum foil and a 70% aluminum braid to prevent Interference

-. Encased in a PVC jacket

-. UL Listed

-. Designed for antenna, CATV, and SATV applications

Video Balun Transceiver (Video/Power Over CAT5E)

Camera Video Balun Transceiver 1Port SEC-VB-9109

-. Use UTP cat5 cable to transmit video signal to transmit a monochrome video signal up to 2,000 feet (610 meters) or color up to 1,300 feet (400 meters).

-. Passive operation - no external power required.

-. Uses low-cost cat 5 cable instead of costly coaxial cables.

4 Channel Camera Video Balun Transceiver

SEC-VB-9409

-. Solution for Transmitting CCTV 4 channel, Video via UTP

4pair up to 1200--9000FT through CAT5 cable.

-. High quality image.

-. Outstanding interference rejection.

-. Transient protection.

CCTV Camera Video/Power/Audio Balun

-. Model #: SEC-VB-9113

-. Solution for Transmitting CCTV Video/Power/Audio up to

1800FT through CAT5 cable.

-. High quality image.

-. Outstanding interference rejection.

-. Video, audio and power all in one

Converters & Connectors

BNC (M)-RCA (F) & BNC (F)-RCA (M) Converter

100pcs/bag

CON-BNC-BNC

DOUBLE BNC (F) Connection Adapter

100pcs/bag

BNC T Connector DOUBLE BNC (F) -1 BNC (M)

BNC L Connector BNC (F) – BNC (M)

100pcs/bag

CON-RG59-BNC/ CVT-RG6-BNC

RG59 or RG6 to BNC Twist-on Adapter

100pcs/bag

17

CON-RG59-PUSH

RG59 push on connector

50pcs/bag

CON-RG59-CR

BNC male crimping type connector

50pcs/bag

CCTV Screw-On Type DC Power Terminal

Male & Female ends

-. Used for connecting CCTV cameras with 2 wire DC Power cables

-. Easy & Fast & Reliable Installation

RJ45 CAT 5 (8P8C) Crimp Connector solid, (100 Pcs Per

Bag)

AV/BNC TO VGA Converter

VGA Video Splitter

24VAC to 12VDC Power Converter 1000mA

-. Suitable for Standalone DVR or CCTV CAMERA with LCD monitor solution instead of TV

-. Save your Space/Investment & Clear Picture

-. Video signal conversion: convert CVBS, S-Video signal to high resolution DF (frequency doubling) VGA signal

-. Input signal compatibility: CVBS, S-VIDEO, VGA, and

PAL/NTSC signal self-adaptive. Output resolution:

[email protected] , [email protected] , [email protected]

-. Picture freezing, brightness, contrast, saturation, hue adjustment

-. Current working state auto-saving when accidental power cut-off happens

-. Prompt caption for all operations and sate in English (or

Chinese)

1 TO 2 Splitter;

1 TO 4 Splitter

Features:

-. Support 250MHz Video bandwidth

-. Enhance Video signals for distance up to 65M

-. Metal Case

-. Support DDC, DDC2, DDC28

-. Support 1920X 1440 @ 85Hz

SEC-AC24-DC12

-. AC 24V Input

-. Regulated DC 12V 1000mA Output

-. Utilized in 24V AC Power line with 12V DC Application

18

VGA Switch with Power Supply (KVM Switch)

ACC-KVM-2P; ACC-KVM-4P

ACC-TOOL-5082

-. 2 port or 4Port KVM Switch is compact and portable

-. Supports Microsoft Intellimouse R, Logitech Net Mouse

R, etc.

-. Supports DOS, Win3.X, Win95/98/98SE/2000/ME/XP,

WINnT, Netware, Unix and Linux

-. Plug and Play, add or Remove Connected PCs for

Maintenance Without powering down KVM switch or PCs

-. High Video Quality Max. Resolution 1920 x 1440

-. No Software Required - Easy PC Selection via Push

Buttons, Hot Keys

-. Auto Scan Mode for Monitoring PCs

-. LED Display for Easy Status Monitoring

-. Buzzer sound for switching port confirmation

-. Optional 9V 500mA Power Adapter

Wire Tools

Compression Tool for RG58,59,6,RCA,BNC

ACC-TOOL-568

ACC-TOOL-332

ACC-TOOL-318

ACC-TOOL-106C

RJ-45,6P6C/RJ-12,RJ-11 ratchet

New Rotary 2-Blades Model Coaxial Cable

Stripper for RG58,59,6

No Replacement Cassette Is Needed.

Compact stripping tool

Coaxial Crimping Tools for RG59,RG6,RG62

ACC-TOOL-206

ACC-TOOL-268

Precise Cutter/Stripper

6.5", cuts wire O.D. Up to 0.41"

8'' Modular Crimping Tools

-For Crimping- RJ11,RJ12, RJ45

-British Plugs

-Made in Tai Wan

19

ACC-TOOL-2482

Multi-function Tester for BNC, RG45, RG11

ACC-TOOL-9202

Digital LCD Multi-Meter

Remote controller

Electronic Door Strike

Electronic Door Strike w/ power supply & two

This Electronic Door Strike is appropriate for building, office, and home door entrance system.

LOC-ELE-208

Specifications:

-. Power input: AC 100V-260V

-. Power output: DC 12V, 60W

-. Output current: 0~5A

-. Output Voltage accuracy: within 1%

-. Power supply dimension (mm): 212 X 172 X 70

-. Weight: 1.25kg

-. Protection level: LV2

VIDEO INTERCOM DOOR ENTRANCE PHONE

2 Wire

Hand-Free

Video Intercom Phone

VDP-238-4BW (SAV-DP103)

-. Weatherproof Pinhole IR Camera-- 1/3" B/W IR Camera

-. Whole Metal Case

-. Video/Audio Out to TV or other Monitoring Devices.

-. Night Vision Light Source: Infrared LED

-. Display: 4" High Resolution B/W Flat CRT monitors

-. Image Resolution: 380 Horizontal Line

Features of the Extra TV Monitoring & Image Recorder

Connection & Hand-Free Unit & Pinhole IR Camera

2 Wire Color Video Door Phone

VDP-015-4CM (SAV-DP304)

-. Weatherproof Color Camera with Infrared LED's

(For Low Light Observation)

-. 4" High Resolution Color LCD Monitor

-. Full Duplex Intercom System 2 Ways Communications

-. Screen Auto Turn Off

-. 380 Lines of Horizontal Resolution

-. 2 Wire System

-. 1/3" COLOR Wireless IR Camera

20

2 Wire Black/White Video Door Phone

VDP-SAV-DP104

2 Wire Color 5” LCD Video Door Phone

VDP-298-5C (SAV-DP306)

New

SEC-SIG-02

-. Weatherproof Pinhole IR Camera-- 1/3" B/W IR Camera

-. Camera: Whole Metal Case

-. 2 Wire System

-. Video/Audio Out to TV or other Monitoring Devices.

-. Night Vision Light Source: Infrared LED

-. Display: 4" High Resolution B/W Flat CRT monitor, plastic case, for CX system only.

-. Image Resolution: 380 Horizontal Line

-. Product Dimension:190*215*70MM

-. Inner Package:251*260*75MM

-. Protection Level:IP54;

-. NW:1.22kg GW:1.4kg

-. 2 Wires System

-. 5" TFT LCD

-. Metal Outdoor Unit

-. Pinhole Hidden Camera

-. Super Slim Design

-. View the Visitors at the Door

-. Full Duplex Hand-free Conversation

-. Screen auto turn off

-. Door Release Operation (electric door strike required)

-. Door Chime

-. Minimum Illumination 0.1 Lux on Object up to 19 feet Away

-. Weatherproof Camera with Aesthetic Housing

USB Rechargeable 2X AA (AAA) Battery Pack Retail

Pack

Features of the USB Rechargeable AA

Battery:

- USB Charging/Re-Charging

- LED Light charging indicator

- 5 Hour charge

- Can also be charged on a 250mA Ni-MH charger

- 1.2V / 1450mAh

USB Rechargeable AA Battery Pack

Includes:

- 2 x AA USB Rechargeable Battery

- 6 month warranty

Available Model:

AA: ELE-BAT-USB5

AAA: ELE-BAT-USB7

SEC-SIG-02

:

Large warning sign 11 1/4 X 8 ¼

SEC-SIG-03

:

Large warning sign 10 X 10cm

21

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
