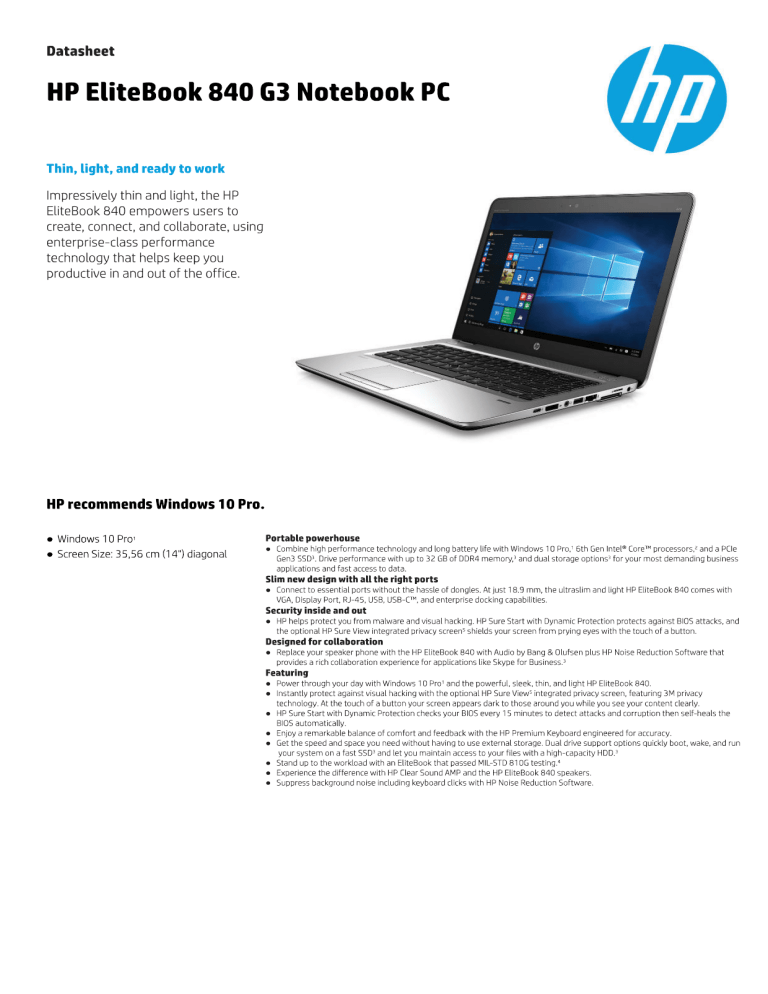

Datasheet
HP EliteBook 840 G3 Notebook PC
Thin, light, and ready to work
impressively thin and light, the HP
EliteBook 840 empowers users to
create, connect, and collaborate, using
enterprise-class performance
technology that helps keep you
productive in and out of the office.
HP recommends Windows 10 Pro.
e Windows 10 Pro
e Screen Size: 35,56 cm (14") diagonal
Portable powerhouse
e Combine high performance technology and long battery life with Windows 10 Pro,” 6th Gen Intel® Core™ processors, and a PCle
Gen3 SSD3. Drive performance with up ta 32 GB of DDR4 memory,? and dual storage options? for your most demanding business
applications and fast access to data.
Slim new design with all the right ports
e (Connect to essential ports without the hassle of dongles. At just 18.9 mm, the ultraslim and light HP EliteBook 840 comes with
VGA, Display Port, RJ-45, USB, USB-C™, and enterprise docking capabilities.
Security inside and out
e HP helps protect you from malware and visual hacking. HP Sure Start with Dynamic Protection protects against BIOS attacks, and
the optional HP Sure View integrated privacy screens shields your screen from prying eyes with the touch of a button.
Designed for collaboration
e Replace your speaker phone with the HP EliteBook 840 with Audio by Bang & Olufsen plus HP Noise Reduction Software that
provides a rich collaboration experience for applications like Skype for Business?
Featuring
e Power through your day with Windows 10 Pro! and the powerful, sleek, thin, and light HP EliteBook 840.
e Instantly protect against visual hacking with the optional HP Sure Views integrated privacy screen, featuring 3M privacy
technology. At the touch of a button your screen appears dark to those around you while you see your content clearly.
e HP Sure Start with Dynamic Protection checks your BIOS every 15 minutes to detect attacks and corruption then self-heals the
BIOS automatically.
e Enjoy a remarkable balance of comfort and feedback with the HP Premium Keyboard engineered for accuracy.
e Get the speed and space you need without having to use external storage. Dual drive support options quickly boot, wake, and run
your system on a fast SSD? and let you maintain access to your files with a high-capacity HDD.3
e Stand up to the workload with an EliteBook that passed MIL-STD 810G testing.*
e Experience the difference with HP Clear Sound AMP and the HP EliteBook 840 speakers.
e Suppress background noise including keyboard clicks with HP Noise Reduction Software.
HP EliteBook 840 G3 Notebook PC
HP recommends Windows 10 Pro.
Specifications Table
Available Operating System
Windows 10 Pro 64 — HP recommends Windows 10 Pro.’
Windows 10 Home 64!
Windows 7 Professional 32 (available through downgrade rights from Windows 10 Pro 64)°
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro 64)°
Windows 8.1 Pro 643
Windows 8.1 643
Windows 7 Professional 323
Windows 7 Professional 643
FreeDOS 2.0
NeoKylin Linux 64
Processor Family*
Intel® Core™ i7 processor; Intel® Core™ ¡5 processor; Intel Core™ i3 processor
Available Processors*>
Intel® Core™ i7-6600U with Intel HD Graphics 520 (2.6 GHz, up to 3.4 GHz with Intel Turbo Boost Technology, 4 MB cache, 2 cores); Intel® Core™ i7-6500U with Intel HD Graphics
520 (2.5 GHz, up to 3.1 GHz with Intel Turbo Boost Technology, 4 MB cache, 2 cores); Intel® Core™ i5-6300U with Intel HD Graphics 520 (2.4 GHz, up to 3 GHz with Intel Turbo Boost
Technology, 3 MB cache, 2 cores); Intel® Core™ i5-6200U with Intel HD Graphics 520 (2.3 GHz, up to 2.8 GHz with Intel Turbo Boost Technology, 3 MB cache, 2 cores); Intel® Core™
13-6100U with Intel HD Graphics 520 (2.3 GHz, 3 MB cache, 2 cores)
Chipset
Chipset is integrated with processor
Maximum Memory
Up to 32 GB DDR4-2133 SDRAM $
Standard memory note: Transfer rates up to 2133 MT/s. SODIMM slots are customer accessible/upgradeable. Supports dual channel memory.
Memory Slots
2 SODIMM
Internal Storage
up to 500 GB SATA (7200 rpm)”
up to 1 TB SATA (5400 rpm)”
up to 500 GB SATA SED (7200 rpm)”
up to 500 GB SATA FIPS 140-2 SED (7200 rpm)”
180 GB up to 240 GB M.2 SATA MLC SSD”
180 GB up to 512 GB M.2 SATA MLC SED SSD’
128 GB up to 512 GB M.2 SATA TLC SSD”
up to 256 GB M.2 PCle SSD”
up to 500 GB (8 GB cache) SATA SSHD?
Display
HP Sure View integrated privacy screen 35.56 cm (14") diagonal FHD SVA anti-glare slim LED-backlit non-touch (1920 x 1080); HP Sure View integrated privacy screen 35.56 cm
(14") diagonal FHD SVA anti-glare slim LED-backlit non-touch with camera (1920 x 1080); 35.56 cm (14") diagonal HD SVA anti-glare slim LED-backlit (1366 x 768); 35.56 cm (14")
diagonal FHD SVA anti-glare slim LED-backlit (1920 x 1080); 35.56 cm (14") diagonal QHD UWVA anti-glare ultra-slim LED-backlit (2560 x 1440); 35.56 cm (14") diagonal FHD SVA
slim LED-backlit touch screen (1920 x 1080)'3
Available Graphics
Integrated: Intel® HD Graphics 520
Audio
Audio by Bang & Olufsen; Integrated dual array microphone; Integrated premium speakers; HP Noise Reduction Software; HP Clear Sound Amp
Wireless Technologies
HP lt4120 Qualcomm? Snapdragon"" X5 LTE Mobile Broadband Module; HP hs3110 HSPA+ Mobile Broadband; Intel 802.11a/b/g/n/ac (2x2) and Bluetooth® 4.2 Combo; Intel
802.11a/b/g/n/ac (1x1) and Bluetooth® 4.0 Combo; Near Field Communication (NFC) module (optional); Intel® Pro Wireless Display (WiDi Prg)82.10.11.12
(Support for Miracast (Windows 8.1 and Windows 10))
Communications Intel? Ethernet Connection 1219-V 10/100/1000 (with Intel® i3-6100U, i5-6200U, and i7-6500U); Intel® Ethernet Connection 1219-LM 10/100/1000 (with Intel? ¡5-6300U and
i7-6600U)
Expansion Slots 1 media card reader; 1 external SIM
(Supports SD, SDHC, SDXC.)
Ports and Connectors
1 USB 3.0; 1 USB 3.0 charging; 1 USB Type-C™:; 1 DisplayPort; 1 VGA; 1 headphone/microphone combo; 1 AC power; 1 RJ-45; 1 docking connector
Input Device Spill-resistant keyboard with drain; Spill-resistant backlit keyboard with drain and DuraKeys (optional)
Glass touchpad (with chemically etched surface) with on/off button, supports 2-way scroll, taps and gestures enabled by default, two-finger scrolling, two finger zoom (pinch),
Pointstick
Webcam 720p HD webcam (select models)':
Available Software Buy Office; HP BIOSphere; HP Sure Start with Dynamic Protection; HP Client Security; HP ePrint Driver; HP Support Assistant; HP Image Assistant; HP SoftPag Download Manager; HP
3D Driveguard; HP Connection Manager (models with Windows 7 only); HP Mobile Connect Pro (models with Windows 8.1 and Windows 10); HP Recovery Manager; HP Noise
Reduction Software’415.16.17.18,19.22
Security Management Security lock slot (lock must be purchased separately); TPM 1.2/2.0; Integrated smart card reader (active); Preboot Authentication (password, Smart Card); HP Fingerprint reader
(optional)?°
Power 45 W Smart AC adapter; 65 W Smart AC adapter
HP Long Life 3-cell, 46 WHr Li-ion polymer
Dimensions 13.3 x 9,3 x 0.74 in (non-touch); 13.3 x 9.3 x 0.8 in (touch); 33.8 x 23.7 x 1.89 cm (non-touch); 33.8 x 23.7 x 2.02 cm (touch)
Weight Starting at 3.41 lb (non-touch); Starting at 3.76 lb (touch); Starting at 1.48 kg (non-touch); Starting at 1.7 kg (touch)
(Weight will vary by configuration.)
Environmental Low halogen?’
Energy Efficiency Compliance
ENERGY STAR? certified configurations available
Warranty
3-year limited warranty (optional Care Packs available, sold separately), 3-year limited warranty on HP Long Life Battery (available only with the 3-year limited platform warranty)
HP EliteBook 840 G3 Notebook PC HP recommends Windows 10 Pro.
Accessories and services (not included)
HP Docking Station Cable The HP Docking Station Cable Lock is dramatically simpler to use than previous locks and delivers enhanced security. The
Lock HP Docking Station Cable Lock gives you two locking options: lock the docking station only (which also prevents access to
the advanced docking stations drive bay) or lock both the docking station and the notebook.
Product number: AU656AA
HP UltraSlim Docking Designed exclusively for ultraslim HP EliteBook Notebook PCs, the HP UltraSlim Docking Station expands display,
Station network, and device connectivity so you can be more productive throughout the day—all through a simple one-click
slide-in side dock.
Product number: D9Y32AA
HP Comfort Grip Wireless The HP Comfort Grip Wireless Mouse features a 30-month battery life and a bold, modern design that integrates
Mouse seamlessly with HP Business Notebooks.
Product number: H2L63AA
HP 90W Slim AC Adapter Be productive with the HP Slim 90W Combo Adapter, which can power your HP Business Notebook or Ultrabook™.
Product number: H6Y83AA
HP 256GB SSD 2.5 SATA TLC
Expand your storage and improve your system responsiveness and application loading times" with the affordable HP 256
GB SSD TLC.
Product number: MOF34AA
HP 15.6 Executive Brown
Top Load
Protect your bag's contents while you're on the move with the brown HP Executive Top Load, which has a lockable,
double-teeth zippered notebook compartment, secure RFID pocket to safeguard your ID, and a discrete pocket for an
optional tracking device.
Product number: P6N19AA
HP 5year Next Business Day
Onsite Notebook Only HW
Support
(0) Care Pack
When hardware issues come up, the sooner you can get running again, the better. Have expertise at the ready with HP
Hardware Next Business Day Onsite Service, and vastly improve your product uptime. With high-quality remote
assistance or convenient onsite support available 24x7, help is there when you need it—so you can get back to work.
Product number: U7861E
Learn more at
www.hp.eu/hpoptions
HP EliteBook 840 G3 Notebook PC HP recommends Windows 10 Pro.
Messaging Footnotes
1 Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. Windows 10 is automatically updated, which is
always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.microsoft.com.
2 Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your
hardware and software configurations. Intel's numbering is not a measurement of higher performance.
3 Sold separately or as an optional feature.
4 MIL STD 810G testing is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for military use. Test results are not a guarantee of future performance under these test conditions. Damage under the MIL STD test conditions
or any accidental damage requires an optional HP Accidental Damage Protection Care Pack.
> HP Sure View integrated privacy screen is an optional feature that must be configured at purchase.
Technical specifications disclaimers
1 Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated,
which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.microsoft.com.
2 This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows 10 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall
one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
3 Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. See http://www.microsoft.com.
4 Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your
hardware and software configurations. Intel's numbering is not a measurement of higher performance.
> Some vPro™ functionality, such as Intel® Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances” applications for Intel vPro technology is dependent on 3rd
party software providers. Microsoft Windows required.
6 Maximum memory capacities assume Windows 64-bit operating systems. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource requirements.
7 For storage drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 8 and 10) is reserved for system recovery software.
8 All wireless options are sold separately or as optional features.
3 For all 802.11 wireless, wireless access point and Internet service is required and is not included. Availability of public wireless access points limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ
from the draft specifications, it may affect the ability of the notebook to communicate with other 802.7 1ac WLAN devices.
TO WWAN is an optional feature and requires separately purchased service contract. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not
available on all products, and in all regions.
11 Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming media players that also support Miracast. You can use Miracast to share what you're doing on your PC and present a slide show. For more information:
http://windows.microsoft.com/en-us/windows-8/project-wireless-screen-miracast.
12 Intel WiDi Pro support requires Intel vPro processor, Intel Graphics, and Intel 2x2 ac WLAN.
13 HD content required to view HD images.
16 ePrint requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter). Requires optional
broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.
15 HP Mobile Connect Pro is only available on preconfigured devices with WWAN. For geographic availability refer to www.hp.com/go/mobileconnect.
16 Hp Client Security requires Windows.
17 HP 3D DriveGuard requires Windows.
18 Hp Support Assistant requires Windows.
19 BIOSphere features may vary. Available only on business PCs with HP BIOS.
20 This product ships with TPM 1.2 with option to upgrade to TPM 2.0. Upgrade utility is expected to be available by the second half of 2016 via HP Customer Support.
21 External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may not be low halogen.
22 Hp Image Assistant is available download at: http://www.hp.com/go/clientmanagement.
23 Available for China with touch only.
2% Windows 10/MM14 battery life will vary depending on various factors including product model, configuration, loaded applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery will naturally
decrease with time and usage. See www.bapco.com for additional details.
Learn more at
www.hp.eu/notebooks
Engage HP Financial Services
Explore monthly payment options and technology refresh plans that can provide more flexibility to help you meet your IT goals. More information on www.hp.com/go/hpfs.
Sign up for updates
www.hp.com/go/getupdated
© Copyright 2016 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and
services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Bluetooth is a trademark of its proprietor and used by HP Inc. under license. AMD, Radeon and the AMD logo are trademarks of Advanced Micro Devices, Inc.
Qualcomm, Snapdragon, and Gobi are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Trademarks of Qualcomm
Incorporated are used with permission. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. ENERGY STAR is a registered trademark of the U.S.
Environmental Protection Agency. All other trademarks are the property of their respective owners.
GAA6-3222EEE, August 2016
