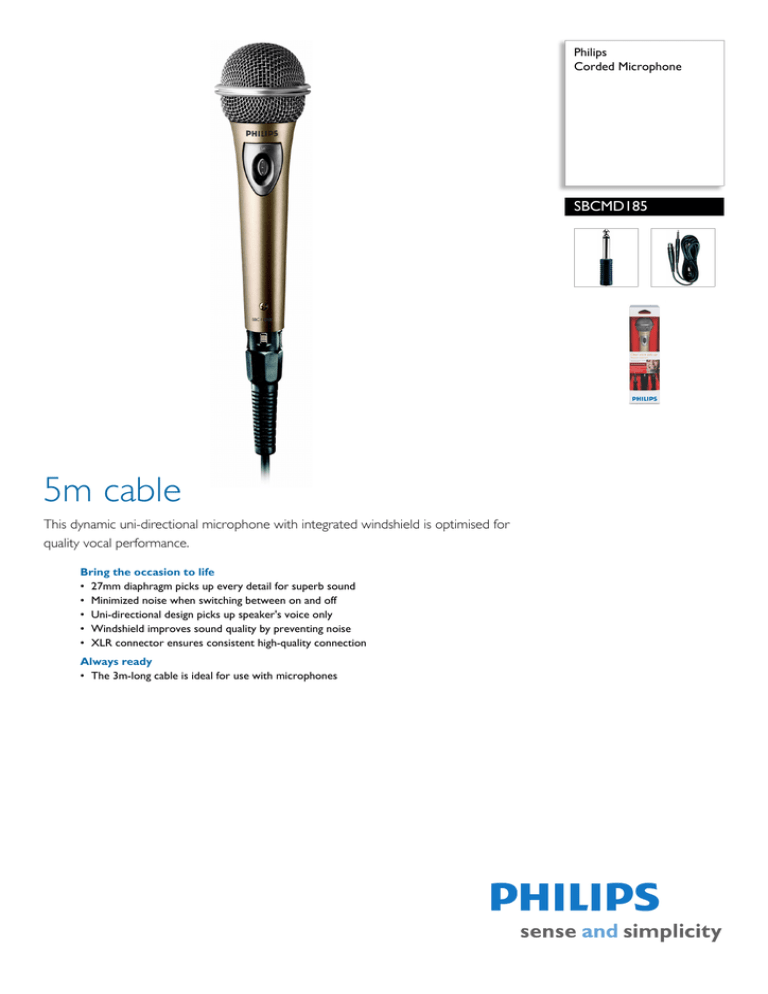

Philips SBCMD185/00 Datasheet

Philips SBCMD185/00 Datasheet
Corded Microphone
5m cable
This dynamic uni-directional microphone with integrated windshield is optimised for
quality vocal performance.
Bring the occasion to life
• 27mm diaphragm picks up every detail for superb sound
• Minimized noise when switching between on and off
• Uni-directional design picks up speaker's voice only
• Windshield improves sound quality by preventing noise
• XLR connector ensures consistent high-quality connection
Always ready
• The 3m-long cable is ideal for use with microphones
Corded Microphone
Product highlights
Frequency response: 85 - 11000 Hz
Polar pattern: Uni directional;
Type: Dynamic
Sensitivity microphone: -74 dB +/- 3 dB
• Cable length: 3 m
• Connector: 3.5 - 6.3 mm mono
Packaging dimensions
• Packaging dimensions (W x H x D):
8.5 x 30.7 x 6.6 cm
• Gross weight: .43 kg
• Nett weight: .35 kg
• Tare weight: .08 kg
Outer Carton
Gross weight: 13.3 kg
Outer carton (L x W x H): 56.5 x 33.5 x 35 cm
Nett weight: 8.6 kg
Tare weight: 4.7 kg
Inner Carton
Gross weight: 1.6 kg
Inner carton (L x W x H): 32 x 27.5 x 8 cm
Nett weight: 1.1 kg
Tare weight: .5 kg
27mm diaphragm
The superb quality of the microphone's active diaphragm
ensures you always get faithful, crisp sound reproduction.
Low noise switch
You'll not hear any annoying 'clicks' when switching this
microphone on and off.
Uni-directional design
This microphone is most sensitive to sound coming from
the direction of the performer, and far less sensitive to
sound form all other directions. The result is clear voice
reproduction with little risk of feedback from speakers on
The integrated windshield prevents disturbing noises from
wind gusts or breathing too close to the microphone.
XLR connector
The standard three-pin connector for microphone cables
ensures a secure connection to the amplifier.
3m microphone cable
Give yourself extra freedom of movement with little risk
of tripping or tangling.
Issue date 2009-02-12
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 9082 100 00532
EAN: 87 10101 68025 5
