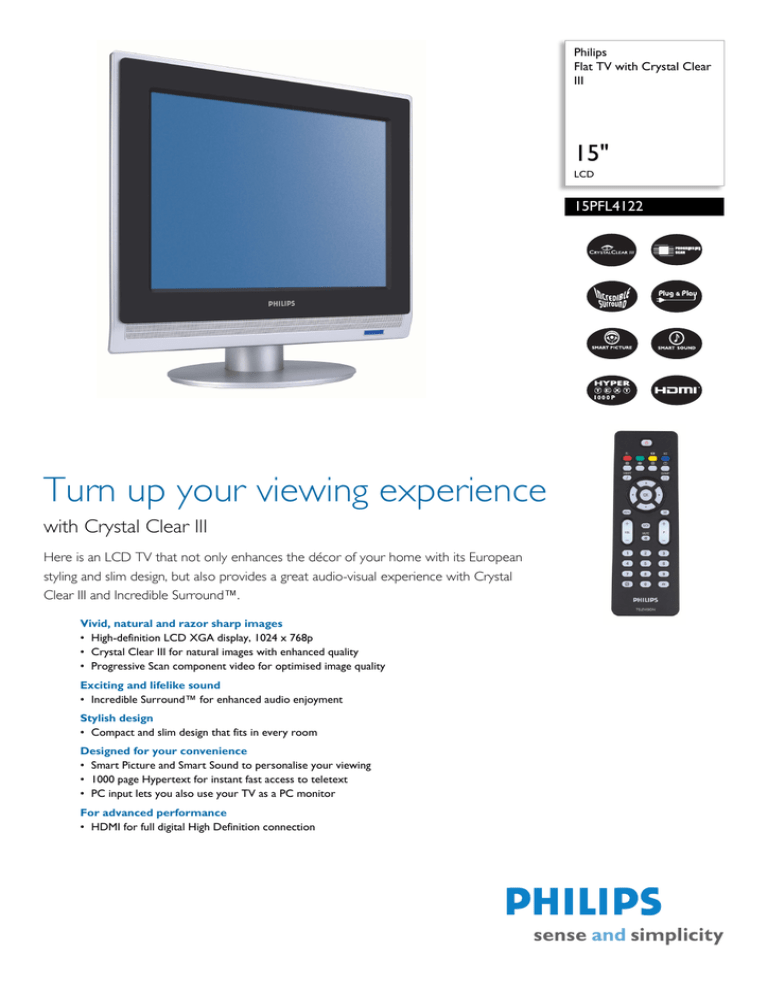

Philips
Flat TV with Crystal Clear
III
15"
LCD
15PFL4122
Turn up your viewing experience
with Crystal Clear III
Here is an LCD TV that not only enhances the décor of your home with its European
styling and slim design, but also provides a great audio-visual experience with Crystal
Clear III and Incredible Surround™.
Vivid, natural and razor sharp images
• High-definition LCD XGA display, 1024 x 768p
• Crystal Clear III for natural images with enhanced quality
• Progressive Scan component video for optimised image quality
Exciting and lifelike sound
• Incredible Surround™ for enhanced audio enjoyment
Stylish design
• Compact and slim design that fits in every room
Designed for your convenience
• Smart Picture and Smart Sound to personalise your viewing
• 1000 page Hypertext for instant fast access to teletext
• PC input lets you also use your TV as a PC monitor
For advanced performance
• HDMI for full digital High Definition connection
15PFL4122/10
Flat TV with Crystal Clear III
15" LCD
Specifications
Product highlights
Picture/Display
•
•
•
•
•
•
•
•
•
Aspect ratio: 4:3
Brightness: 270 cd/m²
Contrast ratio (typical): 700:1
Response time (typical): 8 ms
Viewing Angle (H / V): 140 / 130 degree
Diagonal screen size: 15 inch / 38 cm
Display screen type: LCD XGA Active Matrix TFT
Panel resolution: 1024 x 768p
Picture enhancement: Crystal Clear III, 2D
Combfilter, Blue stretch, Green enhancement,
Colour Temperature Adjustment, Progressive
Scan, Automatic skin tone correction
• Screen enhancement: Anti-Reflection coated
screen
Supported Display Resolution
• Computer formats
Resolution
Refresh rate
640 x 480
60, 67, 72, 75Hz
720 x 400
70Hz
800 x 600
56, 60, 72, 75Hz
832 x 624
75Hz
1024 x 768
60, 70, 75Hz
• Video formats
Resolution
Refresh rate
480i
60Hz
480p
60Hz
576i
50Hz
576p
50Hz
720p
60Hz
720p
50, 60Hz
1080i
60Hz
1080i
50, 60Hz
1080p
60Hz
1080p
50Hz
1080p
50Hz, 60Hz
Sound
• Output power (RMS): 2 x 3W
• Sound Enhancement: Incredible Surround
• Sound System: Mono, Nicam Stereo, Stereo
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Sleep Timer
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning, PLL
Digital Tuning, Plug & Play, Sorting
• Ease of Use: Auto Volume Leveller (AVL), On
•
•
•
•
Screen Display, Program List, Smart Picture
Control, Smart Sound Control, Top Controls
Remote control type: C19335016/01B
Screen Format Adjustments: 16:9 compress, 4:3,
4:3 expand
Teletext: 1000 page Smart Text
Teletext enhancements: Program information
Line
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC, SECAM, PAL
• Tuner bands: Hyperband, S-Channel, UHF, VHF,
FM
• Number of Preset Channels: 100
• Tuner Display: PLL
Connectivity
•
•
•
•
•
•
AV 1: Audio L/R in, CVBS in, S-Video
AV 2: Audio L/R in, YPbPr
AV 3: HDMI
Ext 1 Scart: CVBS in/out, RGB
Number of Scarts: 1
Other connections: Headphone out, PC Audio in,
PC-In VGA
Power
•
•
•
•
Ambient temperature: 5 °C to 40 °C
Mains power: 90-240 VAC, 50/60 Hz
Power consumption: 55 W
Standby power consumption: < 1 W
Accessories
• Included Accessories: Table top stand, Power
cord, Quick start guide, User Manual, Registration
card, Warranty certificate, Remote Control,
Batteries for remote control
Dimensions
• Colour cabinet: Silver, in mould black
• Set dimensions (W x H x D):
390 x 389 x 101 mm
• Set dimensions with stand (W x H x D):
390 x 391.5 x 189.9 mm
• Product weight: 2.84 kg
• Product weight (+stand): 3.61 kg
• Box dimensions (W x H x D):
437 x 452 x 164 mm
• Weight incl. Packaging: 5.4 kg
• VESA wall mount compatible: 100 x 100 mm
•
LCD XGA display, 1024 x 768p
This XGA display with state-of-the-art LCD screen
technology has a widescreen HD resolution of 1024 x
768p pixels. It produces brilliant flicker-free progressive
scan pictures with optimum brightness and superb
colours. This vibrant and sharp image will provide you
with an enhanced viewing experience.
Crystal Clear III
Crystal Clear III combines a whole range of
enhancements to provide a better picture. They include a
2D Comb filter, Dynamic contrast, blue stretch and green
enhancement so that you always get the most natural
looking colours.
Progressive Scan
Progressive Scan doubles the vertical resolution of the
image resulting in a noticeably sharper picture. Instead of
sending a field comprising the odd lines to the screen first,
followed by the field with the even lines, both fields are
written at one time. A full image is created
instantaneously, using the maximum resolution. At such a
speed, your eye perceives a sharper picture with no line
structure.
Incredible Surround™
Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.
Compact and slim design
This design style emphasises a slim, compact look that
saves space and fits in anywhere.
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimised picture and
sound settings for the various picture and sound modes.
1000 page Hypertext
The teletext is a common system transmitted by most
broadcasters. The 1000 page smart text feature gives
you extremely fast access to information when changing
pages.
HDMI input
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an analogue signal, it delivers an unblemished image.
The non-degraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently communicates the
highest output resolution with the source device. The
HDMI input is fully backward compatible with DVI
sources but includes digital audio. HDMI uses HDCP
copy protection.
PC input
With PC input you can connect your TV to a computer
and use the TV as a PC monitor.
Issue date 2007-09-08
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 4.0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 27669
EAN: 87 12581 31977 9
www.philips.com
