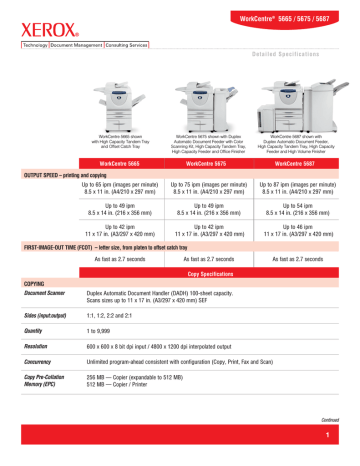

WorkCentre® 5665 / 5675 / 5687
Detailed Specifications
WorkCentre 5665 shown
with High Capacity Tandem Tray
and Offset Catch Tray
WorkCentre 5675 shown with Duplex
Automatic Document Feeder with Color
Scanning Kit, High Capacity Tandem Tray,
High Capacity Feeder and Office Finisher
WorkCentre 5665
WorkCentre 5687 shown with
Duplex Automatic Document Feeder,
High Capacity Tandem Tray, High Capacity
Feeder and High Volume Finisher
WorkCentre 5675
WorkCentre 5687
OUTPUT SPEED – printing and copying
Up to 65 ipm (images per minute)
8.5 x 11 in. (A4/210 x 297 mm)
Up to 75 ipm (images per minute)
8.5 x 11 in. (A4/210 x 297 mm)
Up to 87 ipm (images per minute)
8.5 x 11 in. (A4/210 x 297 mm)
Up to 49 ipm
8.5 x 14 in. (216 x 356 mm)
Up to 49 ipm
8.5 x 14 in. (216 x 356 mm)
Up to 54 ipm
8.5 x 14 in. (216 x 356 mm)
Up to 42 ipm
11 x 17 in. (A3/297 x 420 mm)
Up to 42 ipm
11 x 17 in. (A3/297 x 420 mm)
Up to 46 ipm
11 x 17 in. (A3/297 x 420 mm)
FIRST-IMAGE-OUT TIME (FCOT) – letter size, from platen to offset catch tray
As fast as 2.7 seconds
As fast as 2.7 seconds
As fast as 2.7 seconds
Copy
CopySpecifications
Specifications
COPYING
Document Scanner
Duplex Automatic Document Handler (DADH) 100-sheet capacity.
Scans sizes up to 11 x 17 in. (A3/297 x 420 mm) SEF
Sides (input:output)
1:1, 1:2, 2:2 and 2:1
Quantity
1 to 9,999
Resolution
600 x 600 x 8 bit dpi input / 4800 x 1200 dpi interpolated output
Concurrency
Unlimited program-ahead consistent with configuration (Copy, Print, Fax and Scan)
Copy Pre-Collation
Memory (EPC)
256 MB — Copier (expandable to 512 MB)
512 MB — Copier / Printer
Continued
WorkCentre® 5665 / 5675 / 5687
Copy Specifications
COPYING (Continued)
Features
Options
Basic Copy
Features/Options
Collation
Automatic 2-Sided/Duplex
Auto Reduction and Enlargement to fit selected paper size
Auto Paper Select
Auto Tray Switching
Hole Punching
Stapling
Booklet Creation
Imaging Copy
Features
Image Quality
• Original Type Selections: Normal, Text, Halftone, Photo
• Output Quality Selections: Lighter/Darker, Background Suppression, Contrast, Sharpness or Screening
Book Copying/Bound Copying
Edge Erase (with Print to Edge option)
Mixed Size Original
Image Shift (with Auto Center option)
Output Copy
Features
ID Card Copy
Booklet Creation
Inserts and Tab copying
Covers (Front only, Front and Back, Back only: Blank or Printed)
Build Job (Enables page-level programming to include tab copying and also lets you proof each section or
delete last section as the job is built)
Annotation and Bates Stamping
Multi-up (up to six columns by six rows)
Invert Image (negative or mirror image)
Sample Set and Job Storage (Store and Recall job programming)
Transparencies (including dividers – blank or printed)
Heavy weight paper (not rough stock)
Other Copy/Device
Features
Job Interrupt (Interrupt the current job)
Help (Intuitive text and graphic descriptions)
Internal Auditron (Copy)
Languages (Select up to 21 languages for User Interface – US English, International English, International French,
Italian, German, International Spanish, Catalan, Dutch, Portuguese, Brazilian [Latin Portuguese], Swedish, Norwegian,
Danish, Finnish, Turkish, Greek, Russian, Czech, Polish, Hungarian or Romanian)*
Reduction/Enlargement
Variable Zoom from 25% - 400% in 1% increments
Six User-Programmable percentages (25%, 64%, 78%, 129%, 154% and 200%)
Foreign Device Interface
(FDI) (Optional)
Interface to third-party access control devices, coin machines, card readers
Supports a variety of vending stations available through the Xerox Custom Application Service
USB Port
PC interface for upload/download of internal auditron data and Xerox Copier Assistant
Customer device administration/software upgrade
Continued
*Language selection and number varies by location
WorkCentre® 5665 / 5675 / 5687
Copy Specifications
COPYING (Continued)
Accessibility Option
Xerox Copier Assistant (XCA) Software provides a PC-based alternative to the user interface touchscreen.
Used in conjunction with a customer-supplied PC attached via the USB port, this software provides
text-to-speech, screen magnification and easy PC keyboard access to basic and advanced copy features.
PAPER HANDLING – Duplex Automatic Document Feeder (DADF)
Capacity*
100 sheets
Speed
Up to 85 ipm (images per minute), 8.5 x 11 in. (A4/210 x 297 mm) long edge feed (LEF)
Paper Sizes Sensed
Statement – 5.5 x 8.5 in. (A5/148 x 210 mm long edge feed (LEF) or short edge feed (SEF)
Letter – 8.5 x 11 in. (A4/210 x 297 mm) LEF or SEF
Legal – 8.5 x 14 in. (216 x 356 mm) SEF
Ledger – 11 x 17 in. (A3/297 x 420 mm) SEF
Weights
13 lb to 32 lb bond (50 to 120 gsm)
PAPER HANDLING – Two Front Loading Paper Trays
Capacity*
500 sheets each
Sizes
User adjustable from 5.5 x 8.5 in. (A5/148 x 210 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 53 lb bond/110 lb index (60 to 200 gsm)
Types
Letterhead
Preprinted forms
Plain Paper
Drilled/Hole-punched
Heavyweight
Recycled
Tab Stock
Bond
Custom Settings (up to 7)
Options
Envelope Tray Kit for Tray 2 (Capacity 50 envelopes)
PAPER HANDLING – Bypass Tray
Capacity*
100 sheets
Sizes
User Adjustable from 4.13 x 5.83 in. (105 x 148 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Continued
*Paper capacities are based on 20 lb bond stock; capacities will vary with different weight stocks.
WorkCentre® 5665 / 5675 / 5687
Copy Specifications
PAPER HANDLING – Bypass Tray (Continued)
Types
Letterhead
Preprinted forms
Plain Paper
Drilled/Hole-punched
Heavyweight
Recycled
Label Stock
Transparencies
Tab Stock
Bond
Custom Settings (up to 7)
PAPER HANDLING – High Capacity Tandem Tray (HCTT)
Capacity*
Two trays: 1,600 and 2,000 sheets each
Sizes
8.5 x 11 in. (A4/210 x 297 mm) LEF
Weights
16 lb to 53 lb bond/110 lb index (60 to 200 gsm)
PAPER HANDLING – High Capacity Feeder (Optional 5665, 5675, standard on 5687)
Capacity*
4,000 sheets
Sizes
8.5 x 11 in. (A4/210 x 297 mm) LEF
Optional 8.5 x 11 / 8.5 x 14 Short Edge Feed Kit – 8.5 x 14 in. (A4/210 x 297 mm) SEF with 2,000 sheet capacity
Optional 11 x 17 Short Edge Kit – 11 x 17 in. (A3/297 x 420 mm) SEF with 2,000 sheet capacity
Weights
16 lb to 53 lb bond/110 lb index (60 to 200 gsm)
PAPER HANDLING – Total Capacity
Device Total Capacity*
8,700 sheets (with Bypass tray, front loading paper trays, High Capacity Tandem Tray and High Capacity Feeder)
OUTPUT OPTION – Offset Catch Tray (OCT) option (5665 only)
Capacity*
300 sheets
Sizes
4.25 x 5.5 in. (A6/105 x 148 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
OUTPUT OPTION – Office Finisher option (5665/5675 only)
Capacity*
Top Tray — 250 sheets
Stacking Tray — 2,000 sheets
Sizes
4.25 x 5.5 in. (A6/105 x 148 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Stapling*
50 sheets
Single (any corner) and dual
Continued
*Paper capacities are based on 20 lb bond stock; capacities will vary with different weight stocks.
WorkCentre® 5665 / 5675 / 5687
Copy Specifications
OUTPUT OPTION – Office Finisher option (5665/5675 only) (Continued)
Hole Punch (Optional)
North America
3-hole punch
2-hole Legal punch
Europe
2-hole punch
4-hole punch
4-hole “Swedish” punch
OUTPUT OPTION – Professional Finisher option (available for 5665/5675 only)
Capacity*
Top Tray — 250 sheets
Stacking Tray — 1,500 sheets
Sizes
4.25 x 5.5 in. (A6/105 x 148 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Stapling*
50 sheets
Single (any corner), dual, front, rear, SEF and 4-stitch
Hole Punch (Standard)
North America
3-hole punch
Europe
2-hole punch
Hole Punch (Optional)
2-hole Legal punch
4-hole punch
4-hole “Swedish” punch
Booklet Maker
Capacity*
• Tray stop up: 30 booklets (1-15 sheets per booklet)
• Tray stop down: Unlimited
Sizes
• Letter — 8.5 x 11 in. (A4/210 x 297 mm)
• Legal — 8.5 x 14 in. (216 x 356 mm)
• Ledger — 11 x 17 in. (A3/297 x 420 mm)
Weights
• 16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Stapling*
• Saddle-stitch (2-15 sheets / 8-60 page booklet)
Folding
• V-folding (1-15 sheets / unstapled)
Continued
*Paper capacities are based on 20 lb bond stock; capacities will vary with different weight stocks.
WorkCentre® 5665 / 5675 / 5687
Copy Specifications
OUTPUT OPTION – High Volume Finisher option
Capacity*
Tray — 250 sheets
Stacking Tray — 3,000 sheets
Sizes
4.25 x 5.5 in. (A6/105 x 148 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Stapling*
100 sheets
Single (any corner), dual, front, rear, SEF and 4-stitch
Hole Punch (optional)
North America
Option 1 — 3-hole punch
Europe
2-hole punch
Option 2 — 2-hole Legal punch
4-hole punch and
4-hole “Swedish” punch
OUTPUT OPTION – High Volume Finisher with Booklet Maker option
High Volume Finisher
Capacity*
• Tray — 250 sheets
• Stacking Tray — 3,000 sheets
Sizes
• 4.25 x 5.5 in. (A6/105 x 148 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
• 16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Stapling*
• 100 sheets
• Single (any corner), dual, front, rear, SEF and 4-stitch
Hole Punch (optional)
North America
• Option 1 — 3-hole punch
Europe
• 2-hole punch
• Option 2 — 2-hole Legal punch
• 4-hole punch and
• 4-hole “Swedish” punch
Continued
*Paper capacities are based on 20 lb bond stock; capacities will vary with different weight stocks.
WorkCentre® 5665 / 5675 / 5687
Copy Specifications
OUTPUT OPTION – High Volume Finisher with Booklet Maker option (Continued)
Booklet Maker
Capacity*
• Tray stop up: 30 booklets (1-15 sheets per booklet)
• Tray stop down: Unlimited
Sizes
• Letter — 8.5 x 11 in. (A4/210 x 297 mm)
• Legal — 8.5 x 14 in. (216 x 356 mm)
• Ledger — 11 x 17 in. (A3/297 x 420 mm)
Weights
• 16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Stapling*
• Saddle-stitch (2-15 sheets / 8-60 page booklet)
Folding
• V-folding (1-15 sheets / unstapled)
OUTPUT OPTION – Z-Fold / C-Fold Unit with HVF with Booklet Maker option
Z-Fold / C-Fold unit
Capacity*
• 50 sheets or unlimited capacity with tray stop in the down position
Sizes
• Letter — 8.5 x 11 in. (A4/210 x 297 mm)
Weights
• 16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
OUTPUT OPTION – Post Process Inserter (optional with HVF and HVF with Booklet Maker)
Post process Inserter
Capacity*
• 250 sheets
Sizes
• Letter — 8.5 x 11 in. (A4/210 x 297 mm)
• Legal — 8.5 x 14 in. (216 x 356 mm)
• Ledger — 11 x 17 in. (A3/297 x 420 mm)
Weights
• 16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
OUTPUT OPTION – Convenience Stapler option
Capacity*
50 sheets
*Paper capacities are based on 20 lb bond stock; capacities will vary with different weight stocks.
WorkCentre® 5665 / 5675 / 5687
Print Specifications
NETWORK PRINTING – SMart Controller (Simultaneous rip, receive, program ahead, queue processing, and transmit)
Processor
1.4 GHz AMD Athlon dedicated
Memory (ESS)
256 MB
512 MB (with Optional Color Scanner Kit)
System Disk
80 GB Hard Drive shared
Printer Language (PDL)
auto switching
• PCL 6/PCL 5e
• PostScript 3 emulation
• TIFF (6.0 Old JPEG and New JPEG)
• TIFF Fax Extended (TIFF - FX)
• PDF
• LCDS, SCS, XES and IPDS through third party transforms
NETWORK PRINTING – Resolution (printing via CentreWare Software)
PostScript emulation: 600 x 600 dpi and 1200 x 1200 dpi (up to 256 shades of grey)
PCL: 600 x 600 dpi
Supports PCL and PS switching within job
NETWORK PRINTING – Printing Features
Bi-directional Print Drivers
Embedded web server for remote control/monitor/setup
Job monitoring at the device and at desktop
Advanced Features Include Special font, Banner Sheet, Rotate Image, Offset
NETWORK PRINTING – Print Driver Options
Paper Output
Job Type
• Secure, Sample, Delay
• LAN Fax-with fax option
• Save and Save & Print*
Paper Selection by attribute (including transparency separators)
Duplex (2-sided)
Finishing
• Multiple stapling positions
• Hole punch (if configured)
• Booklet creation
• Fit to new paper size
• Saddle stitch with Professional Finisher
• Saddle stitch with High Volume Finisher with Booklet Maker
• Z-Fold / C-Fold Unit with High Volume Finisher with Booklet Maker
Output tray selections
Store and recall driver setting
WorkCentre® 5665 / 5675 / 5687
Print Specifications
NETWORK PRINTING – Print Driver Options (continued)
Special Pages
Exception page programming (covers, inserts/tabs, exception pages)
Image Options
Light/Dark
Toner saver
Resolution options (600 x 600 and 1200 x 1200 dpi)
Reduction/Enlargement
Margins (edge to edge printing)
Invert Image (negative/mirror)
Layout/Watermark
N-up (16)/Multi-up
Booklet Layout/Finishing
Fit to new paper size
Image orientation
Watermark options
PRINT PROTOCOLS AND NETWORKS
Physical
Ethernet 10/100BaseT, 10BaseT, 10Base2 (IEEE802.5) (Token ring) –via adapter, wireless Ethernet (IEEE802.11a/b/g)
-via third party adapter
USB 2.0 / (IEEE1284) Parallel Port Kit (Copier/Printer option)
Operating Systems
• Microsoft Windows 2000, XP, Windows Server XP, Server 2003, Citrix, Novell NetWare 4.x, 5.x, 6
• Mac OS 8.x, 9.x, OS 10.3
• Solaris 2.8, 2.9, 2.10
• HPUX 11.0
• IBM AIX 4.3.3
• Linux Fedora Core 1 (Intel)
• Linux Yellowdog 3.0
Network Protocols
Administration Protocols
• TCP/IPv4/IPv6, LPR/LPD, Raw IP (Port 9100), NetBIOS SMB, IPX/SPX and Net BEUI, IPP
• AppleTalk/EtherTalk
Security Protocols
DHCP, BOOTP, SNMP, WINS, Bonjour, DDNS, SLP v2, SSDP, HTTP/S, RARP, LDAP, SMTP, POP3
Features
Protocols
• HTTPS
• IPsec
• 802.1x
• SNMPv3
Fonts
PCL: 80 scalable fonts, line printer and bitmap format line printer fonts (true type fonts)
PostScript 3: 136 PostScript standard fonts (true type fonts/send fonts as/substitution table)
Font Management Utility for downloading additional fonts (available for Windows and Mac)
Features
• IP filtering
• Unlimited Secure Print
• Audit log
• Image Overwrite
• Data Encryption
Continued
WorkCentre® 5665 / 5675 / 5687
Print Specifications
PRINT PROTOCOLS AND NETWORKS (Continued)
Print Drivers
Print Submission Tools
Environment
PCL6/5e PostScript 3
Windows 2000/XP, Windows Server
2003/2003 64 Bit, Windows Vista/
Vista 64 Bit, Windows Walk-up (PS),
Microsoft Certified
Xerox custom graphical user interface
Bi-directional features
Xerox custom graphical user interface
Bi-directional features
• Job, Paper and Toner status
• Job status notification
• Just in time Bi-Di
• Auto population of IP address
• Delete jobs
• Job, Paper and Toner status
• Job status notification
• Just in time Bi-Di
• Auto population of IP address
• Delete jobs
Macintosh System 8.x – 10.2
N/A
Macintosh System 10.3 and higher
N/A
Generic PPD
• Toner, Fuser and Xerographic module
status
Environment
PostScript 3
PCL Xerox custom graphical user interface
Bi-directional features
Solaris 2.8, 2.9, 2.10; HPUX 11.0,
Submission Tool only
IBM AIX 4.3.3;
Linux Fedora Core 1 (Intel); Linux YellowDog 3.0
Submission Tool with full feature set
(includes administration, GUI/TTY
print driver and software installation)
TIFF/PDF: Supported in Windows 98/Me/NT 4.0/2000/XP, Windows Server 2003
N/A
Submission Tool for any TIFF or PDF file
DEVICE MANAGEMENT
Management Support
SNMP Version 1. SNMP Version 2c and SNMP Version 3
MIB access (IETF-MIBII RFC 1213), host resources
MIB RFC 2790, Printer MIB RFC v.2
Xerox CentreWare Internet
Services
Allows simple remote installation setting of configuration options and management of the device
Xerox CentreWare Web
A Web-based server application for network administrators that permits Web browser-based device management from
any workstation, whether running Windows, UNIX or any other operating system.
Works with any SNMP-managed printer from any manufacturer.
Provides help with device discovery and installation, health checks and troubleshooting, and device upgrades, as well as
basic accounting and asset management.
Requires Windows XP or 2000 (Professional or Advanced Server) Windows 2003 and Internet Explorer 6.0 and higher
Novell NDPS/NEPS
(gateway for WorkCentre)
Server gateway application: centralized management tool
Continued
10
WorkCentre® 5665 / 5675 / 5687
Print Specifications
DEVICE MANAGEMENT (Continued)
Xerox CentreWare for
Unicenter TNG
Provides added identification to the general discovery performed by Unicenter TNG and the ability to see the
WorkCentre under a Unicenter TNG Business Process View
Xerox CentreWare for
Tivoli NetView
Provides for the identification of Xerox N-Series printers and WorkCentre multifunction systems in the general
discovery performed by Tivoli NetView
Xerox CentreWare for HP
OpenView
Provides for the identification of Xerox N-Series printers and WorkCentre multifunction systems in the general
discovery performed by HP Openview
Provides traps and message updates to the Open View alarm browser and the ability to launch CentreWare Internet
Services for device management directly from OpenView
Xerox Barcode Pro PS
(optional)
Purchase via www.font.net
Enables intelligent PostScript printing on Xerox multifunction systems by storing Xerox software, as well as, the
barcode fonts on the printer hard disk. Enables the printing of barcodes from any application (SAP R/3 client or mainframe) that supports PostScript printing. Automatically calculates the check digit, places start/stop and middle bar characters in the data string, compresses and encodes the data string, and rotates the barcode through 90 or 270 degrees.
Xerox Device Types
for SAP R/3 Environment
are available at
Simplifies printing in SAP R/3 environments by providing users of SAP R/3 3.x, 4.x, 4.5x, 4.6x, SAP Enterprise 4.7x,
ERP applications with enhanced WorkCentre printing functionality (PostScript and PCL):
• One- to Two-sided printing
www.xeroxofficesapsolutions.com • Finishing provides single or dual stapling
• Tray pull location from any tray
• # of copies – provide the ability to print multiple copies
• Paper Type and color – provide ability to select different paper types and paper colors, such as transparency, red, etc.
• Print security via PIN ID capability at the WorkCentre
• Network Accounting (JBA) – Provides capability to add Job Based Accounting User IDs to SAP print jobs
• Printer banner sheet – Provide the ability to enable/disable printer banner sheets
• Barcode printing – Xerox standard PostScript device types available at www.xeroxofficesapsolutions.com supports Intelligent Barcode Printing with Xerox Barcode Pro PS. This Barcode Pro PS can be purchased at www.font.net
Xerox SAP R/3 Intelligent
Barcode Utility (optional)
Purchase via www.font.net
Provides built-in process intelligence that allows the printing of barcodes on any appropriately configured PostScript
printer on the SAP R/3 4.1x, 4.5x, 4.6x and within Latin-1 (ISO8859-1) SAP system code pages only. Used in conjunction with Xerox PostScript Device Types for SAP R/3 environment and Xerox Font Center Barcode Fonts. Utility enables
automated checksum calculation, placement of start/stop characters, encoding of data string, and data compression.
CENTREWARE INTERNET SERVICES – integrated device Web page
Device Status
Web server embedded on SMart Controller
• Tray status/contents
• Consumables status
• Alerts
Job-Print Queue Viewing
Complete job print queue management
Job Submission
Print ready files PS, PCL (TIFF, PDF with Copier/Printer only)
Output feature selection (2-sided, staple, fold, hole punch, paper select)
Delivery options (Immediate, proof, delay and secure)
Continued
11
WorkCentre® 5665 / 5675 / 5687
Print Specifications
CENTREWARE INTERNET SERVICES – integrated device Web page (continued)
Device Administration
Allows simple, remote installation setting of configuration options and management of the device
Scan Template
Management
250 templates can be created
Create device specific CentreWare scan templates
Select confirmation sheet options
Share scan templates via device cloning
Browsers
Netscape 6.2, 7.x (Mozilla 1.x)
Internet Explorer 5.5.x, 6.x, 7.x
Safari 1.x
Mozilla Firefox 1.x
Support
Online support available via web page
Scan Specifications
SCANNING
Concurrency
Scan while the system is printing, copying, or while it is transferring scan to network or fax jobs
Input Speed
Scan at up to 85 ipm (Black and White), 28 ipm (Color) – 8.5 x 11 in. (A4/210 x 297 mm) LEF at all resolutions
Resolutions
DPI Options
600 x 600 dpi
400 x 400 dpi
300 x 300 dpi
200 x 200 dpi
100 x 100 dpi
72 x 72 dpi
Scan Presets
• Archival Record (Normal Quality - Smallest file size) – 100 x 100
• For Sharing and Printing (Normal Quality - Small file size) – 200 x 200
• For High Quality Printing (High Quality - Large file size) – 300 x 300
• For OCR (High Quality - Large file size) – 300 x 300
• Simple Scan (Normal Quality - Small file size) – 200 x 200
Quality/File Size
• Normal Quality (Small file size)
• Higher Quality (Large file size)
• Maximum Quality (Largest file size)
Maximum Scan Area
11 x 17 in. (A3/297 x 420 mm)
File Formats
TIFF 6.0 with G3 MH, G4 MMR, MRC or JPEG compression (single page or multiple pages)
PDF (image only with G3 MH, G4 MMR, JPEG or JBIG2 compression), PDF/A, XPS, Searchable PDF, PDF/A and XPS
Linearized PDF
Continued
12
WorkCentre® 5665 / 5675 / 5687
Scan Specifications
NETWORK SCANNING (Available with the Copier/Printer/Scanner only)
Capability
• Enables device-specific network scan workflows (destination templates) to be easily created and edited via
CentreWare Internet Services
• Scan to Home displays one template and populates with the user’s directory path after authentication
• Scan to file
• Scan to network server / directory
• Scan to Mailbox
• Scan to Folder on hard disk for device access of documents
• Scan to Windows XP client via Windows Image Acquisition (WIA) or TWAIN driver downloadable from www.xerox.com
Network Protocol
Novell (NCP via IPX/SPX)
FTP
Microsoft SMB via TCP/IP
HTTP/HTTPS
Document Management
Fields (Metadata)
Features only available in Network Scan to File Templates:
1-6 user programmable metadata fields per network scan to file templates and unlimited fields within the template
- Metadata Fields consists of field name, display at the LUI or not, default value and other configurations
Customized fields viewed on user interface
Variable data entered using virtual keyboard at device
Scan Template
Management
Share scan templates among WorkCentre via device cloning
Scan template management (250 templates) with CentreWare Internet Services
Select confirmation sheet option
Scan Features
Build job for Scan to file and Scan to Email (enables special programming for different pages in one document – can be
used for inserts, mixing input from the document glass and document feeder), Duplex scanning, Auto detect document
size, Scan mixed size originals, scan to edge.
SCAN to email (Available with the Copier/Printer/Scanner only)
Capability
Scan to email (manual address entry or directory (Exchange/Notes/LDAP) address searching (internal address book or
Public address book – up to 128 recipients)
Network Protocol
SMTP
MIME encoded
Scan Features
Email signatures (6 lines each of 128 character max), email message body (user configurable),
email CWIS confirmation sheet options
NETWORK SCANNING SOFTWARE SOLUTIONS
Scan to PC
Desktop Workgroup
Edition SE V 8.0 (optional)
A desktop offering that provides document imaging, archiving, editing and organization tools
ScanSoft PaperPort SE 10 – image viewing and file management software
ScanSoft OmniPage SE 4.0– offer desktop/client installation – OCR and file format conversion software
Image Retriever – provides fully automated retrieval of scanned images direct from WorkCentre to individual desktops
Continued
13
WorkCentre® 5665 / 5675 / 5687
Scan Specifications
NETWORK SCANNING SOFTWARE SOLUTIONS (Continued)
A desktop offering that provides advanced document imaging, archiving, editing and organization tools.
Scan to PC
Desktop Workgroup Edition ScanSoft PaperPort Professional 10 image viewing and file management software
• Complete PDF functionality
Professional V 8.0 (optional • Secure PDF workflow of all scanning applications
ScanSoft OmniPage Pro 15 Office (for desktop/client installation) Professional OCR software for digital archiving and
document conversion
Image Retriever – provides fully automated retrieval of scanned images direct from a scan enabled Xerox WorkCentre
to individual desktops. Also includes an email inbox polling capability
SMARTsend (optional)
Server base document routing software that supports multiple scan-enabled multifunctional systems
Enables transformation, distribution and routing of scanned documents
Workflow creation via Web browser-based task creation (destinations, devices, document attributes – 20 file types
including PDF, workflow settings, workflow summary)
• Scan to File Destinations: email, Microsoft NetWare folder, network folder, FTP, Microsoft Exchange 2000 web
folders, web URL, remote printers
• Scan to Document Repository Destinations: DocuShare, Domino, Domino.doc, Microsoft SharePoint, Hummingbird
DNS, Open Text Livelink, Documentum, Interwoven Work Site
Workflow initiation via device scanning user interface (template selection at device UI)
Adding of Metadata information
SMARTsend
Professional (optional)
Everything in SMARTsend, plus:
• Workflow initiation via Paperware (Scan coversheets)
• Server-based Optical Character Recognition (OCR)
• Searchable PDF
• Scan to Internet fax file destination
• TrueMatch patented search technology
Fax Specifications
FAX OPTIONS –Walk-up option (One or Two Lines options)
Compatibility
ITU (CCITT) Group 3
Memory
At least 32 MB (One Line)
256 MB (Two Line)
Speed/Modem(s)
1 or 2 V.34 modems: 33,600bps. Less than 4 seconds per page transmission time, ISDN via third party adapter
Compression/Speed
MH/MR/MMR/JBIG/G3/Super G3
Fax Send Features
Quality/Resolution
• Original type: Normal, text, half tone, photo, lighter/darker, background suppression
• Fax – off Platen, mixed sizes or Bound/Book
Auto Send (Up to 5)
Audio line monitor
Transmission options (Report/Header)
Reduce/Split large documents
Cover letter
Delayed send
Build Job (up to 1000 images)
Polling
Continued
14
WorkCentre® 5665 / 5675 / 5687
Fax Specifications
FAX OPTIONS –Walk-up option (One or Two Lines options) (Continued)
Fax Receive Features
One or two-sided printing
Stapled or unstapled, hole punch
Receive print mode — Manual (size, margin, stock, header)/Auto
Auto answer delay
Secure receive
Junk fax prevention
Fax Reports
Activity
Dial directory
Group directory
Options
Pending Jobs
Fax Mailboxes
Up to 100 password-protected
Poll Remote mailboxes (up to 255) password-protected
Auto Dialing Features
Speed Dials
Group Dials
Auto redial
Resolutions
200 x 100 dpi (Standard)
200 x 200 dpi (Fine)
300 x 300 dpi
200 x 400 dpi
• 200 (One-line option)
• 1,000 (Two-line option)
• Up to 100 groups with up to 200 recipients per group (One-line option)
• Up to 200 groups with up to 400 recipients per group (Two-line option)
• Up to 14 attempts
• Up to 25 min intervals
• Batch Send (up to memory capacity)
400 x 400 dpi
400 x 600 dpi
600 x 600 dpi (Super fine)
FAX OPTIONS - LAN Fax with Walkup Fax (Optional with Copier/Printer)
Driver based LAN fax for Windows and Macintosh users (PCL and PS drivers)
Recipient options (add recipient or add from phone book)
User personal phone book – up to 1,000 entries
Confirmation sheet
Send speed (14.4/33.6kbps or 4800bps)
Send time
Dialing options (prefix or credit card)
Cover sheet (add notes)
Preferences – Phonebook (personal or shared LDAP)
FAX OPTIONS – Internet Fax Enablement (Standard; available with the Copier/Printer/Scanner only)
Capability
Direct document transmission to remote Internet Fax machines or e-mail clients (SMTP)
Reception and automatic printout of documents sent via e-mail from remote Internet Fax machines or e-mail clients
Maximum Scan Area
11 x 17 in. (A3/297 x 420 mm)
Continued
15
WorkCentre® 5665 / 5675 / 5687
Fax Specifications
FAX OPTIONS – Internet Fax Enablement (Standard; available with the Copier/Printer/Scanner only) (Continued)
Address Directory Access
Corporate address list via LDAPv3
Downloaded address list (comma-separated file format)
Internal LDAP or Public address book
File Formats
TIFF-FX profiles S, F with G3 MH or JPEG compression
PDF (image only) with G3 MH, G4 MMR or JPEG compression
PDF and Multi TIFF
Resolutions
600 x 600 dpi
400 x 400 dpi
300 x 300 dpi
200 x 200 dpi
Network Protocols
SMTP
POP3 (RFC 1939)
Compliance
ITU-T T.37 complaint
Features
Signature (SA configurable –16 lines each of 128 character max)
Delivery Confirmation
• Email receipt option
• Confirmation reply option
• Cover sheet option
• Subject (248 characters)
• User configurable message body
200 x 100 dpi
100 x 100 dpi
72 x 72 dpi
FAX OPTIONS – Network Fax Server Enablement (Standard; available with the Copier/Printer/Scanner only)
Capability
Provides walk-up faxing and hard copy output of received faxes when integrated with fax server applications (fax server
and software must be purchased separately from supplier). Transmission speeds, number of lines, compatibility and
compression are dependent on fax server configuration (via SMTP).
Maximum Scan Size
11 x 17 in. (A3/297 x 420mm)
Network Protocols
Novell (NCP via IPX/SPX)
FTP
Microsoft SMB via TCP/IP
HTTP/HTTPS
SMTP
Fax Send Features
One- or two-sided scanning (up to 11 x 17 in. (A3/297 x 420 mm)
Phone number entry
Add to send list (50 numbers maximum)
Delay send (specific time)
Resolution selection (fine, standard)
Image quality selection (normal, text, lighten/darken, photo, background suppression, seven levels of contrast,
seven levels of sharpness)
Fax Print Features
One – or two-sided printing
Quantity
Staple on/off
Collate on/off
Secure print on/off
Finisher output tray selection (top tray or main tray)
Continued
16
WorkCentre® 5665 / 5675 / 5687
Fax Specifications
FAX OPTIONS – Network Fax Server Enablement (Standard; available with the Copier/Printer/Scanner only) (Continued)
Supported Network
Fax Vendors
Multiple vendors, certified by the Xerox Business Alliance Partner Program. For details visit www.xerox.com
Device Management Specifications
ACCOUNTING featureS – Internal Auditron
Tracking
Copy usage
Accounting
Up to 2,150 User accounts
Up to 5,925 General accounts
Up to 256 Group accounts
Features
Auditron report printout, ability to upload/download account and usage data via direct connection using Microsoft
Windows based software
ACCOUNTING featureS – Xerox Standard Accounting (Standard on Copier/Printer and Copier/Printer/Scanner)
Tracking
Copy, Print, Fax and Scan usage
Accounting
Up to 2,500 User accounts (User Id)
Up to 500 General accounts (Client)
Up to 500 Group accounts (Department)
Features
Enable/disable via the web UI or the GUI in tools, admin can manage the feature remotely via the web UI, Data
can be exported via a CSV file, user required to enter XSA ID into the print driver when submitting a print job, similar
to secure print.
Xerox Standard Accounting can be used in conjunction with an external device via the FDI (e.g. Coin Op or Card Reader).
ACCOUNTING OPTIONS – N
etwork Accounting Enablement Kit (Optional)
Enhanced network accounting with up to the minute data on how the WorkCentre system is being used;
comprehensive management and enterprise scale tracking and reporting of device usage of copy, print, scan and server
fax. Various options available through Xerox Business Alliance Partner solutions. For details visit www.xerox.com
Security enhancements with the addition of HTTPS protocol support
WorkCentre requests account authentication from 3rd party server enabling larger databases of users and accounts
security – review the supplemental Security brochure for details
Authentication
Secure device login with network user name and password
Supports Kerberos (Windows 2000/UNIX/Windows Server 2003)
SMB (Windows NT 4.0/Windows 2000/Windows Server 2003)
Novell over IP/IPX (Novell NetWare 4.x/5.x/6.x)
PIN-based guest login
LDAP
Secure Access
Continued
17
WorkCentre® 5665 / 5675 / 5687
Device Management Specifications
security – review the supplemental Security brochure for details (Continued)
Features
802.1x Compliant
IPv6 Compliant
Disk Image Overwrite – Immediate, On Demand, Scheduled
HTTPS (SSL)
SNMP V3
IPSec
Network Authentication
Device Access Password Protection
IP Filtering
Audit Log
Disk Encryption
Secure Print
Fax Security
Image Overwrite (Immediate, On Demand and Scheduling)
Options
Xerox Secure Access Unified ID System™ is a unique card based system that leverages an organization's existing ID
infrastructure to provide secure access to Xerox devices.
Common Criteria
Certification
Available Post Launch.
Xerox Extensible Interface Platform (EIP)
Xerox EIP is a development platform that allows customers, Xerox Business Partners and System Integrators to build
unique applications that are presented at the WorkCentre 5600 series user interface. Xerox EIP is an open standard
platform that utilizes industry standard development tools enabling applications that are easily developed and customized
to meet the needs of any business environment or personalized for each user. These applications will yield simpler user
interactions and result in less time interacting with the MFP which drives increased worker productivity and systems that
easily adapt to your business processes.
Machine Specifications
MONTHLY DUTY CYCLE
5665 – up to 250,000 pages
5675 – up to 300,000 pages
5687 – up to 400,000 pages
BASIC CONFIGURATIONS*
WorkCentre with DADH and High Capacity Tandem Tray
*Features, configurations and options may vary by location.
18
WorkCentre® 5665 / 5675 / 5687
Machine Specifications
ACCESSORY OPTIONS**
Copier
Walkup Fax
• One line
• Two lines
High Capacity Feeder
Optional 8.5 x 11 / 8.5 x 14 Short Edge Kit for High Capacity Feeder
Optional 11 x 17 Short Edge Kit for High Capacity Feeder
Offset Catch Tray (OCT) (5665 only)
Office Finisher
High Volume Finisher
High Volume Finisher with Booklet Maker
High Volume Finisher with Booklet Maker and Z-Fold/C-Fold unit
Post Process Inserter (optional with High Volume Finishers)
Convenience Stapler
Hole Punch (with Office Finisher — see Output Options for details)
Envelope Tray Kit (in place of Tray 2)
256 MB Pre Collation Memory (EPC) (Copier only)
Foreign Interface Device (FDI)
Xerox Copier Assistant (XCA) (UK only)
Upgrade Kit to Copier/Printer
Upgrade Kit to Copier/Printer/Scanner (includes Network Scanning, Scan to Email, Network Server Fax and
Internet Fax)
Copier/Printer
Walkup Fax with LAN Fax
• One line
• Two lines
USB 2.0 / (IEEE1284) Parallel Port Kit (Available with Copier/Printer/Scanner only)
Scan to PC Desktop SE and Professional (Available with Copier/Printer/Scanner only)
Enablement for Network Accounting and Xerox Business Alliance Partner Solutions
Color Scanning Kit (Available with Copier/Printer/Scanner only)
Xerox Unicode International Printing Kit
Upgrade Kit to Copier/Printer/Scanner (includes Network Scanning, Scan to Email, Network Server Fax and
Internet Fax)
ELECTRICAL REQUIREMENTS
110-140 Volt Nominal, 60 Hz, 20A (North America)
220-240 Volt Nominal, 50 Hz, 10A (Europe)
Note: Convenience Stapler requires separate 110V 15A circuit
**Features, configurations and options may vary by location.
19
WorkCentre® 5665 / 5675 / 5687
Machine Specifications
POWER CONSUMPTION
1
Copier
Copier/Printer
5665 5675 5687 5665 5675 1
5687 2
Running
≤ 1590 watts
≤ 1640 watts
≤ 1790 watts
≤ 1640 watts
≤ 1690 watts
≤ 1840 watts
Standby
≤ 290 watts
≤ 290 watts
≤ 290 watts
≤ 330 watts
≤ 330 watts
≤ 330 watts
Low Power Mode
≤ 120 watts
≤ 120 watt
≤ 120 watts
≤ 155 watts
≤ 155 watts
≤ 155 watts
Auto Off / Sleep mode
≤ 4 watts
≤ 4 watts
≤ 4 watts
≤ 9 watts
≤ 9 watts
≤ 9 watts
Warm-up Ready to Copy
≤ 28 seconds
≤ 28 seconds ≤ 28 seconds
≤ 28 seconds
≤ 28 seconds
≤ 28 seconds
Warm-up Ready to Print
≤ 130 seconds
≤ 130 seconds
≤ 130 seconds
Low Power Recovery
≤ 9 seconds
≤ 9 seconds
≤ 9 seconds
≤ 9 seconds
1
1
NA
2
NA
≤ 9 seconds
1
NA
≤ 9 seconds
ENVIRONMENTAL CONSIDERATIONS
Required Temperature Range 10° to 32° C
Required Relative Humidity
10% to 85%
DIMENSIONS AND WEIGHTS (Copier)
Width 5
Depth
Height Weight 3
Configuration With OCT (5665 only)
40 in. / 1,012 mm
28 in. / 704 mm
45 in. / 1,147 mm
284 lbs / 129 kg
With Office Finisher
50 in. / 1,271 mm
28 in. / 704 mm
45 in. / 1,147 mm
344 lbs / 156 kg
With High Volume Finisher
67 in. / 1,707 mm
28 in. / 704 mm
45 in. / 1,147 mm
441 lbs / 200 kg
With High Volume Finisher with Booklet Maker
68 in. / 1,727 mm
28 in. / 704 mm
46 in. / 1,180 mm
500 lbs / 227 kg
With High Volume Finisher with C/Z Folder
& Post Process Inserter
82 in. / 2,087 mm
28 in. / 704 mm
46 in. / 1,180 mm
568 lbs / 258 kg
High Capacity Feeder
15 in. / 389 mm
20 in. / 510 mm
23 in. / 575 mm
66 lbs / 30 kg
DIMENSIONS AND WEIGHTS (Copier/Printer)
Width 5
Depth
Height Weight 3
Configuration With OCT (5665 only)
51 in. / 1,297 mm
29 in. / 725 mm
45 in. / 1,147 mm
301 lbs / 137 kg
With Office Finisher
61 in. / 1,556 mm
29 in. / 725 mm
45 in. / 1,147 mm
361 lbs / 164 kg
With High Volume Finisher
78 in. / 1,992 mm
29 in. / 725 mm
45 in. / 1,147 mm
458 lbs / 208 kg
With High Volume Finisher with Booklet Maker
79 in. / 2,012 mm
29 in. / 725 mm
46 in. / 1,180 mm
500 lbs / 227 kg
With High Volume Finisher with C/Z Folder
& Post Process Inserter
93 in. / 2,372 mm
29 in. / 725 mm
46 in. / 1,180 mm
586 lbs / 266 kg
High Capacity Feeder
15 in. / 389 mm
20 in. / 510 mm
23 in. / 575 mm
66 lbs / 30 kg
1
With Office Finisher. 2 With High Volume Finisher. 3 Weights do not include Rear Wall (3.78 lbs. / 1.72 kg) or Shelf (2.99 lbs. / 1.36 kg). 4 Bypass Tray closed. 5 Includes Shelf.
20
WorkCentre® 5665 / 5675 / 5687
Machine Specifications
NOISE LEVELS*
5665/5675 Copier
5687 Copier
5665 Copier/Printer
5675 Copier/Printer
5687 Copier/Printer
Standby dB (A) SPL
35
36
35
35
36
Run Continuous dB (A) SPL
57
58
59
60
61
Run Impulse dB (A) L SPL
62
63
63
63
64
*Noise levels shown are “Not to Exceed” levels. Actual noise levels will be lower.
CERTIFICATIONS
FCC Class A Compliant (US), DOC Class A Compliant (Canada)
89/336/EEC (Europe)
UL Listed (UL 1950, Third Edition)
CB Certified (IEC 60950/EN 60950)
73/23/EEC (Europe)
95/5/EEC (Europe)
Energy Star
SUPPLIES
Description
Order Number No. per Box Toner Cartridge
006R1146
2
>50,000 at 6% area coverage per bottle
Waste Toner Bottle
(supplied with each toner cartridge box)
008R12896
1
100,000
Staple Cartridge
(for Office Finisher)
108R00493
3
5,000 per cartridge (15,000 staples)
008R12897
8 (4 x 2)
2,000 per cartridge (16,000 staples)
008R12964
008R12941
1
3
5,000 per cartridge
5,000 per cartridge (15,000 staples)
008R12912
1
5,000 per cartridge
Fuser Module (includes ozone filter)
North America
Europe
00109R773
00109R772
1
1
400,000
400,000
Xerographic Module – Metered
113R00672
1
400,000 – 500,000
Xerographic Module – Sold (North America) 113R00674
1
400,000 – 500,000
Xerographic Module – Sold (Europe)
113R00673
1
400,000 – 500,000
Document Handler Feeder Rolls
113R00718
1
150,000 feeds
Staple Cartridge
(for Professional Finisher and HVF with Booklet Maker - saddle-stitch stapling)
Staple Cartridge (for Convenience Stapler)
• Complete Cartridge
• Refill Cartridge
Staple Cartridge (for HVF and HVF with Booklet Maker)
Expected Yield
SMart kits
© 2007 Xerox Corporation. All rights reserved. XEROX®, CentreWare®, WorkCentre® and Copier Assistant are trademarks of Xerox Corporation in the United States and/or other countries. PostScript is a registered trademark of Adobe Systems Incorporated in the United States
and/or other countries. Other marks are trademarks or registered trademarks of the companies with which they are associated. In support of Xerox’s environmental leadership goals, these models may contain some recycled components that are reconditioned. ENERGY STAR®
is a U.S. registered mark. As an ENERGY STAR® Partner, Xerox Corporation has determined that these products meet the ENERGY STAR® guidelines for energy efficiency. Product information and/or specifications are subject to change without notice.
1/08 610P727810C
W5XSS-01UD
21
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
