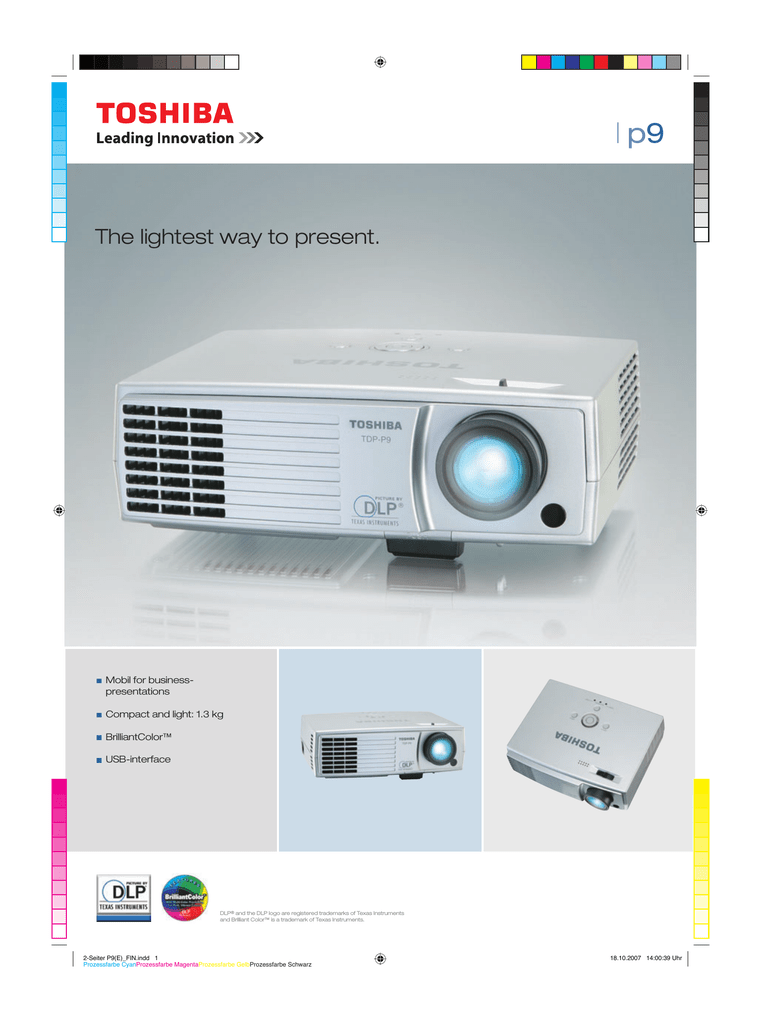

Toshiba DLP Data Projector TDP-P9 Datasheet

| p9
The lightest way to present.
Mobil for businesspresentations
Compact and light: 1.3 kg
BrilliantColor™
USB-interface
DLP® and the DLP logo are registered trademarks of Texas Instruments
and Brilliant Color™ is a trademark of Texas Instruments.
2-Seiter P9(E)_FIN.indd 1
Prozessfarbe CyanProzessfarbe
CyanProzessfarbe MagentaProzessfarbe
MagentaProzessfarbe GelbProzessfarbe
GelbProzessfarbe Schwarz
18.10.2007 14:00:39 Uhr
| p9
Display
0.55” DLP™ Chip
Outputs
-
Resolution
XGA 1,024 x 768
Serial interface
-
Brightness
2,000 ANSI-lumens
Power supply
AC 90 - 240 V, 50/60 Hz
Colour reproduction
16.7 mio. colours
Loudspeaker
1x2W
Contrast
2,000:1
Dimensions (W x H x D)
210 x 65 x 165 mm
Projection format
4:3 switchable to 16:9
Weight
1.3 kg
Lamp
180 W (TLPLP20LAMP)
Operation noise
normal 35/ECO mode 32 dB
Maximal lamp life
up to max. 2,000 hours/
Specials
USB, keystone correction,
Accessories
remote control with laserpointer and
up to max. 3,000 hours in ECO mode
DDC compatible
Lens
F = 2.5 - 2.74 / f = 22 - 25.5,
Zoom
1.17 x
Frequency (hor. / vertical)
15 - 100 kHz/43 - 120 Hz
Options
spare lamp, camera c001
Projection
front and rear
Menu guidance
22 languages (GB, F, D, I, E, P, RUS, S,
Digital keystone correction
auto vertical +/- 16°
TR, PL, DK, CZ, H, NL, FIN, N, GR, ROM,
Picture size (diagonal)
0.9 - 7.6 m
KP/KR, JP, ID, CN)
Projection distance
1.6 - 12.0 m
Input signals
NTSC / PAL / SECAM, 480i, 480p, 576i,
manual zoom
batteries, owners manual (CD ROM),
RGB- and power-cable, softcase
576p, 720p, 1,080i, VGA, SVGA, XGA,
SXGA & UXGA (compr.)
Inputs
1 x RGB (D-sub 15), 1 x USB type A
(memory/JPEG/MPEG), mini-Din
S-video, composite video (RCA), audio
(stereo mini jack), video/S-video audio
Picture size
Projection distance
1.02 m
2.03 m
2.54 m
5.08 m
7.62 m
1.60 - 1.90 m
3.10 - 3.70 m
3.90 - 4.60 m
7.70 - 9.10 m
11.60 - 13.70 m
August 2007 • Subject to modifications and errors
(2 x RCA L/R), USB Reader
www.toshiba-europe.com/projectors
Toshiba Europe GmbH
Projection & Display Technology
Phone: ++49-2131-158-01 · Fax: ++49-2131-158-835
e-mail: [email protected]
