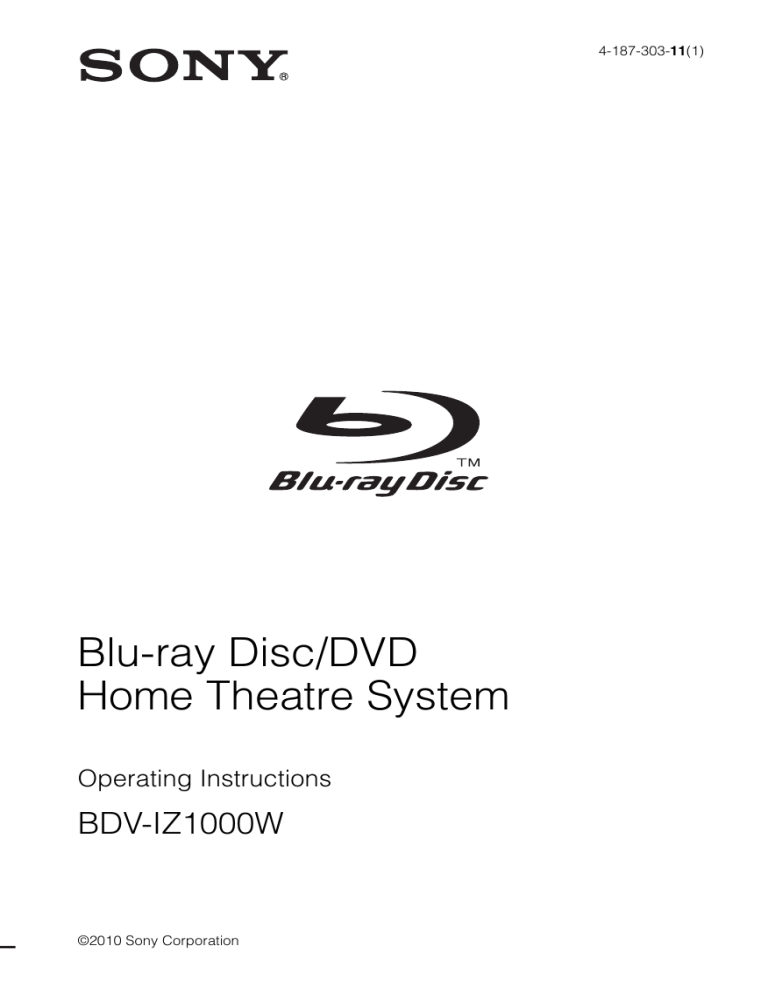

4-187-303-11(1)
Blu-ray Disc/DVD
Home Theatre System
Operating Instructions
BDV-IZ1000W
©2010 Sony Corporation
WARNING
Do not install the appliance in a
confined space, such as a bookcase
or built-in cabinet.
To reduce the risk of fire, do not
cover the ventilation opening of the
apparatus with newspapers,
tablecloths, curtains, etc. Do not
place the naked flame sources such
as lighted candles on the apparatus.
To reduce the risk of fire or electric
shock, do not expose this apparatus
to dripping or splashing, and do not
place objects filled with liquids,
such as vases, on the apparatus.
Do not expose batteries or
apparatus with battery-installed to
excessive heat such as sunshine,
fire or the like.
To prevent injury, this apparatus
must be securely attached to the
floor/wall in accordance with the
installation instructions.
Indoor use only.
CAUTION
The use of optical instruments with
this product will increase eye
hazard. As the laser beam used in
this Blu-ray Disc / DVD Home
Theatre System is harmful to eyes,
do not attempt to disassemble the
cabinet.
Refer servicing to qualified
personnel only.
This appliance is classified as a
CLASS 3R LASER product.
Visible and invisible laser radiation
is emitted when the laser protective
housing is opened, so be sure to
avoid direct eye exposure.
This marking is located on the laser
protective housing inside the
enclosure.
2GB
This appliance is classified as a
CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT
MARKING is located on the laser
protective housing inside the
enclosure.
Disposal of
Old Electrical
& Electronic
Equipment
(Applicable in
the European
Union and other European
countries with separate
collection systems)
This symbol on the product or on its
packaging indicates that this
product shall not be treated as
household waste. Instead it shall be
handed over to the applicable
collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is
disposed of correctly, you will help
prevent potential negative
consequences for the environment
and human health, which could
otherwise be caused by
inappropriate waste handling of
this product. The recycling of
materials will help to conserve
natural resources. For more
detailed information about
recycling of this product, please
contact your local Civic Office,
your household waste disposal
service or the shop where you
purchased the product.
Disposal of
waste batteries
(applicable in
the European
Union and other European
countries with separate
collection systems)
This symbol on the battery or on the
packaging indicates that the battery
provided with this product shall not
be treated as household waste. On
certain batteries this symbol might
be used in combination with a
chemical symbol. The chemical
symbols for mercury (Hg) or lead
(Pb) are added if the battery
contains more than 0.0005%
mercury or 0.004% lead. By
ensuring these batteries are
disposed of correctly, you will help
prevent potentially negative
consequences for the environment
and human health which could
otherwise be caused by
inappropriate waste handling of the
battery. The recycling of the
materials will help to conserve
natural resources. In case of
products that for safety,
performance or data integrity
reasons require a permanent
connection with an incorporated
battery, this battery should be
replaced by qualified service staff
only. To ensure that the battery will
be treated properly, hand over the
product at end-of-life to the
applicable collection point for the
recycling of electrical and
electronic equipment. For all other
batteries, please view the section on
how to remove the battery from the
product safely. Hand the battery
over to the applicable collection
point for the recycling of waste
batteries. For more detailed
information about recycling of this
product or battery, please contact
your local Civic Office, your
household waste disposal service or
the shop where you purchased the
product.
Notice for customers: the following
information is only applicable to
equipment sold in countries
applying EU directives.
The manufacturer of this product is
Sony Corporation, 1-7-1 Konan
Minato-ku Tokyo, 108-0075 Japan.
The Authorized Representative for
EMC and product safety is Sony
Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart,
Germany. For any service or
guarantee matters please refer to
the addresses given in separate
service or guarantee documents.
For the wireless
transceiver (EZWRT10/EZW-RT10A)
See “Wireless Product Safety
Information” (supplied).
Precautions
This equipment has been tested and
found to comply with the limits set
out in the EMC Directive using a
connection cable shorter than 3
meters.
On power sources
• The unit is not disconnected from
the mains as long as it is
connected to the AC outlet, even
if the unit itself has been turned
off.
• As the main plug is used to
disconnect the unit from the
mains, connect the unit to an
easily accessible AC outlet.
Should you notice an abnormality
in the unit, disconnect the main
plug from the AC outlet
immediately.
On watching 3D video
images
Some people may experience
discomfort (such as eye strain,
fatigue, or nausea) while watching
3D video images. Sony
recommends that all viewers take
regular breaks while watching 3D
video images. The length and
frequency of necessary breaks will
vary from person to person. You
must decide what works best. If you
experience any discomfort, you
should stop watching the 3D video
images until the discomfort ends;
consult a doctor if you believe
necessary. You should also review
(i) the instruction manual and/or the
caution message of any other
device used with, or Blu-ray Disc
contents played with this product
and (ii) our website (http://
www.sony-europe.com/
myproduct/) for the latest
information. The vision of young
children (especially those under six
years old) is still under
development. Consult your doctor
(such as a pediatrician or eye
doctor) before allowing young
children to watch 3D video images.
Adults should supervise young
children to ensure they follow the
recommendations listed above.
Copyrights and
Trademarks
• This system incorporates with
Dolby* Digital and Dolby Pro
Logic (II) adaptive matrix
surround decoder and the DTS**
Digital Surround System.
* Manufactured under license
from Dolby Laboratories.
Dolby, Pro Logic, and the
double-D symbol are
trademarks of Dolby
Laboratories.
** Manufactured under license
under U.S. Patent #’s:
5,451,942; 5,956,674;
5,974,380; 5,978,762;
6,226,616; 6,487,535;
7,212,872; 7,333,929;
7,392,195; 7,272,567 &
other U.S. and worldwide
patents issued & pending.
DTS and the Symbol are
registered trademarks, &
DTS-HD, DTS-HD Master
Audio, and the DTS logos
are trademarks of DTS, Inc.
Product includes software.
© DTS, Inc. All Rights
Reserved.
• This system incorporates HighDefinition Multimedia Interface
(HDMITM) technology.
HDMI, the HDMI logo and HighDefinition Multimedia Interface
are trademarks or registered
trademarks of HDMI Licensing
LLC.
• Java and all Java-based
trademarks and logos are
trademarks or registered
trademarks of Sun Microsystems,
Inc.
• “BD-LIVE” and
“BONUSVIEW” are trademarks
of Blu-ray Disc Association.
• “Blu-ray Disc” is a trademark.
• “Blu-ray Disc,” “DVD+RW,”
“DVD-RW,” “DVD+R,” “DVDR,” “DVD VIDEO,” and “CD”
logos are trademarks.
• “Blu-ray 3D” and “Blu-ray 3D”
logo are trademarks of Blu-ray
Disc Association.
• “BRAVIA” is a trademark of
Sony Corporation.
• “AVCHD” and the “AVCHD”
logo are trademarks of Matsushita
Electric Industrial Co., Ltd. and
Sony Corporation.
• “S-AIR” and its logo are
trademarks of Sony Corporation.
• , “XMB,” and “xross media
bar” are trademarks of Sony
Corporation and Sony Computer
Entertainment Inc.
• “PLAYSTATION” is a trademark
of Sony Computer Entertainment
Inc.
• DivX®, DivX Certified® and
associated logos are registered
trademarks of DivX, Inc. and are
used under license.
• Music and video recognition
technology and related data are
provided by Gracenote®.
Gracenote is the industry standard
in music recognition technology
and related content delivery. For
more information, please visit
www.gracenote.com.
CD, DVD, Blu-ray Disc, and
music and video-related data from
Gracenote, Inc., copyright ©
2000-present Gracenote.
3GB
Gracenote Software, copyright ©
2000-present Gracenote. One or
more patents owned by Gracenote
apply to this product and service.
See the Gracenote website for a
nonexhaustive list of applicable
Gracenote patents. Gracenote,
CDDB, MusicID, MediaVOCS,
the Gracenote logo and logotype,
and the “Powered by Gracenote”
logo are either registered
trademarks or trademarks of
Gracenote in the United States
and/or other countries.
• “PhotoTV HD” and the “PhotoTV
HD” logo are trademarks of Sony
Corporation.
• MPEG Layer-3 audio coding
technology and patents licensed
from Fraunhofer IIS and
Thomson.
• iPod is a trademark of Apple Inc.,
registered in the U.S. and other
countries.
• “Made for iPod” means that an
electronic accessory has been
designed to connect specifically
to iPod and has been certified by
the developer to meet Apple
performance standards.
• Apple is not responsible for the
operation of this device or its
compliance with safety and
regulatory standards.
• Windows Media is either a
registered trademark or trademark
of Microsoft Corporation in the
United States and/or other
countries.
• DLNA®, the DLNA Logo and
DLNA CERTIFIED™ are
trademarks, service marks, or
certification marks of the Digital
Living Network Alliance.
• Other system and product names
are generally trademarks or
registered trademarks of the
manufacturers. ™ and ® marks
are not indicated in this document.
4GB
About These
Operating
Instructions
• The instructions in these
Operating Instructions
describe the controls on the
remote. You can also use the
controls on the unit if they
have the same or similar
names as those on the remote.
• In this manual, “disc” is used
as a general reference for
BDs, DVDs, Super Audio
CDs, or CDs unless otherwise
specified by the text or
illustrations.
• The items displayed on the
TV screen may vary
depending on the area.
• The default setting is
underlined.
• The system is compatible
with the S-AIR function,
which allows transmission of
sound between S-AIR
products wirelessly. For
details on the S-AIR function,
see “Using an S-AIR
Product” (page 45).
• Notes or instructions for the
surround amplifier, surround
back amplifier, or S-AIR
receiver in these Operating
Instructions refer only to
when the surround amplifier,
surround back amplifier, or
S-AIR receiver is used.
Table of Contents
About These Operating Instructions ....... 4
Unpacking ............................................... 6
Index to Parts and Control ...................... 8
Getting Started
Step 1: Installing the System....... 14
Step 2: Connecting the System... 18
Step 3: Connecting to the
Network.................................... 25
Step 4: Setting up the
S-AIR Wireless System .......... 26
Step 5: Performing the Easy
Setup........................................ 27
Step 6: Selecting the Source ....... 29
Step 7: Enjoying Surround
Sound....................................... 30
Playback
Playing a Disc ....................................... 32
Playing from a USB Device.................. 33
Enjoying an iPod................................... 34
Playing via a Network........................... 35
Available Options ................................. 37
Sound Adjustment
Selecting the Effect to Suit
the Source ....................................... 39
Selecting the Audio Format, Multilingual
Tracks, or Channel.......................... 39
Enjoying Multiplex Broadcast
Sound .............................................. 40
Using the Sound Effect ......................... 41
Tuner
Listening to the Radio ........................... 42
Using the Radio Data System
(RDS).............................................. 43
Using the Sleep Timer .......................... 54
Deactivating the Buttons on
the Unit ........................................... 54
Controlling Your TV or Other
Components with the Supplied
Remote ........................................... 55
Saving Power in Standby Mode ........... 57
Settings and Adjustments
Using the Setup Display ....................... 58
[Remote Controller Setting Guide]....... 58
[Network Update] ................................. 59
[Screen Settings]................................... 59
[Audio Settings].................................... 60
[BD/DVD Viewing Settings]................ 61
[Parental Control Settings] ................... 62
[Music Settings].................................... 62
[System Settings].................................. 62
[Network Settings]................................ 64
[Easy Setup].......................................... 64
[Resetting] ............................................ 64
Additional Information
Precautions............................................ 65
Notes about the Discs ........................... 66
Troubleshooting.................................... 67
Playable Discs....................................... 74
Playable Types of Files......................... 75
Supported Audio Formats..................... 76
Video Output Resolution ...................... 76
Specifications........................................ 77
Language Code List.............................. 79
Glossary ................................................ 80
Index ..................................................... 83
External Audio Device
Using an S-AIR Product .......................45
Other Operations
Using the Control for HDMI Function for
“BRAVIA” Sync ............................ 49
Calibrating the Appropriate Settings
Automatically ................................. 51
Setting the Speakers ..............................52
5GB
Unpacking
• Main unit (1)
• Bases for the front speaker
stands (2)
• Remote commander
(remote) (1)
• R6 (size AA) batteries (2)
• Front and surround speakers
(4)
• Bases for the surround
speakers (2)
• Calibration mic (1)
• Base adapters for the surround
speakers (2)
• Surround amplifier (1)
• Center speaker (1)
• Screws (with washer) for the
front speakers (4)
• Wireless transceivers (2)
• Subwoofer (1)
• Screws for the front speakers/
surround speakers (4)
• FM wire antenna (aerial) (1)
or
• Front speaker stands (2)
• Speaker cords (6, white/red/
blue/gray/green/purple)
6GB
•
•
•
•
•
Operating Instructions
Speaker Installation Guide
Quick Setup Guide
End user license agreement
Wireless Product Safety
Information
Preparing the remote
Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the
markings inside the compartment.
7GB
Index to Parts and Control
For more information, refer to the pages indicated in parentheses.
Front panel
FUNCTION
VOLUME
PUSH OPEN
A "/1 (on/standby)
Turns on the unit, or sets it to standby mode.
B Play operation buttons
N (play)
Starts or re-starts playback (resume play).
Plays a slideshow when a disc containing
JPEG image files is inserted.
x (stop)
Stops playback and remembers the stop
point (resume point).
The resume point for a title/track is the last
point you played or the last photo for a
photo folder.
FUNCTION
Selects the playback source.
VOLUME +/–
Adjusts the system’s volume.
Z (open/close) (page 32)
Opens or closes the disc tray.
8GB
C
(remote sensor)
D Front panel display
E Disc tray (page 32)
F
(USB) port (page 33)
Used for connecting a USB device.
Front panel display
About the indications in the front panel display
A Displays the current sound format.
B Lights up when the system is playing
via the PARTY STREAMING function.
C Lights up when outputting 1920 ×
1080p/24 Hz video signals.
D Lights up while virtual 7.1ch decoding
is activated.
E Lights up when outputting 720p/1080i/
1080p video signals from the HDMI
(OUT) jack or 720p/1080i video signals
from the COMPONENT VIDEO OUT
jacks.
F Lights up when the HDMI (OUT) jack is
correctly connected to an HDCP (Highbandwidth Digital Content Protection)compliant device with HDMI or DVI
(Digital Visual Interface) input.
G Lights up when a radio station is
received. (Radio only) (page 42)
I Flashes when the sleep timer is set.
(page 54)
J S-AIR indicator (only when the wireless
transceiver is inserted into the unit)
Lights up during wireless
transmission. When [Standby] is set to
[On], flashes when the main unit is in
standby mode and wireless
transmission between the main unit
and S-AIR receiver is not activated.
(page 45)
K Displays system’s status such as
chapter, title, or track number, time
information, radio frequency, playing
status, surround setting, etc.
L Lights up when repeat play is
activated.
M Displays system’s playing status.
N Lights up when muting is on.
H Lights up when stereo sound is
received. (Radio only) (page 42)
9GB
Rear panel
HDMI
LAN(100)
ARC
S-AIR ID
IN 1
A B C
EZW-RT10
IN 2
OUT
AUDIO
SPEAKERS
FRONT R FRONT L
WOOFER CENTER
AUDIO IN
L
DIGITAL IN
SAT/CABLE
TV
OPT
OPT
ANTENNA
75 COAXIAL
A.CAL
MIC
VIDEO COMPONENT VIDEO OUT
PR/CR
Y
PB/CB
OUT
FM
ECM-AC2
R
10GB
A Wireless transceiver (EZW-RT10) slot
(page 24)
H COMPONENT VIDEO OUT jacks (page
19)
B S-AIR ID switch (pages 26, 45)
I VIDEO OUT jack (page 19)
C LAN (100) terminal (page 25)
J AUDIO (AUDIO IN L/R) jacks (page 21)
D HDMI (IN 1/IN 2) jack (page 21)
K A.CAL MIC jack (pages 27, 51)
E HDMI (OUT) jack (page 19)
L DIGITAL IN (TV OPT) jack (page 20)
F ANTENNA (75Ω COAXIAL FM) jack
(page 23)
M DIGITAL IN (SAT/CABLE OPT) jack
(page 21)
G
N SPEAKERS jacks (page 18)
(USB) port (pages 25, 33)
Surround amplifier
Rear panel
Front panel
SURROUND SELECTOR
A B C
PAIRING
L
SURROUND SURROUND BACK
S-AIR ID
R
IMPEDANCE USE
3-16
SPEAKERS
EZW-RT10
S-AIR/STANDBY
A "/1 (Power)
Turns the surround amplifier on/off.
Indicator
Status
Turns off.
The surround amplifier is
turned off.
B S-AIR/STANDBY indicator
You can check the status of wireless
transmission of surround speaker audio
signals between the main unit and surround
amplifier.
Flashes orange. The wireless transceiver is not
inserted/not fully inserted/
inserted upside-down into the
wireless transceiver slot.
Flashes red.
Indicator
Status
Turns green.
Wireless transmission between
the main unit and the surround
amplifier is established
correctly and the main unit is
transmitting audio signals to
the surround speakers via the
surround amplifier.
Flashes green
quickly.
Wireless transmission between
the main unit and the surround
amplifier is established
correctly, but audio signals to
the surround speakers are not
being transmitted by the main
unit.
Flashes green
slowly.
Wireless transmission between
the main unit and the surround
amplifier is not set up
correctly.
Turns red.
Wireless transmission between
the main unit and the surround
amplifier is not set up, or either
the surround amplifier or the
whole system is in standby
mode.
The surround amplifier’s
protection is active.
C S-AIR ID switch
Selects the S-AIR ID.
D PAIRING button
Starts pairing.
E PAIRING indicator
Indicates the pairing status.
F SURROUND SELECTOR switch
Selects the mode for the surround amplifier.
G SPEAKERS jacks
H Wireless transceiver (EZW-RT10) slot
11GB
A "/1 (on/standby) (pages 27, 42)
Remote control
Turns on the system or sets it to standby
mode.
The buttons for system operation only are
described below. See “Controlling Your TV or
Other Components with the Supplied Remote”
(page 55) for the buttons for operation of the
connected components.
B Operation mode buttons (page 55)
Changes the component to be operated on
the remote.
STB: You can operate a cable box, digital
satellite receiver, digital video receiver, etc.
TV: You can operate a TV.
BD: You can operate this Blu-ray Disc/
DVD Home Theatre System.
wh
THEATRE
ONE-TOUCH
PLAY
AV
1
wg
BRAVIA Sync
wf
STB
2
3
4
5
6
7
8
9
0
ENTER
DIGITAL ANALOG
ws
wa
TONE
OP
T
TO IO N S
OL
S
M EN U
UP /
TOP
ME
N
OP
UR
N
HOME
qk
3
MENU
qh
Enters the title/chapter numbers, radio
frequencies, etc.
D ENTER (page 55)
Enters the selected item.
E TONE (page 41)
6
7
F SLEEP (page 54)
SOUND MODE
PRESET
PRESET
TUNING
TUNING
8
9
0
qa
qs
qd
Adjusts the sound.
Sets the sleep timer.
G
(favorites)
Displays the contents of Internet entries
added to the Favorites List. You can save 18
favorite Internet contents.
H POP UP/MENU
Opens or closes the BD-ROM’s Pop-up
Menu, or the DVD’s menu.
I C/X/x/c
Moves the highlight to a displayed item.
REC
qj
C Number buttons (pages 43, 55)
4
5
P
U
FUNCTION
2
SLEEP
D.TUNING
RET
ql
BD
1
wd
w;
TV
PROG
(ENTER)
DISPLAY
qf
SYSTEM
MENU
qg
Enters the selected item.
J OPTIONS (page 37)
Displays the options menu on the TV
screen.
• Number 5,
, PROG +, and N buttons
have a tactile dot. Use the tactile dot as a
reference when operating the remote.
• Names of buttons that work after pressing the
TV or STB operation mode buttons are
indicated with yellow label.
12GB
K HOME (pages 27, 42, 45, 51, 52, 58)
Enters or exits the system’s home menu.
L SOUND MODE (page 39)
Selects the sound mode.
M Playback operation buttons
O SYSTEM MENU (pages 30, 38, 41, 42)
See “Playback” (page 32).
./> (previous/next)
Skip to the previous/next chapter, track, or
file.
Enters the system menu.
P
Q 2 +/– (page 42)
(replay/advance)
Briefly replay the current scenes for 10
seconds./Briefly fast forwards the current
scenes for 15 seconds.
m/M (fast reverse/fast forward)
Fast reverse/fast forward the disc during
playback. Each time you press the button,
search speed changes.
Activates slow-motion play when pressed
for more than one second in pause mode.
Plays one frame at a time when pressed in
pause mode.
Adjusts the volume.
R FUNCTION (pages 29, 42)
Selects the playback source.
S RETURN
Returns to the previous display.
T TOP MENU
Opens or closes the BD’s or DVD’s Top
Menu.
U Color buttons (red/green/yellow/blue)
Shortcut keys for selecting items on some
Blu-ray menus (can also be used for Java
interactive operations on BDs).
N (play)
Starts or re-starts playback (resume play).
Plays a slideshow when a disc containing
JPEG image files is inserted.
X (pause)
Pauses or re-starts playback.
x (stop)
Stops playback and remembers the stop
point (resume point). The resume point for
a title/track is the last point you played or
the last photo for a photo folder.
Radio operation buttons
See “Tuner” (page 42).
PRESET +/–
TUNING +/–
N DISPLAY (pages 32, 35)
(muting)
Turns off the sound temporarily.
V
(audio) (pages 39, 40)
Selects the audio format/track.
W
(subtitle) (page 61)
Selects the subtitle language when
multilingual subtitles are recorded on a BDROM/DVD VIDEO.
D.TUNING (Direct Tuning) (page 42)
Tunes in to the desired radio frequency.
X Z (open/close) (page 32)
Opens or closes the disc tray.
Y THEATRE (page 50)
Switches to the optimum video mode for
watching movies automatically.
Z ONE-TOUCH PLAY (page 50)
Activates One-Touch Play.
Displays the playback information on the
TV screen.
When the function is “TUNER FM,”
changes the radio information in the front
panel display (European and Russian
models only).
Displays stream information in the front
panel display when: 1 The function is set
to “TV”/“SAT/CABLE”/“HDMI1”/
“HDMI2,” and 2 Digital signals are input
via the DIGITAL IN/HDMI (IN 1)/HDMI
(IN 2) jack.
13GB
Getting Started
Getting Started
Step 1: Installing the System
Positioning the speakers
For the best possible surround sound, place all speakers at the same distance from the listening position
(A). The distance can be between 0.0 to 7.0 meters.
If you cannot place the center speaker and surround speakers at the same distance as (A), place them
within 7.0 meters of the listening position.
Place the surround speakers to the rear of the listening position (B).
The subwoofer can be placed anywhere in the room.
Center speaker
Subwoofer
Front left speaker (L)
Front right speaker (R)
A
A
B
Surround left speaker (L)
A
30
45
30
45
A
A
B
Surround right speaker (R)
Note
• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed,
oiled, polished, etc.) floor, as staining or discoloration may result.
• Do not lean or hang on a speaker, as it may fall down.
14GB
To add the optional surround back speakers
For the position of the surround back speakers, refer the illustration below (C).
Center speaker
Subwoofer
Front left speaker (L)
Front right speaker (R)
Surround left
speaker (L)
Surround right
speaker (R)
30
45
C
Surround back left speaker (L)
(optional)
30
45
C
Surround back right speaker (R)
(optional)
Note
• To use the surround back speakers, set [Surround Back] (page 53) in [Speaker Settings] to [Yes] while performing
the Easy Setup (page 27).
15GB
Getting Started
You can enjoy 7.1 surround sound by purchasing the Wireless Surround Speaker Kit (WAHT-SBP2,
optional). The optional product lineup differs depending on the area.
Getting Started
Assembling the speakers
For assembling the speakers, refer to “Speaker Installation Guide” (supplement).
To connect speaker cords to the center speaker and subwoofer
Speaker terminals are located on the rear of the speakers.
Connector
Colored tube
(+)
(–)
Rear of the subwoofer
Purple colored tube
Rear of the center speaker
Green colored tube
When installing the speakers on a wall
Caution
• Contact a screw shop or installer regarding the wall material or screws to be used.
• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach
the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where
reinforcement is applied.
• Sony is not responsible for accidents or damage caused by improper installation, insufficient wall strength or
improper screw installation, natural calamity, etc.
To install the speakers on a wall
Before installing the speakers on a wall, connect the speaker cord to the speaker.
Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with
the colored tube to 3, and the speaker cord without the colored tube to #.
Colored tube
Front left speaker (L): White
Front right speaker (R): Red
Center speaker: Green
Surround left speaker (L): Blue
Surround right speaker (R): Gray
16GB
1
Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.
See the illustrations below.
5 mm
30 mm
2
Getting Started
4 mm
Hole on the back of
the speaker
10 mm
Fasten the screws to the wall.
For the other speakers
For the center speaker
219 mm
(8 5/8 inches)
8 to 10 mm
8 to 10 mm
3
Hang the speakers on the screws.
5 mm
Hole on the back of
the speaker
10 mm
Rear of the speaker
17GB
Getting Started
Step 2: Connecting the System
For connecting the system, read the information on the following pages.
Do not connect the AC power cord (mains lead) of the unit to a wall outlet (mains) until all the other
connections are made.
Note
• When you connect another component with a volume control, turn down the volume of the other components to a
level where sound is not distorted.
Connecting the speakers
The connector of the speaker cords and the color tube are color-coded depending on the type of speaker.
Connect the speaker cords to match the color of the SPEAKERS jacks of the unit.
Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with
the color tube to 3, and the speaker cord without the color tube to #. Do not catch the speaker cord
insulation (rubber covering) in the speaker terminals.
To connect speaker cords to the unit and surround amplifier
When connecting to the unit and surround amplifier, insert the connector until it clicks.
Rear panel of the surround amplifier
Rear panel of the unit
White
(Front left speaker (L))
Gray
(Surround right speaker (R))
R
L
USE
NCE 6
3-1
IMPEDA
SPEA
KERS
SPEA
ONT L
T R FR
FRON
ER
WOOF
KERS
ER
CENT
Green
(Center speaker)
Red
(Front right
speaker (R))
18GB
Purple
(Subwoofer)
Blue
(Surround left speaker (L))
Connecting the TV (Video connection)
Getting Started
This connection sends a video signal to the TV.
Depending on the jacks on your TV, select the connection method.
Rear panel of the unit
C Video cord (not supplied)
HDMI
ARC
OUT
IN 2
IN 1
A HDMI cable
(not supplied)
OUT
T VIDEOPR/CR
ONEN
PB/CB
COMP
Y
VIDETO
OU
B Component video
cable (not supplied)
To the video input
jack of the TV.
To the component
video input jacks of
the TV.
To the HDMI IN jack
of the TV.
Method 1: HDMI cable (A) connection
If your TV has an HDMI jack, connect to the TV with an HDMI cable. Picture quality will be improved
compared to using the component video cable connection or the video cord connection.
When connecting with the HDMI cable, you need to select the type of output signal (page 59).
Method 2: Component video cable (B) connection
If your TV does not have an HDMI jack, but has component video input jacks, connect to the TV with
a component video cable. Picture quality will be improved compared to using the video cord
connection.
When connecting with the component video cable, you need to select the type of output signal (page
59).
Method 3: Video cord (C) connection
If you do not have an HDMI cable or a component video cable, make this connection.
19GB
Getting Started
Connecting the TV (Audio connection)
This connection sends an audio signal to the unit from the TV. To listen to TV sound via the system,
perform this connection.
Rear panel of the unit
L IN
DIGITA TV
ABLE
SAT/C
T
OPT
OP
Digital optical cord
(not supplied)
To the digital optical out jack of
the TV.
With a digital audio connection, the system receives a Dolby Digital multiplex broadcast signal and
you can enjoy multiplex broadcast sound.
Note
• When you connect the TV and the unit with an audio cord, see “Connecting the other components” (page 21).
About Audio Return Channel (ARC)
If your TV is compatible with the Audio Return Channel function, an HDMI cable connection also
sends a digital audio signal from the TV. You do not need to make a separate audio connection for
listening to TV sound. For details of the Audio Return Channel function, see [Audio Return Channel]
(page 62).
20GB
Connecting the other components
You can connect a component that has an HDMI OUT jack such as a set-top box/digital satellite
receiver or PLAYSTATION®3, etc., with an HDMI cable. An HDMI cable connection can send both
video and audio signals. By connecting the system and the component using an HDMI cable, you can
enjoy high-quality digital pictures and sound via the HDMI (IN 1) or HDMI (IN 2) jack.
Rear panel of the unit
HDMI
ARC
OUT
IN 2
IN 1
HDMI cable (not
supplied)
To the HDMI OUT jack of the set-top box/
digital satellite receiver or
PLAYSTATION®3, etc.
Note
• Video signals to the HDMI (IN 1/IN 2) jacks are output from the HDMI (OUT) jack only when the “HDMI1” or
“HDMI2” function is selected.
• To output an audio signal from the HDMI (OUT) jack, you need to change the audio output setting. For details, see
[Audio Output] in [Audio Settings] (page 60).
• You can change the audio input of the component that is connected to the HDMI (IN 1) jack to the DIGITAL IN
(SAT/CABLE OPT) jack (page 63).
21GB
Getting Started
When another component you wish to connect to the system has an
HDMI OUT jack
Getting Started
When the component does not have an HDMI OUT jack
Video signals from the system and the components are sent to the TV, and audio signals from the
components are sent to the system as follows.
TV
Signal flow
System
: Video signal
: Audio signal
You can enjoy connected components via the system’s speakers.
• VCR or digital satellite receiver, etc. (not supplied), which has a digital optical output jack: D
• VCR, digital satellite receiver, PlayStation, or portable audio source, etc. (not supplied): E
Rear panel of the unit
O
AUDIIN
AUDIO
L
TAL IN
DIGI
ABLE
SAT/C
T
TV
OPT
OP
R
E Audio cord
(not supplied)
D Digital optical cord
(not supplied)
To the digital optical out jack
of the VCR or digital satellite
receiver, etc.
22GB
To the audio out jacks of the VCR,
digital satellite receiver, PlayStation,
or portable audio source, etc.
Connecting the antenna (aerial)
Getting Started
Rear panel of the unit
NNA
ANTE IAL
AX
75 CO
FM
or
FM wire antenna (aerial)
(supplied)
Note
• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
Tip
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM
antenna (aerial) as shown below.
Unit
Outdoor FM antenna (aerial)
ANTENNA
75 COAXIAL
FM
23GB
Getting Started
Inserting the wireless transceiver
You can transmit the audio signal from the main unit to an S-AIR product, such as the surround
amplifier or S-AIR receiver.
To transmit sound from the unit, insert one wireless transceiver into the main unit and the other one
into the S-AIR product, e.g. the surround amplifier.
For details of S-AIR products, see “Using an S-AIR Product” (page 45).
Rear panel of the unit
T10
EZW-R
Rear panel of the surround amplifier
RT10
EZW-
Wireless
transceiver
Wireless
transceiver
Note
• Please make sure to fully insert the wireless transceiver into the wireless transceiver slot. You should hear a click
when the wireless transceiver is inserted correctly.
• To avoid inserting the wireless transceiver upside-down, orient it with the Sony logo facing up.
24GB
and connecting the extension cable to the
(USB) port (front or rear), turn the unit on again.
Connecting the system to the Internet allows you
to watch Internet video, listen to Internet audio,
use BD-LIVE, and update the Home Theatre
System software.
LAN cable
(not supplied)
Wired Setup
Use a LAN cable to connect to the LAN (100)
terminal on the unit.
Wireless LAN
router
USB
Wireless
LAN
Adapter
ADSL modem/ Internet
cable modem
Note
• The placement distance between the USB Wireless
LAN Adapter and your wireless LAN router differs
depending on the usage environment. If the system
cannot connect to the network or the network
connection is unstable, move the USB Wireless LAN
Adapter to a different position or place the USB
Wireless LAN Adapter and the wireless LAN router
closer to each other.
LAN cable
(not supplied)
Broadband
router
ADSL modem/
cable modem
Internet
Tip
• Using a shielded LAN cable, straight or crossing, is
recommended.
To set the network settings
Select [Network Settings], [Internet Settings],
then [Wired Setup] (page 64), and follow the onscreen instructions to complete the setup.
USB Wireless Setup
Use a wireless LAN via the USB Wireless LAN
Adapter (Sony UWA-BR100* only) (not
supplied).
The USB Wireless LAN Adapter may not be
available in some regions/countries.
To set the network settings
Select [Network Settings], [Internet Settings],
then [USB Wireless Setup] (page 64), and
follow the on-screen instructions to complete
the setup.
Tip
• For details on wireless network setup, please visit:
http://support.sony-europe.com/
About wireless LAN security
Since communication via the wireless LAN
function is established by radio waves, the
wireless signal may be susceptible to
interception. To protect wireless
communication, this system supports various
security functions. Be sure to correctly
configure the security settings in accordance
with your network environment.
* As of January 2010.
No Security
Turn the unit off before connecting the
extension cable or inserting the USB Wireless
LAN Adapter. After inserting the USB Wireless
LAN Adapter to the base of the extension cable
Although you can easily make settings, anyone
can intercept wireless communication or intrude
into your wireless network, even without any
sophisticated tools. Keep in mind that there is a
risk of unauthorized access or interception of
data.
25GB
Getting Started
Step 3: Connecting to
the Network
Getting Started
WEP
WEP applies security to communications to
prevent outsiders from intercepting
communications or intruding into your wireless
network. WEP is a legacy security technology
that enables older devices, which do not support
TKIP/AES, to be connected.
WPA-PSK (TKIP), WPA2-PSK (TKIP)
TKIP is a security technology developed to
correct for the deficiencies of WEP. TKIP
assures a higher security level than WEP.
WPA-PSK (AES), WPA2-PSK (AES)
AES is a security technology that uses an
advanced security method that is distinct from
WEP and TKIP.
AES assures a higher security level than WEP or
TKIP.
Step 4: Setting up the
S-AIR Wireless System
Before performing Step 4
Make sure all connections are secure, and then
connect the AC power cords (mains leads).
To use the S-AIR wireless system, you need to
set up the surround amplifier.
The unit transmits sound to the surround
amplifier that is connected to the surround
speakers. To activate wireless transmission,
perform the following Steps.
1
Press "/1 to turn the system on.
"/1
Make sure that “S-AIR” light up in the front
panel display. When “S-AIR” does not light
up, make sure that the wireless transceiver
is inserted into the unit correctly.
2
Set the SURROUND SELECTOR switch
of the surround amplifier to
SURROUND.
SURROUND SELECTOR
SURROUND SURROUND BACK
SURROUND SELECTOR
SURROUND SURROUND BACK
3
Set the S-AIR ID switch of the surround
amplifier to A.
A B C
PAIRING
S-AIR ID
A B C
S-AIR ID
26GB
4
Press "/1 to turn the surround amplifier
on.
S-AIR/STANDBY indicator
Step 5: Performing the
Easy Setup
Follow the Steps below to make the basic
adjustments for using the system.
Displayed items vary depending on the country
model.
S-AIR/STANDBY
Note
"/1
If the S-AIR/STANDBY indicator does not
turn green, see “Surround amplifier”
(page 11).
For details of the S-AIR function, see
“Using an S-AIR Product” (page 45).
• To use the optional surround back speakers, set
[Surround Back] in [Speaker Settings] to [Yes]
(page 53).
"/1
About the standby mode
The surround amplifier enters standby mode
automatically (the S-AIR/STANDBY indicator
turns red) when the main unit is in standby mode
or wireless transmission is deactivated.
The surround amplifier turns on automatically
(the S-AIR/STANDBY indicator turns green)
when the system is turned on and wireless
transmission is activated.
1
2
3
4
5
6
7
8
9
0
C/X/x/c,
HOME
1
Turn on the TV.
27GB
Getting Started
When wireless transmission is activated,
the S-AIR/STANDBY indicator turns
green.
2
Connect the calibration mic to the
A.CAL MIC jack on the rear panel.
5
Getting Started
Set up the calibration mic at ear level using
a tripod, etc. (not supplied). The front of
each speaker should face the calibration
mic, and there should be no obstruction
between the speakers and the calibration
mic.
Perform the [Easy Setup]. Follow the
on-screen instructions to make the
basic settings using C/X/x/c, and
.
For details about [Auto Calibration]
settings in [Easy Setup], see “Calibrating
the Appropriate Settings Automatically”
(page 51).
To recall the Easy Setup Display
1
Press HOME.
The home menu appears on the TV screen.
2
3
L
A.CA
MICC2
ECM-A
4
Press C/c to select
[Setup].
Press X/x to select [Easy Setup], then
press
.
Press C/c to select [Start], then press
.
The Easy Setup Display appears.
Calibration mic
3
4
Press [/1 on the unit, and [/1 on the
surround amplifier.
Switch the input selector on your TV so
that the signal from the system
appears on the TV screen.
The Easy Setup Display for OSD language
selection appears.
Easy Setup - OSD
Select the language to be displayed by this unit.
English
Deutsch
Français
Italiano
Español
28GB
You can select the playback source.
1
2
3
4
5
6
7
8
9
Function
Source
“SAT/CABLE”
Component that is connected to
the DIGITAL IN (SAT/CABLE
OPT) jack on the rear panel
(page 21)
“AUDIO”
Component that is connected to
the AUDIO (AUDIO IN L/R)
jacks on the rear panel (page 21)
0
FUNCTION
Press FUNCTION repeatedly until the
desired function appears in the front panel
display.
Each time you press FUNCTION, the function
changes as follows.
“BD/DVD” t “D. MEDIA” t “TUNER FM”
t “HDMI1” t “HDMI2” t “TV” t
“SAT/CABLE” t “AUDIO” t “BD/DVD”
t…
Function
Source
“BD/DVD”
Disc that is played by the system
“D. MEDIA”
USB device, iPod, BRAVIA
Internet Video, or DLNA server
“TUNER FM”
FM radio (page 42)
“HDMI1”/
“HDMI2”
Component that is connected to
the HDMI (IN 1) or HDMI (IN 2)
jack on the rear panel (page 21)
“TV”
Component (TV, etc.) that is
connected to the DIGITAL IN
(TV OPT) jack on the rear panel,
or a TV compatible with the Audio
Return Channel function that is
connected to the HDMI (OUT)
jack on the rear panel (page 20).
29GB
Getting Started
Step 6: Selecting the
Source
Getting Started
Step 7: Enjoying Surround Sound
After performing the previous Steps and starting playback, you can easily enjoy surround sound. You
can also select pre-programmed surround settings that are tailored to different kinds of sound sources.
They bring the exciting and powerful sound of movie theaters into your home.
1
2
3
4
5
6
7
8
9
0
X/x/c,
SYSTEM MENU
Selecting surround settings based on your listening preference
1
2
3
Press SYSTEM MENU.
Press X/x repeatedly until “SUR.SETTING” appears in the front panel display, then
press
or c.
Press X/x repeatedly until the surround setting you want appears in the front panel
display.
See the table below for surround sound setting descriptions.
4
Press
.
The setting is made.
5
Press SYSTEM MENU.
The system menu turns off.
About speaker output of each surround setting
The table below describes the options when you connect all the speakers to the unit.
The default setting is “A.F.D. 7.1CH.”
Sound from
Surround setting
Effect
Depending on the source.
“A.F.D. STD”
The system discriminates the sound format of the source and
presents sound as it was recorded/encoded.
(AUTO FORMAT
DIRECT STANDARD)
30GB
Sound from
Effect
• 2 channel source: The system simulates surround sound
from 2 channel sources and outputs sound from the 5.1
channel speakers by duplicating 2 channel source sound
across each speaker.
• Multi-channel source: The system creates the surround back
sound virtually depending on the number of channels of the
source and outputs the sound as 7.1 channel surround sound.
(AUTO FORMAT
DIRECT 7.1CH)
“PRO LOGIC”
“PLII MOVIE”
“PLII MUSIC”
• 2 channel source: The system simulates surround sound
from 2 channel sources and outputs sound from the 5.1
channel speakers.
– “PRO LOGIC” performs Dolby Pro Logic decoding.
– “PLII MOVIE” performs Dolby Pro Logic II movie
mode decoding.
– “PLII MUSIC” performs Dolby Pro Logic II music mode
decoding.
• Multi-channel source: The system outputs sound from the
speakers depending on the number of channels of the
source.
“NEO6 CIN”
“NEO6 MUS”
• 2 channel source: The system simulates surround sound
from 2 channel sources and produces 6.1 channel sound.
– “NEO6 CIN” performs DTS Neo:6 Cinema mode
decoding.
– “NEO6 MUS” performs DTS Neo:6 Music mode
decoding.
• Multi-channel source: The system outputs sound from the
speakers depending on the number of channels of the
source.
“2CH STEREO”
The system outputs the sound from the front speakers and
subwoofer regardless of sound format or number of channels.
Multi-channel surround formats are downmixed to 2
channels.
Note
• When you select “A.F.D. 7.1CH,” depending on the disc or source, the beginning of the sound may be cut off while
the optimum mode is automatically selected. To avoid cutting the sound, select “A.F.D. STD.”
• When bilingual broadcast sound is input, “PRO LOGIC,” “PLII MOVIE,” and “PLII MUSIC” are not effective.
• Depending on the input stream, the surround settings may not be effective.
• When changing the surround setting while using the S-AIR receiver, sound from the S-AIR receiver may skip.
• When you play a Super Audio CD, surround settings are not activated.
Tip
• The system memorizes the last surround setting selected for each function.
Whenever you select a function such as “BD/DVD” or “TUNER FM,” the surround setting that was last applied to
the function is automatically applied again. For example, if you select “BD/DVD” with “PRO LOGIC” as the
surround setting, then change to another function, and then return to “BD/DVD,” “PRO LOGIC” will be applied
again.
31GB
Getting Started
Surround setting
“A.F.D. 7.1CH”
Tip
Playback
Playing a Disc
For playable discs, see “Playable Discs”
(page 74).
1
2
Switch the input selector on your TV so
that the signal from the system
appears on your TV screen.
Press Z, and place a disc on the disc
tray.
• Delete unnecessary data in internal memory or USB
memory. Select [Erase BD Data] in
[Video] to
delete unnecessary data. If you use USB memory as
local storage, all saved data in the [BUDA/BUDB]
folder is deleted. Make sure to backup any video/
music/photo data in the [BUDA/BUDB] folder.
Enjoying Blu-ray 3D
You can enjoy Blu-ray 3D Discs with the 3D
logo*.
*
1
Prepare for Blu-ray 3D Disc playback.
• Connect the system to your 3Dcompatible TV using a High-Speed
HDMI cable (not supplied).
• Set [3D Output Setting] and [TV Screen
Size Setting for 3D] in [Screen Settings]
(page 59).
2
3
Enjoying BONUSVIEW/BD-LIVE
Some BD-ROMs with “BD-LIVE” Logo* have
bonus content and other data that can be
downloaded for enjoyment.
*
1
Prepare for BONUSVIEW/BD-LIVE.
• Connect the unit to a network (page 25).
• Set [BD Internet Connection] to [Allow]
(page 61).
2
Insert a BD-ROM with BONUSVIEW/
BD-LIVE.
The operation method differs depending on
the disc. Refer to the operating instructions
of the disc.
32GB
The operation method differs depending on
the disc. Refer to the operating instructions
supplied with the disc.
Press Z to close the disc tray.
appears on the home menu and playback
starts.
If playback does not start automatically,
select
in the
[Video],
[Music], or
[Photo] category, and press
.
Insert a Blu-ray 3D Disc.
Tip
• Refer also to the operating instructions of your 3Dcompatible TV.
Displaying the play information
Example: when playing a BD-ROM
You can play video/music/photo files on the
connected USB device.
For playable types of files, see “Playable Types
of Files” (page 75).
1
Playback
You can check the playback information, etc.,
by pressing DISPLAY.
The displayed information differs depending on
the disc type and player status.
Playing from a USB
Device
Connect the USB device to the
(USB) port on the unit.
Refer to the operating instructions of the
USB device before connecting.
Rear panel
A Output resolution/Video frequency
USB device
B Title number or name
C The currently selected audio setting
D Available functions (
subtitle)
angle,
Front panel
audio,
E Playback information
Displays disc type, play mode, repeat type,
video codec, bit rate, playing status bar,
playing time, total time
PUSH OPEN
F Chapter number
G The currently selected angle
USB device
2
3
Press C/c to select
[Video],
[Music], or
[Photo].
Press X/x to select
[USB device
(front)] or [USB device (rear)], then
press
.
Note
• Do not remove the USB device during
operation. To avoid data corruption or damage
to the USB device, turn the system off when
connecting or removing the USB device.
33GB
Enjoying an iPod
To operate the iPod using the
remote
You can enjoy the sound and charge the battery
of an iPod via the system.
You can operate the iPod using the buttons on
the remote. The following table shows an
example of buttons that can be used.
Compatible iPod models
The compatible iPod models are as follows.
Update your iPod with the latest software before
using with the system.
Press
Operation
N, X
Same operation as the N/X button
of the iPod.
x
Pause.
m or M
Fast reverse or forward.
. or >
Same operation as the . or >
buttons of the iPod.
DISPLAY,
RETURN,
C
Same operation as the MENU button
of the iPod.
X/x
Same operation as the Click Wheel
of the iPod.
,c
Same operation as the Center button
of the iPod.
Note
1
2
3
Connect the iPod to the
(USB) port
on the unit with the iPod’s USB cable.
Press C/c to select
Press X/x to select
then press
.
[Music].
[iPod (front)],
The sound from the iPod is played on the
system.
You can operate the iPod using the buttons
on the remote.
For operation details, refer to the operating
instructions of the iPod.
34GB
• The iPod is charged when connected to the system
while the system is turned on.
• You cannot transfer songs onto the iPod.
• Sony cannot accept responsibility in the event that
data recorded to iPod is lost or damaged when using
an iPod connected to this unit.
• This product has been designed specifically to work
with iPod and has been certified to meet Apple
performance standards.
• Do not remove the iPod during operation. To avoid
data corruption or damage to the iPod, turn the system
off when connecting or removing the iPod.
Playing files stored on a DLNA
server (DLNA Player)
Playing via a Network
BRAVIA Internet Video serves as a gateway
delivering the selected Internet content and a
variety of on-demand entertainment straight to
your unit.
1
You can play video/music/photo files on your
home server, such as a DLNA-certified network
audio system or a PC with software that enables
a DLNA-certified server function, by
connecting the system to your home network.
1
Prepare for playing files on a DLNA
server.
• Connect the unit to a network (page 25).
• Set [Connection Server Settings]
(page 64).
Prepare for BRAVIA Internet Video.
Connect the unit to a network (page 25).
2
3
Press C/c to select
[Video],
[Music], or
[Photo].
2
Press X/x to select an Internet content
provider icon, then press
.
3
Press C/c to select
[Video],
[Music], or
[Photo].
Press X/x to select a DLNA server, then
press
.
When the Internet content list has not been
retrieved, it will be represented by an
unacquired icon or a new icon.
To use the control panel
The control panel appears when the video file
starts playing. The displayed items may differ
depending on Internet content providers.
To display again, press DISPLAY.
Playback
Streaming BRAVIA Internet
Video
The file list or folder list appears.
Playing the same audio in
different rooms (PARTY
STREAMING)
Note
• If [Party Auto Start] (page 64) is not displayed on the
TV screen, this function may be available via a future
update. However, the function may not be available
in some regions/countries.
A Control display
Press C/X/x/c or
for playback operations.
B Playing status bar
Status bar, cursor indicating the current
position, playing time, duration of the video
file
C The next video file name
D The currently selected video file name and
rating
You can play the same audio at the same time
across all Sony components which are
compatible with the PARTY STREAMING
function.
The component that plays audio for the party
through the use of [Start Party] is called the
35GB
“party host.” A component that is invited to the
party from the party host and plays the same
audio as the party host is called a “party guest.”
To close a party
To start a party
For a party guest
(for the party host only)
Press OPTIONS, press X/x to select [Close
Party], then press
in Step 3 above.
You can use other components to play the
content that is playing on the system.
1
Turn on the system and other Sony
components compatible with the
PARTY STREAMING function.
Make sure that each component is
connected to the network.
2
Press C/X/x/c to select the audio
content in
[Music] or a radio station.
For selecting a radio station, see “Listening
to the Radio” (page 42).
3
4
Press OPTIONS.
Press X/x to select [Start Party], then
press
.
All party guests’ components start playing
the same audio content as the party host.
(for a party guest only)
You can use the system to play the content that
is playing on other components.
Turn on the system and other Sony
components compatible with the
PARTY STREAMING function.
Make sure that each component is
connected to the network.
2
3
4
5
36GB
Start a party on another networked
component.
Press C/c to select
Press X/x to select
press
.
Press x, then press HOME.
To leave from a party
(for a party guest only)
Press OPTIONS, press X/x to select [Leave
Party], then press
.
Note
• The sale and product lineup of products that are
compatible with the PARTY STREAMING function
differ depending on the area.
Operating the system with a
DLNA controller (DLNA
renderer)
Note
• If [Renderer Options] (page 64) is not displayed on
the TV screen, this function may be available via a
future update. However, the function may not be
available in some regions/countries.
To join in a party
1
For the party host
The system is compatible with the DLNA
renderer (network controlled player) function.
You can operate the system with a DLNA
controller.
For details of operation, see the operating
instructions of the DLNA controller.
Note
• Do not operate the system with the supplied remote
when operating the system by the DLNA controller.
[Music].
Tip
[Party], then
Press X/x to select the party host that
you set up in Step 2, then press
.
• The system is compatible with the “Play To” function
of Windows Media® Player 12 that comes standard
with Windows 7.
[Video] only
Available Options
Items
Details
[3D Output Setting]
Sets whether or not to output
3D video automatically.
Note
• 3D video from the HDMI
(IN 1) or HDMI (IN 2) jack
is output regardless of this
setting.
Common options
Items
Details
[Playback History]
Displays titles/tracks in the
playback history of a
BD-ROM/DVD-ROM/
CD-DA (music CD) using
Gracenote technology.
[Search History]
Searches for related
information based on
keywords from Gracenote via
the Information Display.
[Search Contents]
Searches for BRAVIA
Internet Video content based
on keywords from Gracenote
via the Information Display.
[Video Settings]
• [Picture Quality Mode]:
Selects the picture settings
for different lighting
environments.
• [FNR]: Reduces the random
noise appearing in the
picture.
• [BNR]: Reduces the
mosaic-like block noise in
the picture.
• [MNR]: Reduces minor
noise around the picture
outlines (mosquito noise).
[Repeat Setting]
Sets the repeat play.
[Play/Pause]
Starts or pauses playback.
[Favourites List]
Displays the Favorites List.
[Top Menu]
[Play/Stop]
Starts or stops playback.
Displays the BD’s or DVD’s
Top Menu.
[Play from start]
Plays the item from the
beginning.
[Menu/Popup Menu]
Displays the BD-ROM’s
Pop-up Menu or DVD’s
menu.
[Title Search]
Searches for a title on BDROMs/DVD VIDEOs and
starts playback from the
beginning.
[Chapter Search]
Searches for a chapter and
starts playback from the
beginning.
[Angle]
Switches to other viewing
angles when multi-angles are
recorded on BD-ROMs/DVD
VIDEOs.
[IP Content Noise
Reduction]
Adjusts the video quality for
Internet content.
[Information Display] Displays information on the
BD-ROM/DVD-ROM/
CD-DA (music CD) by using
Gracenote technology.
[Add to Favourites]
Adds an Internet content to
the Favorites List.
[Remove from
Favourites]
Erases an Internet content
from the Favorites List.
[Start Party]
Starts a party with the
selected source.
This item may not appear
depending on the source.
[Leave Party]
Leaves from a party which
the system is participating in.
The PARTY STREAMING
function continues among
other participating devices.
[Close Party]
Closes a party which the
system is participating in. The
PARTY STREAMING
function ends for all other
participating devices.
Playback
Various settings and playback operations are
available by pressing OPTIONS. The available
items differ depending on the situation.
[Music] only
Items
Details
[Add Slideshow
BGM]
Registers music files in the
USB memory as slideshow
background music.
37GB
[Photo] only
Items
Details
[Slideshow]
Starts a slideshow.
[Slideshow Speed]
Changes the slideshow speed.
[Slideshow Effect]
Sets the effect when playing a
slideshow.
[Slideshow BGM]
• [Off]: Turns off the
function.
• [My Music from USB]: Sets
the music files registered in
[Add Slideshow BGM]. If
no music file is registered,
[(Not registered)] is
displayed.
• [Play from disc]: Sets the
tracks on CD-DAs (music
CDs).
[Rotate Left]
Adjusting the delay between
the picture and sound
(A/V SYNC)
When the sound does not match the pictures on
the TV screen, you can adjust the delay between
the picture and sound.
1
2
3
Press SYSTEM MENU.
Press X/x repeatedly until “A/V SYNC”
appears in the front panel display, then
press
or c.
Press X/x to adjust the delay between
the picture and sound.
You can adjust from 0 ms to 300 ms in 25
ms increments.
Rotates the photo
counterclockwise by
90 degrees.
4
[Rotate Right]
Rotates the photo clockwise
by 90 degrees.
5
[View Image]
Displays the selected picture.
Press
.
The setting is made.
Press SYSTEM MENU.
The system menu turns off.
Note
• Depending on the input stream, A/V SYNC may not
be effective.
38GB
Sound Adjustment
Selecting the Effect to
Suit the Source
1
2
3
4
5
6
7
8
9
0
SOUND
MODE
Press SOUND MODE repeatedly during
playback until the desired mode appears in
the front panel display.
• “AUTO”: The system selects “MOVIE” or
“MUSIC” automatically to produce the sound
effect depending on the disc or sound stream.
• “MOVIE”: The system provides the sound for
movies.
• “HD-D.C.S.”: For movies on Blu-ray and
DVD, etc., “HD-D.C.S.” realizes precise
sound effects the way the Movie Sound
Designers intended for them to be.
• “3D SUR.”: “3D SUR.” is a unique Sony
algorithm used for playing 3D (threedimensional) content that provides a 3D sound
experience with depth and presence by
creating a virtual sound field close to your
ears.
• “MUSIC”: The system provides the sound for
music.
• “SPORTS”: The system adds reverberation for
sports programs.
• “NEWS”: The system provides the sound for
voice programs, such as news.
Note
• Depending on the disc or source, when you select
“AUTO,” the beginning of the sound may be cut off
as the system selects the optimum mode
automatically. To avoid cutting the sound, select
other than “AUTO.”
• Depending on the input stream, the sound mode may
not be effective.
• When changing the sound mode while using the
S-AIR receiver, sound from the S-AIR receiver may
skip.
• When you play a Super Audio CD, this function does
not work.
Sound Adjustment
You can select a suitable sound mode for movies
or music.
• “GAME ROCK”: The system provides the
sound for music/rhythm games.
• “OMNI-DIR”: The same sound is audible
anywhere in the room.
Selecting the Audio
Format, Multilingual
Tracks, or Channel
When the system is playing a BD/DVD VIDEO
or DATA CD/DATA DVD (DivX video files)
recorded in multiple audio formats (PCM,
Dolby Digital, MPEG audio, or DTS) or
multilingual tracks, you can change the audio
format or language.
With a CD, you can select the sound from the
right or left channel and listen to the sound of the
selected channel through both the right and left
speakers.
1
2
3
4
5
6
7
8
9
0
39GB
Press
repeatedly during playback to
select the desired audio signal.
The audio information appears on the TV
screen.
x BD/DVD VIDEO
Depending on the BD/DVD VIDEO, the choice
of language varies.
When 4 digits are displayed, they indicate a
language code. See “Language Code List”
(page 79) to confirm which language the code
represents. When the same language is
displayed two or more times, the BD/DVD
VIDEO is recorded in multiple audio formats.
x DVD-VR
The types of sound tracks recorded on a disc are
displayed.
Example:
• [ Stereo]
• [ Stereo (Audio1)]
• [ Stereo (Audio2)]
• [ Main]
• [ Sub]
• [ Main/Sub]
Enjoying Multiplex
Broadcast Sound
(DUAL MONO)
You can enjoy multiplex broadcast sound when
the system receives or plays a Dolby Digital
multiplex broadcast signal.
Note
• To receive the Dolby Digital signal, you need to
connect a TV or other component to the unit with a
digital optical cord (pages 20, 21). If your TV is
compatible with the Audio Return Channel function
(page 51), you can receive a Dolby Digital signal via
an HDMI cable.
1
2
3
4
5
6
7
8
9
0
Note
• [ Stereo (Audio1)] and [ Stereo (Audio2)] do not
appear when only one audio stream is recorded on the
disc.
x DATA CD (DivX video file)/DATA DVD
(DivX video file)
The choice of DATA CD or DATA DVD audio
signal formats differs, depending on the DivX
video file contained on the disc. The format
appears on the TV screen.
x CD
• [ Stereo]: The standard stereo sound.
• [ 1/L]: The sound of the left channel
(monaural).
• [ 2/R]: The sound of the right channel
(monaural).
40GB
Press
repeatedly until the desired
signal appears in the front panel display.
• “MAIN”: Sound of the main language will be
output.
• “SUB”: Sound of the sub language will be
output.
• “MAIN/SUB”: Mixed sound of both the main
and sub languages will be output.
Using the Sound Effect
Changing the tonal balance
You can adjust the sound by changing the tonal
balance of the sound.
1
2
3
4
5
6
7
8
9
0
• “BASS”: You can adjust the bass
frequencies.
• “TREBLE”: You can adjust the treble
frequencies.
TONE
C/X/x/c,
2
SYSTEM
MENU
Press TONE repeatedly until the
desired setting appears in the front
panel display.
Press X/x to adjust the sound.
The adjusted value appears in the front
panel display. You can set the value from
–6.0 to +6.0.
Sound Adjustment
1
Enjoying sound at low volume
You can enjoy sound effects or dialog, as you
would in a movie theater, even at low volume. It
is useful for watching movies at night.
1
2
3
Press SYSTEM MENU.
Press X/x repeatedly until “NIGHT
MODE” appears in the front panel
display, then press
or c.
Press X/x to select a setting.
• “NIGHT ON”: On.
• “NIGHT OFF”: Off.
4
Press SYSTEM MENU.
The system menu turns off.
Note
• When sound is output from the center speaker, this
effect is more pronounced, as speech (movie dialog,
etc.) is easy to hear. When sound is not output from
the center speaker, the system optimally adjusts the
volume.
41GB
2
Select the radio station.
Automatic tuning
Tuner
Press and hold TUNING +/– until the auto
scanning starts.
[Auto Tuning] appears on the TV screen.
Scanning stops when the system tunes in a
station.
To stop the automatic tuning manually,
press TUNING +/–.
Listening to the Radio
You can enjoy radio sound with the system’s
speakers.
"/1
1
2
3
4
5
6
7
8
9
Manual tuning
Number
buttons
Press TUNING +/– repeatedly.
3
0
D.TUNING
Adjust the volume by pressing 2 +/–.
If an FM program is noisy
C/X/x/c,
FUNCTION
PRESET +/–
TUNING +/–
x
If an FM program is noisy, you can select
monaural reception. There will be no stereo
effect, but reception will improve.
1
2
SYSTEM
MENU
2 +/–
Press SYSTEM MENU.
Press X/x repeatedly until “FM MODE”
appears in the front panel display.
Current station
Current band and preset number
FM 7
88.00 MHz
SONY FM
3
4
Press
or c.
Press X/x to select “MONO.”
• “STEREO”: Stereo reception.
• “MONO”: Monaural reception.
5
Press SYSTEM MENU.
The system menu turns off.
To turn off the radio
Station name (European and
Russian models only)
1
Press FUNCTION repeatedly until
“TUNER FM” appears in the front panel
display.
Press "/1.
Presetting radio stations
You can preset up to 20 stations. Before tuning,
make sure to turn down the volume to minimum.
1
2
Press FUNCTION repeatedly until
“TUNER FM” appears in the front panel
display.
Press and hold TUNING +/– until the
auto scanning starts.
Scanning stops when the system tunes in a
station.
42GB
3
4
Press SYSTEM MENU.
Press X/x repeatedly until “MEMORY”
appears in the front panel display, then
press
or c.
A preset number appears in the front panel
display.
Selecting a radio station by
inputting a frequency directly
When you know the frequencies, you can select
radio stations by inputting the frequencies
directly.
1
Press X/x to select the preset number
you want.
2
3
4
Press D.TUNING.
Press the number buttons to select the
frequencies.
Press
Tuner
5
Press FUNCTION repeatedly until
“TUNER FM” appears in the front panel
display.
.
Tip
• You can select the preset number directly by
pressing the number buttons.
6
Press
.
“COMPLETE” appears in the front panel
display, and the station is stored.
7
8
Repeat Steps 2 to 6 to store other
stations.
Press SYSTEM MENU.
The system menu turns off.
To change the preset number
Select the desired preset number by pressing
PRESET +/–, then perform the procedure from
Step 3.
Selecting the preset station
1
2
Press FUNCTION repeatedly until
“TUNER FM” appears in the front panel
display.
Using the Radio Data
System (RDS)
What is the Radio Data
System?
The Radio Data System (RDS) is a broadcasting
service that allows radio stations to send
additional information along with the regular
program signal. This tuner offers convenient
RDS features, such as station name display.
The station name appears on the TV screen as
well.
Receiving RDS broadcasts
The last received station is tuned in.
Simply select a station from the FM band.
Press PRESET +/– repeatedly to select
the preset station.
When you tune in a station that provides RDS
services, the station name* appears in the front
panel display.
The preset number and frequency appear on
the TV screen and front panel display.
Each time you press the button, the system
tunes in one preset station.
Tip
• You can select the preset station number directly
by pressing the number buttons.
* If an RDS broadcast is not received, the station
name may not appear in the front panel display.
Note
• RDS may not work properly if the station you are
tuned to is not transmitting the RDS signal properly,
or if the signal strength is weak.
• Not all FM stations provide RDS service, nor do they
provide the same type of services. If you are not
43GB
familiar with the RDS system, check with your local
radio stations for details on RDS services in your
area.
Tip
• While receiving an RDS broadcast and pressing
DISPLAY, you can change between the station name
and frequency in the front panel display.
44GB
To set the ID of the unit
1
External Audio Device
Set the S-AIR ID switch of the unit to
the desired ID.
Using an S-AIR Product
S-AIR ID
A B C
About S-AIR products
Room A
S-AIR ID switch
You can select any ID (A, B, or C).
2
Press "/1.
The system turns on.
3
Set the S-AIR sub unit to the same ID.
Wireless transmission is activated as
follows (example):
ID A
S-AIR main unit
ID A
External Audio Device
There are two types of S-AIR product.
• S-AIR main unit (this unit): This is for
transmitting sound. You can use up to three
S-AIR main units. (The number of usable
S-AIR main units depends on the use
environment.)
• S-AIR sub unit: This is for receiving sound.
– Surround amplifier (supplied): You
can enjoy surround speaker sound
wirelessly.
– S-AIR receiver (optional): You can
enjoy system sound in another room.
ID A
To set the ID of the surround
amplifier
S-AIR sub unit
(surround amplifier)
1
Room B
S-AIR sub unit
(S-AIR receiver)
(not supplied)
2
3
Setting the S-AIR ID to activate
wireless transmission
For the surround amplifier
For the S-AIR receiver
Simply by matching the ID of the unit and the
S-AIR sub unit, you can activate wireless
transmission.
Make sure that the SURROUND
SELECTOR switch of the surround
amplifier is set to SURROUND.
Set the S-AIR ID switch of the surround
amplifier to match the ID (A, B, or C) of
the unit.
Press "/1 on the surround amplifier.
When wireless transmission is activated,
the S-AIR/STANDBY indicator of the
surround amplifier turns green.
For details of the S-AIR/STANDBY
indicator, see “Surround amplifier”
(page 11).
To set the ID of the S-AIR
receiver
Refer to the operating instructions of the S-AIR
receiver.
45GB
To enjoy a 7.1 channel system
You can enjoy the more realistic surround sound
effect of 7.1 channels when you use the Wireless
Surround Speaker Kit (WAHT-SBP2, optional).
For details, refer to the operating instructions of
the Wireless Surround Speaker Kit.
In this case, set [Surround Back] in [Speaker
Settings] to [Yes] (page 53).
9
Adjust the volume on the S-AIR
receiver.
Enjoying the S-AIR receiver
while the unit is in standby
mode
For the S-AIR receiver
Enjoying the system’s sound in
another room
You can enjoy the S-AIR receiver while the unit
is in standby mode by setting [Standby] to [On].
1
For the S-AIR receiver
Press HOME.
The home menu appears on the TV screen.
You can enjoy the system’s sound in another
room by using the S-AIR receiver.
1
Press HOME.
The home menu appears on the TV screen.
2
3
4
Press C/c to select
2
3
4
[Setup].
6
5
Press X/x to select [S-AIR Settings],
then press
.
6
7
Press X/x to select the desired setting.
Press
.
The setting is made.
8
When you select [Separate] in Step 6,
press S-AIR CH on the S-AIR receiver
to select the function.
The S-AIR receiver’s function changes as
follows.
“MAIN UNIT” t “TUNER FM” t
“AUDIO” t …
To enjoy the same function as the unit,
select “MAIN UNIT.”
46GB
Press X/x to select [S-AIR Settings],
then press
.
Press X/x to select [Standby], then
press
.
Press X/x to select the desired setting.
• [On]: You can enjoy the S-AIR receiver
while the unit is in standby mode or turned
on. The power consumption during
standby mode increases.
• [Off]: You cannot enjoy the S-AIR
receiver while the unit is in standby mode.
Press X/x to select [Mode], then press
.
• [Party]: The S-AIR receiver outputs
sound according to functions set on the
unit.
• [Separate]: You can set the desired
function for the S-AIR receiver while unit
functions do not change.
[Setup].
Press X/x to select [System Settings],
then press
.
The [S-AIR Settings] display appears.
Press X/x to select [System Settings],
then press
.
The [S-AIR Settings] display appears.
5
Press C/c to select
7
Press
.
The setting is made.
Note
• When you turn the system off while [Standby] is set
to [On], “S-AIR” flashes (when wireless transmission
between the unit and S-AIR receiver is not activated),
or lights up (when wireless transmission between the
unit and S-AIR receiver is activated) in the front
panel display.
instrument, such as a paper clip, can be
used.)
Identifying the unit with a
specific S-AIR sub unit
(Pairing operation)
For the surround amplifier
For the S-AIR receiver
x For the S-AIR receiver
Refer to the operating instructions of the
S-AIR receiver.
9
2
Place the S-AIR sub unit that you want
to pair near the unit.
Match the IDs of the unit and the S-AIR
sub unit.
• To set the ID of the unit, see “To set the ID
of the unit” (page 45).
• To set the ID of the surround amplifier,
see “To set the ID of the surround
amplifier” (page 45).
• To set the ID of the S-AIR receiver, refer
to the operating instructions of the S-AIR
receiver.
3
Press HOME.
The home menu appears on the TV screen.
4
5
6
Press C/c to select
[Setup].
Press X/x to select [System Settings],
then press
.
Press X/x to select [S-AIR Settings],
then press
.
The [S-AIR Settings] display appears.
7
8
Note
• Perform pairing within several minutes of Step
9. If you do not, [Pairing failed. Retry?] appears
on the TV screen. To continue pairing, select
[OK] and press , then start again from Step 8.
To cancel pairing, select [Cancel].
To cancel pairing
Change the ID of the main and sub unit
(page 45).
Checking the S-AIR status of
the unit
You can check the S-AIR status such as the
S-AIR ID or pairing information.
1
Press HOME.
The home menu appears on the TV screen.
2
3
4
Press X/x to select [Pairing], then
press
.
Press C/c to select
[Setup].
Press X/x to select [System Settings],
then press
.
Press X/x to select [S-AIR Settings],
then press
.
The [S-AIR Settings] display appears.
The S-AIR ID of the unit appears on the
[Info] line. When the unit is paired,
[Pairing] appears after the ID.
Start pairing of the S-AIR sub unit.
x For the surround amplifier
Press "/1 on the surround amplifier to turn
on the surround amplifier and press
PAIRING on the rear panel of the surround
amplifier. (To press PAIRING, a slim
External Audio Device
The unit starts pairing.
The PAIRING indicator of the surround
amplifier flashes when pairing starts.
When wireless transmission is activated,
the PAIRING indicator of the surround
amplifier turns on.
To cancel pairing, select [Cancel].
When using S-AIR products, neighbors may
also receive your system’s sound if IDs are the
same, or you may receive sound from neighbors.
To prevent this, you can identify the unit with a
specific S-AIR sub unit by performing the
pairing operation.
When you perform pairing, wireless
transmission is activated between the paired
main unit and S-AIR sub unit only.
1
Press C/c to select [Start], then press
.
5
Press RETURN.
The system returns to the previous display.
47GB
If wireless transmission is
unstable
For the surround amplifier
For the S-AIR receiver
If you use multiple wireless systems, such as
wireless LAN or Bluetooth, the transmission of
S-AIR signals or other wireless signals may be
unstable. In this case, the transmission may be
improved by changing the following [RF
Change] setting.
1
Press HOME.
The home menu appears on the TV screen.
2
3
4
Press C/c to select
[Setup].
Press X/x to select [System Settings],
then press
.
Press X/x to select [S-AIR Settings],
then press
.
The [S-AIR Settings] display appears.
5
6
Press X/x to select [RF Change], then
press
.
Press X/x to select the desired setting,
then press
.
• [Auto]: Normally select this. The system
changes [RF Change] to [On] or [Off]
automatically.
• [On]: The system transmits sound by
searching for the better channel for
transmitting.
• [Off]: The system transmits sound by
fixing the channel for transmitting.
7
Press
.
The setting is made.
8
When you set [RF Change] to [Off],
select the ID so that wireless
transmission is most stable (page 45).
Note
• In most cases, you will not need to change this
setting.
– If [RF Change] is set to [Off], transmission
between the unit and S-AIR sub unit can be
performed using one of the following channels.
– S-AIR ID A: equivalent channel for IEEE
802.11b/g channel 1
48GB
– S-AIR ID B: equivalent channel for IEEE
802.11b/g channel 6
– S-AIR ID C: equivalent channel for IEEE
802.11b/g channel 11
• The transmission may be improved by changing the
transmission channel (frequency) of the other
wireless system(s). For details, refer to the operating
instructions of the other wireless system(s).
Note
Other Operations
Using the Control for
HDMI Function for
“BRAVIA” Sync
Preparing for the Control for
HDMI function
(Control for HDMI - Easy Setting)
If your TV or other component is compatible
with the Control for HDMI - Easy Setting
function, you can set the system’s or other
components’ [Control for HDMI] function
automatically by setting the TV. For details,
refer to the operating instructions of the TV or
other components.
If the TV is not compatible with the Control for
HDMI - Easy Setting function, set the Control
for HDMI function of the system, TV, and other
components manually.
Other Operations
This function is available on TVs with the
“BRAVIA” Sync function.
By connecting Sony components that are
compatible with the Control for HDMI function
with an HDMI cable, operation is simplified as
below:
– System Power Off (page 50)
– One-Touch Play (page 50)
– Routing Control (page 50)
– Theatre Mode (page 50)
– System Audio Control (page 50)
– Volume Limit (page 51)
– Audio Return Channel (page 51)
– Remote Easy Control (page 51)
– Language Follow (page 51)
• Depending on the connected component, the Control
for HDMI function may not work. Refer to the
operating instructions supplied with the component.
• The Control for HDMI function may not work if you
connect other than a Sony component, even if the
component is compatible with the Control for HDMI
function.
Note
Control for HDMI is a mutual control function
standard used by CEC (Consumer Electronics
Control) for HDMI (High-Definition
Multimedia Interface).
The Control for HDMI function will not work
when you connect this system to a component
which is not compatible with the Control for
HDMI function.
There are convenient buttons on the system’s
remote for operating the TV, such as
THEATRE, ONE-TOUCH PLAY, and AV ?/1.
For details, see “Remote control” (page 12) and
refer to the operating instructions of the TV.
THEATRE
ONE-TOUCH
PLAY
AV
TV
1
2
3
Make sure that the system and the TV
are connected with an HDMI cable.
Turn on the TV and other components
connected via the HDMI connection,
and press [/1 to turn on the system.
Set the Control for HDMI function of the
TV.
The Control for HDMI functions for the
system, TV, and other components are
simultaneously set to on.
To set the [Control for HDMI]
function of the system to on/off
manually
1
BRAVIA Sync
STB
• For details on setting the TV, refer to the operating
instructions of the TV.
Press HOME.
The home menu appears on the TV screen.
BD
2
Press C/c to select
[Setup].
49GB
3
4
Press X/x to select [System Settings],
then press
.
Press X/x to select [HDMI Settings],
then press
.
The [HDMI Settings] display appears.
5
6
Press X/x to select [Control for HDMI],
then press
.
Press X/x to select the setting, then
press
.
• [On]: On.
• [Off]: Off.
Enjoying a component that is
connected to the system via an
HDMI cable
(Routing Control)
When you perform One-Touch Play via the
connected component, the system turns on and
sets the system’s function to “HDMI1” or
“HDMI2” (depending on the HDMI jack in use),
and your TV’s input is set to the HDMI input to
which the system is connected automatically.
Note
Turning the system off in sync
with the TV
(System Power Off)
When you turn the TV off by using the POWER
button on the TV’s remote or AV ?/1 on the
system’s remote, the system turns off
automatically.
(Theatre Mode)
Note
Press THEATRE.
• This function depends on the settings of your TV. For
details, refer to the operating instructions of the TV.
If your TV is compatible with the Theatre Mode,
you can enjoy optimal image and sound quality
suited for movies, and the System Audio Control
function is activated automatically.
Watching BD/DVD by a single
button press
(One-Touch Play)
Press ONE-TOUCH PLAY.
The system and your TV turn on, your TV’s
input is set to the HDMI input to which the
system is connected, and the system starts
playing a disc automatically.
The System Audio Control function is also
activated automatically.
Also, when you insert a disc, One-Touch Play is
enabled. If One-Touch Play does not start (in the
case of inserting a disc that is not compatible
with the auto playback function), press
FUNCTION repeatedly to select “BD/DVD”
and press N or ONE-TOUCH PLAY.
50GB
• Make sure that the component is connected to the
HDMI (IN 1) or HDMI (IN 2) jack on the system via
an HDMI cable, and the Control for HDMI function
of the connected component is set to on.
Using the Theatre Mode
Enjoying the sound of the
content on the TV screen via
the system’s speakers
(System Audio Control)
You can simplify operation to enjoy sound of the
TV or other components.
To use this function, connect the system and the
TV with an audio cord and an HDMI cable, or
the system and the other components with
HDMI cables (pages 19, 21).
You can use the System Audio Control function
as follows:
• When the system is turned on, the sound of the
TV or other components can be output from
the speakers of the system.
• When sound of the TV or other components is
output from the speakers of the system, you
can change the output method to the speakers
of the TV via the TV menu.
• When sound of the TV or other components is
output from the speakers of the system, you
can adjust the volume and turn off the sound of
the system using the TV remote.
Note
• While the TV is in PAP (picture and picture) mode,
the System Audio Control function will not work.
• Depending on the TV, when you adjust the unit's
volume, the volume level appears on the TV screen.
In this case, the volume level that appears on the TV
screen and the unit's front panel display may differ.
(Volume Limit)
When the System Audio Control function is
activated, loud sound may be output depending
on the volume level of the system. You can
prevent this by limiting the maximum level of
the volume. For details, see [Volume Limit]
(page 63).
Receiving the digital audio
signal of the TV
(Audio Return Channel)
The system can receive the digital audio signal
of the TV via an HDMI cable when your TV is
compatible with the Audio Return Channel
function. You can enjoy TV sound via the
system by using just one HDMI cable. For
details, see [Audio Return Channel] (page 62).
(Language Follow)
When you change the language for the on-screen
display of the TV, the system’s on-screen
display language is also changed after turning
the system off and on.
Calibrating the
Appropriate Settings
Automatically
[Auto Calibration]
D. C. A. C. (Digital Cinema Auto Calibration)
can set the appropriate surround sound
automatically.
Note
Other Operations
Setting the Maximum Volume
Level of the System
Changing the language for the
on-screen display of the TV
• The system outputs a loud test sound when [Auto
Calibration] starts. You cannot turn the volume
down. Give consideration to children and neighbors.
1
Press HOME.
The home menu appears on the TV screen.
2
3
4
Press C/c to select
[Setup].
Press X/x to select [Audio Settings],
then press
.
Press X/x to select [Auto Calibration],
then press
.
The confirmation display for [Auto
Calibration] appears.
Operating the system via the
TV remote
(Remote Easy Control)
You can control the basic functions of the
system via the TV remote when the system’s
video output is displayed on the TV screen. For
details, refer to the operating instructions of the
TV.
51GB
5
Connect the calibration mic to the
A.CAL MIC jack on the rear panel.
Set up the calibration mic at ear level using
a tripod, etc. (not supplied). The front of
each speaker should face the calibration
mic, and there should be no obstruction
between the speakers and the calibration
mic.
back speakers (page 15), install the speakers in
appropriate location and turn the surround
amplifier on. To use the surround back speakers,
set [Surround Back] in [Speaker Settings] to
[Yes] (page 53)
8
Confirm the result of [Auto
Calibration].
The conclusions appear on the TV screen.
Press C/c to change the page. The first page
shows the distance of the speakers. The
second page shows the level of the
speakers.
Note
• If measurement fails, follow the message then
retry [Auto Calibration].
L
A.CA
MIC
C2
ECM-A
9
Press X/x to select [OK] or [Cancel],
then press
.
x The measurement is OK.
Disconnect the calibration mic, then select
[OK]. The result is implemented.
x The measurement is not OK.
Calibration mic
Follow the message, then select [OK] to
retry.
Note
6
Press X/x to select [OK].
To cancel, select [Cancel].
7
Press
.
[Auto Calibration] starts.
The system adjusts the speaker settings
automatically.
For proper calibration results, please
remain quiet during the measurement.
Note
• Before [Auto Calibration], make sure that the
surround amplifier turns on and you install the
surround amplifier in the appropriate location. If
you install the surround amplifier in an improper
location, such as another room, proper
measurement will not be obtained.
• When you use the Wireless Surround Speaker
Kit (WAHT-SBP2, optional) for the surround
52GB
• While the Auto Calibration function works:
– do not turn off the power.
– do not press any button.
– do not change the volume.
– do not change the function.
– do not change the disc.
– do not insert a disc.
– do not disconnect the calibration mic.
Setting the Speakers
[Speaker Settings]
To obtain the best possible surround sound, set
connection of the speakers and their distance
from your listening position. Then use the test
tone to adjust the level and the balance of the
speakers to the same level.
1
Press HOME.
The home menu appears on the TV screen.
2
Press C/c to select
[Setup].
3
4
Press X/x to select [Audio Settings],
then press
.
Press X/x to select [Speaker Settings],
then press
.
The [Speaker Settings] display appears.
5
3Front right speaker (R)
4Subwoofer
5Surround left speaker (L)
6Surround right speaker (R)
7Surround back left speaker (L) (optional)
8Surround back right speaker (R) (optional)
Press X/x to select the item, then press
.
1
2
3
Check the following settings.
4
x [Connection]
If you do not connect center or surround
speakers, set the parameters for [Center] and
[Surround]. Since the front speaker and
subwoofer settings are fixed, you cannot change
them.
When you use the Wireless Surround Speaker
Kit (WAHT-SBP2, optional) for the surround
back speakers (page 15), set [Surround Back]
also.
[Yes]
[Center]
[Yes]: Normally select this.
[None]: Select this if no center speaker is used.
[Surround]
[Yes]: Normally select this.
[None]: Select this if no surround speaker is
used.
[Surround Back]
[Yes]: Select this if surround back speakers are
used.
[None]: Select this if no surround back speakers
is used.
[Subwoofer]
[Yes]
6
7
A
8
[Front Left/Right] 3.0 m: Set the front speaker
distance.
[Center]* 3.0 m: Set the center speaker distance.
[Surround Left/Right]* 3.0 m: Set the surround
speaker distance.
[Surround Back Left/Right]* 3.0 m: Set the
surround back speaker distance.
[Subwoofer] 3.0 m: Set the subwoofer distance.
Other Operations
[Front]
A
5
* This item appears when you set it to [Yes] in the
[Connection] setting.
Note
• Depending on the input stream, [Distance] may not
be effective.
x [Level]
You can adjust the sound level of the speakers.
You can set the parameters from –6.0 dB to +6.0
dB. Be sure to set [Test Tone] to [On] for easy
adjustment.
x [Distance]
When you move the speakers, be sure to set the
parameters of the distance (A) from the
listening position to the speakers.
You can set the parameters from 0.0 to 7.0
meters.
The numbers in the illustration indicate the
following:
1Center speaker
2Front left speaker (L)
[Front Left/Right] 0.0 dB: Set the front speaker
level.
[Center]* 0.0 dB: Set the center speaker level.
[Surround Left/Right]* 0.0 dB: Set the surround
speaker level.
[Surround Back Left/Right]* 0.0 dB: Set the
surround back speaker level.
[Subwoofer] 0.0 dB: Set the subwoofer level.
* This item appears when you set it to [Yes] in the
[Connection] setting.
53GB
x [Test Tone]
The speakers will emit a test tone to adjust
[Level].
[Off]: The test tone is not emitted from the
speakers.
[On]: The test tone is emitted from each speaker
in sequence while adjusting level. When you
select one of the [Speaker Settings] items, the
test tone is emitted from each speaker in
sequence.
Adjust the sound level as follows.
1
2
3
4
5
6
7
9
You can set the system to turn off at a preset
time, so you can fall asleep listening to music.
The time can be preset in intervals of 10
minutes.
Press SLEEP.
Each time you press SLEEP, the minutes display
(the remaining time) changes by 10 minutes.
When you set the sleep timer, “SLEEP” flashes
in the front panel display.
Set [Test Tone] to [On].
To check the remaining time
Press X/x to select [Level], then press
.
Press SLEEP once.
Press X/x to select the desired speaker
type, then press
.
Press C/c to select the left or right
speaker, then press X/x to adjust the
level.
Press
.
Repeat Steps 3 to 5.
To change the remaining time
Press SLEEP repeatedly to select the desired
time.
Deactivating the Buttons
on the Unit
Press RETURN.
The system returns to the previous display.
8
Using the Sleep Timer
Press X/x to select [Test Tone], then
press
.
Press X/x to select [Off], then press
.
Note
• The test tone signals are not output from the HDMI
OUT jack.
Tip
• To adjust the volume of all the speakers at one time,
press 2 +/–.
(Child Lock)
You can deactivate the buttons on the unit
(except for "/1) for preventing misoperation,
such as child mischief (child lock function).
Press x on the unit for 5 seconds.
“CHILD LOCK” and “ON” appear in the front
panel display.
The child lock function is activated and the
buttons on the unit are locked. (You can operate
the system by using the remote.)
To cancel, press x for 5 seconds so that
“CHILD LOCK” and “OFF” appear in the front
panel display.
Note
• When you operate the buttons on the unit while the
child lock function is on, “CHILD LOCK” appears in
the front panel display.
54GB
Controlling Your TV or
Other Components with
the Supplied Remote
Button
Remote’s mode
STB
SLEEP
(ANALOG)
z
a
Color buttons
(red/green/
yellow/blue)
z
z
TOP MENU
( )
z
z
FAVORITES
z
z
POP UP/MENU
(t/ )
z
z
C/X/x/c,
z
z
RETURN
z
z
HOME (MENU)
z
z
OPTIONS
(TOOLS)
z
z
SOUND MODE
(
)
z
a
Note
./>
z
• When you replace the batteries of the remote, the
remote setting may be reset to the default (SONY)
setting.
m/M
z
a
H
z
a
X
z
a
x
z
a
You can control your TV and other components
such as a cable box or digital satellite receiver
with the supplied remote. The remote is initially
set to control Sony components.
You can control non-Sony components by
changing the preset code of the remote. For
operation, see “Changing the preset code of the
remote (Preset mode)” (page 56).
You can also set a new code which is not stored
on the remote. For operation, see “Programming
the remote code from another remote (Learning
mode)” (page 56).
Controlling your components
with the supplied remote
1
2
Press the TV or STB operation mode
button that matches the component
you want to control.
Press the appropriated buttons listed
in the following table.
• z: The button can be used with the
default setting of the remote.
• a: The button can be used when you
change the preset code of the remote.
Button
Remote’s mode
TV
STB
AV "/1
z
z
Number buttons
z
z
/
z
z
ENTER (-)
z
a
z
a
z
z
TONE
(DIGITAL)
z
z
Other Operations
TV
z
2 +/–
z
PROG +/–
(c/C)
z
z
DISPLAY
( / )
z
z
SYSTEM
MENU ( )
z
z
H while
pressing z (starts
recording)
z
z
X while pressing
z (pauses
recording)
z
x while pressing
z (stops
recording)
z
Note
• In TV or STB mode, if you press any of the buttons
above, the TV or STB operation mode button lights
up. (However, depending on the code setting, some
buttons may not work, and the TV or STB operation
mode button may not light up.)
55GB
• If you press other than the buttons above when the
remote is in TV or STB mode, the TV or STB
operation mode button does not light up.
• Depending on the TV or component, you may not be
able to use some of the buttons.
Changing the preset code of
the remote (Preset mode)
1
Press HOME.
The home menu appears on the TV screen.
2
3
4
5
6
7
Press C/c to select
[Setup].
Press X/x to select [Remote Controller
Setting Guide], then press
.
Press X/x to select [Preset Mode], then
press
.
Press X/x to select the component type
that you want to operate with the
supplied remote, then press
.
Press X/x to select the device’s
manufacturer, then press
.
Press POP UP/MENU while pressing
the operation mode button TV (for a TV)
or STB (for a cable box, digital satellite
receiver, digital video recorder, etc.).
Programming the remote code
from another remote (Learning
mode)
You can program a remote code that is not
stored in the supplied remote from a different
component’s remote, such as a TV remote.
Buttons other than THEATRE,
ONE-TOUCH PLAY, [/1, BD, TV, and STB
are assignable.
1
The home menu appears on the TV screen.
2
3
4
5
6
7
The remote enters Preset mode. The TV or
STB operation mode button (whichever
button you pressed) starts flashing.
8
When the TV or STB operation mode
button starts flashing, enter the code
on the TV screen using the number
buttons, then press ENTER.
If you successfully set the code, the TV or
STB operation mode button will flash twice
slowly. If the setting is unsuccessful, the
TV or STB operation mode button will
flash five times quickly.
Press HOME.
Press C/c to select
[Setup].
Press X/x to select [Remote Controller
Setting Guide], then press
.
Press X/x to select [Learning Mode],
then press
.
Press
.
Prepare the other remote with the
button which you want to program to
the supplied remote.
Press TOP MENU while pressing the
operation mode button TV (for a TV) or
STB (for a cable box, digital satellite
receiver, digital video recorder, etc.)
for one second.
The remote enters Learning mode. The BD
operation mode button lights up and the TV
or STB operation mode button (whichever
button you pressed) starts flashing.
8
Press the button on the supplied
remote to which you want to assign the
new remote code.
The TV or STB operation mode button
lights up.
Note
Note
• You can quit Preset mode by pressing the TV or STB
operation mode button (whichever button is
flashing).
• If you do not operate the remote for more than 10
seconds during presetting mode, the remote exits
from presetting mode.
56GB
• If the pressed button has already been assigned
a remote code, the TV or STB operation mode
button flashes five times quickly. In this case,
clear the learned remote code of the button
(page 57), then assign the new desired remote
code.
• You cannot use z individually. z is used with
H, X, or x. When learning, press H, X, or
x while pressing z.
9 Point the remotes at each other.
10 Press the button on the other remote
that you want to program to the
supplied remote.
Note
• If you do not press a button for more than 10
seconds after Step 8, the supplied remote status
returns to its status after Step 7. Re-perform
from Step 8.
11 Repeat Steps 8 to 10 to continue
programming more buttons.
1
Press and hold AV ?/1 first, then press
VOL –, then press CH –.
The BD, TV, and STB operation buttons
light up.
2
Release all buttons.
The BD, TV, and STB operation mode
buttons turn off and all the added remote
codes are cleared. The remote returns to its
default settings.
Note
• You can exit from Learning mode by pressing the TV
or STB operation mode button (whichever button is
flashing).
• If you do not press a button to be programmed during
Learning mode for more than 1 minute, the remote
exits from Learning mode.
To clear a programmed remote
code
1
2
Follow Steps 1 to 7 of “Programming
the remote code from another remote
(Learning mode).”
Saving Power in Standby
Mode
Check that the following settings are made:
– [Control for HDMI] in [HDMI Settings] is set
to [Off] (page 49).
– [Standby] in [S-AIR Settings] is set to [Off]
(page 46).
– [Quick Start Mode] is set to [Off] (page 63).
Other Operations
If you successfully program the remote
code, the BD operation mode button will
flash twice slowly. If the setting is
unsuccessful, the TV or STB operation
mode button will flash five times quickly.
Clearing all the preset and
programmed remote codes
from the remote’s memory
Press [/1 for more than 1 second.
The TV or STB operation mode button
flashes twice.
3
Press the button on the supplied
remote for which you want to clear the
remote code.
If you successfully clear the remote code,
the BD operation mode button will flash
twice slowly. If the clearing is
unsuccessful, the BD operation mode
button will flash five times quickly.
4
Repeat Step 3 to continue clearing
more buttons.
Note
• When you clear the programmed remote code, the
button’s operation returns to the default setting.
57GB
Icon
Explanation
[Screen Settings] (page 59)
Settings and Adjustments
Using the Setup Display
Makes the screen settings
according to the type of
connecting jacks.
[Audio Settings] (page 60)
You can make various adjustments of items such
as picture and sound.
Select
(Setup) on the home menu when you
need to change the settings of the system.
The default settings are underlined.
Note
• Playback settings stored in the disc take priority over
the Setup Display settings and not all the functions
described may work.
1
2
Makes the audio settings
according to the type of
connecting jacks.
[BD/DVD Viewing Settings]
(page 61)
Makes detailed settings for BD/
DVD playback.
[Parental Control Settings]
(page 62)
Makes detailed settings for the
Parental Control function.
Press HOME.
[Music Settings] (page 62)
The home menu appears on the TV screen.
Makes detailed settings for
Super Audio CD playback.
Press C/c to select
[System Settings] (page 62)
[Setup].
Makes the system-related
settings.
[Network Settings] (page 64)
Makes detailed settings for
Internet and network.
[Easy Setup] (page 64)
Re-runs the Easy Setup to make
the basic settings.
[Resetting] (page 64)
3
Press X/x to select the setup category
icon to change, then press
.
Resets the system to the factory
settings.
Example: [Screen Settings]
[Remote Controller
Setting Guide]
Setup
TV Type
Set the screen aspect ratio of your TV.
Screen Format
Original
DVD Aspect Ratio
Letter Box
x [Preset Mode]
Cinema Conversion Mode
Auto
You can change the preset code of the remote for
controlling non-Sony components. For details,
see “Changing the preset code of the remote
(Preset mode)” (page 56).
You can setup the following options.
Icon
Explanation
[Remote Controller Setting
Guide] (page 58)
Makes the remote settings for
operating the TV or other
components.
[Network Update] (page 59)
Updates the software of the
system.
58GB
x [Learning Mode]
You can assign a remote code for an operation
different from the preset operations of the
remote’s buttons. For details, see “Programming
the remote code from another remote (Learning
mode)” (page 56).
[Network Update]
You can update and improve the functions of the
system.
For information about update functions, refer to
the following website:
http://support.sony-europe.com/
During a software update, “UPDATING”
appears in the front panel display and video
signals via HDMI may not be displayed. After
the update completes, the main unit
automatically turns off. Please wait for the
software update to complete; do not turn the
main unit on or off, or operate the main unit or
TV.
x [3D Output Setting]
[Auto]: Normally select this.
[Off]: Select this to display all contents in 2D.
Note
• 3D video from the HDMI (IN 1) or HDMI (IN 2) jack
is output regardless of this setting.
x [DVD Aspect Ratio]
[Letter Box]: Displays a wide picture with black
bands on the top and bottom.
[Pan & Scan]: Displays a full-height picture on
the entire screen, with trimmed sides.
x [Cinema Conversion Mode]
[Auto]: Normally select this. The unit
automatically detects whether the material is
video-based or film-based, and switches to the
appropriate conversion method.
[Video]: The conversion method suited for
video-based material will always be selected
regardless of the material.
x [Output Video Format]
x [TV Screen Size Setting for 3D]
Sets the screen size of your 3D compatible TV.
Note
• This setting does not apply to 3D video from the
HDMI (IN 1) or HDMI (IN 2) jack.
x [TV Type]
[16:9]: Select this when connecting to a widescreen TV or a TV with a wide-mode function.
[4:3]: Select this when connecting to a 4:3
screen TV without a wide-mode function.
x [Screen Format]
[Original]: Select this when connecting to a TV
with a wide-mode function. Displays a 4:3
screen picture in 16:9 aspect ratio even on a
wide-screen TV.
Settings and Adjustments
[Screen Settings]
[Fixed Aspect Ratio]: Changes the picture size
to fit the screen size with the original picture
aspect ratio.
[HDMI]: Normally select [Auto]. Select
[Original Resolution] to output the resolution
recorded on the disc. (When the resolution is
lower than SD resolution, it is scaled up to SD
resolution.)
[Component Video]: Select the resolution that
suits your TV.
[Video]: Automatically sets the lowest
resolution.
Note
• When connecting the HDMI OUT jack and other
video output jacks at the same time, select
[Component Video].
• If no picture appears when setting [HDMI] or
[Component Video] resolution, try another resolution
setting.
59GB
[Audio Settings]
x [BD/DVD-ROM 1080/24p Output]
[Auto]: Outputs 1920 × 1080p/24 Hz video
signals only when connecting a 1080/24pcompatible TV using the HDMI OUT jack.
[Off]: Select this when your TV is not
compatible with 1080/24p video signals.
x [YCbCr/RGB (HDMI)]
[Auto]: Automatically detects the type of
external device, and switches to the matching
color setting.
[YCbCr (4:2:2)]: Outputs YCbCr 4:2:2 video
signals.
[YCbCr (4:4:4)]: Outputs YCbCr 4:4:4 video
signals.
[RGB]: Select this when connecting to a device
with an HDCP-compliant DVI jack.
x [HDMI Deep Colour Output]
[Auto]: Normally select this.
[12bit], [10bit]: Outputs 12bit/10bit video
signals when the connected TV is compatible
with Deep Colour.
[Off]: Select this when the picture is unstable or
colors appear unnatural.
x [Pause Mode] (BD/DVD VIDEO/DVD-R/
DVD-RW only)
[Auto]: The picture, including subjects that
move dynamically, is output with no jitter.
Normally select this position.
[Frame]: The picture, including subjects that do
not move dynamically, is output in high
resolution.
x [BD Audio MIX Setting]
[On]: Outputs the audio obtained by mixing the
interactive audio and secondary audio to the
primary audio.
[Off]: Outputs the primary audio only. Select
this when outputting HD audio signals to an AV
receiver.
x [Audio DRC]
You can compress the dynamic range of the
sound track.
[Auto]: Performs playback at the dynamic range
specified by the disc (BD-ROM only).
[Off]: No compression of dynamic range.
[On]: The system reproduces the sound track
with the kind of dynamic range that the
recording engineer intended.
x [Attenuate - AUDIO]
Distortion may occur when you listen to a
component connected to the AUDIO (AUDIO
IN L/R) jacks. You can prevent distortion by
reducing the input level on the unit.
[On]: Attenuates the input level. The output
level is changed.
[Off]: Normal input level.
x [Audio Output]
The system cannot output multi-channel sound
from both the HDMI (OUT) jack and system’s
speakers simultaneously.
[Speaker]: Outputs multi-channel sound from
the system’s speakers only.
[Speaker + HDMI]: Outputs multi-channel
sound from the system’s speakers and 2-channel
linear PCM signals from the HDMI (OUT) jack.
[HDMI]: Outputs multi-channel sound from the
HDMI (OUT) jack only. Sound format depends
on the connected component.
Note
• Even if [HDMI] or [Speaker + HDMI] is selected, the
sound of functions other than “BD/DVD,” “D.
60GB
MEDIA,” “HDMI1,” or “HDMI2” is output from the
system’s speakers, not from the HDMI (OUT) jack.
• When you set [Audio Output] to [HDMI], the
SOUND MODE, “TONE,” “NIGHT MODE,” and
“SUR.SETTING” functions are disabled.
• When the System Audio Control function (page 50)
is activated, this setting may change automatically.
x [Sound Effect]
You can set the system’s sound effects (SOUND
MODE, “TONE,” “NIGHT MODE,” and
“SUR.SETTING”) to on/off.
[On]: Enables all of the system’s sound effects.
The upper limit of sampling frequency is set to
48 kHz.
[Off]: The sound effects are disabled. Select this
when you do not want to set the upper limit of
sampling frequency.
x [Audio]
You can select the default track language for
BD-ROMs or DVD VIDEOs.
When you select [Original], the language given
priority in the disc is selected.
When you select [Select Language Code], the
display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 79).
x [Subtitle]
You can select the default subtitle language for
BD-ROMs or DVD VIDEOs.
When you select [Select Language Code], the
display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 79).
To obtain the best possible surround sound, set
the speakers. For details, see “Setting the
Speakers” (page 52).
x [Auto Calibration]
You can calibrate the appropriate settings
automatically. For details, see “Calibrating the
Appropriate Settings Automatically” (page 51).
[BD/DVD Viewing
Settings]
[BD]: Plays BD layer.
[DVD/CD]: Plays DVD or CD layer.
x [BD Internet Connection]
[Allow]: Normally select this.
[Do not allow]: Prohibits Internet connection.
x [BD Data Storage Options]
[Internal memory]: Selects the internal memory
to store BD data.
[USB device (front)]: Selects the
(USB) port
on the front panel to store BD data.
[USB device (rear)]: Selects the
(USB) port
on the rear panel to store BD data.
Settings and Adjustments
x [BD Hybrid Disc Playback Layer]
x [Speaker Settings]
You can make detailed settings for BD/DVD
playback.
x [BD/DVD Menu]
You can select the default menu language for
BD-ROMs or DVD VIDEOs.
When you select [Select Language Code], the
display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 79).
61GB
[Parental Control
Settings]
x [Password]
Set or change the password for the Parental
Control function. A password allows you to set
a restriction on BD-ROM, DVD VIDEO, or
Internet video playback. If necessary, you can
differentiate the restriction levels for
BD-ROMs, DVD VIDEOs, and Internet videos.
x [Parental Control Area Code]
Playback of some BD-ROMs or DVD VIDEOs
can be limited according to the geographic area.
Scenes may be blocked or replaced with
different scenes. Follow the on-screen
instructions and enter your four-digit password.
[Music Settings]
You can make detailed settings for Super Audio
CD playback.
x [Super Audio CD Playback Layer]
[Super Audio CD]: Plays the Super Audio CD
layer.
[CD]: Plays the CD layer.
x [Super Audio CD Playback Channels]
[DSD 2ch]: Plays the 2ch area.
[DSD Multi]: Plays the multi-channel area.
[System Settings]
You can make the system-related settings.
x [BD Parental Control]
Playback of some BD-ROMs can be limited
according to the age of the users. Scenes may be
blocked or replaced with different scenes.
Follow the on-screen instructions and enter your
four-digit password.
x [DVD Parental Control]
Playback of some DVD VIDEOs can be limited
according to a predetermined level such as the
age of the users. Scenes may be blocked or
replaced with different scenes. Follow the onscreen instructions and enter your four-digit
password.
x [Internet Video Parental Control]
Playback of some Internet videos can be limited
according to the age of the users. Scenes may be
blocked or replaced with different scenes.
Follow the on-screen instructions and enter your
four-digit password.
x [OSD]
You can select your language for the system onscreen displays.
x [S-AIR Settings]
You can set up the S-AIR settings. For details,
see “Using an S-AIR Product” (page 45).
[Info]: The selected S-AIR ID is displayed.
[Pairing]: You can pair the system and S-AIR
sub unit, such as a surround amplifier or S-AIR
receiver.
[RF Change]: If wireless transmission is
unstable, set this function.
[Mode]: You can enjoy the system’s sound in
another room.
[Standby]: You can enjoy the S-AIR receiver
while the unit is in standby mode.
x [Dimmer]
[Bright]: Bright lighting.
[Dark]: Low lighting.
x [Internet Video Unrated]
[Allow]: Allows the playback of unrated
Internet videos.
[Block]: Blocks the playback of unrated Internet
videos.
62GB
x [HDMI Settings]
By connecting Sony components that are
compatible with the Control for HDMI function
with an HDMI cable, operation is simplified.
For details, see “Using the Control for HDMI
Function for “BRAVIA” Sync” (page 49).
[Control for HDMI]
You can set the [Control for HDMI] function to
on/off.
[On]: On. You can operate mutually between
components that are connected with an HDMI
cable.
[Off]: Off.
[Audio Return Channel]
This function is available when you connect the
system and TV that is compatible with the Audio
Return Channel function.
[Auto]: The system can receive the digital audio
signal of the TV automatically via an HDMI
cable.
[Off]: Off.
x [Quick Start Mode]
[On]: Shortens the startup time from standby
mode. You can operate the system quickly after
turning it on.
[Off]: The default setting.
x [Auto Standby]
[On]: Turns on the [Auto Standby] function.
When you do not operate the system for about
30 minutes, the system enters standby mode
automatically.
[Off]: Turns off the function.
Note
• This function does not work while the sleep timer is
set.
x [Auto Display]
[On]: Automatically displays information on the
screen when changing the viewing titles, picture
modes, audio signals, etc.
[Off]: Displays information only when you
press DISPLAY.
[Volume Limit]
When the System Audio Control (page 50) is
activated, loud sound may be output depending
on the volume level of the system. You can
prevent this by limiting the maximum level of
the volume when the System Audio Control
function activates.
[Level3]: Maximum volume level is set to 15.
[Level2]: Maximum volume level is set to 20.
[Level1]: Maximum volume level is set to 30.
[Off]: Off.
x [Screen Saver]
[On]: Turns on the screen saver function.
[Off]: Off.
x [Software Update Notification]
Settings and Adjustments
Note
• This function is available only when [Control for
HDMI] is set to [On].
[On]: Sets the system to inform you of newer
software version information (page 58).
[Off]: Off.
Note
• This function is available only when [Control for
HDMI] is set to [On].
[HDMI1 Audio Input Mode]
You can select the audio input of the component
that is connected to the HDMI (IN 1) jack.
[HDMI1]: The sound of the component that is
connected to the HDMI (IN 1) jack is input from
the HDMI (IN 1) jack.
[SAT/CABLE]: The sound of the component
that is connected to the HDMI (IN 1) jack is
input from the DIGITAL IN (SAT/CABLE
OPT) jack.
x [Gracenote Settings]
[Auto]: Automatically downloads disc
information when you stop playback of the disc.
To download, the system must be connected to
the network.
[Manual]: Downloads disc information when
you select [Playback History] or [Information
Display] in the options menu.
x [DivX® VOD]
You can display the registration or
deregistration code for this system, or deregister
this system after registration.
When the registration is disabled
[Registration Code]: The registration code is
displayed.
63GB
[Deregistration Code]: The deregistration code
is displayed. (This item can be selected only
after the registration code is displayed.)
When the registration is enabled
Press C/c to select [OK] or [Cancel], then
press
.
[OK]: The device is deregistered and the
deregistration code is displayed.
[Cancel]: The system returns to the previous
display.
For more information, go to
http://www.divx.com on the Internet.
x [System Information]
You can display the system’s software version
information and the MAC address.
x [Renderer Options]
[Automatic Access Permission]: Sets whether or
not to allow automatic access from newly
detected DLNA controller.
[Smart Select]: Allows a Sony DLNA controller
to find the system as the target component to
operate by using the infrared ray. You can set
this function to on or off.
[Renderer Name]: Displays the system’s name
as it is listed on other DLNA devices on the
network.
x [Party Auto Start]
[On]: Starts a party or joins an existing party at
the request of a networked device compatible
with the PARTY STREAMING function.
[Off]: Off.
x [BD Remote Device Registration]
[Network Settings]
You can make detailed settings for Internet and
network.
Registers your “BD remote” device.
x [Registered BD Remote Devices]
Displays a list of your registered “BD remote”
devices.
x [Internet Settings]
Connect the system to the network beforehand.
For details, see “Step 3: Connecting to the
Network” (page 25).
[View Network Status]: Displays the current
network status.
[Wired Setup]: Select this when you connect to
a broadband router directly.
[USB Wireless Setup]: Select this when you use
a USB Wireless LAN Adapter.
For more information, go to
http://support.sony-europe.com/
x [Network Connection Diagnostics]
You can run the network diagnostics to check if
the network connection has been made properly.
x [Connection Server Settings]
Sets whether or not to display the connected
DLNA server.
64GB
[Easy Setup]
Re-runs the Easy Setup to make the basic
settings. Follow the on-screen instructions.
[Resetting]
x [Reset to Factory Default Settings]
You can reset the system settings to the factory
default by selecting the group of settings. All the
settings within the group will be reset.
x [Initialize Personal Information]
You can erase your personal information stored
in the system.
On operation
Additional Information
Precautions
On safety
• To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the system, or
place the system near water, such as near a bathtub or
shower room. Should any solid object or liquid fall
into the cabinet, unplug the system and have it
checked by qualified personnel before operating it
any further.
• Do not touch the AC power cord (mains lead) with
wet hands. Doing so may cause an electric shock.
On power sources
• Unplug the unit from the wall outlet (mains) if you do
not intend to use it for an extended period of time. To
disconnect the cord, pull it out by the plug, never by
the cord.
• Place the system in a location with adequate
ventilation to prevent heat build-up in the system.
• At high volume, over long periods of time, the cabinet
becomes hot to the touch. This is not a malfunction.
However, touching the cabinet should be avoided. Do
not place the system in a confined space where
ventilation is poor as this may cause overheating.
• Do not block the ventilation slots by putting anything
on the system. The system is equipped with a high
power amplifier. If the ventilation slots are blocked,
the system can overheat and malfunction.
• Do not place the system on surfaces (rugs, blankets,
etc.) or near materials (curtains, draperies) that may
block the ventilation slots.
• Do not install the system in a confined space, such as
a bookshelf or similar unit.
• Do not install the system near heat sources such as
radiators, air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration, or
shock.
• Do not install the system in an inclined position. It is
designed to be operated in a horizontal position only.
• Keep the system and discs away from components
with strong magnets, such as microwave ovens, or
large loudspeakers.
• Do not place heavy objects on the system.
On adjusting volume
• Do not turn up the volume while listening to a section
with very low level inputs or no audio signals. If you
do, the speakers may be damaged when a peak level
section is suddenly played.
On cleaning
• Clean the cabinet, panel, and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
If you have any questions or problems concerning
your system, please consult your nearest Sony dealer.
On cleaning discs, disc/lens
cleaners
• Do not use cleaning discs or disc/lens cleaners
(including wet or spray types). These may cause
the apparatus to malfunction.
Additional Information
On placement
• If the system is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture
may condense on the lenses inside the unit. Should
this occur, the system may not operate properly. In
this case, remove the disc and leave the system turned
on for about half an hour until the moisture
evaporates.
• When you move the system, take out any disc. If you
do not, the disc may be damaged.
• If anything falls into the cabinet, unplug the unit and
have it checked by qualified personnel before
operating it any further.
On replacement of parts
• In the events that this system is repaired, repaired
parts may be collected for reuse or recycling
purposes.
On your TV’s color
• If the speakers should cause the TV screen to have
color irregularity, turn off the TV then turn it on after
15 to 30 minutes. If color irregularity should persist,
place the speakers further away from the TV set.
IMPORTANT NOTICE
Caution: This system is capable of holding a still
video image or on-screen display image on your
television screen indefinitely. If you leave the still
video image or on-screen display image displayed
on your TV for an extended period of time you risk
permanent damage to your television screen.
Projection televisions are especially susceptible to
this.
65GB
On moving the system
• Before moving the system, make sure that there is no
disc inserted, and remove the AC power cord (mains
lead) from the wall outlet (mains).
About S-AIR function
• As the S-AIR products transmit sound by radio
waves, sound may skip when radio waves are
obstructed. This is a characteristic of radio waves and
is not malfunction.
• As the S-AIR products transmit sound by radio
waves, equipment that generates electromagnetic
energy, such as a microwave oven, may prevent
wireless transmission.
• As the S-AIR products use the radio waves that share
the same frequency as other wireless systems, such as
wireless LAN or Bluetooth devices, interference or
poor transmission may occur. In this case, take the
following steps to enhance the transmission of
signals:
– Avoid placing the S-AIR products near other
wireless systems.
– Avoid using the S-AIR products and the other
wireless systems simultaneously.
– The transmission may be improved by changing
the transmission channel (frequency) of the other
wireless system(s). For details, refer to the
operating instructions of the other wireless
system(s).
• The transmission distance differs depending on the
usage environment. Find locations where
transmission between the S-AIR main unit and sub
unit is most effective, and install the S-AIR main unit
and sub unit there.
• Place the S-AIR products on a stable surface.
• Poor transmission may occur and the transmission
distance may be too short if the following conditions
exist:
– There is a wall/floor made of reinforced concrete
or stone between the S-AIR products.
– There is an iron divider/door or furniture/electric
product made of fireproof glass, metal, etc.,
between the S-AIR products.
66GB
Notes about the Discs
On handling discs
• To keep the disc clean, handle the disc by its
edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave it in
a car parked in direct sunlight as the
temperature may rise considerably inside the
car.
• After playing, store the disc in its case.
On cleaning
• Before playing, clean the disc with a cleaning
cloth.
Wipe the disc from the center out.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, or anti-static
spray intended for vinyl LPs.
This system can only play a standard circular
disc. Using neither standard nor circular discs
(e.g., card, heart, or star shape) may cause a
malfunction.
Do not use a disc that has a commercially
available accessory attached, such as a label or
ring.
Troubleshooting
If you experience any of the following difficulties while using the system, use this troubleshooting
guide to help remedy the problem before requesting repairs. Should any problem persist, consult your
nearest Sony dealer.
Note that if service personnel changes some parts during repair, these parts may be retained.
In the event of a problem with the S-AIR function, have a Sony dealer check the entire system together
(S-AIR main unit and sub unit).
Power
Symptom
Problems and solutions
The power is not turned on.
• Check that the AC power cord (mains lead) is connected securely.
“PROTECTOR” and “PUSH
POWER” appear alternately in
the front panel display.
Press "/1 to turn off the system, and check the following items after
“STANDBY” disappears.
• Are the + and – speaker cords short-circuited?
• Are you using only the specified speakers?
• Is anything blocking the ventilation holes of the system?
• After checking the above items and fixing any problems, turn on the system. If
the cause of the problem cannot be found even after checking all the above
items, consult your nearest Sony dealer.
Symptom
Problems and solutions
The remote does not function.
• The distance between the remote and the unit is too far.
• The batteries in the remote are weak.
• When you cannot perform menu operations via the front panel display, press
HOME on the remote.
The system does not work
normally.
• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then
reconnect after several minutes.
Additional Information
General
Symptom
Problems and solutions
There is no picture.
• Check the video connection (page 19).
• The unit is not connected to the correct TV input jack (page 19).
• The video input on the TV is not set so that you can view pictures from the
system.
• Check the output method on your system (page 19).
• The unit is connected to an input device that is not HDCP (High-bandwidth
Digital Content Protection) compliant (“HDMI” on the front panel does not
light up) (page 19).
• When playing a double-layer DVD, the video and audio may be momentarily
interrupted at the point where the layers switch.
3D images from the HDMI (IN
1) or HDMI (IN 2) jack do not
appear on the TV screen.
• Depending on the TV or video component, 3D images may not appear.
67GB
Symptom
Problems and solutions
No picture appears when the
• Press and hold N and VOLUME – on the unit for more than 5 seconds to reset
video output resolution selected the video output resolution to the lowest resolution.
in [Output Video Format] is
incorrect.
Video signals are only output
from the HDMI (OUT) jack
when connecting the HDMI
(OUT) jack and other video
output jacks at the same time.
• Set [Output Video Format] in [Screen Settings] to [Component Video]
(page 59).
The dark area of the picture is too • Set [Picture Quality Mode] to [Standard] (default) (page 37).
dark/the bright area is too bright
or unnatural.
The picture is not output
correctly.
• Check the [Output Video Format] settings in [Screen Settings] (page 59).
• If the analog and digital signals are output at the same time, set [BD/DVDROM 1080/24p Output] in [Screen Settings] to [Off] (page 60).
• For BD-ROMs, check the [BD/DVD-ROM 1080/24p Output] settings in
[Screen Settings] (page 60).
Picture noise appears.
• The disc is dirty or flawed.
• If the picture output from your system goes through your VCR to get to your
TV, the copy-protection signal applied to some BD/DVD programs could affect
picture quality. If you still experience problems even when you connect your
unit directly to your TV, try connecting your unit to the other input jacks.
Even though you set the aspect • The aspect ratio on the disc is fixed.
ratio in [TV Type] of [Screen
Settings], the picture does not fill
the TV screen.
Color irregularity occurs on the
TV screen.
• If the speakers are used with a CRT-based TV or projector, install the speakers
at least 0.3 meters from the TV set.
• If the color irregularity persists, turn off the TV set once, then turn it on after 15
to 30 minutes.
• Make sure that no magnetic object (magnetic latch on a TV stand, health care
device, toy, etc.) is placed near the speakers.
Sound
Symptom
Problems and solutions
There is no sound.
• The speaker cord is not connected securely.
• Check the speaker settings (page 52).
• Fast forward or fast reverse is performed. Press N to return to normal play
mode.
• Slow forward or freeze frame is performed. Press N to return to normal play
mode.
• Set [Audio Output] to [Speaker] (page 60).
No sound is output from the
HDMI OUT jack.
• Set [Audio Output] to [HDMI] (page 60).
The Super Audio CD sound of a • HDMI (IN 1) and HDMI (IN 2) does not accept an audio format that contains
component that is connected to
copy protection. Connect the analog audio output of the component to the
the HDMI (IN 1) or HDMI (IN
AUDIO (AUDIO IN L/R) jacks of the unit.
2) jack is not output.
The left and right sounds are
unbalanced or reversed.
68GB
• Check that the speakers and components are connected correctly and securely.
Symptom
Problems and solutions
There is no sound from the
subwoofer.
• Check the speaker connections and settings (pages 18, 52).
There is no digital sound from
• Set [Control for HDMI] in [HDMI Settings] of [System Settings] to [On]
the HDMI (OUT) jack when
(page 62). Also, set [Audio Return Channel] in [HDMI Settings] of [System
using the Audio Return Channel Settings] to [Auto] (page 62).
function.
• Make sure that your TV is compatible with the Audio Return Channel function.
• Make sure that an HDMI cable is connected to a jack on your TV that is
compatible with the Audio Return Channel function.
• The sampling frequency of the input stream is more than 48 kHz.
The system does not output
• Set [Audio Return Channel] in [HDMI Settings] of [System Settings] to [Off]
sound correctly when connected (page 51).
to a set-top box.
Severe hum or noise is heard.
• Check that the connecting cords are away from a transformer or motor, and at
least 3 meters away from your TV set or a fluorescent light.
• Move your TV away from the audio components.
• Clean the disc.
The sound loses stereo effect
when you play a CD.
• Select stereo sound by pressing
(page 39).
The sound comes from the center • Depending on the disc, the sound may come from the center speaker only.
speaker only.
No sound is heard from the
center speaker.
• Check the speaker connections and settings (pages 18, 52).
• Check the surround setting (page 30).
• Depending on the source, the effect of the center speaker may be less
noticeable.
• A 2 channel source is being played.
No sound or only a very lowlevel sound is heard from the
surround speakers.
• Check the speaker connections and settings (pages 18, 52).
• Check the surround setting (page 30).
• Depending on the source, the effect of the surround speakers may be less
noticeable.
• Check the wireless setting (page 26).
• A 2 channel source is being played.
Additional Information
The surround effect is difficult to • Check the surround setting (page 30).
hear when you are playing a
• Check the speaker connections and settings (pages 18, 52).
sound track of Dolby Digital,
• Depending on the BD/DVD, the output signal may not be the entire 5.1 channel.
DTS, or MPEG audio.
It may be monaural or stereo even if the sound track is recorded in Dolby
Digital or MPEG audio format.
The beginning of the sound is cut • Set the sound mode to “MOVIE” or “MUSIC” (page 39).
off.
• Select “A.F.D. STD” for “SUR.SETTING” (page 30).
The sound effects are disabled.
• The effects of SOUND MODE, “TONE,” “NIGHT MODE,” and
“SUR.SETTING” may be disabled depending on the input stream (page 61).
Distortion occurs in the sound of • Reduce the input level for the connected component by setting [Attenuate a connected component.
AUDIO] (page 60).
69GB
Symptom
Problems and solutions
There is no sound from the
surround speakers or surround
back speakers.
Check the status of the S-AIR/STANDBY indicator on the surround amplifier.
• Turns off.
– Check that the AC power cord (mains lead) of the surround amplifier is
connected securely.
– Turn the surround amplifier on by pressing "/1 on the surround amplifier.
• Flashes orange.
– Check that the wireless transceiver is inserted into the surround amplifier
correctly (page 24).
• Flashes green quickly.
– Set the SURROUND SELECTOR switch of the surround amplifier to
SURROUND (page 26).
– If there is no sound from the surround back speakers, set [Surround Back] in
[Speaker Settings] to [Yes] (page 53).
• Flashes red.
– Press "/1 to turn off the surround amplifier, and check the following items.
1Are the + and – speaker cords short-circuited?
2Is anything blocking the ventilation holes of the surround amplifier?
After checking the above items and fixing any problems, turn on the
surround amplifier. If the cause of the problem cannot be found even after
checking all the above items, consult your nearest Sony dealer.
• Flashes green slowly or turns red.
– Confirm the S-AIR IDs of the unit and S-AIR sub unit (page 45).
– Confirm the pairing setting (page 47).
– See “If wireless transmission is unstable” (page 48).
– Sound transmission is poor. Move the surround amplifier so that the S-AIR/
STANDBY indicator turns green.
– Move the system away from other wireless devices.
– Avoid using any other wireless devices.
• Turns green.
– The speaker cord is not connected securely.
– Check the speaker connections and settings.
– Depending on the source or the settings of the S-AIR main unit, the effect of
the speakers may be less noticeable.
Operation
70GB
Symptom
Problems and solutions
Radio stations cannot be tuned
in.
• Check that the antenna (aerial) is connected securely. Adjust the antenna
(aerial) or connect an external antenna (aerial) if necessary.
• The signal strength of the stations is too weak (when tuning in with automatic
tuning). Use direct tuning.
The disc does not play.
• You are attempting to play a disc with a format that cannot be played back by
this system (page 74).
• The region code on the BD/DVD does not match the system.
• Moisture has condensed inside the unit and may cause damage to the lenses.
Remove the disc and leave the unit turned on for about half an hour.
• The system cannot play a recorded disc that is not correctly finalized (page 74).
Symptom
Problems and solutions
File names are not displayed
correctly.
• The system can only display ISO 8859-1-compliant character formats. Other
character formats may be displayed differently.
• Depending on the writing software used, the input characters may be displayed
differently.
A disc does not start playing
from the beginning.
• Resume play has been selected. Press OPTIONS and select [Play from start],
then press .
• The title or BD/DVD menu automatically appears on the TV screen.
Playback does not start from the • The resume point may be cleared from memory depending on the disc when
resume point where you last
– you open the disc tray.
stopped playing.
– you disconnect the USB device.
– you play other content.
– you turn off the unit.
The system starts playing the
disc automatically.
• The BD/DVD features an auto playback function.
Playback stops automatically.
• Some discs may contain an auto pause signal. While playing such a disc, the
system stops playback at the auto pause signal.
You cannot perform some
• Depending on the disc, you may not be able to perform some of the operations.
functions such as stop or search. Refer to the operating instructions supplied with the disc.
• In the Setup Display, select the desired language for the on-screen display in
[OSD] in [System Settings] (page 62).
The language for the soundtrack/ • Try using the BD’s or DVD’s menu.
subtitle or angles cannot be
• Multi-lingual tracks/subtitles or multi-angles are not recorded on the BD or
changed.
DVD being played.
• The BD or DVD prohibits the changing of the language for the sound track/
subtitle or angles.
The disc tray does not open and • Try the following: 1 Press and hold N and Z on the unit for more than 5
you cannot remove the disc even seconds to open the disc tray. 2 Remove the disc. 3 Disconnect the AC power
after you press Z.
cord (mains lead) from the wall outlet (mains), then reconnect after several
minutes.
Additional Information
Messages do not appear on the
TV screen in the language you
want.
A disc cannot be ejected and
• Contact your Sony dealer or local authorized Sony service facility.
“LOCKED” appears in the front
panel display.
The Control for HDMI function • Set [Control for HDMI] in [HDMI Settings] of [System Settings] to [On]
does not work.
(page 62).
• Make sure that the connected component is compatible with the [Control for
HDMI] function.
• Check the connected component’s setting for the Control for HDMI function.
Refer to the operating instructions supplied with the component.
• If you change the HDMI connection, connect and disconnect the AC power
cord (mains lead), or have a power failure, set [Control for HDMI] in [HDMI
Settings] of [System Settings] to [Off], then set [Control for HDMI] to [On]
(page 62).
• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”
(page 49).
• Make sure that the connected TV is compatible with the System Audio Control
No sound is output from the
function.
system and TV while using the
System Audio Control function. • For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”
(page 49).
71GB
Symptom
Problems and solutions
Bonus contents or other data that • Try the following: 1 Remove the disc. 2 Turn the system off. 3 Remove and
are contained in a BD-ROM
reconnect the USB device (page 33). 4 Turn the system on. 5 Insert the BDcannot be played.
ROM with BONUSVIEW/BD-LIVE.
The unit does not work and
• Set the child lock function to off (page 54).
“CHILD LOCK” appears in the
front panel display when you
press any button on the unit.
The system menu does not work. • Press HOME on the remote.
USB device
Symptom
Problems and solutions
The USB device is not
recognized.
• Try the following: 1 Turn the system off. 2 Remove and reconnect the USB
device. 3 Turn the system on.
• Make sure that the USB device is securely connected to the
(USB) port.
• Check if the USB device or a cable is damaged.
• Check if the USB device is on.
• If the USB device is connected via a USB hub, disconnect it and connect the
USB device directly to the unit.
S-AIR
72GB
Symptom
Problems and solutions
Wireless transmission is not
activated. (The indicator of the
S-AIR sub unit flashes green
slowly or turns red.)
• Check that the wireless transceiver is inserted correctly into the unit and S-AIR
sub unit (page 24).
• Confirm the S-AIR IDs of the unit and S-AIR sub unit (page 45).
• Confirm the pairing setting (page 47).
• See “If wireless transmission is unstable” (page 48).
• Sound transmission is poor. Move the S-AIR sub unit so that the indicator turns
green.
• Move the system away from other wireless devices.
• Avoid using any other wireless devices.
There is no sound from the
S-AIR sub unit, noise is heard
from the S-AIR sub unit, or
sound from the S-AIR sub unit
skips.
• If you use another S-AIR main unit, place it more than 8 meters away from the
unit.
• Place the S-AIR main unit and S-AIR sub unit closer together.
• Avoid use of equipment that generates electromagnetic energy, such as a
microwave oven.
• Place the S-AIR main unit and S-AIR sub unit away from other wireless
products.
• See “If wireless transmission is unstable” (page 48).
• Change the S-AIR ID settings of the S-AIR main unit and S-AIR sub unit.
• Turn off the system and S-AIR sub unit, then turn them on.
BRAVIA Internet Video
Symptom
Problems and solutions
The picture/sound is poor/certain • Picture/sound quality may be poor depending on Internet content providers.
programs display with a loss of • Picture/sound quality may be improved by changing the connection speed.
detail, especially during fastSony recommends a connection speed of at least 2.5 Mbps for standardmotion or dark scenes.
definition video and 10 Mbps for high-definition video.
• Not all videos contain sound.
The picture is small.
• Press X to zoom in.
Network connection
Symptom
Problems and solutions
The system cannot connect to the • Check the network connection (page 25) and the network settings (page 64).
network.
• The wireless settings of the router may change automatically if you use the WiFi Protected Setup function before adjusting the settings of the router. In this
case, change the wireless settings of your PC accordingly.
You cannot connect the system
to your wireless LAN router.
• Check if the wireless LAN router is on.
• Depending on the usage environment, including the wall material, radio wave
reception conditions, or obstacles between the system and the wireless LAN
router, the possible communication distance may be shortened. Move the
system and the wireless LAN router closer to each other.
• Devices that use a 2.4 GHz frequency band, such as a microwave, Bluetooth, or
digital cordless device, may interrupt the communication. Move the unit away
from such devices, or turn off such devices.
The desired wireless router is not • Press RETURN to return to the previous screen, and try [Scan] again. If the
detected even if [Scan] is
desired wireless router is still not detected, press RETURN to select [Manual
performed.
registration].
The message [A new software
version has been found on the
network. Perform update under
“Network Update.”] appears on
the screen when turning the
system on.
• See [Network Update] (page 58) to update the system to a newer software
version.
Additional Information
You cannot connect your PC to
the Internet after [Wi-Fi
Protected Setup (WPS)] is
performed.
Other
Symptom
Problems and solutions
“Exxxx” appears in the front
panel display.
• Contact your nearest Sony dealer or local authorized Sony service facility and
give the error code.
73GB
Playable Discs
Blu-ray Disc1)
BD-ROM
BD-R2)/BD-RE2)
DVD3)
DVD-ROM
DVD-R/DVD-RW
DVD+R/DVD+RW
CD3)
CD-DA (Music CD)
CD-ROM
CD-R/CD-RW
Super Audio CD
1)Since
the Blu-ray Disc specifications are new and
evolving, some discs may not be playable depending
on the disc type and the version. Also, the audio
output differs depending on the source, connected
output jack, and selected audio settings.
2)BD-RE: Ver.2.1
BD-R: Ver.1.1, 1.2, 1.3 including organic pigment
type BD-R (LTH type)
BD-Rs recorded on a PC cannot be played if
postscripts are recordable.
3)
A CD or DVD disc will not play if it has not been
correctly finalized. For more information, refer to the
operating instructions supplied with the recording
device.
Discs that cannot be played
•
•
•
•
•
•
•
•
BDs with cartridge
DVD-RAMs
HD DVDs
DVD Audio discs
PHOTO CDs
Data part of CD-Extras
VCDs/Super VCDs
Audio material side on DualDiscs
Notes on discs
This product is designed to playback discs that
conform to the Compact Disc (CD) standard.
DualDiscs and some music discs encoded with
copyright protection technologies do not
conform to the Compact Disc (CD) standard.
Therefore, these discs may not be compatible
with this product.
74GB
Note on playback operations of a
BD/DVD
Some playback operations of a BD/DVD may be
intentionally set by software producers. Since
this system plays a BD/DVD according to the
disc contents the software producers designed,
some playback features may not be available.
Note about double-layer BDs/
DVDs
The playback picture and sound may be
momentarily interrupted when the layers switch.
Region code (BD-ROM/DVD
VIDEO only)
Your system has a region code printed on the
rear of the unit and will only play a BD-ROM/
DVD VIDEO (playback only) labeled with
identical region codes or ALL .
7)
Playable Types of Files
The system does not play these files via the DLNA
renderer function.
Note
Video7)
File format
Extensions
MPEG-1 Video/PS1)5)
MPEG-2 Video/PS,
TS1)6)
“.mpg,” “.mpeg,” “.m2ts,”
“.mts”
DivX2)
“.avi,” “.divx”
MPEG4/AVC1)5)
“.mkv,” “.mp4,” “.m4v,”
“.m2ts,” “.mts”
WMV91)5)
“.wmv,” “.asf”
AVCHD5)
3)
Music
Extensions
MP3 (MPEG-1 Audio
Layer III)
“.mp3”
AAC1)4)5)
“.m4a”
WMA9 Standard1)4)
“.wma”
LPCM
“.wav”
Photo7)
File format
Extensions
JPEG
“.jpg,” “.jpeg,” “.jpe”
1)The
system does not play files encoded with DRM.
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, Inc. This is an official DivX
Certified device that plays DivX video. Visit
www.divx.com for more information and software
tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified® device must be registered in order to play
DivX Video-on-Demand (VOD) content. To
generate the registration code, locate the DivX VOD
section in the device setup menu. Go to
vod.divx.com with this code to complete the
registration process and learn more about DivX
VOD.
3)The system plays AVCHD-format files that are
recorded via a digital video camera, etc. To watch
AVCHD-format files, the disc with AVCHD-format
files on it must be finalized.
4)The system does not play files encoded with
Lossless, etc.
5)The system does not play these files via the DLNA
function.
6)
The system plays SD resolution only via the DLNA
function.
2)
Additional Information
File format
• Some files may not play depending on the file format,
the file encoding, the recording condition, or DLNA
server condition.
• Some files edited on a PC may not play.
• The system can recognize the following files or
folders in BDs, DVDs, CDs and USB devices:
– up to folders in the 5th tree
– up to 500 files in a single tree
• The system can recognize the following files or
folders stored in the DLNA server:
– up to folders in the 20th tree
– up to 999 files in a single tree
• Some USB devices may not work with this system.
• The system can recognize Mass Storage Class (MSC)
devices (such as flash memory or an HDD) that are
FAT-compatible and non-partitioned, Still Image
Capture Devices (SICDs), and 101-key keyboards
(front
(USB) port only).
• To avoid data corruption or damage to USB memory
or other devices, turn the system off before
connecting or removing USB memory or other
devices.
• The system may not play high bit rate video files from
a DATA CD smoothly. It is recommended to play
high bit rate video files using a DATA DVD.
75GB
Supported Audio Formats
Audio formats supported by this system are as follows.
Format
LPCM 2ch
Function
LPCM 5.1ch,
LPCM 7.1ch
Dolby Digital
Dolby
TrueHD,
Dolby Digital
Plus
DTS
DTS-ES
Discrete 6.1,
DTS-ES
Matrix 6.1,
DTS96/24
DTS-HD
High
Resolution
Audio
DTS-HD
Master
Audio
“BD/DVD”
a
a
a
a
a
a
a
a
“HDMI (IN 1)”
“HDMI (IN 2)”
a
a
a
–
a
–
–
–
“SAT/CABLE”
“TV”
(DIGITAL IN)
a
–
a
–
a
–
–
–
a: Supported format.
–: Unsupported format.
Note
• HDMI (IN 1) and HDMI (IN 2) do not input sound in the case of an audio format that contains copy protections
such as Super Audio CD or DVD-Audio.
Video Output Resolution
Output resolution differs depending on the [Output Video Format] setting in [Screen Settings]
(page 59).
Resolution
setting
When [Output Video Format] is set to
[HDMI]
VIDEO OUT
jack
COMPONENT
VIDEO OUT
jacks
HDMI OUT
jack
When [Output Video Format] is set to
[Component Video]
VIDEO OUT
jack
COMPONENT
VIDEO OUT
jacks
HDMI OUT
jack
480i/576i
480i/576i
480i/576i
480i/576i
480i/576i
480i/576i
480i/576i
480p/576p
480i/576i
480p/576p
480p/576p
480i/576i
480p/576p
480p/576p
720p
480i/576i
720p*
720p
480i/576i
720p*
720p
1080i
480i/576i
1080i*
1080i
480i/576i
1080i*
1080i
1080p
480i/576i
1080i*
1080p
unselectable
unselectable
unselectable
* Protected contents on DVDs are output at 480p/576p resolution.
When [Output Video Format] is set to [Video]
480i/576i video signals are output from the VIDEO OUT or COMPONENT VIDEO OUT jack, and
480p/576p video signals are output from the HDMI OUT jack.
76GB
LAN Section
Specifications
LAN (100) terminal
100BASE-TX Terminal
Tuner Section
System
Amplifier Section
POWER OUTPUT (rated)
Front L + Front R:
105 W + 105 W (at 3 ohms,
1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R/Center: 167 W (per channel at 3
ohms, 1 kHz)
Subwoofer:
165 W (at 3 ohms, 80 Hz)
Inputs (Analog)
AUDIO (AUDIO IN)
Sensitivity: 450/250 mV
Inputs (Digital)
DIGITAL IN (SAT/CABLE OPT), DIGITAL IN (TV
OPT)
Supported formats: LPCM
2CH (up to 48 kHz), Dolby
Digital, DTS
Video Section
Outputs
PB/CB, PR/CR: 0.7 Vp-p
75 ohms
HDMI Section
Connector
Video inputs
Type A (19pin)
HDMI (IN 1), HDMI (IN
2):
640 × [email protected] Hz
720 × [email protected]/60 Hz
720 × [email protected]/60 Hz
1280 × [email protected]/60 Hz
1920 × [email protected]/
60 Hz
1920 × [email protected]/
60 Hz
720 × [email protected] Hz
720 × [email protected] Hz
1280 × [email protected] Hz
1920 × [email protected] Hz
1920 × [email protected] Hz
1920 × [email protected] Hz
BD/DVD/Super Audio CD/CD System
Signal format system
PAL/NTSC
USB Section
(USB) port:
Maximum current:
Type A (For connecting
USB memory, memory
card reader, digital still
camera, and digital video
camera)
500 mA
FM tuner section
Tuning range
87.5 MHz - 108.0 MHz
(50 kHz step)
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
Speakers
Front/Surround (SS-TSIZ1)
Speaker system
2-Way 2-Driver speaker
system, Bass reflex
Speaker unit
Tweeter:
20 mm cone type
Woofer:
40 mm × 70 mm cone type
Rated impedance
3 ohms
Dimensions (approx.)
Front speaker (after assembly):
200 mm × 1,100 mm ×
230 mm (w/h/d) (vertical
angle)
200 mm × 1,100 mm ×
255 mm (w/h/d) (upward
angle)
Surround speaker (after assembly):
103 mm × 335 mm ×
103 mm (w/h/d) (vertical
angle)
103 mm × 356 mm ×
103 mm (w/h/d) (upward
angle)
Mass (approx.)
Front speaker (after assembly):
2.9 kg
Surround speaker (after assembly):
0.6 kg
Additional Information
VIDEO: 1 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
PLL quartz-locked digital
synthesizer
Center (SS-CTB101)
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Full range Acoustic
suspension, Magnetically
Shielded
30 mm × 60 mm cone type
3 ohms
290 mm × 49 mm × 49 mm
(w/h/d)
0.28 kg
Subwoofer (SS-WSIZ1)
Speaker system
Speaker unit
Rated impedance
Subwoofer Bass reflex
180 mm cone type
3 ohms
77GB
Dimensions (approx.)
Mass (approx.)
275 mm × 405 mm × 275
mm (w/h/d)
7.5 kg
General
Power requirements
Power consumption
Dimensions (approx.)
Mass (approx.)
220 V - 240 V AC,
50/60 Hz
On: 110 W
Standby: 0.3 W (at the
Power Saving mode)
430 mm × 83 mm × 355
mm (w/h/d) incl.
projecting parts such as the
wireless transceiver slot;
430 mm × 83 mm × 384
mm (w/h/d) incl. the
wireless transceiver
(EZW-RT10)
5.3 kg
Surround amplifier (TA-SA200WR)
Amplifier Section
POWER OUTPUT (rated) 80 W + 80 W (at 3 ohms, 1
kHz, 1% THD)
POWER OUTPUT (reference)
167 W (per channel at 3
ohms, 1 kHz)
Rated impedance
3 - 16 Ω
General
Power requirements
220 V - 240 V AC,
50/60 Hz
Power consumption
On: 50 W
Standby power consumption
1 W (standby mode)
0.18 W (turned off)
Dimensions (approx.)
206 mm × 60 mm × 256
mm (w/h/d) with the
wireless transceiver
inserted
Mass (approx.)
1.3 kg
Wireless transceiver (EZW-RT10/EZWRT10A)
Communication system
Frequency band
Modulation method
Power requirements
Dimensions (approx.)
Mass (approx.)
S-AIR Specification
version 1.0
2.4000 GHz - 2.4835 GHz
DSSS
DC 3.3 V, 350 mA
50 mm × 13 mm × 60 mm
(w/h/d)
24 g
Design and specifications are subject to change
without notice.
78GB
• Standby power consumption 0.3W (main unit),
0.18W (surround amplifier).
• Halogenated flame retardants are not used in the
certain printed wiring boards.
• Over 85% power efficiency of amplifier block is
achieved with the full digital amplifier, S-Master.
Language Code List
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code Language
Code Language
Code Language
1027
1028
1032
1039
1044
1045
1051
1052
1053
1057
1059
1060
1061
1066
1183
1186
1194
1196
1203
1209
1217
1226
1229
1233
1235
1239
1245
1248
1253
1254
1257
1261
1269
1283
1287
1297
1298
1299
1300
1301
1305
1307
1311
1313
1326
1327
1332
1334
1345
1347
1349
1350
1352
1353
1356
1357
1358
1363
1365
1369
1376
1379
1393
1403
1408
1417
1428
1435
1436
1463
1481
1507
1508
1509
1511
1512
1513
1514
1515
1516
1517
1521
1525
1527
1528
1529
1531
1532
1534
1535
1538
1539
1540
1543
1557
1564
1572
1581
1587
1613
1632
1665
1684
1697
Samoan
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
Tonga
Turkish
Tsonga
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
1703
Not specified
1067
1070
1079
1093
1097
1103
1105
1109
1130
1142
1144
1145
1149
1150
1151
1157
1165
1166
1171
1174
1181
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali;
Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian; Lettish
Malagasy
1482
1483
1489
1491
1495
1498
1501
1502
1503
1505
1506
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan)Oromo
Oriya
Punjabi
Polish
Pashto; Pushto
Portuguese
Quechua
RhaetoRomance
Kirundi
Romanian
Russian
Kinyarwanda
Sanskrit
Sindhi
Sangho
Serbo-Croatian
Singhalese
Slovak
Slovenian
Additional Information
Code Language
Parental Control/Area Code List
Code Area
Code Area
Code Area
Code Area
2044
2047
2046
2057
2070
2090
2092
2093
2115
2165
2174
2109
2200
2219
2248
2238
2239
2254
2276
2304
2333
2363
2362
2376
2390
2379
2427
2424
2428
2436
2489
2501
2149
2499
2086
2543
2528
2184
Argentina
Australia
Austria
Belgium
Brazil
Chile
China
Colombia
Denmark
Finland
France
Germany
Greece
Hong Kong
India
Indonesia
Ireland
Italy
Japan
Korea
Luxembourg
Malaysia
Mexico
Netherlands
New Zealand
Norway
Pakistan
Philippines
Poland
Portugal
Russia
Singapore
Spain
Sweden
Switzerland
Taiwan
Thailand
United
Kingdom
79GB
BD-ROM
Glossary
AVCHD
The AVCHD format is a high-definition digital
video camera format used to record SD
(standard definition) or HD (high definition)
signals of either the 1080i specification* or the
720p specification** on DVDs, using efficient
data compression coding technology. The
MPEG-4 AVC/H.264 format is adopted to
compress video data, and the Dolby Digital or
Linear PCM system is used to compress audio
data. The MPEG-4 AVC/H.264 format is
capable of compressing images at higher
efficiency than that of the conventional image
compression format. The MPEG-4 AVC/H.264
format enables a high definition (HD) video
signal shot on a digital video camera recorder to
be recorded on DVD discs in the same way as it
would be for a standard definition (SD)
television signal.
* A high definition specification that utilizes 1080
effective scanning lines and the interlace format.
** A high definition specification that utilizes 720
effective scanning lines and the progressive format.
BD-J application
The BD-ROM format supports Java for
interactive functions.
“BD-J” offers content providers almost
unlimited functionality when creating
interactive BD-ROM titles.
BD-R
BD-R (Blu-ray Disc Recordable) is a
recordable, write-once Blu-ray Disc, available
in the same capacities as the BD below. Since
contents can be recorded and cannot be
overwritten, a BD-R can be used to archive
valuable data or store and distribute video
material.
BD-RE
BD-RE (Blu-ray Disc Rewritable) is a
recordable and rewritable Blu-ray Disc,
available in the same capacities as the BD
below. The re-recordable feature makes
extensive editing and time-shifting applications
possible.
80GB
BD-ROMs (Blu-ray Disc Read-Only Memory)
are commercially produced discs and are
available in the same capacities as the BD
below. Other than conventional movie and video
contents, these discs have enhanced features
such as interactive content, menu operations
using pop-up menus, selection of subtitle
display, and slideshow. Although a BD-ROM
may contain any form of data, most BD-ROM
discs will contain movies in High Definition
format, for playback on Blu-ray Disc/DVD
players.
Blu-ray Disc (BD)
A disc format developed for recording/playing
high-definition (HD) video (for HDTV, etc.),
and for storing large amounts of data. A single
layer Blu-ray Disc holds up to 25 GB, and a
dual-layer Blu-ray Disc holds up to 50 GB of
data.
Digital Cinema Auto Calibration
(D.C.A.C)
Digital Cinema Auto Calibration was developed
by Sony to automatically measure and adjust the
speaker settings to your listening environment in
a short period of time.
Dolby Digital
This movie theater sound format is more
advanced than Dolby Surround Pro Logic. In
this format, the surround speakers output stereo
sound with an expanded frequency range, and a
subwoofer channel for deep bass is
independently provided. This format is also
called “5.1” with the subwoofer channel
designed as the 0.1 channel (since it functions
only when a deep bass effect is needed). All six
channels in this format are recorded separately
for superior channel separation. Furthermore,
since all the signals are processed digitally, less
signal degradation occurs.
Dolby Digital Plus
Developed as an extension to Dolby Digital, the
audio coding technology supports 7.1 multichannel surround sound.
Dolby Pro Logic II
DTS-HD High Resolution Audio
Dolby Pro Logic II creates five full-bandwidth
output channels from 2 channel sources. This is
done using an advanced, high-purity matrix
surround decoder that extracts the spatial
properties of the original recording without
adding any new sounds or tonal colorations.
Developed as an extension to DTS Digital
Surround format. It supports a maximum
sampling frequency of 96 kHz, and 7.1 multichannel surround.
DTS-HD High Resolution Audio has a
maximum transmission rate of 6 Mbps, with
lossy compression.
x Movie mode
The Movie mode is for use with stereo television
shows and all programs encoded in Dolby
Surround. The result is enhanced sound field
directionality that approaches the quality of
discrete 5.1-channel sound.
Dolby Surround Pro Logic
Dolby TrueHD
Dolby TrueHD is a lossless coding technology
that supports up to 8 channels of multi-channel
surround sound for the next generation of optical
discs. The reproduced sound is true to the
original source bit-for-bit.
DTS
Digital audio compression technology
developed by DTS, Inc. This technology
conforms to 5.1-channel surround. This format
includes a stereo rear channel and a discrete
subwoofer channel. DTS provides the same 5.1
discrete channels of high quality digital audio.
The good channel separation is realized due to
the all channel data being recorded discretely
and processed in digitally.
DTS Neo:6
This technology converts 2 channels stereo
recorded audio for 7 channels playback. There
are two modes to select according to the
playback source or your preference, CINEMA
for movies, and MUSIC for stereo sources such
as music.
DTS-HD Master Audio has a maximum
transmission rate of 24.5 Mbps, and uses
lossless compression, and DTS-HD Master
Audio corresponds to a maximum sampling
frequency of 192 kHz, and maximum of 7.1ch.
HD Digital Cinema Sound (HD-D.C.S.)
HD Digital Cinema Sound (HD-D.C.S.) is
Sony’s new innovative home theater technology
using the latest acoustic and digital signal
processing technologies. It is based on precise
response measurement data of a mastering
studio.
With HD-D.C.S., you are able to enjoy Blu-ray
and DVD movies at home with not only the high
quality of sound, but also the best sound
ambience, just as the movie’s sound engineer
intended in the mastering process.
HDMI (High-Definition Multimedia
Interface)
HDMI is an interface that supports both video
and audio on a single digital connection,
allowing you to enjoy high quality digital
picture and sound. The HDMI specification
supports HDCP (High-bandwidth Digital
Content Protection), a copy protection
technology that incorporates coding technology
for digital video signals.
Additional Information
As one method of decoding Dolby Surround,
Dolby Surround Pro Logic produces four
channels from 2 channel sound. Compared with
the former Dolby Surround system, Dolby
Surround Pro Logic reproduces left-to-right
panning more naturally and localizes sounds
more precisely. To take full advantage of Dolby
Surround Pro Logic, you should have one pair of
surround speakers and a center speaker. The
surround speakers output monaural sound.
DTS-HD Master Audio
Interlace format
(Interlaced scanning)
The Interlace format is the NTSC standard
method for displaying TV images at 30 frames
per second. Each frame is scanned twice alternately between the even numbered scanning
lines and then odd numbered scanning lines, at
60 times per second.
LTH (Low to High)
LTH is a recording system that supports organic
pigment type BD-R.
81GB
Parental Control
A function of the BD/DVD to limit playback of
the disc by the age of the users according to the
limitation level in each country. The limitation
varies from disc to disc; when it is activated,
playback is completely prohibited, violent
scenes are skipped or replaced with other scenes
and so on.
PhotoTV HD
“PhotoTV HD” allows for highly-detailed
pictures, and photo-like expression of subtle
textures and colors. By connecting Sony
“PhotoTV HD” compatible devices using an
HDMI cable, a whole new world of photos can
be enjoyed in breathtaking Full HD quality. For
instance, the delicate texture of the human skin,
flowers, sand and waves can now be displayed
on a large screen in beautiful photo-like quality.
Pop-up menu
An enhanced menu operation available on BDROMs. The pop-up menu appears when POP
UP/MENU is pressed during playback, and can
be operated while playback is in progress.
Progressive format
(sequential scanning)
In contrast to the Interlace format, the
progressive format can reproduce 50 - 60 frames
per second by reproducing all scanning lines
(525 lines for the NTSC system). The overall
picture quality increases and still images, text
and horizontal lines appear sharper. This format
is compatible with the 525 or 625 progressive
format.
S-AIR
(Sony Audio Interactive Radio
frequency)
Recent times have seen the rapid spread of BD/
DVD media, digital broadcasting, and other
high-quality media.
To ensure that the subtle nuances of these highquality media are transmitted with no
deterioration, Sony has developed a technology
called “S-AIR” for the radio transmission of
digital audio signals with no compression, and
has incorporated this technology into the EZWRT10/EZW-RT10A/EZW-T100.
This technology transfers digital audio signals
with no compression using the 2.4 GHz band
82GB
range of ISM band (Industrial, Scientific, and
Medical band), such as wireless LANs and
Bluetooth applications.
24p True Cinema
Movies shot with a film camera consist of 24
frames per second.
Since conventional televisions (both CRT and
flat panels) display frames either at 1/60 or 1/50
second intervals, the 24 frames do not appear at
an even pace.
When connected to a TV with 24p capabilities,
the player displays each frame at 1/24 second
intervals — the same interval originally shot
with the film camera, thus faithfully reproducing
the original cinema image.
Index
Numerics
24p True Cinema 82
3D 32
3D Output Setting 59
A
A/V SYNC 38
ARC 20
Attenuate - AUDIO 60
Audio 61
Audio DRC 60
Audio Output 60
Audio Return Channel 20, 63
Audio Settings 60
Auto Calibration 51, 61
Auto Display 63
Auto Standby 63
AVCHD 80
B
BD Audio MIX Setting 60
BD Data Storage Options 61
BD Hybrid Disc Playback
Layer 61
BD Internet Connection 61
BD Parental Control 62
BD Remote Device
Registration 64
BD/DVD Menu 61
BD/DVD Viewing Settings 61
BD/DVD-ROM 1080/24p
Output 60
BD-LIVE 32
BD-R 80
BD-RE 80
Blu-ray Disc 80
BONUSVIEW 32
BRAVIA Internet Video 35
C
CD 74
Child Lock 54
Cinema Conversion Mode 59
Connection Server Settings 64
Control for HDMI 49, 63
D
D. C. A. C. (Digital Cinema
Auto Calibration) 51, 80
Dimmer 62
DivX® VOD 63
DLNA 35, 64
Dolby Digital 39, 80
Dolby Digital Plus 80
Dolby Pro Logic II 81
Dolby Surround Pro Logic 81
Dolby TrueHD 81
DTS 39, 81
DTS Neo:6 81
DTS-HD 81
DVD 74
DVD Aspect Ratio 59
DVD Parental Control 62
N
E
Parental Control 82
Parental Control Area Code 62
Parental Control Settings 62
Party 35
Party Auto Start 64
Password 62
Pause Mode 60
PhotoTV HD 82
Play information 33
Playable discs 74
Preset Mode 58
Progressive format 82
Easy Setup 27, 64
F
FM MODE 42
Front panel 8
Front panel display 9
G
Gracenote Settings 63
H
HDMI
YCbCr/RGB (HDMI) 60
HDMI (High-Definition
Multimedia Interface) 81
HDMI Deep Colour Output 60
Network Connection
Diagnostics 64
Network Settings 64
Network Update 59
NIGHT MODE 41
O
OSD 62
Output Video Format 59
P
Q
Quick Start Mode 63
R
Initialize Personal Information
64
Interlace format 81
Internet content 35
Internet Settings 64
Internet Video Parental Control
62
Internet Video Unrated 62
IP Content Noise Reduction 37
RDS 43
Rear panel 10
Region code 74
Registered BD Remote Devices
64
Remote control 12
Remote Controller Setting
Guide 58
Renderer Options 64
Reset to Factory Default
Settings 64
Resetting 64
L
S
Language Code List 79
Learning Mode 58
LTH 81
S-AIR 45, 82
Mode 46
Pairing 47
RF Change 48
S-AIR receiver 45
Standby 46
S-AIR Settings 62
Screen Format 59
I
M
Multiplex broadcast sound 40
Music Settings 62
83GB
Screen Saver 63
Screen Settings 59
SLEEP 54
Slideshow 38
Sound Effect 61
Speaker Settings 52, 61
Connection 53
Distance 53
Level 53
Subtitle 61
Super Audio CD Playback
Channels 62
Super Audio CD Playback
Layer 62
Surround amplifier 11, 45
System Information 64
SYSTEM MENU 30, 38, 41
T
Test Tone 54
TV Screen Size Setting for 3D
59
TV Type 59
U
Update 58, 59
USB 33
W
WEP 26
WPA2-PSK (AES) 26
WPA2-PSK (TKIP) 26
WPA-PSK (AES) 26
WPA-PSK (TKIP) 26
84GB
The software of this system may be updated in the future. To find out details on any
available updates, please visit: http://support.sony-europe.com/
