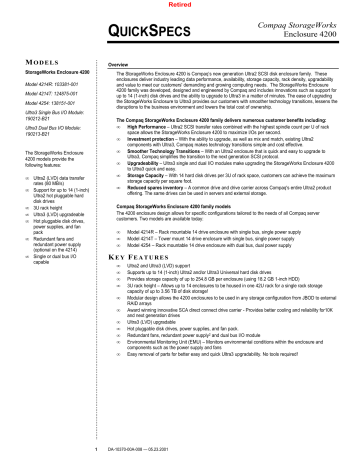

QUICKSPECS
Retired
QUICKSPECS
MODELS
StorageWorks Enclosure 4200
Model 4214R: 103381-001
Model 4214T: 124875-001
Model 4254: 138151-001
Ultra3 Single Bus I/O Module:
190212-B21
Ultra3 Dual Bus I/O Module:
190213-B21
The StorageWorks Enclosure
4200 models provide the
following features:
•
•
•
•
•
•
•
Ultra2 (LVD) data transfer
rates (80 MB/s)
Support for up to 14 (1-inch)
Ultra2 hot pluggable hard
disk drives
3U rack height
Ultra3 (LVD) upgradeable
Hot pluggable disk drives,
power supplies, and fan
pack
Redundant fans and
redundant power supply
(optional on the 4214)
Single or dual bus I/O
capable
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
.
1
Compaq StorageWorks
Enclosure 4200
Overview
The StorageWorks Enclosure 4200 is Compaq’s new generation Ultra2 SCSI disk enclosure family. These
enclosures deliver industry leading data performance, availability, storage capacity, rack density, upgradability
and value to meet our customers' demanding and growing computing needs. The StorageWorks Enclosure
4200 family was developed, designed and engineered by Compaq and includes innovations such as support for
up to 14 (1-inch) disk drives and the ability to upgrade to Ultra3 in a matter of minutes. The ease of upgrading
the StorageWorks Enclosure to Ultra3 provides our customers with smoother technology transitions, lessens the
disruptions to the business environment and lowers the total cost of ownership.
The Compaq StorageWorks Enclosure 4200 family delivers numerous customer benefits including:
•
High Performance – Ultra2 SCSI transfer rates combined with the highest spindle count per U of rack
space allows the StorageWorks Enclosure 4200 to maximize I/Os per second.
•
Investment protection – With the ability to upgrade, as well as mix and match, existing Ultra2
components with Ultra3, Compaq makes technology transitions simple and cost effective.
•
Smoother Technology Transitions – With an Ultra2 enclosure that is quick and easy to upgrade to
Ultra3, Compaq simplifies the transition to the next generation SCSI protocol.
•
Upgradeability – Ultra3 single and dual I/O modules make upgrading the StorageWorks Enclosure 4200
to Ultra3 quick and easy.
•
Storage Capacity – With 14 hard disk drives per 3U of rack space, customers can achieve the maximum
storage capacity per square foot.
•
Reduced spares inventory – A common drive and drive carrier across Compaq's entire Ultra2 product
offering. The same drives can be used in servers and external storage.
Compaq StorageWorks Enclosure 4200 family models
The 4200 enclosure design allows for specific configurations tailored to the needs of all Compaq server
customers. Two models are available today:
•
•
•
Model 4214R – Rack mountable 14 drive enclosure with single bus, single power supply
Model 4214T – Tower mount 14 drive enclosure with single bus, single power supply
Model 4254 – Rack mountable 14 drive enclosure with dual bus, dual power supply
KEY FEATURES
•
•
•
•
•
•
•
•
•
•
•
Ultra2 and Ultra3 (LVD) support
Supports up to 14 (1-inch) Ultra2 and/or Ultra3 Universal hard disk drives
Provides storage capacity of up to 254.8 GB per enclosure (using 18.2 GB 1-inch HDD)
3U rack height – Allows up to 14 enclosures to be housed in one 42U rack for a single rack storage
capacity of up to 3.56 TB of disk storage!
Modular design allows the 4200 enclosures to be used in any storage configuration from JBOD to external
RAID arrays
Award winning innovative SCA direct connect drive carrier - Provides better cooling and reliability for10K
and next generation drives
Ultra3 (LVD) upgradable
Hot pluggable disk drives, power supplies, and fan pack.
Redundant fans, redundant power supply2 and dual bus I/O module
Environmental Monitoring Unit (EMU) – Monitors environmental conditions within the enclosure and
components such as the power supply and fans
Easy removal of parts for better easy and quick Ultra3 upgradability. No tools required!
DA-10370-00A-008 — 05.23.2001
Retired
QUICKSPECS
Compaq StorageWorks
Enclosure 4200
PRODUCT HIGHLIGHTS
Upgradeability
Upgrading the StorageWorks Enclosure 4200 to Ultra3 is as easy as swapping out the I/O module on the back
of the unit. The I/O moudle is warm-swappable, therefore during the upgrade power to the unit can remain on,
but all I/O operations need to be stopped to ensure that no data is lost or corrupted during the upgrade.
Mix and Match
All Ultra3 devices from Compaq are comptaible with previoius Ultra2 devices so customers can mix and match
components on the same storage enclosure or server. When Ultra2 devices and Ultra3 devices are found on
the same Ultra3 SCSI bus, each Ultra2 device will transfer data up to 80 MB/s, while each Ultra3 device will
transfer data up to 160 MB/s.
Hot Pluggable
Hot Pluggable technology is used for drives, power supplies and fans. Hot Pluggable components can be
replaced without powering down the storage system. This feature significantly enhances storage system
availability.
Availability and Serviceability
Storage system units accommodate redundant cooling fans and power supplies. All customer removable
modules and units are designed for easy removal to ensure better serviceability.
Auto SCSI ID Selection
SCSI ID is automatically set when a drive is inserted into a drive bay
LED Indicators
Front panel LEDs indicate drive activity, when a drive requires service, and when power is on or off, giving a
quick visual assessment of overall system storage status. LED status and fault indicators for the fans and power
supplies are located in the back of the enclosure.
Rack Density
All Enclosure 4200 models have a 3U height
Environment Monitoring Unit (EMU)
Each Enclosure 4200 model is equipped with an EMU that constantly monitors the enclosure, the power
supplies, and fans to ensure suggested operating tolerances are maintained.
Single Bus I/O Module
The single bus I/O module allows one SCSI channel to access all drives in the 4200 enclosure.
Dual Bus I/O Module
The dual bus I/O module allows two SCSI channels to access a single Enclosure 4200. This allows for greater
fault tolerance (controller duplexing) or provides access from two different servers to two separate storage
areas.
Fault Tolerance
With the dual bus I/O module, redundant power supplies and fans the Enclosure 4200 family provides a high
level of system availability. Using an internal or external RAID Array the Enclosure 4200 family can be
configured for RAID levels 0, 1, 0+1, 3, 5.
Manageability
The 4200 enclosure is managed by Compaq Insight Manager or StorageWorks Command Console depending
on the Host server type.
Compatibility and Integration Testing
Intensive compatibility and performance testing with Compaq ProLiant and Alpha servers ensures the highest
level of integration available in the industry on a Compaq server. For a complete list of supported Compaq
servers and workstations, please refer to the QuickSpecs and/or User Guide of the array controller or Host Bus
adapter you are planning on using. The list of supported array controllers and SCSI adapters is provided under
“Related Options, Controllers. ”
2
DA-10370-00A-008 — 05.23.2001
Retired
QUICKSPECS
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
.
3
PRODUCT HIGHLIGHTS
Compaq StorageWorks
Enclosure 4200
(continued)
Product Kit Contents
Model 4214: Single power supply, single bus I/O module, 13 drive blanks3, warranty card, mounting hardware,
AC power cord, Enclosure 4200 user guide, EMU booklet, SmartStart CD Kit, SPD documentation CD, and one
12-ft VHDCI to VHDCI SCSI cable.
Model 4254: Redundant power supplies, dual bus I/O module, 13 drive blanks3, warranty card, mounting
hardware, AC power cord, Enclosure 4200 user guide, EMU booklet, SmartStart CD Kit, SPD documentation
CD, and two 12-ft VHDCI to VHDCI SCSI cables.
Note: Where the 4200 enclosure is intended for connection to an HSG80 controller in a Model 2200 controller
shelf or a host-based adapter on an Alpha server a different SCSI cable is required. See the related
options section for cable ordering information.
SPECIFICATIONS
Protocol Support
Wide Ultra2 (LVD)
Wide Ultra3 (LVD)
O/S Support
Depends on which supported Compaq array controller or SCSI
adapter is chosen. Please refer to the QuickSpecs and/or User
Guide of the array controller or SCSI adapter you are planning on
using.
Dimensions (HxWxD)
Tower
Rack
22.5 x 13.25 x 23 in / 56.7 x 33.9 x 57.96 cm
5.2 x 19 x 20.5 in/13.1 x 47.88 x 51.66 cm
Shipping Dimensions (HxWxD)
Tower
Rack
34.25 x 14.5 x 31.25 in / 86.31 x 36.54 x 78.75 cm
34.25 x 14.5 x 31.25 in / 86.31 x 36.54 x 78.75 cm
Weight
Tower
Rack
Redundant Power Supply
93 lbs/42.8 kg
68 lbs/30.9 kg
5.0 lbs/2.3 kg
LED Indicators (On Front Panel)
EMU Status LED (left)
Enclosure Power LED (Middle)
Drive LED Indicators (On Drive Trays)
Drive LED (Top)
On Line LED (Middle)
Drive Failure LED (Bottom)
Enclosure LED Indicators (back of unit)
I/O Module (top)
EMU (middle)
Power supplies (bottom)
Fault LED (Right)
Input Requirements
Nominal Line Voltage
Range Line Voltage
Line Frequency
Typical Input Current
110 to 240 VAC
90 to 264 VAC
47 to 63 Hz
2.3A at 120 VAC
Relative Humidity (non-condensing)
Operating
Shipping
10% to 90%
5% to 90%
DA-10370-00A-008 — 05.23.2001
Retired
QUICKSPECS
SPECIFICATIONS
Compaq StorageWorks
Enclosure 4200
(continued)
Controllers and Adapters Supported
Smart Array 4200 Controller
Smart Array 3200 Controller
Smart Array 431 Controller
Smart Array 221 Controller
HSG80 Controller
HSG60 Controller
64-Bit Dual Channel Wide Ultra2 SCSI Adapter
64-Bit Dual Channel Wide Ultra3 SCSI Adapter
1 channel Wide Ultra2 Adapter (AlphaStations)
1 channel Wide Ultra2 Adapter (AlphaServers)
See your server and controller compatibility matrix for details on
controller and server compatibility.
I/O Module Connector
BTU (220 Volts)
Single power supply 14 drives
Single power supply 5 drives
Single power supply 1 drive
Dual power supply 14 drives
Dual power supply 5 drives
Dual power supply 1 drive
Power
Very High Density Cable Interconnect (VHDCI)
Temperature Range3
Operating
Shipping
1164 BTUs/hour
536 BTUs/hour
273 BTUs/hour
1232 BTUs/hour
625 BTUs/hour
352 BTUs/hour
377 Watts per supply (load)
50° to 94°F / 10° to 35°C°
–40° to 151°F / –40° to 66°C
Warranty
StorageWorks Enclosure 4200 family: Three-year4 limited warranty (1 year on-site, 2 year carry-in)
Hard drive Pre-Failure Warranty : When used with any one of the StorageWorks Smart Array Family controllers
and monitored under Compaq Insight Manager (v4.20 or higher), the drives are supported by a Pre-Failure
(replacement) Warranty5.
RELATED OPTIONS
Controllers
Smart Array 221 Controller
Smart Array 431 Controller
Smart Array 3200 Controller
Smart Array 4200 Controller
64-Bit Dual Channel Wide-Ultra2 SCSI Adapter
64-Bit Dual Channel Wide-Ultra3 SCSI Adapter
HSG80 Controller
HSG60 Controller
1 Channel Ultra2 (LVD) Adapter (AlphaServer)
1 Channel Ultra2 (LVD) Adapter (AlphaServer)
4
DA-10370-00A-008 — 05.23.2001
388099-B21
127695-B21
295643-B21
295636-B21
348757-B21
129803-B21
176622-B21
174164-B21
136237-B21
3X-KZPCA-AA
Retired
QUICKSPECS
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
..
.
5
RELATED OPTIONS
Compaq StorageWorks
Enclosure 4200
(continued)
Other Options
StorageWorks Enclosure 4200 Redundant Power Supply Option
StorageWorks Enclosure 4200 Dual Bus I/O module
StorageWorks Enclosure 4200 Tower to Rack Conversion Kit
Ultra3 Single I/O Module Upgrade Kit
Ultra3 Dual I/O Module Upgrade Kit
Compaq Rack Model 71421
Compaq Rack 91421
Compaq Rack 91361
Compaq Rack 91221
119826-B21
119829-B21
150213-B21
190212-B21
190213-B21
165753-001
120663-B21
120664-B21
120665-B21
Hot Pluggable Ultra2 (LVD) Hard Drives6
18.2-GB Pluggable Ultra3 SCSI 10,000 rpm Drive (1″)
9.1-GB Pluggable Ultra3 SCSI 10,000 rpm Drive (1″)
18.2-GB Pluggable Ultra2 SCSI 10,000 rpm Drive (1″)
18.2-GB Pluggable Ultra2 SCSI Drive (1″)
9.1-GB Pluggable Ultra2 Universal 10,000 rpm Drive (1″)
9.1-GB Pluggable Ultra2 Universal Drive (1″)
142673-B22
142671-B22
128418-B22
388144-B22
328939-B22
123065-B22
SCSI Cable Options
1M SCSI cable for connection to the Model 2200
2M SCSI cable for connection to the Model 2200
3M SCSI Cable for connection to the Model 2200
5M SCSI cable for connection to the Model 2200
10M SCSI cable for connection to the Model 2200
12’ VHDCI – 68 Pin SCSI Cable
1M SCSI 68HD Cable
2M SCSI 68HD Cable
3M SCSI 68HD Cable
5M SCSI 68HD Cable
10M SCSI 68HD Cable
12′ VHDCI – VHDCI SCSI Cable
24′ VHDCI – VHDCI SCSI Cable
39′ VHDCI – VHDCI SCSI Cable
1
2
3
4
5
6
168256-B21
168257-B21
188505-B21
400983-005
400985-010
313375-002
BN38C-01
BN38C-02
BN38C-03
BN38C-05
BN38C-10
341175-B21/291
164604-B21/291
150214-B21/291
Certain power support and cooling restrictions apply when housing a maximum number of Model 4214R enclosures in one of the
supported Compaq racks. Please refer to http://www.compaq.com/products/storageworks for more information or consult the
Compaq Customer Support Center at 1-800-345-1518 for details.
Each Enclosure 4214R and 4214T comes with a single power supply that is sufficient to provide power to the enclosure and maintain
normal operating levels. A second redundant power supply (optional) is recommended for higher levels of fault tolerance and
availability.
To maintain proper cooling and air-flow, a drive blank or drive must occupy all bays during operation.
Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center at 1-800-345-1518 for details.
Pre-Failure Warranty is available on all Compaq Prosignia and Compaq ProLiant servers using Compaq Insight Manager v4.20 or
higher, and covers Pentium Pro processors, ECC memory, server hard drives, and external storage enclosure hard drives (except the
535 MB Fast-SCSI-2 hard drive) using Compaq IDA, IDA-2, Compaq SMART SCSI Array Controllers, Compaq SMART-2 Array
Controllers or Compaq Smart Array Controllers. Certain restrictions and exclusions apply. Consult the Compaq Customer Support
Center at 1-800-345-1518 for details.
For complete compatibility information, refer to the Compaq SCSI Hard Drive Compatibility table located at
http://www.compaq.com/products/storageworks/hdd/appinfo.html. Using hard drives in unsupported configurations will result in
voiding of the warranty and could result in damage to the drive and/or loss of data.
DA-10370-00A-008 — 05.23.2001
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
