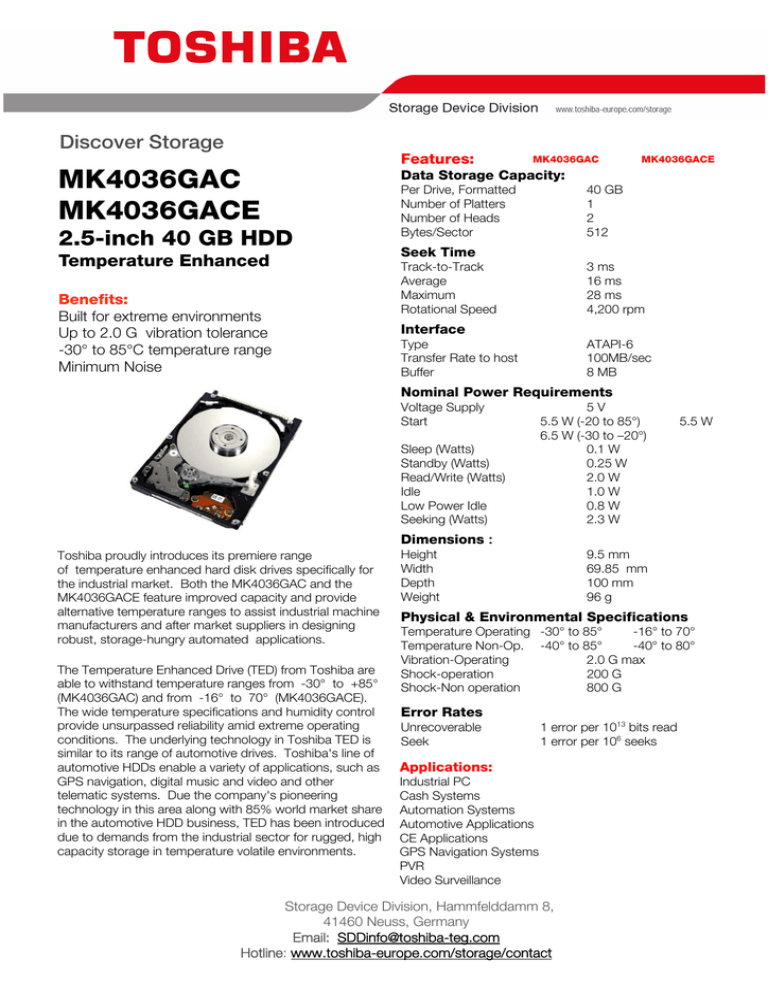

Toshiba 40 GB 2.5" Temperature Enhanced Hard Disk Drive Datasheet

Discover Storage
Features:
MK4036GAC
MK4036GACE
2.5-inch 40 GB HDD
Temperature Enhanced
Benefits:
Built for extreme environments
Up to 2.0 G vibration tolerance
-30° to 85°C temperature range
Minimum Noise
MK4036GAC
MK4036GACE
Data Storage Capacity:
Per Drive, Formatted
Number of Platters
Number of Heads
Bytes/Sector
40 GB
1
2
512
Seek Time
Track-to-Track
Average
Maximum
Rotational Speed
3 ms
16 ms
28 ms
4,200 rpm
Interface
Type
Transfer Rate to host
Buffer
ATAPI-6
100MB/sec
8 MB
Nominal Power Requirements
Voltage Supply
Start
Sleep (Watts)
Standby (Watts)
Read/Write (Watts)
Idle
Low Power Idle
Seeking (Watts)
5V
5.5 W (-20 to 85°)
6.5 W (-30 to –20°)
0.1 W
0.25 W
2.0 W
1.0 W
0.8 W
2.3 W
5.5 W
Dimensions :
Toshiba proudly introduces its premiere range
of temperature enhanced hard disk drives specifically for
the industrial market. Both the MK4036GAC and the
MK4036GACE feature improved capacity and provide
alternative temperature ranges to assist industrial machine
manufacturers and after market suppliers in designing
robust, storage-hungry automated applications.
The Temperature Enhanced Drive (TED) from Toshiba are
able to withstand temperature ranges from -30° to +85°
(MK4036GAC) and from -16° to 70° (MK4036GACE).
The wide temperature specifications and humidity control
provide unsurpassed reliability amid extreme operating
conditions. The underlying technology in Toshiba TED is
similar to its range of automotive drives. Toshiba's line of
automotive HDDs enable a variety of applications, such as
GPS navigation, digital music and video and other
telematic systems. Due the company's pioneering
technology in this area along with 85% world market share
in the automotive HDD business, TED has been introduced
due to demands from the industrial sector for rugged, high
capacity storage in temperature volatile environments.
Height
Width
Depth
Weight
9.5 mm
69.85 mm
100 mm
96 g
Physical & Environmental Specifications
Temperature Operating -30° to 85°
-16° to 70°
Temperature Non-Op. -40° to 85°
-40° to 80°
Vibration-Operating
2.0 G max
Shock-operation
200 G
Shock-Non operation
800 G
Error Rates
Unrecoverable
Seek
1 error per 1013 bits read
1 error per 106 seeks
Applications:
Industrial PC
Cash Systems
Automation Systems
Automotive Applications
CE Applications
GPS Navigation Systems
PVR
Video Surveillance
Storage Device Division, Hammfelddamm 8,
41460 Neuss, Germany
Email: [email protected]
Hotline: www.toshiba-europe.com/storage/contact
