Model: YH01
____________________________________________________________________________________
Component Video to HDMI Converter with Local Loop Component Output
The Component Video to HDMI format converter allows the conversion of Component Analog Video (YPbPr) + Analog
Audio/Digital Audio to HDMI. This converter allows older analog devices to be integrated seamlessly into the modern home
theater. It also takes analog stereo audio/digital audio and encodes it onto the HDMI signal for the full HDMI video and audio
effect. This product converts the Component Video signal to HDMI at the resolution of the component video source. If the
component video source is set to 480i, 720p or 1080i, 1080p, then it will convert to HDMI at the same corresponding
resolution.
Convert Component Video (YPbPr) & stereo/digital (SPDIF) audio to HDMI display
Built in local component video loop output with stereo/Digital (SPDIF) audio
Encodes analog stereo audio or digital audio onto the video signal for HDMI video and audio
Supports HDTV resolution up to 1080p

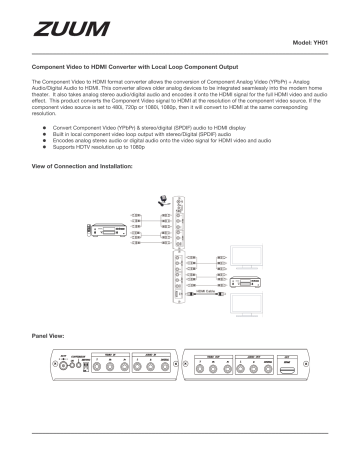

View of Connection and Installation:
Panel View:
____________________________________________________________________________________
Dip Switch Setting:
DIP SW
1. Audio input: (up) Analog audio input, (down) Digital audio input (SPDIF)
2. (No function)
LED Indication:
On
Conversion
Power On
Signal convert
Caution:
1. This converter supports HDMI output at different resolution, but request your TV/Monitor also to support the resolution for
display.
2. SPDIF audio input only supports “48K 16Bit LPCM “. The audio output will produce noise by any other format .
Resolution / Frequency
480i
576i
480p
576p
720p
1080i
1080p
Model:
50Hz
X
X
X
X
60z
X
X
X
X
X
720 x 480, Interlace
720 x 576, Interlace
720 x 480, Progressive
720 X 576, Progressive
1280 X 720, Progressive
1920 x 1080, Interlace
1920 x 1080, Progressive
YHO1
Input Signal
Video Input Connector
Analog Audio Input
Digital Audio Input
Video Output Signal
Power Consumption
Power Supply
Temperature
Dimensions – Inches
Weight – lbs
YPbPr(1920x1080 Max), stereo audio /digital audio
Y (75 ohms, 1.0Vp-p), PbPr (75 ohms, 0.7Vp-p)
3.5mm Stereo Phone jack, 10k ohms
SPDIF RCA, 75 ohms x 1
HDMI A type connector x 1
800mA
DC5V 2Amp Regulated Power Supply
Operations: 0 to 55C, Storage: -20 to 85C, Humidity: up to 95%
5.51(w) x 3.78(h) x 1.26(d)
.66
Do You Need Technical Support?
ZUUM is proud to offer free technical support to ensure your product is operating correctly.
If you are experiencing difficulties setting up this product, please call us for assistance 1-888-861-7351 or visit www.zuum.life for
more information.
Here for You 24/7
____________________________________________________________________________________
