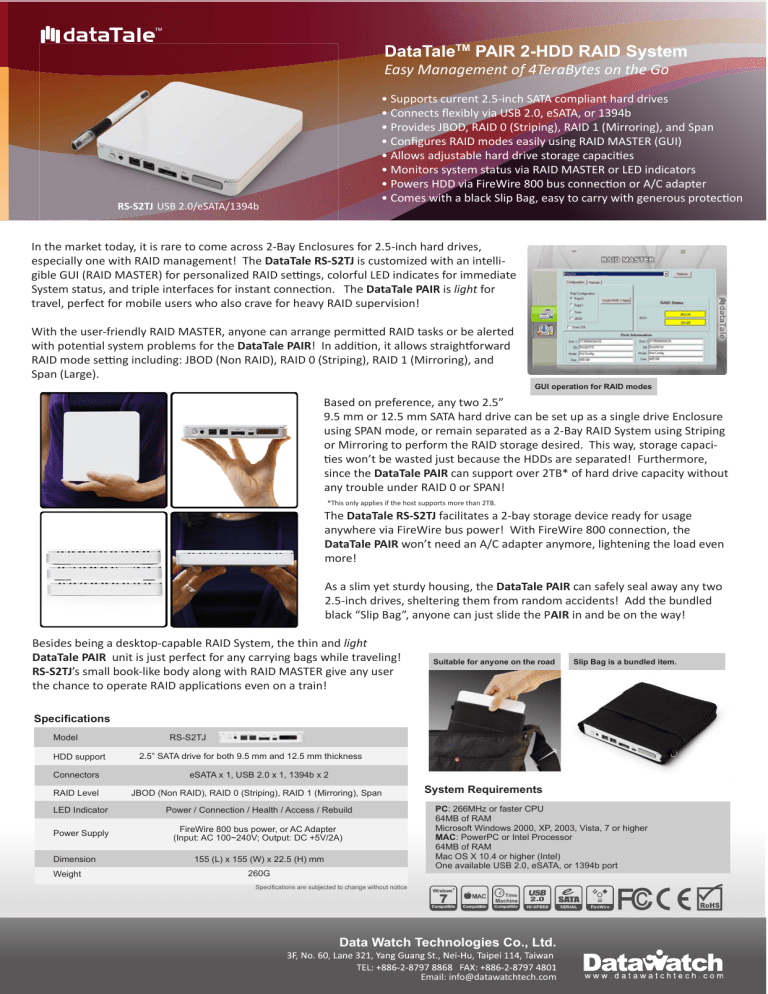

DataTaleTM PAIR 2
DataTaleTM PAIR 2-HDD RAID System
Easy Management of 4TeraBytes on the Go
• Supports current 2.5-inch SATA compliant hard drives
• Connects flexibly via USB 2.0, eSATA, or 1394b
• Provides JBOD, RAID 0 (Striping), RAID 1 (Mirroring), and Span
• Configures RAID modes easily using RAID MASTER (GUI)
• Allows adjustable hard drive storage capacities
• Monitors system status via RAID MASTER or LED indicators
• Powers HDD via FireWire 800 bus connection or A/C adapter
• Comes with a black Slip Bag, easy to carry with generous protection
RS-S2TJ USB 2.0/eSATA/1394b
In the market today, it is rare to come across 2-Bay Enclosures for 2.5-inch hard drives,
especially one with RAID management! The DataTale RS-S2TJ is customized with an intelligible GUI (RAID MASTER) for personalized RAID settings, colorful LED indicates for immediate
System status, and triple interfaces for instant connection. The DataTale PAIR is light for
travel, perfect for mobile users who also crave for heavy RAID supervision!
With the user-friendly RAID MASTER, anyone can arrange permitted RAID tasks or be alerted
with potential system problems for the DataTale PAIR! In addition, it allows straightforward
RAID mode setting including: JBOD (Non RAID), RAID 0 (Striping), RAID 1 (Mirroring), and
Span (Large).
GUI operation for RAID modes
Based on preference, any two 2.5”
9.5 mm or 12.5 mm SATA hard drive can be set up as a single drive Enclosure
using SPAN mode, or remain separated as a 2-Bay RAID System using Striping
or Mirroring to perform the RAID storage desired. This way, storage capacities won’t be wasted just because the HDDs are separated! Furthermore,
since the DataTale PAIR can support over 2TB* of hard drive capacity without
any trouble under RAID 0 or SPAN!
*This only applies if the host supports more than 2TB.
The DataTale RS-S2TJ facilitates a 2-bay storage device ready for usage
anywhere via FireWire bus power! With FireWire 800 connection, the
DataTale PAIR won’t need an A/C adapter anymore, lightening the load even
more!
As a slim yet sturdy housing, the DataTale PAIR can safely seal away any two
2.5-inch drives, sheltering them from random accidents! Add the bundled
black “Slip Bag”, anyone can just slide the PAIR in and be on the way!
Besides being a desktop-capable RAID System, the thin and light
DataTale PAIR unit is just perfect for any carrying bags while traveling!
RS-S2TJ’s small book-like body along with RAID MASTER give any user
the chance to operate RAID applications even on a train!
Suitable for anyone on the road
Slip Bag is a bundled item.
Specifications
Model
HDD support
RS-S2TJ
2.5” SATA drive for both 9.5 mm and 12.5 mm thickness
Connectors
eSATA x 1, USB 2.0 x 1, 1394b x 2
RAID Level
JBOD (Non RAID), RAID 0 (Striping), RAID 1 (Mirroring), Span
LED Indicator
Power / Connection / Health / Access / Rebuild
Power Supply
FireWire 800 bus power, or AC Adapter
(Input: AC 100~240V; Output: DC +5V/2A)
Dimension
Weight
155 (L) x 155 (W) x 22.5 (H) mm
System Requirements
PC: 266MHz or faster CPU
64MB of RAM
Microsoft Windows 2000, XP, 2003, Vista, 7 or higher
MAC: PowerPC or Intel Processor
64MB of RAM
Mac OS X 10.4 or higher (Intel)
One available USB 2.0, eSATA, or 1394b port
260G
Specifications are subjected to change without notice
7
Data Watch Technologies Co., Ltd.
Email: [email protected]
