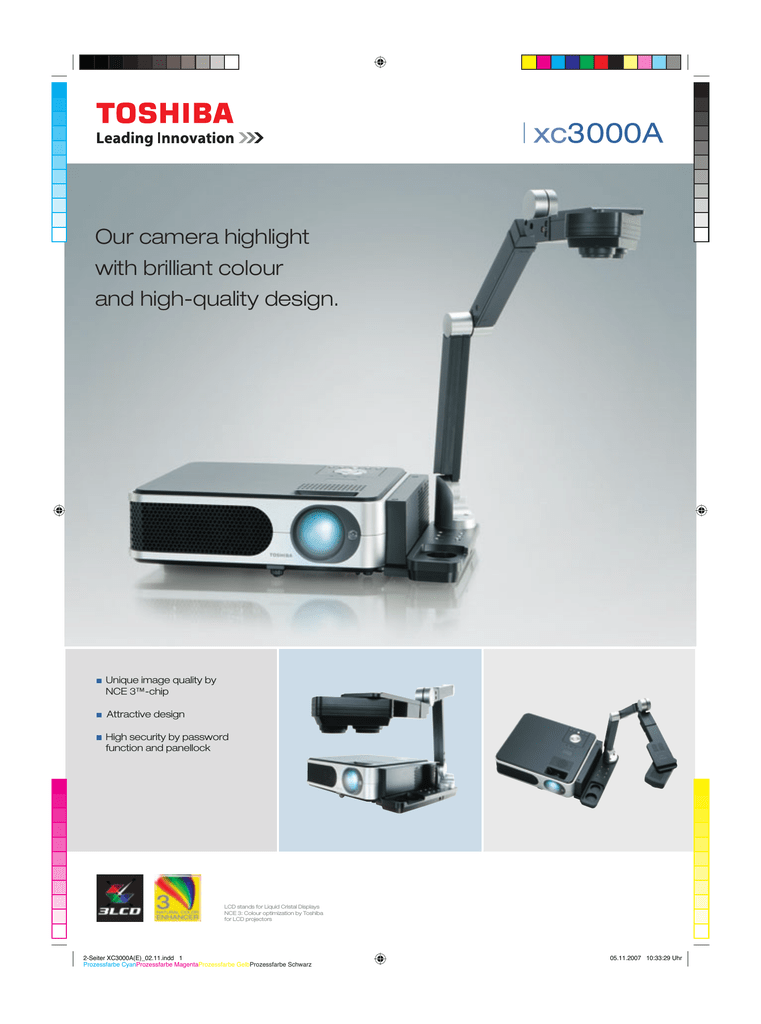

Toshiba TLPXC3000AEU LCD-Projector Datasheet

| xc3000A
Our camera highlight
with brilliant colour
and high-quality design.
Unique image quality by
NCE 3™-chip
Attractive design
High security by password
function and panellock
LCD stands for Liquid Cristal Displays
NCE 3: Colour optimization by Toshiba
for LCD projectors
2-Seiter XC3000A(E)_02.11.indd 1
Prozessfarbe CyanProzessfarbe
CyanProzessfarbe MagentaProzessfarbe
MagentaProzessfarbe GelbProzessfarbe
GelbProzessfarbe Schwarz
05.11.2007 10:33:29 Uhr
| xc3000A
Display
0.63” LCD Chip
Outputs
RGB (D-sub 15), audio (stereo mini jack)
Resolution
XGA 1,024 x 768
Serial interface
RS-232C (mini DIN8 pin)
Brightness
3,000 ANSI-lumens
Power supply
AC 100 - 240 V, 50/60 Hz
Colour reproduction
16.7 mio. colours
Loudspeaker
1 W mono
Contrast
600 : 1
Dimensions (W x H x D)
370 x 92 x 249 mm
Projection format
4 : 3 switchable to 16 : 9
Weight
4.0 kg
Lamp
220 W (TLPLW11LAMP)
Operation noise
standard 34 dB / ECO mode 29 dB
Max. lamp life
up to max. 2,000 hours/
Specials
security-function, user logo, password,
Lens
up to max. 3,000 hours in ECO mode
panellock, NCE 3, with detachable control
F = 1.6 - 1.89 / f = 18.6 - 22.3 mm,
panel, quick start / instant shut down (5 sec.),
manual focus and zoom
black board-function
Zoom
1.2 x
Frequency (hor./vert.)
16 - 106 kHz/50 - 85 Hz
and batteries, owners manual (CD ROM),
Projection
front and rear
quick reference, RGB and power cable,
Digital keystone correction
auto vertical +/- 30º
Picture size (diagonal)
0.84 - 7.62 m
Options
trolley, spare lamp
Projection distance
1.45 - 11.29 m
Camera
integrated, 3 mio. pixel, CMOS sensor,
Input signals
NTSC/PAL/SECAM, 480i, 480p,
Accesories
mouse remote control with laserpointer
softcase
8 x digital zoom, projection on A4
576i, 576p, 720p, 1,080i, VGA, SVGA,
XGA, SXGA, UXGA (compr.)
Inputs
RGB (D-sub 15), S-video, composite
video (1 x RCA), RGB audio (stereo mini
Picture size
Projection distance
0.84 m
1.52 m
2.54 m
5.08 m
7.62 m
1.45 m
2.21 - 2.66 m
3.72 - 4.47 m
7.51 - 9.01 m
11.29 m
November 2007 • Subject to modifications and errors
jack), video/S-video audio (1 x RCA L/R)
www.toshiba-europe.com/projectors
Toshiba Europe GmbH
Projection & Display Technology
Phone: ++49-2131-158-01 · Fax: ++49-2131-158-835
e-mail: [email protected]
