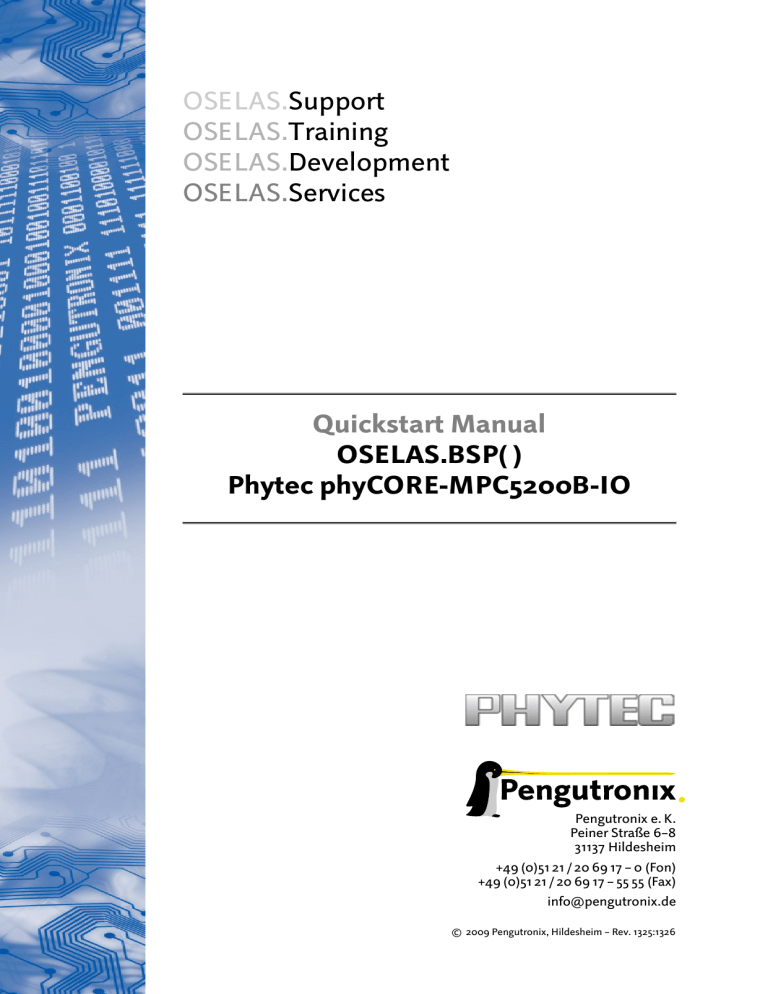

Quickstart Manual
OSELAS.BSP( )
Phytec phyCORE-MPC5200B-IO
Pengutronix e. K.
Peiner Straße 6–8
31137 Hildesheim
+49 (0)51 21 / 20 69 17 – 0 (Fon)
+49 (0)51 21 / 20 69 17 – 55 55 (Fax)
[email protected]
© 2009 Pengutronix, Hildesheim – Rev. 1325:1326
Contents
I
1
OSELAS Quickstart for
Phytec phyCORE-MPC5200B-IO
4
Getting a working Environment
1.1 Download Software Components . . . . . . . . . . . . . . . . . . . . . . .
1.2 PTXdist Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2.1 Main Parts of PTXdist . . . . . . . . . . . . . . . . . . . . . . . . .
1.2.2 Extracting the Sources . . . . . . . . . . . . . . . . . . . . . . . .
1.2.3 Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2.4 Configuring PTXdist . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Toolchains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3.1 Using Existing Toolchains . . . . . . . . . . . . . . . . . . . . . . .
1.3.2 Building a Toolchain . . . . . . . . . . . . . . . . . . . . . . . . .
1.3.3 Building the OSELAS.Toolchain for OSELAS.BSP-Phytec-phyCORE-12
1.3.4 Protecting the Toolchain . . . . . . . . . . . . . . . . . . . . . . .
2 Building phyCORE-MPC5200B-IO’s root filesystem
2.1 Extracting the Board Support Package . . . . .
2.2 Selecting a Software Platform . . . . . . . . . .
2.3 Selecting a Hardware Platform . . . . . . . . .
2.4 Selecting a Toolchain . . . . . . . . . . . . . .
2.5 Building the Root Filesystem . . . . . . . . . .
2.6 Building an Image . . . . . . . . . . . . . . .
2.7 Target Side Preparation . . . . . . . . . . . . .
2.8 Stand-Alone Booting Linux . . . . . . . . . . .
2.8.1 Development Host Preparations . . . .
2.8.2 Preparations on the Embedded Board .
2.8.3 Booting the Embedded Board . . . . . .
2.9 Remote-Booting Linux . . . . . . . . . . . . .
2.9.1 Development Host Preparations . . . .
2.9.2 Preparations on the Embedded Board .
2.9.3 Booting the Embedded Board . . . . . .
3
Accessing Peripherals
3.1 NOR Flash . . . . . . . .
3.2 Serial Units . . . . . . . .
3.3 SRAM Memory . . . . . .
3.4 CAN Bus . . . . . . . . .
3.4.1 About Socket-CAN
3.5 Network . . . . . . . . .
3.6 USB Host Controller Unit .
3.7 I²C Master . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
5
. 5
. 5
. 5
. 6
. 7
. 8
. 9
. 10
. 10
. 10
. 11
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
12
12
13
13
14
14
14
16
17
17
17
18
18
19
19
19
.
.
.
.
.
.
.
.
20
20
21
21
21
22
23
24
24
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
2
Contents
3.7.1 I²C Realtime Clock RTC8564
3.7.2 I²C Device 24W32 . . . . . .
3.8 GPIO . . . . . . . . . . . . . . . .
3.9 Watchdog . . . . . . . . . . . . . .
3.10 ATA IDE/CompactFlash Card . . . .
3.11 FPGA Support . . . . . . . . . . .
3.11.1 General . . . . . . . . . . .
3.11.2 Demo . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
24
24
24
25
25
25
25
26
4 Special Notes
28
4.1 Analysing the CAN Bus Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5
Getting help
5.1 Mailing Lists . . . . . . . . . . . . . . . . . .
5.1.1 About PTXdist in Particular . . . . . . .
5.1.2 About Embedded Linux in General . . .
5.2 News Groups . . . . . . . . . . . . . . . . . .
5.2.1 About Linux in Embedded Environments
5.2.2 About General Unix/Linux Questions . .
5.3 Chat/IRC . . . . . . . . . . . . . . . . . . . .
5.4 phyCORE-MPC5200B-IO Support Mailing List .
5.5 Commercial Support . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
29
29
29
29
29
29
29
30
30
30
3
Part I
OSELAS Quickstart for
Phytec phyCORE-MPC5200B-IO
4
1 Getting a working Environment
1.1 Download Software Components
In order to follow this manual, some software archives are needed. There are several possibilities how to get
these: either as part of an evaluation board package or by downloading them from the Pengutronix web site.
The central place for OSELAS related documentation is http://www.oselas.com. This website provides all
required packages and documentation (at least for software components which are available to the public).
To build OSELAS.BSP-Phytec-phyCORE-12, the following archives have to be available on the development host:
• ptxdist-1.99.12.tgz
• ptxdist-1.99.12-patches.tgz
• OSELAS.BSP-Phytec-phyCORE-12.tar.gz
• OSELAS.Toolchain-1.99.3.2.tar.bz2
If they are not available on the development system yet, it is necessary to get them.
1.2 PTXdist Installation
The PTXdist build system can be used to create a root filesystem for embedded Linux devices. In order to start
development with PTXdist it is necessary to install the software on the development system.
This chapter provides information about how to install and configure PTXdist on the development host.
1.2.1 Main Parts of PTXdist
The most important software component which is necessary to build an OSELAS.BSP( ) board support package
is the ptxdist tool. So before starting any work we’ll have to install PTXdist on the development host.
PTXdist consists of the following parts:
The ptxdist Program: ptxdist is installed on the development host during the installation process.
ptxdist is called to trigger any action, like building a software packet, cleaning up the tree etc. Usually
the ptxdist program is used in a workspace directory, which contains all project relevant files.
A Configuration System: The config system is used to customize a configuration, which contains information
about which packages have to be built and which options are selected.
Patches: Due to the fact that some upstream packages are not bug free – especially with regard to cross compilation – it is often necessary to patch the original software. PTXdist contains a mechanism to automatically
apply patches to packages. The patches are bundled into a separate archive. Nevertheless, they are necessary to build a working system.
5
1 Getting a working Environment
Package Descriptions: For each software component there is a ”recipe” file, specifying which actions have to be
done to prepare and compile the software. Additionally, packages contain their configuration sniplet for
the config system.
Toolchains: PTXdist does not come with a pre-built binary toolchain. Nevertheless, PTXdist itself is able
to build toolchains, which are provided by the OSELAS.Toolchain() project. More in-deep information
about the OSELAS.Toolchain() project can be found here: http://www.pengutronix.de/oselas/
toolchain/index_en.html
Board Support Package This is an optional component, mostly shipped aside with a piece of hardware. There
are various BSP available, some are generic, some are intended for a specific hardware.
1.2.2 Extracting the Sources
To install PTXdist, at least two archives have to be extracted:
ptxdist-1.99.12.tgz The PTXdist software itself.
ptxdist-1.99.12-patches.tgz All patches against upstream software packets (known as the ’patch repository’).
ptxdist-1.99.12-projects.tgz Generic projects (optional), can be used as a starting point for self-built projects.
The PTXdist and patches packets have to be extracted into some temporary directory in order to be built before
the installation, for example the local/ directory in the user’s home. If this directory does not exist, we have to
create it and change into it:
~# cd
~# mkdir local
~# cd local
Next steps are to extract the archives:
~/local# tar -zxf ptxdist-1.99.12.tgz
~/local# tar -zxf ptxdist-1.99.12-patches.tgz
and if required the generic projects:
~/local# tar -zxf ptxdist-1.99.12-projects.tgz
If everything goes well, we now have a PTXdist-1.99.12 directory, so we can change into it:
~/local# cd ptxdist-1.99.12
~/local/ptxdist-1.99.12# ls -l
total 487
drwxr-xr-x 13 jb users
1024
drwxr-xr-x 22 jb users
3072
-rw-r--r-1 jb users
377
-rw-r--r-1 jb users 18361
-rw-r--r-1 jb users
3731
-rw-r--r-1 jb users 115540
-rw-r--r-1 jb users
58
-rw-r--r-1 jb users
2246
-rw-r--r-1 jb users
4196
-rw-r--r-1 jb users
691
Mar
Mar
Feb
Apr
Mar
Mar
Apr
Feb
Jan
Apr
23
23
23
24
11
7
24
9
20
26
13:25
13:25
22:23
2003
18:09
15:25
2003
14:29
22:33
2007
./
../
.gitignore
COPYING
CREDITS
ChangeLog
INSTALL
Makefile.in
README
REVISION_POLICY
6
1 Getting a working Environment
-rw-r--r-1 jb users 54219 Mar 23 10:51 TODO
drwxr-xr-x
2 jb users
1024 Mar 23 11:27 autoconf/
-rwxr-xr-x
1 jb users
28 Jun 20 2006 autogen.sh*
drwxr-xr-x
2 jb users
1024 Mar 23 11:27 bin/
drwxr-xr-x
6 jb users
1024 Mar 23 11:27 config/
-rwxr-xr-x
1 jb users 226185 Mar 23 11:27 configure*
-rw-r--r-1 jb users 12390 Mar 23 11:16 configure.ac
drwxr-xr-x
2 jb users
1024 Mar 23 11:27 debian/
drwxr-xr-x
8 jb users
1024 Mar 23 11:27 generic/
drwxr-xr-x 164 jb users
4096 Mar 23 11:27 patches/
drwxr-xr-x
2 jb users
1024 Mar 23 11:27 platforms/
drwxr-xr-x
4 jb users
1024 Mar 23 11:27 plugins/
drwxr-xr-x
6 jb users 30720 Mar 23 11:27 rules/
drwxr-xr-x
7 jb users
1024 Mar 23 11:27 scripts/
drwxr-xr-x
2 jb users
1024 Mar 23 11:27 tests/
1.2.3 Prerequisites
Before PTXdist can be installed it has to be checked if all necessary programs are installed on the development
host. The configure script will stop if it discovers that something is missing.
The PTXdist installation is based on GNU autotools, so the first thing to be done now is to configure the packet:
~/local/ptxdist-1.99.12# ./configure
This will check your system for required components PTXdist relies on. If all required components are found the
output ends with:
[...]
checking whether /usr/bin/patch will work... yes
configure: creating ./config.status
config.status: creating Makefile
config.status: creating scripts/ptxdist_version.sh
config.status: creating rules/ptxdist-version.in
ptxdist version 1.99.12 configured.
Using '/usr/local' for installation prefix.
Report bugs to [email protected]
Without further arguments PTXdist is configured to be installed into /usr/local, which is the standard location
for user installed programs. To change the installation path to anything non-standard, we use the --prefix
argument to the configure script. The --help option offers more information about what else can be changed
for the installation process.
The installation paths are configured in a way that several PTXdist versions can be installed in parallel. So if an
old version of PTXdist is already installed there is no need to remove it.
One of the most important tasks for the configure script is to find out if all the programs PTXdist depends on are
already present on the development host. The script will stop with an error message in case something is missing.
7
1 Getting a working Environment
If this happens, the missing tools have to be installed from the distribution befor re-running the configure
script.
When the configure script is finished successfully, we can now run
~/local/ptxdist-1.99.12# make
All program parts are being compiled, and if there are no errors we can now install PTXdist into it’s final location.
In order to write to /usr/local, this step has to be performed as user root:
~/local/ptxdist-1.99.12# sudo make install
[enter root password]
[...]
If we don’t have root access to the machine it is also possible to install into some other directory with the
--prefix option. We need to take care that the bin/ directory below the new installation dir is added to our
$PATH environment variable (for example by exporting it in ˜/.bashrc).
The installation is now done, so the temporary folder may now be removed:
~/local/ptxdist-1.99.12# cd
~# rm -fr local
1.2.4 Configuring PTXdist
When using PTXdist for the first time, some setup properties have to be configured. Two settings are the most
important ones: Where to store the source packages and if a proxy must be used to gain access to the world wide
web.
Run PTXdist’s setup:
~# ptxdist setup
Due to PTXdist is working with sources only, it needs various source archives from the world wide web. If these
archives are not present on our host, PTXdist starts the wget command to download them on demand.
Proxy Setup
To do so, an internet access is required. If this access is managed by a proxy wget command must be adviced
to use it. PTXdist can be configured to advice the wget command automatically: Navigate to entry Proxies and
enter the required addresses and ports to access the proxy in the form:
<protocol>://<address>:<port>
Source Archive Location
Whenever PTXdist downloads source archives it stores these archives in a project local manner. If we are working
with more than one project, every project would download its own required archives. To share all source archives
between all projects PTXdist can be configured to use only one archive directory for all projects it handles: Navigate to menu entry Source Directory and enter the path to the directory where PTXdist should store archives to
share between projects.
8
1 Getting a working Environment
Generic Project Location
If we already installed the generic projects we should also configure PTXdist to know this location. If we already
did so, we can use the command ptxdist projects to get a list of available projects and ptxdist clone to
get a local working copy of a shared generic project.
Navigate to menu entry Project Searchpath and enter the path to projects that can be used in such a way. Here
we can configure more than one path, each part can be delemited by a colon. For example for PTXdist’s generic
projects and our own previous projects like this:
/usr/local/lib/ptxdist-1.99.12/projects:/office/my_projects/ptxdist
Leave the menu and store the configuration. PTXdist is now ready for use.
1.3 Toolchains
Before we can start building our first userland we need a cross toolchain. On Linux, toolchains are no monolithic
beasts. Most parts of what we need to cross compile code for the embedded target comes from the GNU Compiler
Collection, gcc. The gcc packet includes the compiler frontend, gcc, plus several backend tools (cc1, g++, ld etc.)
which actually perform the different stages of the compile process. gcc does not contain the assembler, so we
also need the GNU Binutils package which provides lowlevel stuff.
Cross compilers and tools are usually named like the corresponding host tool, but with a prefix – the GNU target.
For example, the cross compilers for ARM and powerpc may look like
• arm-softfloat-linux-gnu-gcc
• powerpc-unknown-linux-gnu-gcc
With these compiler frontends we can convert e.g. a C program into binary code for specific machines. So for
example if a C program is to be compiled natively, it works like this:
~# gcc test.c -o test
To build the same binary for the ARM architecture we have to use the cross compiler instead of the native one:
~# arm-softfloat-linux-gnu-gcc test.c -o test
Also part of what we consider to be the ”toolchain” is the runtime library (libc, dynamic linker). All programs
running on the embedded system are linked against the libc, which also offers the interface from user space
functions to the kernel.
The compiler and libc are very tightly coupled components: the second stage compiler, which is used to build
normal user space code, is being built against the libc itself. For example, if the target does not contain a hardware
floating point unit, but the toolchain generates floating point code, it will fail. This is also the case when the
toolchain builds code for i686 CPUs, whereas the target is i586.
So in order to make things working consistently it is necessary that the runtime libc is identical with the libc the
compiler was built against.
PTXdist doesn’t contain a pre-built binary toolchain. Remember that it’s not a distribution but a development
tool. But it can be used to build a toolchain for our target. Building the toolchain usually has only to be done
once. It may be a good idea to do that over night, because it may take several hours, depending on the target
architecture and development host power.
9
1 Getting a working Environment
1.3.1 Using Existing Toolchains
If a toolchain is already installed which is known to be working, the toolchain building step with PTXdist may be
omitted.
The OSELAS.BoardSupport() Packages shipped for PTXdist have been tested with the OSELAS.Toolchains() built with the same PTXdist version. So if an external toolchain is being used
which isn’t known to be stable, a target may fail. Note that not all compiler versions and combinations work properly in a cross environment.
Every OSELAS.BoardSupport() Package checks for its OSELAS.Toolchain it’s tested against, so using a different
toolchain vendor requires an additional step:
Open the OSELAS.BoardSupport() Package menu with:
~# ptxdist platformconfig
and navigate to architecture --> toolchain and check for specific toolchain vendor. Clear
this entry to disable the toolchain vendor check.
1.3.2 Building a Toolchain
PTXdist handles toolchain building as a simple project, like all other projects, too. So we can download the
OSELAS.Toolchain bundle and build the required toolchain for the OSELAS.BoardSupport() Package.
A PTXdist project generally allows to build into some project defined directory; all OSELAS.Toolchain projects
that come with PTXdist are configured to use the standard installation paths mentioned below.
All OSELAS.Toolchain projects install their result into /opt/OSELAS.Toolchain-1.99.3/.
Usually the /opt directory is not world writeable. So in order to build our OSELAS.Toolchain
into that directory we need to use a root account to change the permissions. PTXdist detects
this case and asks if we want to run sudo to do the job for us. Alternatively we can enter:
mkdir /opt/OSELAS.Toolchain-1.99.3
chown <username> /opt/OSELAS.Toolchain-1.99.3
chmod a+rwx /opt/OSELAS.Toolchain-1.99.3.
We recommend to keep this installation path as PTXdist expects the toolchains at /opt. Whenever we go to select a platform in a project, PTXdist tries to find the right toolchain from data read from the platform configuration
settings and a toolchain at /opt that matches to these settings. But that’s for our convenience only. If we decide
to install the toolchains at a different location, we still can use the toolchain parameter to define the toolchain to
be used on a per project base.
1.3.3 Building the OSELAS.Toolchain for OSELAS.BSP-Phytec-phyCORE-12
To compile and install an OSELAS.Toolchain we have to extract the OSELAS.Toolchain archive, change into the
new folder, configure the compiler in question and start the build.
The required compiler to build the OSELAS.BSP-Phytec-phyCORE-12 board support package is
10
1 Getting a working Environment
powerpc-603e-linux-gnu_gcc-4.3.2_glibc-2.8_binutils-2.18_kernel-2.6.27-sanitized
So the steps to build this toolchain are:
~# tar xf OSELAS.Toolchain-1.99.3.2.tar.bz2
~# cd OSELAS.Toolchain-1.99.3.2
~/OSELAS.Toolchain-1.99.3.2# ptxdist select ptxconfigs/\ Enter > powerpc-603e-linux-gnu_gcc-4.3.2_glibc-2.8_binutils-2.18_kernel-2.6.27-sanitized.ptxconfig
~/OSELAS.Toolchain-1.99.3.2# ptxdist go
At this stage we have to go to our boss and tell him that it’s probably time to go home for the day. Even on
reasonably fast machines the time to build an OSELAS.Toolchain is something like around 30 minutes up to a
few hours.
Measured times on different machines:
• Single Pentium 2.5 GHz, 2 GiB RAM: about 2 hours
• Turion ML-34, 2 GiB RAM: about 1 hour 30 minutes
• Dual Athlon 2.1 GHz, 2 GiB RAM: about 1 hour 20 minutes
• Dual Quad-Core-Pentium 1.8 GHz, 8 GiB RAM: about 25 minutes
Another possibility is to read the next chapters of this manual, to find out how to start a new project.
When the OSELAS.Toolchain project build is finished, PTXdist is ready for prime time and we can continue with
our first project.
1.3.4 Protecting the Toolchain
All toolchain components are built with regular user permissions. In order to avoid accidential changes in the
toolchain, the files should be set to read-only permissions after the installation has finished successfully. It is also
possible to set the file ownership to root. This is an important step for reliability, so it is highly recommended.
Building Additional Toolchains
The OSELAS.Toolchain-1.99.3.2 bundle comes with various predefined toolchains. Refer the ptxconfigs/
folder for other definitions. To build additional toolchains we only have to clean our current toolchain project,
removing the current selected_ptxconfig link and creating a new one.
~/OSELAS.Toolchain-1.99.3.2# ptxdist clean
~/OSELAS.Toolchain-1.99.3.2# rm selected_ptxconfig
~/OSELAS.Toolchain-1.99.3.2# ptxdist select \ Enter > ptxconfigs/any_other_toolchain_def.ptxconfig
~/OSELAS.Toolchain-1.99.3.2# ptxdist go
All toolchains will be installed side by side architecture dependent into directory
/opt/OSELAS.Toolchain-1.99.3/architecture_part.
Different toolchains for the same architecture will be installed side by side version dependent into directory
/opt/OSELAS.Toolchain-1.99.3/architecture_part/version_part.
11
2 Building phyCORE-MPC5200B-IO’s root filesystem
2.1 Extracting the Board Support Package
In order to work with a PTXdist based project we have to extract the archive first.
~# tar -zxf OSELAS.BSP-Phytec-phyCORE-12.tar.gz
~# cd OSELAS.BSP-Phytec-phyCORE-12
PTXdist is project centric, so now after changing into the new directory we have access to all valid components.
~/OSELAS.BSP-Phytec-phyCORE-12# ls -l
total 44
-rw-r--r-- 1 jb users 4078 Dec
-rw-r--r-- 1 jb users 1313 Nov
-rw-r--r-- 1 jb users 1101 Nov
drwxr-xr-x 10 jb users 4096 Jan
drwxr-xr-x 3 jb users 4096 Jan
drwxr-xr-x 5 jb users 4096 Nov
drwxr-xr-x 5 jb users 4096 Dec
drwxr-xr-x 6 jb users 4096 Jun
drwxr-xr-x 3 jb users 4096 Nov
drwxr-xr-x 4 jb users 4096 Jan
drwxr-xr-x 3 jb users 4096 Jan
3
1
4
14
14
13
15
8
1
8
7
18:10
13:31
21:05
17:33
15:08
12:30
10:19
2008
14:18
16:28
08:55
ChangeLog
Kconfig
TODO
configs/
documentation/
local_src/
patches/
projectroot/
protocols/
rules/
tests/
Notes about some of the files and directories listed above:
ChangeLog Here you can read what has changed in this release. Note: This file does not always exist.
documentation If this BSP is one of our OSELAS BSPs, this directory contains the Quickstart you are currenly
reading in.
configs A multiplatform BSP contains configurations for more than one target. This directory contains the platform configuration files.
projectroot Contains files and configuration for the target’s runtime. A running GNU/Linux system uses many
text files for runtime configuration. Most of the time the generic files from the PTXdist installation will fit
the needs. But if not, customized files are located in this directory.
rules If something special is required to build the BSP for the target it is intended for, then this directory contains
these additional rules.
patches If some special patches are required to build the BSP for this target, then this directory contains these
patches on a per package basis.
tests Contains test scripts for automated target setup.
12
2 Building phyCORE-MPC5200B-IO’s root filesystem
2.2 Selecting a Software Platform
First of all we have to select a software platform for the userland configuration. This step defines what kind of applications will be built for the hardware platform. The OSELAS.BSP-Phytec-phyCORE-12 comes with a predefined
configuration we select in the following step:
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist select \ Enter > configs/ptxconfig
info: selected ptxconfig:
'configs/ptxconfig'
2.3 Selecting a Hardware Platform
Before we can build this BSP, we need to select one of the possible targets to build for. In this case we want to
build for the phyCORE-MPC5200B-IO:
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist platform \ Enter > configs/phyCORE-MPC5200B-IO-1.99.12-1/platformconfig
info: selected platformconfig:
'configs/phyCORE-MPC5200B-IO-1.99.12-1/platformconfig'
Note: If you have installed the OSELAS.Toolchain() at its default location, PTXdist should already have detected
the proper toolchain while selecting the platform. In this case it will output:
found and using toolchain:
'/opt/OSELAS.Toolchain-1.99.3/powerpc-603e-linux-gnu/
gcc-4.3.2-glibc-2.8-binutils-2.18-kernel-2.6.27-sanitized/bin'
If it fails you can continue to select the toolchain manually as mentioned in the next section. If this autodetection
was successful, we can omit the steps of the section and continue to build the BSP.
In the unified OSELAS.BSP-Phytec-phyCORE-12, one included platform can use more userland features than another. For example platforms with graphic features will also build graphic support, but platforms sans display do
not need it. To speed up compilation for specific platforms PTXdist provides collections, to reduce the amount
of programs to be compiled for specific cases.
To reduce the package count for the phyCORE-MPC5200B-IO-1.99.12-1 run:
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist collection \ Enter > configs/configs/collectionconfig-headless
info: selected collectionconfig:
'configs/configs/collectionconfig-headless'
13
2 Building phyCORE-MPC5200B-IO’s root filesystem
2.4 Selecting a Toolchain
If not automatically detected, the last step in selecting various configurations is to select the toolchain to be used
to build everything for the target.
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist toolchain \ Enter
> /opt/OSELAS.Toolchain-1.99.3/powerpc-603e-linux-gnu/\ Enter > gcc-4.3.2-glibc-2.8-binutils-2.18-kernel-2.6.27-sanitized/bin
2.5 Building the Root Filesystem
Now everything is prepared for PTXdist to compile the BSP. Starting the engines is simply done with:
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist go
PTXdist does now automatically find out from the selected_ptxconfig and selected_platformconfig
files which packages belong to the project and starts compiling their targetinstall stages (that one that actually
puts the compiled binaries into the root filesystem). While doing this, PTXdist finds out about all the dependencies between the packets and brings them into the correct order.
While the command ptxdist
go is running we can watch it building all the different stages
of a packet.
In the end the final root filesystem for the target board can be found in the
platform-phyCORE-MPC5200B-IO/root/ directory and a bunch of *.ipk packets in the platform-phyCORE-MPC5200B-IO
directory, containing the single applications the root filesystem consists of.
2.6 Building an Image
After we have built a root filesystem, we can make an image, which can be flashed to the target device. To do this
call
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist images
PTXdist will then extract the content of priorly created *.ipk packages to a temporary directory and generate an
image out of it. PTXdist supports following image types:
• hd.img: contains grub bootloader, kernel and root files in a ext2 partition. Mostly used for X86 target
systems.
• root.jffs2: root files inside a jffs2 filesystem.
• uRamdisk: a u-boot loadable Ramdisk
• initrd.gz: a traditional initrd RAM disk to be used as initrdramfs by the kernel
• root.ext2: root files inside a ext2 filesystem.
• root.squashfs: root files inside a squashfs filesystem.
• root.tgz: root files inside a plain gzip compressed tar ball.
The to be generated Image types and addtional options can be defined with
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist platformconfig
14
2 Building phyCORE-MPC5200B-IO’s root filesystem
Then select the submenu "image
creation
platform-phyCORE-MPC5200B-IO/images/.
options".
The generated image will be placed into
Only the content of the *.ipk packages will be used to generate the image. This means that
files which are put manually into the platform-phyCORE-MPC5200B-IO/root/ will not be
enclosed in the image. If custom files are needed for the target. Install it with ptxdist.
Now that there is a root filesystem in our workspace we’ll have to make it visible to the phyCORE-MPC5200B-IO.
There are two possibilities to do this:
1. Making the root filesystem persistent in the onboard media.
2. Booting from the development host, via network.
Figure 2.1: Booting the root filesystem, built with PTXdist, from the host via network and from flash.
Figure 2.1 shows both methods. The main method used in the OSELAS.BSP-Phytec-phyCORE-12 BSP is to provide all needed components to run on the target itself. The Linux kernel and the root filesystem is persistent in
the media the target features. This means the only connection needed is the nullmodem cable to see what is
happening on our target. We call this method standalone.
The other method is to provide all needed components via network. In this case the development host
is connected to the phyCORE-MPC5200B-IO with a serial nullmodem cable and via ethernet; the embedded board boots into the bootloader, then issues a TFTP request on the network and boots the kernel from the TFTP server on the host. Then, after decompressing the kernel into the RAM and starting
it, the kernel mounts its root filesystem via NFS (Network File System) from the original location of the
platform-phyCORE-MPC5200B-IO/root/ directory in our PTXdist workspace.
The OSELAS.BSP-Phytec-phyCORE-12 provides both methods. The latter one is especially for development purposes, as it provides a very quick turnaround while testing the kernel and the root filesystem.
This chapter describes how to set up our target with features supported by PTXdist to simplify this challange.
15
2 Building phyCORE-MPC5200B-IO’s root filesystem
2.7 Target Side Preparation
The phyCORE-MPC5200B-IO uses U-Boot as its bootloader. U-Boot can be customized with environment variables and scripts to support any boot constellation. OSELAS.BSP-Phytec-phyCORE-12 comes with a predefined
environment setup to easily bring up the phyCORE-MPC5200B-IO.
Usually the environment doesn’t have to be set manually on our target. PTXdist comes with an automated setup
procedure to achieve a correct environment on the target.
Due to the fact that some of the values of these U-Boot environment variables must meet our local network environment and development host settings we have to define them prior to running the automated setup procedure.
Note: At this point of time it makes sense to check if the serial connection is already working, because it is essential
for any further step we will do.
We can try to connect to the target with our favorite terminal application (minicom or kermit for example).
With a powered target we identify the correct physical serial port and ensure that the communication is working.
Make sure to leave this terminal application to unlock the serial port prior to the next steps.
To set up development host and target specific value settings, we run the command
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist boardsetup
We navigate to ”Network Configuration” and replace the default settings with our local network settings. In
the next step we also should check if the ”Host’s Serial Configuration” entries meet our local development host
settings. Especially the ”serial port” must correspond to our real physical connection.
When everything is set up, we can ”Exit” the dialog and and save our new settings.
Now the command
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist test setenv
will automatically set up a correct default environment on our phyCORE-MPC5200B-IO. We have to powercycle
our target to make this step happen.
It should output lines like these when it was successful:
===============================
Please power on your board now!
===============================
Logging into U-Boot.....................OK
Setting new environment.................OK
Test finished successfully.
Note: If it fails, reading platform-phyCORE-MPC5200B-IO/test.log will give further information about
why it has failed. Also extending the command line shown above by a --debug can help to see whats going
wrong.
Users reported this step could fail if the Linux system running PTXdistis a virtual machine as
guest in an operating system from Redmont. In this case it seems at least one of the two OSes is
eating up characters sent to the serial line. Pengutronix recommends running PTXdiston a real
Linux system.
16
2 Building phyCORE-MPC5200B-IO’s root filesystem
2.8 Stand-Alone Booting Linux
To use the the target standalone, the rootfs has to be made persistent in one of the onboard suported media
of the phyCORE-MPC5200B-IO. The following sections describe the steps necessary to bring the rootfs into the
onboard NOR type flash.
Only for preparation we need a network connection to the embedded board and a network aware bootloader
which can fetch any data from a TFTP server.
After preparation is done, the phyCORE-MPC5200B-IO can work independently from the development host. We
can ”cut” the network (and serial cable) and the phyCORE-MPC5200B-IO will continue to work.
2.8.1 Development Host Preparations
On the development host a TFTP server has to be installed and configured. The exact method to do so is distribution specific; as the TFTP server is usually started by one of the inetd servers, the manual sections describing
inetd or xinetd should be consulted.
Usually TFTP servers are using the /tftpboot directory to fetch files from, so if we want to push kernel images
into this directory we have to make sure we are able to write there. As the access permissions are normally
configured in a way to let only user root write to /tftpboot we have to change it. The boardsetup scripts
coming with this BSP expect write permission in TFTP directory!
We can run a simple:
~# touch /tftpboot/my_file
to test if we have permissions to create files in this directory. If it fails we have to ask the administrator to grant
these permissions.
Note: We must /tftpboot part of the command above with our local settings.
2.8.2 Preparations on the Embedded Board
To boot phyCORE-MPC5200B-IO stand-alone, anything needed to run a Linux system must be locally accessible.
So at this point of time we must replace any current content in phyCORE-MPC5200B-IO’s flash memory.
But first we must create the new root filesystem image prepared for its usage on the phyCORE-MPC5200B-IO:
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist images
To simplify this step, OSELAS.BSP-Phytec-phyCORE-12 comes with an automated setup procedure for this step.
To use this procedure we run the command:
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist test flash
Note: This command requires a serial and a network connection. The network connection can be cut after this
step.
This command will automatically write a root filesystem to the correct flash partition on the phyCORE-MPC5200BIO. It only works if we previously have set up the environment variables successfully (described at page 16).
The command should output lines like this when it was successful:
17
2 Building phyCORE-MPC5200B-IO’s root filesystem
===============================
Please power on your board now!
===============================
Logging into U-Boot.....................OK
Flashing kernel.........................OK
Flashing rootfs.........................OK
Flashing oftree.........................OK
Test finished successfully.
Note: If it fails, reading platform-phyCORE-MPC5200B-IO/test.log will give further information about
why it has failed.
2.8.3 Booting the Embedded Board
To check that everything went successfully up to here, we can run the boot test.
~/OSELAS.BSP-Phytec-phyCORE-12# ptxdist test boot
===============================
Please power on your board now!
===============================
Checking for U-Boot.....................OK
Checking for Kernel.....................OK
Checking for init.......................OK
Checking for login......................OK
Test finished successfully.
This will check if the environment settings and flash partitioning are working as expected, so the target comes up
in stand-alone mode up to the login prompt.
Note: If it fails, reading platform-phyCORE-MPC5200B-IO/test.log will give further information about
why it has failed.
After the next reset or powercycle of the board, it should boot the kernel from the flash, start it and mount the
root filesystem also from flash.
Note: The default login account is root with an empty password.
2.9 Remote-Booting Linux
The next method we want to try after building a root filesystem is the network-remote boot variant. This method
is especially intended for development as everything related to the root filesystem happens on the host only.
It’s the fastest way in a phase of a project, where things are changing frequently. Any change made in the local
platform-phyCORE-MPC5200B-IO/root/ directory simply ”appears” on the embedded device immediately.
All we need is a network interface on the embedded board and a network aware bootloader which can fetch the
kernel from a TFTP server.
18
2 Building phyCORE-MPC5200B-IO’s root filesystem
2.9.1 Development Host Preparations
If we already have booted the phyCORE-MPC5200B-IO locally (as described in the previous section), all of the
development host preparations are done.
If not, then a TFTP server has to be installed and configured on the development host. The exact method of doing
this is distribution specific; as the TFTP server is usually started by one of the inetd servers, the manual sections
describing inetd or xinetd should be consulted.
Usually TFTP servers are using the /tftpboot directory to fetch files from, so if we want to push data files to this
directory, we have to make sure we are able to write there. As the access permissions are normally configured in
a way to let only user root write to /tftpboot we have to change it. If we don’t want to change the permission
or if its disallowed to change anything, the sudo command may help.
~/OSELAS.BSP-Phytec-phyCORE-12# sudo cp platform-phyCORE-MPC5200B-IO/images/linuximage
/tftpboot/uImage-pcm032
The NFS server is not restricted to a certain filesystem location, so all we have to do on most distributions is to
modify the file /etc/exports and export our root filesystem to the embedded network. In this example file the
whole work directory is exported, and the ”lab network” between the development host is 192.168.23.0, so the
IP addresses have to be adapted to the local needs:
/home/<user>/work 192.168.23.0/255.255.255.0(rw,no_root_squash,sync)
Note: Replace <user> with your home directory name.
2.9.2 Preparations on the Embedded Board
We already provided the phyCORE-MPC5200B-IO with the default environment at page 16. So there is no additional preparation required here.
2.9.3 Booting the Embedded Board
The default environment settings coming with the OSELAS.BSP-Phytec-phyCORE-12 has the possibility to boot
from the internal flash or from the network. The definition what should happen after power on is made with the
environment variable boot_cmd. The default setting is run bcmd_flash and will boot from flash.
To change this behavior we have to change the value of the boot_cmd environment variable to run bcmd_net.
uboot> setenv boot_cmd 'run bcmd_net'
uboot> saveenv
The next time the target will start it will use the network based booting mechanism.
19
3 Accessing Peripherals
The following sections provide an overview of the supported hardware components and their corresponding
operating system drivers. Further changes can be ported on demand of the customer.
Phytec’s phyCORE-MPC5200B-IO starter kit consists of the following individual boards:
1. The phyCORE-MPC5200B-IO module itself, containing the MPC5200B processor, RAM, flash and several
other peripherals.
2. The starter kit baseboard (PCM973).
To achieve maximum software re-use, the Linux kernel offers a sophisticated infrastructure, layering software
components into board specific parts. The OSELAS.BSP( ) tries to modularize the kit features as far as possible;
that means that when a customized baseboards or even customer specific module is developed, most of the
software support can be re-used without error prone copy-and-paste. So the kernel code corresponding to the
boards above can be found in the kernel source tree at:
1. arch/powerpc/platforms/mpc5200_simple.c for the processor module
2. arch/powerpc/boot/dts/pcm032.dts for the platform description
In fact, software re-use is one of the most important features of the Linux kernel and especially of the PowerPC
port, which always had to fight with an insane number of possibilities of the System-on-Chip CPUs.
Note that the huge variety of possibilities offered by the phyCORE modules makes it difficult
to have a completely generic implementation on the operating system side. Nevertheless, the
OSELAS.BSP( ) can easily be adapted to customer specific variants. In case of interest, contact
the Pengutronix support ([email protected]) and ask for a dedicated offer.
The following sections provide an overview of the supported hardware components and their operating system
drivers.
3.1 NOR Flash
Linux offers the Memory Technology Devices Interface (MTD) to access low level flash chips, directly connected
to a SoC CPU.
Modern kernels offer a method to define flash partitions on the kernel command line, using the mtdparts command line argument:
mtdparts=physmap-flash.0:256k(uboot)ro,128k(ubootenv),2M(kernel),-(root)
This line, for example, specifies several partitions with their size and name which can be used as /dev/mtd0,
/dev/mtd1 etc. from Linux. Additionally, this argument is also understood by reasonably new U-Boot bootloaders, so if there is any need to change the partitioning layout, the U-Boot environment is the only place where
the layout has to be changed.
From userspace the NOR flash partitions can be accessed as
20
3 Accessing Peripherals
• /dev/mtdblock0 (e.g. U-Boot partition)
• /dev/mtdblock1 (e.g. U-Boot environment partition)
• /dev/mtdblock2 (e.g. Kernel partition)
• /dev/mtdblock3 (e.g. Linux rootfs partition)
Note: This is an example only. The partitioning on our phyCORE-MPC5200B-IO target can differ from this layout.
Only the /dev/mtdblock3 on the phyCORE-MPC5200B-IO has a filesystem, so the other partitions cannot be
mounted into the rootfs. The only way to access them is by pushing a prepared flash image into the corresponding
/dev/mtd device node.
3.2 Serial Units
The MPC5200B SoC supports up to 6 so called PSC units with configureable serial protocolls. On the phyCOREMPC5200B-IO two PSC units are configured to work as serial interfaces: PSC3 and PSC6. They are accessible as
regular serial TTYs at /dev/ttyPSC0 and /dev/ttyPSC1.
Note: /dev/ttyPSC0 (PSC3) is used as the default serial console.
3.3 SRAM Memory
The phyCORE-MPC5200B-IO is shipped with a 2 MiB SRAM. We can use it as plain memory or we can put a
filesystem on top of it and use it as a regular part of the root filesystem.
• /dev/mtdblock7 is the full SRAM partition.
To create a filesystem we type:
~# mkfs.minix -n 30 /dev/mtdblock7
704 inodes
2048 blocks
Firstdatazone=26 (26)
Zonesize=1024
Maxsize=268966912
Note: The output of the mkfs.minix my differ due to different SRAM sizes.
And to mount it:
~# mount -t minix /dev/mtdblock7 /mnt
3.4 CAN Bus
The phyCORE-MPC5200B-IO provides a CAN feature, which is supported by drivers using the (currently workin-progress) proposed Linux standard CAN framework ”Socket-CAN”. Using this framework, CAN interfaces can
be programmed with the BSD socket API.
21
3 Accessing Peripherals
Configuration happens within the script /etc/network/can-pre-up. This script will be called when
/etc/init.d/networking is running at system start up. To change default used bitrates on the target change
the variables CAN_0_BITRATE and/or CAN_1_BITRATE in /etc/network/can-pre-up.
For a persistent change of the default bitrates change the local projectroot/etc/network/can-pre-up
instead and rebuild the BSP.
The Socket-CAN API is still work in progress and was submitted to the upstream kernel maintainers in part only.
3.4.1 About Socket-CAN
The CAN (Controller Area Network1 ) bus offers a low-bandwidth, prioritised message fieldbus for communication between microcontrollers. Unfortunately, CAN was not designed with the ISO/OSI layer model in mind, so
most CAN APIs available throughout the industry don’t support a clean separation between the different logical
protocol layers, like for example known from ethernet.
The Socket-CAN framework for Linux extends the BSD socket API concept towards CAN bus. It consists of
• a core part (candev.ko)
• chip drivers (e. g. mscan, sja1000 etc.)
So in order to start working with CAN interfaces we’ll have to make sure all necessary drivers are loaded.
Starting and Configuring Interfaces from the Command Line
If all drivers are present in the kernel, ”ifconfig -a” shows which network interfaces are available; as Socket-CAN
chip interfaces are normal Linux network devices (with some additional features special to CAN), not only the
ethernet devices can be observed but also CAN ports.
For this example, we are only interested in the first CAN port, so the information for can0 looks like
~# ifconfig can0
can0 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
inet addr:127.42.23.180 Mask:255.255.255.0
UP RUNNING NOARP MTU:16 Metric:1
RX packets:35948 errors:0 dropped:0 overruns:0 frame:0
TX packets:1 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:10000
RX bytes:243744 (238.0 KiB) TX bytes:2 (2.0 B)
Interrupt:145 Base address:0x900
The output contains the usual parameters also shown for ethernet interfaces, so not all of these are necessarily
relevant for CAN (for example the MAC address). These parameters contain useful information:
1
ISO 11898/11519
22
3 Accessing Peripherals
Field
Description
can0
NOARP
MTU
RX packets
TX packets
RX bytes
TX bytes
errors...
Interface Name
CAN cannot use ARP protocol
Maximum Transfer Unit, always 8
Number of Received Packets
Number of Transmitted Packets
Number of Received Bytes
Number of Transmitted Bytes
Bus Error Statistics
Table 3.1: CAN interface information
Inferfaces shown by the ”ifconfig -a” command can be configured with canconfig. This command adds CAN
specific configuration possibilities for network interfaces, similar to for example iwconfig for wireless ethernet
cards.
The baudrate for can0 can now be changed:
~# canconfig can0 bitrate 250000
and the interface is started with
~# ifconfig can0 up
Using the CAN Interfaces from the Command Line
After successfully configuring the local CAN interface and attaching some kind of CAN devices to this physical
bus, we can test this connection with command line tools.
The tools cansend and candump are dedicated to this purpose.
To send a simple CAN message with ID 0x20 and one data byte of value 0xAA just enter:
~# cansend can0 --identifier=0x20 0xAA
To receive CAN messages run the candump command:
~# candump can0
interface = can0, family = 29, type = 3, proto = 0
<0x020> [1] aa
The output of candump shown in this example was the result of running the cansend example above on a different machine.
See cansend’s and candump’s manual pages for further information about using and options.
3.5 Network
The phyCORE-MPC5200B-IO module features ethernet OnChip, which is being used to provide the eth0 network
interface. The interface offers a standard Linux network port which can be programmed using the BSD socket
interface.
23
3 Accessing Peripherals
3.6 USB Host Controller Unit
The phyCORE-MPC5200B-IO supports a standard OHCI Rev. 1.0a compliant host controller onboard for low and
full speed connections. Up to two ports are supported by this CPU.
Note: The physical layer is not part of the phyCORE-MPC5200B-IO, so it depends on the base board, how many
ports can be used.
The PCM973 baseboard only supports one working USB connector (the lower one). The second connector (the
upper one) acts as power supply only (+5V up to 500mA). Refer to the hardware manual for further details.
3.7 I²C Master
The MPC5200B processor based phyCORE-MPC5200B-IO supports a dedicated I²C controller onchip. The kernel
supports this controller as a master controller.
Additional I²C device drivers can use the standard I²C device API to gain access to their devices through this master
controller. For further information about the I²C framework see Documentation/i2c in the kernel source tree.
3.7.1 I²C Realtime Clock RTC8564
Due to the Real Time Clock framework of the kernel the RTC8564 clock chip can be accessed using the same tools
as for any other real time clock.
Date and time can be manipulated with the hwclock tool, using the -w (systohc) and -s (hctosys) options. For
more information about this tool refer to the manpage of hwclock.
OSELAS.BSP-Phytec-phyCORE-12 tries to set up the date at system startup. If there was a powerfail hwclock will
state:
pcf8564 1-0051: low voltage detected, date/time is not reliable.
pcf8564 1-0051: retrieved date/time is not valid.
In this case set the date manually (see man date) and run hwclock -w -u to store the new date into the
RTC8564.
3.7.2 I²C Device 24W32
This device is a 4 kiB non-volatile memory for general purpose usage.
This type of memory is accessible through the sysfs filesystem. To read the EEPROM content simply open() the
entry /sys/bus/i2c/devices/1-0052/eeprom and use fseek() and read() to get the values.
3.8 GPIO
Like most modern System-on-Chip CPUs, the MPC5200B has numerous GPIO pins. Some of them are unaccessible for the userspace as Linux drivers use them internally. Others are also used by drivers but are exposed to
userspace via sysfs. Finally, the remaining GPIOs can be requested for custom use by userspace, also via sysfs.
Refer to the in-kernel documentation Documentation/gpio.txt for complete details how to use the sysfsinterface for manually exporting GPIOs.
24
3 Accessing Peripherals
3.9 Watchdog
The internal watchdog will be activated when an application opens the device /dev/watchdog. Default timeout
is 60 seconds. An application must periodically write to this device. It does not matter what is written. Just the
interval between these writes should not exceed the timeout value, otherwise the system will be reset.
For testing the hardware, there is also a shell command which can do the triggering:
~# watchdog -t <trigger-time-in-seconds> /dev/watchdog
This command is part of the busybox shell environment. Keep in mind, that it should only be used for testing. If
the watchdog gets fed by it, a crash of the real application will go unnoticed.
3.10 ATA IDE/CompactFlash Card
The phyCORE-MPC5200B-IO can handle IDE/ATA devices up to PIO mode 4. MPC5200B’s ATA driver is a so
called pata driver. It enables access to these devices through the SCSI layer. All connected ATA/IDE devices will
occur as /dev/sd* device nodes.
3.11 FPGA Support
The phyCORE-MPC5200B-IO is shipped with an Altera FPGA of type Cyclone II EP2C8F256C8N. This FPGA is a
general purpose device with no special dedication when shipped. It’s up to you to blow life into it with your own
firmware, for example to do some high speed signal processing. The OSELAS.BSP-Phytec-phyCORE-12 provides
a mechanism to load the FPGA firmware while the whole system is already running.
3.11.1 General
This BSP is shipped with a generic FPGA firmware download driver. At runtime its not loaded by default. Instead
its up to the user to start the download manually.
Putting the mechanism to work is as easy as loading the module with parameter firmware=<filename.rbf>.
The firmware must be in RBF (Altera Raw Binary Format) and stored in the place where the firmware agent of our
embedded system will expect it. (It depends on the configuration of our udev daemon. Usually it should be
/lib/firmware/)
In practice, the module is loaded like in this example: ~# modprobe fpga firmware=my_own_firmware.rbf
The firmware download driver assumes specific hardware connections between processor and FPGA which are
shown in the following table. The user does not need to take care about these when using the standard hardware.
A few data lines are shared with the PSC unit 6 running as a UART. From the system’s view it
occures as /dev/ttyPSC1. While downloading the firmware into the FPGA this UART cannot
transfer data. After downloading it can act as an UART again.
Additionaly GPIO6 is used to switch the PSC6 lines between UART and FPGA mode.
If we want to use this download feauture we must ensure the follwing bridges are set:
See phyCORE-MPC5200B-IO’s datasheet for FPGA’s pin assignment.
25
3 Accessing Peripherals
FPGA Pin
MPC5200B Pin
Pin Loc.
Pin Name
Pin Conf.
nCONFIG
CONFIG_DONE
nSTATUS
DCLK
DATA0
UART6_CTS_TTL
UART6_RXD_TTL
GPIO7
UART6_RTS_TTL
UART6_TXD_TTL
PSC6_1
PSC6_0
GPIO_WKUP_5
GPIO_WKUP_4
GPIO_WKUP_7
GPIO_IRDA_1
GPIO_IRDA_0
out
in
in
out
out
PSC6_3
PSC6_2
Table 3.2: FPGA pin connections
Jumper
shorten
function
J8
J11
1-2
1-2
FPGA passive mode
FPGA control line routing
Table 3.3: FPGA download enabling
3.11.2 Demo
The BSP is shipped with a simple demo. To download it into the FPGA you should enter:
~# modeprobe fpga firmware=MPC_to_WBSlave.rbf
It supports five 32 bit registers at the baseaddess CS3 (chip select) is using.
• Register 0 at CS3 baseaddress + 0x00
• Register 1 at CS3 baseaddress + 0x04
• Register 2 at CS3 baseaddress + 0x08
• Register 3 at CS3 baseaddress + 0x0C
• Register 4 at CS3 baseaddress + 0x10 (mirrored up to the end of CS3 address space)
In the first step to access the FPGA registers we do not need a device driver. Due to PowerPC architecture maps
devices in memory we can use a small tool called memedit for testing.
The FPGA is connected to CS3 und CS4 of the processor’s Local Plus Bus. To get the physical mapping we can
run:
~# cat /proc/iomem
80000000-9fffffff :
a0000000-afffffff :
f0000600-f000060f :
f0000900-f000097f :
f0000900-f000097f
f0000980-f00009ff :
f0000980-f00009ff
f0001000-f00010fe :
f0001200-f0001283 :
f0002400-f0002457 :
f0002c00-f0002c57 :
f0003000-f00033ff :
f0003a00-f0003a7f :
/[email protected]
/[email protected]
mpc5200_wdt
can
: mpc52xx-mscan
can
: mpc52xx-mscan
ohci_hcd
bestcomm-core
mpc52xx_psc_uart
mpc52xx_psc_uart
mpc52xx-fec
mpc52xx_ata
26
3 Accessing Peripherals
f0008000-f000bfff : bestcomm-core
fbe00000-fbffffff : sram
fe000000-ffffffff : fe000000.flash
This areas of interest are here the area#1 and area#2. They are reserved for the FPGA access. area#1 is
connected to CS3, area#2 is connected to CS4.
To gain access to this areas we are using the memedit tool on the target:
~# memedit /dev/mem
This tool is an interactive one, like the command line. So the next step is to enter a command to map the physical
memory space into the memory of the memedit process.
After we know FPGA’s physical mapping, we now can map this area to gain access to the FPGA itself. When our
mapping of CS3/4 differs we have to enter other address values here. The default should be:
-> map 0xf9e00000 0x200000
We now can read and write into this area and - if the FPGA is ready to work - we can access its registers.
-> md 0x0 0x20
00000000: 00000000 00000000 00000000 00000000 ................
00000010: 00000000 00000000 00000000 00000000 ................
After system reset everything should be zero. We do some writings to check the registers:
-> mm 0x0 0x10
new values:
0x00000000: 00000010
-> mm 0x4 0x20
new values:
0x00000004: 00000020
-> mm 0x8 0x30
new values:
0x00000008: 00000030
-> mm 0xC 0x40
new values:
0x0000000c: 00000040
-> mm 0x10 0x50
new values:
0x00000010: 00000050
And try to read back the written values:
-> md 0x0 0x20
00000000: 00000010 00000020 00000030 00000040 ....... [email protected]
00000010: 00000050 00000050 00000050 00000050 ...P...P...P...P
We see the described behaviour of FPGA’s default firmware. Four single registers at offset 0x0,0x4,0x8 and 0xC,
and a mirrored register until the end of FPGA’s area starting at offset 0x10.
27
4 Special Notes
4.1 Analysing the CAN Bus Data Transfer
The OSELAS.BSP-Phytec-phyCORE-12 BSP comes with the standard pcap library and tcpdump tool. Both are
capable of analyzing CAN data transfer wich includes time stamping.
We set up the CAN interface(s) as usual and use it in our application. With tcpdump we can sniff at any point of
time the data transferred on the CAN line.
To do so, we simply start tcpdump:
~# tcpdump -i can0
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on can0, link-type LINUX_CAN (Linux CAN), capture size 68 bytes
Whenever there is any traffic on the line, tcpdump will log it to stdout. We will generate some traffic by using the
cansend command:
~# cansend can0 -i 0x12 0x0f 0xf0 0x10 0x01
For this data, tcpdump will output:
00:15:52.482066 CAN Out ID:00000012 PL_LEN:4 PAYLOAD: 0x0f 0xf0 0x10 0x01
The log tcpdump generates consist of six fields:
1. 00:15:52.482066 is the timestamp this data was on the line. Its format is HH:MM:SS:TTTTTT, with
TTTTTT as second’s fraction
2. CAN interface type
3. Out message’S data direction on this interface
4. ID:00000012 CAN message ID
5. PL_LEN:4 byte count of message data
6. PAYLOAD: 0x0f 0xf0 0x10 0x01 the payload data
Some notes:
• The data direction field could be Out or In
• The CAN message ID encodes some additional info into higher bit values:
– Bit 31 encodes an extended frame. If this bit is set, an extended message frame was on the line
– Bit 30 encodes an RTR frame. If this bit is set, a remote transmission message frame was on the line
The message ID resides in the lower bits of this field
• The PAYLOAD field could be empty, when there were no data elements in the message
28
5 Getting help
Below is a list of locations where you can get help in case of trouble. For questions how to do something special
with PTXdist or general questions about Linux in the embedded world, try these.
5.1 Mailing Lists
5.1.1 About PTXdist in Particular
This is an English language public mailing list for questions about PTXdist. See
http://www.pengutronix.de/mailinglists/index_en.html
how to subscribe to this list. If you want to search through the mailing list archive, visit
http://www.mail-archive.com/
and search for the list ptxdist. Please note again that this mailing list is just related to the PTXdist as a software.
For questions regarding your specific BSP, see the following items.
5.1.2 About Embedded Linux in General
This is a German language public mailing list for general questions about Linux in embedded environments. See
http://www.pengutronix.de/mailinglists/index_de.html
how to subscribe to this list. Note: You can also send mails in English.
5.2 News Groups
5.2.1 About Linux in Embedded Environments
This is an English newsgroup for general questions about Linux in embedded environments.
comp.os.linux.embedded
5.2.2 About General Unix/Linux Questions
This is a German newsgroup for general questions about Unix/Linux programming.
de.comp.os.unix.programming
29
5 Getting help
5.3 Chat/IRC
About PTXdist in particular
irc.freenode.net:6667
Create a connection to the irc.freenode.net:6667 server and enter the chatroom #ptxdist. This is an English
room to answer questions about PTXdist. Best time to meet somebody there is at European daytime.
5.4 phyCORE-MPC5200B-IO Support Mailing List
[email protected]
This is an english language public maillist for all BSP related questions specific to Phytec’s hardware. See web
site
http://www.pengutronix.de/mailinglists/index_en.html
5.5 Commercial Support
You can order immediate support through customer specific mailing lists, by telephone or also on site. Ask our
sales representative for a price quotation for your special requirements.
Contact us at:
Pengutronix
Peiner Str. 6-8
31137 Hildesheim
Germany
Phone: +49 - 51 21 / 20 69 17 - 0
Fax: +49 - 51 21 / 20 69 17 - 55 55
or by electronic mail:
[email protected]
30
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
