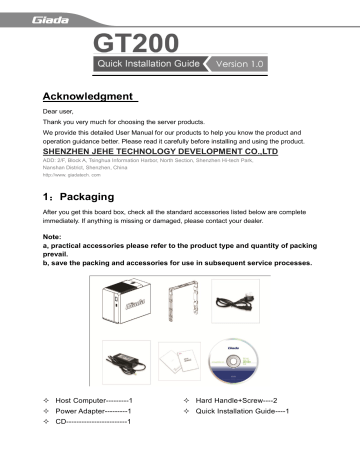

Acknowledgment
Dear user,
Thank you very much for choosing the server products.
We provide this detailed User Manual for our products to help you know the product and
operation guidance better. Please read it carefully before installing and using the product.
SHENZHEN JEHE TECHNOLOGY DEVELOPMENT CO.,LTD
ADD: 2/F, Block A, Tsinghua Information Harbor, North Section, Shenzhen Hi-tech Park,
Nanshan District, Shenzhen, China
http://www. giadatech. com
1:Packaging
After you get this board box, check all the standard accessories listed below are complete
immediately. If anything is missing or damaged, please contact your dealer.
Note:
a, practical accessories please refer to the product type and quantity of packing
prevail.
b, save the packing and accessories for use in subsequent service processes.
 Host Computer---------1
 Hard Handle+Screw----2
 Power Adapter---------1
 Quick Installation Guide----1
 CD------------------------1
2
2: Appearance
SN
Item
Description
1
Spdif/Audio
2
Reset
Reset button, allows the system to recover from the exception..
3
Clear CMOS
Clear CMOS , BIOS will return to the initial state after clearing.
4
JAHC
5
VGA
6
USB2.0
7
RJ45
8
DC-in
9
PowerButton
10
USB3.0
Composite analog audio and digital audio interface for
connecting audio devices.
JAHC feature turned on or off (if it requires software support
when open JAHC function).
Analog signal output port ,to connect a VGA analog display
device .
Connect USB devices, support USB2.0 standard.
For network connectivity, providing gigabit transmission rates.
For connecting the power adapter to the DC power supply for
the host, the default 12V ~ 5A.
Power button
 Short press to turn on the system when the off state.
 Short press to wake up the system when in sleep mode.
 Long press to shut down the system when turned on..
Connect USB devices, support USB3.0 standard.
Display system power and storage disk activity status
11
Power LED
 Long Off: off;vgreen light: boot state, no data storage disk
read and write in.
 Green Light: boot state, no data storage disk read and write in.
Displays the network connection status
 Long Off: No network connection.
12
LAN LED
 Green Light: The network connection is working, but there is no
data transmission network.
 Flashing Green: The network connection is normal, there is a
network data transmission.
13
HDD-2 LED
Storage HDD LED
 Long Off: storage disk is not installed.
14
HDD-1 LED
 Green Light: storage disk has been installed.
 Flashingred: storage disk abnormalities, in order to ensure
data security, please change the storage disk.
System Status Indicator
15
STATUS LED
 Green Light: the system is in normal operation.
 Flashing Green: the system is in sleep mode.
3:Hard Disk Installation
If the machine with the memory, and no other hardware requirements, you can directly
install the hard disk (the machine only for 3.5-inch hard drive).
3.1:Hard handle installation
Remove the two sets of hard handle and screws included in the package; the hard disk into the
hard handle as illustrated, and then the screws.
3.2:Hard Disk Installation
Step one:Open the hard cover of the lock according , then pull the hard cover, you can
open the hard cover.
2
Step two: The installed hard disk is fully inserted into the machine in the direction
shown.
Step three: Insert the hard protective cover as illustrated, to under cover until the
hard protective cover lock buckle.
4:Hardware Installation (Memory / SSD )
This product can be installed two memory, Including the inside and outside,if you only need to
install a memory,you can install the memory on the outside of the motherboard.If you need to
install two memories, The motherboard need to be removed from the machine,and then the anther
memory can be installed on the inside of the motherboard. SSD is on the outside of the
motherboard, you needn't to remove the motherboard if you want to install the SSD.
4.1:Housing Demolition
4.1.1:Open The Hard Drive Cover
Open the hard cover of the lock, then pull hard cover, you can open the hard cover.
4.1.2:Open The Shell
You can remove the screw in top(4),bottom(4),followed(5) with a Phillips
screwdriver.
2
After undoing the screws, push the shell in the direction shown, you can remove
the shell.
4.1.3:Split I / O Cover
Twist off the bottom (2), on both sides of the screw (2) using a Phillips screwdriver
to remove the rear IO.like the following diagram:
4.1.4:Split Motherboard
Step one: Use a Phillips screwdriver to open the four screws in the SATA adapter
plate as illustrated.
Step two: Remove the SATA adapter plate as illustrated.
Step Three: Use a Phillips screwdriver to remove the four screws which are used to
secure the motherboard, as illustrated, remove the motherboard.
4.2:Memory Installation
Outside:
2
Inside:
4.3:SSD Installation
4.4:Connecting The Monitor
This product has a VGA interface,You can connect a monitor with a VGA interface.
4.5:Keyboard and Mouse
1、Installing the keyboard / mouse
Before the official use of this product, please ensure that you have installed a wired
or wireless keyboard / mouse, this product can use the USB keyboard / mouse,
Wireless Keyboard /Mouse
Before you install a wireless keyboard / mouse, make sure your keyboard /
mouse to install enough energy batteries.
Step one: Install the wireless keyboard / mouse signal transmitter installed in the
host computer's USB interface, it is recommended to install the rear USB host
interface.
Step two: Turn on the host, open the keyboard / mouse switch, usually located in
the lower part of the keyboard / mouse
Note: When you are not using the keyboard / mouse, turn off the keyboard /
mouse switch to conserve battery, be sure to use a longer time.
4.6:Connect adapter
This product comes with power adapter using internationally accepted standard,
rated input voltage range is 100V ~ 240V, please install your power adapter
correctly in accordance with the following procedure.。
Step one:Take out the power adapter and power cord from the packaging,
power adapter and power cord tight junctions plum head.
Step two:Connect the power adapter output DC power input port and a host of
tight junctions.
Step three:into a power outlet.
2
