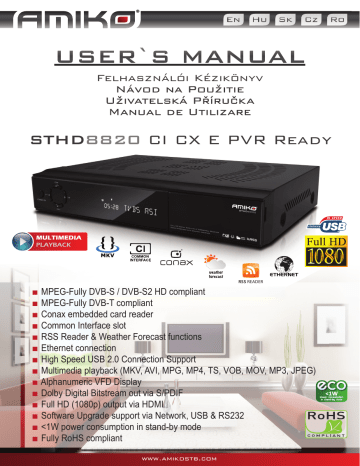

user`s manual

user`s manual
En
Hu
Sk
Cz
Ro
USER`S MANUAL
Felhasználói Kézikönyv
Návod na Použitie
Uživatelská Príručka
Manual de Utilizare
STHD8820 CI CX E PVR Ready
MULTIMEDIA
PLAYBACK
RSS READER
■ MPEG-Fully DVB-S / DVB-S2 HD compliant
■ MPEG-Fully DVB-T compliant
■ Conax embedded card reader
■ Common Interface slot
■ RSS Reader & Weather Forecast functions
■ Ethernet connection
■ High Speed USB 2.0 Connection Support
■ Multimedia playback (MKV, AVI, MPG, MP4, TS, VOB, MOV, MP3, JPEG)
■ Alphanumeric VFD Display
■ Dolby Digital Bitstream out via S/PDIF
■ Full HD (1080p) output via HDMI
■ Software Upgrade support via Network, USB & RS232
■ <1W power consumption in stand-by mode
■ Fully RoHS compliant
www.amikostb.com
CONTENTS
1.
SAFETY .............................................................................................................................................................3
2.
INTRODUCTION .............................................................................................................................................3
3.
FEATURES........................................................................................................................................................4
4.
REMOTE CONTROL ......................................................................................................................................5
5.
FRONT PANEL ................................................................................................................................................7
6.
REAR PANEL ...................................................................................................................................................7
7.
CONNECTING YOUR SYSTEM ...................................................................................................................7
8.
BASIC OPERATIONS .....................................................................................................................................9
8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
8.9
8.10
8.11
8.12
8.13
8.14
8.15
8.16
8.17
8.18
8.19
8.20
8.21
8.22
8.23
8.24
9.
TURN ON STB...................................................................................................................................................9
POWER..............................................................................................................................................................9
CHANNEL UP/CHANNEL DOWN ........................................................................................................................9
VOLUME UP/VOLUME DOWN- ..........................................................................................................................9
NUMBER ...........................................................................................................................................................9
MUTE ...............................................................................................................................................................9
PAUSE ...............................................................................................................................................................9
RECALL ............................................................................................................................................................9
FAVORITE .........................................................................................................................................................9
AUDIO .........................................................................................................................................................10
INFORMATION .............................................................................................................................................10
EPG ............................................................................................................................................................10
TV/RADIO .................................................................................................................................................11
CHANNEL LIST ............................................................................................................................................11
SLEEP ..........................................................................................................................................................12
PAGE UP/PAGE DOWN ................................................................................................................................12
TEXT .........................................................................................................................................................12
SUBTITLE ....................................................................................................................................................12
FIND ............................................................................................................................................................13
ZOOM ..........................................................................................................................................................13
TV/RCV .....................................................................................................................................................13
MENU..........................................................................................................................................................13
VIDEO FORMAT ...........................................................................................................................................13
EXIT ............................................................................................................................................................13
SERVICE .........................................................................................................................................................13
9.1
9.2
10.
10.1
10.2
10.3
10.4
10.5
11.
11.1
11.2
11.3
11.4
11.5
11.6
11.7
12.
ORGANIZING SERVICE ....................................................................................................................................14
ORGANIZING FAVOURITES ..............................................................................................................................15
INSTALLATION ............................................................................................................................................17
SATELLITE INSTALLATION ..........................................................................................................................17
AUTO INSTALLATION ..................................................................................................................................19
SATELLITE GUIDE .......................................................................................................................................19
TERRESTRIAL INSTALLATION OPTIONAL .............................................................................................20
CABLE INSTALLATION (OPTIONAL).............................................................................................................20
PREFERENCE ................................................................................................................................................20
LANGUAGE .................................................................................................................................................21
PARENTAL CONTROL ..................................................................................................................................21
A/V CONTROL ............................................................................................................................................22
TIME SETTING .............................................................................................................................................23
TIMER .........................................................................................................................................................23
MISCELLANEOUS SETTINGS ........................................................................................................................24
OSD SETTING .............................................................................................................................................25
SYSTEM ..........................................................................................................................................................25
1
12.1
INFORMATION .............................................................................................................................................26
12.2
DEFAULT SETTING ......................................................................................................................................26
12.2.1 Default Value:.........................................................................................................................................26
12.2.2 Delete All Channel: ................................................................................................................................26
12.2.3 Save default value ...................................................................................................................................27
12.3
SOFTWARE UPGRADE ..................................................................................................................................27
12.4
UPGRADE BY USB ......................................................................................................................................28
12.5
BACKUP TO USB .........................................................................................................................................28
13.
13.1
14.
CONDITIONAL ACCESS .............................................................................................................................29
CA SETTING................................................................................................................................................29
USB ...................................................................................................................................................................29
14.1
FILE LIST ....................................................................................................................................................29
14.1.1 Record Files ...............................................................................................................................................30
14.1.2 MP3 Files ...................................................................................................................................................30
14.1.3 Image Files.................................................................................................................................................31
14.1.4.Software .....................................................................................................................................................33
14.1.5 All ...........................................................................................................................................................33
14.2
STORAGE INFORMATION .............................................................................................................................33
14.3
PVR SETTING .............................................................................................................................................34
14.4
USB SPEED TEST ........................................................................................................................................35
14.5
REMOVE USB DEVICE SAFELY! ..................................................................................................................35
15.
15.1
15.2
15.3
15.4
15.5
15.6
16.
16.1
16.2
16.3
17.
17.1
17.2
17.3
INTERNET
OPTIONAL
.........................................................................................................................35
NETWORK LOCAL SETTING .........................................................................................................................35
HTTP UPGRADE ...........................................................................................................................................36
FTP UPGRADE ............................................................................................................................................36
FTP .............................................................................................................................................................36
WEATHER FORECAST ..................................................................................................................................37
RSS READER ..............................................................................................................................................37
GAME ..............................................................................................................................................................38
TETRIS ........................................................................................................................................................38
SNAKE.........................................................................................................................................................38
OTHELLO ....................................................................................................................................................38
NEW FEATURES ...........................................................................................................................................39
EQUALIZER .................................................................................................................................................39
TIME SHIFT .................................................................................................................................................39
RECORD ......................................................................................................................................................39
18.
TROUBLE SHOOTING .................................................................................................................................41
19.
SPECIFICATIONS .........................................................................................................................................42
2
1. SAFETY
This HD Receiver has been manufactured to satisfy the international safety standards.
Please read the following safety precautions carefully.
MAINS SUPPLY: 100 - 240V AC 50/60Hz
OVERLOADING: Do not overload wall outlet, extension cord or adapter as this may result in fire or
electric shock.
LIQUIDS: Keep liquids away from the HD Receiver. The apparatus shall not be exposed to dripping
or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
CLEANING: Disconnect the HD Receiver from the wall outlet before cleaning .Use a light damp cloth
(no solvents) to dust the HD Receiver.
VENTILATION: The slots on top of the HD Receiver must be left uncovered to allow proper airflow to
the unit. Do not stand the HD Receiver on soft furnishings or carpets. Do not expose the HD Receiver
to direct sunlight or do not place it near a heater. Do not stack electronic equipments on top of the HD
Receiver.
ATTACHMENTS: Do not use any attachments that are not recommended as these may cause
hazard or damage the HD Receiver.
CONNECTION TO THE SATELLITE DISH LNB: Disconnect the HD Receiver from the mains before
connecting or disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE LNB.
CONNECTION TO THE TV: Disconnect the HD Receiver from the mains before connecting or
disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE TV.
EARTHING: The LNB cable MUST BE EARTHED to the system earth for the satellite dish.
LOCATION: Place the HD Receiver indoor in order not to expose to lightening, rain or sunlight.
2. INTRODUCTION
Thank you for purchasing the HD Receiver.
This HD Receiver is fully compliant with the international DVB standard and thus transmits digital
images, sounds, information guides and teletext directly to your TV through the satellite broadcasting.
Now you can comfortably see and receive digitally transmitted music, news, movie and sports satellite
broadcasts in your office or at your home. You can enjoy interesting games embedded in HD
Receiver.
In service search section, both the automatic service search method and the manual search mode
are provided. Also it supports DiSEqC 1.0, 1.2 and USALS, enabling you to move your antenna in
order to focus preferred satellite. You can save up to 8000 TV and Radio services and work around
with the favorite, Lock, Delete, Move and Sort functions.
The menu is very modern and supports multiple languages. All functions can be carried out using the
remote control and some of the functions can also be carried out using the front panel. The HD
Receiver is easy to use and adaptable for future advances. Please be aware that new software may
change the functions of the HD Receiver.
3
If you have any difficulties concerning the operation of your HD Receiver, please refer to the relevant
section of this manual, including the ‘Troubleshooting’. This Manual will provide you with useful
information on using the HD Receiver.
3. FEATURES
MPEG-Fully DVB-S / DVB-S2 (H.264) HD compliant
8000 channels (TV and Radio) programmable
Multilingual menu text support
Channel switching time less than 1 second
Channel list editing
Favorite channel list editing
True-color On-Screen Display (OSD)
Full Picture In Graphic (PIG) function
Electronic Program Guide (EPG) for on screen channel information
Subtitle supported
Teletext supported by VBI insertion and software emulation
Parental lock facility by channel and program event
Program and Channel information transfer from receiver to receiver
Exciting games embedded
S/PDIF for digital audio or Dolby digital bitstream output
DiSEqC 1.0, 1.1, 1.2 and USALS
HDMI HD Video/Audio Output
USB 2.0 Host
VFD Display for service information
RTC (Real-Time-Clock)
Time Shift
Video Recording
Recording one channel and Time Shifting another channel (optional)
4
4. Remote Control
You can power on/off the receiver, operate on screen menu, and
use a variety of hot key function.
POWER
To switch your receiver on from standby or standby to on.
MUTE
Used to enable or disable the audio
NUMERIC KEYS
Used to select channels or enter programming parameters
TV / RADIO
Receiver switches between TV and Radio mode.
(ZOOM)
Press
key select zoom times, from X1 to X16.
RECALL
Return to the previous menu or status.
TV/SAT
Receiver switches between TV and receive mode.
INFO
To display channel status or various program information of current service.
EPG(Electronic Program Guide)
Display the Programs guide on screen when available.
MENU
Displays the Main Menu on the screen, or return to the previous menu or
status.
EXIT
Cancel the user selection and return to the viewing mode from a menu.
OK
To select menu option, or to updated on entry.
<,> KEY
To adjust volume level, or to move cursor left or right in the menu.
^,v KEY
To change channels, or to move cursor up or down in the menu.
PAGE /PAGE
To move up the cursor to the next or previous page
in the menu or channel list.
REC
Has different functions per menu.
Teletext
Shows teletext information of the current channel supports.
Subtitle
Subtitle Display.
UHF
In case your TV is connected through RF Modulator (UHF), select output
channel number between CH21 and CH69 with up and down key.
(FIND)
Use to prompt find channels sort by character.
TIMER
Press timer key you can setup up the Standby time.
V FORMAT
Press P/N button to switch the display mode among "By source", "By native
TV ", "480i", "480P”,”576i”,”576p",”720P” ,"1080i" and”1080p”.
FAV(FAVORITE)
To set receiver to the favorite server mode,
display the favorite channel.
FOLDER
Press this button to enter the Record Manager menu directly.
AUDIO(Red Key)
Audio channels setup, to select audio mode; Left, Right , Stereo, Mono.
OPTION(GREEN KEY)
Shows NVOD information of the current channel supports.
SAT
Display the satellite list at normal picture.
Play Mode
Select the play mode in MP3 or JPEG player.
5
USB
To remove the USB Hard Disk safely.
TMS(Time Shift)
Press this button to display Time Shift info bar.
Play
To play the MP3, JPEG, or Record files.
Stop
To stop the Time Shift, recording, or MP3/JPEG player.
PAUSE
Used to select the freeze function.
Press once to freeze the screen picture.
FB
To start Fast Backward function.
FF
To start Fast Forward function.
SB
To start Slow Backward function.
SF
To start Slow Forward function
/
PREV/NEXT
Switch to preview or next file in play mode
6
5. Front panel
POWER KEY: To switch the receiver power on/stand by
MENU KEY To enter into the main menu (optional).
<,> KEY: To adjust volume level, or to move cursor left or right in the menu.
^, v KEY : To change channels, or to move cursor up or down in the menu
OK KEY: To see TV/Radio channel list, or to confirm in the menu (optional).
Remote Sensor: Detects infrared signal from remote control unit
POWER Indicator: while the receiver is power on and at standby mode.
Signal Indicator: When receiving signal is strong, the signal indicator is lighted.
Card Slot: One or two (optional) slots CA Interface for Conax,
Common Interface: One socket for Conditional Access Modules CAM (optional).
USB A: USB 2.0 Host, connect to USB hard disk, or flash disk
Display: (VFD type) Indicates operating status of receiver
6. Rear Panel
Please refer to the diagram above for all possible connections of your receiver
Do not connect the unit to the mains socket until all other connections have been made and checked.
Your configuration can vary depending on model
AERIAL OUT: This enables the connection of another receiver. (Optional)
AERIAL IN : This port is to connect the coaxial cable from terrestrial antenna. (Optional)
POWER ON/OFF SWITCH: To switch ON/OFF the receiver power supply.
LOOP: This enables the connection of another receiver. (Optional)
LNB IN 13/18V 500mA MAX: This port is to connect the coaxial cable from LNB of your Dish.
(Optional)
TV : This is used to connect your TV through SCART cable.
VIDEO : This RCA connector is used to connect any external video.
0/12V 50mA:This is used to Connect 12V to an external 0V/12V switch.
AUDIO R/L : These RCA connectors are used to connect any external audio amp or system.
S/PDIF: Digital Audio interface, connect to AV amplifier S/PDIF input terminal.
HDMI: Audio and Video output socket for TV set with HDMI Input Jack only.
RS 232C SERIAL PORT: This is used to connect your receiver to a computer through a serial cable.
Ethernet: (optional) Network port, you can get a new software updates from this port.
USB B: USB 2.0 Host, connect to USB hard disk, or flash disk
7. Connecting Your System
There are four ways to connect the receiver to your existing TV system. We recommend using one of
the following cases for the best result:
1. If you have a high definition television set, you should use a HDMI cable for best result, Plug one
end of the cable into the HDMI socket on the receiver, and the other end into the matching socket on
7
your television. In this case, you do not have to make audio connections because the HDMI connector
can output stereo audio or Dolby digital audio.
2. Connect one end of SCART cable to the TV (SCART) jack on the back of the receiver and the other
end to a SCART jack on your TV.
3. Connect one end of RCA cable to the RCA jack on the back of the receiver and the other end to a
RCA jack on your TV.
4. You will need to obtain a component video Cable (RCA cable) to use the component video
connector, Plug one end of the Cables into the Y(Green), Pb(Blue) and Pr(Red) Sockets on the digital
receiver, and the other end into the matching sockets on your television.
Finally connect the coaxial cable from the LNB to the LNB IN jack on the receiver.
With External Audio / Hi-Fi System
To connect any external Audio Hi-Fi system, the receiver has been provided with two RCA connectors
at the back of the receiver marked with Audio L and R.
Connect an RCA stereo cable from the AUDIO L, R jacks on the back of the receiver to the LINE,
AUX, SPARE OR EXTRA input jacks on your Hi-Fi System.
7.1 TV with Motorized System (DiSEqC 1.2)
Connect one end of your coaxial cable to the LNB IN connector on the receiver and the other end to
the REC or Receiver connector on the DiSEqC 1.2 motor.
Connect the coaxial cable from the LNB to the LNB connector on the DiSEqC 1.2 motor.
All our receivers are designed to be DiSEqC 1.0 and DiSEqC 1.2 compatible.
This allows multiple antennas to be connected to the receiver at the same time.
If you have two or more fixed antennas or LNBs, then we recommend you use a DiSEqC 1.0
switch.
Connect the coaxial cable from the first LNB to the LNB 1 or LNB A input connector of the DiSEqC
switch.
Do the same for any other LNBs that you have.
Connect one end of a coaxial cable to the RF output connector of the DiSEqC switch,
connect the other end to the LNB IN socket on the receiver.
To the digital receiver, you can connect either a single satellite antenna directly or LNB of
multi-feed equipment.
8
8. Basic Operations
8.5
8.1 Turn on STB
Number
In full screen, use number key and press [OK] on the
First, press the [Device’s Main Power] to turn on the unit.
Remote Control Unit to change channel.
When the STB is first used, there will play the first
channel from the default Channel List. If the STB is not
8.6
first used, STB will play the same channel as last time
1
before turning off.
Mute
Press [MUTE] key to mute the sound and the
screen will show up mute OSD.
2
Press [MUTE] key again to restore sound.
? Frequently Asked Question
8.7
Q: The power of my STB has been turned on and not
1
in Standby mode, but the TV screen showed
Pause
In playing mode, press [Pause] key, the picture will
be paused, but the sound of the channel will still
nothing:
continues.
A: Make sure the TV set has been set to the correct
video input (not the TV channels). For example, if you
have connected the unit with the Video1 input of the TV
set, the TV set has to be switched to Video1.
2
Press [PLAY] key again, the screen’s picture will
skip over to the current playing picture, and the
sound of the channel will corresponding playing.
Q: The power of my STB has been turn on and not in
Standby mode, but the TV screen showed
8.8
nothing except one box with “No Signal” image.
Press [RETURN] key will directly switch to the previous
A: That means the channel, which you select, is no
Recall
channel that you played before current channel.
signal. It could be several causes:
1
The channel which you select is not in your
8.9
allocate satellite. The simply solution is to change
1
channel.
2
Favorite
In full screen, press [FAV] key, it will display a
window of “Favorite list” on the left of the screen,
The signal of current TV channel is too weak. You
which you can watch like below.
can try to change channel to other strong signal
channels. If the problems still exist, please consult
your local dealer or other professionals for
technical service.
3
You use the Dual LNB, and you need Modify LNB
Type
8.2 Power
1
Press [Power] Key can enter the Standby state
2
In Standby state, press [Power] Key again can call
back the unit and go on play the previous channel
highlight by press [Channel Up/Channel Down]
3
User can also disconnect the device’s main power
key to select favorite Channels.
2
to end the Standby state.
3
In the window of " Favorite list ", you can move
In the window of ” Favorite list ", you can press
[Left/Right] key to select favorite groups Pressing
8.3 Channel Up/Channel Down
[P-/P+] keys can implement the “Page up/Page
In full screen, press [CH+/CH-] to change channel.
down” function
8.4 Volume Up/Volume DownIn full screen, press [VOL+/VOL-] to adjust volume.
9
4
Press [Exit] key to exit the current window.
8.12 EPG
? Frequently Asked Question
1
to help you navigate channels through all the
Q: Why the screen displays “No Favorite Channel”,
possible viewing options. The EPG supplies
after pressing [Favorite] key?
information such as channel listings and starting
A: It is because that you haven’t set any channels as
and ending times for all available channels.
“favorite channel”. Please refer to Favorite
Press [EPG] key to display EPG screen.
.
8.10
1
The STB has an Electronic Program Guide (EPG)
Audio
In full screen, press [AUDIO] key can open the
“Audio” window on the screen.
2
Press [Red] key can select the channels by
different group, such as by
Favorite/Satellite/Provider/CAS etc.
2
3
You can modify the audio track by press [Channel
among Now EPG, Next EPG, More and Schedule,
Up / Channel Down] key and modify the audio
like the following picture:
mode by press [Volume Up / Volume Down] key.
3
Mode: Left/Right/Stereo/Mono
8.11
Press [Green] key to select different display mode
Information
In full screen, press [INFO] key (press [INFO] key and
[RED] key) can open information screen, in the window
shows the parameters of current channel.
10
5
In EPG menu, when you select one event by high
light item, you can set this event to record timer list
directly by press [REC] button.
6
In EPG menu, press [Exit] to close EPG screen.
8.13 TV/RADIO
In TV mode, pressing [TV/RADIO] key can switch to
Radio mode. In Radio mode, press [TV/RADIO] key to
switch to TV mode.
8.14 Channel List
1
In full screen, press [OK] key can enter “Channel
List”.
2
Press [Red] key to change the different group.
which you can watch like below.
4
Press [Yellow] key in EPG menu can set one
record timer or go to Timer List menu.
3
Press [Green] key to display details information for
EPG Now.
11
FTA/$: Sort channel through free and
scramble sequence. Free channel will in the
front of channel list and scramble channel will
at the rear of channel list
Lock: Accumulated all locked channels and
list in the last of TV Channel List.
Name (A-Z): Sorting in Alphabetical Order,
ignore “$” symbol.
Name (Z-A): Sorting in Alphabetical Order,
ignore “$” Symbol.
7
4
Press [Up/Down] key to move highlight and press
[OK] key to play the highlighted channel.
Press [Yellow] key you can change the current
channel’s property, such as FAV/ Lock/ Skip/
8
Press [Page Up/Down] key to page up and page
Down.
Delete/ Rename.
9
Press [Exit] key to exit the channel list.
8.15 Sleep
1
This function can set sleep timer. When you set a
sleep timer and the time arrive, the system will
enter to standby automatically.
2
Pressing [SLEEP] key, it will switch the mode
between Sleep Timer Off /10/30/60/90/120
minutes.
8.16 Page Up/Page Down
5
Press [Blue] key can open the “Sort” window like
In Channel list, press [Page+/Page-] key can page up
below. There are five kinds of sorting ways. You
and page down the channel list.
can press [Channel Up/Channel Down] key to
8.17 TEXT
move highlight and press [OK] key to confirm you
1
selection.
Press [green] key in full screen, you can open
teletext page on the channel which has teletext
information.
2
If the channel has no teletext information, it will
show “No Teletext Data” on the screen.
8.18 Subtitle
1
Press [Yellow] key in full screen, you can switch
subtitle on or off.
6
The five kinds of sorting way are:
Default: Sorting by scanning result.
12
8.19 Find
8.22 Menu
Press [MENU] key can open the menu, exit the
current menu to last menu or close the window.
8.23 Video Format
1
Press [P/N] (white) key under Full Screen playback
for 1st, it will show the current system outputting
video resolution, continuously press this key,
system will switch its outputting video resolution by
sequence “by source-> by native TV -> 480i->
480P-> 576i-> 576p-> 720P-> 1080i->1080p”.
1
Press[Find] key in full screen can open the “Find”
window like above.
You can press[Channel
Up/Channel Down/Volume Up/Volume
Down]key to move highlight and
press[OK]key to input the selected symbol
or letter into the dialogue.
2
After input each character, the program list
on the left will search the channel
according your input, and list the matched
8.24 Exit
channel.
3
Move highlight to
key can close
OK
Find
1
and press [OK]
Press [EXIT] key can exit the current menu to last
menu or close the window.
window and you can
select channel from the channels list
9. Service
directly.
When you press [Menu] key to enter menu, there will
display the picture like below:
8.20 Zoom
1
The [ZOOM] key allows you to magnify a certain
area on the images
2
Press [ZOOM] key again, the image will enlarge
3
In “x2 ~ x16” image, using [Up/ Down/ Up/ Down]
rotate as x1, x2, x4, x6, x8, x12, x16.
keys to move the image center area you want to
see.
4
In zoom mode, press [Exit] to close “Zoom”
window.
Press [Up/Down] key you can select the submenu
8.21 TV/RCV
1
of Organizing services and Organizing favourites.
Press [TV/RCV] key can switch between TV
Press [OK] key to enter the “Organizing Service”. If
mode and STB mode
Menu Lock is “On”, it will display an dialogue for
13
1 Press [Red] key can open the “Groups” window
user to key in password. The default Password is
like above
“0000”.
2 You can press [Up/Down] key to move
Press [Menu] key to go back to main menu.
9.1
highlight and press [OK] key to select group.
Organizing Service
3 Press [Menu] key to close “Groups” List.
When you enter to “Organizing Service” menu, there will
display the screen like below.
Options
1. You can move highlight by press [Channel
1.
Up/Channel Down] key and [OK] key to
Press [Green] key can open the “Options”
window like above.
select the programs which you want to edit.
2.
2. You can press [Page Up/Page Down] key
You can press [Up/Down] key to move
highlight and press [OK] key to confirm the
to implement the Page Up/Page Down
select mode.
function.
3.
3. You can use [Red] key to switch different
Group.
Press [Menu] key to close “Options” List.
Move
4. You can press [Green] key to select the
1.
programs by different select mode.
Select the channels which you want to edit
in channel list by press [OK] key or other
5. Press color key can implement the
select mode.
corresponding function in “Organizing
2.
Services”.
Then press [Right] key to move the high
light to right toolbar.
Groups
3.
Select Move icon by press [Channel
Up/Channel Down] key and [OK] key.
4.
Move the channels to the position which
you want and press [OK] key to confirm.
Like the following picture:
14
Follow the same way you can set the channel’s
Skip or give the new name for high light channel.
Lock
1
Select the channels which you want to edit in
channel list by press [OK] key or other select
Find
mode.
2
Then press [Right] key to move the high light
to right toolbar.
3
Select Lock icon by press [Channel
Up/Channel Down] key and [OK] key.
4
Lock the channel by press [OK] key.
Like the following picture:
1.
Press[Find] key can open the “Find”
window like above. You can press[Channel
Up/Channel Down/Volume Up/Volume
Down]key to move highlight and press [OK]
key to input the selected symbol or letter
into the dialogue.
2.
Delete
After input each character, the program list
on the left will search the channel according
a) Select the channels which you want to
your input, and list the matched channel.
edit in channel list by press [OK] key or
3.
other select mode.
Move highlight to “OK” and press [OK] key
can close “Find” window and you can select
b) Then press [Right] key to move the high
channel from the channels list directly.
light to right toolbar.
c) Select Delete icon by press [Channel
9.2 Organizing Favourites
Up/Channel Down] key and [OK] key.
This menu is helpful in adding and deleting
d) Delete the channel by press [OK] key.
services to and from the favorite group.
Skip and rename
15
FAV List
To choose the FAV List by press “FAV” button.
1
Add
To add services into favorites, Mark the desired
services by press “ OK ” button in Service List,
press
to choose Add mode and press “ OK ”
button.
2
Remove
To remove services from favorites, Mark the
desired services by press “ OK ” button in
Favorite List, press
to choose Remove
mode and press “ OK ” button.
3
Move
You can reorder and move the service to the
preferred position in Favorite List.
4
Rename
Select the desired FAV List by press “FAV”
buttons to choose Rename
button, using ,
mode and press “ OK ” button to display
keyboard, and rename it.
5
6 Group, Options and Find functions
Please refer to the “Organizing Services” part in this
manual.
16
In this item, press[Volume Up/ Volume
10. Installation
Down]key can switch among “Standard”, “User”
and “Universal” , ”Unicable” mode.
Press [Left/Right] key to select menu
pages among Service, Installation,
Preference, System, Conditional Access,
Internet,USB and Game.
2 Press [OK] key to enter the “Installation”. If
Menu Lock is “On”, it will display an
dialogue for user to key in password. The
default Password is “0000”.
3 Press [Up/ Down] key to select menu
items. Press [menu] key to go back to main
menu.
1
DiSEqC
DiSEqC: You can use[Volume Up/ Volume
Down]key to switch options. There are several
options for your selection:
a) Disable: without DiSEqC.
b) 1/2, 2/2: two ports DiSEqC
c)1/4, 2/4, 3/4, 4/4: 4 ports DiSEqC
d) 1/8, 2/8… 8/8: 8 ports DiSEqC
10.1
Satellite Installation
e) 1/16, 2/16….16/16: 16 ports DiSEqC
Satellite
1 Satellite: Press[OK]key to enter the Satellite
list.
Positioner
Positioner
2 Press [Up/ Down] key to select satellite. Press
In “Positioner” item, you can press
[Volume Up/ Volume Down]key to switch “Off /
[Page] key to page up or page down.
DiSEqC 1.2 / USALS” functions.
LNB Type
22K
17
You can use [Volume Up/ Volume Down] key to
scan or press[OK]key to enter satellite list for
switch “ON / Off”. When this item is switched to
selection.
“ON”, receiver will receive TV and radio input
2 In “TP Index” item, you not only can use
signal from 22K port. If the item is switched to
[Volume Up/ Volume Down]key to select
“Off”, the receiver will receive all signal from 0K
transponder but also can use[Add] and
port.
[Delete]functions.
! Notice
When you choose LNB type “Universal”,
When you press[Green] key, it will display
“New TP” in “TP Index” item; You should
you can not modify 22K.
set the parameters of “TP Frequency” and
“Symbol Rate” for this new transponder.
0/12V
The parameters of “TP Frequency” and
You can use[Left/ Right]key to switch “on /off”.
“Symbol Rate” can set by number keys.
The available range are “3000~13450
Polarity
MHz” and “1000~45000Ks/s”.
In “Polarity” item, [Volume Up/ Volume
When you press[Yellow] key, there will
Down]key to switch “Auto / H / V” functions.
show up a warning message for reminding
whether you will delete the current
Tonebusrt
transponder or not. If you select “Yes”, the
In “Toneburst” item, you can press [Volume Up/
current transponder will be deleted, and the
Volume Down]key to switch “Off/On” functions.
total account of transponder will reduce 1
correspondingly.
LNB Power
When you press [Blue] key, there will show
In “LNB POWER” item, you can press [Volume Up/
up a warning message for reminding
Volume Down] key to switch: ” Off 13v/18v
whether you will delete all transponders or
13.5V/18.5V ” functions.
not. If you select “OK”, all transponders will
TP Edit
be deleted.
When you enter to “TP Edit” menu, there will
3
display the screen like below:
For the existed transponder, you also can
use number keys to modify the parameters
of “TP Frequency” and “Symbol Rate”.
4
When you complete your modification,
Press [Red] key, it will show up a dialog to
ask you scan mode, program type, scan
type and NIT Search on/off. After you set
up, press [OK] key to start scanning.
5
In the “TP Scan” item, press [Exit] key to
exit the scanning and save the current
parameters.
1 In “Satellite” item, press[Volume Up/ Volume
Single Scan
Down]key to switch satellite that you want to
18
1
matched according to satellites and
transponders data in current database. You
don’t have to input any parameter of your
antenna settings. Just press “ OK ” button to
enter this “Auto Installation” menu then it starts
scanning and shows you the result at the end of
scanning.
Press [Red] key, it will show up a dialog to
ask you scan mode (means you want to
scan all channels or only scan free
channels), program type (means you want
to scan all channels or only scan TV/Radio
channels), scan type (means preset scan,
10.3
that is searching the existed TP. Automatic
Satellite Guide
When you enter to “Satellite Guide” menu, you
Scan means blind scan. It is no need
will see the screen like below:
existed TP info) and NIT Search on/off.
After you set up, press [OK] key to start
scanning.
2
Press [White] key into the blind scanning
immediately.
TP Scan
Press [Green] key to scan current TP’s
programs.
Auto DiSEqC
“Satellite Guide” is use for user to enter local
Press [Blue] key to run Auto DiSEqC function, it
can find the satellite connect to which port
automatically.
longitude; local latitude and satellite longitude.
Blind Scan
can follow this guidance to adjust antenna.
By the evaluation from the receiver evaluate the
antenna azimuth and antenna elevation; user
Press [White] key can directly into blind scan
mode to scan the current satellite.
1
You can use number keys to input
parameters in “Local Longitude”, “Local
Latitude” and “Satellite Longitude”.
10.2
Auto installation
2
You can use [Left/Right] key to select east
or west in “Local Longitude” and “Satellite
Longitude”, select north and south in
“Local Latitude”.
3
Moving highlight to “Start” item and press
[OK] key. The lower column on the screen
will calculate the corresponding value
automatically.
4
Orientation means the angle between
south and satellite.
Press [Exit] key to draw back to “Main” Menu.
“Auto Installation” is a very new and convenient
function. It will automatically detect all dishes
connecting to this machine and scan the
available services belonging to the satellite
19
10.4
Terrestrial Installation
10.5
Cable Installation
Optional
Press [OK] key to enter the selected item.
Press [OK] key to enter the selected item.
1.
You can select the Bandwidth according different
country.
2.
You can set the Tuner Power ON/OFF.
3.
Press [Red] key can directly into blind scan
mode to scan the current programs.
4.
Press [Green] key to enter the following menu.
You can select the Scan Mode, Manual Scan
or Blind Scan.
You can input the Frequency by use the
numeric button of the RCU.
You can input the Second Frequency by use
the numeric button of the RCU, if you set the
Scan Mode
to Blind Scan.
You can input the Symbol Rate by use the
numeric button of the RCU.
You can select the QAM value among
16QAM,32QAM,64QAM,128QAM and
256QAM.
You can turn ON or OFF the NIT Search, if
you set the Scan Mode to Manual Scan.
When you complete your modification, press
OK button on Search item to enter Scan menu
and then
press OK button, it will begin to scan.
1
Scan Mode.
There are two modes. You can scan channel by
channel or by frequency”.
2 When scan band is UHF and region is “France”,
the range of Ch No. is from 21 to 69. When scan
band is VHF and region is “France”, the range of
Ch No. is from 1 to 9. (it’s according to region)
3
11. Preference
Press [Red] key to enter blind scan menu, or press
When you enter to “Preference” menu, you will
[Green] key to enter TP scan menu.
4
see the screen like below:
Press [Exit] key to exit the scanning.
20
suited audio language, then the system will
compare automatically with second audio
language. The selections of audio languages
include: English, French, German, Russian,
Arabic, Portuguese, Turkish, Spanish, Polish and
Italian.
3
Second Audio: If the channel has no correspond
audio with “First Audio” but have corresponded
audio with “Second Audio”, system will play the
second audio language as default. If no audio
language corresponds with the “Second Audio”,
then the default language of current channel will
In “Preference” menu:
be played automatically. The selections of audio
Press[Channel Up/Channel Down]key to
languages include: English, French, German,
select menu items among Language,
Russian, Arabic, Portuguese, Turkish, Spanish,
Parental Lock,l Time setting, Timer, A/V
Polish and Italian.
Control, Miscellaneous Settingl OSD
4
Audio Priority: Press [Volume Up/ Volume Down]
key to select Dolby or Language.
Setting.
Press[OK]key to enter the selected item.
5
EPG: Press [Left/Right] key can select EPG
language.
11.1
Language
6
When you enter to “Language” menu, you will
Subtitle Language: Press [Left/Right] key
can select subtitle language.
see the screen like below:
7
Teletext: You can set teletext language. If the
streams have this language you can see the
teletext in language you set.
8
Press [Exit] key to draw back from “Language”
menu.
11.2
Parental Control
You can set a password for anyone who wishes
to operate in the “Installation” menu. And you
can also set the password for the lock channels.
(How to set the lock channel please refer to
LOCK) Here will show you how to setting and
1
how to revising the password.
Language: press [Volume Up/ Volume Down] key
to select menu languages, the selections of
1
languages include: English, French, German,
there will pop an dialogue for you to input
Russian, Arabic, Portuguese, Turkish, Spanish,
the password. When you input the correct
Polish, Italian etc.
2
In “Parental Lock” function, press [OK] key,
password, you will see a screen like below:
First Audio: Some channels have more than one
audio language for choosing; by this function you
can set the first audio for this channel. If the
playing channel has the same audio as the “First
Audio” you set, system will play this audio
language as default. If the channel hasn’t the
21
11.3 A/V Control
When you enter to “TV System” menu, you will
see the screen like below:
2
Menu Lock determining that when user
wish to enter “Installation” menu, whether
have to input Password or not. If the setting
of “Menu Lock” is “On” which means user
3
Display Mode is for switching the system
have to key in password, set “Off” means
outputting video resolution. Move highlight on it
unlock.
and press left or right key, it will switch video
resolution circularly by the sequence “by
Channel Lock determining that when user
source<-> by native TV<-> 480i<->
wish to play the lock channels, whether
576i<-> 576p<-> 720P<-> 1080i<->1080P”. This
have to input the password or not. If the
effect is equal to press V.Format Key under Full
setting is “On”, play the channels with lock
Screen and their last setting saving will be efficient
mark will show up a dialogue on the screen
for each others. By Source means system will set
and ask for the password. If the setting of
the video output resolution according to the
program it’s playing, different resolution programs
“Channel Lock ”is “Off”, the Lock function
switching perhaps will makes TV screen flickering.
will invalid.
4
480P<->
By Native TV means system will be according to
New Password is used for revising
the HDMI TV’s max supported resolution to set its
password; you can input the new password
resolution, if system is not connected to a HMDI
in this item by using number keys directly.
TV, it will set resolution to be default
Aspect Mode is for switching the screen aspect
After you filled in 4 digital numbers, the
ratio mode. Now we provide below options:
highlight will auto skip to Confirm Password
4:3
PS / 4:3 LB / 16:9/Auto. You can press [Left/Right]
and ask you to input the new password
key to select each mode circularly. 16:9 will
again. If the password is correct, the screen
provide user pillar box mode it means user use
will show up a message of “Saving Data,
16:9 TV to display but need to see a 4:3 full display
Please Wait…”. After finish saving and
picture. System will force press wide screen
draw back to “System Setup” menu, the
picture to be narrow and there’re black band on
revising is complete.
left and right site. Auto means system won’t do
any aspect ration translation, 16:9 picture source
Press [exit] key to draw back from the “Parental
will be good display on a 16:9 TV but will be too
Lock” menu.
narrow on a 4:3 TV, and 4:3 picture source will be
too wide in a 16:9 TV but will be good
display in a 4:3 TV.
22
Video Output: Press [Left/Right] to select
switch “GMT Offset” value, and the range is
“-12:00 ~ +12:00”, increase each half hour
RGB or YUV.
progressively.
RF system and RF channel are for user to set the
You can press [Left/Right] to control Summer
TV RF modulator output signal VHF/UHF channel
and TV system mode. If your TV is too old to
time on or off.
supports CVBS//HDMI, you can use TV RF cable
“Date” and “Time” items are valid only when
to connect STB’s TV RF output port to TV Antenna
the setting of “GMT Usage” is “No”. You can
input port.
press [Volume Up / Volume Down] keys to
Digital Audio Out is for setting the both SPDIF and
moving highlight and use number keys to input
HDMI’s digital audio output mode, it has options
directly.
LPCM Out, Auto, You can press [Left/Right] Key to
select each mode circularity. LPCM Out means
If the current channel provides the correct time
system will decode no matter AC3 or PCM audio
information, you will see the current time while
track data to be LPCM, digital audio decoder or
you enter “Time” menu. If the channel doesn’t
HDMI TV will get LPCM digital audio data. Auto
provide time information, you have to input the
means system will detect which the connected
date and time information manually.
HDMI TV can decode and then output that data. If
Press [exit]key to draw back from “Local
HDMI TV can decode AC3, system just output
Time Setting” Menu.
RAW data, if HDMI TV can decode LPCM only,
system will just decode AC3 or LPCM to be LPCM
11.5
and then output.
Press [exit] key to draw back from “TV
Press [enter] key to open timer menu.
System” menu.
11.4
Timer
Current time information will display on the
first column; if the current time is incorrect,
Time Setting
please modify the time information in “Time”
When you enter to “Local Time Setting” menu,
item.
you will see the screen like below:
Timer Number: You can press [Volume Up /
Volume Down] keys to set Timer number,
and there are 8 timers in total.
Timer Mode: There are several modes for
Timer to setting, include Off, Once, Daily,
Weekly, Monthly and Yearly.
Timer Service: There are two options for
“Timer Service”, include “TV Channel” and
“Radio Channel” (timer setting for channel
change and Wakeup/Sleep) and "Record
GMT Usage: This item is use for open the
Radio" and "Record TV" (Timer setting for
usage of GMT. You can press [Volume Up /
Record the TV or Radio program to USB
Volume Down] keys to switch “On/Off”.
Hard Disk) and Message (reminding
The “GMT Offset” item is valid only when the
message).
setting of “GMT Usage” is “Yes”. You can
When you select “Channel” (timer setting for
press [Volume Up / Volume Down] keys to
channel change and Wakeup/Sleep) option
23
in “Timer Service”, the screen will display like
v.
below:
Wakeup Message: press [Volume Up /
Volume Down] key to select reminding
message as Birthday, Anniversary and
General.
vi. Date, you can use number key to input your
wakeup date.
vii. On Time: use number keys to input your
wakeup time. Once the time’s up, no matter
what the system is in standby mode or in
playing mode, the system will automatically
pop a reminding message.
i.
viii. The message will always display on the
Channel: press [OK] key to enter
screen, you can press [Exit] key to close it.
channel list and select channel that
ix. Press [exit] key to exit the current menu.
you want to setting.
ii.
Date: use number keys to input your
11.6
wakeup date.
iii.
Miscellaneous Settings
When you enter to “Miscellaneous Settings” menu,
you will see a screen like below:
On Time: use number keys to input your
wakeup time. Once the time’s up, no
matter what the system is in standby
mode or in playing mode, the system will
automatically switch to the channel you
want and start to play.
iv.
Duration: After you set a time for
“Duration” item, once the time’s up, the
system will automatically switch to
standby mode. If you want not work this
function, set the duration is 00:00.
1
Subtitle Auto: You can press [Volume Up/Volume
Down] key to select “On” or “Off”. If the current
When you select “Message” (reminding
channel has subtitle information, it will be showed
message) option in “Timer Service”, the
up automatically while this function is “ON”, if this
screen will display like below:
function is “OFF”, you need turn on the subtitle
manually by press [Yellow] key.
2
Auto Power Down: You can press [Volume Up/
Volume Down] key to select the time or “Off”, if you
select time, duration this time if no any operation
on receiver, it will go to standby mode.
3
Panel Power In Standby: if set to “ON”, the front
panel will display time or some other
information in standby mode; if set to “OFF”,
it will display nothing in standby mode.(Note:
24
4
5
this function only available when the “Deep
20%, 30%, and 40% and “NO” (means no
Standby” item is set to “ON”)
transparency function).
Loop Control: if set to “ON”, the receiver will
4
Brightness/Contrast/ Saturation : You can
enable SCART LOOP and TUNER LOOP function,
adjust the parameter about the Video image
if set to “OFF”, will disable this function.
by using the [OK]button or press[Volume
Standby Mode: if set to “Real”, Press power
Up/Volume Down] key, the default value is
key receiver will be in real standby status, the
Level 10.
consumption will less than 1 Watt.(Note: the
5
“Panel Power In Standby” item need set to
satisfy with your setting, you can move
“OFF”); if it’s set to “Fake” ,Press power key,
highlight to this item and press [OK] key to
receiver will be in fake standby status.
reset parameters as default value.
6
11.7
Load Default OSD Setting : If you are not
OSD Setting
Press [Exit] key to draw back from the “OSD
Setting” menu.
When you enter the “OSD Setting” menu, you
will see a screen like below:
12. System
When you enter to “System” menu, you will see
a screen like below:
1
OSD Timeout: When you switch channels in
full screen, there will show up some
information about current channel on the
In “System” menu:
lower of the screen. And regarding to the
1
duration of these information show up on the
among Information, Default Setting, Software
screen, you can press [Volume Up/Volume
Upgrade, Upgrade By USB, Backup to USB
Down] key to set the time. The range of the
2
duration is “1 second ~ 10seconds”.
2
OSD Position: control display position of the
info bar in full screen mode. You can choose
“bottom” or “top”.
3
Press [Up/Down] key to select menu pages
OSD Transparency: Besides the setting of
“OSD Menu Style”, you also can set the
transparency of OSD. You can press [Volume
Up/Volume Down] key to select the values.
There are 5 levels of transparency, 10%,
25
Press [OK] key to enter the selected item.
12.1
1 There will pop a dialogue for you to enter
Information
the password, and the default password is
“0000”.
2 After you input the correct password,
there will show a warning message to
inquiry you “The operation will load default
and erase all the channels that user
added, continue?”.
3 If you select “OK” option, the all revised
parameters of the receiver will reset to
1 When you enter to “Information” menu, you
default value. Please carefully to using
will see a screen like above. The screen
this function.
displays :MODEL ID,S/W VERSION,H/W
4 In step 1 and step 2, press[Exit]key can
VERSION,LOADER VERSION,LATEST
draw back from this item and without
UPDATE,STB SN,STB ID,VFD Version.
saving.
2 Press [Exit] key to draw back to “Tools” menu.
12.2
Default Setting
12.2.2 Delete All Channel:
12.2.1 Default Value:
When you press [OK] key in the “Delete All
Channel” item, it will pop a dialogue ask you
whether confirm to delete all channel. If you
select “OK”, all the channel will be deleted.
When you press [OK] key In the “Default
Setting” item:
26
Connect master receiver to slave receiver
12.2.3 Save default value
via serial interface. Enter “Software
Upgrade” menu in master receiver and
press[Volume Up/Volume Down]keys to
switch upgrade mode
All SW+bootloader
/All SW+Channel list/Software(no channel
list)/Channel list.
2 Moving highlight to “Start” on master reeciver
and press[OK]key to start upgrade.
3 Turn on slave receiver and it needn’t operate
any setting.
When you press [OK] key in the “Save default value”
4 Press [Exit]key to draw back.
item,there will show a message to inquiry you"Do you
want to set current database as default data?".If you
select “OK” option,it will
to set current data as default
Upgrade By Satellite:
data
12.3
Software Upgrade
This function can upgrade the software through
signal lines from the satellite
1
Select the satellite and TP or input the TP
value and download PID, these parameters you
Upgrade by RS232:
can get from your provider.
2
Then move the highlight to the start button
and press [OK] button to start upgrade.
Upgrade By Terrestrial Optional :
1 We offer the functions for user to connecting
receiver (Master) to the other receiver
(Slave) via serial interface.
27
In this menu you can select the Upgrade Mode
among Software(No channel list), Channel list,
All SW+bootloader and All SW+Channel list,
and you can select the appropriate upgrade file
on "Upgrade File" item. After you select the
"Upgrade Mode" and "Upgrade File", press ' OK
' button on "Start" item, the receiver can upgrade
automaticlly.
NOTE:
You must put the upgrade file on the /ROOT
DIRECTORY of the USB storage.
This function can upgrade the software through
signal lines from the Terrestrial
1
Select or input the Frequency, Bandwidth
12.5
and download PID, these parameters you
In this menu ,you can dump the software to the
USB equipment
1.In "Backup file",you can press [OK] key to
can get from your provider.
2
Backup to USB
Then move the highlight to the start button
and press [OK] button to start upgrade.
edit the file name.; Press “Left/Right” button
select USB A or USB B;
12.4
2.In "Backup to USB", you can press [OK] to
Upgrade By USB
start backup software .
In this menu you can upgrade the software from
USB conveniently, Press “Left/Right” button
select USB A or USB B; press ' OK ' button to
enter.
28
13. Conditional Access
13.1
14. USB
if you enter to the "USB" Menu, you will see the
CA Setting
picture like the below:
Note: If no USB Hard Disk insert to the receiver
this menu is not available.
We provide two CA slots for user to use.
Receiver has build in smart card module with
CONAX system. By using cards in this system
provided by operators, it is possible to watch
14.1 File List
many scrambled channels coded in this system.
In this menu you can select the file list from USB
This menu shows detailed information about
A USB B or SD card. Press [ok] button to enter
cord inserted into cord reader module. It allows
the File list. you can check the files and folders
inserted according to help messages visible on
of the USB storage, and you can play MP3 and
the bottom of the screen.
JPEG files.
Note: All information showed in this menu and
submenu are coming from inserted card. In case
if anything is wrong, it could be card problem.
After inserting the card correctly at any time, a
message-box will show on the screen with
message about detecting the card, in "card info"
menu all available information will be displayed.
29
14.1.1 Record Files
Move the selected file by press Red key and
In this menu you can playback the record files,
[UP][DOWN] key.
and you can press [Red] key to rename the file,
or press [Green] key to lock the file, or press
Green Key:
Delete the selected file by press Green key.
[Yellow] key to delete the file.
You can press [1] key to adjust the volume while
Yellow Key:
Delete all the file by Yellow Key, but there is one
you preview the record file on top of the right
corner .and you can press
Red Key:
remind “Delete All” before practical operation, if
to enable or
select Yes, all file will be deleted, and close the
disable the audio.
Play list window.
14.1.2 MP3 Files
Press OK button to play file.
[Green] key:
All the MP3 files in current directory are added
into MP3 play list by press [Green] key, and will
display “
”behind the MP3 files.
In this menu you can select the MP3 file to play
by press [OK] key or [PLAY] key. Also you can
setting the play list..
[Red] key: Show play list as the picture bellow:
[Yellow] key:
To edit the files or folders in the USB
storage.press this button you can see the
picture like the below.
30
Press “PREV” button to jump to the beginning of
file list if play is over 3 seconds; or jump to
previous file if play less than 3 seconds.
Press “NEXT” button to go to the next file.
Press “FORWARD” button to forward 4S.
Press “BACKWARD” button to back 4S.
Jump to beginning or end if less than 4S to the
beginning or end of music file.
Switch to the next file or stop playing by the
repeat mode when play is over on the current
file.
Red Key
To rename the file or folder.
[0] key: To sort the file list by different order.
Green Key
To copy the file or folder to other folder.
Yellow Key
To delete the file or folder from the disk.
Blue Key
To create a new folder in the disk.
Press [EXIT] key to draw back to ‘EDIT’ MENU
[White] key:
To setting the Repeat mode of the MP3 player.
[FAV] key: To add mp3 or jpeg to play list.
14.1.3 Image Files
After begin to play MP3, it will show the MP3
Press 'OK' button on the selected files to play
the files.
play window.
Press “PAUSE” button to pause.. Press “PLAY”
button to play. Press “STOP” button to stop and
time return to 00:00.
31
You can preview the picture at the top right
corner if the scroll bar is on the picture files
Red Key:
Move the selected file by press Red key and
(JPG, BMP), and show the logo when at MP3
file.
[UP][DOWN] key..
Move scroll bar when press up/down key, page
Green Key:
up or down by page key.
Delete the selected file by press Green key.
Go into sub-directory when press ok key in the
file directory, play the selected file when scroll
bar is on the file, automatic return USB menu
after play is over.
White key:
file will be deleted and Play list window will be
In this menu to setting JPEG player.
closed.
Yellow Key:
Press Yellow Key, will delete all image files in
play list, but system will remind you “ Delete All ”
before practical operation, if you select Yes, all
Press OK button to play file
[Green] key:
All the Image files in current directory are added
into Image play list by Green key, and will
display “
”behind the Image files, like below.
[0] Key:
To sort the file list by press [0] button.
[Red] Key:
Show file play list. There will display “The type of
playlist do not exist” if there are no any file.
Image view operation
Please see the below image operation menu if
[Yellow] key:
To edit the files or folders in the USB storage .
Image function is selected.
like in MP3 menu. Include rename, copy, delete
32
and create folder function. You can press
14.1.4.Software
[Left/Right] key to previous menu.
[Blue] key
To preview the images. press this key you can
see the picture like below.
If has software in current directory, you can
press [Green] key to upgrade like below.
14.1.4Video
14.1.5 All
You can see the video files in this menu, it can
support .mpeg and .ts format file.and press
[play] key, you can preview the video at the top
right corner.
You can press [1] key to adjust the volume while
you preview the video file,press [0]key to sort
the file list. and press
to enable or disable
You can preview all files in this menu.
the audio
Yellow key
To edit the files or folders. Include rename,
14.2
Storage Information
copy, delete and create folder function. You can
Press "OK" button to enter the HDD Information
press [Left/Right] key to previous menu.
menu like the below picture, in this menu you
can see the details information about the HDD.
33
14.3
PVR Setting
If you want to format the HDD, press "yellow"
button to enter Format menu, then select the
Time Shift:
1
File System between the "FAT" and the "NTFS",
ON: Enable the Time Shift function.
Press "OK" Button to confirm.
OFF: Disable the Time Shift function.
Timeshift to Record
2
ON: Means when you press the "
" Button to
record the program, it will merging the Timeshift
files and the record files.
OFF: Means when you record the program, it
just start when you press "
" button, not
include the Timeshift files.
Record Type
3
You can select the record type by press
[left/right] key.
Note: If you format the HDD, all the files include
MP3, JPEG and the record files will be deleted
from the HDD.
HDD Sleep Time
4
You can select the HDD sleep time by
If you want change the path for recording files
press [left/right] key.When the HDD is not in
and timeshift files, press “blue” button to enter
useing mode,it will sleep after the time
the DVR Set menu, then press OK button to set
which you select.
the path on current select disc.
Jump Time
5
You can select the jump time by press [left/right]
key.
6
Default Record Time
You can input number key in the item to set
the default record time.
34
14.4
USB Speed Test
You can get a new software from the network
via LAN port.
In "USB Speed Test" Menu you can see the
15.1
Network Local Setting
Standard speed and your USB harddisk speed,
operation your disk can support.
1. Select your Network Type as Wired or
Wireless, if you select Wireless, can configuring
Wi-Fi (wireless) as the following step:
14.5 Remove USB Device safely!
a. Select Wireless on Default Network Type
item.
according this information you can know what
Use this menu you can remove the USB Device
safely.
b. Press [red] button the wireless LAN network
list will appear, Select you Wi-Fi network and
press [ok] button, at last input password.
15. Internet
Optional
If you enter to the " Internet " Menu, you will see
the picture like the below:
35
15.3
FTP Upgrade
c. Press [OK] button on Connect item to start
connecting.
When connected to the Internet, receiver can
2. In this menu you may assign a dynamic IP
make software update from file from FTP server.
address to the digital receiver. To do so, select
Note:
the DHCP On.
This function depends on connection with
3. If you have a static IP address, unselect the
external server. In case of no software on
DHCP Enable, then the IP Address, Subnet
server, this function will not work.
Mask, Gateway and DNS options become
15.4
enabled. You have to set these options
FTP
according to your IP address.
15.2
Http Upgrade
When connected to the Internet, receiver can
download some files, such as software, MP3 or
Image files from FTP server.
1. When connected to the Internet, receiver can
Note:
manually or automatically make software update
This function depends on connection with
from file from server.
external server. In case of no any files on server,
Note:
this function will not work.
This function depends on connection with
external server. In case of no software on
server, this function will not work.
36
15.5 Weather Forecast
15.6 RSS Reader
In this menu you can see the news
Red key
To update the news to the newest.
Green key
To add new channels,you can input a new
website.use this menu.you can add 10 channels
at most.
In this menu you can see the weather forecast,
press [Green] key to add city.
Yellow key
To delete current channel.
Blue key
To edit current channel information.you can edit
channel name and channel Url.
Red key
To update the weather forecast to the newest.
Green key
To add new city.use this menu.you can add 5
cities at most.
Yellow key
To delete current city.
Blue key
To switch other temperature mode.
Press ok button to see the detail infomation.like
the below.
37
[OK] Pause/Play the game
[Exit] Quit game and draw back to
“Game” menu.
16.2
Snake
a) Moving highlight to “Setup” and press
[Volume Up/Volume Down] key to select
the game level (speed).
b) Moving highlight to “Start” and press [OK]
key to start the game.
c) Moving highlight to[Cancel]keys and
16. Game
press [OK]key to draw back from the
game.
d) Start on the game:
[Volume Up/Volume Down/Channel
UP/Channel Down] use these arrow
keys to guide the snake.
[OK] Pause/Play game
[Exit] Quit game and draw back to
“Game” menu.
16.3
When you enter “Game” menu, you will see
Othello
a) Moving highlight to “Setup” and press
three Games include Tetris, Snake and Othello.
[Volume Up/Volume Down] keys to select
the game level (degree of difficulty).
Basic operation statement:
16.1
b) Moving highlight to “Start” and press [OK]
Tetris
key to start the game.
a) Moving highlight to “Setup” and press
c) Moving highlight to [Cancel] keys and
[Volume Up/Volume Down] key to select
press [OK] key to draw back from the
the game level (speed).
game.
b) Moving highlight to “Start” and press [OK]
d) Start on the game:
key to start the game.
c) Moving highlight to [Cancel]keys and
[Volume Up/Volume Down/Channel
UP/Channel Down] use these arrow
press [OK]key to draw back from the
keys to guide chessman.
game.
d) Start on the game:
[Volume Up/Volume Down] Move
[OK] set chessman.
[Exit] Quit game and draw back to
“Game” menu.
shape left or right
“Channel Up” Rotate clockwise
“Channel Down” Faster drop
38
17. New Features
17.1
2
You can press "
" or "
" button to Fast
Backward or Fast Forward.
Equalizer
3
When you listen the Radio program, it will
You can press "
" or "
" button to Slow
Backward or Slow Forward.
display the music spectrum graphic on TV
4
Screen.
Press “left" or "right" button to jump to
different position, then press "OK" button to
confirm.
5
Press " " button to exit the playback.
17.3
Record
If you connect the USB HDD.
You can press "
" button to start record
function, as following picture:
17.2
Time Shift
If you connect the USB HDD, and enable the
Time Shift function in the menu "Main Menu/
Record/ PVR Setting/Time Shift",
It will start the Time Shift function automatically
after you switch the program, and when you
press the "Tms" button the Time Shift info bar
will displayed as the following picture:
Press "
" button to display the record info
bar when you recording.
Press "
" button again to setting the
record time.
1
You can press "
" button to pause the
video, and can save the picture to flash by
press " P+ " button when the video is
paused.
You can press "
" button to pause the
video, and can save the picture to flash by
39
press " P+ " button when the video is
paused.
You can press "
" or "
" button to Fast
Backward or Fast Forward.
You can press "
" or "
" button to Slow
Backward or Slow Forward.
Press “left" or "right" button to jump to
different position, then press "OK" button to
confirm.
Press " " button to stop the recording.
40
18. Trouble Shooting
If you suspect there is a fault with your receiver, please check the following trouble shooting guide
before calling authorized service agent.
Warning! Under no circumstances attempt to repair the receiver yourself. Tampering with the receiver
may result in fatal electric shock and will invalidate your warranty.
Symptom
Possible cause
Settings you made in the
menu have not change
The receiver lost power before being able to enter into standby
mode
Some of the Settings saved by user can be deleted partly or fully
The level of signal is weak
LNB is out of order
The cable from the LNB or Terrestrial is incorrectly Connected
(short circuit or open circuit)
The position of dish is aligned incorrectly
No signal
Receiver is on but no picture
or sound except the following
messages (NO TV program)
Receiver not responding to
remote control unit
Poor picture Quality
No sound
Channel is not available
Channel is scramble
RCU batteries are dead or inserted incorrectly
The RCU is pointing toward wrong direction
The level of Signal strength is low
The cable is connected incorrectly
The Volume level is low
Muting function is active
No display on the VFD Display
Panel
The power cord is not plugged in correctly.
No picture on the screen
Receiver is in Standby mode
RCA Jack or cable is not connected firmly to the video output port
of television
Incorrect channel or video output is selected on television
Brightness level of your TV set is incorrectly defined
41
19. Specifications
SYSTEM RESOURCES
Main Processor
400M Hz based CPU
Flash Memory
64M Bits
DDR SDRAM
1024Mbits
Tuner/Front-end(Optional)
Tuner Type
DVB-S / DVB-S2
Input Connector
F-type, Connector, Female
Loop Through
F-type, Connector, Female
Signal Level
-65 to -25 dBm
LNB Power & Polarization
Vertical: +13V
Horizontal: +18V
Current: Max. 500mA
Overload Protection
22KHz Tone
Frequency: 22±1KHz
DiSEqC Control
Amplitude: 0.6±0.2V
Version 1.0, 1.1 1.2, USALS Available
Demodulation
QPSK, 8PSK
Input Symbol Rate
2-45 Mbps, Convolution Code Rate
1/2, 2/3, 3/4, 5/6, 7/8 and Auto
Tuner Type
Input Frequency
RF Input Level
Antenna power output
Demodulation
Number of carriers
Constellation
Guard Inter Val
FEC Decoder
DVB-T (optional)
170-230MHz CH5-CH12, 470-860MHz CH21-CH69
"-70dBm to -8dBm"
5V/50mA max
COFDM 2K/8K
1705/6817
QPSK, 16QAM, 64QAM
1/4, 1/8, 1/16, 1/32
1/4, 2/3, 3/4, 5/6, 7/8, k=7
POWER SUPPLY
Input Voltage
Free Voltage (100~240V AC, 50/60Hz)
Power Consumption
30W MAX
MPEG TS A/V Decoding
Transport Stream
MPEG-2, H.264
Input Rate
Max.120Mbit/s
Aspect Radio
4:3, 16:9, Letter Box
Video Decoding
MPEG-2, [email protected], MPEG-4 part 10/H264
Video Resolution
720*480P/I, 720*576P/I, 1280*720p,1920*1080i, 1920*1080P
42
Audio Decoding
MEPG-1 layer I/II, Mpeg2 layerII, Dolby digital
Audio Mode
Left / Right / Stereo/ Mono
Sampling Rate
32, 44.1 and 48KHz
A/V & DATA INPUT/OUTPUT
TV-SCART
S/PDIF
RS-232C
USB
HDMI
Video CVBS/RGB output
Audio L/R output
Optical and Coaxial, Digital Audio or Dolby Digital Bit Stream
Output
Transfer rate 115.2Kbps
9 pin D-sub Type
Two USB 2.0 slot Compatible
VER1.2
Type A
PHYSICAL SPECIFICATION
Size[W*H*D]
300mmX220mmX63mm
Net Weight
2.0KG
Operation Temperature
0
Storage Temperature
-10
Storage Humidity
5%~95% RH (Non-Condensing)
~+45
~+70
43
OPERA
www.amikostb.com
HDTV & Browser
Easy :)
• Access your favourite websites, Facebook, Twitter,
Tumblr, Yahoo!, Flickr, etc...
• Check your e-mails (GMail, Hotmail, Yahoo, etc...)
• Watch your favourite YouTube videos
• Listen to your favourite music on SHOUTcast radio
• Online Shopping through your TV (Amazon, Ebay...)
• Chat with your friends on Facebook, Windows Live,
Google Talk or Yahoo! Messenger via meebo.com
...and watch, record
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
