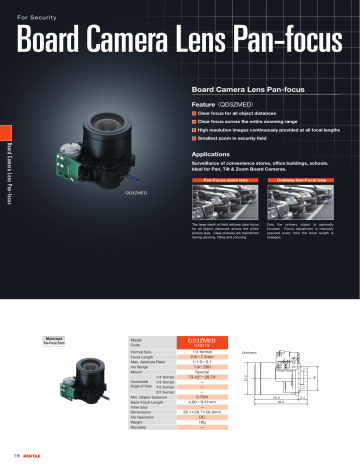

Board Camera Lens Pan
F or Se c u ri t y
Board Camera Lens Pan-focus
Board Camera Lens Pan-focus
Feature(QD3ZMED)
■ Clear focus for all object distances
■ Clear focus across the entire zooming range
■ High resolution images continuously provided at all focal lengths
■ Smallest zoom in security field
Bo a r d C a m e r a L e n s Pan-focus
Applications
Surveillance of convenience stores, office buildings, schools.
Ideal for Pan, Tilt & Zoom Board Cameras.
Pan-Focus zoom lens
Ordinary Vari-Focal lens
QD3ZMED
The large depth of field delivers clear focus
for all object distances across the entire
picture area. Clear pictures are maintained
during panning, tilting and zooming.
Format Size
Focal Length
Max. Aperture Ratio
Iris Range
Mount
1/4 format
Horizontal
1/3 format
Angle of View 1/2 format
2/3 format
Min. Object Distance
Back Focal Length
Filter Size
Dimensions
Iris Operation
Weight
Remarks
19
QD3ZMED
C40219
1/4 format
2.8∼7.3mm
1:1.9∼3.1
1.9∼200
Special
73.42°∼28.74°
—
—
—
0.75m
4.90∼9.41mm
—
35.1×29.7×26.8mm
DC
18g
—
Unit:mm
16
Model
Code
21.5
Motorized
Pan-Focus Zoom
Only the primary object is optimally
focused. Focus adjustment is manually
required every time the focal length is
changed.
26.8
32.3
5.4
