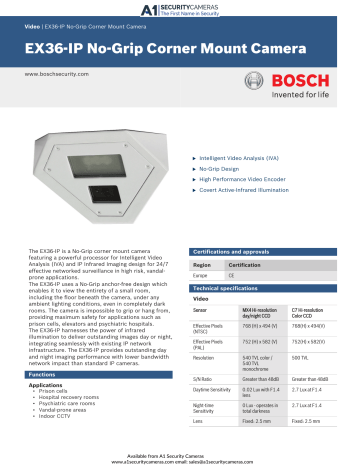

EX36‑IP No-Grip Corner Mount Camera

EX36‑IP No-Grip Corner Mount Camera
Video | EX36‑IP No-Grip Corner Mount Camera
EX36‑IP No-Grip Corner Mount Camera
www.boschsecurity.com
The EX36‑IP is a No-Grip corner mount camera
featuring a powerful processor for Intelligent Video
Analysis (IVA) and IP Infrared Imaging design for 24/7
effective networked surveillance in high risk, vandalprone applications.
The EX36‑IP uses a No-Grip anchor-free design which
enables it to view the entirety of a small room,
including the floor beneath the camera, under any
ambient lighting conditions, even in completely dark
rooms. The camera is impossible to grip or hang from,
providing maximum safety for applications such as
prison cells, elevators and psychiatric hospitals.
The EX36‑IP harnesses the power of infrared
illumination to deliver outstanding images day or night,
integrating seamlessly with existing IP network
infrastructure. The EX36‑IP provides outstanding day
and night imaging performance with lower bandwidth
network impact than standard IP cameras.
Functions
Applications
•
•
•
•
•
Prison cells
Hospital recovery rooms
Psychiatric care rooms
Vandal-prone areas
Indoor CCTV
u
Intelligent Video Analysis (IVA)
u
No-Grip Design
u
High Performance Video Encoder
u
Covert Active-Infrared Illumination
Certifications and approvals
Region
Certification
Europe
CE
Technical specifications
Video
Sensor
MX4 Hi-resolution
day/night CCD
C7 Hi-resolution
Color CCD
Effective Pixels
(NTSC)
768 (H) x 494 (V)
768(H) x 494(V)
Effective Pixels
(PAL)
752 (H) x 582 (V)
752(H) x 582(V)
Resolution
540 TVL color /
540 TVL
monochrome
500 TVL
S/N Ratio
Greater than 48dB
Greater than 48dB
Daytime Sensitivity
0.02 Lux with F1.4
lens
2.7 Lux at F1.4
Night-time
Sensitivity
0 Lux - operates in
total darkness
2.7 Lux at F1.4
Lens
Fixed: 2.5 mm
Fixed: 2.5 mm
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
2 | EX36‑IP No-Grip Corner Mount Camera
Gamma
0.45
0.45
Electrical
Video Output
1 Vpp, 75 ohms
1 Vpp, 75 ohms
Voltage Supply
12 VDC / 24 VAC
Day-Night Switching
Photocell-controlled,
automatic
N/A
Power Consumption
900 mA at 12 VDC max
Photocell
Automatic,
sensitivity adjustable
N/A
LEDs
84 LEDs, Infrared,
intensity adjustable
None - No IR window
Wavelength
940 nm covert or
850 nm semi-covert
N/A
Night Vision Distance
9 m (30 ft)
N/A
Ordering information
Infrared Illumination
NEC‑360F02‑21W IP Corner Mount Camera
IP vandal proof corner cam, 1/3 in. hi-res color,
500 TVL, NTSC
Order number NEC-360F02-21W
NEC‑360F02‑11W IP Corner Mount Camera
IP vandal proof corner cam, 1/3 in. hi-res color,
500 TVL, PAL
Order number NEC-360F02-11W
NEI-368F02-21W IP Corner Mount Camera
Interfaces
Ethernet
10/100 Base-T RJ45
Analog
PAL or NTSC BNC
IP vandal proof corner cam, 1/3 in. extended day/
night, 540/540 TVL, 850 nm IR, NTSC
Order number NEI-368F02-21W
NEI-368F02-11W IP Corner Mount Camera
IP
IP vandal proof corner cam, 1/3 in. extended day/
night, 540/540 TVL, 850 nm IR, PAL
Protocols
Telnet, RTP, HTTP(S), ARP,TCP, UDP, IP, ICMP,
DHCP, IGMPv2/v3, SNMP, 802.1x
Order number NEI-368F02-11W
Compression
MPEG-4 SP and MJPEG, up to 30 frames per
second, tri-stream selectable
IP vandal proof corner cam, 1/3 in. extended day/
night, 540/540 TVL, 940 nm IR, NTSC
Frame Rate
1-30 FPS programmable (full motion)
Order number NEI-369F02-21W
Bandwidth
Configurable from 9.6 Kbps to 6 Mbps
NEI‑369F02‑21W IP Corner Mount Camera
NEI‑369F02‑11W IP Corner Mount Camera
IP vandal proof corner cam, 1/3 in. extended day/
night, 540/540 TVL, 940 nm IR, PAL
Resolution and
Frame Rates
PAL
NTSC
4CIF: 25/30 IPS
704 x 576
704 x 480
Accessories
2CIF: 25/30 IPS
704 x 288
704 x 240
UPA-2430-60 Power Supply
half D1: 25/30 IPS
352 x 576
352 x 480
Order number UPA-2430-60
CIF: 25/30 IPS
352 x 288
352 x 240
UPA-2420-50 Power Supply
QCIF: 25/30 IPS
176 x 144
176 x 120
220 VAC, 50 Hz, 24 VAC, 20 VA Out
Mechanical
Order number NEI-369F02-11W
120 VAC, 60 Hz, 24 VAC, 30 VA Out
Order number UPA-2420-50
PSU-124-DC050 Universal Power Supply
Weight
1.2 kg (2.6 lbs)
Construction
Robust aluminum casting, painted
steel with flush removable front
panel and tamper-resistant
screws
Window
¼-inch thick LEXAN
Overall Dimensions (WxHxD)
224 x 134 x 155 mm
(8.8 x 5.3 x 6.1 in)
Universal Outdoor Power Supply, 120 to 240 VAC,
50/60 Hz In; 24 VDC, 50 W Out
Order number PSU-124-DC050
Environmental
Operational Range
-50ºC to +50ºC (-58ºF to
122ºF)
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
3 | EX36‑IP No-Grip Corner Mount Camera
Represented by:
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
emea.securitys[email protected]
www.boschsecurity.com
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
[email protected]
www.boschsecurity.asia
China:
America Latina:
Bosch (Shanghai) Security Systems Ltd.
Robert Bosch Ltda Security Systems Division
201 Building, No. 333 Fuquan Road
Via Anhanguera, Km 98
North IBP
CEP 13065-900
Changning District, Shanghai
Campinas, Sao Paulo, Brazil
200335 China
Phone: +55 19 2103 2860
Phone +86 21 22181111
Fax: +55 19 2103 2862
Fax: +86 21 22182398
[email protected]
www.boschsecurity.com.cn
www.boschsecurity.com
© Bosch Security Systems 2013 | Data subject to change without notice
1661420939 | en, V3, 04. Oct 2013
