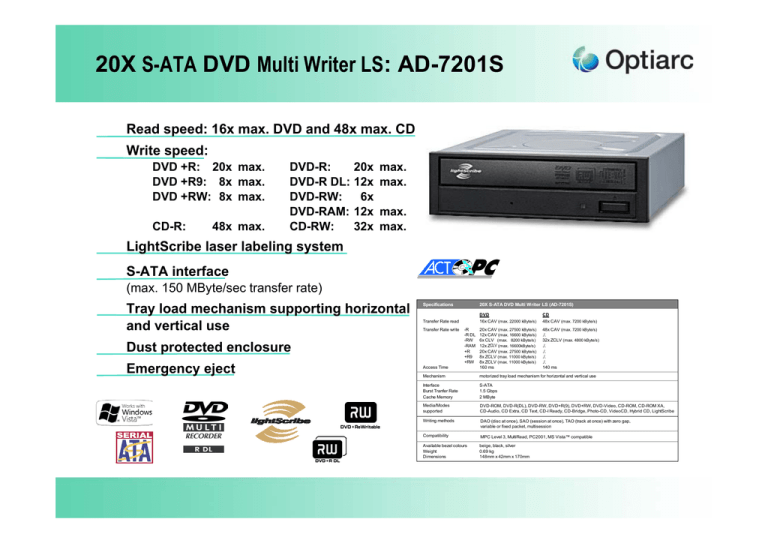

20X S-ATA DVD Multi Writer LS: AD-7201S
Read speed: 16x max. DVD and 48x max. CD
Write speed:
DVD +R: 20x max.
DVD +R9: 8x max.
DVD +RW: 8x max.
CD-R:
48x max.
DVD-R:
DVD-R DL:
DVD-RW:
DVD-RAM:
CD-RW:
20x
12x
6x
12x
32x
max.
max.
max.
max.
LightScribe laser labeling system
S-ATA interface
(max. 150 MByte/sec transfer rate)
Tray load mechanism supporting horizontal
and vertical use
Specifications
20X S-ATA DVD Multi Writer LS (AD-7201S)
DVD
CD
Transfer Rate read
16x CAV (max. 22000 kByte/s)
48x CAV (max. 7200 kByte/s)
20x CAV (max. 27500 kByte/s)
12x CAV (max. 16600 kByte/s)
6x CLV (max. 8200 kByte/s)
12x ZCLV (max. 16600kByte/s)
20x CAV (max. 27500 kByte/s)
8x ZCLV (max. 11000 kByte/s)
8x ZCLV (max. 11000 kByte/s)
160 ms
48x CAV (max. 7200 kByte/s)
./.
32x ZCLV (max. 4800 kByte/s)
./.
./.
./.
./.
140 ms
Transfer Rate write
Dust protected enclosure
Emergency eject
-R
-R DL
-RW
-RAM
+R
+R9
+RW
Access Time
Mechanism
motorized tray load mechanism for horizontal and vertical use
Interface
Burst Tranfer Rate
Cache Memory
S-ATA
1.5 Gbps
2 MByte
Media/Modes
supported
DVD-ROM, DVD-R(DL), DVD-RW, DVD+R(9), DVD+RW, DVD-Video, CD-ROM, CD-ROM XA,
CD-Audio, CD Extra, CD Text, CD-I Ready, CD-Bridge, Photo-CD, VideoCD, Hybrid CD, LightScribe
Writing methods
DAO (disc at once), SAO (session at once), TAO (track at once) with zero gap,
variable or fixed packet, multisession
Compatibility
MPC Level 3, MultiRead, PC2001, MS Vista™ compatible
Available bezel colours
Weight
Dimensions
beige, black, silver
0.69 kg
148mm x 42mm x 170mm
