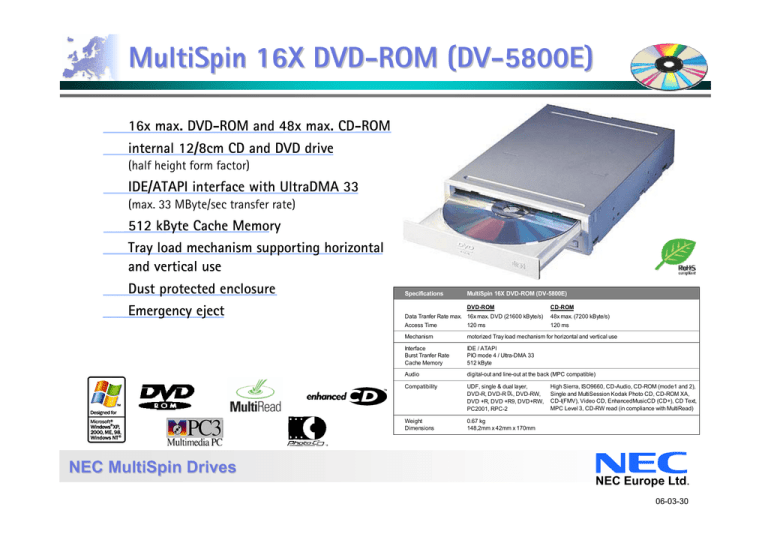

MultiSpin 16X DVD-ROM (DV-5800E)
16x max. DVD-ROM and 48x max. CD-ROM
internal 12/8cm CD and DVD drive
(half height form factor)
IDE/ATAPI interface with UltraDMA 33
(max. 33 MByte/sec transfer rate)
512 kByte Cache Memory
Tray load mechanism supporting horizontal
and vertical use
Dust protected enclosure
Specifications
Emergency eject
Data Tranfer Rate max. 16x max. DVD (21600 kByte/s)
48x max. (7200 kByte/s)
Access Time
120 ms
120 ms
Mechanism
motorized Tray load mechanism for horizontal and vertical use
Interface
Burst Tranfer Rate
Cache Memory
IDE / ATAPI
PIO mode 4 / Ultra-DMA 33
512 kByte
NEC MultiSpin Drives
MultiSpin 16X DVD-ROM (DV-5800E)
DVD-ROM
CD-ROM
Audio
digital-out and line-out at the back (MPC compatible)
Compatibility
UDF, single & dual layer,
DVD-R, DVD-R DL, DVD-RW,
DVD +R, DVD +R9, DVD+RW,
PC2001, RPC-2
Weight
Dimensions
0.67 kg
148,2mm x 42mm x 170mm
High Sierra, ISO9660, CD-Audio, CD-ROM (mode1 and 2),
Single and MultiSession Kodak Photo CD, CD-ROM XA,
CD-I(FMV), Video CD, EnhancedMusicCD (CD+), CD Text,
MPC Level 3, CD-RW read (in compliance with MultiRead)
NEC Europe Ltd.
06-03-30
