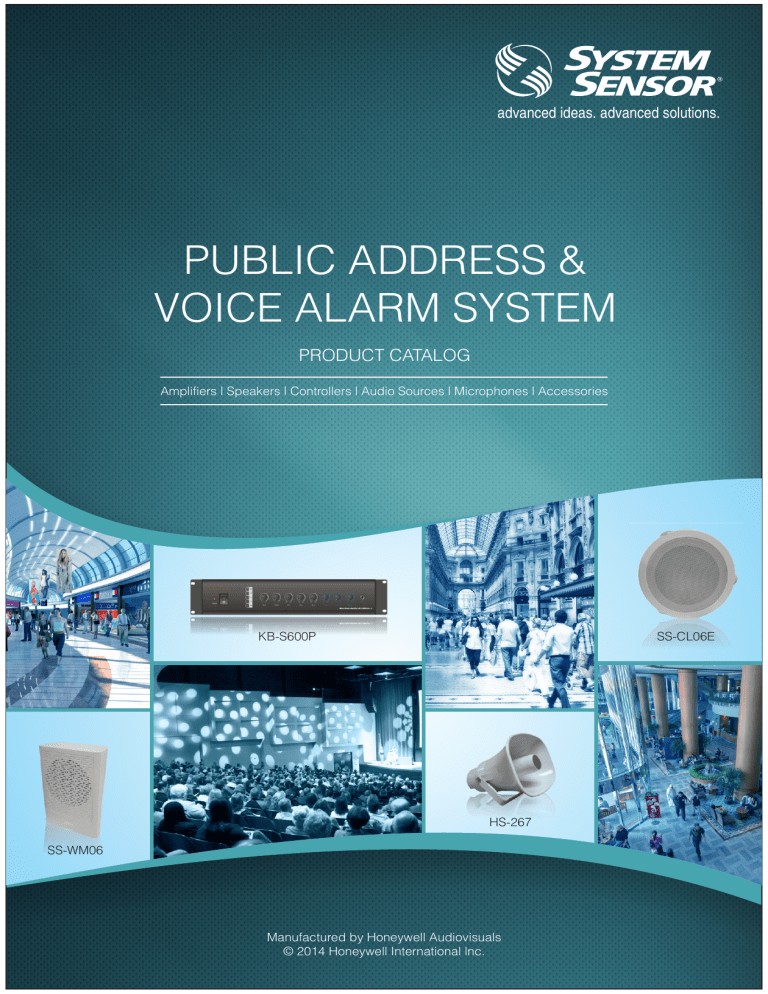

advanced ideas. advanced solutions.

PUBLIC ADDRESS &

VOICE ALARM SYSTEM

PRODUCT CATALOG

Amplifiers | Speakers | Controllers | Audio Sources | Microphones | Accessories

KB-S600P

SS-WM06

HS-267

Manufactured by Honeywell Audiovisuals

© 2014 Honeywell International lnc.

SS-CL06E

Extending Leadership Into Acoustic Excellence!

System Sensor is a recognized global leader of fire detection and notification devices, specializing in smoke detection and notification technology. It places a premium on research and development, resulting in products that are reliable, sophisticated and designed for real-world applications. With sales, service and manufacturing facilities throughout the Americas, Europe and Asia, System

Sensor's high-quality, innovative products are the most comprehensive in the industry.

The System Sensor Public Address & Voice Alarm products are manufactured by Honeywell Audiovisuals which specializes in acoustics and public address systems. System Sensor range manufactured by Honeywell Audiovisuals provides customers value-for-money for all kinds of occasions, where sound is used for entertainment, emergency, message communication or creating lifestyle environments.

System Sensor Public Address also represents cutting-edge innovation, superior quality and uncompromising safety. No matter whether you are looking for extraordinary sound performance, easy installation and maintenance, cost effectiveness, best-in-class reliability or just one handsome looking design,

System Sensor always has a product for your requirement.

With an experienced team of experts researching, developing and testing in our fully equipped anechoic rooms, our loudspeakers adopt internationally recognized industry standards to ensure the high reliability and excellent performance even in extreme conditions, such as fire. Moreover, System

Sensor makes it possible for a perfect combination of appealing design, superior sound reproduction and easy installation that are in the best interest of our customers.

The System Sensor Public Address & Voice Alarm portfolio comprises of the

Empertech Public Address products which offer complete range of loudspeakers, amplifiers, microphones and other audio accessories and voice alarm controllers are sure to meet all your Public Address & Voice Alarm needs.

Contents

Audio Sources

X-MAP4

Class D Mixer Amplifiers

HN-5120R/ HN-5240R/ HN-5300R

HN-5RCS

HN-AS20/ HN-AS30

Amplifiers

Compact Amplifiers

KB-C30PT, KB-C60PT

Pre Amplifiers

KB-D11P

Mixer Amplifiers

KB-S200P, KB-S300P, KB-S600P, KB-S1000P

Booster Amplifiers

SS-AMP120, SS-AMP240, SS-AMP360

SS-AMP480, SS-AMP660

SS-AMP1000, SS-AMP1500

Microphones

KB-500WL, MC-Z20, MC-Z50

Speakers

Ceiling Speakers

SS-CP06, SS-CL06E, SS-CL06

TF-218, ETF-221, ETF-223

SS-EVA18, EHB-910B/W

Wall Mount Speakers

SS-WM06, EWS-102, EWS-105B, EWS-105W

WS-03, HS-267, HS-268, EHS-250

EHB-907, HB-D907

Column Speakers

CS-511H, CS-512H, CS-513H, CS-514H

CK-311, CK-312, CK-313, CK-314

Hi-fidelity Speakers

EWS-206W/4, EWS-206W/5, EWS-206W/6, EWS-206W/8

EWS-206B/4, EWS-206B/5, EWS-206B/6, EWS-206B/8

Accessories

VC-05R / VC-05RF, VC-30W / VC-30WF, VC-60W / VC-60WF, VC-120W / VC-120WF

5

6

7

8

9

10

11

1

2

3

4

15

16

17

18

12

13

14

19

20

1

Audio Sources

X-MAP4

X-MAP4 Integrated Audio Player integrates audio sources including CD, MP3, FM and DAB. A high end car audio stereo CD player is installed to provide a stable and reliable CD audio source.

DAB technology is exclusively specially introduced to provide various audio source selections to the system. X-MAP4 can also read audio files from most of the typical memory devices via the USB port and SD card slot.

Two line outputs on the rear panel enable playing music to two zones simultaneously.

USB port

SD card slot

DAB/FM signal input

DAB/FM output

CD/USB/SD output

Power port

RS485 remote control interface

TECHNICAL SPECIFICATIONS

Parameter

Power voltage

Power consumption

Input

Output

Value

~ 220 V, 50 Hz

<13 W

DAB / FM 50 antenna terminal

USB port, SD port

Stereo RCA output

DAB / FM tuner ( 910 mV )

Stereo RCA output CD

/ USB / SD ( 910 mV )

2

482 × 44 × 252 mm

520 ×142 × 351 mm

Channel

Dimension

(W×H×D)

Package dimension

(W×H×D)

CD-DA Audio

Output level

Frequency response

Distortion

SNR

Channel separation

MP3/WMA audio

Frequency response

850 mV

±1 dB

0.08 %

80 dB

70 dB

17 Hz - 127 Hz(-1 dB

+2 dB)

127 Hz-10 KHz(±1 dB)

20 KHz( ±2 dB)

0.15 %

80 dB

Distortion

SNR

DAB

Band frequency range

SNR

Distortion

Channel separation

Input impedance

FM

Band frequency range

SNR

Distortion

Channel separation

174 MHz - 240 MHz

60 dB

0.2 %

55 dB

50

87.5 MHZ - 108 MHz

48 dB

1 %

25 dB

Compact Class-D Mixer Amplifiers

HN-Series

COMPACT CLASS-D MIXER AMPLIFIER

WITH AUDIO SOURCE AND

PAGING STATION

HN-Series amplifier is highly compact Class-D mixer amplifier solution featuring with integrated audio source, 5 zone selectors, volume control of each input, equalizer and

5 zone paging station.

With precise understanding of the needs of simple applications, HN-series not only provides stable performance of Class-D amplifier, but also increases value from the utilization of each function.

HN-AS20

Integrated Audio Source

HN-AS30

Integrated Audio Source

HN-5120R/HN-5240R/HN-5300R

Compact Class-D Mixer Amplifier

FEATURES

3-level priority with mute function

Advanced protection system includes current limiting, over current and thermal protection

7 band graphic equalizer

Extendable by adding audio mixer and power amplifier with LINK and PRE-AMP

Compact size and light weight

5-zone remote paging microphone

Telephone paging input and dry contact of chime

TECHNICAL SPECIFICATIONS

Parameter

Input Sensitivity for full output at maximum gain

Balanced Microphone Channels 1-5

Balanced Line Channels

Balanced Microphone Channel 6

RCA Jack

Balanced TELE- PAGING/MIC Input

Unbalanced Link-In

Unbalanced Amp-In

Balanced Remote Paging Station

Frequency Response

At 1 W from speaker out tap.100 Hz~10 kHz

Graphic Equalizer

125 Hz, 250 Hz, 500 Hz,

1 kHz, 2 kHz, 4 kHz, 8 kHz

Signal to Noise Ratio at rated power output

Crosstalk at all control maximum

Output Power at THD 0.5%

Total Harmonic Distortion(THD) at 1 kHz rated power

Phantom Power

Power Band Width at 1 kHz from speaker out tap

Operating Temperature/Humidity at non-condensing

Output Voltage and Impedance

8 Ω

70 V

100 V

Construction

Cooling

Dimensions (W x H x D)

Net Weight

2

HN-5RCS

Remote Paging Station

Value

-50 dB ± 3 dB

-6 dB ± 3 dB

-50 dB~ -6 dB ± 3 dB

-30 dB~ 14 dB± 3 dB

-40 dB~0 dB ± 3 dB

-17 dB ± 3 dB

0 dB ± 3 dB

+18 dB ± 3 dB

+1.5 dB / -3 dB

±12 dB ±3 dB

> 75 dB

-60 dB at 1 kHz

HN-5120R:120W

HN-5240R:240W

HN-5300R:300W

< 0.5%

15 VDC

80 Hz ~ 15 kHz with less than 0.5% THD

0 ~ 40 ℃ at 95% humidity

HN-5120R:31 V

HN-5240R:44 V

HN-5300R:49 V

HN-5120R:40.8 Ω

HN-5240R:20.4 Ω

HN-5300R:16.3 Ω

HN-5120R:83 Ω

HN-5240R:41.6 Ω

HN-5300R:33.3 Ω

Convection Cooled

420 x 88 x 320 mm

HN-5120R:9.76 kg

HN-5240R:10.5 kg

HN-5300R:10.93 kg

3

HN-5RCS

5 ZONE REMOTE PAGING STATION

HN-5RCS is specially designed for HN-series amplifier to provide remote control of zone on/off and live paging. Chime can be activated before paging. The robust industrial design enhances the product stability and the low-profile gray color can perfectly match with environment.

FEATURES

5 zones high quality live paging

Zone music on/off

CHIME on/off

Output level meter

MIC volume control

PTT and lock mode selectable

Communication failure alert

TECHNICAL SPECIFICATIONS

Parameter

Power consumption

Frequency response

Output sensitivity

Signal to noise ratio

Non-linear distortion

Indicator lights

Operating conditions

Storage temperature

Value

< 6 W

150 ~ 15kHz

+18 dBu (Adjustable)

> 75 dB (With A-Weight)

< 0.5%

1 power indicator

1 fault indicator

5 signal level indicators

5 zone on/off indicators

1 all on/off indicator

1 talk indicator

95% humidity, 0°C ~+40°C (0~104°F)

(no condensation)

-10°C ~ +55°C (14°F~131°F)

4

HN-AS20

INTEGRATED AUDIO SOURCE MODULE

The HN-AS20 is multi-source Tuner/MP3/USB/SD audio source module offering high quality sound reproduction performance of WAV,

WMA, MP3, and AAC format audio file from USB and SD player. The assigned function button provides easy control and immediate response to user. HN-AS20 is specially designed for HN-series amplifier. The combination of HN-AS20 and HN-series amplifier makes a best solution for simple applications.

FEATURES

MPEG 1/2/2.5 Layer2/3(MP3), WMA9 L1/L2 decoder with USB host and SD/MMC controller

Built-in 64K NOR flash memory for program code storage

Built-in 32 steps electronic volume control

Preset EQ (Classic / Pop / Jazz / Rock) with

LOUD function

Recognition file and folder up to 2,000 files and 200 folders

Available ID3 tag up to 32 characters

(File name->Title->Artist->Album)

HN-AS30

INTEGRATED AUDIO SOURCE MODULE

HN-AS30 integrates CD driver, internal virtual memory and radio. HN-AS30 is specially designed for HN-series amplifier. The combination of HN-AS30 and HN-series amplifier makes a best solution for simple applications.

FEATURES

Automatic and manual mode

Storage up to 30 channels

The CD and USB player can read WAV, WMA and MP3 formats with an equalizer

Built-in 32 steps electronic volume control

Built-in 64K NOR flash memory for program code storage

Available ID3 tag up to 32 characters

(File name->Title->Artist->Album)

TECHNICAL SPECIFICATIONS

Parameter

Signal to noise ratio

Frequency response

Total harmonic distortion(THD)

Supply voltage

Maximum current consumption

Operating temperature/ Humidity at non-condensing

TECHNICAL SPECIFICATIONS

Parameter

FM SECTION

Frequency range

Channel step

Intermedia frequency

Sensitivity

Signal to noise ratio

MW SECTION

Frequency range

Channel step

Intermedia frequency

Sensitivity

Signal to noise ratio

CD/MP3/WMA PLAYER SECTION

Signal to noise ratio

Frequency response

GENERAL

Power supply voltage

Max current consumption

Max output level

Value

< 70 dB

20 Hz ~ 20 kHz

< 0.1%

DC 12 V

500 mA

0°~40°C at 95% humidity

Value

87.5 ~ 108.0 MHz

50 kHz

10.7 MHz

2 UV at 30 dB S/N

> 60 dB

522 ~ 1620 kHz

9 kHz

455 kHz

30 dB

> 50 dB

> 50 dB

20 Hz ~ 20 kHz

DC 12 Volts Negative Ground

1 A

2 V

5

Compact Amplifiers

KB-C30PT/C60PT

30W/60W MIXER AMPLIFIER WITH TUNER,

MP3 AND USB

FRONT PANEL

The commercial grade mixer amplifiers with built-in MP3 /TUNER are designed to provide a big impact in sound reproduction and to produce the best and highest quality audio.

Highly flexible mixer amplifiers for a wide variety of voice and background music applications such as retail shops, restaurants and bars, service centers, houses of worship, warehouses etc.

30W/60W amplifier

100V, 70V and 4-16Ohms output 2

Auxiliary switchable CD/AUX

4pin phoenix connector for both balanced mic or Tel in

6.35mm jack unbalanced microphone input

With equalization function

Music on hold

Built-in tuner

Built-in USB port

REAR PANEL

SPECIFICATIONS

Rated Power Output

Speaker Output

S/N Ratio Mics

S/N Ratio Aux

Tone Controls

Output

Frequency Response

THD

Power Requirements

Dimensions

Net Weight

Color

KB-C30PT

90(H) x 270(W) x 260(D) mm

4.3 kg

Black

KB-C60PT

30 W 60 W

100 V (334 ohms), 70 V(164 ohms),

4,8,16 ohms

> 60dB

> 70dB

150 Hz, 1 KHz, 6KHz, + 10dB

775 Mv , 0dB , XLR and phone jack

{

AVX inputs : 200mv

CD inputs : 500mv

100 - 20,000 Hz

< 0.5% at Rated Power

220-240V AC or 120V AC

5.8 kg

Pre Amplifiers

9-INPUT MIXER PRE-AMPLIFIER

The KB-D11P is a versatile mixer preamplifier with 9 inputs and 2 outputs.

When any one of priority inputs (MIC1,

EMC1,EMC2) is activated, provision is m a d e t o m u t e a l l s i g n a l I n p u t s automatically.Output from the KB-

D15E emergency panel to EMC1 provides alarm siren or emergency announcement to be broadcasted over the public address system.

FRONT PANEL

REAR PANEL

FEATURES

5 microphone inputs (MIC1-MIC5), 3 ancillary circuit inputs (AUX1, AUX2, AUX3) and 2 emergency inputs (EMC1, EMC2). AUX3 contains one balanced input

4 unbalanced outputs and 1 balanced input

MIC1, MIC2, MIC3, MIC4, MIC5, AUX1, AUX2, and AUX3 respectively has independent knob volume controller

Function of 7 frequency points balanced

LCD display volume output, 2 volume controllers for adjusting the output volume

3 grades of priority: MIC1>EMC1, EMC2>MIC2, MIC3, MIC4, MIC5, AUX1, AUX2, and AUX3

Remote volume control and remote power on

Apply switch of address setting, use decimal system to set the local address, and the range is : 1-99

Short circuit signal activation, for emergency broadcast

SPECIFICATIONS

Model

Input(MIC)

Input(EMC)

Input(AUX)

Output

Frequency Response

S/N

THD

Muting Function

Master volume control

Indicators

Protection

Power Requirements

Power Consumption

Dimensions

Net Weight

Gross Weight

6

KB-D11P

10

,

330 mV unbalanced

10 , 330 mV unbalanced 10 , 10 mV balanced ( mic )

60Hz~16KHz ( ±3dB )

>70 dB

<0.1% at 1 KHz

MIC1 has the highest priority overrides all other Inputs, EMC1 and EMC2 have the second highest priority override other outputs

32 steps, digital control power

AC Fuse × 0.5 A × 1

AC 220 V ± 10% 50-60 Hz

10~15 W

89 (H) × 483 (W) × 350 (D)mm

5.1 Kg

6.3 Kg

Mixer Amplifiers

KB-S200P/KB-S300P/KB-S600P/ KB-S1000P

5-INPUT MIXER AMPLIFIERS

Highly flexible mixer amplifiers for a wide variety of voice and background music applications such as retail shops, restaurants and bars, service centers, houses of worship, warehouses and many more.

Main features are:

3 microphone and 2 auxiliary inputs

1 line output

100V, 70V and 4-16 Ohms transformer isolated speaker outputs

Automatic mute function for paging and announcements

Individual input gain controls with master volume control

Bass and treble tone controls

LED level meter

Speaker output short circuit protection

FRONT PANEL

REAR PANEL

SPECIFICATIONS

Rated Power Output

Output Regulation

Speaker Output

Input

Output

Frequency Response

THD

S/N Ratio

Tone Controls

Controls

Cooling

Indicators

Protection

Power Consumption

Power Requirments

Dimensions

Built-in Dimensions

Carton Dimensions

Net Weight

Gross Weight

Finish

KB-S200P

70 W

Less than 3 dB (no load to full load)

70 ohms (70V)

143 ohms (100V)

Low impedance: 4-16 ohms

KB-S300P

130 W

38 ohms (70V)

77 ohms (100V)

Low impedance: 4-16 ohms

KB-S600P

260 W

19 ohms (70V)

39 ohms (100V

Low impedance: 4-16 ohms

MIC 1, 2, 3: 600 ohms, 5-8 mV, unbalanced, phone jack; AUX 1, 2: 10k ohms, 300mV, unbalanced, RCA jack

600 ohms, >13 V, RCA jack

KB-S1000P

360 W

14 ohms (70V)

28 ohms (100V)

Low impedance : 4-16 ohms

60 - 15,000 Hz, +/- 3dB

Less than 1% at 1kHz (1/3 Rated Power)

Line : 75db , Mic : 60db

BASS: 100 Hz (+/- 10dB), TREBLE: 12k Hz (+/- 10dB)

5 input gain, 1 treble, 1 bass, 1 mute, and power switch

Internal 12VDC fan, extensive heat sinking

Power indicator LED, LED output level meter +1db, -5db, -10db, -13db, -17db

AC Fuse: 4A AC Fuse: 4A

Current limiter, short circuit and thermal protection circuits

AC Fuse: 8A

150 W

220-240V AC, 50/60 Hz

300 W 550 W

89(H) x 483(W) x 366(D) mm

2 U rack 19 inch

185(H) x 520(W) x 435(D) mm

10.04 kg

11.72 kg

Panel: steel plate, black

Case: steel plate, black

11.36 kg

13.02 kg

13.68 kg

15.32 kg

AC Fuse: 8A

750 W

14.08 kg

15.70 kg

7

Booster Amplifiers

SS-AMP120 SS-AMP240 SS-AMP360

SINGLE CHANNEL POWER AMPLIFIERS

These commercial-grade power amplifiers efficiently deliver up to 240 watts of clean, reliable audio for the most demanding public address and voice alarm applications.

Rugged and over-built to give years of dependable service, they are equipped with massive toroidal power transformers, extensive heat-sinking and fan cooling, protective circuits such as over temperature, short circuit, RFI and soft start.

100V, 70V and 4 Ohms transformer isolated speaker outputs

Balanced XLR input with XLR parallel link-out connector

400Hz high pass filter

Ground Selector Switch : Frame/float

Adjustable input gain from -12dB to 0dB

SPECIFICATIONS

Rated Power Output

Gain Control

Speaker Output

Frequency Response

THD

S/N Ratio

Controls

Cooling

Power Consumption

Power Requirments

Dimensions

Built-in Dimensions

Carton Dimensions

Net Weight

Finish

SS-AMP-120

120 W

-12 dB to 0

SS-AMP-240

240 W

41 ohms 70V

83 ohms 100V

Low impedance: 4 ohm

21 ohms 70V

41 ohms 100V

Low impedance: 4 ohms

60 - 20K Hz, +/- 3dB

Less than 1.0% at 1kHz (1/2 Rated output)

Better than 90 dB

Volume control and power switch

Internal 12VDC fan, extensive heat sinking

260 W 500 W

220-240V AC, 50/60 Hz

24V DC

89(H) x 483(W) x 377(D) mm

2 U rack 19 inch

185(H) x 520(W) x 435(D) mm

13 kg

Panel: aluminum, black

Case: steel plate, black

17.66 kg

SPECIFICATIONS

Rated Power Output

Output Regulation

Speaker Output

Input

Output

Frequency Response

THD

S/N Ratio

Slew Rate

Controls

Cooling

Indicators

Protection

Power Consumption

Power Requirements

Dimensions

Net Weight

Gross Weight

Packing Size

SS-AMP360

360 W

Less than 3 dB (no load to full load)

13.6 ohms 70V

27.8 ohms 100V

Low impedance: 4 ohms

Less than 1V, unbalanced, 10 k ohm, XLR and phone jack (unbalanced)

10 k ohm, 1V, XLR and phone jack

Less than 0.5% at 1kHz (1/3 Rated Power)

> 70 dB

15V/uS

Volume control and power switch

Internal 12VDC fan, extensive heat sinking

Power, Clip, Signal, Protect, and Temp LEDs

AC Fuse: 15 A

Current limiter, short circuit and thermal protection circuits

485 W

220 VAC ± 10 % 50 - 60 Hz

89 (H) x 483 (W) x 366 (D) mm

15.5 kg

17.1 kg

185 (H) X 520 (w) X 435 (D) mm

8

SS-AMP480 SS-AMP660

POWER AMPLIFIERS

These commercial-grade power amplifiers efficiently deliver up to 660 watts of clean, reliable audio for public address applications.

They are ruggedly to give years of reliable service.

They are equipped with toroidal power transformers, extensive heat-sinking, fan cooling and protective circuits.

100V, 70V and 4-16 Ohms transformer isolated speaker outputs

Combination XLR/RCA Line In and Line Out connectors

LED status indicators

Speaker output short circuit protection

FRONT PANEL

REAR PANEL

SPECIFICATIONS

Rated Power Output

Damping Factor

Speaker Output

Input

Output

Frequency Response

THD

S/N Ratio

Voltage Rise Rate

Controls

Protection

Power Consumption

Power Requirements

Dimensions

Net Weight

Gross Weight

Packing Size

SS-AMP480

480 W

Low Impedance:4~16 Ω

480 W, 70 V ( 10.7Ω ) 100 V ( 21.7Ω ) balanced

<1 V unbalanced,10 K ohms, XLR and phone jack

1V unbalanced XLR and phone jack

60 Hz~18 Khz ( ±3 dB )

≤0.5 % at 1 KHz, 1/3 ( Rated Power )

>70 dB

15 V/us

Volume control and power switch

AC Fuse × 15 A

AC FUSE×ACurrent limiter, short circuit and thermal protection circuits

620 W

AC 220 V ± 10 % 50-60 Hz

89 (H) × 483 (W) × 366 (D)mm

18 kg

19.7 kg

185 (H) × 520 (W) × 435 (D)mm

SS-AMP660

660 W

<3 dB(no load to full load)

Low Impedance:4~16 Ω

660 W, 70 V ( 10.7Ω ) 100 V ( 21.7Ω ) balanced

<1 V unbalanced,10 K ohms, XLR and phone jack

1V unbalanced XLR and phone jack

60 Hz~18 Khz ( ±3 dB )

≤0.5 % at 1 KHz, 1/3 ( Rated Power )

>70 dB

15 V/us

Volume control and power switch

AC Fuse × 15 A

AC FUSE×ACurrent limiter, short circuit and thermal protection circuits

880 W

AC 220 V ± 10 % 50-60 Hz

89 (H) × 483 (W) × 366 (D)mm

20.1 kg

21.7 kg

185 (H) × 520 (W) × 435 (D)mm

9

SS-AMP1000 SS-AMP1500

POWER AMPLIFIERS

When more power is required, these high power amplifiers provide up to 1500 watts into low impedance and 70 / 100 V speaker loads.

They are ruggedly designed to give years of reliable service, they are equipped with toroidal power transformers, extensive heat-sinking, fan cooling and protective circuits.

100V, 70V and 4-16 Ohms transformer isolated speaker outputs

Combination XLR/RCA Line In and Line Out connectors

LED status indicators

Speaker output short circuit protection

FRONT PANEL

REAR PANEL

SPECIFICATIONS

Rated Power Output

Output Regulation

Speaker Output

Input

Output

Frequency Response

THD

S/N Ratio

Slew Rate

Controls

Cooling

Indicators

Protection

Power Consumption

Power Requirements

Dimensions

Net Weight

Gross Weight

Packing Size

SS-AMP1000

1000 W

Less than 3 dB (no load to full load)

4.9 ohms (70V), balanced

10.0 ohms (100V), balanced

Low impedance: 4-16 ohms, balanced

0.775 v (0dB) un balanced, 10k ohms , XLR and phone jack

0.775 v (0dB) unbalanced, 10k ohms

50 - 18,000 Hz, +/- 1.5 dB

> 105 dB

40V/uS

Volume control and power switch

Internal 12VDC fan, extensive heat sinking

Power, Clip, Signal, Protect, and Temp LEDs

AC Fuse: ( 25 A )

Current limiter, short circuit and thermal protection circuits

1836 W

220 VAC ± 10 % 50 - 60 Hz

133(H) x 483(W) x 486(D) mm

32 kg

34 kg

(225 (H) X 610 (w) X 585 (D) mm )

SS-AMP1500

1500 W

3.3 ohms (70V), balanced

6.7 ohms (100V), balanced

Low impedance: 4-16 ohms, balanced

AC Fuse: 25A

2654 W

38 kg

40 kg

10

Microphones

KB-500WL

740-820MHZ WIRELESS MICROPHONE SYSTEM

High carrier frequency for superior reception

Includes receiver and two microphones, clip and handheld optional

Dual-channel, user-selectable frequency

100 meters service range

MC-Z20

2-TONE CHIME MICROPHONE

Built-in 2-tone chime

Red LED indicator

Push to talk switch

XLR connector

SPECIFICATIONS

Frequency Response

Sensitivity

Impedance

Controls

Cable

Power Requirements

Dimensions

Net Weight

REAR

MC-Z20

40 Hz-16 kHz

-43dB +/-2dB

200 ohms

ON/OFF switch

10 meters

12V DC

43 x 20 x 7.5 cm

1.05 kg

SPECIFICATIONS

Frequency Response

Dynamic Range

Distortion

S/N Ratio

Service Range

Operating Temperature

Carrier Frequency Range

MICROPHONE:

Frequency Stable Range

Carrier Output Power

Pre-Emphasis

RFI Suppression

Radio Frequency Type

Frequency Range

Microphone Type

Power Requirements

De-Emphasis

Power Consumption

Dimensions

Weight

RECEIVER:

Sensitivity

Output Impedance

Output Level

Power Requirements

Power Consumption

Weight

KB-500WL

50 Hz-18 kHz+/-3dB

>110dB

<0.5%

>102dB

100 meters

5 to 45 degrees C

740~820 MHz

0.005%

<30 mW

75us

>40dB

UHF

50 kHz

Dynamic

3V battery

75us

45 mA

420(L)*220(W)*44(H)

235 g

2 micro V

600 ohms

0~800 mV

DC 16 V

5 W

3.5 kg

11

MC-Z50

DESKTOP MICROPHONE

High sensitivity, excellent frequency response

Attractive black ABS base

ON/OFF switch

XLR connector

SPECIFICATIONS

Frequency Response

Sensitivity

Impedance

Controls

Cable

Power Requirements

Dimensions

Net Weight

REAR

MC-Z50

50 Hz-15 kHz

-45dB +/-2dB

600 ohms

ON/OFF switch

10 meters

1.5V DC

44.5 x 25 x 6.5 cm

1.11 kg

Speakers

Ceiling Speakers

SS-CP06

SS-CL06E

SS-CL06

SPECIFICATIONS

Speaker unit

Rated power

Transformer power

Sensitivity

SPL 1m/6 W, 2k Hz

Frequency response (-10 dB)

Dispersion angle (-6 dB)

Dimensions

Weight

Material

Color

Hole cutout

SS-CP06

4.5 “

3W, 100V line transformer

1.5W-3W

92 dB

97 dB

120 Hz ~15K Hz

160°

ø175 x 65mm

0.56 Kg

ABS

RAL 9003

ø150 mm

SPECIFICATIONS

Speaker unit

Rated power

Transformer power

Sensitivity

SPL 6 W/1m, 2k Hz

Frequency response (-10 dB)

Dispersion angle (-6 dB)

Dimensions

Weight

Material

Color

Hole cutout

SS-CL06E

4.5

6W, 100V line transformer

3W - 6W

90 dB

98 dB

80 Hz ~20K Hz

160°

ø180 x 55mm

0.6 Kg

Steel

RAL 9003

ø150 mm

SPECIFICATIONS

Speakers

Rated Power

Input Impedance

Power taps @70V

Power taps @100V

Sensitivity

Max SPL

Frequency response(effective)

Dispersion angle

Dimensions

Hole cut-out size

Weight

Material

Color

SS-CL06

5"

6 W

1.7 K

3 W

6 W

88 dB

95.8 dB

80 Hz ~ 20 KHz

160

Ø180 × 55 mm

Ø150 mm

0.68 Kg

Steel

RAL 9003

3.3 K

1.5 W

3 W

6.7 K

0.75 W

1.5 W

12

TF-218

ETF-221

ETF-223

SPECIFICATIONS

Rated Power

TF-218

3/6 W

Line Voltage

Sensitivity

100 V

87dB

Max SPL (1m) 94.7 dB

THD

Freq. Response

Hole Cutting Size

Baffle Size

Installation

Enclosure Material

Weight

< 3 %

130Hz 20KHz

Dia 95 mm

Dia 103 mm

Ceiling

ABS

0.42 Kg

SPECIFICATIONS

Rated Power

ETF-221

2.5/5/10 W

Line Voltage

100 V

Sensitivity 89.5 dB

Max SPL (1m) 99 dB

THD < 3 %

Freq. Response

Hole Cutting Size

Baffle Size

Installation

Enclosure Material

55 Hz 20 KHz

Dia 200 mm

Dia 230 mm

Ceiling

Rugged thermoplastic

Weight 1.38 Kg

SPECIFICATIONS

Power

ETF-223

20 W

Input Voltage 100 V

Sensitivity 89.6 dB

Max SPL (1m) 101.6 dB

THD

Freq. Response

< 1.8 % at 100 - 8 kHz

100 Hz 20 KHz

Hole Cutting Size

Product Size

Installation

Enclosure Material

Dia 204 mm

Dia 240 x 151 mm (H)

Ceiling

Rugged thermoplastic

Weight 2 Kg

13

SS-EVA18

(EVAC Ceiling Speaker with fire dome)

SPECIFICATIONS

Rated Power

SS-EVA18

3/6 W

Line Voltage 100 V

Sensititvity

88.5 dB

Max SPL (1m) 95.8 dB

THD

Freq. Response

Hole Cutting Size

Baffle Size

Installation

Enclosure Material

Weight

< 3 %

160 Hz 20 KHz

Dia 200 mm

Dia 228 x 133 mm

Ceiling

Metal

1.57 Kg

EHB-910B (Black) / EHB-910W (White)

IP55, Pendant Speaker

Ideal for station, Hotel, and market.

Paper cone coated with Damp to produce clear sound.

Easy installation.

ABS enclosure.

With 4 full range speaker.

SPECIFICATIONS EHB-910B (Black)

EHB-910W (White)

Rated Power 5/10 W

Line Voltage 70/100 V

Sensitivity 92.5 dB

Max SPL (1m) 102 dB

Distortion

Freq. Response

Size

Installation

Enclosure Material

< 3 %

200 Hz 20 KHz

Dia 180 x 700 mm

Hang

ABS

Weight

Line Load Resistance

Dispersion Angle

1.28 Kg

614 ohms

140

14

Speakers

Wall Mount Speakers

SS-WM06

EWS-102

EWS-105B EWS-105W

SPECIFICATIONS

Speakers

Rated Power

Input Impedance

Power taps @70V

Power taps @100V

Max SPL

Sensititvity

Frequency response(effective)

Dispersion angle

Dimensions

Weight

Material

Color

SS-WM06

6.5"

3 W

3.3 Kohm

1.5 W

3 W

104.6 dB

96.8 dB

150

260 × 180 × 120 mm

1.08 Kg

ABS

Similar RAL9010

6 W

1.7 Kohm

3 W

6 W

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

Max SPL (1m)

THD

Freq. Response

Size

Weight

SPECIFICATIONS

Rated Power

Maximum Power

Input Voltage/impedance

Sensitivity

Max SPL (1m)

THD

Frequency Response

Installation

Enclosure material

Product Size (mm)

Weight

Packing Dimensions (mm)

Speakers

EWS-102

10 W

100 V

92dB + / - 3db

101.1 dB

< 5 %

150 Hz 20 KHz

345 x 240 x 100 mm

1.68 kg

EWS-105B / EWS-105W

25 W

30 W

70 V for H - 25 W / H -25 B

4 ohm for HR - 25 W / HR - 25 B

110 V for HI - 25 W / HI - 25 B

87 dB

100 dB

< 5 %

50 Hz - 20 kHz ( + / - 3 dB)

Wall mounted

Rugged thermoplastic

320 x 230 x 155

3.2 kg

585 x 270 x 380

1” TREBLE, 5” BASS

15

WS-03

HS-267

(IP66)

HS-268

(IP66)

16

EHS-250

(IP66)

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

THD

Frequency Response

Size

Weight

Line Load Resistance

Vertical Dispersion

Horizontal dispersion

WS-03

0.15 W / 1.5 W

100 V

89 dB + / - 3 dB

< 3 %

300 Hz 6 kHz

130 x 120 x 60 mm

0.4 kg

589 ohms

90 degrees

100 degrees

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

Max SPL (1m)

THD

Frequency Response

Dimension

Weight

Finish

HS-267

15 W / 7.5 W

70 / 100 V

98.5 dB

110.3 dB

< 5 %

500 Hz 5 kHz

225 X 165 x 240 mm

1.38 kg

White

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

Max SPL (1m)

THD

Freq. Response

Dimension

Weight

Finish

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

Max SPL (1m)

THD

Frequency Response

Dimension

Weight

Finish

Material

HS-268

15 / 30 W

70 / 100 V

101.2 dB

116 dB

< 5 %

500 Hz 5 kHz

285 X 210 X 290 mm

1.78 kg

White

EHS-250

50 W

70 / 100 V

99 ± 3 dB

114.5 dB

< 5 %

200 Hz 20 kHz

363 x 253 x 310 mm

4 kg

White

Rugged thermoplastic

17

EHB-907

(IP66)

HB-D907

(IP66)

SPECIFICATIONS

Type

Rated Power

Line Voltage

Sensitivity

Max SPL (1m)

THD

Frequency Response

Baffle size

Weight

Line Load Resistance

Dispersion angle

EHB-907 uni - directional

5 / 10 / 20 W

70 / 100 V

92 dB + / - 3 dB

106 dB

< 5 %

150 Hz 16 kHz

Dia 170 x 252 mm

2.82 kg

589 ohms

360

SPECIFICATIONS

Type

Rated Power

Line Voltage

Sensitivity

Max SPL (1m)

THD

Frequency Response

Baffle size

Weight

Line Load Resistance

Dispersion angle

HB-D907 bi - directional

5 / 10 / 20 W

70 / 100 V

92 dB + / - 3 dB

104.9 dB

< 5 %

150 Hz - 16 kHz

Dia 170 x 252 mm

3.4 kg

589 ohms

360 degrees

Speakers

Column Speakers

CS-511H CS-512H CS-513H CS-514H

Features:

The standard indoor / outdoor weatherproof speakers provide hi-fi sound quality. They are suitable for use at garden, swimming pool, stadium and tennis court.

Installation: wall mount

Enclosure: Aluminum, metal grille

4" full range speakers screw fixed rack adjustable rack

BROWN : 1K

YELLOW :COM

BLUE : 2K nut

CS-511H CS-512H CS-513H CS-514H

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

Max SPL (1m)

CS-511H (IP44)

5 W / 10 W

100 V

90 dB

99.5 dB

Freq. Response

Dimensions

Weight

140 Hz - 20 kHz

270 X 123 X 145 mm

2.55 kg

614 ohms

Line Load Resistance

Vertical Dispersion

Horizontal Dispersion

90 degrees

90 degrees

Color Champagne

Materials (enclosure and grille) Aluminum and iron

CS-512H (IP44)

10 W / 20 W

100 V

92 dB

107 dB

140 Hz - 20 kHz

390 x 123 x 145 mm

4.1 kg

448 ohms

80 degrees

90 degrees

Champagne

Aluminum and iron

CS-513H (IP44)

15 W / 30 W

100 V

93 dB

107.7 dB

120 Hz - 20 kHz

505 x 123 x 145 mm

4.35 kg

345 ohms

80 degrees

90 degrees

Champagne

Aluminum and iron

CS-514H (IP44)

20 W / 40 W

100 V

95 dB

108 dB

120 Hz - 20 kHz

620 x 123 x 145 mm

5.65 kg

256 ohms

80 degrees

256 ohms

Champagne

Aluminum and iron

CK-311 CK-312 CK-313 CK-314

Features:

The metal case makes it more durable beautiful shape and easy to install suitable for indoor/outdoor application, such as gym and conference room.

screw fixed rack adjustable rack

Enclosure: Aluminum, metal grille

2.5 "full range speakers with clear sound BROWN : 1K

YELLOW :COM

BLUE : 2K nut

CK-312 (IP44)

10 W / 20 W

100 V

88 dB

102.3 dB

402 x 75 x 105 mm

1.98 kg

486 ohms

90 degrees

110 degrees

White

Aluminum and iron

18

SPECIFICATIONS

Rated Power

Line Voltage

Sensitivity

Max SPL (1m)

CK-311 (IP44)

5 W / 10 W

100 V

88 dB

97 dB

Dimensions

Weight

261 X 75 X 105 mm

1.22 kg

Line Load Resistance

Vertical Dispersion

640 ohms

90 degrees

Horizontal Dispersion

Color

100 degrees

White

Materials (enclosure and grille) Aluminum and iron

Freq. Response 180 Hz - 20 kHz

CK-311

CK-313 (IP44)

15 W / 30 W

100 V

90 dB

105.8 dB

550 x 75 x 105 mm

2.74 kg

358 ohms

90 degrees

110 degrees

White

Aluminum and iron

CK-312 CK-313

CK-314 (IP44)

20 W / 40 W

100 V

91 dB

108.6 dB

690 x 75 x 105 mm

3.52 kg

448 ohms

80 degrees

110 degrees

White

Aluminum and iron

CK-314

Speakers

Hi-fidelity Speakers

EWS-206W/4 EWS-206W/5 EWS-206W/6 EWS-206W/8

High sound quality with natural fidelity

Elegant design with ABS plastic

Switch for output power selection

Easy mounting with flexible bracket

Available in Black or white

SCREW

SCREW

SCREW

SCREW

STAND

SPECIFICATIONS

Power

Line Voltage

Distortion

Frequency Response

Product Size

Installation

Enclosure material

Weight

Dispersion Angle

Speakers

Sensitivity

Max SPL (1m)

EWS-206W/4

5/10/20 W

100V/8 ohm

EWS-206W/5

10/20/40 W

100V/8 ohm

EWS-206W/6

15/30/60 W

100V/8 ohmV

EWS-206W/8

20/40/80 W

100V/8 ohm

Less than 3% at 100-8KHz

80 Hz-20 KHz

250 x 160x 145 mm

Wall mounted

Less than 3% at 100-8KHz

80 Hz-20 KHz

302 x 172x 165 mm

Wall mounted

Less than 3% at 100-8KHz

80 Hz-20 KHz

202 x 193x 344 mm

Wall mounted

ABS

1.5 Kg

90 degrees x 80 degrees

ABS

3.4 Kg

90 degrees x 80 degrees

ABS

3.80 Kg

90 degrees x 80 degrees

20mm x1 (TREBLE) 4"x1(BASS)

85.2 dB

97.2 dB

25mm x1 (TREBLE) 5.2"x1(BASS)

86.5 dB

100.4 dB

25mm x1 (TREBLE) 6.5"x1(BASS)

87.7 dB

104 dB

Less than 3% at 100-8KHz

80 Hz-20 KHz

261 x 275x 455 mm

Wall mounted

ABS

7.46 Kg

90 degrees x 80 degrees

25mm x1 (TREBLE) 8"x1(BASS)

87.9 dB

105 dB

EWS-206B/4 EWS-206B/5 EWS-206B/6 EWS-206B/8

High sound quality with natural fidelity

Elegant design with ABS plastic

Switch for output power selection

Easy mounting with flexible bracket

Available in Black or white

SCREW

SCREW

SCREW

SCREW

STAND

SPECIFICATIONS

Power

Line Voltage

Distortion

Frequency Response

Product Size

Installation

Enclosure material

Weight

Dispersion Angle

Speakers

Sensitivity

Max SPL (1m)

EWS-206B/4

5/10/20 W

100V/8 ohm

EWS-206B/5

10/20/40 W

100V/8 ohm

Less than 3% at 100-8 KHz

80 Hz-18 KHz

250 x 160x 145 mm

Wall mounted

Less than 3% at 100-8 KHz

80 Hz-18 KHz

302 x 172x 165 mm

Wall mounted

ABS

1.45 Kg

90 degrees x 80 degrees

ABS

3.4 Kg

90 degrees x 80 degrees

20mm x1 (TREBLE) 4"x1(BASS) 25mm x1 (TREBLE) 5.2"x1(BASS)

85.2 dB

97.2 dB

86.5 dB

100.4 dB

EWS-206B/6

15/30/60 W

100V/8 ohmV

EWS-206B/8

20/40/80 W

100V/8 ohm

Less than 3% at 100-8 KHz

80 Hz-18 KHz

202 x 193x 344 mm

Wall mounted

Less than 3% at 100-8 KHz

80 Hz-18 KHz

261 x 275x 455 mm

Wall mounted

ABS

3.80 Kg

90 degrees x 80 degrees

ABS

7.46 Kg

90 degrees x 80 degrees

25mm x1 (TREBLE) 6.5"x1(BASS)

87.7 dB

104 dB

25mm x1 (TREBLE) 8"x1(BASS)

87.9 dB

105 dB

19

Accessories

VC-05R / VC-05RF

VC-30W / VC-30WF

VC-60W / VC-60WF

VC-120W / VC-120WF

MODEL

Type

Power Rating

24 VDC Override

Attenuation

Frequency Response

Dimensions

VC-05R VC-05RF

5 - step resistive, mono

6 watts

No Yes

Step 1: OFF

Step 2: - 4 dB

Step 3: - 1 dB

Step 4: - 0.5 dB

Step 5: 0 dB

20 Hz - 20 kHz

86 ( W ) x 86 ( H ) x 50 ( D ) mm

( V C -305 R ) 115 ( W ) x 70 ( H ) x 48 ( D ) mm

MODEL

Type

Power Rating

24 VDC Override

Attenuation

Frequency Response

Dimensions

VC-30W VC-30WF

5 - step auto transformer, mono

30 watts

No Yes

Step 1: OFF

Step 2: - 17 dB

Step 3: - 11 dB

Step 4: - 4.5 dB

Step 5: 0 dB

20 Hz - 20 kHz

86 ( W ) x 86 ( H ) x 62 ( D ) mm

( VC-3030W ) 115 ( W ) x 70 ( H ) x 64 ( D ) mm

MODEL

Type

Power Rating

24 VDC Override

Attenuation

Frequency Response

Dimensions

VC-60W VC-60WF

5 -step auto transformer, mono

60 watts

No Yes

Step 1: OFF

Step 2: - 18 dB

Step 3: - 11 dB

Step 4: - 5 dB

Step 5: 0 dB

20 Hz - 20 kHz

86 ( W ) x 86 ( H ) x 70 ( D ) mm

VC - 3060 W ) 115 ( W ) x 70 ( H ) x 74 ( D ) mm

MODEL

Type

VC-120W VC-120WF

5 - step auto transformer, mono

Power Rating

24 VDC Override

Attenuation

No

120 watts

Yes

Step 1: OFF

Step 2: - 17 dB

Step 3: - 11 dB

Step 4: - 5.5 dB

Step 5: 0 dB

Frequency Response

Dimensions

20 Hz - 20 kHz

86 ( W ) x 86 ( H ) x 50 ( D ) mm

Transformer Dimensions 70 ( W ) x 70 ( H ) x 28 ( D ) mm

( VC - 3120 W ) 115 ( W ) x 70 ( H ) x 74 ( D ) mm

20

Public Address & Voice Alarm System

Empertech Public Address Systems

Honeywell Life Safety

HIIPL, Sec-36, Pace City II

Gurgaon - 122004, Haryana

Ph: 0124-4752700

Email: [email protected]

Subject to change without notice

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
