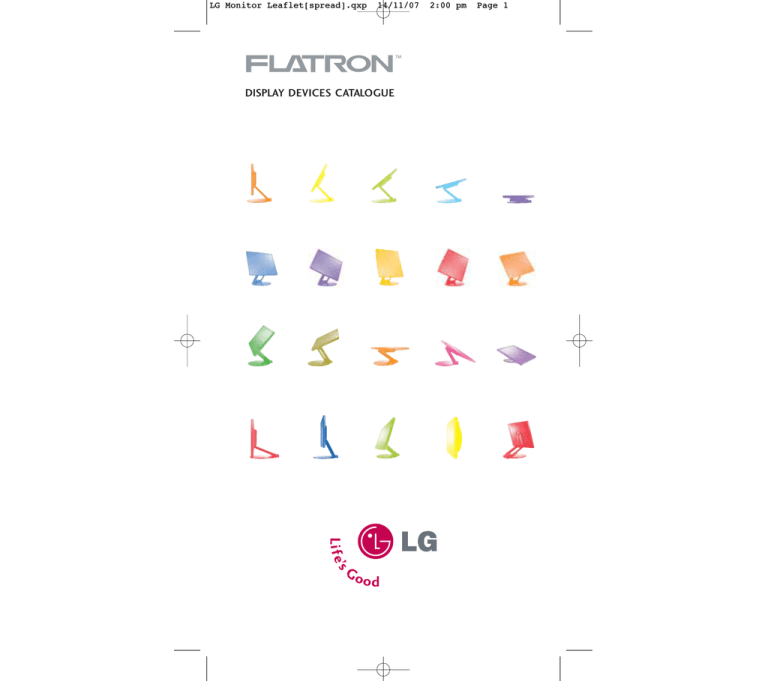

LG Monitor Leaflet[spread].qxp
14/11/07
DISPLAY DEVICES CATALOGUE
2:00 pm
Page 1
LG Monitor Leaflet[spread].qxp
14/11/07
2:00 pm
Page 2
THE ADVANTAGE OF
WIDE FORMAT
FLATRON LCD
SERIES
Experience clear and sharp images on LG FLATRON LCD.
Colours literally jump off the screen.
OFF
Ideal for Moving Pictures
●
●
Optimized for maximum movie image brightness
- Suitable for moving images with various brightness levels. e.g. Movies,
Animations, Games, Photos, etc.
Enjoy clear, crisp and bright images
Strong in the Dark
●
●
●
ON
L225WS
L204WT
L204WS
L194WT
L194WS
01
Play MOVIES, Play GAMES, Play Wide, Play LG!
●
4:3 in Wide (ARC : Aspect Ratio Control)
With 4:3 in Wide (ARC) Funtion,
No more distorted image!
Enjoy original 4:3 images with LG Wide Monitor!
● When playing a 4:3 format game
- Real 4:3 image looks clear
- It’s easy to control a game in detail
● When using a PC that doesn’t support aspect ratio
- undistorted characters images and scenes
- True to nature
Excels in displaying dark images
- Images remain clear in dark backgrounds
Superior classification of dark colours
Displays ’PERFECT BLACKS’ through automatic control
L196WTQ
L206WU
L225WT
GAME
Digital Fine
Contrast ratio
World’s First & Best Contrast Ratio of
5000:1 with DFC
L197WH
L226WTQ
L206WTQ
MOVIE
DFC
L246WH
L227WT
L207WT
Clear Your Vision
●
●
As real as it gets
- As if looking at a real object
Alleviate eye strain when looking at small images
Technology Behind DFC
●
1st Step: Analyze input content and automatically
recognize the need to boost contrast
●
2nd Step: Activate contrast enhancer control to
boost contrast
●
3rd Step: Display an improved digital image with
optimal contrast
L246WH
L227WT
L207WT
PANEL SPEC
Size
Brightness
Contrast Ratio
Response Time
Viewing Angle
Supported Colours
Resolution
24" Wide
400 cd/m2 (Typical)
2000:1
8ms (GTG)
H : 170°, V : 170°
16.7M Colours
1920 x 1200 (WUXGA)
22" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
20" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
PHYSICAL
FEATURES
Video Signal Type
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
Connector
15 Pin D-Sub, HDMI, Component
(Video), PC Audio Out
15 Pin D-Sub, DVI-D
15 Pin D-Sub, DVI-D
Dimension (Net)
(Gross)
560 x 270 x 445 mm
631 x 278 x 445 mm
508 x 230 x 424 mm
575 x 163 x 453 mm
472 x 230 x 400 mm
535 x 160 x 409 mm
Contact Details:
LG UK Reception
Tel: 01753 491500
Retail:
Andy Boncey
email: [email protected]
Tel: 07831 322404
Distribution:
Ian Cracknell
email: [email protected]
Tel: 07733 014560
Mark Weston
email: [email protected]
Tel: 07912 391471
Systems Integrator:
Tony Webb
email: [email protected]
Tel: 07861 302134
Marketing
Hannah Lattimer
email: [email protected]
Tel: 01753 491601
Weight
Net : 9.6 kg, Gross : 12.0 kg
Net : 5.7 kg, Gross : 6.4 kg
Net : 4.6 kg, Gross : 6.0 kg
POWER
CONSUMPTION
On Mode
DPM Off Mode
80W (Typical)
2W (Typical)
45W (Typical)
1W (Typical)
45W (Typical)
1W (Typical)
SPECIAL
FEATURES
Multimedia
PIP / PBP, HDCP,
4:3 in Wide (ARC)
HD Ready
Height Adjustment, Tilt, Swivel
FLATRON f Engine, ez Zooming,
HDCP, WCG 100%, 4:3 in Wide(ARC)
–
Tilt
FLATRON f Engine, ez Zooming,
HDCP, WCG 100%, 4:3 in Wide (ARC)
–
Tilt
–
VESA
–
–
VESA
–
Sales Support:
Pamela Sangha
email: [email protected]
Tel: 01753 491671
AV / TV
Stand
Sales Admin:
Rebecca Smith
email: [email protected]
Tel: 07889 086259
Caroline Horn
email: [email protected]
Tel: 01753 491530
Corporate:
Caroline Grimes
email: [email protected]
Tel: 07872 127049
Janice Hodge
email: [email protected]
Tel: 01753 491529
USB
2Down 1Up
VESA Wall mounting VESA
Regulation
TCO-99
DEPLOYED
MODEL
LG Monitor Leaflet[spread].qxp
14/11/07
2:00 pm
Page 4
Wide enough to put all the excitement.
<1440 X 900>
Add a whole new level of colour into your life!
●
Enjoy Vivid Colour Images
●
Get the True Colour that You Want
●
Achieve the True Colour into Your Work
ZOOM
(changed to one step lower resolution)
Productivity
Additional Working Area_Calculator, Toolbar, Messenger etc.
Increase your productivity with an increased screen.
Work on a spreadsheet, browse the web, watch a movie on one
screen with room to spare.
72%
3D GAME
NATIVE RESOLUTION
Wide Colour Gamut
GRAPHIC
<1680 X 1050>
▲
● ez zooming
Switch Resolution modes with a touch of a button
(Screen resolution reduces by one level)
L197WH
L226WTQ
L206WTQ
L196WTQ
L206WU
L225WT
L225WS
PANEL SPEC
Size
Brightness
Contrast Ratio
Response Time
Viewing Angle
Supported Colours
Resolution
19" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1440 x 900 (WXGA+)
22" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
20" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
19" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.2M Colours
1440 x 900 (WXGA+)
20" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
22" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
22" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
PHYSICAL
FEATURES
Video Signal Type
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog (Separate,
Composite, SOG)
Connector
15 Pin D-Sub, DVI-D
15 Pin D-Sub, DVI-D
15 Pin D-Sub, DVI-D
15 Pin D-Sub, DVI-D
15 Pin D-Sub, DVI-D, USB,
(MultLink Technology)
15 Pin D-Sub, DVI-D
15 Pin D-Sub
Dimension (Net)
(Gross)
440 x 230 x 382 mm
495 x 153 x 383 mm
502 x 234 x 424 mm
571 x 235 x 415 mm
471 x 234 x 402 mm
534 x 193 x 383 mm
440 x 234 x 384 mm
494 x 193 x 365 mm
471 x 234 x 402 mm
534 x 193 x 383 mm
502 x 234 x 424 mm
571 x 235 x 415 mm
502 x 234 x 424 mm
571 x 235 x 415 mm
Weight
Net : 3.9 kg, Gross : 4.8 kg
Net : 5.7 kg, Gross : 6.4 kg
Net : 4.6 kg, Gross : 6.0 kg
Net : 4.6 kg, Gross : 5.8 kg
Net : 4.6 kg, Gross : 6.0 kg
Net : 5.7 kg, Gross : 6.4 kg
Net : 5.7 kg, Gross : 6.4 kg
POWER
CONSUMPTION
On Mode
DPM Off Mode
36W (Typical)
1W (Typical)
45W (Typical)
1W (Typical)
34W (Typical)
1W (Typical)
34W (Typical)
1W (Typical)
45W (Typical)
1W (Typical)
45W (Typical)
1W (Typical)
45W (Typical)
1W (Typical)
SPECIAL
FEATURES
Multimedia
FLATRON f Engine, ez Zooming,
HDCP, 4:3 in Wide (ARC)
–
Tilt, Swivel
FLATRON f Engine, ez Zooming,
HDCP, 4:3 in Wide (ARC)
–
Tilt, Swivel
FLATRON f Engine, ez Zooming,
HDCP, 4:3 in Wide (ARC)
–
Tilt, Swivel
FLATRON f Engine, ez Zooming,
HDCP, 4:3 in Wide (ARC)
–
Tilt, Swivel
FLATRON f Engine, ez Zooming,
4:3 in Wide (ARC)
–
Tilt, Swivel
–
VESA
TCO-03 (Silver, Black)
–
VESA
TCO-03 (Silver, Black)
–
VESA
TCO-03 (Silver, Black)
FLATRON f Engine, HDCP,
4:3 in Wide (ARC)
–
Pivot (90°), Height Adjustment, Tilt,
Swivel
2Down 1Up
VESA
–
–
VESA
TCO-03
–
VESA
TCO-0
*Colour (Front) : Silver, Black
(Stand): Black (Glossy)
*Colour (Front): Silver, Black
(Stand): Black (Glossy)
*Colour (Front): Silver, Black
(Stand): Black (Glossy)
DEPLOYED
MODEL
FLATRON f Engine, ez Zooming,
HDCP, 4:3 in Wide (ARC)
AV / TV
–
Stand
Dual Hinge, Height Adjustment,
Tilt
USB
–
VESA Wall mounting VESA
Regulation
–
*Colour (Front): Silver, Black
LG Monitor Leaflet[spread].qxp
14/11/07
2:00 pm
Page 6
Why MulitLink Technology?
Easy to Use
Multilink Connection
USB Signal Input
Powerful extension through USB up to 6 screens
(Instantly add other displays to PC)
USB
Multi Chain Connection
Lowers the complexity of adding
more monitors
Powerful Extension through USB up to 6 Screens (Instantly add other displays to PC)
USB
USB Input Interface for Multi Screen to
Provide Easy user Experience
- Easy to Connect : USB Signal Input
- No need for additional dual interface setting
(Auto Switching)
- No need for extra graphic card
- Auto Switching between Copy and Extended Mode
without Display Settings
USB
USB
DISPLAY SETTING
USB
GRAPHIC CARD
HDMI (High-Definition Multimedia Interface)
USB
HDMI delivers sharper images and sounds without any data loss
for graphic and multimedia users. HDMI delivers crystal clear
digital video and audio quality via a single cable.
FLATRON L245WP
L246WH
L204WT
L204WS
L194WT
L194WS
PANEL SPEC
Size
Brightness
Contrast Ratio
Response Time
Viewing Angle
Supported Colours
Resolution
20" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
20" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
19" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.2M Colours
1440 x 900 (WXGA+)
19" Wide
300 cd/m2 (Typical)
5000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.2M Colours
1440 x 900 (WXGA+)
PHYSICAL
FEATURES
Video Signal Type
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog (Separate,
Composite, SOG)
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog (Separate,
Composite, SOG)
Connector
15 Pin D-Sub, DVI-D
15 Pin D-Sub
15 Pin D-Sub, DVI-D
15 Pin D-Sub
Dimension (Net)
(Gross)
466 x 226 x 384 mm
525 x 137 x 365 mm
466 x 226 x 384 mm
525 x 137 x 365 mm
435 x 226 x 370 mm
494 x 130 x 384 mm
435 x 226 x 370 mm
494 x 130 x 384 mm
Weight
Net : 4.8 kg, Gross : 5.8 kg
Net : 4.8 kg, Gross : 5.8 kg
Net : 3.6 kg, Gross : 4.8 kg
Net : 3.6 kg, Gross : 4.8 kg
POWER
CONSUMPTION
On Mode
DPM Off Mode
45W (Typical)
1W (Typical)
45W (Typical)
1W (Typical)
34W (Typical)
1W (Typical)
34W (Typical)
1W (Typical)
SPECIAL
FEATURES
Multimedia
FLATRON f Engine, HDCP,
4:3 in Wide (ARC)
–
Tilt
FLATRON f Engine,
4:3 in Wide (ARC)
–
Tilt
FLATRON f Engine, HDCP,
4:3 in Wide (ARC)
–
Tilt
FLATRON f Engine,
4:3 in Wide (ARC)
–
Tilt
–
VESA
TCO-03
–
VESA
TCO-03
–
VESA
TCO-03
*Colour (Front): Silver, Black
*Colour (Front): Silver, Black
*Colour (Front): Silver, Black
AV / TV
Stand
USB
–
VESA Wall mounting VESA
Regulation
TCO-03
DEPLOYED
MODEL
*Colour (Front): Silver, Black
LG Monitor Leaflet[spread].qxp
14/11/07
2:01 pm
Page 8
MONITOR TV
SERIES
M228WD
M228WA
M208WA
M198WA
M1921TA
M1721TA
02
MORE INPUTS, MORE FUN_ With the Monitor TV series, LG offers multipurpose all-in-one display solutions for a variety of PC and home entertainment
uses. Users can enjoy easy and convenient access to AV devices such as a DVD
player, VCR, Video game console, Camcorder and more.
Various AV / TV Functions
DTV Monitor
Users can enjoy easy and
convenient access to AV/TV
devices such as a DVD Player,
VCR, Video game console,
camcorder and more.
Users can watch HD Broadcast with built-In Digital Tuner inside the Monitor. Which means no mandatory TV Card in your PC,
and you get another free digital TV. It's now possible to work, and enjoy your favorite TV shows on a single screen.
DVD
MUSIC
SRS WOW
CAMCORDER
TV
It delivers an incredible listening experience to any music genre providing the perception of deep,
rich bass and an amazing 3D listening experience.
GAME
PC
Multimedia Speaker (Stereo 3W x 2)
MUSIC
TV
PC
GAME
CAMCORDER
DVD
Users can enjoy easy and convenient access to AV devices such as a DVD Player, Video
game console, Camcorder, VCR and more.
M228WD
M228WA
M208WA
M198WA
M1921TA
M1721TA
PANEL SPEC
Size
Brightness
Contrast Ratio
Response Time
Viewing Angle
Supported Colours
Resolution
22” Wide
300 cd/m2 (Typical)
3000:1 (DFC)
5ms (Typical)
H : 176°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
22” Wide
300 cd/m2 (Typical)
3000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
20” Wide
300 cd/m2 (Typical)
3000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.7M Colours
1680 x 1050 (WSXGA+)
19” Wide
300 cd/m2 (Typical)
3000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.2M Colours
1440 x 900 (WXGA+)
19” Wide
300 cd/m2
3000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.7M Colours
1280 x 1024 (SXGA)
17” Wide
300 cd/m2
3000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.7M Colours
1280 x 1024 (SXGA)
PHYSICAL
FEATURES
Video Signal Type
RGB Analog (Separate)
RGB Analog/Digital (Separate,
Composite, SOG, Digital)
RGB Analog/Digital (Separate,
Composite, SOG, Digital)
RGB Analog/Digital (Separate, Composite,
SOG, Digital)
RGB Analog/Digital (Separate, Composite,
SOG, Digital)
RGB Analog/Digital (Separate, Composite,
SOG, Digital)
Connector
15 Pin D-Sub, HDMI, Component,
SCART x 2 (Full/half), Composite
15 Pin D-Sub, DVI-D, Component
(SCART), Composite, S-Video, PC
Audio In/Out
15 Pin D-Sub, DVI-D, Component
(SCART), Composite, S-Video, PC
Audio In/Out
15 Pin D-Sub, DVI-D, Component
(SCART), Composite, S-Video,
PC Audio In/Out
15 Pin D-Sub, DVI-D, Component
(SCART),Composite, S-Video,
PC Audio In/Out
15 Pin D-Sub, DVI-D, Component
(SCART), Composite, S-Video,
PC Audio In/Out
Dimension (Net)
(Gross)
525 x 230 x 439 mm
593 x 161 x 471 mm
525 x 230 x 439 mm
593 x 161 x 471 mm
484 x 230 x 414 mm
548 x 161 x 441 mm
455 x 230 x 392 mm
520 x 161 x 422 mm
445 x 243 x 457 mm
509 x 175 x 475 mm
394 x 243 x 404 mm
448 x 161 x 406 mm
Weight
Net : 5.8 kg, Gross : 7.1 kg
Net : 5.8 kg, Gross : 7.1 kg
Net : 4.8 kg, Gross : 6.8 kg
Net : 4.9 kg, Gross : 6.4 kg
Net : 5.5 kg, Gross : 7.1 kg
Net : 4.5 kg, Gross : 6.2 kg
POWER
CONSUMPTION
On Mode
DPM Off Mode
60W (Typical)
1W (Typical)
50W (Typical)
1W (Typical)
50W (Typical)
1W (Typical)
50W (Typical)
1W (Typical)
45W (Typical)
1W (Typical)
40W (Typical)
1W (Typical)
SPECIAL
FEATURES
Multimedia
HDTV
HDCP, 4:3 in Wide (ARC)
HDCP, 4:3 in Wide (ARC)
HDCP, 4:3 in Wide (ARC)
AV / TV
Stand
TV Tuner (Digital), Speakers (3W x 2) TV Tuner, Speakers (3W x 2)
Tilt, Swivel
Tilt, Swivel
TV Tuner, Speakers (3W x 2)
Tilt, Swivel
TV Tuner, Speakers (3W x 2)
Tilt, Swivel
HD Ready, Hotel Mode, HDCP
TV Tuner, Speakers (3W x 2)
Tilt, Swivel
HD Ready, Hotel Mode, HDCP
TV Tuner, Speakers (3W x 2)
Tilt, Swivel
–
VESA
–
–
VESA
–
–
VESA
–
–
VESA
–
–
USB
VESA Wall mounting VESA
–
Regulation
DEPLOYED
MODEL
–
VESA
–
LG Monitor Leaflet[spread].qxp
14/11/07
2:01 pm
Page 10
ARTISTIC
CUTTING EDGE TECHNOLOGY MEETS AWARD-WINNING DESIGN_ The FLATRON
SERIES
L1900E
L1900J
L1960TR
L1900R L1760TR
03
Artistic Series is a match of style and functionality by mixing cutting-edge image technology
with creative and innovative design. Wherever and Whatever you need,
FLATRON will suit your tastes perfectly.
Artistic Design
SERVING LIGHT
GETTING INTO LIGHT
APPRECIATING LIGHT
4 different levels of brightness lets you
present an ambience that is spirited
and dynamic.
You will witness a circling of red
establishing its brilliance.
Expressing a beautiful light just like the
eclipse of the moon that intense ring of
light that cannot be completely concealed.
L1960TR
FLATRON Fantasy
Winner of iF Product Design Award 2007 &
reddot design award 2007
L1960TR / L1760TR
Enhance your display experience with a slim and modern design
LG FLATRON LX60TR's modern shape and elegant design are the next evolution in LCD Monitors. The Noble Black colour exudes class.
A blue LED button with the figure of
and eagle eye
The sharp image with slim &
modern design
Winner of reddot
design award 2006
Specification
High Brightness
Wide Viewing Angle
Ultra High Contrast Ratio
Lightening Fast Response Time
Inputs
Resolution
Special Features
L1960TR L1760TR
300cd/m2
170˚ (H) / 170˚ (V)
3000:1 (DFC)
2ms (GTG)
DVI-I
1280 x 1024 (SXGA)
FLATRON f Engine, Fine Window (Zooming), HDCP
300cd/m2
170˚ (H) / 170˚ (V)
5000:1 (DFC)
2ms (GTG)
15 Pin D-sub, DVI-D
1280 x 1024 (SXGA)
FLATRON f Engine, HDCP, Tilt
Imagine
the beauty of life,
the world of freedom to create.
A slim and sleek body with a noble
black colour
LG Monitor Leaflet[spread].qxp
14/11/07
2:01 pm
Page 12
ULTRA SLIM
SERIES
L1972H
DFC
Digital Fine
Contrast ratio
World’s First & Best Contrast Ratio of
5000:1 with DFC
Experience clear and sharp images on LG FLATRON LCD.
Colours literally jump off the screen.
●
ON
OFF
Ideal for Moving Pictures
●
04
THE EPITOME OF ADVANCED TECHNOLOGIES_ The FLATRON Ultra Slim Series
are the finest monitors that epitomize a wide variety of cutting-edge technologies.
High-tech design, best picture quality and ergonomic functionality optimizes the user
environment.
ERGONOMIC
COMFORT, BRILLIANT
PICTURE QUALITY
Optimized for maximum movie image brightness
- Suitable for moving images with various brightness levels. e.g. Movies,
Animations, Games, Photos, etc.
Enjoy clear, crisp and bright images
Strong in the Dark
●
●
●
Excels in displaying dark images
- Images remain clear in dark backgrounds
Superior classification of dark colours
Displays ’PERFECT BLACKS’ through automatic control
Clear Your Vision
●
●
As real as it gets
- As if looking at a real object
Alleviate eye strain with distortion minimized images
Top Performer for Multimedia Users
FLATRON f Engine_LG's Picture Enhancing Chip for LCD Monitors
FLATRON f Engine uses DAFI™ technology features RCM (Real Colour Management) allows the monitor to
display colours that are vivid and natural. ACE (Adaptive Colour and Contrast Enhancement) enhances brightness and contrast. The technology optimizes image quality for videos and high resolution photos.
L1972H
PANEL SPEC
Size
Brightness
Contrast Ratio
Response Time
Viewing Angle
Supported Colours
Resolution
19"
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1280 x 1024 (SXGA)
PHYSICAL
FEATURES
Video Signal Type
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
Connector
15 Pin D-Sub, DVI-D
Dimension (Net)
(Gross)
409 x 105 x 366 mm
473 x 174 x 426 mm
Lightening Fast Response Time 2ms (GTG)
Delivering an lightening fast 2ms response time, LG FLATRON LCD
Monitors output crisp images while minimizing image distortion. Your video games never
looked so good.
STANDARD
2MS(GTG)
Auto Bright
The Auto Bright Function automatically controls the brightness of
display to best suit the surrounding working environment, providing the
optimal viewing condition and maximized user convenience.
FLATRON L1982U
Advanced dual hinge with tilt, height
adjustment and folding functions.
Especially, the height adjustment ranges 175mm, the
highest in the market today.
Without using Pivot Software, user
enables the computer display to be
rotated from landscape to portrait.
90˚
180˚
FLATRON L1982U
175MM
High Tech Design
ForteMirror changes the displayed
contents automatically
when the user executes
a 360-degree turn in the opposite
direction. Whichever direction you
may see, the contents are not
reversed.
FLATRON L1982U
Weight
Net : 5.2 kg, Gross : TBD
POWER
CONSUMPTION
On Mode
DPM Off Mode
35W (Typical)
1W (Typical)
SPECIAL
FEATURES
Multimedia
FLATRON f Engine, ez Zooming,
HDCP
AV / TV
Stand
Dual Hinge Adjustment, Tilt
USB
–
VESA Wall mounting VESA
Regulation
TCO-03 (Option)
DEPLOYED
MODEL
LG Monitor Leaflet[spread].qxp
14/11/07
2:01 pm
Page 14
STANDARD
SERIES
L2000CN L1754SM L1953HR L1753TR
L1954TQ L1953PR L1753HR L1953S
L1954SM L1753PR L1953TR L1753S
DFC
05
World’s First & Best Contrast Ratio of
5000:1 with DFC
Digital Fine
Contrast ratio
Experience the clearest, sharpest images available today on an
LCD. With LG FLATRON, the colours literally jump off the screen.
The usage and application of today’s monitors are broadening. Its primary use is
no longer restricted to work, but also for entertainment purposes. An increasing
number of consumers are viewing movies, animations as well as television
content with monitors.
LG’s DFC technology offers consumers clear, crisp and rich images through our
Ultra-High contrast ratio of 5000:1. DFC is operational in MOVIE MODE, which is
optimized for maximum brightness in a movie image, suitable for moving images
with various brightness levels.
DFC is a special feature most useful when displaying dark images. DFC allows
the LCD panel to render deeper Blacks through automatic control instead of the
traditional method where Black colours are rendered by blocking the panel's
backlight.
ENHANCE YOUR LIFE_ With the Standard Series, users will enjoy all the benefits of
LG’s advanced LCD screen technology that eliminates glare, image distortion and screen
flicker, allowing sharp, convenient and comfortable viewing without fatigue
FLATRON f Engine
FLATRON f Engine_ LG's Picture Enhancing Chip for LCD Monitors
FLATRON f Engine uses DAFI™ technology features RCM (Real Colour Management) allows the monitor to
display colours that are vivid and natural. ACE (Adaptive Colour and Contrast Enhancement) enhances
brightness and contrast. The technology optimizes image quality for videos and high resolution photos.
STANDARD
RCM
ACE
REAL COLOUR MANAGEMENT
ADAPTIVE COLOUR ENHANCER
FLESH TONE | NATURE
SPORTS | COLOUR ENHANCEMENT
MAKING LIGHT IMAGE LIGHTER
MAKING DARK IMAGE DARKER
DAFITM TECHNOLOGY
L2000CN
L1954TQ
L1954SM
L1754SM
L1953PR
L1753PR
L1953HR
PANEL SPEC
Size
Brightness
Contrast Ratio
Response Time
Viewing Angle
Supported Colours
Resolution
20.1"
300 cd/m2 (Typical)
2000:1
6ms (Typical)
H : 170°, V : 170°
16.8M Colours
1600 x 1200 (UXGA)
19”
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1280 x 1024 (SXGA)
19"
300 cd/m2 (Typical)
5000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.7M Colours
1280 x 1024 (SXGA)
17”
300 cd/m2 (Typical)
5000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.7M Colours
1280 x 1024 (SXGA)
19"
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1280 x 1024 (SXGA)
17"
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1280 x 1024 (SXGA)
19"
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1280 x 1024 (SXGA)
PHYSICAL
FEATURES
Video Signal Type
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog/Digital (Separate,
Composite, SOG, Digital)
RGB Analog (Separate,
Composite, SOG)
RGB Analog
(Separate, Composite, SOG)
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
Connector
15 Pin D-Sub, DVI-D
15 Pin D-Sub, DVI-D
15 Pin D-Sub,
PC Audio In/Out
15 Pin D-Sub,
PC Audio In/Out
15 Pin D-Sub, DVI-D
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
15 Pin D-Sub, DVI-D
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
15 Pin D-Sub, DVI-D
Dimension (Net)
(Gross)
446 x 243 x 448 mm
556 x 262 x 525 mm
403 x 230 x 420 mm
467 x 147 x 435 mm
408 x 230 x 426 mm
435 x 143 x 467 mm
371 x 204 x 413 mm
426 x 143 x 406 mm
TBD
516 x 225 x 388 mm
TBD
TBD
402 x 208 x 468 mm
453 x 155 x 384 mm
Weight
Net : 7.7 kg, Gross : 9.6 kg
Net : 3.7 kg, Gross : 5.4 kg
Net : 3.9 kg, Gross : 5.5 kg
Net : 3.4 kg, Gross : 4.6 kg
Net : TBD, Gross : 7.2 kg
Net : TBD, Gross : TBD
Net : 4.6 kg, Gross : 6.1 kg
POWER
CONSUMPTION
On Mode
DPM Off Mode
58W (Typical)
1W (Typical)
33W (Typical)
1W (Typical)
37W (Typical)
1W (Typical)
35W (Typical)
1W (Typical)
33W (Typical)
1W (Typical)
30W (Typical)
1W (Typical)
33W (Typical)
1W (Typical)
SPECIAL
FEATURES
Multimedia
FLATRON f Engine,
ez Zooming, HDCP
Tilt
FLATRON f Engine,
Speakers (1W x 2)
Tilt
FLATRON f Engine,
Speakers (1W x 2)
Tilt
FLATRON f Engine, HDCP
FLATRON f Engine, HDCP
FLATRON f Engine, HDCP
–
VESA
TCO-03 (Silver Only)
–
VESA
TCO-03 (Silver Only)
Pivot (90°), Height Adjustment, Tilt,
Swivel
–
VESA
TCO-03
Height Adjustment, Tilt
–
VESA
–
Pivot (90°), Height Adjustment, Tilt,
Swivel
–
VESA
TCO-03
*Colour (Front): Silver, Black
(Stand): Black
*Colour (Front): Silver, Black
(Stand): Black
*Colour (Front): Silver, Black
*Colour (Front): Silver, Black
*Colour (Front): Silver, Black
DEPLOYED
MODEL
FLATRON f Engine,
HDCP
Stand
Pivot (90°), Tilt, Swivel,
Height Adjustment
USB
–
VESA Wall mounting VESA
Regulation
TCO-03
*Colour (Front): Silver, Black
–
VESA
TCO-03
LG Monitor Leaflet[spread].qxp
14/11/07
2:01 pm
Page 16
ENJOY CLEAR & CRISP IMAGE
Lightening Fast Response Time
Your Work Will Look Smarter
Lightening Fast Response Time_2ms (GTG)
Delivering an lightening fast 2ms response time,
LG FLATRON LCD Monitors output crisp images while minimizing image
distortion. Your video games never looked so good.
LG FLATRON LCD Monitors are perfect for work place. Double up your
work efficiency with LG FLATRON!
Pivot Function
Pivot Function enables the computer display to be rotated from landscape to portrait making
text documents easier to manage.
STANDARD
ANIMATION
VIDEO GAME
MOVIE
OTHERS
High Resolution
High resolution results in the sharp, clear lifelike screen images required for applications
such as digital imaging, multimedia presentations and mapping programs. It also allows
more digital information to be displayed on the screen, compared to monitors with lower
FLATRON L2000C resolution.
Ideal for commercial use
Narrow Bezel design enables monitors to be tiled making them ideal for trading
floors, banks, airports, design center and etc.
L1753HR
L1953TR
L1753TR
L1953S
L1753S
PANEL SPEC
Size
Brightness
Contrast Ratio
Response Time
Viewing Angle
Supported Colours
Resolution
17"
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1280 x 1024 (SXGA)
17"
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.7M Colours
1280 x 1024 (SXGA)
17"
300 cd/m2 (Typical)
5000:1 (DFC)
2ms (GTG)
H : 170°, V : 170°
16.2M Colours
1280 x 1024 (SXGA)
19"
300 cd/m2 (Typical)
5000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.2M Colours
1280 x 1024 (SXGA)
17"
300 cd/m2 (Typical)
5000:1 (DFC)
5ms (Typical)
H : 170°, V : 170°
16.2M Colours
1280 x 1024 (SXGA)
PHYSICAL
FEATURES
Video Signal Type
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog / Digital (Separate,
Composite, SOG, Digital)
RGB Analog (Separate,
Composite, SOG)
RGB Analog (Separate,
Composite, SOG)
Connector
15 Pin D-Sub, DVI-D
15 Pin D-Sub, DVI-D
15 Pin D-Sub, DVI-D
15 Pin D-Sub
15 Pin D-Sub
Dimension (Net)
(Gross)
365 x 208 x 455 mm
405 x 152 x 369 mm
365 x 208 x 455 mm
405 x 152 x 369 mm
365 x 180 x 378 mm
405 x 102 x 369 mm
402 x 180 x 408 mm
453 x 110 x 384 mm
365 x 180 x 378 mm
405 x 102 x 369 mm
Weight
Net : 4.1 kg, Gross : 5.2 kg
Net : 4.3 kg, Gross : 5.4 kg
Net : 3.1 kg, Gross : 4.0 kg
Net : 3.6 kg, Gross : 4.9 kg
Net : 3.1 kg, Gross : 4.0 kg
POWER
CONSUMPTION
On Mode
DPM Off Mode
30W (Typical)
30W (Typical)
1W (Typical)
1W (Typical)
30W (Typical)
1W (Typical)
33W (Typical)
1W (Typical)
30W (Typical)
1W (Typical)
SPECIAL
FEATURES
Multimedia
FLATRON f Engine, HDCP
FLATRON f Engine, HDCP
FLATRON f Engine
FLATRON f Engine
Stand
Height Adjustment, Tilt
FLATRON f Engine, HDCP
Speakers (1W x 2)
Height Adjustment, Tilt
Tilt
Tilt
Tilt
–
VESA
TCO-03
–
VESA
TCO-03
–
VESA
TCO-03
–
VESA
TCO-03
*Colour (Front): Silver, Black
*Colour (Front): Silver, Black
*Colour (Front): Silver, Black
*Colour (Front): Silver, Black
–
USB
VESA Wall mounting VESA
TCO-03
Regulation
DEPLOYED
MODEL
*Colour (Front): Silver, Black
FLATRON L2000C
2MS(GTG)
LG Monitor Leaflet[spread].qxp
14/11/07
2:01 pm
Page 18
LARGE SIZE
WIDEN YOUR VISTA_ Widen Your Vista. LG's Wide Display FLATRON LCD monitors are the
SERIES
M5500C M4710C
M4210C M3701C M3201C
06
ideal solution wherever wide-screen displays are required. Can be easily mounted on walls,
ceilings or desktops, these monitors are space-saving works of sheer engineering genius
that look as great in public areas, such as airports and hospitals, as in homeoffice or
home-theater settings.
Ideal as Public Information Display
Large screen size, coupled with its high brightness and a multitude of features, makes it well suited for displaying
information to a captive audience.
IDEAL FOR PUBLIC
INFORMATION DISPLAY
STOCK EXCHANGE
AIRPORT
FASHION SHOP
MUSEUM
MOTOR SHOW
High Performance
Superior Resolution
FLATRON M5500C is a WUXGA TFT LCD which means more information on screen and better visibility from long distances at
the wide format. Occasions where text information is heavily used such as airports, financial institutions and menu board in
restaurants are just perfect for use of the FLATRON M5500C.
M5500C M4710C M4210C M3701C M3201C
PANEL SPEC
Ultra High Brightness
FLATRON M5500C’s ultra high brightness module sets a new
standard in brightness at 500cd/m2 exceeding the monitors
with 300cd/m2.
300cd/m22
STANDARD MONITOR
500cd/m22
FLATRON M5500C
H:178˚ V:178˚
55" Wide
47" Wide
42" Wide
37" Wide
32" Wide
Brightness
500 cd/m2
500 cd/m2
500 cd/m2
500 cd/m2
500 cd/m2
Contrast Ratio
1200 : 1
1600 : 1
1600 : 1
1600 : 1
1600 : 1
Response Time
10ms (GTG)
10ms (GTG)
9ms (GTG)
9ms (Typical)
8ms (Typical)
Viewing Angle
H : 178°, V : 178°
H : 178°, V : 178°
H : 178°, V : 178°
H : 178°, V : 178°
H : 178°, V : 178°
16.7M Colours
16.7M Colours
16.7M Colours
16.7M Colours
1920 x 1080 (WUXGA)
1366 x 768 (WXGA)
1366 x 768 (WXGA)
1366 x 768 (WXGA)
Video Signal Type RGB Analog / Digital
(Separate, Composite,
SOG, Digital)
RGB Analog / Digital
(Separate, Composite,
SOG, Digital)
RGB Analog / Digital
(Separate, Composite,
SOG, Digital)
RGB Analog / Digital
(Separate, Composite,
SOG, Digital)
RGB Analog / Digital
(Separate, Composite,
SOG, Digital)
Connector
15 Pin D-Sub Inx1 / Out x 1,
HDMI, DVI-D, Composite
In x 1 / Out x 1, S-Video,
Component In x 2, RS-232C
In x 1 / Out x 1
15 Pin D-Sub Inx1 / Out x 1,
HDMI, DVI-D, Composite
In x 1 / Out x 1, S-Video,
Component In x 2, RS-232C
In x 1 / Out x 1
15 Pin D-Sub Inx1 / Out x 1,
HDMI, DVI-D, Composite In
x 1 / Out x 1, S-Video,
Component In x 2, RS-232C
In x 1 / Out x 1
15 Pin D-Sub Inx1 / Out x 1,
HDMI, DVI-D, Composite In
x 1 / Out x 1, S-Video,
Component In x 2, RS-232C
In x 1 / Out x 1
1375 x 143 x 878 mm
1740 x 430 x 1115 mm
1057 x 119 x 653 mm
1188 x 295 x 902 mm
928 x 120 x 571 mm
1066 x 360 x 832 mm
803 x 100 x 493 mm
917 x 332 x 704 mm
Supported Colours 16.7M Colours
Resolution
PHYSICAL
FEATURES
Wide Viewing Angle
(S-IPS Technology)
S-IPS technology allows viewers to see still or moving
images at any vertical or horizontal angle without substantial
loss in picture quality.
STANDARD MONITOR
Size
FLATRON M5500C
The basic structure of LCDs makes it a durable, semi-permanent product without the phosphor burn-in apparent in CRT and
other displays. Phosphor burn-in makes darkens and erodes TV screens, especially when the same images are displayed for
extended periods of time. Burn-in is a severe problem for airports, banks and other public locations where text information is
heavily used.
POWER
On Mode
CONSUMPTION DPM Off Mode
SPECIAL
FEATURES
FLATRON M5500C
DEPLOYED
MODEL
Net : 23.5 , Gross : 36.4 kg Net : 16.0 kg, Gross : 26.0 kg
315W (Typical)
(Without Speakers)
2W (Typical)
HDCP, Heat Sensor, Split
Zoom, PIP / PBP / POP, SRS
WOW
220W (Typical)
(Without Speakers)
1W (Typical)
180W (Typical)
(Without Speakers)
1W (Typical)
145W (Typical)
(Without Speakers)
1W (Typical)
HDCP, Heat Sensor, Lamp
fault Sensor, Split Zoom, XD
Engine, PSM, SSM, ISM,
CSM, Surround Max
Optional Speaker
(10W x 2)
–
HDCP, Heat Sensor, Lamp
fault Sensor, Split Zoom, XD
Engine, PSM, SSM, ISM,
CSM, Surround Max
TV Tuner Pack, Optional
Speaker (10W x 2EA)
–
HDCP, Heat Sensor, Lamp
fault Sensor, Split Zoom, XD
Engine, PSM, SSM, ISM,
CSM, Surround Max
TV Tuner Pack, Optional
Speaker (10W x 2EA)
–
HDCP, Heat Sensor, Lamp
fault Sensor, Split Zoom, XD
Engine, PSM, SSM, ISM,
CSM, Surround Max
TV Tuner Pack, Optional
Speaker (10W x 2EA)
Swivel
Commercial Needs RS232C In/Out, Discrete IR RS232C In / Out, Discrete IR
VESA Wall mounting AP-WX60
AP-WX60
Regulation
–
–
*Colour (Front): Silver
RS232C In/Out, Discrete IR
AP-WX60
–
*Colour (Front): Silver
RS232C In/Out, Discrete IR
AP-WX60
–
*Colour (Front): Silver
RS232C In/Out, Discrete IR
RW-200
–
*Colour (Front): Silver
Multimedia
Stand
OTHER DISPLAY
Net : 55.0 , Gross : 85.0 kg Net : 55.0 , Gross : 85.0 kg Net : 30.8, Gross : 46.5 kg
300W (Typical)
(Without Speakers)
2W (Typical)
AV
LCDs are Immune to these Problems
LCDs are self luminance displays filtering light through
colour filters to display different colours. Unlike traditional
CRTs or the recent PDPs, LCD displays are less prone to
image burn-in.
15 Pin D-sub In x 2 / Out
x1, DVI-D, Composite In
x1 / Out x 1, S-Video,
Component In x 2, RS-232C
In x 1 / Out x 1
Dimension (Net) 1375 x 143 x 878 mm
(Gross) 1740 x 430 x 1115 mm
Weight
No Phosphor Burn-in & Semi-permanent Product Life
1920 x 1080 (WUXGA)
Optional Speaker
(10W x2EA)
Swivel
LG Monitor Leaflet[spread].qxp
14/11/07
2:01 pm
Page 20
About LG Electronics, Inc. | LG Electronics, Inc. (KSE: 06657.KS) is the global leader and technology innovator in consumer electronics, home
appliances and mobile communications, employing more than 72,000 people working in over 120 operations including 80 subsidiaries around the
world. Comprised of four business units: Mobile Communications, Digital Appliance, Digital Display and Digital Media with global sales at USD 34.7
billion (consolidated USD 43.4 billion) as of 2005, LG Electronics is the world’s leading provider of CDMA handsets, residential air conditioners,
plasma panels, optical storage products, DVD players and home theatre system. For more information, please visit www.lge.co.uk
About LG Electronics Digital Display Company | LG Electronics Digital Display Company provides core technologies for cutting-edge digital
products and is a world leader in digital display products including Plasma TVs, LCD TVs and Monitors, and HDTV (high-definition televisions).
LG Electronics UK Ltd, 250 Bath Road, Slough, Berkshire, SL1 4DX
www.lge.co.uk
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
