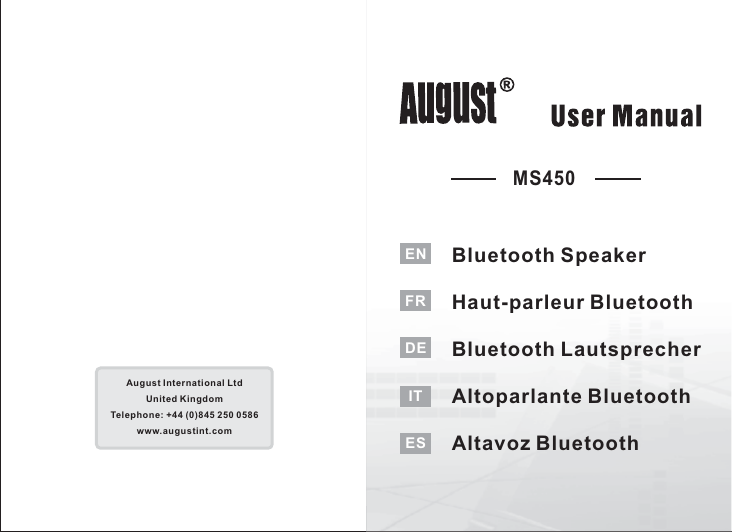

MS450 Bluetooth Speaker Haut-parleur Bluetooth Bluetooth

MS450 Bluetooth Speaker Haut-parleur Bluetooth Bluetooth
MS450
EN
Bluetooth Speaker
FR
Haut-parleur Bluetooth
DE
Bluetooth Lautsprecher
IT
Altoparlante Bluetooth
ES
Altavoz Bluetooth
August International Ltd
United Kingdom
Telephone: +44 (0)845 250 0586
www.augustint.com
User Manual
1. Safety Instructions
Storage and Use
Keep this
device away
from
extreme
temperatures.
Keep the
device away
from wet or
damp
environments.
Safety
Never expose
the device
to moisture,
dust, oil or
smoke.
Avoid
dropping or
exposing to
impacts.
When carrying
this device as
part of your
luggage please
ensure it is
securely stored
to avoid
impact damage.
Never strike
or scratch this
device with
any sharp
object.
To ensure the safety of you and others, please read the
Safety Instructions before using this device. Please do
not disassemble the MS450, it can be unsafe and will
invalidate the manufacturer's warranty.
Disposal
Please ensure the product and accessories are disposed
of in compliance with the WEEE (Waste Electrical and
Electronic Equipment) Directive and any other
regulations applicable to your country. Always check
with the environment agency and any other relevant
authorities for current disposal regulations.
Customer Service
You can contact us by phone on: +44 (0)845 250 0586 or
by email at: [email protected] should you require
further technical support or customer service.
-1-
Maintenance
Please unplug all leads before cleaning this device.
Wipe the
device and
buttons with
a soft cloth.
-2-
Alcohol
Never wipe this
device with an
abrasive cloth
or apply
detergent,
alcohol or
chemical based
cleaning
products.
English
Thank you for purchasing the August MS450 Bluetooth
Speaker. This user manual is designed to familiarize you
with all the features of this device. Please take the time to
read this user manual carefully, even if you are already
familiar with a similar product.
Wireless speaker for Bluetooth devices
Standard 3.5mm audio-in socket
Microphone for Hands-Free calling
Built-in rechargeable battery
Distance: up to 10m (Class II)
Version: Bluetooth V2.1
3. Accessories
1) USB charging cable
2) 3.5mm audio cable
3) User manual
5. Operations
5.1 Switch On / Off
To switch the device on, press down on the control
panel and release it, the panel will raise and the
device will beep indicating that it is now switched on.
4. Part Names and Functions
Top:
Side:
10
7
8
6
3
Bluetooth Speaker
Model No. : MS450
DC:5V
1.0A
1
2
9
To switch the device off, press the control panel
down, it will click into place inside the device
turning the power off.
4
5
-3-
-4-
English
1. Control Panel
2. Volume adjustment
3. Previous track
4. Play / Pause
5. Next track
6. Power socket
7. Charging LED
8. Audio-in Socket
9. Microphone
10. Call Status LED
*Status LED is under the Control panel.
2. Main Features
2) Select “Devices and Printers” from the Control
Panel and click “Add a Device”.
3) Select “MS450” from the available devices, the
system will install the driver automatically.
4) The status LED flashes blue and the device says
“Bluetooth” to indicate a successful connection.
5.2 Bluetooth Connection
After switching on the MS450, the device will
enter Bluetooth mode and prepare for pairing
automatically. Whilst in pairing mode the status
LED lights blue.
Note:The MS450 will automatically reconnect to
the last paired Bluetooth device if it is in range.
To pair the MS450 with another device the active
connection must be disconnected first.
- For mobile phone
1) Scan for available Bluetooth devices on your
mobile phone (see your mobile phone user manual
for instructions if needed)
5) If the MS450 is not automatically set as your
output device, select “Sound” from the control
panel then highlight the MS450 and select “Set
Default”.
5.3 Music Control
The MS450 is able to control the music playing on
either a mobile phone or a computer with a Bluetooth
connection.
Swiping the Operation Panel clockwise or anticlockwise
will increase or decrease the volume.
2) Select “MS450” from the available devices and
confirm connection.
3) The status LED flashes blue and the device says
“Bluetooth” to indicate a successful connection.
- For computers
1) Enable Bluetooth on your PC.
-5-
English
Note: For Windows XP and Vista, a third-party
Bluetooth driver is needed (not included).
-6-
Press
or
and press
to select the previous or next track
to play/pause/resume.
Note: Music control is only compatible with devices
that support A2DP, please refer to your devices user
manual for its A2DP compatibility.
The Call Status LED will flash blue when it is ringing
and light when hands free calling is in use. The Call
Status LED will turn off when your mobile phone
speakers and microphone are being used. To switch
between hands-free and mobile calling, use the Bluetooth
or call settings on your mobile phone
5.5 Audio-In
To use the MS450 as a wired speaker, use a 3.5mm
audio cable to connect the MS450 with your source
device. Once the audio cable is connected to the MS450,
the device automatically switches to Audio-in mode.
The Status LED will show red.
6. Charging
To charge the MS450, connect the micro USB lead to
the device’s power socket, and the other end of the
USB cable to a powered USB port. The charging LED
lights red whilst charging and turns off once the battery
is fully charged.
-7-
Bluetooth Version
Bluetooth V2.1
Speaker
4Ohm / 3W
Frequency Response
200Hz-20KHz
Distortion
<0.5%
Power Input
5V
Built-in Battery
3.7V 600mAh Li-polymer Battery
Charging Time
About 3 hours
Working Time
Up to 5 hours
Working Distance
Up to 10m (Class II)
Dimensions
90x90x59mm
Weight
358g
8. Troubleshooting
Problem
Solution
Won’t turn on.
Please charge the MS450.
Can’t find the MS450.
Confirm the MS450 is in pairing
mode and within 10 meters from
the device.
Can’t install the driver
for MS450 on a computer.
Update the driver of the Bluetooth
module on your computer.
The sound quality is
intermittent in Bluetooth
mode.
No sound.
Dissable the Wifi on your source
device.
Check the volume on both the
source device and the MS450.
-8-
English
5.4 Hands-free Calling
Whilst connected to your mobile phone, the MS450
will act as a hands-free system for any calls. Press
to pick up or hang up calls.
7. Specifications
9. Warranty
This product is guaranteed for twelve months from the
date of the original purchase. In the unlikely event of any
defect arising due to faulty materials or workmanship,
the unit will be either replaced or repaired free of charge
(where possible) during this period. An alternative
product will be offered in case the product is no longer
available or repairable.
This warranty is subject to the following conditions:
The warranty is only valid within the country where
the product is purchased.
The product must be correctly installed and operated
in accordance to the instructions given in this user
manual.
The product must be used solely for domestic purposes.
The warranty only covers the main unit, and does not
cover the accessories.
The warranty does not cover the damage caused by
misuse, negligence, accident and natural disaster.
The warranty will be rendered invalid if the product is
resold or has been damaged by inexpert repairs. The
manufactures disclaim any liability for incidental or
consequential damages.
Please consult our customer adviser before returning
any product; we are not responsible for any unexpected
product returns.
Any faulty product must be kept and returned in the
original packaging with all the accessories and the
original copy of the purchase receipt.
The warranty is in addition to, and does not diminish, your
statutory or legal rights.
Customer Service:
Telephone: +44 (0) 845 250 0586
Email: [email protected]
-9-
