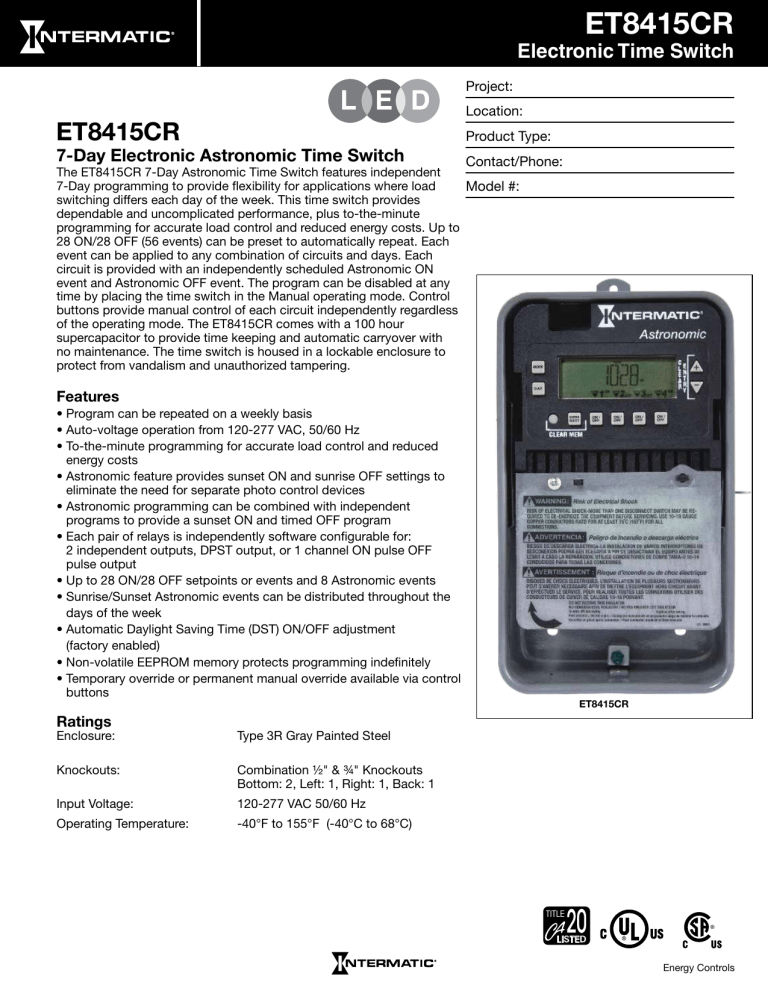

ET8415CR
Electronic Time Switch
Project:
Location:
ET8415CR
Product Type:
7-Day Electronic Astronomic Time Switch
Contact/Phone:
The ET8415CR 7-Day Astronomic Time Switch features independent
7-Day programming to provide flexibility for applications where load
Model #:
switching differs each day of the week. This time switch provides
dependable and uncomplicated performance, plus to-the-minute
programming for accurate load control and reduced energy costs. Up to
28 ON/28 OFF (56 events) can be preset to automatically repeat. Each
event can be applied to any combination of circuits and days. Each
circuit is provided with an independently scheduled Astronomic ON
event and Astronomic OFF event. The program can be disabled at any
time by placing the time switch in the Manual operating mode. Control
buttons provide manual control of each circuit independently regardless
of the operating mode. The ET8415CR comes with a 100 hour
supercapacitor to provide time keeping and automatic carryover with
no maintenance. The time switch is housed in a lockable enclosure to
protect from vandalism and unauthorized tampering.
Features
• Program can be repeated on a weekly basis
• Auto-voltage operation from 120-277 VAC, 50/60 Hz
• To-the-minute programming for accurate load control and reduced
energy costs
• Astronomic feature provides sunset ON and sunrise OFF settings to
eliminate the need for separate photo control devices
• Astronomic programming can be combined with independent
programs to provide a sunset ON and timed OFF program
• Each pair of relays is independently software configurable for:
2 independent outputs, DPST output, or 1 channel ON pulse OFF
pulse output
• Up to 28 ON/28 OFF setpoints or events and 8 Astronomic events
• Sunrise/Sunset Astronomic events can be distributed throughout the
days of the week
• Automatic Daylight Saving Time (DST) ON/OFF adjustment
(factory enabled)
• Non-volatile EEPROM memory protects programming indefinitely
• Temporary override or permanent manual override available via control
buttons
Ratings
Enclosure:
ET8415CR
Type 3R Gray Painted Steel
Knockouts:
Combination ½" & ¾" Knockouts
Bottom: 2, Left: 1, Right: 1, Back: 1
Input Voltage: 120-277 VAC 50/60 Hz
Operating Temperature: -40°F to 155°F (-40°C to 68°C)
TITLE
20
LISTED
Energy Controls
ET8415CR
ET8415CR
Contact Ratings:
UL
CSA
Load Type
Voltage
Frequency
30 Amp
30 Amp
Resistive
120/240 VAC
60 Hz
20 Amp
20 Amp
Resistive
28 VDC
–
30 Amp
30 Amp
Inductive
120/240 VAC
60 Hz
20 Amp
20 Amp
Ballast
120-277 VAC
60 Hz
5 Amp
5 Amp
Tungsten
120/240 VAC
60 Hz
1 HP
1 HP
Motor
120 VAC
60 Hz
2 HP
2 HP
Motor
240 VAC
60 Hz
4.5 Amp
–
Electronic Ballast
120-277 VAC
60 Hz
Input Voltage: 120 -277 VAC, 50/60 Hz
Power Consumption: 7 Watts maximum
Contact Configuration: SPST x4
Pulse Feature: 2-second pulse option for contactor and bell ringing applications.
Auto DST: Automatic adjustment for Daylight Saving Time
Supercapacitor Backup: 100 hour supercapacitor maintains date and accurate time. Supercapacitor fully
recharges in 30 minutes.
Wiring Terminals:
#18 to #10 AWG wire
Minimum ON/OFF Time:
1 minute
Maximum ON/OFF Time: 6 days, 23 hours 59 minutes
Warranty:
Limited 1 year
Model Number
Circuits
ET8415CR*
4
*Can be wired to DPST
Switch
Volts AC
Rating
Enclosure
Shipping Weight
SPST
120-277
30 Amps
Type 3R Steel
3.7 lbs. (1.7 kg)
Specification
The 7-Day Astronomic electronic-type time switch shall be capable of permitting up to 28 ON/28 OFF events. In
addition, the time switch shall include selectable Astronomic (sunrise/sunset) settings for each day and circuit to allow
load switching at sunset and/or sunrise without a photo control device. The time switch shall provide a minimum ON or
OFF time of 1 minute. The time switch to be powered by ___ (120)(208)(240)(277) VAC, ___ (50)(60) Hz power supply. The
time switch mechanism features a snap-in design to provide easy mechanism removal for mounting the enclosure. The
time switch enclosure shall be a Type 3R Steel lockable enclosure that shall be painted with an electrostatic process to
eliminate the potential for corrosion. The time switch shall provide clear terminal identification on a see-through
non-curling terminal insulator. Terminal connections shall provide secure connections for wire sizes up to #10 AWG.
Switch configuration shall be _____ (SPST)(DPST) with a UL or CSA listed switch rating of:
• Resistive: 30 Amps @ 120/240 VAC
• Resistive: 20 Amps @ 28 VDC
• Inductive: 30 Amps @ 120/240 VAC
• Tungsten: 5 Amps @ 120/240 VAC
• Ballast: 20 Amps @ 120-277 VAC
• Motor: 1 HP @ 120 VAC
• Motor: 2 HP @ 240 VAC
The time switch shall be UL or CSA listed under UL category 916 Energy Management Equipment and shall be
Intermatic model ET8415CR.
Energy Controls
www.intermatic.com
300ET10048
XXXXXXXX
ET8415CR
Diagrams
There are many different ways to set the relays on the
ET8415CR Time Switch. The four relays can be used
individually or in pairs of two. Refer to the table below for a
complete list of ways to set the relays and the illustrations
for some of the common wiring installations
IND/IND
IND/SIM
IND/PUL
Note:
IND= Independent
SIM/IND
SIM/SIM
SIM/PUL
SIM= Simultaneous
PUL/IND
PUL/SIM
PUL/PUL
EXAMPLE:
4x SPST
Operation Mode set to “IND”, Input and Output voltage are the same
NOTE: Each relay is a
dry contact.
Other voltages can
be used if dedicated
supply voltage is
used for COM
terminal replacing
L1.
AC
IN
NO-1
IN
NO-1
COM1
PUL= Pulse
NO-2
COM2
COM2
NO-3
COM3
NO-4
COM4
L1
120/208/240/277 VAC
Input
Load 1
Load 3
Load 2
Load 4
EXAMPLE:
2x DPST
Operation Mode set to “SIM”for both sets of contacts, Input and Output voltage
are the same
AC
NO-2
Neutral/L2
EXAMPLE:
NOTE: Each relay is a
dry contact.
Other voltages can
be used if dedicated
supply voltage is
used for COM
terminals.
COM1
NO-3
COM3
NO-4
COM4
2 x Pulse
Operation Mode set to “PUL” For both sets of contacts,Each ON and OFF event
for Circuit 1 will ring the bell. Each ON event for Circuit 3 will Close Contactor
and Each OFF event will Open Contactor
.
NOTE: Each relay is a
dry contact
.
Other voltages can
be used if dedicated
supply voltage is
used for COM
terminals.
AC
IN
NO-1
COM1
NO-2
COM2
NO-3
COM3
NO-4
COM4
Load 2
L1
240 VAC Load
240 VAC
Neutral/L2
L2
L1
120/208/240/277
VAC Input
Bell
240 VAC
Load 1
240 VAC Load
L3
120/208/240/277 VAC
28 VDC Input
L4
Closed
Load 3
L3
Open
Maintained Contactor
COM
Neutral/L4
Energy Controls
ET8415CR
Notes
