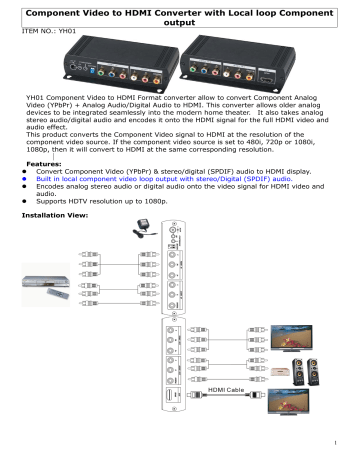

Component Video to HDMI Converter with Local loop Component
output
ITEM NO.: YH01
YH01 Component Video to HDMI Format converter allow to convert Component Analog
Video (YPbPr) + Analog Audio/Digital Audio to HDMI. This converter allows older analog
devices to be integrated seamlessly into the modern home theater. It also takes analog
stereo audio/digital audio and encodes it onto the HDMI signal for the full HDMI video and
audio effect.
This product converts the Component Video signal to HDMI at the resolution of the
component video source. If the component video source is set to 480i, 720p or 1080i,
1080p, then it will convert to HDMI at the same corresponding resolution.
Features:
 Convert Component Video (YPbPr) & stereo/digital (SPDIF) audio to HDMI display.
 Built in local component video loop output with stereo/Digital (SPDIF) audio.
 Encodes analog stereo audio or digital audio onto the video signal for HDMI video and
audio.
 Supports HDTV resolution up to 1080p.
Installation View:
1
Panel View:
Resolution /Frequency
50Hz
480i
60Hz
●
576i
●
480p
720 x 480, Interlace
720 x 576, Interlace
●
720 x 480, Progressive
576p
●
720p
●
●
1280 x 720, Progressive
1080i
●
●
1920 x 1080, Interlace
●
1920 x 1080, Progressive
1080p
720 x 576, Progressive
Dip Switch Setting:
DIP SW
1 Audio input: ↑ Analog audio input, ↓Digital audio input (SPDIF).
2 x ( no function).
LED Indication:
ON
Conversion
Power on
Signal convert
Caution:
1. This converter support HDMI output at different resolution, but request your
TV/ Monitor also support the resolution for display.
2 . SPDIF audio input only support “48K 16Bit LPCM “. The audio output will occur
noise by other audio format.
Specification:
ITEM NO.
Input Signal
Video Input Connector
Digital Audio Input
Video Output Signal
Power Consumption
Power Supply
Temperature
Dimension
mm
Weight
g
YH01
YPbPr(1920x1080 Max), stereo audio /digital audio
Y (75Ω, 1.0Vp-p), PbPr (75Ω, 0.7Vp-p)
SPDIF RCA, 75Ω x 1
HDMI A type connector x 1
800mA
DC 5V 2 Amp
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
140 x 95 x 32
300
Rev. B
2
