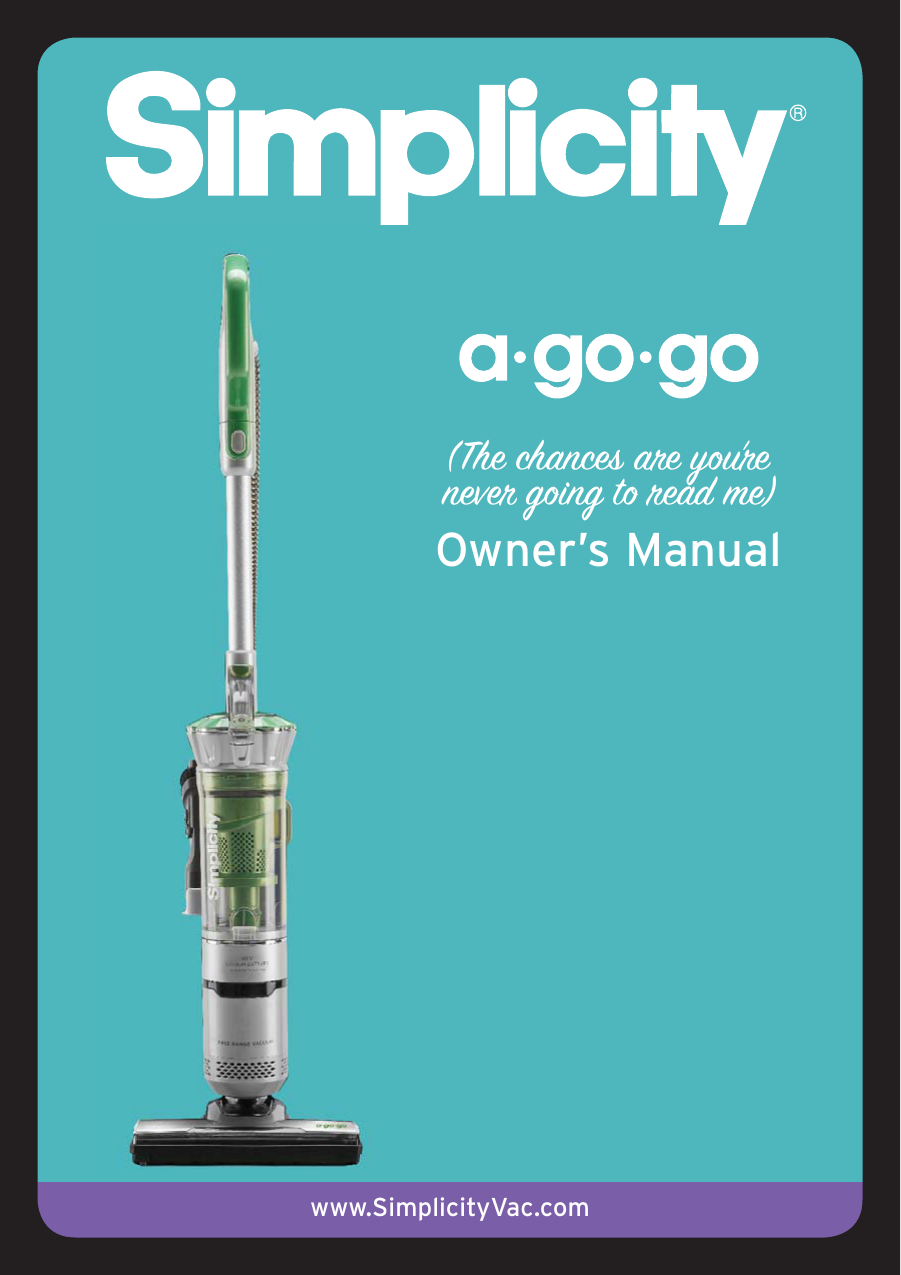

(The chances are you’re
never going to read me)
Owner’s Manual
www.SimplicityVac.com
.
CONTENTS
Getting Started
Important Safety Instructions
Polarization Instructions
State of California Proposition 65 Warnings
Description of the Vacuum
2
3
3
4
Assembling the Vacuum
Installing the Battery
Attaching / Removing the Battery
Attaching / Removing the Dust Cup
Attaching the Handle
Attaching the Hose
Attaching / Removing the Floor Nozzle
Attaching the Accessory Tool
5
5
5
5
5
6
6
Operation
Charging the Vacuum
On / Off Button
High Speed Button
Reclining the Vacuum
Vacuuming Carpet
Bare Floor Cleaning
Brushroll Auto Shut Off
7
7
7
7
8
8
8
Attachment Cleaning
Wand Cleaning
Hose Handle Cleaning
Cleaning Tools
9
9
9
Maintenance and Care
Emptying the Dust Cup
Cleaning the Dust Cup
Removing the Brushroll
Replacing the Filter
Jammed Brushroll / Motor Protection
10
11
11
12
13
Problem Solving Guide
Troubleshooting
Visit Simplicity Vacuums Online
How to Contact Your Authorized Retailer
Key Replacement Parts
For Best Performance
14
14
14
14
14
Warranty
15
1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE. FOR HOUSEHOLD USE ONLY.
IMPORTANT:
The manufacturer cannot accept responsibility for damage
caused when the appliance is not used according to the
instructions, or for uses other than those for which it
was intended.
WARNING: To reduce the risk of fire, electric shock, damage or injury:
• Fully assemble vacuum before operating.
• Do not attempt to service the vacuum while on
the battery charging dock.
• Ensure the power switch is in the OFF position
before installing the battery.
• Do not charge the unit outdoors.
• Use and store in a dry location.
• Only charge in temperatures between 0-45ºC
(32-113ºF).
• Do not use outdoors or on wet surfaces.
• Do not open, crush, expose to heat above 100ºC
(212ºF) or incinerate the battery even if it is
severely damaged. The battery can explode in
a fire.
• Do not allow to be used as a toy. Close attention
is necessary when used by or near children.
• Use only as described in this manual.
• Do not use with a damaged battery or charger.
If the appliance is not working as it should,
has been dropped, damaged, left outdoors, or
dropped into water, return it to your Authorized
Simplicity Retailer.
• Do not pull or carry charger by cord, use cord
as a handle, close a door on the cord, or pull
cord around sharp edges or corners. Do not run
appliance over cord. Keep cord away from heated
surfaces.
• Use only with the battery charging dock supplied
with this vacuum.
• Do not unplug charger by pulling on cord. To
unplug charger, grasp the plug, not the cord.
• The battery and charging dock have no user
serviceable parts.
• Do not handle charger, including charger plug,
and charger terminals with wet hands.
• Batteries must be disposed of responsibly.
Contact your Authorized Simplicity Retailer for
information on battery disposal. To find battery
recycle pickup sites near you, please check out
www.call2recycle.org.
• Do not put any object into openings. Do not use
with any opening blocked; keep free of dust, lint,
hair and anything that may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of
the body away from openings and moving parts.
• Remove the battery before performing any service on
the vacuum.
• Do not pick up anything that is burning or
smoking, such as cigarettes, matches or
hot ashes.
• Keep the battery installed in the vacuum at all times.
• Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, seek
medical help. Liquid ejected from the battery may
cause irritation or burns.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible
liquids such as gasoline or use in areas where
they may be present.
SAVE THESE INSTRUCTIONS.
2
POLARIZATION INSTRUCTIONS
Power Cord, 2-Wire Polarized Cord
To reduce the risk of electric shock, the charger is equipped with a polarized alternating
current line plug (a plug having one blade wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you are unable to insert the plug fully
into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified
electrician to replace the obsolete outlet. Do not defeat the safety purpose of the
polarized plug.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to
cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to
cause birth defects or other reproductive harm.
3
DESCRIPTION OF THE VACUUM
1
21
12
2
3
20
4
13
5
14
6
15
16
7
8
17
19
9
18
10
11
1
Handle
11
LED Headlights
2
Handle Release Button
12
Stretch Hose
3
Metal Wand
13
Wand Release Button
4
Upper Dust Cup Release Button
14
Hose Guide
(to remove and replace dust cup)
15
High Speed Button
5
Dust Cup Handle
16
On/Off Button
6
Dust Cup Cover Latch (to access filter)
17
Hose Inlet
7
Dust Cup
18
Floor Nozzle Release Button
8
Lower Dust Cup Button
19
Tool Activation Dial
(to empty contents)
20
Battery Charging Dock
9
Battery Compartment
21
Combination Crevice/Dusting Tool
10
Floor Nozzle
4
ASSEMBLING THE VACUUM
Installing the Battery
Line up the connectors in the front of the battery
compartment with the battery pack. Push the
battery down to ensure a connection. Place the
battery cover over the battery, lining it up with the
arrow on the vacuum. Turn the battery cover in
the direction of the locked position (clockwise)
until it clicks into place (Fig. 1).
Removing the Battery
Turn the battery cover to the unlocked position
(counter-clockwise) and lift off the cover. Then
remove the battery (Fig. 1).
Fig. 1
Attaching the Dust Cup Assembly
Line up the bottom of the dust cup with the top
of the battery cover. Then push the upper dust
cup release button while pushing the top of the
dust cup into the vacuum until it clicks into
place (Fig. 2).
Removing the Dust Cup Assembly
Hold the dust cup handle and press the upper
dust cup release button and remove the dust cup
assembly from the vacuum.
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Attaching the Handle
With the handle release button facing the front of
the vacuum, insert the metal wand into the top of
the vacuum (Fig. 3) until it clicks into place. Then
insert the hose handle into the top of the metal
wand until it clicks into place (Fig. 4).
Attaching the Hose
Press the hose into the hose guide on the back
of the vacuum. Then insert the hose cuff into the
hose inlet and turn the cuff counter-clockwise to
lock into place (Fig. 5).
5
ASSEMBLING THE VACUUM
Attaching the Floor Nozzle
Place the floor nozzle on the floor with the neck
locked in the upright position. Line up the neck
of the floor nozzle with the inlet at the base of the
vacuum. (Fig. 1) Push until it clicks into place.
Removing the Floor Nozzle
Press the floor nozzle release button at the base
of the vacuum then pull the floor nozzle
off the inlet. (Fig. 2)
Fig. 1
Attaching the Accessory Tool
Insert the base of the combination crevice/dusting
tool into the tool holder on the side of the vacuum.
(Fig. 3)
Fig. 2
Fig. 3
6
OPERATION
This vacuum is intended for household use only.
Charging the Vacuum
Install the battery into the vacuum. (Installing
the Battery pg. 5 ) Plug the battery charger
dock into an electrical outlet. Mount the
vacuum into the charger until it clicks
into place (Fig. 1). The power button will
illuminate red while the battery is charging
(Fig. 2). When the power button illuminates
green the battery is fully charged. Remove
the vacuum from the charger dock and
begin vacuuming.
Fig. 1
When the battery power runs low, the
vacuum will automatically shut off to protect
the battery. Place the vacuum on the battery
charger dock to recharge the battery.
NOTE: The vacuum is equipped with a
safeguard to recognize when it’s charging so
it cannot be turned on during charging time.
Fig. 2
On/Off Button
Push the power button (Fig. 3) to turn the
vacuum on. The light will turn green and the
vacuum defaults to low speed. Press the
power button again to turn the vacuum off.
Fig. 3
High Speed Button
Press the high speed switch button (Fig. 4)
for maximum power. Use the maximum power
setting for low pile carpet or throw rugs. Use
the default low speed setting for bare floors.
Reclining the Vacuum
Place your foot on the top of the floor nozzle
and pull the handle toward you.
7
Fig. 4
OPERATION
Vacuuming Carpet
For carpet or rug cleaning, turn the tool activation
dial to the “CLEAN FLOORS & CARPET”
position (Fig. 1) then press the on/off button to
turn the vacuum on. Then press the high speed
switch button for maximum power.
Bare Floor Cleaning
For bare floor cleaning, turn the tool activation
dial to the “CLEAN FLOORS & CARPET”
position (Fig. 1) then press the on/off button to
turn the vacuum on.
The LED headlights will automatically illuminate
when the power is on and the handle is reclined.
The headlights will automatically shut off when
the vacuum is placed in the upright position.
Brushroll Auto Shut-Off Feature
When the vacuum is turned on and in the upright
position, the brushroll will not spin to reduce the
possibility of damaging flooring surfaces. The
brushroll will spin when the handle is lowered.
The LED headlights will not illuminate until the
handle is lowered.
8
Fig. 1
ATTACHMENT CLEANING
Wand Cleaning
Turn the tool activation dial to the “ENGAGE
TOOLS” position (Fig. 1). Remove the
metal wand from the body of the vacuum by
pressing the wand release button (Fig. 2) and
pulling the handle up and out of the vacuum.
Attach the combination crevice/dusting tool
to the end of the metal wand. Release the
hose from the hose guide on the back of
the vacuum (Fig. 3).
Fig. 1
Hose Handle Cleaning
Turn the tool activation dial to the “ENGAGE
TOOLS” position (Fig. 1). Remove the
handle from the metal wand by pressing the
handle release button (Fig. 4) and pulling
the handle up and out of the wand. Attach
the combination crevice/dusting tool to the
end of the hose handle (Fig. 5). Release the
hose from the hose guide on the back of the
vacuum.
Fig. 3
Fig. 2
Cleaning Tools
Your vacuum is equipped with a combination
crevice tool and dusting brush (Fig. 6).
Crevice Tool
Ideal for tight places like between seat
cushions, corners or baseboards. Push in
both buttons on the sides of the tool and
push the brush down to use the crevice
tool (Fig. 6).
Fig. 5
Fig. 4
Dusting Tool
Ideal for table tops, shelves and blinds.
Push in both buttons on the sides of the tool
and push the brush up to use the dusting
tool (Fig. 6).
Fig. 6
9
MAINTENANCE AND CARE
Emptying the Dust Cup
WARNING: Empty the dust cup before the
contents reach the “fill line” on the dust cup.
Over filling the dust cup may cause dirt and
debris to clog the filter and cause loss of suction.
• Remove the dust cup from the vacuum by
pressing the upper dust cup release button on
top of the dust cup (Fig. 1).
• While holding the dust cup over a trash can,
push the lower dust cup release button at the
bottom of the dust cup (Fig. 2). The base of the
dust cup will drop down, releasing the dirt.
Fig. 1
• Close the bottom of the dust cup, ensuring it
locks into place. Replace the dust cup onto the
vacuum body and resume vacuuming.
Fig. 2
10
MAINTENANCE AND CARE
Cleaning the Dust Cup
• Remove the dust cup from the vacuum by
pressing the upper dust cup release button on
top of the dust cup (Fig. 1).
• Turn the dust cup handle to remove the dust
cup cover from the dust cup.
• Rinse the dust cup in warm water. Allow to dry
thoroughly before re-attaching it to the dust
cup cover.
• Replace the dust cup onto the vacuum body
and resume vacuuming.
Fig. 2
Fig. 1
Removing the Brushroll
• Remove the floor nozzle by pressing the floor
nozzle release button on the back of the
vacuum (Fig. 3).
• Turn the floor nozzle over. Use a screwdriver
or a coin to turn the screw once to the left.
Then lift off the brushroll cover (Fig. 2).
Fig. 3
• Remove brushroll from floor nozzle to clean
or replace (Fig. 5).
• Replace brushroll then replace brushroll cover.
Tighten the screw by turing once to the right.
• Re-attach floor nozzle.
Fig. 4
Fig. 5
11
MAINTENANCE AND CARE
Replacing the Filter
• Remove the dust cup from the vacuum by
pressing the upper dust cup release button on
top of the dust cup (Fig. 1).
• Push up on the dust cup cover latch. Remove the
HEPA media filter by grasping the top of the filter
and pulling straight up (Fig. 2).
• Replace with a new filter.
• Close the dust cup cover until it latches.
Fig. 1
• Replace the dust cup onto the vacuum.
Fig. 2
12
MAINTENANCE AND CARE
Jammed Brushroll / Motor Protection
If an object, such as a throw rug or article of
clothing is ever picked up into your vacuum,
the vacuum will sense this jammed brushroll
condition and turn off the vacuum motor. If
this occurs, remove the cause of the jam and
turn the vacuum back on.
13
PROBLEM SOLVING GUIDE
Troubleshooting
WARNING! To Reduce the Risk of Electrical Shock or Injury From Moving Parts, Unplug the
Charging Dock and Remove the Battery Before Servicing or Cleaning the Vacuum.
CAUTION! To Reduce the Risk of Electric Shock, Do Not Handle the Charging Dock or Appliance
with Wet Hands.
PROBLEM
POSSIBLE REASON
POSSIBLE SOLUTION
Vacuum won’t turn on
• Drained Battery
• Uninstalled battery
• Battery installed
incorrectly
• Charge the vacuum
• Install the battery
• Install the battery properly
Vacuum won’t pick up
or low suction
• The dust cup is full
• Filter is dirty
• The neck of the floor
nozzle is blocked or
the brushroll is jammed
• Speed control set
on low
• Empty the dust cup
• Clean or replace filter
• Clear the debris from the floor
nozzle or brushroll
Insufficient run time
after charging
• Insufficient charging
time
• Battery aging
Whistling sound when
vacuum is turned on.
• Press the high speed switch button
for maximum power
• Fully charge the vacuum according
to the instructions described on
page 7
• Replace the battery
• Tool activation dial
• Set the tool activation dial to
improperly set between
appropriate setting
floor nozzle setting and
tool setting.
Any other service should be performed by an Authorized Simplicity Vacuum Retailer.
To locate your nearest Authorized Retailer, visit our website at
www.SimplicityVac.com or call 888-9-SIMPLY.
Key Replacement Parts
• Genuine Filter: SFA (HEPA media and foam filters)
For Best Performance
• Keep your vacuum clean and in good operating condition.
• Always use genuine replacement parts. Use of other products may result in poor cleaning
performance, potential vacuum cleaner damage and may void vacuum warranty. Genuine
products are designed for maximum cleaning performance.
• Have your vacuum checked annually by your Authorized Simplicity Retailer.
• Store your vacuum carefully in a dry area.
• For optimum cleaning performance and safety, follow your owner’s manual instructions.
14
WARRANTY
What is Covered:
This warranty covers any defects in material and workmanship in your new Simplicity
vacuum and applies exclusively to the original purchaser.
How Long Coverage Lasts:
Warranty coverage for the A-Go-Go vacuum lasts two years. Warranty coverage for the
A-Go-Go battery lasts one year. Household models used commercially are only warranted
for 90 days.
What is Not Covered:
• Damage to the vacuum which occurs from neglect, abuse, alterations, accident, misuse
or improper maintenance.
• Normal replacement items: disposable filters.
• Damage associated with or resulting from the use of non-genuine parts including normal
replacement items.
What We Will Do:
This warranty provides, at no cost to you, all labor and parts to keep this vacuum in
correct operating condition during the warranted period.
How to Get Service:
Warranty service can only be obtained by presenting the vacuum to an Authorized
Simplicity Retailer. A proof-of-purchase and product serial number will be required before
service is rendered. To locate your nearest service center, please call 888-9-SIMPLY
or visit www.SimplicityVac.com.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES
WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING ANY WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE). THIS WARRANTY
DISCLAIMS LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
How State Law Applies:
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Register your warranty online at www.SimplicityVac.com
15
OWNER’S WARRANTY INFORMATION
keep this for your records…
Date of purchase
Serial number
Model number
Purchased from:
Store name
Address
City, State, Zip
Telephone
16
17
www.SimplicityVac.com
©2016 Tacony Corporation
LVOM-AGOGO 1.16

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
