USB Mass Storage Device Using a PIC

®

MCU

Author: Gurinder Singh

Microchip Technology Inc.

INTRODUCTION

In recent years, there has been immense growth in

Universal Serial Bus (USB) based applications, primarily due to the Plug and Play nature of USB.

This application note describes the design and implementation of a USB Mass Storage Device (MSD) using a Secure Digital card, which should prove useful to developers of USB mass storage solutions. This application may be used as a stand-alone MSD or as a

Secure Digital/Multimedia Card (SD/MMC) reader/ writer interface.

This design consists of the following components:

• USB V2.0 compliant PIC18F4550 microcontroller

• PICDEM™ FS USB Demonstration Board

• PICtail™ Board for SD™ and MMC Cards

• Windows

®

operating system compatible

(Me, 2000, XP and Windows Server™ 2003)

Figure 1 shows the hardware configuration of the

MSD. The PICtail™ Board for SD™ and MMC Cards

(check the Microchip web site for availability) is connected into a socket on the PICDEM™ FS USB

Demonstration Board. For additional details, refer to the PICDEM FS USB Demonstration Board User’s

Guide (see “References”).

The MSD design has the following features:

• USB V2.0 full-speed compliant.

• No custom drivers required (Windows operating system built-in driver, usbstor.sys, is used).

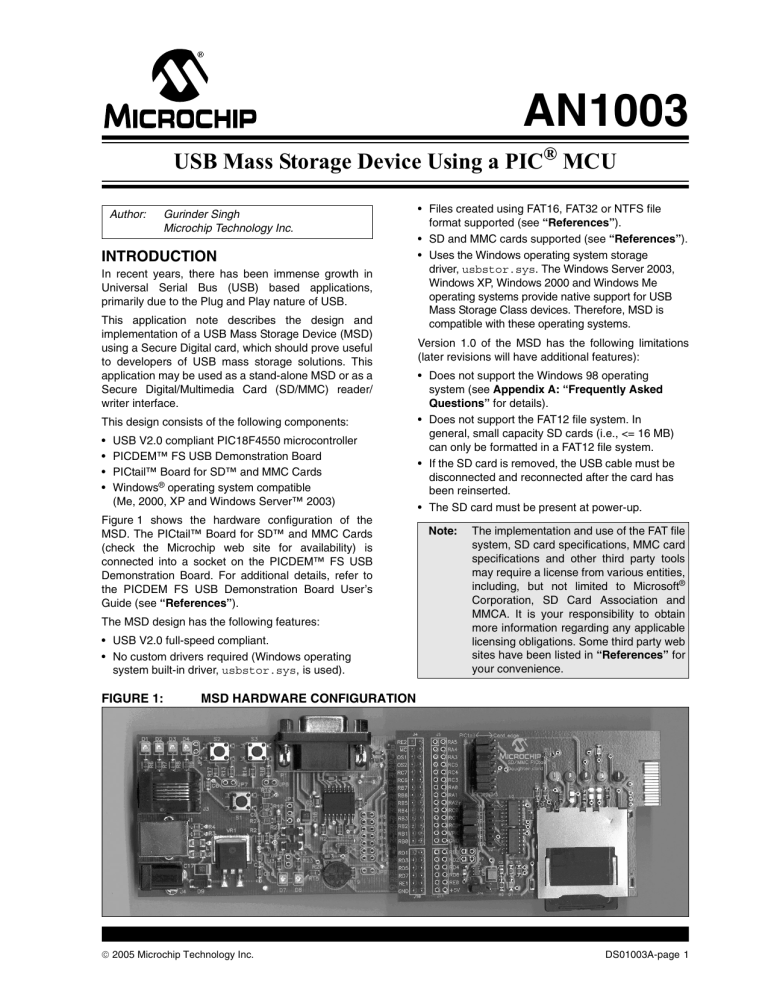

FIGURE 1: MSD HARDWARE CONFIGURATION

• Files created using FAT16, FAT32 or NTFS file

format supported (see “References”).

• SD and MMC cards supported (see “References”).

• Uses the Windows operating system storage driver, usbstor.sys. The Windows Server 2003,

Windows XP, Windows 2000 and Windows Me operating systems provide native support for USB

Mass Storage Class devices. Therefore, MSD is compatible with these operating systems.

Version 1.0 of the MSD has the following limitations

(later revisions will have additional features):

• Does not support the Windows 98 operating

system (see Appendix A: “Frequently Asked

Questions” for details).

• Does not support the FAT12 file system. In general, small capacity SD cards (i.e., <= 16 MB) can only be formatted in a FAT12 file system.

• If the SD card is removed, the USB cable must be disconnected and reconnected after the card has been reinserted.

• The SD card must be present at power-up.

Note:

The implementation and use of the FAT file system, SD card specifications, MMC card specifications and other third party tools may require a license from various entities, including, but not limited to Microsoft

®

Corporation, SD Card Association and

MMCA. It is your responsibility to obtain more information regarding any applicable licensing obligations. Some third party web

sites have been listed in “References” for

your convenience.

© 2005 Microchip Technology Inc.

DS01003A-page 1

AN1003

USB

A device endpoint is defined in the USB V2.0

specification as “ a uniquely addressable portion of USB device that is the source or sink of information in a communication flow between the host and device” (see

“References”). The unique address required for each

endpoint consists of an endpoint number (which may range from 0 to 15) and direction (IN or OUT). The endpoint direction is from the host’s perspective; IN is towards the host and OUT is away from the host. An endpoint configured to do control transfers must transfer data in both directions, so a control endpoint actually consists of a pair of IN and OUT endpoints that share an endpoint number. All USB devices must have

Endpoint 0 configured as a control endpoint.

USB V2.0 supports four types of data transfers:

Control, Bulk, Interrupt and Isochronous.

Control transfer is used to configure a device at the time of plug-in and can be used for other devicespecific purposes, including control of other pipes on the device.

Bulk data transfers are used when the data is generated or consumed in relatively large, bursty quantities.

Interrupt data transfers are used for timely, but reliable, delivery of data. For example, characters or coordinates with human perceptible echo or feedback response characteristics.

Isochronous data transfers occupy a pre-negotiated amount of USB bandwidth with pre-negotiated delivery latency (also called streaming real-time transfers).

For any given device configuration, an endpoint supports only one of the types of transfers described above. In this application, apart from Endpoint 0, we configure Endpoint 1 IN and OUT as bulk endpoints.

To meet the needs of various applications using USB, three speeds of operation have been designed in the

USB V2.0 specification: Low-Speed (LS, 1.5 Mbps),

Full-Speed (FS, 12 Mbps) and High-Speed (HS,

480 Mbps).

See “References” for detailed information on USB,

including references to the USB specification and USB related publications.

The PIC18F4550 used in this application is USB V2.0

compliant and can support LS and FS data transfers.

For more information on the PIC18F4550, refer to the

the device data sheet (see “References”).

Enumeration

Before the applications can communicate with the device, the host needs to learn about the device and assign a device driver. Enumeration is defined as the initial exchange of information that accomplishes this.

During the enumeration process, the device moves through the following device states as defined by the

USB V2.0 specification: Powered, Default, Address and Configured. Two other USB device states are:

Attached and Suspend. Exact details of the enumeration process are beyond the scope of this document; however, the commands and structures used in the device configuration are briefly described.

Descriptors are data structures that enable the host to learn about a device. During enumeration, the host requests descriptors, starting from high-level device descriptors to low-level endpoint descriptors, in the

sequence shown in Figure 2. The structure, description

and values of device, configuration and interface

descriptors are detailed in Appendix C: “USB

Descriptor Formats”. A code example of descriptor

structures is provided in Appendix D: “USB

Descriptor Structures”. Details of bulk-only endpoint

descriptors can be found in Appendix F: “Bulk

Endpoint Descriptors”.

FIGURE 2: STANDARD USB

DESCRIPTORS

Device Descriptor

Configuration Descriptor

Interface Descriptor

Endpoint Descriptor

© 2005 Microchip Technology Inc.

DS01003A-page 2

ENUMERATION PROCESS

The following summarizes the steps involved in the enumeration of a USB device and explains how the device goes from Powered to Default, Address and the

Configured state during the enumeration process.

1.

User plugs a USB device into a USB port. The hub provides power to the port and the device is in the Powered state.

2.

The hub detects the device.

3.

The hub uses an interrupt pipe to report the event to the host.

4.

Host sends Get_Port_Status request to obtain more information about the device.

5.

Hub detects whether device is Low-Speed or

Full-Speed operation and sends the information to the host in response to Get_Port_Status.

6.

Host sends a Set_Port_Feature request, asking the hub to reset the port.

7.

Hub resets the device.

8.

Host learns if a Full-Speed device supports

High-Speed operation (using Chirp K signal).

9.

Host verifies if the device has exited the Reset state using Get_Port_Status.

10. At this point, the device is in the Default state

(device is ready to respond to control transfers over the default pipe at Endpoint 0, default address is 00h and the device can draw up to

100 mA from the bus).

11. Host sends Get_Descriptor to learn the maximum packet size (Note: eighth byte of the device descriptor is bMaxPacketSize).

12. The host assigns an address by sending a

Set_Address

request. Device is now in the

Address state.

13. Host sends Get_Descriptor to learn more about the device. The host responds by sending the descriptor followed by all other subordinate descriptors.

14. Host assigns and loads a device driver.

15. Host’s device driver selects a configuration by sending a Set_Configuration request. The device is now in the Configured state.

16. Host assigns drivers for interfaces in composite devices.

17. If the hub detects an overcurrent, or if the host requests the hub to remove power, the device will be unpowered by the USB bus. In this case, the device and host cannot communicate and the device is in the Attached state.

18. If the device does not see any activity on the bus for 3 ms, it goes into the Suspend state. The device consumes minimal bus power in this state.

AN1003

Control Transfer

Control transfer enables the host and the device to exchange information about device configuration and other control messages. Control transfers are ensured to have 10 percent of the bandwidth at Low-Speed and

Full-Speed operation and 20 percent at High-Speed operation. A control transfer consists of a Setup stage, an optional Data stage and a Status stage.

Appendix E: “Standard USB Device Requests”

summarizes the 11 USB standard control transfer requests, along with a description of each request. All

USB devices must respond to these requests (even though the response may be just a STALL). Note that apart from the standard requests, a class may define requests for devices in its class. A class-specific request may be required or optional. For example,

Mass Storage Devices may implement the

Get Max LUN

(Logical Unit Number) request that is used by the host to find out the number of logical units the device supports. The class-specific requests for

the Mass Storage Devices are discussed in “Mass

Storage Class”.

Mass Storage Class

Bulk transfers are useful for transferring data when time is not a critical factor. Only High-Speed and Full-

Speed devices can do bulk transfers. A bulk transfer can send large amounts of data without overloading the bus because it waits for the availability of the bus. The

Mass Storage Class supports two transport protocols that determine which transfer type the device and host use to send command, data and status information.

These two types of transport protocols are:

• Bulk-Only Transport (BOT)

• Control/Bulk/Interrupt (CBI) Transport

BOT is a data transport protocol that uses Bulk transport, whereas CBI transport uses Control transfer,

Bulk transport and Interrupt transfer. CBI is further subdivided into a data transport protocol that uses

Interrupt transfer and one that does not use Interrupt transfer. In this application, BOT is used as the data transport protocol.

© 2005 Microchip Technology Inc.

DS01003A-page 3

AN1003

The Mass Storage Class specification (see

“References”) defines two class-specific requests, Get

Max LUN

and Mass Storage Reset, that must be implemented by a Mass Storage Device. Bulk-Only

Mass Storage Reset (bmRequestType = 00100001b and bRequest = 11111111b) is used to reset the

Mass Storage Device and its associated interface. Get

Max LUN

(bmRequestType = 10100001b and bRequest = 11111110b

) request is used to determine the number of logical units supported by the device. The value of Max LUN can vary between 0 and

15 (1-16 logical devices). Note that the LUN starts from

0. The device may share multiple logical units that share the common device characteristics. The host should not send the Command Block Wrapper (CBW) to a non-existing LUN.

The interface descriptor fields for configuring an interface as a Mass Storage Device implementing the

BOT are shown in Appendix C: “USB Descriptor

Formats”. Note that bInterfaceClass = 08h

implies Mass Storage Class. Subclass code, bInterfaceSubClass

= 06h, indicates that SCSI

Primary Command-2 (SPC-2) definitions (see “Ref-

erences”) are supported by the device and the

bInterfaceProtocol

= 50h indicates the BOT implementation.

A device implementing BOT shall support at least three endpoints: Control, Bulk-In and Bulk-Out. The USB

V2.0 specification defines a control endpoint

(Endpoint 0) as the default endpoint that does not require a descriptor. The Bulk-In endpoint is used for transferring data and status from the device to the host, and the Bulk-Out endpoint is used for transferring commands and data from the host to the device. The endpoint descriptor values for configuring a Bulk-In and

Bulk-Out endpoint are shown in Appendix F: “Bulk

Endpoint Descriptors”.

Bulk-Only Transport (BOT)

Like Control transfer, BOT also consists of a Command stage, an optional Data stage and a Status stage. The

Data stage may or may not be present for all command

requests. Figure 3 shows the flow of Command trans-

port, Data-In, Data-Out and Status transport for BOT.

The CBW is a short packet of exactly 31 bytes in length.

The CBW and all subsequent data and Command Status Wrapper (CSW) start on a new packet boundary. It is important to note that all CBW transfers are ordered little-endian with LSB (byte 0) first.

Appendix G: “CBW and CSW” shows the format of a

CBW packet. In the CBW, the dCBWSignature value,

“43425355h” (little-endian), identifies a CBW packet.

dCBWTag

is the command block tag that is echoed back in CSW to associate the CSW with the corresponding CBW. dCBWDataTransferLength indicates the number of bytes the host expects to transfer on a Bulk-In or Bulk-Out endpoint (as indicated by the Direction bit). Only bit 7 of bmCBWFlags is used to indicate the direction of data flow, with a ‘1’ signifying

Data-In (i.e., from device to host). The field, bCBWLUN, specifies the device LUN to which the command block is being sent. The field, bCBWCB, defines the valid length of the command block. The CBWCB is the command block to be executed by the device.

The size of a CSW is 13 bytes in length. A dCSWSignature value of “54425355h” (little-endian) identifies a CSW packet. The field, dCSWTag, echoes the dCSWTag value from the associated CBW. For

Data-Out, dCSWDataResidue is the difference between the data expected and the actual amount of data processed by the device. For Data-In, it is the difference between the data expected and the actual amount of relevant data sent by the device. The value of dCSWDataResidue is always less than or equal to the value of dCBWDataTransferLength. The value of bCSWStatus indicates the success or failure of the command. The bCSWStatus value of 00h indicates command success, 01h indicates command failure, whereas 02h indicates phase error.

FIGURE 3: COMMAND/DATA/STATUS

FLOW IN BULK-ONLY

TRANSPORT

Ready

Command

Transport

(CBW)

Data-Out

(from host)

Data-In

(to host)

Status

Transport

(CSW)

© 2005 Microchip Technology Inc.

DS01003A-page 4

Secure Digital (SD) Card

A Secure Digital card is the most common storage media used in portable devices, such as PDAs, Digital

Cameras and MP3 Players, among others. SD cards can be purchased with storage sizes ranging from

16 MB to 2 GB. Both SD cards and the MMC support the SPI™ transfer protocol and have an almost identical electrical interface. While the form factor and the shape of the SD card and the MMC are identical, SD cards can be operated up to four times faster, have a write-protect switch and may include cryptographic security for protection of copyrighted data. Due to these features, SD cards are more popular than MMC and are the focus of this design. However, MMC have been tested and found to be fully functional with the MSD design.

The SD card can be operated in SD Bus mode or SPI mode. In this application, the SD card is connected to the Serial Peripheral Interface (SPI) bus of the

PIC18F4550 and operated in the SPI mode. In the SPI mode, only one data line is used for data transmission in each direction. The data transfer rate in this mode is therefore the same as the SD Bus mode with one data line (up to 25 Kbits per second).

Apart from the Power and Ground, the SPI bus consists of Chip Select (CS), Serial Data Input (SDI), Serial Data

Output (SDO) and Serial Clock (SCLK) signals. The SD card and MMC sample data input on the rising clock edge and set data output on the falling clock edge. On power-up, an SD card wakes up in the SD Bus mode.

Therefore, an initialization routine is required to operate the SD card in SPI mode. This can be achieved by asserting the CS signal (logic low) during the reception of the Reset command, CMD0. Unlike the SD Bus mode, in SPI mode, the selected card always responds to the command. In case of a data retrieval problem, the card responds with an error response instead of a

time-out as in the SD Bus mode. See “References” for

information on the SD card specification.

AN1003

COMMUNICATION OVERVIEW

This section provides a general overview of the communication between the SD card and the Personal

Computer (PC) application and system hardware.

Figure 4 shows the functional block diagram of the

entire system. A device driver is defined as “ any code that handles communication details for a hardware device that interfaces to a CPU”. In the layered driver model used in USB communications, each layer handles one part of the communication process. In this application, the MSD is enumerated as a Mass Storage

Device implementing BOT. Therefore, the host uses the USB storage device driver (usbstor.sys) as the functional driver. The host loads Disk.sys,

PartMgr.sys

and VolSnap.sys as filter drivers to communicate between the end application and the device driver (usbstor.sys). The root hub driver

(usbhub.sys) manages the port initialization and, in general, manages the communications between device drivers and the bus class driver. The bus class driver (usbd.sys) manages bus power, enumeration,

USB transactions and communications between the root hub driver and the host controller driver.

On the MSD application side, the Serial Interface

Engine (SIE) of the PIC18F4550 handles the low-level

USB communications. USB data moves between the microcontroller core and the SIE through a memory space known as the USB RAM. The PIC18F4550 provides the capability to configure and control up to

16 bidirectional endpoints. In this application, two bidirectional endpoints are used. Endpoint 0 is required for all USB devices for control transfers and does not require configuration. The mass storage application configures Endpoint 1 IN and OUT as bulk endpoints for Bulk-Only Transport. It also communicates with the

SD card’s SPI bus to read the data from and write the data to the SD card.

© 2005 Microchip Technology Inc.

DS01003A-page 5

AN1003

Hardware

The PICDEM FS USB Demonstration Board is used as the platform for developing the USB MSD application.

The PICtail™ Board for SD™ and MMC Cards is connected on the expansion headers, J6 and J7, on the

PICDEM FS USB Demonstration Board. The USB V2.0

compliant PIC18F4550 microcontroller forms the heart of the PICDEM FS USB Demonstration Board. The

PIC18F4550 has an on-chip USB voltage regulator, transceivers and pull-up resistors to minimize the

FIGURE 4:

number of external components and enable a low-cost design. On a side note, the PICDEM FS USB

Demonstration Board also features a potentiometer, simulating analog input for the controller and a digital temperature sensor. While not being used in the USB

SD card mass storage application, these features may be useful in developing other USB applications. More details of the PICDEM FS USB Demonstration Board can be found in the PICDEM FS USB Demonstration

Board User’s Guide (see “References”).

PC, MSD COMMUNICATION BLOCK DIAGRAM

PC Application

(e.g., file explorer)

Win32 Subsystem

Disk Drivers

(disk.sys,

PartMgr.sys

)

Storage Volume

Driver

(

VolSnap.sys

)

Win32

®

API Calls

Function

Drivers

(usbstor.sys)

USB Hub Driver

(usbhub.sys)

Bus Drivers

(usbd.sys)

Hardware (Root Hub)

PICtail™ Board for

SD™ and MMC Cards

SPI™

Bus

PIC18F4550

SD Card Interface

(sdcard.c, sdcard.h)

USB Endpoint 0

Control

Transfer

(usbdrv.c, usb9.c

, usbctrltrf.c

)

USB Endpoint 1

Bulk Transfer

(msd.c, msd.h)

USB Serial Interface Engine (SIE)

USB Port

EP0 USB Control, EP1 SCSI Commands

© 2005 Microchip Technology Inc.

DS01003A-page 6

The SD card operates in the 2.7-3.6V range, whereas the

PIC18F4550 on the PICDEM FS USB Demonstration

Board requires a 5V V

DD

. The voltage regulation from 5V to 3V is achieved using Microchip’s TC1186-3.3VCT713.

Appendix J: “Schematic” shows the schematic for the

PICtail™ Board for SD™ and MMC Cards (Part No.

AC164122). Pin 7 (RA5) of the PIC18F4550 is connected to the SHDN (Shutdown input) pin of the TC1186 via jumper JP4 (position 2-3). This enables the user to turn off the SD card power using firmware (setting RA5 turns the power on). Alternately, by changing the jumper JP4 setting (position 1-2), the user may turn the SD card power on permanently. The PICtail™ Board for SD™ and MMC Cards also implements two MC74VHCT125A devices as signal level translators for translating 5V DC signals on the microcontroller side to 3.3V DC signals on the SD card side and vice versa. The MC74VHCT125A is a high-speed CMOS quad buffer fabricated with silicon gate CMOS technology. Since it has a full 5.0V CMOS level output swing, this device is ideal for signal level translation between 3.0V and 5.0V levels. For 5V to 3.3V

signal translation, a supply voltage of 3.3V is applied to

U1 and corresponding OE pins are enabled (active-low).

Similarly, 3.3V to 5V translation is achieved by applying a

5V supply to U2 and enabling the corresponding OE pins. Further details on the MC74VHCT125A can be

found in its respective data sheet (see “References”).

Note:

The user application may not require the signal translation if the PIC microcontroller is operated at 3V.

The PICtail™ Board for SD™ and MMC Cards also features a power LED (D1), an SD card activity LED

(D2) and test points for monitoring the SPI bus. LED D1 indicates that power is available at the output of the

TC1186. LED D2 indicates SD card activity (based on

Chip Select signal, CS). The Serial Data Input (SDI),

Serial Clock (SCK), Serial Data Output (SDO), Chip

Select (CS) and Ground (GND) signals of the SPI bus can be monitored on the test points. The PICtail™

Board for SD™ and MMC Cards is designed to operate with a multitude of demonstration boards, including all demonstration boards having PICtail signals, Explorer

16 development board having card edge connectors and demonstration boards with non-standard PICtail signals. The following jumper settings must be used for operating the PICtail™ Board for SD™ and MMC

Cards with different demonstration boards.

1.

If the demonstration board has standard PICtail signals, connect JP1-JP2 and JP5 on the PICtail side (default setting).

2.

If the demonstration board provides card edge signals, connect JP2-JP3 and JP5 on the card edge side.

3.

If the demonstration board does not provide standard PICtail signals, open J3, jump signals from J5 and J11 to appropriate signals on J2.

AN1003

SCSI Commands

After the successful enumeration of the target USB device, the host initiates commands according to the bInterfaceSubClass

specified in the interface descriptor during the enumeration process.

The USB MSD application specifies bInterface-

SubClass

= 06h, indicating that the device will support

SCSI Primary Commands-2 (SPC-2) or later. A bInterfaceProtocol

value of 0x50 in the interface descriptor indicates that the BOT protocol is being

used. As shown in Figure 3, a BOT transfer begins with

a CBW. The device indicates the successful transport of a CBW by accepting (ACKing) the CBW. If the host detects a STALL of the Bulk-Out endpoint during Command transport, the host shall respond with a Reset recovery. The host shall attempt to transfer an exact number of bytes to or from the device as specified by the dCBWDataTransferLength and the Direction bit. The device shall send each CSW to the host via the

Bulk-In endpoint.

In this section, we briefly describe the SCSI commands that are supported in the MSD implementation. The reader may refer to SCSI Primary Commands-3 (SPC-3) and SCSI Block Commands-2 (SBC-2) specifications for

further details (see “References”). The first byte of the

command block, CBWCB, is always the operation code or opcode in short.

INQUIRY (Opcode 12h)

The INQUIRY command requests that the information regarding the logical unit and SCSI target device be sent to the application client (host). The SPC-3 specification requires that the INQUIRY data should be returned even though the device server is not ready for other commands. Moreover, the standard

INQUIRY

data should be available without incurring any media access delays. The standard INQUIRY data is at least 36 bytes.

READ CAPACITY (Opcode 25h)

The READ CAPACITY command requests that the device server transfer bytes of parameter data describing the capacity and medium format to the

Data-In buffer. The response to the READ CAPACITY command is 4 bytes of returned Logical Block

Address

and 4 bytes of block length in bytes.

Returned Logical Block Address (LBA) is the

LBA

of the last logical block on the direct access block device. If the number of logical blocks exceeds the maximum value that can be specified in the returned Logical Block Address field, the device shall set the returned Logical Block

Address

field to FFFFFFFFh.

© 2005 Microchip Technology Inc.

DS01003A-page 7

AN1003

READ (10) (Opcode 28h)

The READ (10) command specifies that the device server read the specified logical block(s) and transfer them to the Data-In buffer. The READ (10) command is a 10-byte CBWCB with the eighth and ninth bytes specifying the TRANSFER LENGTH (see

Appendix I: “SCSI Command and Data Format”).

The TRANSFER LENGTH field specifies the number of contiguous logical blocks of data that shall be read and transferred to the Data-In buffer, starting with the logical block specified by the Logical Block

Address

field (bytes 3-6). A TRANSFER LENGTH field set to zero specifies that no logical blocks shall be read.

WRITE (10) (Opcode 2Ah)

The WRITE (10) command requests that the device server transfer the specified logical blocks from the

Data-Out buffer and write them. The CBWCB format for the WRITE (10) command is the same as the

READ (10)

command with TRANSFER LENGTH specifying the number of contiguous logical blocks of data that shall be transferred from the Data-Out buffer and written, starting with the logical block specified by the Logical Block Address field. A

TRANSFER LENGTH

field set to zero specifies that no logical blocks shall be written.

REQUEST SENSE (6) (Opcode 03h)

The REQUEST SENSE (6) command requests that the device server transfer the sense data to the

application client. Appendix H: “SCSI Command

Set” shows the fixed format sense data response.

The contents of the RESPONSE CODE field indicate the error type and format of the sense data. The

RESPONSE CODE 70h

signifies the current error,

RESPONSE CODE 71h

signifies the deferred error in the fixed format sense data and code values, 72h and 73h, indicate the current and deferred error code in the descriptor format sense data. The SENSE

KEY, ADDITIONAL SENSE CODE (ASC)

and

ADDITIONAL SENSE CODE QUALIFIER (ASCQ) fields provide a hierarchy of information. The SENSE

KEY

field indicates the generic information describing an error or exception condition, ASC indicates further information related to the error reported in the SENSE

KEY

field, whereas the ASCQ field indicates the detailed information related to the ADDITIONAL

SENSE CODE

. Refer to Table 27 and Table 28 of the

SPC-3 specification (see “References”) for a list of

SENSE KEY

error codes and ASC and ASCQ error code assignments. This application implements the fixed format, current error code sense data response

(defined in ~\system\usb\class\msd\msd.h).

MODE SENSE (6) (Opcode 1Ah)

The MODE SENSE (6) command provides a means for a device server to report parameters to an application client. It is a complementary command to the

MODE SELECT (6)

command. The mode parameter header that is used by the MODE SENSE (6) and the

MODE SELECT (6)

command is shown in Appen-

dix H: “SCSI Command Set”.

The MEDIUM TYPE and DEVICE SPECIFIC PARAMETER fields are unique for each device type. In this application, the

MEDIUM TYPE

field is set to 00h, indicating a direct access block device. This value is the same as the value of the PERIPHERAL DEVICE TYPE field in the standard INQUIRY data.

PREVENT ALLOW MEDIUM REMOVAL

(Opcode 1Eh)

The PREVENT ALLOW MEDIUM REMOVAL command requests that the logical unit enable or disable the removal of the medium. The prevention of medium removal shall begin when an application client issues a PREVENT ALLOW MEDIUM REMOVAL command with a PREVENT field (fifth byte, bits 0-1 of CBWCB) of

01b or 11b (i.e., medium removal prevented). Since in an SD card, there is no way to prevent card removal, the firmware decodes the command and prepares to notify the host PC that the operation has been successfully completed. If the medium is inaccessible, the command is specified as Fail

(bCSWStatus = 0x01) with the SENSE KEY set to

Not Ready.

TEST UNIT READY (Opcode 00h)

The TEST UNIT READY command provides a means to check if the logical unit is ready. This is not a request for self-check. If the logical unit is able to accept an appropriate medium access command, without returning a Check Condition status, this command shall return a Good status. Otherwise, the command is terminated with the Check Condition status and the

SENSE KEY

is set to reflect the error condition.

VERIFY (10) (Opcode 2Fh)

The VERIFY (10) command requests that the device server verify the specified logical block(s) on the medium. If the BYTCHK bit is set to ‘0’, the device shall perform medium verification with no data comparison and not transfer any data from the Data-Out buffer. If the BYTCHK bit is set to ‘1’, the device server shall perform a byte-by-byte comparison of user data read from the medium and user data transferred from the Data-Out buffer. The firmware decodes the command and then prepares to notify the host PC that the command has been successfully completed.

If the medium is inaccessible, the command is specified as Fail, with the SENSE KEY set to Not

Ready.

© 2005 Microchip Technology Inc.

DS01003A-page 8

START/STOP (Opcode 1Bh)

The START/STOP command requests that the device server change the power condition of the logical unit, or load, or eject the medium. This includes specifying that the device server enable or disable the direct access block device for medium access operations by controlling power conditions and timers. The POWER CONDITION field (fifth byte, bit 7-4) is used to specify that the logical unit be placed into a power condition or to adjust a timer. If the value of this field is not equal to 0h, the START (fifth byte, bit 0) and LOEJ (Load Eject, fifth byte, bit 1) bits are ignored. If the POWER CONDITION field is Active

(1h), Idle (2h) or Standby (3h), then the logical unit shall transition to the specified power. If POWER

CONDITION

= 0h (START_VALID), then the START,

LOEJ = (0,0)

signifies that the logical unit shall transition to the stopped power condition; START,

LOEJ

= (0,1) signifies the logical unit shall unload the medium; START, LOEJ = (1,0) signifies that the logical unit shall transition to the active power condition. If START, LOEJ = (1,1), then the logical unit shall load the medium.

UNSUPPORTED COMMANDS

If the command opcode field in the CBWCB is not supported, the SENSE KEY is set to Illegal Request, indicating that there was an illegal parameter in the

CDB with ASC and ACSQ codes set corresponding to an invalid command opcode.

MASS STORAGE DEVICE (MSD)

FIRMWARE

This firmware implements a USB-based Mass Storage

Device using an SD card. When plugged into the USB port, the firmware enumerates the SD card as a removable disk drive and allows the user to exercise all standard features of a disk drive. The user can write, read, edit and delete files on the MSD just like any other removable disk media. This application also allows the user to format the SD card in any of the following FAT file formats: FAT16, FAT32 or NTFS (Windows drivers handle the format, firmware is only required to implement the SCSI commands). The firmware calculates the capacity of the SD card based on the Card Specific Data

(CSD) register read from the SD card. This information is conveyed to the PC host in response to the READ

CAPACITY

command. The exact size of the disk can be seen in the disk properties on the PC. Further details on firmware and SCSI command implementation can be

found in “SCSI Commands”.

The project framework is organized under a single root directory with each subdirectory containing files for each category or class of source code. If the SD card is not found, or not initialized, the 4 LEDs (D1, D2, D3 and

D4) on the demonstration board are turned on permanently.

© 2005 Microchip Technology Inc.

AN1003

Using the PICtail™ Board for SD™ and

MMC Cards

First, connect the demonstration board to the MPLAB

®

ICD 2 and program the device. The following steps are required to run the MSD application:

1.

Connect the PICtail™ Board for SD™ and MMC

Cards to the PICDEM FS USB Demonstration

Board as shown in Figure 1.

2.

Insert the SD card in the reader slot, making sure that write-protect is disabled on the SD card.

3.

Apply power to the demonstration board.

4.

Observe the LEDs (D1, D2, D3 and D4) on the demonstration board. If all of the LEDs are ON, this indicates an SD card initialization failure.

5.

If no errors have occurred, connect a USB cable from the PC to the USB connector on the demonstration board.

6.

Observe under Control Panel > System >

Hardware > Device Manager (for Windows XP system) that USB Mass Storage Device gets enumerated under Universal Serial Bus

controllers. Verify that the Microchp Mass

Storage USB Device is enumerated under Disk

drive and Generic volume is enumerated

under Storage volumes, as shown in Figure 5.

7.

Look for a removable drive under My

Computer.

8.

Use the removable drive icon to access the SD card as a MSD.

9.

Before removing the USB cable from the demo board, click the “Safely Remove Hardware” icon in the Windows task bar.

The four LEDs on the PICDEM FS USB Demonstration

Board have been implemented as follows:

1.

LED D1 turns ON after successfully responding to the INQUIRY command.

2.

LED D2 toggles ON after each successful TEST

UNIT READY

command execution.

3.

LED D3 blinks during read operation (turns ON while a read from the SD card is taking place).

4.

LED D4 blinks during write operation (turns ON while a write to the SD card is taking place).

DS01003A-page 9

AN1003

FIGURE 5: DEVICE MANAGER Directory Structure

The file structure consists of a collection of subdirectories containing specific files under a root project directory. The user may create the root project directory in any location with a valid directory name. The subdirectories structure should always be maintained. The basic directory structure is similar to the PICDEM FS

USB demonstration code. This backward compatibility has been maintained to ensure that users already familiar with PICDEM FS USB demonstration code can easily integrate this mass storage application.

Figure 6 shows the directory structure for the MSD

application.

Function Description

Table 1 and Table 2 provide brief descriptions of the

functions contained in files msd.c and sdcard.c, respectively.

FIGURE 6: MSD DIRECTORY

STRUCTURE

DS01003A-page 10

© 2005 Microchip Technology Inc.

AN1003

TABLE 1: msd.c

FUNCTIONS

Function Name

USBCheckMSDRequest

ProcessIO()

MSDInitEP

SDCardInit

MSDCommandHandler

MSDInquiryHandler

MSDReadCapacityHandler

MSDReadHandler

MSDWriteHandler

MSDModeSenseHandler

MSDMediumRemovalHandler

MSDRequestSenseHandler

MSDTestUnitReadyHandler

MSDVerifyHandler

MSDStopStartHandler

IsMeaningfulCBW

IsValidCBW

PrepareCSWData

SendData(byte* Y, byte X)

SendCSW

ResetSenseData

MSDDataIn

MSDDataOut

Description

Handles the class-specific requests received on Endpoint 0.

Handles MSD requests on Endpoint 1.

Initializes Bulk-In and Bulk-Out endpoints (MSD_BD_IN, MSD_BD_OUT).

Initializes the SD card in SPI™ mode.

Decodes and processes the received SCSI command.

Executes the INQUIRY command.

Executes the READ CAPACITY command.

Executes the READ (10) command.

Executes the WRITE (10) command.

Executes the MODE SENSE (6) command.

Executes the PREVENT ALLOW MEDIUM REMOVAL command.

Executes the REQUEST SENSE (6) command.

Executes the TEST UNIT READY command.

Executes the VERIFY (10) command.

Executes the START/STOP command.

Checks if the received CBW is meaningful.

Checks if the received CBW is valid.

Prepares CSW data (Tag and Signature).

Sends X bytes of data starting at location Y.

Sends the CSW and sets MSD_State to MSD_WAIT.

Initializes the sense response data.

Sends data to the host.

Reads data from the host.

TABLE 2: sdcard.c

FUNCTIONS

Function Description

SDC_Error MediaInitialize(SDCSTATE*)

SocketInitialize

Initializes the SD card in SPI™ mode and reads its first sector.

Initializes card select, detect signals and socket interface.

SDC_Error SectorRead(dword SN, byte* buff)

Reads the specified sector SN into buffer

(msd_buffer).

SDC_Error SectorWrite(dword SN, byte* buff)

Writes the data pointed to by buffer into sector SN.

SDC_Error CSDRead

Reads the CSD register from SD card.

MediaDetect

Returns True if SD card is detected.

SDC_Response SendSDCCmd(byte, dword)

Sends SDC command packet on SPI interface.

ReadMedia

Reads in one byte of data from SPI port while sending out 0xFF to SD card.

© 2005 Microchip Technology Inc.

DS01003A-page 11

AN1003

Memory Organization

Data banks 4 through 7 of the data memory are

mapped to special dual port RAM (see Example 2).

When the USB module is disabled, the General

Purpose Registers (GPRs) in these banks are used like any other GPRs in the data memory space. When the

USB module is enabled, the memory in these banks is allocated as buffer RAM for USB operation. This area is shared between the microcontroller core and the SIE and is used to transfer data directly between the two.

Note that the linker script has been modified to define

MSD as a single data bank of 512 bytes. The 512-byte msd_buffer

has been defined in the MSD data bank

(see Example 1). Figure 7 shows the entire memory

map including the endpoint buffers.

EXAMPLE 1: BUFFERS FOR MSD

(usbmmap.c)

#if defined(USB_USE_MSD) volatile far USB_MSD_CBW msd_cbw; volatile far USB_MSD_CSW msd_csw;

#pragma udata myMSD=0x600 volatile far char msd_buffer[512];

#endif

FIGURE 7: COMPLETE MEMORY

ORGANIZATION (INCLUDING

ENDPOINT BUFFERS)

Access RAM

GPR0

00h

5Fh

60h

FFh

100h

GPR1

1FFh

200h

GPR2

2FFh

300h

GPR3

3FFh

400h ep0Bo

(Endpoint 0,

BD Out) ep0Bi

(Endpoint 0,

BD In)

• ep15Bo

(Endpoint 15,

BD Out) ep15Bi

(Endpoint 15,

BD In)

5FFh

600h msd_buffer

[0]

[511]

7FFh

* The ep<n>Bo and ep<n>Bi actually declared are dependant on the number of endpoints used in the application.

EXAMPLE 2:

ACCESSBANK

DATABANK

DATABANK

DATABANK

DATABANK

DATABANK

DATABANK

MODIFIED LINKER SCRIPT

NAME=accessram

NAME=gpr0

NAME=gpr1

NAME=gpr2

NAME=gpr3

NAME=usb4

NAME=usb5

START=0x0

START=0x60

START=0x100

START=0x200

START=0x300

START=0x400

START=0x500

END=0x5F

END=0xFF

END=0x1FF

END=0x2FF

END=0x3FF

END=0x4FF

END=0x5FF

PROTECTED

PROTECTED

// Combine usb6 and usb7 banks to define a 512 byte msd bank .......... ..............

//DATABANK NAME=usb6 START=0x600 END=0x6FF PROTECTED

//DATABANK NAME=usb7 START=0x700 END=0x7FF PROTECTED

DATABANK NAME=msd START=0x600 END=0x7FF PROTECTED

© 2005 Microchip Technology Inc.

DS01003A-page 12

AN1003

Firmware Description

Figure 8 shows the relationship between various files in

this firmware. The details of the USB framework files can be found in the user’s guide for the PICDEM FS

USB Demonstration Board. This application note focuses on the USB mass storage application and communication with the SD card.

A USB request can be either standard or class-specific.

A standard request is serviced by the

USBCheckStdRequest()

which handles the standard requests as specified in Chapter 9 of the USB V2.0 specification. A Mass Storage Class specific request is handled by the firmware in msd.c. If the

FIGURE 8:

USBCheckStdRequest()

cannot process the requests, it calls USBCheckMSDRequest().

USBCheckMSDRequest()

checks if it is a class-specific request (SetupPkt.RequestType == CLASS) and

SetupPkt.bRequest

== FFh (Bulk-Only Mass Storage

Reset) or FEh (Get Max LUN). If a Bulk-Only Mass

Storage Reset request is received, the firmware disables

Endpoint 1, clears the STALL and reinitializes Endpoint

1. The response to the Get Max LUN request is one byte that consists of the maximum LUN supported by the device. For example, if the device supports three LUNs, then the LUNs would be numbered from 0 to 2 and the return value would be ‘2’. In our case, the number of

LUNs is 1, so the return value is ‘0’.

RELATIONSHIP BETWEEN USB FRAMEWORK DEMONSTRATION FILES AND THE

MSD APPLICATION

main.c

Initialize

System() while(1)

{

}

usbdrv.c

USBDriverService()

usbdsc.c

VID and PID,

Descriptor Strings

usbctrltrf.c

USBCtrlEPService()

usb9.c

USBCheckStdRequest()

USBStdSetCfgHandler()

msd.c

MSDInitEP()

USBCheckMSDRequest()

SDCardInit()

ProcessIO()

MSDCommandHandler()

MSDReadHandler()

MSDWriteHandler()

MSDReadCapacityHandler()

usbcfg.c

USB Configuration

Data Memory sdcard.c

SocketInitialize()

MediaInitialize()

SectorRead()

SectorWrite()

CSDRead()

usbmmap.c

USB RAM Mapping

© 2005 Microchip Technology Inc.

DS01003A-page 13

AN1003

The USB enumeration process is handled mainly in usb9.c

. The SET_CONFIGURATION request is handled by USBStdSetCfgHandler(). This function calls the function, MSDInitEP(). The function,

MSDInitEP()

, configures and initializes a Bulk-In and a Bulk-Out endpoint.

The main() function in file main.c is an infinite loop that services different tasks – USB or mass storage application tasks. USB tasks are handled by

USBDriverService()

which handles all USB hardware interrupts. The mass storage application tasks are handled by ProcessIO(). ProcessIO() forms the core of the handling of mass storage

communications on Endpoint 1. Figure 9 shows the

flowchart of the ProcessIO().

When Endpoint 1 is initialized, the MSD_State is set to

MSD_WAIT

. The firmware basically waits for a CBW to be received on Endpoint 1. Upon receiving a valid and meaningful CBW (as defined in the USB Mass Storage

Class Bulk-Only Transport specification, see

“References”), the CSW data is prepared. Basically,

the dCBWTag is copied to dCSWTag in order to associate the CSW with the corresponding CBW and the dCSWSignature field is set to “53425355h” (littleendian). The Direction bit is read to find the direction of data transfer (i.e., from host to device or vice versa) and sets MSD_State to MSD_DATA_OUT or

MSD_DATA_IN

, respectively (see Figure 10). Further,

the first byte of CBWCB is the operation code of the received command. This is used to decode the command and take the appropriate action

(MSDCommandHandler). It may happen that the command does not require any data transfer. The

Direction

bit is ‘0’ in this case and the MSD_State is set to MSD_DATA_OUT. If there is no data transfer required for a given command, the command is executed and the status is sent using sendCSW(). The values of the dDataResidue and bCSWStatus fields are set based on the result of the command execution.

Figure 11 shows the flowchart of the MSDDataIn()

function. This function is used to send the data prepared while processing the command in

MSDCommandHandler()

, from the device to the host, using

MSD_BD_IN

. After command execution, dCSWDataResidue

reflects the number of bytes of data obtained as a result of the command execution that are to be sent to the host. In case of an error

(bCSWStatus! = 0x00), zero padded data of the size expected by the host (dCBWDataTransferLength) is sent. If there is no error, the size of data to be sent

(dCSWDataResidue), as a result of command execution, may not be the same as the size expected by the host (dCBWDataTransferLength). In this case, the dCSWDataResidue

field in the CSW will reflect the difference. If the data to be sent is greater than

MSD_IN_EP_SIZE

(64 bytes, size of the Endpoint 1 IN buffer), then MSD_IN_EP_SIZE bytes of data are sent; otherwise, the remaining dCSWDataResidue bytes of data are sent using the MSD_BD_IN buffer.

Note that the only command where data needs to be read from the host is the WRITE (10) command. In the

MSD_WAIT

state, the MSD_BD_OUT points to the msd_cbw

structure in order to read the next command block. But when a WRITE (10) command is received, the device changes to MSD_DATA_OUT. In this state, the device must read more data from the host and write it to the SD card. This is done using the 512-byte msd_buffer

. So, in the MSD_DATA_OUT state, the

MSD_BD_OUT

(Endpoint 1 OUT) buffer points to msd_buffer

. In order to read the entire 512-byte data block, after every read, the MSD_BD_OUT points to a location in the msd_buffer incremented by

MSD_OUT_EP_SIZE

(size of the Endpoint 1 OUT buffer). Once the msd_buffer is filled (8 reads of

64 bytes), the block of data is written to a specific location in the SD card using the SECTORwrite(...) function (defined in sdcard.c). This process is repeated if multiple blocks of data are to be written to the SD card. The LBA field of the WRITE (10) CBWCB gives the information about the starting LBA and the

TRANSFER LENGTH

field indicates the number of contiguous LBAs to be written.

EXAMPLE 3: STRUCTURE FOR COMMAND

BLOCK WRAPPER

typedef struct _USB_MSD_CBW

{ dword dCBWSignature; dword dCBWTag; dword dCBWDataTransferLength; byte bCBWFlags; byte bCBWLUN; byte bCBWCBLength; byte CBWCB[16];

} USB_MSD_CBW;

Out endpoint size is configured as 64 bytes. The msd_buffer

is a 512-byte buffer declared in the USB dual port RAM area. The block size of the SD card is

512 bytes. The msd_buffer is used to read 512 bytes from the host using multiple 64-byte reads from

MSD_BD_OUT

. Once 512 bytes of data are read from the host (msd_buffer is filled), the entire block of data is written to the SD card using the function,

SECTORWrite()

. For WRITE (10) commands where the TRANSFER LENGTH > 1, multiple blocks of 512 bytes of data are written to consecutive sectors, starting with the Logical Block Address field in the command block. The translation between LBA and the physical address is as follows: since each sector has

2

9

= 512 bytes, the physical address is obtained by left shifting the LBA by 9 positions. Similarly, for READ (10), a block of 512 bytes of data is read from the SD card using the function, SECTORread(), and then transmitted to the host in 64-byte packets using the MSD_BD_IN

© 2005 Microchip Technology Inc.

DS01003A-page 14

buffer. Note that after each read or write from the

MSD_BD_OUT

or MSD_BD_IN, mUSBDriverService() is called to clear the TRNIF bit.

The macro, mUSBBufferReady(MSD_BD_IN)

or mUSBBufferReady(MSD_BD_OUT)

, is called to write or read the data from the corresponding Buffer Descriptor

(BD) register. This call should be made after arming the corresponding BD registers. The mUSBBufferReady(...)

macros toggle the Data

Toggle Sync (DTS) bit and give the buffer ownership to

SIE.

The firmware only supports the fixed format response to the INQUIRY command. According to the specifications, a media access delay must not be incurred in responding to the INQUIRY command. The INQUIRY data format and the values stored in ROM for this appli-

cation are shown in Appendix H: “SCSI Command

Set”

. The standard INQUIRY data is at least 36 bytes, but can be up to 96 bytes, excluding the vendorspecific parameters as described in the SPC-3 specification.

FIGURE 9:

ProcessIO()

FLOWCHART

Start

Is

MSD_State

MSD_DATA_IN?

No

==

Yes

All data sent?

No

Send Data

MSDDataIn()

Yes

Is

MSD_State

==

MSD_DATA_OUT?

No

Yes

Is

MSD_State

==

MSD_WAIT?

Yes

All data read?

(1)

Yes

CBW received?

(MSD_BD_OUT.Stat

.UOWN

== _UCPU)

Yes

Send Status sendCSW()

Send Status sendCSW()

To

Command

Transport

No

AN1003

An 8-byte response indicating the total number of LBAs and the block length in bytes is expected for the READ

CAPACITY

command. To obtain this information, we read the Card Specific Data (CSD) from the SD card by calling the CSDread(...) function (defined in sdcard.c

). The CSDread function issues the SPI command, CSD_READ, to the SD card and reads the response in the global variable, gblCSDReg. The card capacity (not including the security protected area) can be computed from the C_SIZE, C_SIZE_MULT and

READ_BL_LEN

fields from the CSD register.

Memory capacity = BLOCKNR * BLOCK_LEN, where

BLOCKNR

= (C_SIZE + 1) * MULT and

MULT = 2

C_SIZE_MULT + 2

.

The block length (BLOCK_LEN) can be computed using:

• READ_BL_LEN = WRITE_BL_LEN

• BLOCK_LEN = 2

READ_BL_LEN

Return

Note 1:

The MSD_DATA_OUT state is required only for the WRITE (10) command. Due to limited buffer space, all the data is read from MSD_BD_OUT and written to the SD card in MSDWriteHandler(). This part of the code is reached when all of the data has been read.

© 2005 Microchip Technology Inc.

DS01003A-page 15

AN1003

FIGURE 10: COMMAND TRANSPORT FLOWCHART

Command

Copy the CBW to gblCBW

Is CBW valid?

Yes

Is CBW meaningful?

Yes

Prepare CSW dCSWTag, dCSWSignature

No

No

Is Direction bit = 1?

No

Yes

Set MSD_State = MSD_DATA_IN

Set MSD_State = MSD_DATA_OUT

Decode and Process the

Received CBWCB

MSDCommandHandler()

USBBufferReady(MSD_BD_OUT)

USBDriverService()

Return

DS01003A-page 16

© 2005 Microchip Technology Inc.

AN1003

FIGURE 11:

MSDDataIn()

(BULK-IN TRANSPORT) FLOWCHART

MSDDataIn()

Is dCSWStatus

= 0x00 and remaining transmit data length is larger than

MSD_IN_EP_SIZE?

Yes

MSD_IN_EP_SIZE

Bytes of Data Written to Transmit Register

No

Remaining Data

(dCSWDataResidue)

Written to Transmit

Register and Sent

(sendData())

No

Is dCSWStatus!

= 0x0?

dCSWDataResidue-

= MSD_IN_EP_SIZE dCBWDataTransferLength-

= MSD_IN_EP_SIZE

Yes

Zero Padded Data

Output dataLen

= min(bCBWDataTransferLength

, MSD_IN_EP_SIZE)

Bytes of Data Written to Transmit Register and Sent dCSWDataResidue

=

|dCBWDataTransferLength

– dCSWDataResidue| dCBWDataTransferLength

= 0 dCSWDataResidue-

= dataLen dCBWDataTransferLength-

= dataLen

Return

© 2005 Microchip Technology Inc.

DS01003A-page 17

AN1003

TOOLS, TESTING AND

CUSTOMIZATION

The firmware was developed using these Microchip

development tools (see “References”):

• MPLAB

®

IDE, V7.11

• Microchip C18 C Compiler, V2.40

The following third party tools (see “References”)

were used for USB packet level troubleshooting and analysis of sector level reading and writing on the SD card:

• SnoopyPro 0.22 (USB Sniffer)

• Directory Snoop™, V5.01 (Sector Level

Media Analyzer)

The firmware has been tested with SD cards of varying

sizes from different manufacturers. Table 3 summarizes

the test results. The initialization, read, write, delete, format and rename operations were successfully tested for all SD cards listed. The firmware was also tested for

64 MB MMC. The 16 MB SD/MMC card is not supported as it utilizes the FAT12 file system that is not supported by the Windows drivers. The code has been tested on

OHCI, UHCI and EHCI USB root hubs. Auto-triggering and accessing files from the SD card through PC applications has been tested. The enumerated disk drive can be formatted (using the Windows Explorer application) as a FAT16, FAT32 or NTFS volume. Like any removable disk drive application, the USB Mass Storage

Device allows users to create, edit, save, delete, rename and read files or folders on the SD card.

TABLE 3: MSD SD CARD TEST RESULTS

Manufacturer Card Capacity Test Result

EP Memory

Lexar

Lexar

Lexar

SanDisk

SanDisk

SanDisk

SimpleTech

SimpleTech

Viking

Viking

512 MB

256 MB

512 MB

1.0 GB

128 MB

512 MB

1.0 GB

256 MB

1 GB

256 MB

512 MB

Passed

Passed

Passed

Passed

Passed

Passed

Passed

Passed

Passed

Passed

Passed

The firmware can be modified to interface with other portable media cards with an SPI interface. For example, compact Flash, mini-SD card, XD picture card, memory stick pro and so on. This enhanced application can be developed as a multi-card reader device. Many digital devices, such as Digital Cameras, MP3 Players and PDAs, have an SD card interface for bulk storage.

This application is useful for developers of SD card media interfaces for other portable devices as well.

Alternatively, this can be developed as a stand-alone data logger application by including FAT libraries.

Another possible modification is to replace the SD card with Flash memory to develop a Flash thumb drive.

SUMMARY

This application note has demonstrated enumerating a

PIC18F4550 as a Mass Storage Device using an SD card in Single-Bit mode on an SPI bus. In addition, it has demonstrated how to use bulk endpoints, MSD buffers, the Bulk-Only Transport protocol and SCSI commands for data transfer.

The application described is embedded FAT-free; however, code implementation is modular and allows for seamless integration of any embedded FAT file system for stand-alone applications.

© 2005 Microchip Technology Inc.

DS01003A-page 18

AN1003

REFERENCES

• Directory Snoop™, V5.01, http://www.briggsoft.com/dsnoop.htm

• FAT File System Specification – available by license, http://www.microsoft.com/mscorp/ip/tech/fat.asp

• “PIC18F2455/2550/4455/4550 Data Sheet”

(DS39632), http://www.microchip.com

• “PICDEM™ FS USB Demonstration Board User’s

Guide” (DS51526), http://www.microchip.com

• MC74VHCT125A Data Sheet, http://www.onsemi.com

• Microchip MPLAB

®

C18 C Compiler – student edition is available by license free of charge from the Microchip web site, http://www.microchip.com/C18

• MMC Specifications – some are available by license and others are available for purchase, http://www.mmca.org/compliance

• Microchip MPLAB

®

IDE – available by license free of charge from the Microchip web site, http://www.microchip.com/mplabide

• SCSI Primary Commands-2 (SPC-2),

Revision i23, 18 July 2003, http://www.t10.org/ftp/t10/drafts/spc2/spc2i23.pdf

• SCSI Primary Commands-3 (SPC-3),

Revision 21d, 14 February 2005, http://www.t10.org/ftp/t10/drafts/spc3/spc3r23.pdf

• SCSI Block Commands-2 (SBC-2), Revision 16,

13 November 2004, http://www.t10.org/ftp/t10/drafts/sbc2/sbc2r16.pdf

• SD Card Specification – available by license, http://www.sdcard.org

• SnoopyPro 0.22, http://sourceforge.net/projects/usbsnoop/

• “USB Complete: Everything You Need to Develop

Custom USB Peripherals” by Jan Axelson,

ISBN 0-9650819-5-8

• Universal Serial Bus Specification Revision 2.0, http://www.usb.org/developers/docs/

• Universal Serial Bus Mass Storage Class

Bulk-Only Transport, Revision 1.0, http://www.usb.org/developers/devclass_docs/ usbmassbulk_10.pdf

© 2005 Microchip Technology Inc.

DS01003A-page 19

AN1003

APPENDIX A: FREQUENTLY ASKED QUESTIONS

In this appendix, answers are provided to some of the frequently asked questions about the Mass Storage Device as well as this implementation.

Q: When I plug in the SD card, all of the LEDs turn on. What does this mean?

A:

This an indication that there was an error in the SD card initialization. Try removing the external power to the board and USB cable, removing and reinserting the SD card, reconnecting the USB cable and external power (if applicable).

If this does not solve the problem, verify whether the SD card you are using has been tested with MSD (see Table 3

for the list of cards tested).

Q: Which endpoints are used in the MSD application?

A:

Endpoint 0 is the mandatory endpoint that must be implemented in all USB devices for control transfers. This application uses Endpoint 1 IN and OUT as Bulk transport endpoints for a bidirectional communication between the host and the device.

Q: What is the size of the msd_buffer and how does MSD handle large data transfers?

A:

The size of the msd_buffer is 512 bytes. Data is written to and read from the SD card in blocks which are

512 bytes for the SD card. Large data transfers imply multiple block read/write operations. However, the multi-read and multi-write SD card commands are not implemented – instead, multiple single block read/write commands are issued to achieve large transfers.

Q: What is the size of the code in terms of single-word instructions?

A:

The size of Chapter 9 code is approximately 3K and Mass Storage Device code is approximately another 1K.

Q: Why is LED D2 not blinking?

A:

After initial enumeration and reading the directory from the SD card, the host repeatedly sends the TEST UNIT

READY

command to continue checking the status of the device. The D2 LED toggles when a TEST UNIT READY command returns a success. So if the D2 LED is not toggling, there was an error. Check whether the SD card was properly inserted in the card reader interface before connecting the USB cable.

Q: What is the communication protocol between the SD card and the PICDEM™ FS USB Demonstration Board?

A:

The SD card is operated in Single-Bit mode using the SPI bus protocol.

Q: What is the data transfer speed?

A:

The maximum data transfer speed observed during MSD testing was 944 kbps. The data transfer speed of the

PICDEM™ FS USB bus is 12 Mbps. The system bottleneck is the SPI bus (with the SD card operated in Single-Bit

SPI Bus mode). We believe that reading 64 bytes from the endpoints into the msd_buffer and writing 512 bytes into the SD card also slows the overall data transfer speed.

Q: Is it possible to integrate the FAT file system into this implementation?

A:

Yes. The FAT file system is required if files need to be created on the SD card without using a PC (i.e., data logging applications). However, it is possible to reuse the functions associated with the SCSI command interface and the

SD card communication interface in the firmware.

Q: Why does it show “Microchp” in Device Manager > Disk drives? Is this a typographical error?

A:

Microchp is an 8-byte Vendor ID sent from the device to the host in response to the INQUIRY command. Since the Vendor ID field can be only 8 bytes, Microchp is a shortened version of Microchip.

Q: Why doesn’t MSD work with Windows 98?

A:

The MSD demonstration uses the native Windows driver, usbstor.sys. The Windows 98 operating system does not provide native support for usbstor.sys. Please refer to the Microsoft

®

web site for details: http://www.microsoft.com/whdc/device/storage/usbfaq.mspx

Q: Why does MSD implement the SCSI command set and not the RBC?

A:

Currently, Windows 2000 and Windows XP do not provide support to handle devices that implement Reduced Block

Commands (RBC, subclass 0x01) protocol. Please refer to the Microsoft web site for further details: http://www.microsoft.com/whdc/device/storage/usbfaq.mspx

© 2005 Microchip Technology Inc.

DS01003A-page 20

AN1003

APPENDIX B: SOURCE CODE

Software License Agreement

The software supplied herewith by Microchip Technology Incorporated (the “Company”) is intended and supplied to you, the

Company’s customer, for use solely and exclusively with products manufactured by the Company.

The software is owned by the Company and/or its supplier, and is protected under applicable copyright laws. All rights are reserved.

Any use in violation of the foregoing restrictions may subject the user to criminal sanctions under applicable laws, as well as to civil liability for the breach of the terms and conditions of this license.

THIS SOFTWARE IS PROVIDED IN AN “AS IS” CONDITION. NO WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATU-

TORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICU-

LAR PURPOSE APPLY TO THIS SOFTWARE. THE COMPANY SHALL NOT, IN ANY CIRCUMSTANCES, BE LIABLE FOR

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, FOR ANY REASON WHATSOEVER.

The complete source code, including any demo applications and necessary support files, is available for download as a single archive file from the Microchip corporate web site, at:

www.microchip.com

© 2005 Microchip Technology Inc.

DS01003A-page 21

AN1003

APPENDIX C: USB DESCRIPTOR FORMATS

TABLE C-1: DEVICE DESCRIPTOR

Field

bDescriptorType bDeviceClass

Device Descriptor

Value

01h

00h bDeviceSubClass

00h

00h bDeviceProtocol bMaxPacketSize idVendor bNumConfiguration

10h

04D8h

01h

TABLE C-2: CONFIGURATION DESCRIPTOR

Field Value

bDescriptorType bNumInterfaces

02h

01h bConfigurationValue bmAttributes

01h

C0h

MaxPower

32h

TABLE C-3: INTERFACE DESCRIPTOR

Field

bDescriptorType bInterfaceNumber

Value

04h

00h bNumEndpoints bInterfaceClass bInterfaceSubClass bInterfaceProtocol

02h

08h

06h

50h

Description

Device descriptor type.

Class specified in the interface descriptor.

Subclass specified in the interface descriptor.

Protocol specified in the interface descriptor.

Endpoint 0 size.

Vendor ID assigned by USB-IF.

Number of possible configurations.

Description

Configuration descriptor type.

Number of interfaces supported by this configuration.

Index value of this configuration.

Configuration Characteristics:

Bit Description

7

6

5

4-0

Reserved (set to ‘1’)

Self-powered

Remote wake-up

Reserved

Maximum power consumption of the

USB device from the bus, expressed in 2 mA units (i.e., 50 = 100 mA).

Description

Interface descriptor type.

Number of interface. Zero-based value identifying the index in the array of concurrent interfaces supported by this configuration.

Number of endpoints used by this interface (excluding Endpoint 0). This value shall be at least 2.

Mass Storage Class.

Subclass code (assigned by USB-IF).

Indicates which industry standard command block definition to use.

Bulk-Only Transport.

© 2005 Microchip Technology Inc.

DS01003A-page 22

APPENDIX D: USB DESCRIPTOR STRUCTURES

~\system\usb\usbdefs\usbdefs_std_dsc.h

DEVICE DESCRIPTOR

typedef struct _USB_DEV_DSC

{

byte bLength; byte bDscType;

word bcdUSB; byte bDevCls;

byte bDevSubCls; byte bDevProtocol;

byte bMaxPktSize0; word idVendor;

word idProduct; word bcdDevice;

byte iMFR; byte iProduct;

byte iSerialNum; byte bNumCfg;

} USB_DEV_DSC;

CONFIGURATION DESCRIPTOR

typedef struct _USB_CFG_DSC

{

byte bLength; byte bDscType;

word wTotalLength; byte bNumIntf;

byte bCfgValue; byte iCfg;

byte bmAttributes; byte bMaxPower;

} USB_CFG_DSC;

INTERFACE DESCRIPTOR

typedef struct _USB_INTF_DSC

{

byte bLength; byte bDscType;

byte bIntfNum; byte bAltSetting;

byte bNumEPs; byte bIntfCls;

byte bIntfSubCls; byte bIntfProtocol;

byte iIntf;

} USB_INTF_DSC;

ENDPOINT DESCRIPTOR

typedef struct _USB_EP_DSC

{

byte bLength; byte bDscType;

byte bEPAdr; byte bmAttributes;

word wMaxPktSize; byte bInterval;

} USB_EP_DSC;

AN1003

© 2005 Microchip Technology Inc.

DS01003A-page 23

AN1003

APPENDIX E: STANDARD USB DEVICE REQUESTS

TABLE E-1: STANDARD REQUESTS FOR CONTROL TRANSFERS

bmRequestType

00000000b

00000001b

00000010b

10000000b

bRequest

CLEAR_FEATURE

GET_CONFIGURATION

Description

The host requests to disable a feature on a device, interface or endpoint.

The host requests the value of the current device configuration.

The host requests a specific descriptor.

10000000b

10000001b

10000000b

10000001b

10000010b

00000000b

GET_DESCRIPTOR

GET_INTERFACE

GET_STATUS

SET_ADDRESS

Index value of the configuration.

The host specifies an address to use in future communications with the device.

00000000b

00000000b

SET_CONFIGURATION

SET_DESCRIPTOR

00000000b

00000001b

00000010b

00000001b

SET_FEATURE

SET_INTERFACE

The host adds a descriptor or updates an existing descriptor.

The host requests to enable a feature on a device, interface or endpoint.

10000010b SYNC_FRAME

For devices with a configuration that supports multiple, mutually exclusive settings for the interface, the host requests the device to use specific settings.

The device sets and reports an endpoint’s synchronization frame.

DS01003A-page 24

© 2005 Microchip Technology Inc.

AN1003

APPENDIX F: BULK ENDPOINT DESCRIPTORS

TABLE F-1: BULK-IN ENDPOINT DESCRIPTOR

Bulk-In Endpoint Descriptor

Field

bDescriptorType bEndpointAddress

Value

05h

81h bmAttributes bMaxPacketSize

02h

40h bInterval

00h

TABLE F-2: BULK-OUT ENDPOINT DESCRIPTOR

Bulk-Out Endpoint Descriptor

Field

bDescriptorType bEndpointAddress

Value

05h

01h bmAttributes bMaxPacketSize bInterval

02h

40h

00h

Description

Endpoint descriptor type.

The address of this endpoint on the

USB device. The address is encoded as follows:

Bit Description

3-0

6-4

7

The endpoint number

Reserved, set to ‘0’

1

= In

This is a Bulk endpoint.

Maximum packet size. Shall be 8, 16,

32 or 64 bytes (64 bytes in our case).

Does not apply to Bulk endpoints.

Description

Endpoint descriptor type.

The address of this endpoint on the

USB device. The address is encoded as follows:

Bit Description

3-0

6-4

7

The endpoint number

Reserved, set to ‘0’

0

= Out

This is a Bulk endpoint.

Maximum packet size. Shall be 8, 16,

32 or 64 bytes (64 bytes in our case).

Does not apply to Bulk endpoints.

© 2005 Microchip Technology Inc.

DS01003A-page 25

AN1003

APPENDIX G: CBW AND CSW

TABLE G-1: COMMAND BLOCK WRAPPER (CBW)

Command Block Wrapper (CBW)

Byte

0-3

4-7

8-11

12

13

14

15-30

Bit 7 Bit 6

Reserved (0)

Reserved (0)

Bit 5 Bit 4 Bit 3 Bit 2

dCBWSignature dCBWTag dCBWDataTransferLength bmCBWFlags bCBWLUN

BCBMCBLength

CBWCB

Bit 1

TABLE G-2: COMMAND STATUS WRAPPER (CSW)

Command Status Wrapper (CSW)

Bit 7 Bit 6 Bit 5 Byte

0-3

4-7

8-11

12

Bit 4 Bit 3

dCBWSignature dCSWTag dCSWDataResidue bCSWStatus

Bit 2 Bit 1

Bit 0

Bit 0

DS01003A-page 26

© 2005 Microchip Technology Inc.

AN1003

APPENDIX H: SCSI COMMAND SET

TABLE H-1: SCSI COMMAND SET

Command Name

INQUIRY

READ CAPACITY

Operation Code

12h

25h

READ FORMATTED CAPACITY

READ (10)

23h

28h

WRITE (10)

MODE SENSE (6)

REQUEST SENSE (6)

PREVENT ALLOW MEDIUM REMOVAL

2Ah

1Ah

03h

1Eh

TEST UNIT READY

VERIFY (10)

START/STOP

00h

2Fh

1Bh

Description

Gets device Information.

Requests for capacity and medium format parameters.

Reports current media capacity and formatting capacities supported by media.

Transfers binary data from the media to the host.

Transfers binary data from the host to the media.

Requests device to report parameters.

Transfers status sense data to the host.

Prevents or allows the removal of media from a removable media device.

Requests to check if logical unit is ready.

Requests to verify a specified LBA on medium.

Requests a removable media device to load or unload its media.

© 2005 Microchip Technology Inc.

DS01003A-page 27

AN1003

APPENDIX I: SCSI COMMAND AND DATA FORMAT

TABLE I-1:

Byte

2

3

0

1

MODE PARAMETER HEADER (6)

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3

MODE DATA LENGTH

MEDIUM TYPE

DEVICE SPECIFIC PARAMETER

BLOCK DESCRIPTOR LENGTH

Bit 2 Bit 1 Bit 0

Byte

7

8-11

12

13

0

1

2

3-6

14

15-17

18-n

TABLE I-2: FIXED FORMAT SENSE DATA

Fixed Format Sense Data

Bit 7 Bit 6

FILEMARK EOM

Bit 5 Bit 4 Bit 3 Bit 2 Bit 1

ILI

RESPONSE CODE (70h or 71h)

Obsolete

Reserved

INFORMATION

SENSE KEY

ADDITIONAL SENSE LENGTH (n-7)

COMMAND SPECIFIC INFORMATION

ADDITIONAL SENSE CODE

ADDITIONAL SENSE CODE QUALIFIER

FIELD REPLACEMENT UNIT CODE

SENSE KEY SPECIFIC

Additional Sense Bytes

Bit 0

Byte

6

7

4

5

8-15

2

3

0

1

TABLE I-3:

16-31

32-35

STANDARD INQUIRY DATA FORMAT

Standard Inquiry Data Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

PERIPHERAL QUALIFIER

RMB

Obsolete

PERIPHERAL DEVICE TYPE

Reserved

NORMACA

Version

HISUP RESPONSE DATA FORMAT

ADDITIONAL LENGTH (n-4)

SCCS

BQUE

(MSB)

ACC

ENCSERV

Obsolete

VS

WUSB16

TPGS

MULTIP

SYNC

3PC

MCHNGR

Reserved

Obsolete

LINKED Obsolete CMDQUE

T10 VENDOR IDENTIFICATION

PRTOECT

ADDR16

VS

(LSB)

(MSB)

PRODUCT IDENTIFICATION

(LSB)

(MSB)

PRODUCT REVISION LEVEL

(LSB)

© 2005 Microchip Technology Inc.

DS01003A-page 28

AN1003

TABLE I-4:

Byte

8

9

6

7

2

5

0

1

READ (10) COMMAND

Bit 7

(MSB)

(MSB)

Bit 6

RDPROTECT

Reserved

Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Operation Code (28h)

DPO FUA Reserved FUA_NV Obsolete

Logical Block Address

TRANSFER LENGTH

CONTROL

Group Number

(LSB)

(LSB)

© 2005 Microchip Technology Inc.

DS01003A-page 29

AN1003

APPENDIX J: SCHEMATIC

FIGURE J-1: PICtail™ BOARD FOR SD™ AND MMC CARDS SCHEMATIC

DS01003A-page 30

™ ail PICt

© 2005 Microchip Technology Inc.

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.

There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data

Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

Microchip is willing to work with the customer who is concerned about the integrity of their code.

Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications.

MICROCHIP MAKES NO REPRESENTATIONS OR WAR-

RANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED,

WRITTEN OR ORAL, STATUTORY OR OTHERWISE,

RELATED TO THE INFORMATION, INCLUDING BUT NOT

LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE,

MERCHANTABILITY OR FITNESS FOR PURPOSE.

Microchip disclaims all liability arising from this information and its use. Use of Microchip’s products as critical components in life support systems is not authorized except with express written approval by Microchip. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, Accuron, dsPIC, K

EE

L

OQ

, microID, MPLAB, PIC, PICmicro, PICSTART,

PRO MATE, PowerSmart, rfPIC, and SmartShunt are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

AmpLab, FilterLab, Migratable Memory, MXDEV, MXLAB,

PICMASTER, SEEVAL, SmartSensor and The Embedded

Control Solutions Company are registered trademarks of

Microchip Technology Incorporated in the U.S.A.

Analog-for-the-Digital Age, Application Maestro, dsPICDEM, dsPICDEM.net, dsPICworks, ECAN, ECONOMONITOR,

FanSense, FlexROM, fuzzyLAB, In-Circuit Serial

Programming, ICSP, ICEPIC, Linear Active Thermistor,

MPASM, MPLIB, MPLINK, MPSIM, PICkit, PICDEM,

PICDEM.net, PICLAB, PICtail, PowerCal, PowerInfo,

PowerMate, PowerTool, rfLAB, rfPICDEM, Select Mode,

Smart Serial, SmartTel, Total Endurance and WiperLock are trademarks of Microchip Technology Incorporated in the

U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

© 2005, Microchip Technology Incorporated, Printed in the

U.S.A., All Rights Reserved.

Printed on recycled paper.

Microchip received ISO/TS-16949:2002 quality system certification for its worldwide headquarters, design and wafer fabrication facilities in

Chandler and Tempe, Arizona and Mountain View, California in

October 2003. The Company’s quality system processes and procedures are for its PICmicro

®

8-bit MCUs, K

EE

L

OQ

® code hopping devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001:2000 certified.

© 2005 Microchip Technology Inc.

DS01003A-page 31

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: 480-792-7200

Fax: 480-792-7277

Technical Support: http://support.microchip.com

Web Address: www.microchip.com

Atlanta

Alpharetta, GA

Tel: 770-640-0034

Fax: 770-640-0307

Boston

Westborough, MA

Tel: 774-760-0087

Fax: 774-760-0088

Chicago

Itasca, IL

Tel: 630-285-0071

Fax: 630-285-0075

Dallas

Addison, TX

Tel: 972-818-7423

Fax: 972-818-2924

Detroit

Farmington Hills, MI

Tel: 248-538-2250

Fax: 248-538-2260

Kokomo

Kokomo, IN

Tel: 765-864-8360

Fax: 765-864-8387

Los Angeles

Mission Viejo, CA

Tel: 949-462-9523

Fax: 949-462-9608

San Jose

Mountain View, CA

Tel: 650-215-1444

Fax: 650-961-0286

Toronto

Mississauga, Ontario,

Canada

Tel: 905-673-0699

Fax: 905-673-6509

W

ORLDWIDE

S

ALES AND

S

ERVICE

ASIA/PACIFIC

Australia - Sydney

Tel: 61-2-9868-6733

Fax: 61-2-9868-6755

China - Beijing

Tel: 86-10-8528-2100

Fax: 86-10-8528-2104

China - Chengdu

Tel: 86-28-8676-6200

Fax: 86-28-8676-6599

China - Fuzhou

Tel: 86-591-8750-3506

Fax: 86-591-8750-3521

China - Hong Kong SAR

Tel: 852-2401-1200

Fax: 852-2401-3431

China - Qingdao

Tel: 86-532-8502-7355

Fax: 86-532-8502-7205

China - Shanghai

Tel: 86-21-5407-5533

Fax: 86-21-5407-5066

China - Shenyang

Tel: 86-24-2334-2829

Fax: 86-24-2334-2393

China - Shenzhen

Tel: 86-755-8203-2660

Fax: 86-755-8203-1760

China - Shunde

Tel: 86-757-2839-5507

Fax: 86-757-2839-5571

China - Wuhan

Tel: 86-27-5980-5300

Fax: 86-27-5980-5118

China - Xian

Tel: 86-29-8833-7250

Fax: 86-29-8833-7256

ASIA/PACIFIC

India - Bangalore

Tel: 91-80-2229-0061

Fax: 91-80-2229-0062

India - New Delhi

Tel: 91-11-5160-8631

Fax: 91-11-5160-8632

India - Pune

Tel: 91-20-2566-1512

Fax: 91-20-2566-1513

Japan - Yokohama

Tel: 81-45-471- 6166

Fax: 81-45-471-6122

Korea - Gumi

Tel: 82-54-473-4301

Fax: 82-54-473-4302

Korea - Seoul

Tel: 82-2-554-7200

Fax: 82-2-558-5932 or

82-2-558-5934

Malaysia - Penang

Tel: 604-646-8870

Fax: 604-646-5086

Philippines - Manila

Tel: 632-634-9065

Fax: 632-634-9069

Singapore

Tel: 65-6334-8870

Fax: 65-6334-8850

Taiwan - Hsin Chu

Tel: 886-3-572-9526

Fax: 886-3-572-6459

Taiwan - Kaohsiung

Tel: 886-7-536-4818

Fax: 886-7-536-4803

Taiwan - Taipei

Tel: 886-2-2500-6610

Fax: 886-2-2508-0102

Thailand - Bangkok

Tel: 66-2-694-1351

Fax: 66-2-694-1350

EUROPE

Austria - Weis

Tel: 43-7242-2244-399

Fax: 43-7242-2244-393

Denmark - Copenhagen

Tel: 45-4450-2828

Fax: 45-4485-2829

France - Paris

Tel: 33-1-69-53-63-20

Fax: 33-1-69-30-90-79

Germany - Munich

Tel: 49-89-627-144-0

Fax: 49-89-627-144-44

Italy - Milan

Tel: 39-0331-742611

Fax: 39-0331-466781

Netherlands - Drunen

Tel: 31-416-690399

Fax: 31-416-690340

Spain - Madrid

Tel: 34-91-352-30-52

Fax: 34-91-352-11-47

UK - Wokingham

Tel: 44-118-921-5869

Fax: 44-118-921-5820

DS01003A-page 32

08/24/05

© 2005 Microchip Technology Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
