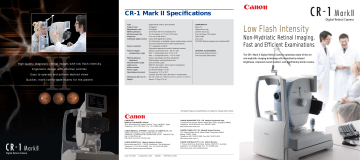

Low Flash Intensity
CR-1 Mark II Specifications
Type
Angle of view
Magnification view
Working distance
Minimum pupil size
Image size
Attachable digital camera
Sensor resolution
Patient’s diopter
compensation range
High-quality diagnostic retinal images with low flash intensity
Ergonomic design with intuitive controls
Working distance
adjustment
Internal fixation target
Light source
Built-in monitor
Power supply
Operating environment
Easy to operate and achieve desired views
Quicker, more comfortable exams for the patient
Dimensions (W x D x H)
Weight
Digital retinal camera, Non-mydriatic
45 degrees
2X (Digital)
35 mm from the front of objective lens
ø 4 mm (Approx. ø 3.7 mm in SP mode)
ø 14 mm on the sensor
Canon EOS digital SLR camera
(For information on available camera models, please consult
your local authorized Canon sales representative.)
15.1 megapixels or higher
(Resolution depends on model of attached camera.)
Without compensation lens: -10D to +15D
With “-” compensation lens: -7D to -31D
With “+” compensation lens: +11D to +33D
Anterior eye display: split lines adjustment
Retinal display: working distance dots
LED dot matrix, green
IRED for observation, Xenon tube for photography
5.7-inch color LCD monitor
AC100-240 50/60Hz 1-0.4A
Temperature: 10˚C to 35˚C
Humidity: 30% RH to 80% RH (with no condensation)
320 mm x 530 mm x 550 mm (12.7 in. x 20.7 in. x 21.9 in.)
Approx. 21.5 kg (47.4 lb.)
COMPONENTS
Main unit
Objective lens cap
Camera mount cap
Chin rest paper (100 sheets)
Power cable
Dust cover
CD-ROM (Retinal imaging control software NM)
OPTIONAL ACCESSORIES
External eye fixation lamp EL-1
Chin rest paper (500 sheets)
Simulated images and specifications are subject to change without notice.
CANON INC.
MEDICAL EQUIPMENT GROUP
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
Telephone: +81-3-3757-8497 Fax: +81-3-5482-3960
CANON SINGAPORE PTE. LTD. Medical Equipment Dept.
1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632
Telephone: +65-6796-3549 Fax: +65-6271-4226
http://www.canon-asia.com
CANON MEDICAL SYSTEMS A division of CANON U.S.A., Inc.
15955 Alton Parkway, Irvine, CA 92618-3731, U.S.A.
Telephone: (1) 949-753-4160, toll-free within U.S.A.: 1-800-970-7227
Fax: (1) 949-753-4184
http://www.usa.canon.com/eye-care
CANON (CHINA) CO, LTD. Medical System Division
15F Jinbao Building No.89 Jinbao Street, Dongcheng District,
Beijing 100005, China
Telephone: (86) 10-8513-9999 Fax: (86) 10-8513-9914
http://www.canon.com.cn
CANON EUROPA N.V. Medical Systems Division
Bovenkerkerweg 59-61, 1185 XB Amstelveen, The Netherlands
Telephone: +31-(0) 20-545-8926 Fax: +31-(0) 20-545-8220
http://www.canon-europa.com/Medical
CANON AUSTRALIA PTY. LTD. Optical Division
1 Thomas Holt Drive, North Ryde, Sydney, NSW 2113, Australia
Telephone: +61-2-9805-2000 Fax: +61-2-9805-2444
http://www.canon.com.au/default.aspx
Code: 0131W460
© CANON INC. 2009
0309SZ0
PRINTED IN JAPAN
Low Flash Intensity
Non-Mydriatic Retinal Imaging,
Fast and Efficient Examinations
The CR-1 Mark II Digital Retinal Camera epitomizes state-of-the-art
non-mydriatic imaging technology with dramatically reduced
brightness, improved overall comfort, and significantly shorter exams.
CR-1 Mark II stands for efficiency and accuracy
in retinal diagnostic exams, ergonomic design
and patient-friendly functionality.
Key Features
In 1976, Canon reinvented retinal examination by developing
the world’s first non-mydriatic camera. To this day, Canon continues
Anterior eye and stereo photography are available
to set industry standards with high-quality diagnostic imaging.
Equipped with an exceptionally low flash intensity,
The bundled Retinal Imaging Control Software for the CR-1 Mark II puts
tools for comprehensive study management, image capture controls, and
easy viewing at your fingertips. The intuitive graphical interface is simple
and straightforward to use. The PC-based software provides quick input
and access to all information and images required to assist in your
diagnosis, and data can be easily saved to various external media.
Canon’s CR-1 Mark II non-mydriatic digital retinal camera
provides more efficient workflow, ease of use, and patient comfort.
CR-1 Mark II: Benefits of low flash intensity
For patients having non-mydriatic retinal exams, the bright flash
can be unpleasant . CR-1 Mark II focuses on reducing patient
stress to provide comfortable retinal exams by significantly
reducing the flash intensity. Because retinal exams play an
important role in screening for major illnesses, the ease of
examining provided by the CR-1 Mark II supports overall
healthcare for people.
■ Selectable flash mode
Standard mode
ISO 1600
Low flash mode 1
ISO 3200
Low flash mode 2
ISO 6400
Efficiency of non-mydriatic retinal exams heavily depends on a
patient’s darkness adaptation period. The low flash intensity of
CR-1 Mark II minimizes miosis, thus shortening the time
required for taking multiple pictures such as binocular and
stereo images. The reduced brightness induces more patient
compliance, leading to speedy and accurate exams for high
throughput screening.
High-quality retinal imaging
Ergonomic controls
Canon’s expertise in the field of imaging technology
supports CR-1 Mark II’s exceptional digital retinal
imaging capabilities. High-resolution diagnostic images
of the retina are extremely detailed and clear, a
necessity to effectively detect and monitor ocular
conditions such as diabetic retinopathy, glaucoma, and
macular degeneration.
Control options with joystick
45-degree angle of view
2x digital magnification
The CR-1 Mark II features an
optical system that achieves
high-resolution diagnostic
images at a 45° angle of
view suitable for health
check-ups and screening.
“2x” mode provides a
magnified view of the retina for
viewing the details of the
region of interest. Sharp
images are made possible by
the attached EOS digital SLR
camera’s high pixel count.
Easy alignment and focusing
Safe, secure patient positioning
Two simple steps are all it takes to capture a clear image. Step 1
is the aligning of two halves of a split pupil image, followed in
Step 2 by the adjustment of split lines and working distance dots
in the retinal display. This ensures that the correct focus and
working distance are achieved for the sharpest images possible.
An adjustable motorized chin rest,
forehead guard, and front protection
cover perfectly situate the patient
securely in position for the exam
while ensuring their safety during
operation. An optional external
fixation target is also available.
Note: The above results were based on partnering with
the EOS 50D digital camera.
■ Quick image acquisition
Control software
CR-1 Mark II has an ergonomic design to
simplify operation for the user. A one-hand
joystick repositions the camera to the exact view
desired. The illuminated operation panel,
featuring easy-to-understand control options,
has been designed for quick adjustment and
selection of the necessary settings. A short
reaching distance between the patient and
operator allows closer personal interaction and
easy access to the patient’s eyes.
Viewer functions with simple saving capability
Network Capabilities
Effortless and convenient handling, printing, saving, and transmitting of all
image data to remote locations via the control software are made possible
with the CR-1 Mark II’s network capabilities. The DICOM-compliant network
interface allows CR-1 Mark II easy integration with existing medical imaging
systems and connection to PACS and HIS network configurations. The
control software and network capabilities work together for streamlining
overall diagnostic workflow.
Workflow of a typical exam
▲
R
L
Working distance dots
Split lines
Low flash mode 2: binocular images
Input/receive patient data
DICOM worklist server
Patient records, study orders
Close patient interaction
Illuminated operation panel
Image capture
process using CR-1 Mark II
Position patient
Rough alignment
Retinal image adjustment
▲
Confirm image
Step 2
Confirm pupil dia., split pupil alignment
(working distance), switch to retinal display
Fine alignment and focus adjustment (working distance and focus)
Capture image
Step 1
Adjust exam chair/chin rest/camera
Motorized adjustable chin rest
LCD Screen
Viewer system
Save image
