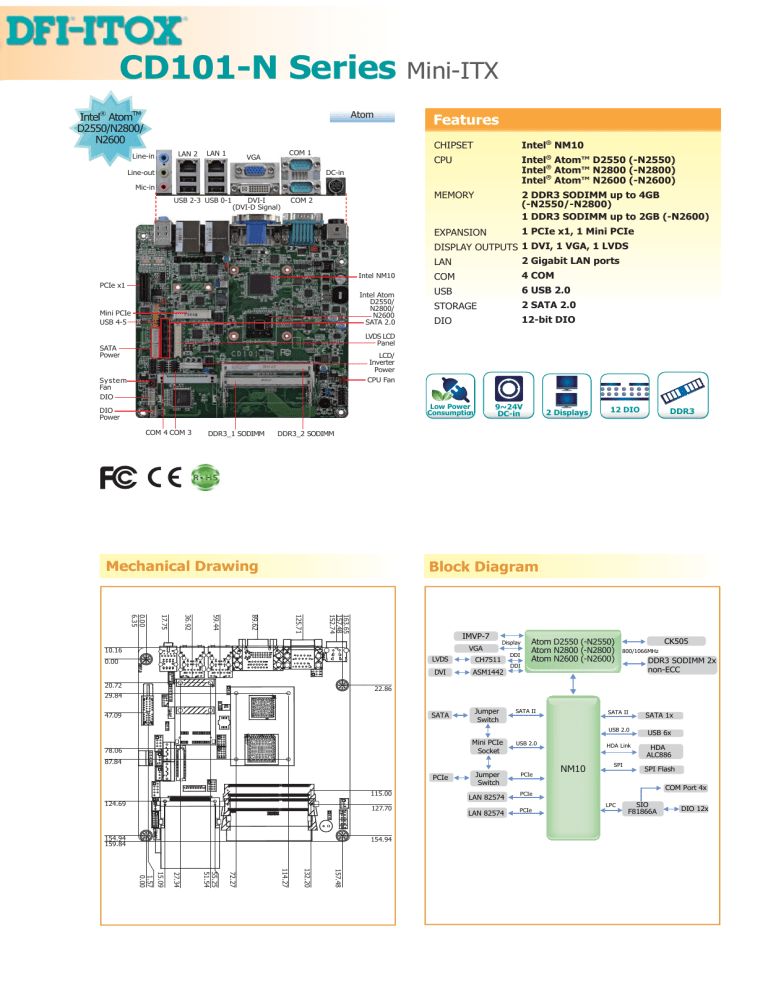

CD101-N Series Mini-ITX
Atom
Intel® AtomTM
D2550/N2800/
N2600
LAN 2
Line-in
LAN 1
Features
COM 1
VGA
Line-out
CHIPSET
Intel® NM10
CPU
Intel® Atom™ D2550 (-N2550)
Intel® Atom™ N2800 (-N2800)
Intel® Atom™ N2600 (-N2600)
MEMORY
2 DDR3 SODIMM up to 4GB
(-N2550/-N2800)
1 DDR3 SODIMM up to 2GB (-N2600)
EXPANSION
1 PCIe x1, 1 Mini PCIe
DC-in
Mic-in
USB 2-3 USB 0-1
COM 2
DVI-I
(DVI-D Signal)
DISPLAY OUTPUTS 1 DVI, 1 VGA, 1 LVDS
2 Gigabit LAN ports
LAN
Intel NM10
PCIe x1
Intel Atom
D2550/
N2800/
N2600
SATA 2.0
Mini PCIe
USB 4-5
COM
4 COM
USB
6 USB 2.0
STORAGE
2 SATA 2.0
DIO
12-bit DIO
LVDS LCD
Panel
SATA
Power
LCD/
Inverter
Power
CPU Fan
System
Fan
DIO
9~24V
DC-in
Low Power
Consumption
DIO
Power
COM 4 COM 3
DDR3_1 SODIMM
2 Displays
12 DIO
DDR3
DDR3_2 SODIMM
Mechanical Drawing
Block Diagram
163.65
157.48
152.74
125.71
89.62
59.44
36.92
17.75
0.00
6.35
IMVP-7
VGA
10.16
0.00
20.72
Display
LVDS
CH7511
DVI
ASM1442
SATA
Jumper
Switch
DDI
DDI
Atom D2550 (-N2550)
Atom N2800 (-N2800)
Atom N2600 (-N2600)
CK505
800/1066MHz
DDR3 SODIMM 2x
non-ECC
22.86
29.84
47.09
78.06
SATA II
Mini PCIe
Socket
USB 2.0
Jumper
Switch
PCIe
LAN 82574
PCIe
LAN 82574
PCIe
87.84
PCIe
115.00
124.69
127.70
154.94
159.84
154.94
NM10
SATA II
SATA 1x
USB 2.0
USB 6x
HDA Link
HDA
ALC886
SPI
SPI Flash
COM Port 4x
LPC
SIO
F81866A
DIO 12x
157.48
132.20
114.27
72.27
55.25
51.54
27.34
1.57
0.00
15.09
CD101-N Series Mini-ITX
Specifications
PROCESSOR
• CD101-N2550:
- Intel® AtomTM D2550, 1.86GHz, 2x 512K L2, 10W TDP, dual-core
- Cooling option: heatsink with cooling fan
• CD101-N2800:
- Intel® AtomTM N2800, 1.86GHz, 2x 512K L2, 6.5W TDP, dual-core
- Cooling option: heatsink (fanless solution)
• CD101-N2600:
- Intel® AtomTM N2600, 1.6GHz, 2x 512K L2, 3.5W TDP, dual-core
- Cooling option: heatsink (fanless solution)
CHIPSET
• Intel® NM10 Express chipset
SYSTEM MEMORY
• Supports DDR3 1066MHz (CD101-N2550/CD101-N2800)
Supports DDR3 800MHz (CD101-N2600)
• Supports single channel memory interface
• Two 204-pin DDR3 SODIMM sockets support up to 4GB system
memory (CD101-N2550/CD101-N2800)
One 204-pin DDR3 SODIMM socket supports up to 2GB system
memory (CD101-N2600)
• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM
technologies are supported for x8 and x16 devices, unbuffered,
non-ECC
EXPANSION SLOTS
• 1 PCIe x1 slot
• 1 Mini PCIe slot
- Supports USB and PCIe signals
- Supports half size and/or full size Mini PCIe card
ONBOARD GRAPHICS FEATURES
• Intel® GMA 3650 (CD101-N2550/CD101-N2800)
Intel® GMA 3600 (CD101-N2600)
• Supports DVI (DVI-D signal), VGA, and LVDS interfaces
• LVDS: 24-bit, dual channel
• DVI and VGA display resolution up to 1920x1200
• Supports Hardware H.264/AVC, MPEG-2 video decoder, VC-1, DirectX
9, 1080p decoder
ONBOARD AUDIO FEATURES
• Realtek ALC886 7.1-channel High Definition Audio
ONBOARD LAN FEATURES
• 2 Intel® 82574 Gigabit Ethernet Controllers
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
I/O CONNECTORS
• 1 connector for 2 external USB 2.0/1.1 ports
• 2 connectors for 2 external RS232 serial ports
• 1 LVDS LCD panel connector
• 1 LCD/inverter power connector
• 1 12-bit Digital I/O connector
• 1 Digital I/O power connector
• 1 front audio connector for line-out and mic-in jacks
• 2 SATA 2.0 ports
• 2 SATA power connectors
• 1 chassis intrusion connector
• 1 front panel connector
• 2 fan connectors
BIOS
• AMI BIOS
- 16Mbit SPI BIOS
ENERGY EFFICIENT DESIGN
• ACPI v3.0 specification
• System Power Management
• Wake-On-Events include:
- Wake-On-USB KB/Mouse
- Wake-On-LAN
- RTC timer to power-on the system
• AC power failure recovery
DAMAGE FREE INTELLIGENCE
• Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/VGFX/1.05V/3.3V/5VSB/3VSB/VBAT voltages and
failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan
speed
• Watchdog timer function
- Watchdog timeout programmable via software from 1 to 255
seconds
POWER CONSUMPTION
• 21.6W with D2550 at 1.86GHz and 2x 2GB DDR3 SODIMM
• 19.104W with N2800 at 1.86GHz and 2x 2GB DDR3 SODIMM
• 16.92W with N2600 at 1.60GHz and 1x 2GB DDR3 SODIMM
TEMPERATURE
• Operating: 0oC to 60oC
• Storage: -20oC to 85oC
SERIAL ATA (SATA) INTERFACE
• Supports 2 Serial ATA interfaces
• SATA 2.0 with data transfer rate up to 3Gb/s
• Integrated Advanced Host Controller Interface (AHCI) controller
HUMIDITY
• 10% to 90%
REAR PANEL I/O PORTS
• 1 4-pin DC-in 9-24V jack or 4-pin ATX 9-24V power connector (optional)
• 1 DVI-I port (DVI-D signal)
• 1 VGA port
• 2 DB-9 serial ports
- 1 RS232/422/485 (RS232 and/or Power)
- 1 RS232
• 2 LAN ports
• 4 USB 2.0/1.1 ports
• Mic-in, Line-in, Line-out jacks
CERTIFICATION
• CE
• FCC Class B
• RoHS
DIMENSIONS
• Mini-ITX form factor
• 170mm (6.7") x 170mm (6.7")
Packing List
Optional Items
• 1 CD101-N motherboard
• USB port cable
• 1 Serial ATA data with power cable
• Serial ATA data cable
• 1 I/O shield
• Serial ATA power cable
• 1 QR (Quick Reference)
• COM port cable
• 1 DVD
• I/O shield
DFI,72; reserves the right to change the specifications at any time prior to the product's release. Changes thereafter will be based on the product's revision.
Please contact your sales representative for the exact revision offered in your area. Refer to the website (www.dfi LWR[.com) for the most updated information.
www.dfi-itox.com
All product names mentioned are trademarks of their respective companies. © April 21, 2013 DFI,72; Inc.
