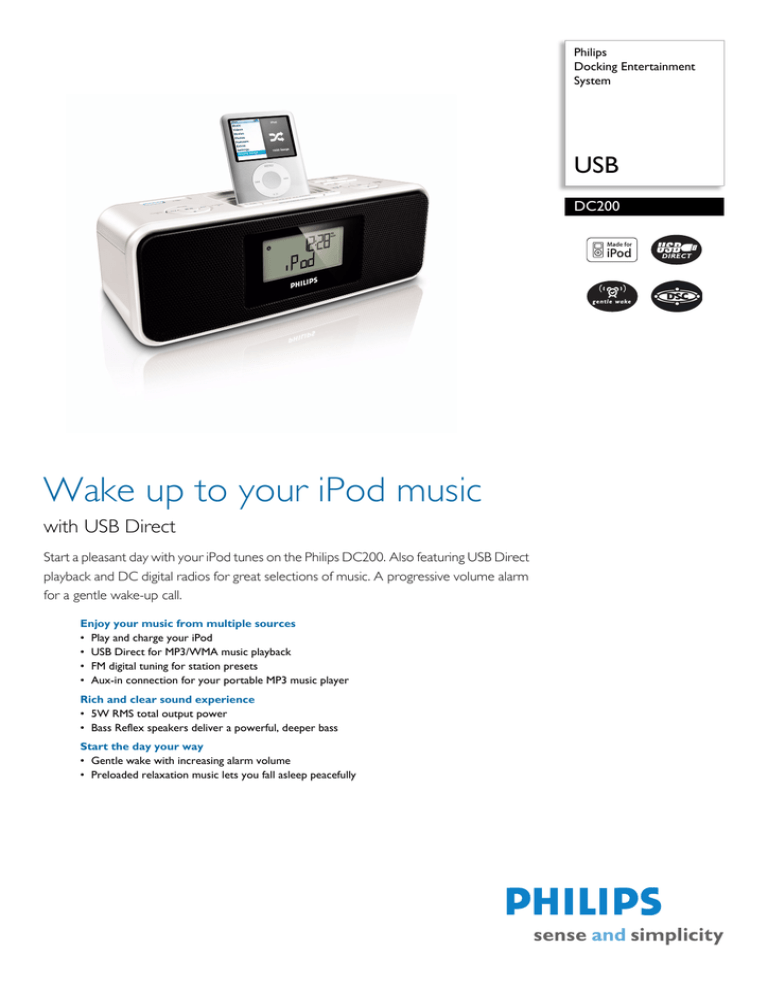

Philips DC200 Datasheet

Philips DC200 Datasheet
Docking Entertainment
Wake up to your iPod music
with USB Direct
Start a pleasant day with your iPod tunes on the Philips DC200. Also featuring USB Direct
playback and DC digital radios for great selections of music. A progressive volume alarm
for a gentle wake-up call.
Enjoy your music from multiple sources
• Play and charge your iPod
• USB Direct for MP3/WMA music playback
• FM digital tuning for station presets
• Aux-in connection for your portable MP3 music player
Rich and clear sound experience
• 5W RMS total output power
• Bass Reflex speakers deliver a powerful, deeper bass
Start the day your way
• Gentle wake with increasing alarm volume
• Preloaded relaxation music lets you fall asleep peacefully
Docking Entertainment System
Product highlights
iPod compatibility
• Compatible with: iPod touch, iPod classic, iPod
nano 3rd Generation, iPod 5th Generation, iPod
with color display, iPod nano, iPod mini
Audio Playback
• USB Direct Modes: Play/Pause, Previous/Next,
Program Play, Repeat, Shuffle, Stop
• Compression format: MP3, WMA
Tuner Bands: FM
Auto digital tuning
Station presets: 20
Antenna: FM Antenna
• Built-in speakers: 2
• USB: USB host
• Aux in: Line-in, 3.5 mm
• DC in: 9V
• Mains power
• Adaptor type: 100-240V 50/60Hz
• Clock/Version: Digital
• Alarms: Wake to nature sound, 24 hour alarm
reset, Dual alarm time, Buzzer Alarm, Radio
Alarm, Repeat alarm (snooze), Sleep timer
• Sleep Timer: Nature sound, Relaxation music
• Display Type: LCD
• Backlight
• Backlight color: White
• Output power (RMS): 5W
• Sound System: Stereo
• Volume Control: Volume Control up/down
Master carton dimensions: 227 x 230 x 330 mm
Master carton quantity: 4
Master carton weight: 4.85 kg
Packaging type: D-box
Packaging dimensions (W x H x D):
315 x 109 x 107 mm
• Weight incl. Packaging: 1.15 kg
• Product dimensions (W x H x D):
216 x 80 x 79 mm
• Product weight: 0.9 kg
• Included Accessories: 3.5mm stereo line in cable,
AC-DC Adapter, Quick Use Guide, User Manual
Issue date 2008-02-27
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.6
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 37823
EAN: 87 12581 40228 0
USB Direct-MP3/WMA
With the USB Direct mode, you can simply select the
music on a USB device and playback all your content. All
you have to do is plug in your USB device to playback
music or export content from the device.
Preloaded relaxation music
Aux-in connection
