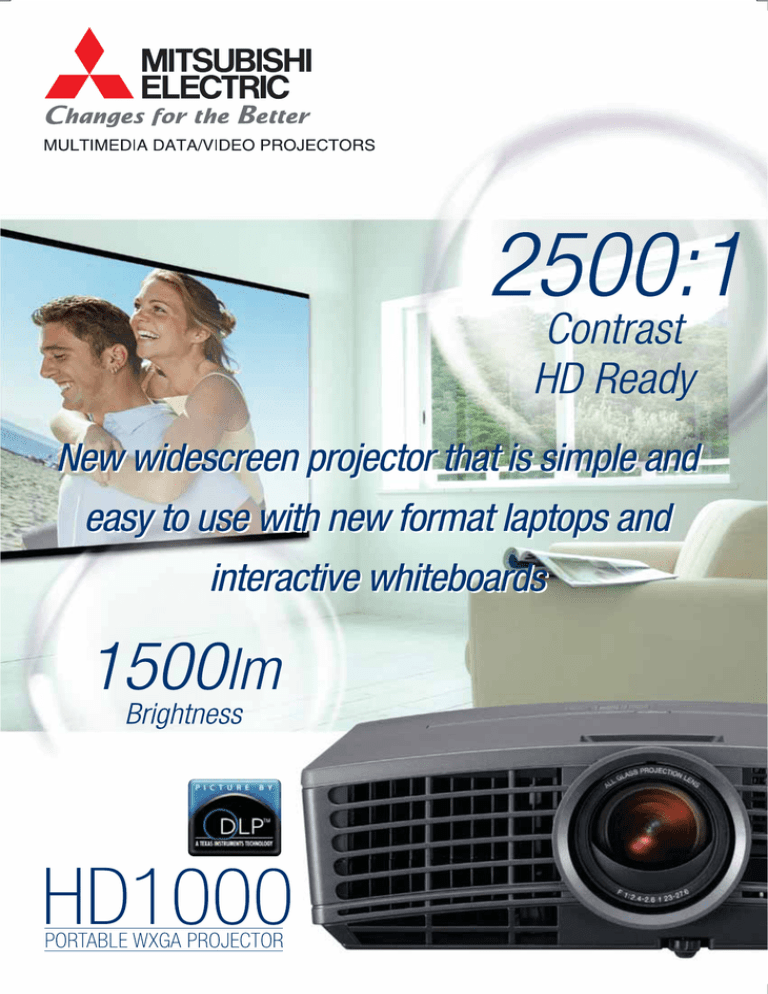

MITSUBISHI
a ELECTRIC
Changes for the Better
MULTIMEDIA DATA/VIDEO PROJECTORS
Z900:1
Contrast
me. «HD Ready
Ne N.widescreen projectoranatis simple
— easy to.usé With new format laptops and
1500
Brightness
FITCTURE BY
HD1000 |
PORTABLE WXGA PROJECTOR
Picture Size
Source lamp
Computer
compatibility
ie HD 10
sc RR PORTABLE WXGA PROJECTOR
Specifications
Display technology
Resolution
Brightness
Contrast
Video compatibility
Input and Output Terminals
© USB Optional lamp
O HDMIx1 PC input terminals
© RGB Inx1 Video input terminals
© Remote IR Communication terminals
O Component Y/Cs/Ca Fan noise
O S-video Dimension (WxHxD)
@ Video In Weight
O Tri gger Out Power supply
HD1000
0.62”1-chip DMD, 12deg. LVDS,DarkChip2™
with DDP3020
1280x720 (total 921,600 pixels), 600 video lines
1500Im
2500 : 1
40” - 275” (100”=3.6m)
160W (Shut Off Time 3000Hrs) in eco mode
200W (Shut Off Time 2000Hrs)
640x480-1280x1024 (compressed)
XGA(1280x720), Sync on green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N) /
SECAM / PAL-60
Component Video: 480i/p(525i/p), 576i/p(625i/p), 720
(750p 50/60Hz), 1080i(1125i 60Hz), 1080i(1125i 50Hz)
SCART(RGB+1V sync)
RGB: mini D-sub 15pinx1, HDMIx 1
Video: RCAx1, S-videox1, RCA(Y, Cs, Ca)x1
RS-232Cx1, USB
25dBA (eco mode)
310x100x245mm (excluding height adjuster)
2.9kg / 6.5Ibs
AC100 - 240V, 50 / 60Hz
VLT-HC910LP
* All brand names and product names are trademarks, registered trademarks or trade names
O RS-232C of their respective holders. *DLP (Digital Light Processing) is a trademark of Texas Instruments.
As seen from the side
Screen
Top view Bottom view o / Project
Projected image area
FF
ao H
oca
Oo
( o )
LO
LN TT
—! . Lw~Lt _
| 87, o
© With screen aspect ratio of 16:9
Screen size Projection distance
os Diagonal wi hei Hd(cm) Lw: Without | Lt With max,
Front view Side view (type designation) | W-width cm) | H:height (cm) magnification(m) | magnification(m)
40 89 50 17 1.4 1.7
60 133 75 25 2.2 2.6
70 155 87 29 25 3.1
80 177 100 33 29 3.5
90 199 112 38 3.3 4.0
100 221 125 42 3.6 4.4
Le 205 ol - 25.2 110 244 137 46 4.0 4.9
120 266 149 50 4.4 5.3
150 332 187 63 5.5 6.6
275 609 342 115 10.1 -
Unit:mm (in.)
The above numbers are approximate, and may be slightly different from the actual measurements.
2% MITSUBISHI ELECTRIC EUROPE
TRAVELLERS LANE, HATFIELD, HERTFORDSHIRE AL10 8XB
Telephone: (01707) 278684 Fax: (01707) 278541 Email: [email protected]
For more information about our projectors, please see the website at:
www.mitsubishielectric.co.uk/vis
New publication, effective Oct. 2006
Specifications subject to change without notice.
