Sony PCSA-CHG90, PCSA - CHG90 Datasheet

Sony PCSA-CHG90, PCSA - CHG90 Datasheet

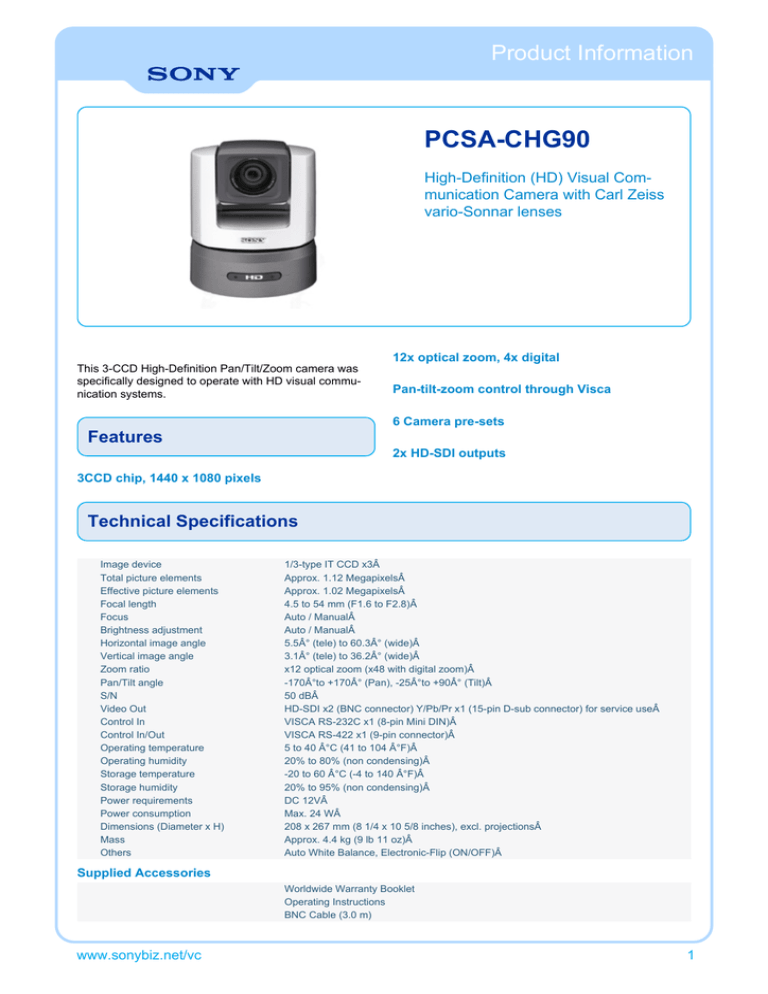

Product Information
High-Definition (HD) Visual Communication Camera with Carl Zeiss
vario-Sonnar lenses
This 3-CCD High-Definition Pan/Tilt/Zoom camera was
specifically designed to operate with HD visual communication systems.
12x optical zoom, 4x digital
Pan-tilt-zoom control through Visca
6 Camera pre-sets
2x HD-SDI outputs
3CCD chip, 1440 x 1080 pixels
Technical Specifications
Image device
Total picture elements
Effective picture elements
Focal length
Brightness adjustment
Horizontal image angle
Vertical image angle
Zoom ratio
Pan/Tilt angle
Video Out
Control In
Control In/Out
Operating temperature
Operating humidity
Storage temperature
Storage humidity
Power requirements
Power consumption
Dimensions (Diameter x H)
1/3-type IT CCD x3Â
Approx. 1.12 MegapixelsÂ
Approx. 1.02 MegapixelsÂ
4.5 to 54 mm (F1.6 to F2.8)Â
Auto / ManualÂ
Auto / ManualÂ
5.5° (tele) to 60.3° (wide)Â
3.1° (tele) to 36.2° (wide)Â
x12 optical zoom (x48 with digital zoom)Â
-170°to +170° (Pan), -25°to +90° (Tilt)Â
50 dBÂ
HD-SDI x2 (BNC connector) Y/Pb/Pr x1 (15-pin D-sub connector) for service useÂ
VISCA RS-232C x1 (8-pin Mini DIN)Â
VISCA RS-422 x1 (9-pin connector)Â
5 to 40 °C (41 to 104 °F)Â
20% to 80% (non condensing)Â
-20 to 60 °C (-4 to 140 °F)Â
20% to 95% (non condensing)Â
Max. 24 WÂ
208 x 267 mm (8 1/4 x 10 5/8 inches), excl. projectionsÂ
Approx. 4.4 kg (9 lb 11 oz)Â
Auto White Balance, Electronic-Flip (ON/OFF)Â
Supplied Accessories
Worldwide Warranty Booklet
Operating Instructions
BNC Cable (3.0 m)
VISCA Cable (3.0 m)
RS-422 Connector Plug
Screws (+M4x8)
Screws (+M3x8)
Wire Rope
Ceiling Bracket (B)
Ceiling Bracket (A)
AC Power Cord
AC Power Adaptor (MPA-AC1)
