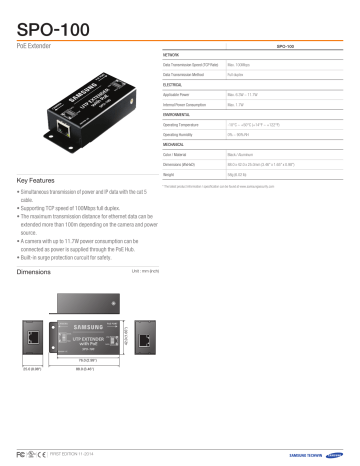

SPO-100
PoE Extender
SPO-100
NETWORK
Data Transmission Speed (TCP Rate)
Max. 100Mbps
Data Transmission Method
Full duplex
ELECTRICAL
Applicable Power
Max. 6.3W ~ 11.7W
Internal Power Consumption
Max. 1.7W
ENVIRONMENTAL
Operating Temperature
-10°C ~ +50°C (+14°F ~ +122°F)
Operating Humidity
0% ~ 90% RH
MECHANICAL
Key Features
• Simultaneous transmission of power and IP data with the cat 5
cable.
• Supporting TCP speed of 100Mbps full duplex.
• The maximum transmission distance for ethernet data can be
extended more than 100m depending on the camera and power
source.
• A camera with up to 11.7W power consumption can be
connected as power is supplied through the PoE Hub.
• Built-in surge protection curcuit for safety.
Dimensions
Color / Material
Black / Aluminum
Dimensions (WxHxD)
88.0 x 42.0 x 25.0mm (3.46" x 1.65" x 0.98")
Weight
58g (6.02 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
42.0 (1.65")
(1.65")
42.0
Unit : mm (inch)
76.0
76.0(2.99")
(2.99")
25.0 (0.98")
25.0
(0.98")
88.0 (3.46")
88.0
(3.46")
76
25
86
FIRST EDITION 11-2014
42
