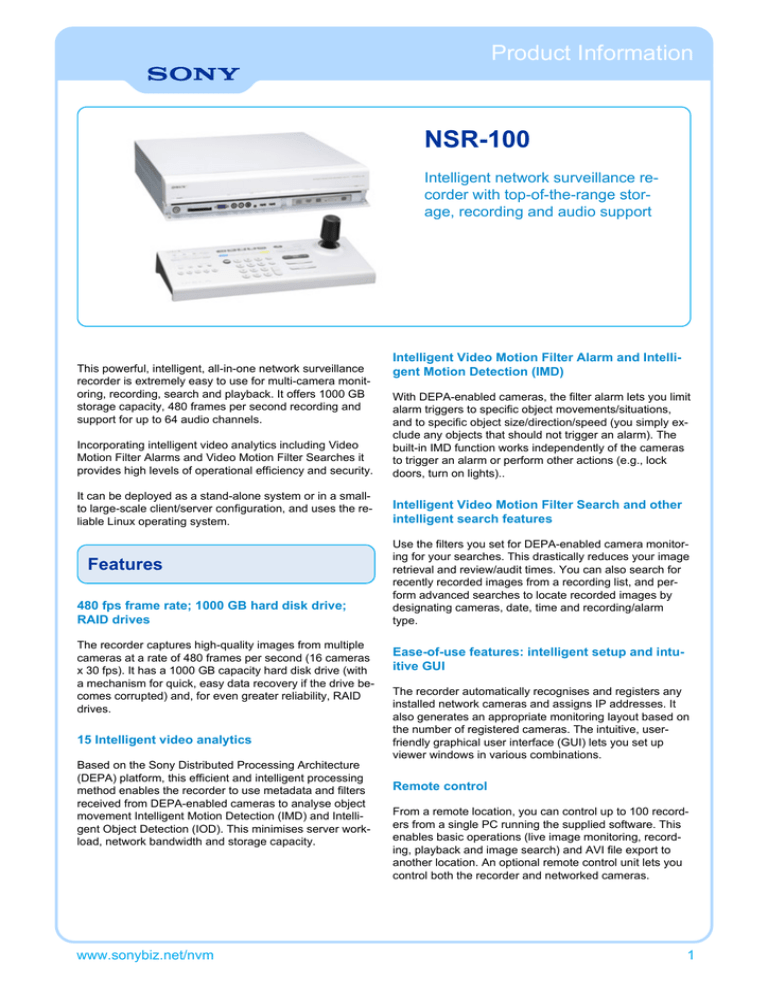

Sony NSR-100 Datasheet

Sony NSR-100 Datasheet
Product Information
Intelligent network surveillance recorder with top-of-the-range storage, recording and audio support
This powerful, intelligent, all-in-one network surveillance
recorder is extremely easy to use for multi-camera monitoring, recording, search and playback. It offers 1000 GB
storage capacity, 480 frames per second recording and
support for up to 64 audio channels.
Intelligent Video Motion Filter Alarm and Intelligent Motion Detection (IMD)
Incorporating intelligent video analytics including Video
Motion Filter Alarms and Video Motion Filter Searches it
provides high levels of operational efficiency and security.
With DEPA-enabled cameras, the filter alarm lets you limit
alarm triggers to specific object movements/situations,
and to specific object size/direction/speed (you simply exclude any objects that should not trigger an alarm). The
built-in IMD function works independently of the cameras
to trigger an alarm or perform other actions (e.g., lock
doors, turn on lights)..
It can be deployed as a stand-alone system or in a smallto large-scale client/server configuration, and uses the reliable Linux operating system.
Intelligent Video Motion Filter Search and other
intelligent search features
480 fps frame rate; 1000 GB hard disk drive;
RAID drives
The recorder captures high-quality images from multiple
cameras at a rate of 480 frames per second (16 cameras
x 30 fps). It has a 1000 GB capacity hard disk drive (with
a mechanism for quick, easy data recovery if the drive becomes corrupted) and, for even greater reliability, RAID
15 Intelligent video analytics
Based on the Sony Distributed Processing Architecture
(DEPA) platform, this efficient and intelligent processing
method enables the recorder to use metadata and filters
received from DEPA-enabled cameras to analyse object
movement Intelligent Motion Detection (IMD) and Intelligent Object Detection (IOD). This minimises server workload, network bandwidth and storage capacity.
Use the filters you set for DEPA-enabled camera monitoring for your searches. This drastically reduces your image
retrieval and review/audit times. You can also search for
recently recorded images from a recording list, and perform advanced searches to locate recorded images by
designating cameras, date, time and recording/alarm
Ease-of-use features: intelligent setup and intuitive GUI
The recorder automatically recognises and registers any
installed network cameras and assigns IP addresses. It
also generates an appropriate monitoring layout based on
the number of registered cameras. The intuitive, userfriendly graphical user interface (GUI) lets you set up
viewer windows in various combinations.
Remote control
From a remote location, you can control up to 100 recorders from a single PC running the supplied software. This
enables basic operations (live image monitoring, recording, playback and image search) and AVI file export to
another location. An optional remote control unit lets you
control both the recorder and networked cameras.
Multiple hot-spot monitoring and dual-monitor
You can assign a hot-spot area (a specific monitor window within a multi-camera view) and configure the system
with dual monitors. This lets you assign up to nine hotspot monitor windows to the second monitor to ensure
crucial events are not missed.
MPEG-4/JPEG support
The recorder supports recording and playback for cameras that encode in both MPEG-4 and JPEG, giving you
more options when configuring your network monitoring
Flexible recording modes
Different recording modes â¿¿ including manual, scheduled, hardware alarm, pre- and post-alarm, and motionbase recording â¿¿ give you greater choice when deciding what to record.
wizard detects all networked cameras, gives each an IP
address and even creates a monitoring layout. Youâ¿¿ll
find the graphical user interface (GUI) is intuitive and very
user friendly.
Built-in intelligence simplifies monitoring
Enjoy fewer false alarms and greater accuracy with builtin motion and object detection intelligence. The joystick
keyboard simplifies all operations. You can view hot-spot
areas and multiple screens on dual monitors. Choose
your preferred default layout or customise one to your
specific requirements.
Greater choice when deciding what to record
This recorder lets you decide what to record, thanks to a
wide choice of different recording modes. It also support
high frame rate recording: 480 frames per second.
Easy to search, playback and export
You’ll find it easy to search for image data by time, date,
recording type and camera number. You can perform simultaneous playback of multiple cameras. And you can
choose from many export options: DVD-R, CD-R/RW, CF
card, video output and USB memory.
Save time and effort at setup
This recorder is designed to complete setup tasks without
user intervention, saving you time and effort. A setup
Technical Specifications
--Video/Recording-Number of IP Cameras Supported
Video Compression
Maximum Recording Rate *1
Hard Disk Drives
Network File System (for NAS)
64 Max.
480 fps
Physical Capacity 1,000 GB (250 GB x 4)Â InterfaceÂSerial ATA RAID Level/Recording
Capacity (approx.) Hardware RAID (Hot Swappable when set to RAID 5 or RAID 1)
RAID 5: (Default) 700 GB RAID 1: 460 GB RAID 0: 940 GB
Supports NFS Version 3 protocol
--Video Interface-Monitor OUT
Video Output
Analog Composite OUT
1 RGB connector x2 (Front and Rear Panel, cannot be used simultaneously) 2 RGB connector x1
S-Video x1
RCA-pin x2 (Front and Rear Panel, cannot be used simultaneously)
--Audio Interface-Mic IN
Line OUT
Mini jack x1(front), x 1(rear)
RCA-pin, L/R x1 stereo pair, (front and rear panel)
--Sensor/Alarm-Sensor in
Alarm out
8-channel photo-coupler (DC3.3-24V)
8-channel relay (Max. 24V 1A)
--Other Interfaces-Ethernet
1000Base-T/100Base-TX/10Base-T x3 (automatic switching)
Serial interface
Front x2, Rear x2
RS-232C x1 (for UPS) *2
--General-Dimensions (W x H x D)
Current consumption
Operating temperature
Operating humidity
430 x 87 x 417 mm (17 x 3 1/2 x 16 1/2) excluding protrusions
Approx. 13 kg (28 lb 11 oz)
100 to 127/200 to 240 V AC
2.77 A / 1.39 A
5 to 40° C (41 to 104° F)
10 to 80% (non-condensing)
Supplied Accessories
Rubber feet
Manual/Tool/Source codes CD
Recovery CD
Remote control unit operation card
Installation guide
Front panel key
Network Interface
SNT - V 704
Sony Video Network Server, the
