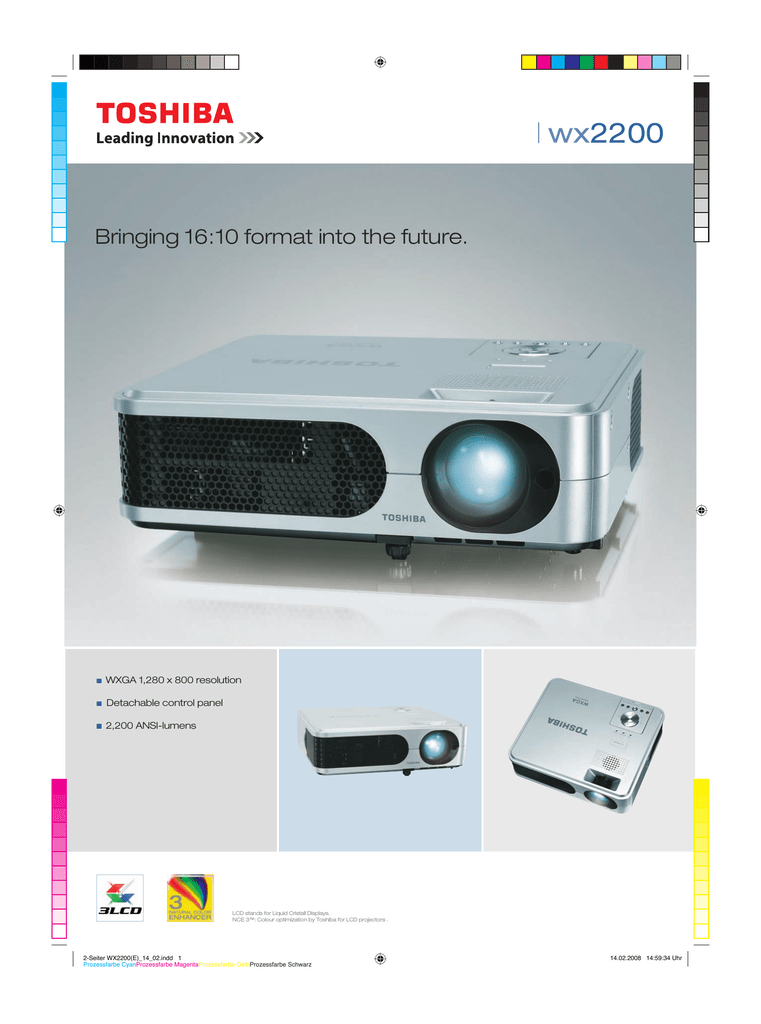

Toshiba wx2200 Datasheet

| wx2200
Bringing 16:10 format into the future.
WXGA 1,280 x 800 resolution
Detachable control panel
2,200 ANSI-lumens
LCD stands for Liquid Cristall Displays.
NCE 3™: Colour optimization by Toshiba for LCD projectors .
2-Seiter WX2200(E)_14_02.indd 1
Prozessfarbe CyanProzessfarbe
CyanProzessfarbe MagentaProzessfarbe
MagentaProzessfarbe GelbProzessfarbe
GelbProzessfarbe Schwarz
14.02.2008 14:59:34 Uhr
| wx2200
Display
0.56” LCD Chip
Outputs
RGB (D-sub 15), audio (stereo mini jack)
Resolution
WXGA 1,280 x 800
Serielle interface
RS-232C (mini DIN 8pin)
Brightness
2,200 ANSI-lumens
Power supply
AC 100 - 240 V, 50/60 Hz
Colour reproduction
16.7 mio. colours
Loudspeaker
1 W mono
Contrast
600:1
Dimensions (W x H x D)
288 x 82 x 247 mm
Projection format
16:10 switchable to 4:3
Weight
2.8 kg
Lamp
205 W (TLPLW11LAMP)
Operation noise
normal 34 dB/ECO mode 29 dB
Maximal lamp life
up to max. 2,000 hours/
Specials
keystone correction, instant shut down,
Lens
up to max. 3,000 hours in ECO mode
NCE 3™, pincode, black board-function,
F = 1.6 - 1.88 / f = 18.4 - 22.6 mm,
panellock, digital zoom, detachable
manual zoom and focus
control panel
Zoom
1,2 x
Frequency (hor. / vertical)
15 - 120 kHz/50 - 150 Hz
Projection
front, rear and ceiling
Digital keystone correction
auto vertical +/- 30°
Picture size (diagonal)
1.00 - 7.62 m
Projection distance
1.30 - 12.00 m
Input signals
NTSC/PAL/SECAM, 480i, 480p, 576i,
Accessories
remote control with laserpointer and
batteries, D-sub- and power-cable,
softcase
Options
ceiling mount, spare lamp, camera c001
576p, 720p, 1,080i, VGA, SVGA, XGA,
WXGA, SXGA, UXGA (compr.)
Inputs
RGB (D-sub 15), S-video, composite
video (RCA), audio (stereo mini jack),
video/S-video audio (1 x RCA L/R),
Picture size
Projection distance
1.02 m
2.03 m
3.81 m
5.08 m
7.62 m
1.29 - 1.56 m
2.61 - 3.16 m
4.93 - 5.95 m
6.58 - 7.94 m
9.89 - 11.93 m
August 2007 • Subject to modifications and errors
component (Y/PB/PR) via D-sub 15
www.toshiba-projectors.com
Toshiba Europe GmbH
Projection & Display Technology
Phone: ++49-2131-158-01 · Fax: ++49-2131-158-835
e-mail: [email protected]
