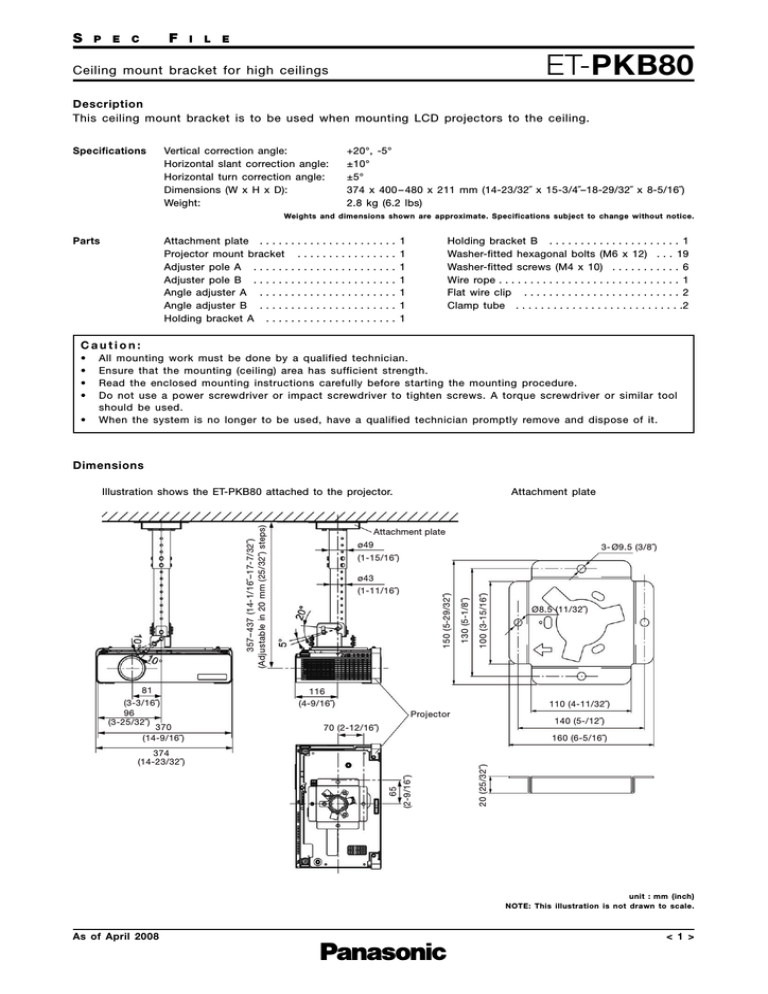

ET-PKB80
Ceiling mount bracket for high ceilings
Description
This ceiling mount bracket is to be used when mounting LCD projectors to the ceiling.
Specifications
Vertical correction angle:
Horizontal slant correction angle:
Horizontal turn correction angle:
Dimensions (W x H x D):
Weight:
+20°, -5°
±10°
±5°
374 x 400 – 480 x 211 mm (14-23/32˝ x 15-3/4˝–18-29/32˝ x 8-5/16˝)
2.8 kg (6.2 lbs)
Weights and dimensions shown are approximate. Specifications subject to change without notice.
Parts
Attachment plate . . . . .
Projector mount bracket
Adjuster pole A . . . . . .
Adjuster pole B . . . . . .
Angle adjuster A . . . . .
Angle adjuster B . . . . .
Holding bracket A . . . .
..
.
..
..
..
..
..
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
1
1
1
1
1
1
Holding bracket B . . . . . . . . . . . . . . . . . . . . . 1
Washer-fitted hexagonal bolts (M6 x 12) . . . 19
Washer-fitted screws (M4 x 10) . . . . . . . . . . . 6
Wire rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Flat wire clip . . . . . . . . . . . . . . . . . . . . . . . . . 2
Clamp tube . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Caution:
•
•
•
•
•
All mounting work must be done by a qualified technician.
Ensure that the mounting (ceiling) area has sufficient strength.
Read the enclosed mounting instructions carefully before starting the mounting procedure.
Do not use a power screwdriver or impact screwdriver to tighten screws. A torque screwdriver or similar tool
should be used.
When the system is no longer to be used, have a qualified technician promptly remove and dispose of it.
Dimensions
357– 437 (14-1/16˝–17-7/32˝)
(Adjustable in 20 mm (25/32˝) steps)
Illustration shows the ET-PKB80 attached to the projector.
Attachment plate
ø49
3- Ø9.5 (3/8˝)
(1-15/16˝)
100 (3-15/16˝)
150 (5-29/32˝)
(1-11/16˝)
130 (5-1/8˝)
ø43
116
(4-9/16˝)
Ø8.5 (11/32˝)
110 (4-11/32˝)
Projector
140 (5-/12˝)
70 (2-12/16˝)
160 (6-5/16˝)
65
(2-9/16˝)
374
(14-23/32˝)
20 (25/32˝)
81
(3-3/16˝)
96
(3-25/32˝)
370
(14-9/16˝)
Attachment plate
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
As of April 2008
