4341 State Street Road
Skaneateles Falls, NY 13153-0220
www.welchallyn.com
Mat. 714514, Ver. A

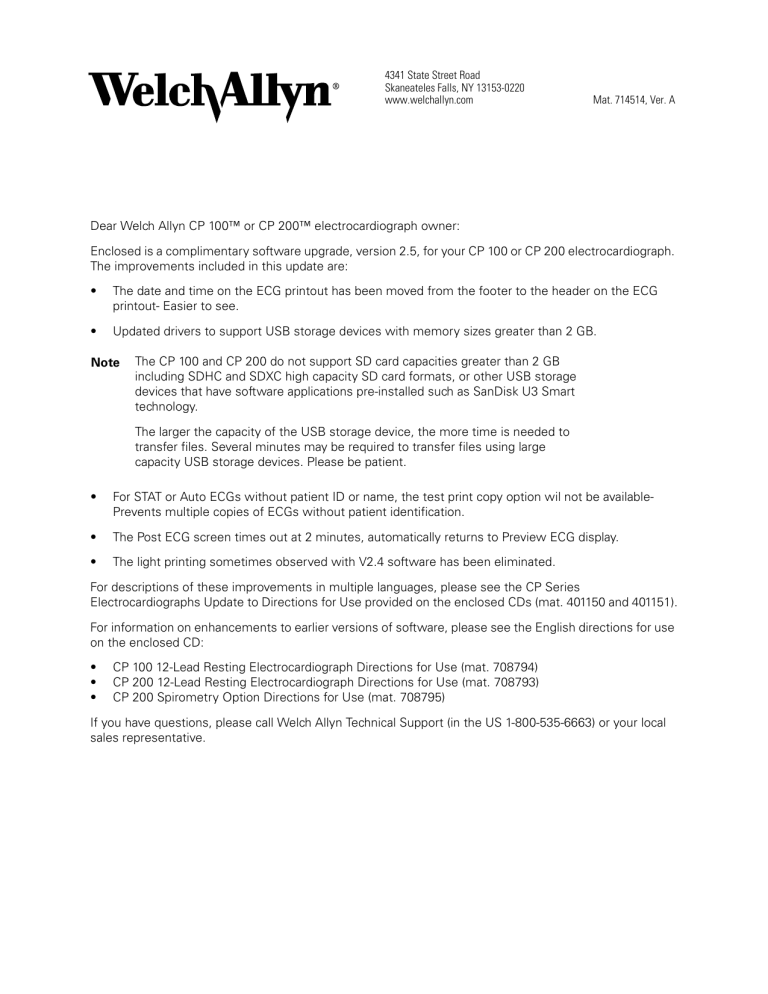

Dear Welch Allyn CP 100™ or CP 200™ electrocardiograph owner:
Enclosed is a complimentary software upgrade, version 2.5, for your CP 100 or CP 200 electrocardiograph.
The improvements included in this update are:
•
The date and time on the ECG printout has been moved from the footer to the header on the ECG
printout- Easier to see.
•
Updated drivers to support USB storage devices with memory sizes greater than 2 GB.
Note
The CP 100 and CP 200 do not support SD card capacities greater than 2 GB
including SDHC and SDXC high capacity SD card formats, or other USB storage
devices that have software applications pre-installed such as SanDisk U3 Smart
technology.
The larger the capacity of the USB storage device, the more time is needed to
transfer files. Several minutes may be required to transfer files using large
capacity USB storage devices. Please be patient.
•
For STAT or Auto ECGs without patient ID or name, the test print copy option wil not be availablePrevents multiple copies of ECGs without patient identification.
•
The Post ECG screen times out at 2 minutes, automatically returns to Preview ECG display.
•
The light printing sometimes observed with V2.4 software has been eliminated.
For descriptions of these improvements in multiple languages, please see the CP Series
Electrocardiographs Update to Directions for Use provided on the enclosed CDs (mat. 401150 and 401151).
For information on enhancements to earlier versions of software, please see the English directions for use
on the enclosed CD:
•
•
•
CP 100 12-Lead Resting Electrocardiograph Directions for Use (mat. 708794)
CP 200 12-Lead Resting Electrocardiograph Directions for Use (mat. 708793)
CP 200 Spirometry Option Directions for Use (mat. 708795)
If you have questions, please call Welch Allyn Technical Support (in the US 1-800-535-6663) or your local
sales representative.
CP 100 and CP 200 electrocardiographs — software upgrade 2.5
2 of 3
Backing up saved tests
Caution Under rare circumstances, saved tests can be lost when you upgrade the CP 200
software. Welch Allyn recommends that you back up any saved tests before you upgrade.
1.
Turn the electrocardiograph on.
2. Select all saved tests.
a.
Press the Menu key
.
b. Choose Test Directory. The test directory search screen appears.
c.
Select the Unsent Tests check box.
d. Press Search. All tests appear in the search results listing.
e. Press Ctrl-A to select all tests.
3. Back up the saved tests.
a.
Press Send.
b. Choose a back-up location.
•
Memory Card
An SD memory card or removable USB storage device must be in place.
•
Workstation.
The electrocardiograph must be connected to a Welch Allyn CardioPerfect™ Workstation.
The tests are backed up.
You can retrieve backed-up tests from a CardioPerfect Workstation.
CP 100 and CP 200 electrocardiographs — software upgrade 2.5
3 of 3
Upgrading your CP 100 or CP 200 software
Caution Do not unplug or turn the electrocardiograph off during the upgrade, or the system will
become inoperable.
After you install an update, it cannot be uninstalled.
1.
Turn the electrocardiograph on.
2. Insert the SD memory card into the slot.
3. Perform the upgrade.
a.
Press the Menu key
.
b. Choose Main Menu > Systems Settings > Device Info > Upgrade Software.
c.
Follow the instructions on the screen.
The upgrade takes about 60 seconds to complete. The electrocardiograph reboots.
4. Verify the upgrade.
a.
Press the Menu key
.
b. Choose Main Menu > System Settings > Device Info > About.
c.
Make sure that the product version listed is the version that you installed. If not, call Welch Allyn.
d. Press Stop/Cancel.
5. Verify the date and time displayed. If they are incorrect, set them.
a.
Press the Menu key
.
b. Choose Main Menu > System Settings > Device Configuration > Set Date/Time.
c.
Make the desired change.
d. Press Stop/Cancel.
6. Print a device report for your records
a.
Press the Menu key
.
b. Choose Main Menu > System Settings > Device Info > Print Settings.
c.
Verify that system settings are correct. Keep the report for reference.
