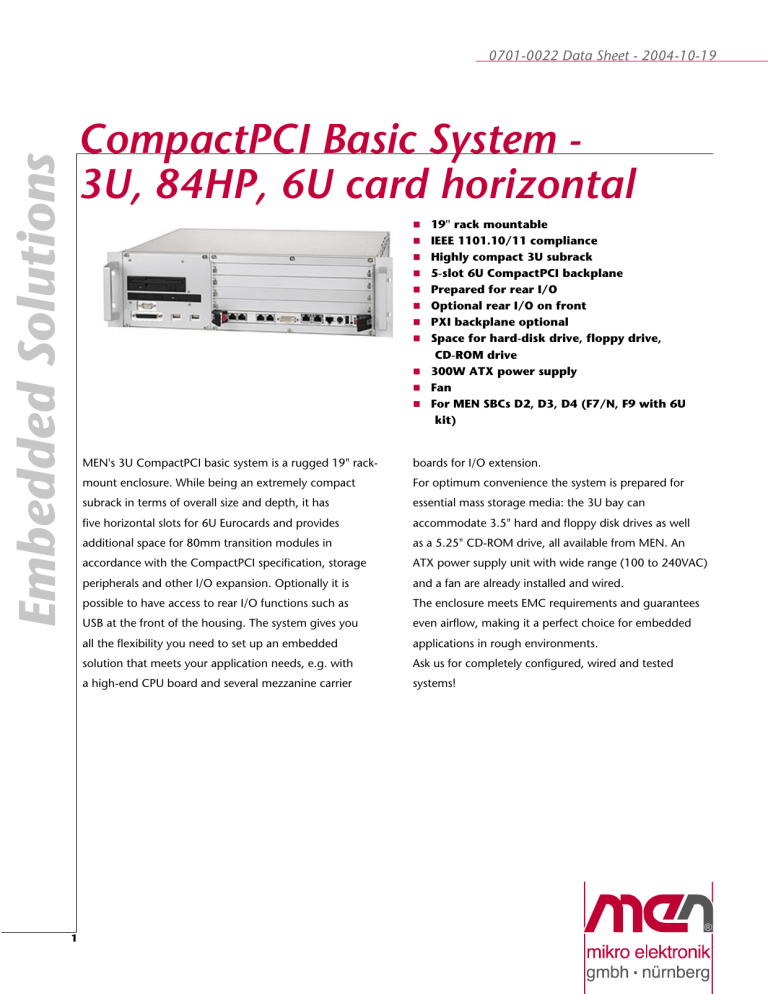

0701-0022 Data Sheet - 2004-10-19
Embedded Solutions
CompactPCI Basic System 3U, 84HP, 6U card horizontal
n
n
n
n
n
n
n
n
n
n
n
1
19" rack mountable
IEEE 1101.10/11 compliance
Highly compact 3U subrack
5-slot 6U CompactPCI backplane
Prepared for rear I/O
Optional rear I/O on front
PXI backplane optional
Space for hard-disk drive, floppy drive,
CD-ROM drive
300W ATX power supply
Fan
For MEN SBCs D2, D3, D4 (F7/N, F9 with 6U
kit)
MEN's 3U CompactPCI basic system is a rugged 19" rack-
boards for I/O extension.
mount enclosure. While being an extremely compact
For optimum convenience the system is prepared for
subrack in terms of overall size and depth, it has
essential mass storage media: the 3U bay can
five horizontal slots for 6U Eurocards and provides
accommodate 3.5" hard and floppy disk drives as well
additional space for 80mm transition modules in
as a 5.25" CD-ROM drive, all available from MEN. An
accordance with the CompactPCI specification, storage
ATX power supply unit with wide range (100 to 240VAC)
peripherals and other I/O expansion. Optionally it is
and a fan are already installed and wired.
possible to have access to rear I/O functions such as
The enclosure meets EMC requirements and guarantees
USB at the front of the housing. The system gives you
even airflow, making it a perfect choice for embedded
all the flexibility you need to set up an embedded
applications in rough environments.
solution that meets your application needs, e.g. with
Ask us for completely configured, wired and tested
a high-end CPU board and several mezzanine carrier
systems!
®
0701-0022 Data Sheet - 2004-10-19
Embedded Solutions
Technical Data
General System Characteristics
n Compliance with IEC 60 297-3, IEC 60 297-4, IEEE 1101.10,
IEEE 1101.11
n 5 slots for 6U Eurocard boards
n 5 slots for 6U rear I/O 80mm I/O bords
n Ventilation using DC fan through side panels
Suited for MEN Boards...
n D2
n D3
n D4
n (F7/N with 6U kit)
n (F9 with 6U kit)
Mechanical Specifications
n 19" rack-mount standard
n 6U card horizontal
n 3U/32T bay for 3.5" floppy disk drive, 3.5" hard disk
drive, laptop CD-ROM drive
n Rear-I/O cut-outs:
o Optional on front 3U bay
o 2 cut-outs for USB
o 1 cut-out for COM (for 9-pin D-Sub or 15-pin HD-Sub
connector)
o 1 cut-out for parallel port (for 25-pin D-Sub or 44-pin
HD-Sub connector)
n Dimensions: 3U, 84HP, 360mm depth
n Weight: tbd.
CompactPCI Backplane
n Compliance with CompactPCI Spec. 2.0 Rev. 2.1 and IEC 61
076-4-101 (connectors)
n 5-slot
n 6U with rear I/O on J3/J4/J5
n System slot on the left (bottom)
Power Supply
n PC power supply PS/2
o ATX-PSU 300W
o 100V..240V AC
o 50/60Hz
o Agency-approved: CE, TÜV Rheinland, UL Recognized
Component mark, UL Canadian Recognized Component mark
n Back-panel power connectors
n Power-on switch
Environmental Specifications
n Temperature range (operation):
n 0..+50°C
n Temperature range (storage): -40..+85°C
n Relative humidity (operation): max. 95% non-condensing
n Relative humidity (storage): max. 95% non-condensing
n Altitude: -300m to + 3,000m
n Shock: 15g/11ms
n Bump: 10g/16ms
n Vibration (sinusoidal): 2g/10..150Hz
EMC
n Tested according to EN 55022 / 1999-05 (radio
disturbance) and EN 55024 / 1999-05 (immunity) with
regard to CE conformity
2
®
0701-0022 Data Sheet - 2004-10-19
Embedded Solutions
Diagram
3
®
0701-0022 Data Sheet - 2004-10-19
Embedded Solutions
Related Products
Standard Hardware
0701-0022
CompactPCI 19" 3U/84HP horizontal rack-mount enclosure for 6U cards,
5-slot 6U CompactPCI backplane, system slot right (bottom), prepared for
rear I/O, space for hard-disk drive, floppy drive, CD-ROM drive, 300W
ATX power supply wide range 100..240VAC, fan
Systems & Card Cages
Disk drives for basic systems are delivered as requested. Different rack sizes, power supplies
and backplanes on request.
MEN also supplies turn-key systems including installed CPU and extension boards,
peripherals and software! For details on available CPU boards, mezzanine I/O extension and
software, please contact your local sales representative.
Accessories
0710-0002
CD ROM (laptop type) drive incl. mounting and mounting material
0710-0004
Standard floppy disk drive incl. cable and mounting accessories
0710-0005
3.5" IDE hard disk drive incl. mounting material, usual market capacity
0714-0001
Filler panel 6U/4HP IEEE1101
0714-0004
Cooling baffle for 6U, 4HP 160mm deep
0780-0001
Power cable with power connector/safety plug, 2m
For the most up-to-date ordering information and direct links to other data sheets and
downloads, see the 0701-0022 online data sheet under www.men.de. --> Click here!
