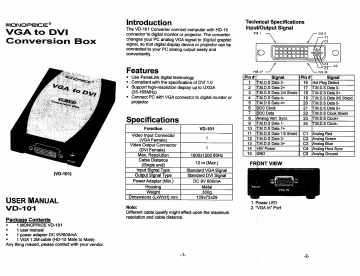

Introduction
VGA to DVI
Conversion
The VD-101 Converter connect computer with HD-15
connector to digital monitor or projector. The converter
Technical Specifications
Input/Output Signal
PIN 1
changes your PC analog VGA signal to digital graphic
signal, so that digital display device or projector can be
connected to your PC analog output easily and
conveniently.
Features
■ Use PanelLink digital technology
■ Compliant with the specification of DV11.0
■ Support high-resolution display up to UXGA
(25-165MHz)
■ Connect PC with VGA connector to digital monitor or
projector
Specifications
(VD-101)
USER MANUAL
VD-101
Package Contents
Note:
Different cable qualify might effect upon the maximum
resolution and cable distance.
1. Power LED
2. "VGA In" Port
1 MONOPRICE VD-101
-
1 user manual
"
1 power adapter DC 9V/600mA
1 VGA 1.2M cable (HD-15 Male to Male)
Any thing missed, please contact with your vendor.
-1-
-2-
REAR VIEW
DIP Switch Settings
Horizontal Adjust
Vertical Adjust
1. MDVI Out" Port
2. Input Power Jack
BOTTOM VIEW
Adjust switch "Up + n" when screen position is lower.
Adjust switch "Down + if when screen position is upper.
1. Sharpness adjust (1-4)
2. Horizontal adjust (5-9)
3. Vertical adjust (10-12)
Installation
1. Turn off the PC and monitor.
2. Connect the VGA male extension cable between the PC
and the "VGA In" port of VD-101.
3. Connect the DVI male extension cable between the
monitor and the "DVI Out" port of VD-101.
4. Connect the power cord and turn on the VD-101.
5. Turn on the PC and digital monitor or projector.
Support VGA mode
Adjust switch "Sharpness" To correct flickering text or line.
ON
ON
Adjust switch 'Left + n" when screen position is right slant.
Adjust switch 'Right + n" when screen position is left slant.
Trademarks:
All the! companies, brand names, and product names
referred to this manual are the trademarks or
registered trademarks belonging to their respective
companies.
-3-
