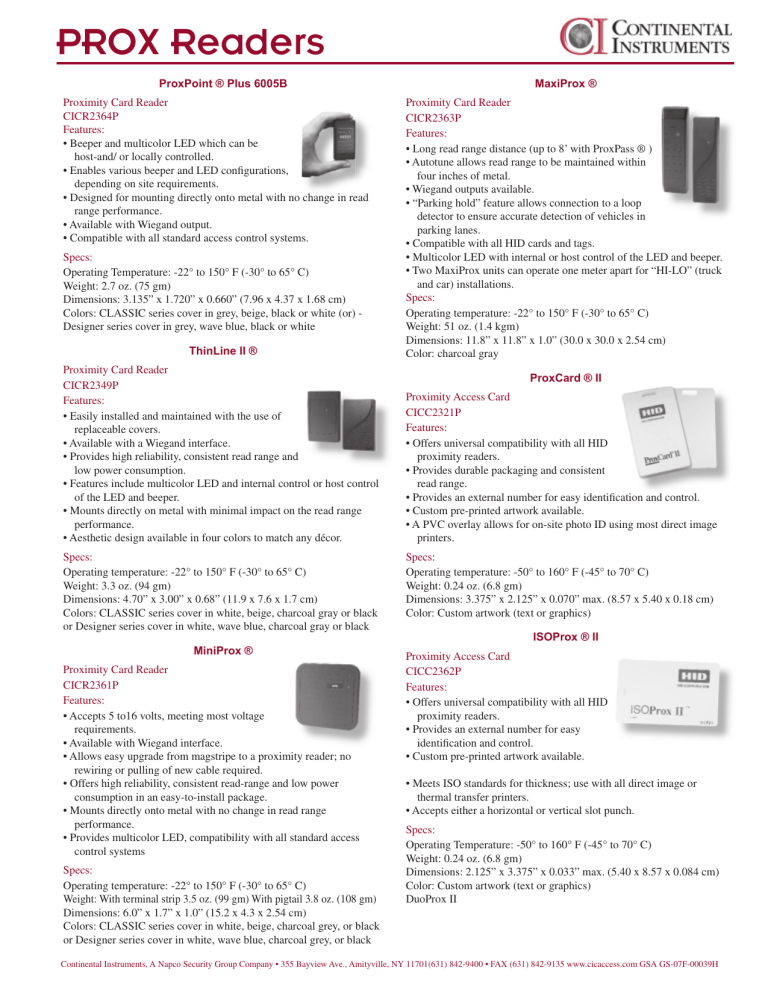

PROX Readers
ProxPoint ® Plus 6005B
MaxiProx ®
ThinLine II ®
Proximity Card Reader
CICR2363P
Features:
• Long read range distance (up to 8’ with ProxPass ® )
• Autotune allows read range to be maintained within
four inches of metal.
• Wiegand outputs available.
• “Parking hold” feature allows connection to a loop
detector to ensure accurate detection of vehicles in
parking lanes.
• Compatible with all HID cards and tags.
• Multicolor LED with internal or host control of the LED and beeper.
• Two MaxiProx units can operate one meter apart for “HI-LO” (truck
and car) installations.
Specs:
Operating temperature: -22° to 150° F (-30° to 65° C)
Weight: 51 oz. (1.4 kgm)
Dimensions: 11.8” x 11.8” x 1.0” (30.0 x 30.0 x 2.54 cm)
Color: charcoal gray
Proximity Card Reader
CICR2349P
Features:
• Easily installed and maintained with the use of
replaceable covers.
• Available with a Wiegand interface.
• Provides high reliability, consistent read range and
low power consumption.
• Features include multicolor LED and internal control or host control
of the LED and beeper.
• Mounts directly on metal with minimal impact on the read range
performance.
• Aesthetic design available in four colors to match any décor.
Proximity Access Card
CICC2321P
Features:
• Offers universal compatibility with all HID
proximity readers.
• Provides durable packaging and consistent
read range.
• Provides an external number for easy identification and control.
• Custom pre-printed artwork available.
• A PVC overlay allows for on-site photo ID using most direct image
printers.
Proximity Card Reader
CICR2364P
Features:
• Beeper and multicolor LED which can be
host-and/ or locally controlled.
• Enables various beeper and LED configurations,
depending on site requirements.
• Designed for mounting directly onto metal with no change in read
range performance.
• Available with Wiegand output.
• Compatible with all standard access control systems.
Specs:
Operating Temperature: -22° to 150° F (-30° to 65° C)
Weight: 2.7 oz. (75 gm)
Dimensions: 3.135” x 1.720” x 0.660” (7.96 x 4.37 x 1.68 cm)
Colors: CLASSIC series cover in grey, beige, black or white (or) Designer series cover in grey, wave blue, black or white
Specs:
Operating temperature: -22° to 150° F (-30° to 65° C)
Weight: 3.3 oz. (94 gm)
Dimensions: 4.70” x 3.00” x 0.68” (11.9 x 7.6 x 1.7 cm)
Colors: CLASSIC series cover in white, beige, charcoal gray or black
or Designer series cover in white, wave blue, charcoal gray or black
MiniProx ®
Proximity Card Reader
CICR2361P
Features:
• Accepts 5 to16 volts, meeting most voltage
requirements.
• Available with Wiegand interface.
• Allows easy upgrade from magstripe to a proximity reader; no
rewiring or pulling of new cable required.
• Offers high reliability, consistent read-range and low power
consumption in an easy-to-install package.
• Mounts directly onto metal with no change in read range
performance.
• Provides multicolor LED, compatibility with all standard access
control systems
Specs:
Operating temperature: -22° to 150° F (-30° to 65° C)
Weight: With terminal strip 3.5 oz. (99 gm) With pigtail 3.8 oz. (108 gm)
Dimensions: 6.0” x 1.7” x 1.0” (15.2 x 4.3 x 2.54 cm)
Colors: CLASSIC series cover in white, beige, charcoal grey, or black
or Designer series cover in white, wave blue, charcoal grey, or black
ProxCard ® II
Specs:
Operating temperature: -50° to 160° F (-45° to 70° C)
Weight: 0.24 oz. (6.8 gm)
Dimensions: 3.375” x 2.125” x 0.070” max. (8.57 x 5.40 x 0.18 cm)
Color: Custom artwork (text or graphics)
ISOProx ® II
Proximity Access Card
CICC2362P
Features:
• Offers universal compatibility with all HID
proximity readers.
• Provides an external number for easy
identification and control.
• Custom pre-printed artwork available.
• Meets ISO standards for thickness; use with all direct image or
thermal transfer printers.
• Accepts either a horizontal or vertical slot punch.
Specs:
Operating Temperature: -50° to 160° F (-45° to 70° C)
Weight: 0.24 oz. (6.8 gm)
Dimensions: 2.125” x 3.375” x 0.033” max. (5.40 x 8.57 x 0.084 cm)
Color: Custom artwork (text or graphics)
DuoProx II
Continental Instruments, A Napco Security Group Company • 355 Bayview Ave., Amityville, NY 11701(631) 842-9400 • FAX (631) 842-9135 www.cicaccess.com GSA GS-07F-00039H
DuoProx II
ProxPass
Proximity Access Card
CICC2322P
Features
• Offers universal compatibility with all
HID proximity readers.
• Provides an external number for easy
identification and control.
• Custom pre-printed artwork available.
• Meets ISO standards for thickness; use with all direct image or
thermal transfer printers.
• Accepts either a horizontal or vertical slot punch.
• Using HID’s ProxProgrammer, card vendors can ship graphicsquality proximity cards, custom programmed to their customers’
requirements, from their own inventory. Enables smaller order
quantities and overnight delivery.
Specs:
Operating Temperature: -50° to 160° F (-45° to 70° C)
Weight: 0.24 oz. (6.8 gm)
Dimensions: 2.125” x 3.375” x 0.033” max. (5.40 x 8.57 x 0.084 cm)
Color: Custom Artwork (text or graphics)
ProxPro ®
Reader & Reader w/Keypad
CICR2362P
CICR2362PK w/Keypad
Features:
• Affords high reliability, consistent read range
characteristics and low power consumption in a
single, easy-to-install package.
• Features multicolor LED, internal or host control of
the LED and/or beeper and a beeper “off” switch
for silent operation.
• Provides Wiegand protocol interface compatibility
with all standard access control systems.
• Offers an optional, fully integrated personal
identification number keypad for heightened security.
Long Range Proximity Tag for Vehicle Access Control
CICC2331
Features:
• Provides a six to eight foot read range.
• Velcro backing attaches easily to interior of
vehicle windshield.
• Attractive, durable sealed case.
• Compatible with MaxiProx ® reader and all HID card formats up to
37 bits.
• Two to five year battery life, depending on usage.
• Competitively priced as compared to VHF vehicle tags.
Specs:
Operating temperature: -22° to 185° F (-30° to +85° C)
Dimensions: 3.61” x 2.66” x 0.30” max.(91.6mm x 67.5mm x 7.6mm)
Color: White
ProxKey®II
Proximity Keyfob
CICC2327P
Features:
• Offers universal compatibility with
all HID proximity readers.
• Provides an external number for easy
identification and control.
• Can be placed on a key ring for convenient entry.
Specs:
Operating Temperature: -50° to 160° F (-45° to 70° C)
Weight: 0.26 oz. (7.4 gm)
Dimensions: 1.9” x 0.9” x 0.345” max.
(4.83 x 2.29 x 0.88 cm)
Color: charcoal grey
Specs:
Operating temperature: -22° to 150° F (-30° to 65° C)
Weight: 12 oz. (336 gm)
Dimensions: 5.0” x 5.0” x 1.0” (12.7 x 12.7 x 2.54 cm)
Color: grey or beige
A NAPCO SECURITY GROUP COMPANY
355 Bayview Avenue, Amityville, New York 11701 • 631.842.9400 • 631.842.9135•ESA GS-07F-0039H • www.cicaccess.com
CardAccess is a registered trademark of Continental/NAPCO
A459
