Mighty Mo® 6 Seismic Cable Management Racks

Mighty Mo® 6 Seismic Cable Management Racks

HIGH PERFORMANCE STRUCTURED

CABLING PRODUCTS AND SOLUTIONS

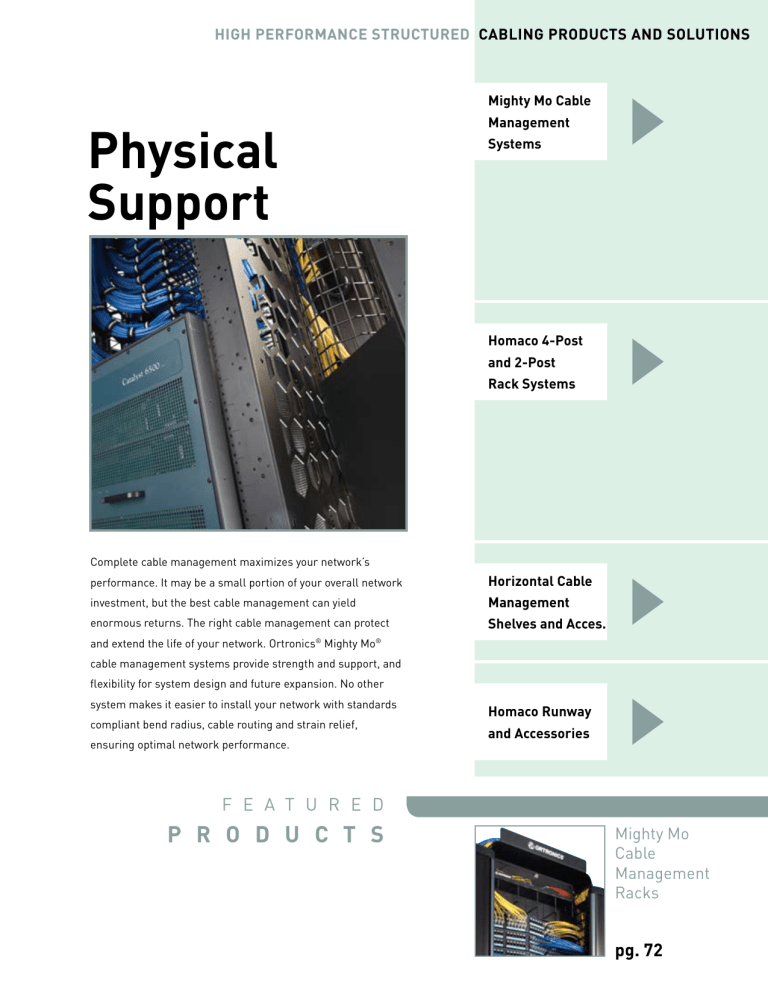

Physical

Support

Mighty Mo Cable

Management

Systems

Homaco 4-Post and 2-Post

Rack Systems

Complete cable management maximizes your network’s performance. It may be a small portion of your overall network investment, but the best cable management can yield enormous returns. The right cable management can protect and extend the life of your network. Ortronics

®

Mighty Mo

® cable management systems provide strength and support, and flexibility for system design and future expansion. No other system makes it easier to install your network with standards compliant bend radius, cable routing and strain relief, ensuring optimal network performance.

F E A T U R E D

P R O D U C T S

Horizontal Cable

Management

Shelves and Acces.

Homaco Runway and Accessories

Mighty Mo

Cable

Management

Racks

pg. 72

HIGH PERFORMANCE STRUCTURED

CABLING PRODUCTS AND SOLUTIONS

P.72

Mighty Mo 10

Cable

Management

Racks

P.78

Mighty Mo 6

Horizontal

Management and Equipment

Shelves

P.86

Adjustable Dual

Equipment

Racks and

Accessories

P.97

Swing-EZ

Wall Racks

P.103

Cable

Management

Panels

P.117

Bonding &

Grounding

Mighty Mo

Telecom

Enclosures

pg. 84

P.74

Mighty Mo 6

Cable

Management

Racks

P.81

Mighty Mo 6

Seismic Cable

Management

Racks

P.91

Standard

Equipment

Racks and

Accessories

P.101

Ortronics Wall

Mount Relay

Racks and

Hinged Wall

Mount Brackets

P.108

Equipment

Shelves

P.123

Tubular

Runway

Homaco

Swing-EZ

Wall Racks

pg. 97

P.75

Mighty Mo 6

Vertical

Management and Accessories

P.84

Mighty Mo

Telecom

Enclosures

P.93

DirectPath

Equipment

Racks and

Accessories

P.112

Rack and Cabinet

Accessories

P.125

Runway Clamp

Assemblies

Mighty Mo

®

Cable Management System

The patented Mighty Mo advanced racking system is specifically designed for higher density cabling system applications such as data centers, SANs, and main cross connect areas. It is easy to assemble and offers many configuration options, extra vertical cable capacity, and other functional and aesthetic elements. The Mighty Mo system features an innovative vertical management

“cage” with individual 1-rack unit fingers and a double-hinged door. Horizontal cable managers, available with covers, are designed to match the layout of Ortronics

®

Clarity

®

patch panels. Mighty Mo racks and accessories work together to mount, manage and organize virtually any structured cabling equipment and provide a unified, streamlined look.

Choose from the new Mighty Mo 10 rack, specifically designed to improve airflow in data centers, or the Mighty Mo 6 for standard LAN applications.

n

Patented channel construction has built-in strain relief, bend radius control, and cable routing with floor and ceiling access to distribution cables n

Top trough with built-in waterfall provides bend radius control and efficient patch cable routing n

Vented double hinged front and rear doors are available for additional security on Mighty Mo 6 and Mighty Mo 10 racks n

Can be assembled as a 19” or 23” rack. No additional hardware required; no need for two sizes of racks n

Unless otherwise noted, all Mighty Mo 6 and Mighty Mo 10 components are compatible with both racks

Mighty Mo

®

10

Cable Management Racks

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Mighty Mo 10 Cable

Management Racks

Mighty Mo 10 racks are designed to maximize the airflow of network equipment. Honeycomb side rails and baffles combine to manage intake and exhaust air creating cold aisle/hot aisle air distribution from side vented equipment. The bottom flange turns inward, allowing it to fit on a 2’x2’ floor tile. Color is black.

OR-MM10716

PART NO.

OR-MM10716

OR-MM10816

DESCRIPTION

16.25” channel depth, 7’, high, black,

45 rack units

16.25” channel depth, 8’, high, black,

51 rack units

NOTE: Static capacity 1,500 lbs. Assembly required. Patent pending

Mighty Mo Speednut

Faster Assembly!

Included with every Mighty Mo cable management rack! The Mighty Mo Speednut increases the speed and ease of assembly while adding extra strength to your racks.

Hold the Speednut behind the rack while hand-tightening the bolts in front. Speednut eliminates the need for a second wrench!

Mighty Mo 10 Server Rack

The Mighty Mo 10 Server Rack works with all of the Mighty Mo 6 and 10 racks and cable management. The mounting rails adjust from 12.5” to

30”, independent of the structural members allowing the rails to be adjusted after the rack is installed.

Mighty Mo vertical managers can be mounted front or rear. Color is black.

PART NO.

DESCRIPTION

OR-MM107SVR

Four-post aluminum frame with steel

EIA rails, supplied with 50 #12-24 cage nuts and screws, 45 rack units, 7’H

OR-MM107SVRABR

Server rack baffle rail for mounting airflow baffles

NOTE: Static capacity: 1,200 lbs. (evenly distributed)

Assembly required.

72

OR-MM107SVR

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

Mighty Mo

®

10

Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Mighty Mo 10 Cable

Management Cage with Door

Cage design promotes efficient routing of patch cords between racks. Hinged doors allow easy access during moves, adds, and changes. 16” wide cage creates a

12.25” gap between racks. 12” wide cage creates a 8.25” gap between racks for front-to-back routing of equipment cables and patch cords.

Both are supplied with four spools and 12 bend-limiting clips. Black

OR-MM10VMD712

PART NO.

DESCRIPTION

OR-MM10VMD712 With door, 12.13” x 13” x 7’

OR-MM10VMD716 With door, 16.38” x 13” x 7’

OR-MM10VMD812 With door, 12.13” x 13” x 8’

OR-MM10VMD816 With door, 16.38” x 13” x 8’

NOTE: All cable managers include hardware necessary to mount the cage on the face of two Mighty Mo 6 or 10 racks.

Patent Numbers 6,946,605, 6,968,647 and 7,026,553

Mighty Mo 10

Airflow Baffles

Mighty Mo 10 airflow baffles mount between racks and direct intake and exhaust air on side flow network equipment from cold aisle to hot aisle. Black

PART NO.

OR-MM10AB71612

OR-MM10AB71616

OR-MM10AB81612

OR-MM10AB81616

DESCRIPTION

For use with 7’ x 16” Mighty Mo 10 rack and 12” wide Mighty Mo 10 cage

For use with 7’ x 16” Mighty Mo 10 rack and 16” wide Mighty Mo 10 cage

For use with 8’ x 16” Mighty Mo 10 rack and 12” wide Mighty Mo 10 cage

For use with 8’ x 16” Mighty Mo 10 rack and 16” wide Mighty Mo 10 cage

NOTE: Includes all hardware necessary to mount between two Mighty

Mo 10 racks. Not intended for use with Mighty Mo 6 racks.

Patent pending

OR-MM10AB71612

OR-MM10VDA7248

Mighty Mo 10 Vented

Door Assemblies

Door design allows mounting to the front or rear of any Mighty Mo 6 or

Mighty Mo 10 rack. The double- hinged door pivots to the right or left and is easily removed. Black

PART NO.

DESCRIPTION

OR-MM10VDA7248

7’ x 24” with 8.38” of clearance behind door for use with VMD-style vertical managers

OR-MM10VDA7244

OR-MM10VDA8248

7’ x 24” with 4.38” of clearance behind door for use without vertical managers

8’ x 24” with 8.38” of clearance behind door for use with VMD-style vertical managers

OR-MM10VDA8244

8’ x 24” with 4.38” of clearance behind door for use without vertical managers

NOTE: Door designed to work with Mighty Mo racks assembled in the 19” configuration.

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

73

74

Mighty Mo

®

6

Cable Management Racks

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Mighty Mo 6 Cable

Management Racks

Mighty Mo ® 6 racks are available in

6.5”, 10.5” and 16.25” channel depths.

The 16.25” size is designed specifically for large and heavy network equipment. The bottom flange on the

16.25” standard rack turns inward, allowing it to fit on a 2’ x 2’ floor tile.

OR-MM6710

PART NO.

OR-MM6706

OR-MM6710

OR-MM6810

OR-MM6716

OR-MM6816

DESCRIPTION

6.5” channel depth, 7’ high, black,

45 rack units

10.5” channel depth, 7’, high, black,

45 rack units

10.5”channel depth, 8’, high, black,

51 rack units

16.25” channel depth, 7’, high, black,

45 rack units

16.25” channel depth, 8’, high, black,

51 rack units

NOTE: Static capacity 1,500 lbs. Assembly required.

See page 132-134 for new fiber products optimized for use with

Mighty Mo 6

Patent No. D360,189

Mighty Mo Speednut

Faster Assembly!

Included with every Mighty Mo 6!

The Mighty Mo Speednut increases the speed and ease of assembly while adding extra strength to your racks. Hold the Speednut behind the rack while hand-tightening the bolts in front. Speednut eliminates the need for a second wrench! Finish tightening with a wrench and your rack is ready to load.

OR-MM6716

OR-MM6CBL10

Mighty Mo Channel

Bend Limiters

Mighty Mo Channel Bend Limiters clip onto the top edge of Mighty Mo channels providing the proper bend radius for cables entering the channel. Set of 2. Black

PART NO.

OR-MM6CBL06

OR-MM6CBL10

OR-MM6CBL16

DESCRIPTION

For use with Mighty Mo racks with

6.5” channels

For use with Mighty Mo racks with

10.5” channels

For use with Mighty Mo racks with

16.25” channels

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

Mighty Mo

®

6

Vertical Management

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Mighty Mo 6 Cable

Management Cage with Door

Cage design promotes efficient routing of patch cords between racks. Hinged doors allow easy access during moves, adds, and changes. 10” wide cage creates a

6.5” gap between racks. 6” wide cage creates a 2.5” gap between racks for front-to-back routing of equipment cables and patch cords.

Both are supplied with four spools and 12 bend-limiting clips. Black

OR-MM6VMD710

PART NO.

DESCRIPTION

OR-MM6VMD706 With door, 6” x 8” x 7’

OR-MM6VMD710 With door, 10” x 13” x 7’

OR-MM6VMD806 With door, 6” x 8” x 8’

OR-MM6VMD810 With door, 10” x 13” x 8’

NOTE: All cable managers include hardware necessary to mount the cage on the face of two Mighty Mo 6 racks. The 6” wide model contains gusset brackets and is recommended for a single rack or end of a row.

Patent Numbers 6,946,605, 6,968,647 and 7,026,553

OR-MM6VMS704

Mighty Mo 6 Vertical

Cable Management

Cage with Cover

Cage design promotes efficient routing of patch cords between racks. Dual snap on hinged covers allow easy access during moves, adds, and changes. 6” wide cage creates a 2.5” gap between racks for front-to-back routing of equipment cables and patch cords. 6” wide cage is supplied with four spools and 12 bend-limiting clips. Black

PART NO.

DESCRIPTION

OR-MM6VMS704 With cover, 4” x 7” x 7’

OR-MM6VMS706 With cover, 6” x 7” x 7’

OR-MM6VMS804 With cover, 4” x 7” x 8’

OR-MM6VMS806 With cover, 6” x 7” x 8’

NOTE: Includes all hardware necessary to mount cage on face of two

Mighty Mo 6 racks, single rack or end of row.

Patent Numbers 6,946,605 and 7,026, 553

Mighty Mo 6 Vertical

Cable Management

Cage with Latches

Patented design promotes efficient routing of patch cords between racks. Hinged latches allow easy access during moves, adds, and changes. 6” wide cage creates a

2.5” gap between racks for front- to-back routing of equipment cables and patch cords. Black

PART NO.

DESCRIPTION

OR-MM6VML704 With latches, 4” x 6” x 7’

OR-MM6VML706 With latches, 6” x 6” x 7’

OR-MM6VML804 With latches, 4” x 6” x 8’

OR-MM6VML806 With latches, 6” x 6” x 8’

NOTE: Includes all hardware necessary to mount cage on face of two

Mighty Mo 6 racks, single rack or end of row.

Patent No. 6,365,834

OR-MM6VML706

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

75

76

Mighty Mo

®

Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Mighty Mo 10

Waterfall Extension

OR-MM10WFE

OR-60400614

OR-60400017

PART NO.

OR-MM10WFE

DESCRIPTION

Increases the height of the front flange of the Mighty Mo waterfall by 2.25” when additional cable capacity is required. Black

NOTE: Fits all Mighty Mo 10, 6 and 3 waterfalls

Cable Management Rings

These black plastic rings flex at the end for easy insertion or removal of cross connect cables. They snap in place on the front and back of the

Mighty Mo racks. Black.

PART NO.

DESCRIPTION

OR-60400614 Snap-type, 1.75” X 6”, package of 14

OR-60400542 Snap-type, 1.75” X 6”, package of 2

OR-60400314 Snap-type, 1.75” x 3”, package of 14

OR-60400302 Snap-type, 1.75” x 3”, package of 2

NOTE : No hardware needed.

Cable Management Rings

These rings allow efficient routing of patch or cross connect cables between distribution racks. They can be mounted where needed on the front and back of the Mighty Mo racks. Black.

PART NO.

DESCRIPTION

OR-60400017 2” x 6”, black, package of 14

OR-60400062 2” x 6”, black, package of 2

NOTE : Includes mounting hardware.

OR-MM6CMS8

Mighty Mo Cable

Management Spools

Cable management spools effectively manage excess copper or fiber cable slack. They mount at rack unit intervals, providing flexibility and proper bend radii for cables on the front of the

6” wide cage with door or on the front and rear of the 10” wide cage with door.

Set of four. Black

PART NO.

OR-MM6CMS10

OR-MM6CMS8

OR-MM6CMS6

DESCRIPTION

11” long for 10” vertical management cage with door

8” long for 10” vertical management cage with door

6” long for 6” vertical management cage with door

OR-MM6BLC

OR-60400687

Mighty Mo Bend Limiting Clip

Bend limiting clips snap on to any finger on the vertical management cage to provide bend limitation for fiber jumpers entering and exiting the cage. Set of 12.

Black

PART NO.

OR-MM6BLC

DESCRIPTION

3.25” long for vertical management cages with door or cover

Mighty Mo Vertical

Management Bracket Kit

Vertical management bracket kit includes 4 brackets and all the hardware needed to mount 2 Mighty Mo 6 vertical managers to a standard EIA rack.

Black

PART NO.

OR-60400687

DESCRIPTION

Kit consists of 4 brackets, 8 panel mounting screws and 4 cage mounting screws.

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

Mighty Mo

®

Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

OR-MM6CRB06 OR-MM6CRB10

Mighty Mo Cable Runway

Mounting Brackets

Mounts to top of either 6.5”, 10.5” or 16.25” Mighty Mo 6 standard racks, or to top of Mighty Mo 10 server rack. Mounting location for

6”–18” ladder racking on the side.

Black

PART NO.

OR-MM6CRB06

OR-MM6CRB10

OR-MM6CRB16

DESCRIPTION

For rack with 6.5” channel depth

For rack with 10.5” channel depth

For rack with 16.25” channel depth

OR-MM10CRBSVR For MM10 server rack

OR-MM10CRBRSVR For rear of MM10 server rack

OR-MM6CRB16

OR-MM6BDC10 OR-MM6BDC16

Mighty Mo Rack Base

Dust Cover

Prevents dust and debris from accumulating in rack base. Scored for bending to clear cables from floor up to channel. Black

PART NO.

DESCRIPTION

OR-MM6BDC06 For 6.5” channel standard rack

OR-MM6BDC10 For 10.5” channel standard rack

OR-MM6BDC16 For 16.25” channel standard rack

OR-MM6CEK10

Mighty Mo Runway Ceiling Extension Kit

Mounts on the top of Mighty Mo 6 racks. The kit extends one channel 24” and is supplied with a cover to hide the cables. Color is black.

PART NO.

OR-MM6CEK10

OR-MM6CEK16

DESCRIPTION

For rack with 10.5” channel depth, one per kit with cover

For rack with 16.25” channel depth, one per kit with cover

NOTE: Extension uses rack hardware for mounting

OR-MM6EP710 OR-MM6EP706

Mighty Mo End Panel

The end panel is used to finish the end of a row of Mighty Mo racks.

It mounts flush and provides a surface for the vertical cable management channel while concealing cables in the rack channel. Color is black.

Standard

For use with 6” Mighty Mo 6 vertical cable managers

PART NO.

DESCRIPTION

OR-MM6EP706 For 7’ rack with 6.5” channel depth

OR-MM6EP710 For 7’ rack with 10.5” channel depth

OR-MM6EP716 For 7’ rack with 16.25” channel depth

OR-MM6EP810 For 8’ rack with 10.5” channel depth

OR-MM6EP816 For 8’ rack with 16.25” channel depth

NOTE: Includes mounting hardware

Narrow

For use with 4” Mighty Mo 6 vertical cable managers

PART NO.

DESCRIPTION

OR-MM6EPN706 For 7’ rack with 6.5” channel

OR-MM6EPN710 For 7’ rack with 10.5” channel

OR-MM6EPN716 For 7’ rack with 16.25” channel

OR-MM6EPN810 For 8’ rack with 10.5” channel

OR-MM6EPN816 For 8’ rack with 16.25” channel

NOTE: Includes mounting hardware

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

77

Mighty Mo

®

Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Mighty Mo 6 Cable Trough

For supporting fiber cables at the bottom of Mighty Mo racks. The kit includes an extension that bridges the space between racks. Black

OR-MM6CT4RUK

PART NO.

DESCRIPTION

OR-MM6CT4RU Cable trough, 4RU

OR-MM6CT4RUK Cable trough kit, 4RU

NOTE : Includes mounting hardware.

Mighty Mo Isolation Pad Kit

Isolates Mighty Mo racks from concrete floors for effective bonding

& grounding.

PART NO.

OR-MMIPK

DESCRIPTION

Isolation pad kit for Mighty Mo racks

OR-MMIPK

Mighty Mo

®

Horizontal Management

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Ortronics Mighty Mo cable management panels are optimized to organize patch cords vertically and horizontally on our

Mighty Mo racks. They will also mount on any standard 19” rack. The finger design encourages defined and traceable routing of individual patch cords.

Mighty Mo 6 Horizontal Management Panels

OR-MM6HMF1RU

OR-MM6HMF4RU

OR-MM6HMF2RU

OR-MM6HM61RU

PART NO.

OR-MM6HMF1RU

OR-MM6HMF2RU

OR-MM6HMF4RU

OR-MM6HM61RU

OR-MM6HM62RU

OR-MM6HM81RU

OR-MM6HM82RU

OR-MM6HM6D2RU

DESCRIPTION

Multiple fingers, cover, one rack unit

(1.75” x 19”), black

Multiple fingers, cover, two rack units

(3.5” x 19”), black

Multiple fingers, cover, four rack units

(7.0” x 19”), black

Six-port finger spacing, cover, one rack unit (1.75” x 19”), black

Six-port finger spacing, cover, two rack units (3.5” x 19”), black

Eight-port finger spacing, cover, two rack units (1.75” x 19”), black

Eight-port finger spacing, two rack units (3.5” x 19”), black

Six-port finger spacing, double-sided, covers, two rack units (3.5” x 19”), black

OR-MM6HM62RU OR-MM6HM81RU

78

OR-MM6HM82RU OR-MM6HM6D2RU

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

Equipment Shelves

for Mighty Mo

®

Racks

See pages 108-111 for additional shelves for Mighty Mo and standard 19” racks

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

OR-60400355

OR-60400517

OR-60400655

Double Equipment Shelves for Mighty Mo

®

Racks

Ortronics double equipment shelf supports miscellaneous equipment, test gear, etc. The double shelves work with

Mighty Mo racks with 6.5” deep channels. Shelf width is

17”. Color is black.

Double Equipment Shelves for Mighty Mo

®

Racks

Ortronics double equipment shelf supports miscellaneous equipment or test gear. The double shelf works with

Mighty Mo racks with 6.5” deep channels when assembled in a 23” configuration. Shelf width is 21.37”. Black.

Double Equipment Shelves for Mighty Mo

®

Racks

Ortronics extra width double equipment shelf is 18.75” wide in front and back; usable width between mounting flanges is 17.5”. This shelf works with Mighty Mo racks with 6.5” deep channels. Black.

PART NO.

OR-60400355

OR-60400517

OR-60400655

DESCRIPTION

19" x 5.25" x 24", 150 lbs capacity

23" x 5.25" x 24", 150 lbs capacity

19" x 5.25" x 24", 150 lbs capacity

OR-604045681

OR-60400538

OR-70700126

Four Point Equipment Shelf for Mighty Mo Racks and Cabinets

Ortronics four point equipment shelf supports miscellaneous equipment or test gear. The one unit shelf works with Mighty Mo racks with all depth channels and Mighty Mo cabinets 24” and deeper.

Shelf is 17.25” wide. Color is black.

PART NO.

DESCRIPTION

OR-604045681 19” x 1.72” x 20”, 100 lbs capacity

NOTE: Equipment shelves above are slotted to accept the Ortronics monitor strap kit OR-70700126.

Mighty Mo Server Rack

Equipment Shelf

The Mighty Mo server rack equipment shelf has a fixed front flange with an infinitely adjustable rear flange that allows for secure four point mounting as deep as 30”.

Shelf width is 17.25”. Color is black.

PART NO.

OR-60400538

DESCRIPTION

19” x 1.7” x 30”, 200 lbs capacity

NOTE: Shelf is slotted to accept the Ortronics monitor strap kit OR-

70700126. Includes #12-24 mounting hardware.

Mighty Mo Monitor Strap Kit

The monitor strap kit consists of hook and loop straps which can secure a monitor with a base of any size or shape to all equipment shelves on this page. The monitor screen remains fully adjustable. Black.

PART NO.

OR-70700126

DESCRIPTION

Hook and loop type strap kit

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

79

Mighty Mo

®

Overhead Cable Pathway Rack

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

The Mighty Mo overhead cable pathway racks provide cable management and an innovative mounting method for 19” rack mount copper and fiber panels and cabinets. The pathway racks allow horizontal connectivity to be supported by the overhead pathway freeing up valuable rack or cabinet space below.

OR-60401001

Mighty Mo Overhead

Cable Pathway Rack

The Mighty Mo overhead cable pathway racks come with everything needed to mount the bracket to the side of

Homaco runway with 1-1/2” stringers or any Cablofil cable tray 2” or deeper.

Black

PART NO.

OR-60401001

OR-60401015

DESCRIPTION

2 rack units, 23.6”W x 7.4”H x 9”D,

capacity: 90 lbs.

5 rack units, 23.6”W x 12.6”H x 9”D,

capacity: 90 lbs.

Standard

Relay Rack

Ortronics 19” self supporting EIA rack is used for mounting a variety of telecommunications and data equipment. It consists of two U-channel type uprights 7’ high, two base and two top support angle cross members, and is constructed of aluminum.

Self Supporting EIA Racks

Ortronics standard EIA self supporting rack with Mighty Mo universal pattern uprights, extruded base angles and top angles. Tapped

EIA pattern front and rear and supplied with 50 #12-24 pilot point mounting screws. Top flange is pre-punched to accept 6”-18” ladder racking. Assembly required. Black.

PART NO.

DESCRIPTION

OR-604004600* 19”W x 7’H, 44 rack units

* OR-604004600 standard rack is now UL

®

listed.

NOTE: Ortronics standard EIA rack is pre-drilled to accept side mounting of all Mighty Mo 6 vertical managers.

OR-604004600*

80

OR-DVMS706

NEW

Standard Vertical Cable

Management Cage with Cover

Mounts to the side of a standard EIA rack.

Single-sided

The fingers are spaced to line up with rack units, promoting efficient routing of patch cords to patch panels and equipment from the vertical manager. Dual snap on hinged covers allow easy access during moves, add, and changes. Available in single-sided and double-sided versions.

PART NO.

OR-SVMS704

OR-SVMS706

OR-SVMS804

OR-SVMS806

Double-sided

PART NO.

NOTE: Includes all hardware necessary to mount to the side of a standard EIA rack.

OR-DVMS704

OR-DVMS706

OR-DVMS804

OR-DVMS806

DESCRIPTION

3.75” x 6.58” x 7’, single-sided

6.00” x 6.58” x 7’, single-sided

3.75” x 6.58” x 8’, single-sided

6.00” x 6.58” x 8’, single-sided

DESCRIPTION

3.75" x 13.17" x 7’, double-sided

6.00" x 13.17" x 7’, double-sided

3.75" x 13.17" x 8’, double-sided

6.00" x 13.17" x 8’, double-sided

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

Mighty Mo

®

6

Seismic Cable Management Racks

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Ortronics patent pending Mighty Mo 6 seismic cable management racks provide all of the advanced cable management features of the Mighty Mo 6 cable management system with a Zone 4 seismic rating. Unlike other seismic racks, the Mighty Mo 6 seismic racks are assembled on the job site making shipping, handling and installation easier.

n

A Zone 4 rating compliant to Telcordia GR-63-CORE with a load rating of 510 lbs.

n

The first ever “knock-down” seismic design featuring the patent pending welded “ski boot” frame that combines maximum rigidity with ease of installation, shipping and handling n

Static load rating of 3,000 lbs.

n

A full 45 rack units of mounting space with #12-24 mounting holes, front and rear n

Patented channels to route distribution cables with access from the top and bottom n

A top trough with built-in waterfall providing bend radius control and efficient patch cable routing n

Accepts all Mighty Mo 6 vertical and horizontal cable managers n

Durable black powder coat finish to minimize fingerprints and resist scratching

Seismic Cable

Management Racks

Seismic Mighty Mo 6 racks are the first ever “knock-down” design featuring the patent pending

“ski boot” frame that combines maximum rigidity with ease of installation, shipping and handling.

Both seismic racks provide a

Zone 4 rating compliant to Telcordia

GR-63-CORE with a load rating of 510 lbs., and have a static load rating of 3000 lbs. Black

PART NO.

DESCRIPTION

OR-MM6710S 10.5” channel depth, 7’H

OR-MM6716S 16.25” channel depth, 7’H

NOTE: OR-MM6710S, OR-MM6716S Patent No. Des. 360,189 further patents pending

OR-MM6710S OR-MM6716S

Mighty Mo 6 Concrete Anchor Kit

Set of four 12 mm expansion bolts, washers, and one installation tool.

PART NO.

DESCRIPTION

OR-MM6CAK Concrete anchor kit, 12mm expansion bolts

OR-MM6CAK

Mighty Mo 6 Seismic Base Trough

Mounts to the front of the base and provides a horizontal path for cables. Black

PART NO.

DESCRIPTION

OR-MM6BTS Base trough for seismic racks

OR-MM6BTS

OR-MM6BDC10S

Mighty Mo 6 Seismic Base Dust Cover

Prevents dust and debris from accumulating in rack base. Scored for bending to clear cables from floor up to channel. Black

PART NO.

OR-MM6BDC10S

OR-MM6BDC16S

DESCRIPTION

Base dust cover for seismic rack with

10.5” channel

Base dust cover for seismic rack with

16.25” channel

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

81

Mighty Mo

®

Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Raised Floor Rack Braces

Raised floor rack braces provide added support to Mighty Mo standard racks that are installed on suspended floor systems.

OR-604045709

PART NO.

OR-604045709

OR-604045710

OR-604045711

OR-604045712

OR-604045751

OR-604045752

OR-604045753

OR-604045754

OR-604045719

OR-604045720

OR-604045721

OR-604045722

OR-604045755

OR-604045756

OR-604045757

OR-604045758

DESCRIPTION

Floor to floor range of 4” to 10” for 6.5” channels

Floor to floor range of 10” to 16” for 6.5” channels

Floor to floor range of 16” to 22” for 6.5” channels

Floor to floor range of 22” to 28” for 6.5” channels

Floor to floor range of 4” to 10” for 10.5” channels

Floor to floor range of 10” to 16” for 10.5” channels

Floor to floor range of 16” to 22” for 10.5” channels

Floor to floor range of 22” to 28” for 10.5” channels

Floor to floor range of 4” to 10” for 16.25” channels

Floor to floor range of 10” to 16” for 16.25” channels

Floor to floor range of 16” to 22” for 16.25” channels

Floor to floor range of 22” to 28” for 16.25” channels

Floor to floor range of 4” to 10” for server racks

Floor to floor range of 10” to 16” for server racks

Floor to floor range of 16” to 22” for server racks

Floor to floor range of 22” to 28” for server racks

NOTE: Kit includes four braces, four threaded rods, and all necessary hardware to secure rack to subfloor and suspended floor.

82

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

Mighty Mo

®

Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Air Guard

®

Brush

Cable Grommets

OR-BCGSM6X7

Brush cable grommets help to prevent air loss in plenum cooled floors when access holes are required for cable routing through the floor. Set of 2.

Black

OR-BCGFM3X9

PART NO.

OR-BCGSM6X7

OR-BCGFM3X9

OR-BCGFMC3X9

DESCRIPTION

Surface mount two piece assembly designed to retrofit around existing cables without the need to disconnect cables.

Covers any shape or size up to 10” x 10”.

Flush mount two piece assembly designed for new installations in data centers to maximize energy efficiency.

Designed with a removable back brush that allows for great versatility when floor tiles need to be removed.

Cover fits over the flush mount brush cable grommet to provide a solid surface for increased durability and safety when cables are not going through the floor.

OR-BCGFMC3X9

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

83

Mighty Mo

®

Telecom Enclosures

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

The Mighty Mo telecom enclosures combine advanced cable management with security and flexibility to change the way you bring high performance to the desktop. Based on the foundation of Mighty Mo technology, the telecom enclosures provide capacity for both active and passive equipment and can support up to 48 users.

OR-MMTECSG22

OR-MMTECFCBP

NEW

Mighty Mo Ceiling Mount

Telecom Enclosures

The Mighty Mo Ceiling Mount Telecom

Enclosure has a unique patent pending swing gate design that allows for easy access to patching and equipment by simply opening the front cover. The swing-out access supports easy re-termination and includes dampening cylinders to control the speed of opening. The attractive exterior blends well with office decor and a lockable front door provides security and protection in public areas.

Built-in cable management supports and organizes cables, ensuring proper bend radius.

Approved to UL-2043 for use in air handling spaces.

PART NO.

OR-MMTECSG22

NOTE: Patent pending

DESCRIPTION

Mighty Mo telecom enclosure, ceiling mount, 23.50” W x 23.50” H x 20.61” D,

10 rack units, 80 lbs. capacity, Beige

Ceiling Mount Accessories

PART NO.

OR-MMTECFCBP

OR-MMTECFSP

DESCRIPTION

Plate Kit - includes Fan Plate with 100

CFM fan, guard, 3 ft. cord with plug,

Cable Brush Plate, and mounting hardware, Black

Fire Stop Cable Plate Kit - includes intumescent foam and mounting hardware. Set of 2, Beige

OR-MMTECFSP

84

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

Mighty Mo

®

Telecom Enclosures

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

OR-MMTEWSG22-G

Mighty Mo Wall Mount

Telecom Enclosure

The Mighty Mo Wall Mount Telecom

Enclosure has three-sided access to installed components to allow easy installation and MACs. Swing-out access supports easy re-termination and access to the fixed backbone mounted on the rear wall of the enclosure. The attractive exterior blends well with office decor and a lockable front door provides security and protection in public areas. Built-in cable management supports and organizes cables, ensuring proper bend radius. The cable entry brush prevents dirt and debris from entering the enclosure.

PART NO.

OR-MMTEWSG22-G

OR-MMTEWSG22-S

DESCRIPTION

Mighty Mo telecom enclosure, wall mount, safety glass door,

23.96"W x 23.76"H x 16.40"D,

11 rack units, 80 lbs. capacity

Mighty Mo telecom enclosure, wall mount, solid aluminum door,

23.96"W x 23.76"H x 16.40"D,

11 rack units, 80 lbs. capacity

Wall Mount Accessory

PART NO.

DESCRIPTION

OR-MMTEFK

Fan kit - includes fan, guard, filter, 3 ft. cord with plug, and mounting hardware.

Works with all Mighty Mo wall mount cabinets. 4" diameter, 120volt, 42 CFM

OR-MMTEHMR2RU

Cable Management Panel

Double-sided cable management panel with front rings to manage patch cords and a rear trough with slots to protect and route terminated cables.

Cable Management Accessory

PART NO.

OR-MMTEHMR2RU

DESCRIPTION

Cable management panel for the

Mighty Mo telecom enclosures, 19.00"

W x 3.47" H x 6.75" D, 2 rack units.

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

85

Homaco

®

4-Post Racks and Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

19-84-T4SDA2132

Equipment rack options self-support bases are 3-1/2” x 6” extruded aluminum angles mounted at the bottom of all standard

Homaco equipment racks.

A 1520 = 15.00–20.00”

2132 = 21.00–32.00”

B 1520 = 24.14–29.14”

2132 = 30.14–41.14”

C 1520 = 26.00–31.00”

2132 = 32.00–43.00”

Adjustable Dual

Equipment Racks

The patented Homaco adjustable dual equipment rack provides an affordable, innovative solution for housing network equipment. Unlike cabinets, its open design allows for expansion, so it is ready to adapt to future needs. The design also expands installation opportunities by enabling cross-connects, facilitating cable management, and eliminating heat build-up. Available with three adjustable depths, the rack provides a solid foundation for mounting hubs, routers, and other heavy equipment

Features:

n

Features self-supporting and self-squaring base n

Assembles quickly and easily n

Top angles and patented reinforced n base are standard

Depth adjusts in 1/2-inch increments n

Mounting holes are roll threaded for

12-24 hardware n

Allows excellent cable management opportunities n

Mounts 19” equipment and includes cross-recessed black panel n mounting screws

5/8”, 5/8”, 1/2” universal mounting hole pattern n

Equipped with standard 1/2” junctioning holes for securing multiple-rack lineups n

Constructed of 6061-T6 structural grade aluminum n

Meets EIA-310 standards n

Listed to the UL 1863 Standard for

Communication Circuit Accessories

PART NO.

OR-19-84-T4SDA1520

DESCRIPTION

84.00”H x 20.19”W x 15.00-20.00”D,

rack spaces: (1.75”) 45,

load rating: 1,000 lbs,

ship weight: 52 lbs

OR-19-84-T4SDA2132

84.00”H x 20.19”W x 21.00-32.00”D,

rack spaces: (1.75”) 45,

load rating: 1,000 lbs,

ship weight: 55 lbs

OR-19-96-T4SDA2132

96.00”H x 20.19”W x 21.00-32.00”D,

rack spaces: (1.75”) 51,

load rating: 1,000 lbs,

ship weight: 57 lbs

Black finish.

86

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

Homaco

®

4-Post Racks and Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

19-84-SSDA2132

M6 Adjustable Dual

Equipment Rack

Features:

n

Self-squares to assemble quickly n and easily

Depth adjusts in 1/2” increments n

Open ventilation reduces the need for fans n

5/8”, 5/8”, 1/2” square hole mounting pattern n

Notched markers beside hole pattern facilitate counting of rack spaces n

Base mounts to rack with the angles facing inward or outward; mount inward to use minimal floor space n

Universal L-shaped uprights allow for n mounting of sliding server rails

Steel construction allows 1000 lb. load rating n

Equipped with 1/2” junctioning holes for n securing multiple-rack lineups

Mounting hardware not included

PART NO.

OR-19-84-SSDA2132

DESCRIPTION

84.00”H x 20.19”W x 21–32”D,

load rating: 1,000 lbs,

ship weight: 80 lbs

*Depth does not include top angle. For full depth, add 3”.

Black finish

For additional product availability visit www.ortronics.com or contact sales at 800-934-5432

87

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
